Low-Vibration High-Precision Hybrid Stepper Servo Motor for Embroidery Machines

Customization:	Available
Speed:	Variable Speed
Number of Stator:	Two-Phase

Send Inquiry

Product Description

Basic Information

Model NO.

CW-86BH128-300A-55D

Excitation Mode

HB-Hybrid

Function

Control, Driving

Certification

ISO9001, CE, RoHS

Usage

CNC Machine, Engraving, 3D Printing

Origin

China

Product Description

CW-86BH128-300A-55D

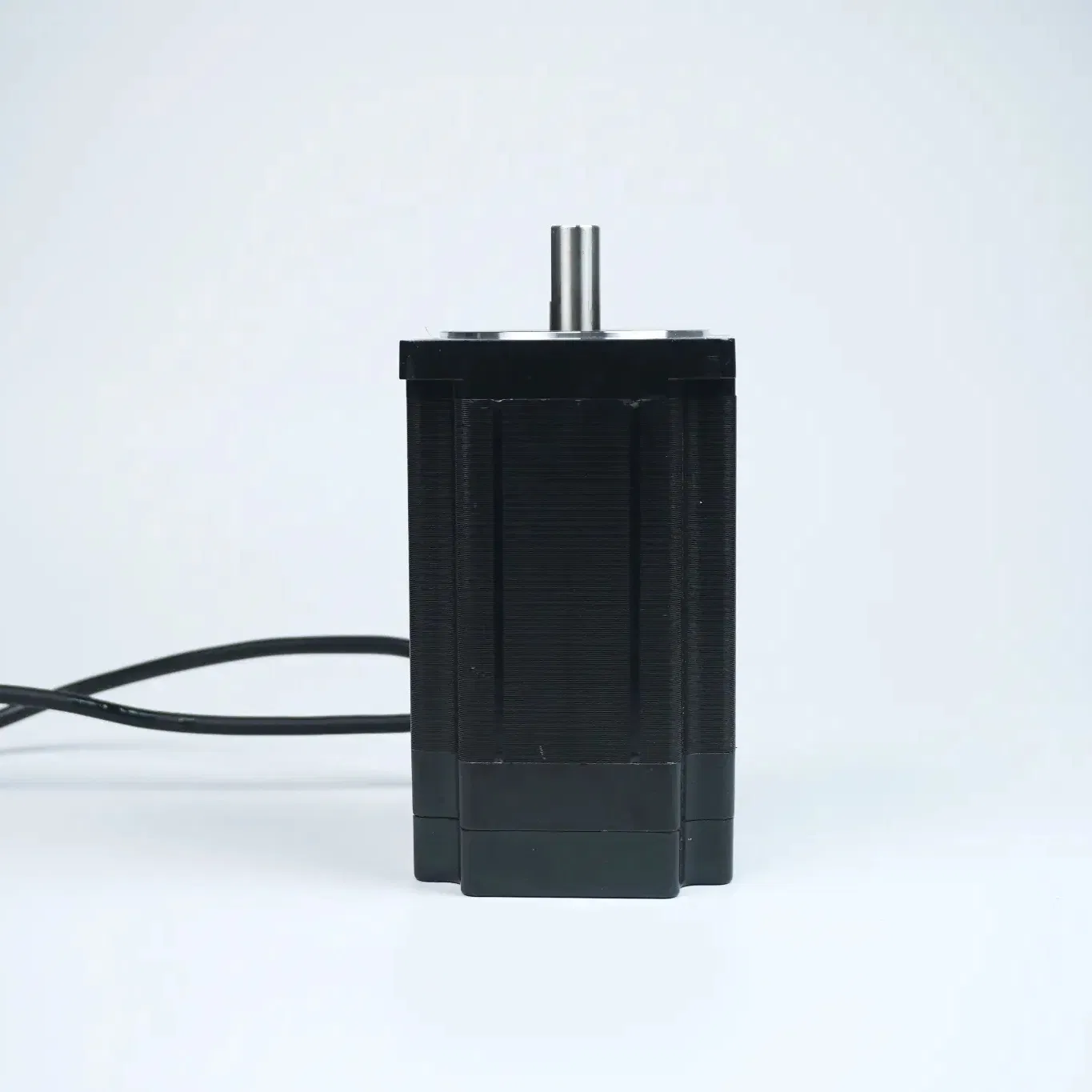

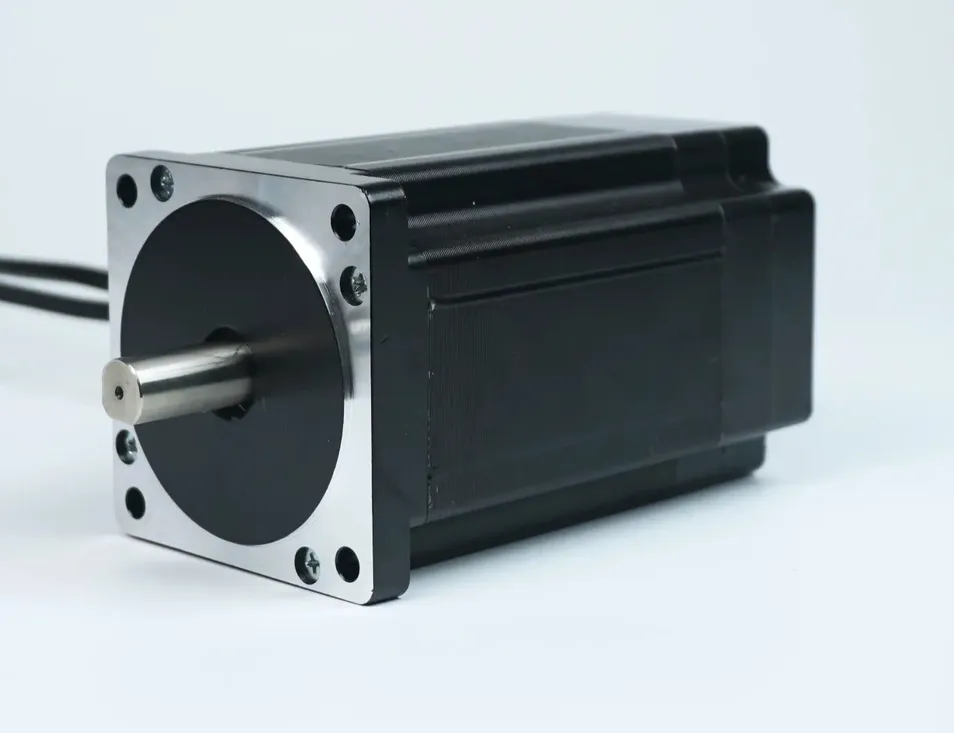

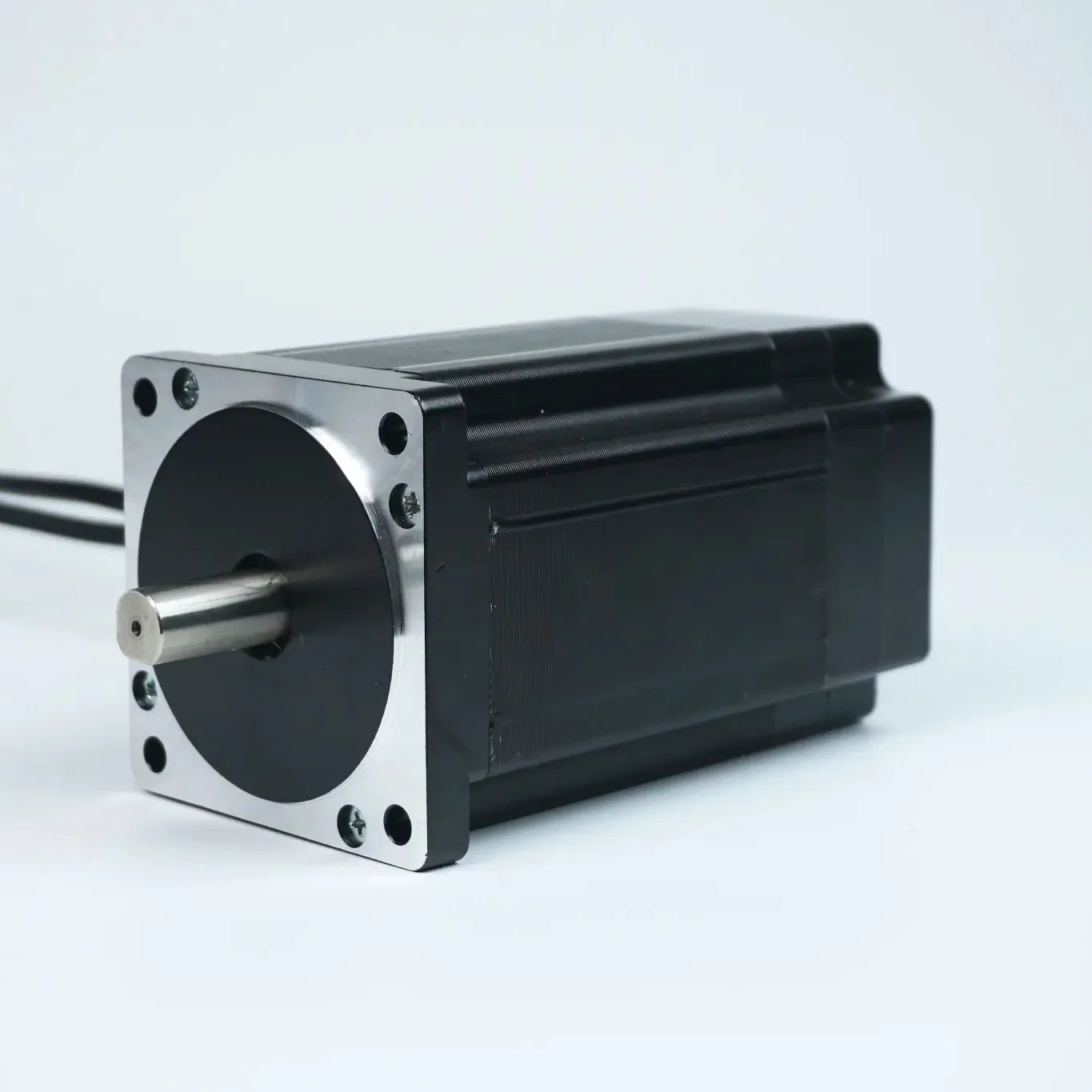

The 86BH128 is a NEMA 34 hybrid stepper motor with a 128mm body, delivering 4.90 N·m (50 kg·cm) holding torque at 3.0A. It is engineered for heavy-duty industrial applications requiring high torque and precision.

KEY HIGHLIGHTS

✓ 4.90 N·m (50 kg·cm) holding torque

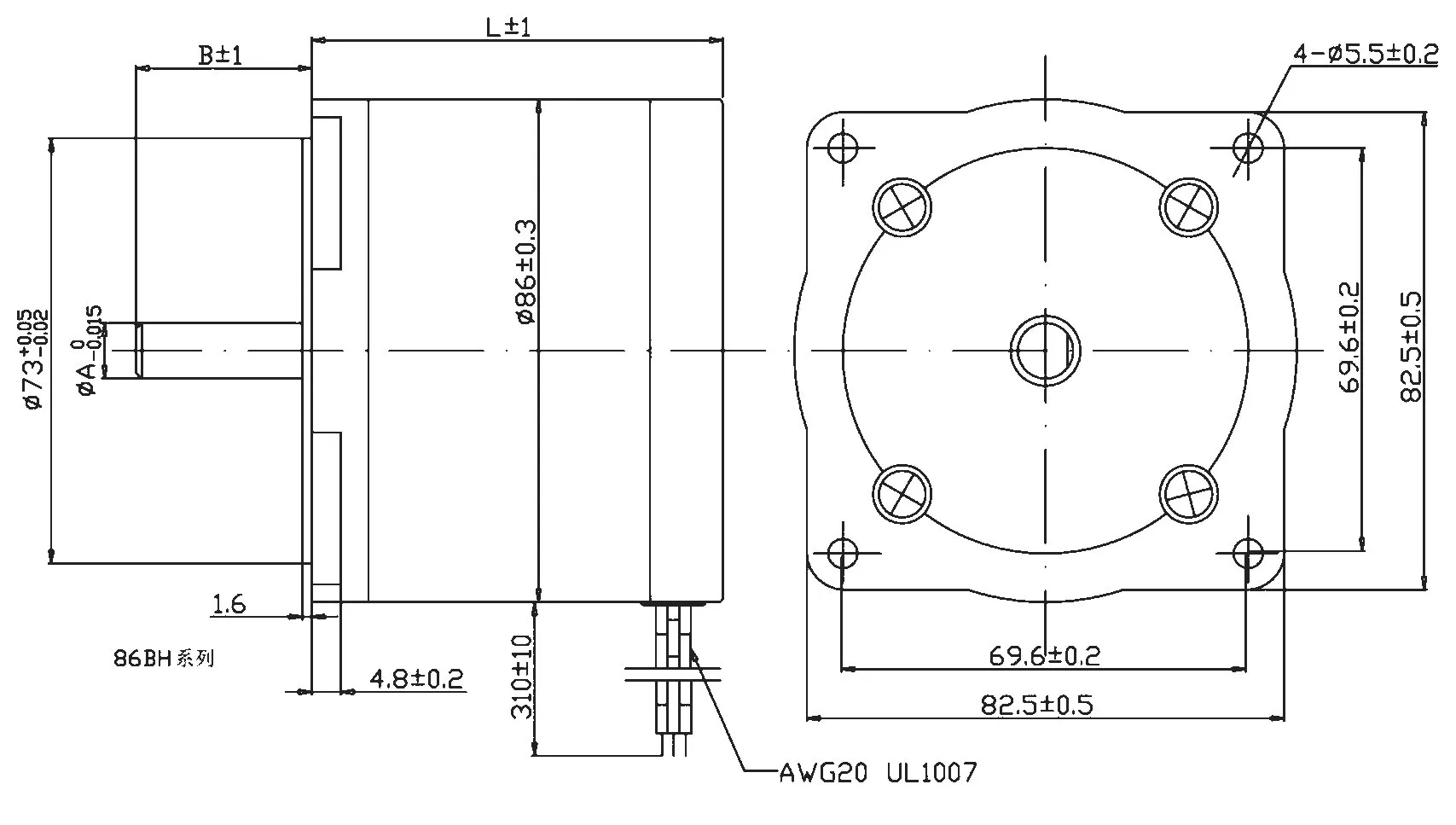

✓ 86mm (NEMA 34) frame, 128mm body length

✓ 2-phase, 4-lead high-efficiency design

✓ 12mm shaft diameter for robust coupling

✓ Recommended driver: CWD860H

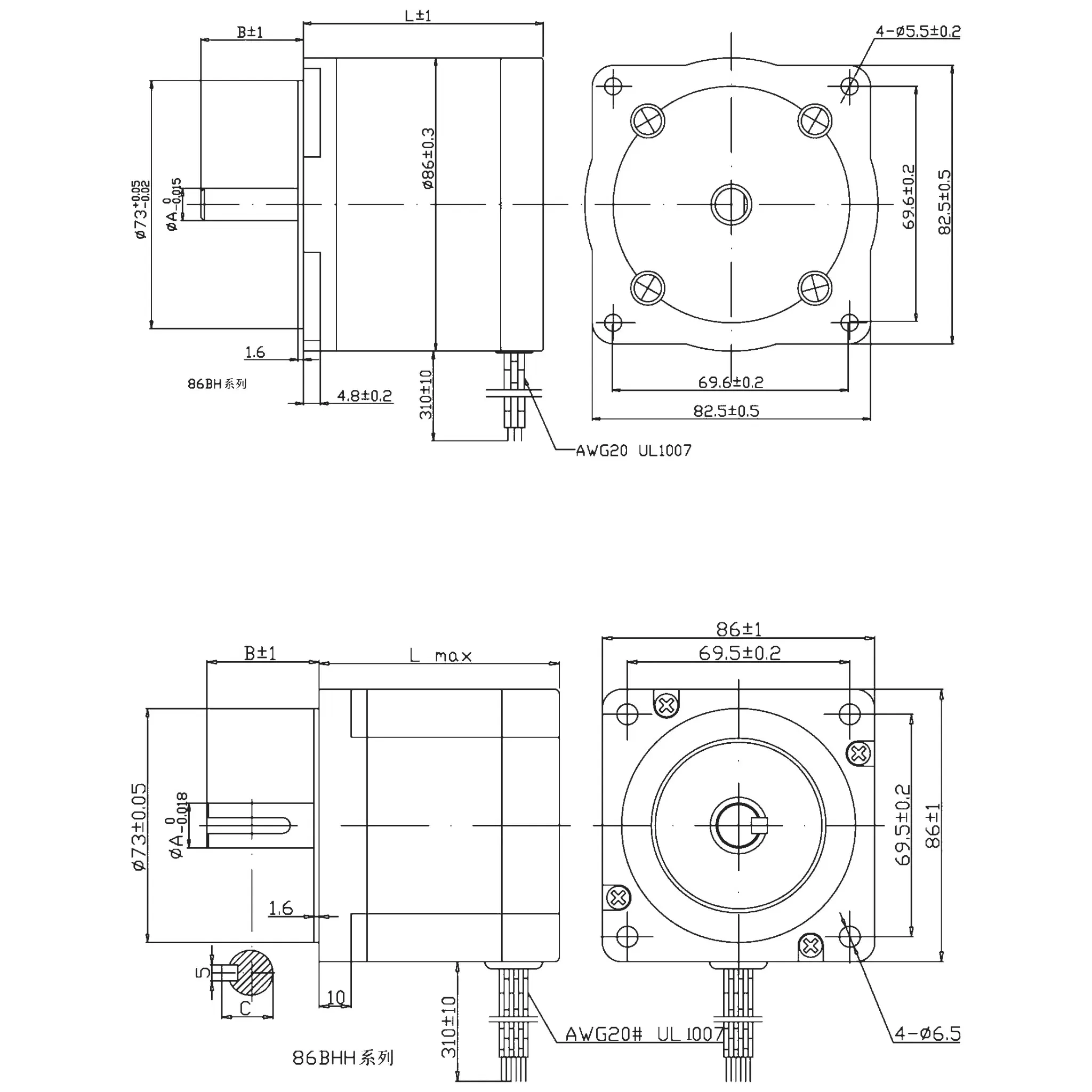

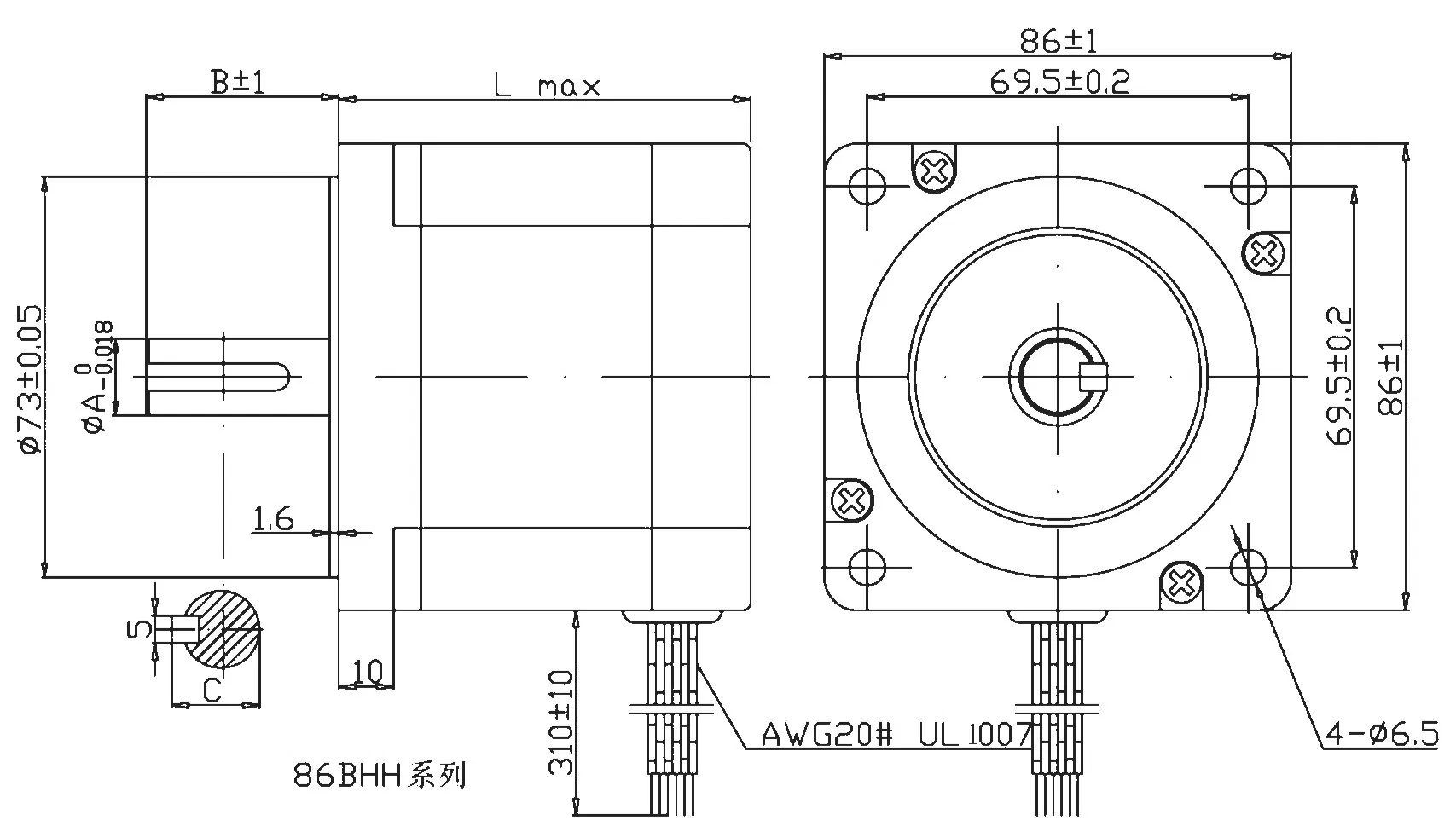

Full Specification

PARAMETER	VALUE
Step Angle	1.8° ± 5%
Holding Torque	4.90 N·m (50 kg·cm)
Rated Current	3.0 A/Phase
No. of Phases	2
No. of Leads	4
Shaft Diameter	12mm
Frame Size	86mm (NEMA 34)
Body Length	128mm
Weight	3.6 kg
Recommended Driver	CWD860H

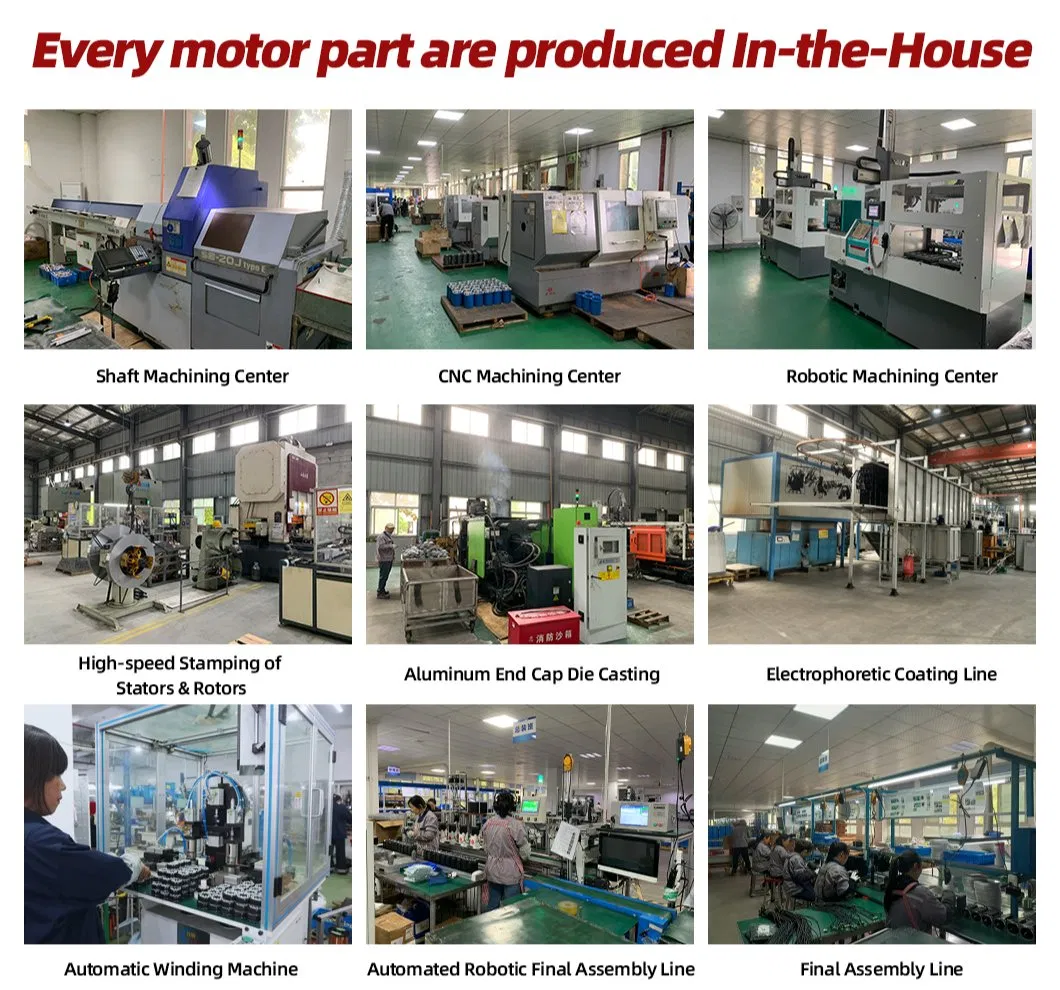

Industrial Manufacturing Expertise

With over 30 years of industrial motor expertise, we provide specialized motion control solutions for 1800+ global clients. Our core strength lies in OEM customization, working directly with equipment manufacturers to design motors that match exact specifications—from shaft dimensions to winding and encoder configurations.

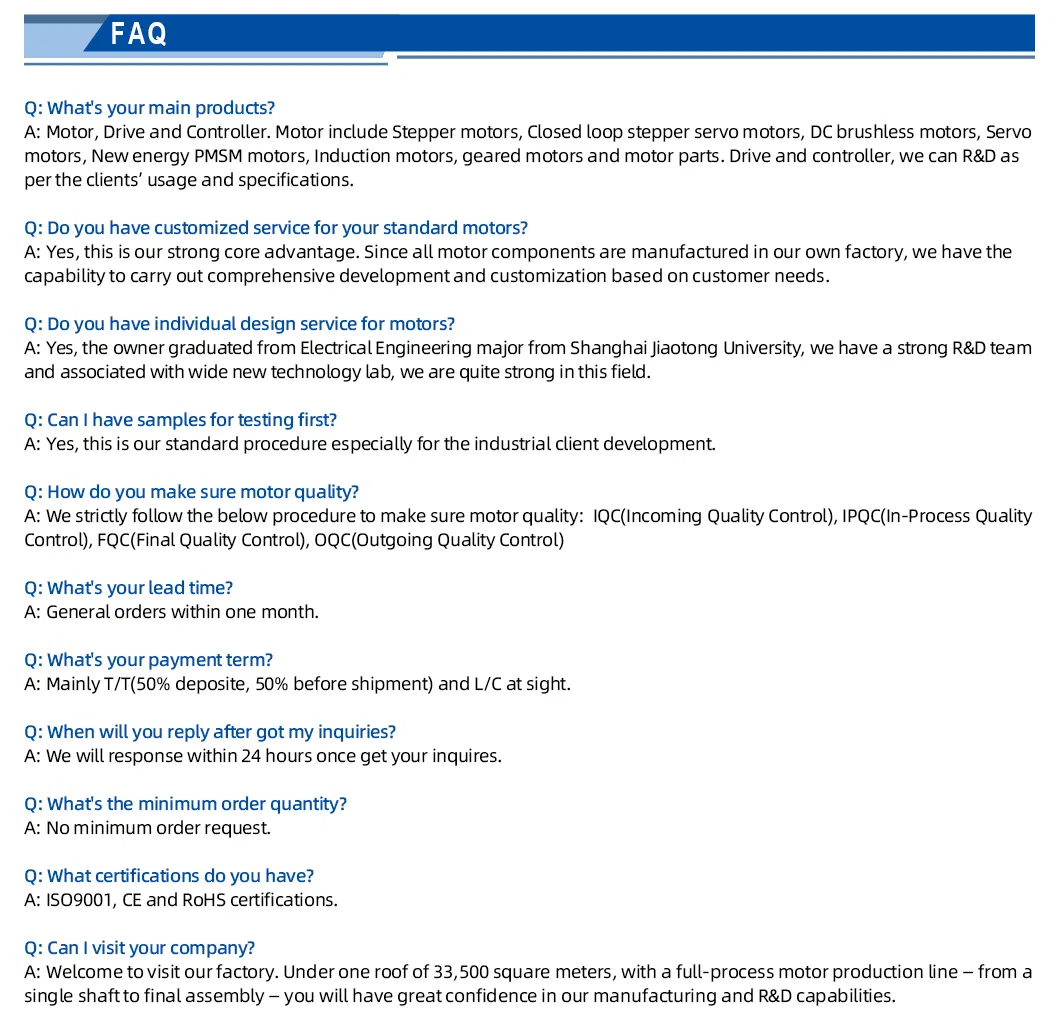

Frequently Asked Questions

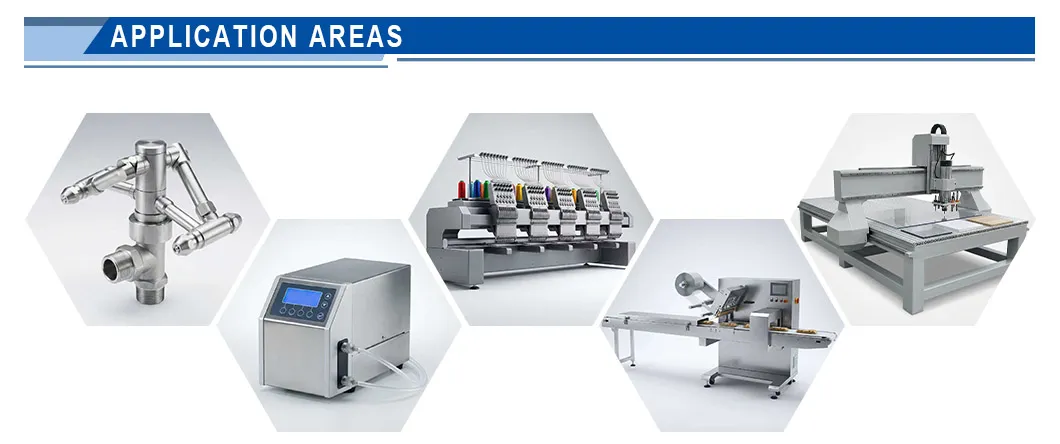

Q1: What is the primary application for the CW-86BH128 motor?

A: It is ideal for heavy-duty CNC routers, plasma cutting tables, large-format engravers, and 3D printing machines that require high holding torque.

Q2: Which motor driver is recommended for this NEMA 34 model?

A: We highly recommend using the CWD860H driver to ensure optimal performance and vibration control.

Q3: Can the motor shaft and specifications be customized?

A: Yes, as an OEM manufacturer, we provide customization for shaft dimensions, winding specs, encoder types, and connector configurations.

Q4: What are the main benefits of a hybrid stepper motor?

A: Hybrid stepper motors offer a combination of high resolution (fine step angles) and high torque, making them more efficient than traditional permanent magnet motors.

Q5: Is there a minimum order quantity (MOQ) for prototypes?

A: No, we support single-unit prototypes as well as high-volume production runs to meet the diverse needs of automation engineers.

Q6: What certifications does this motor hold?

A: The motor is certified under ISO9001, CE, and RoHS standards, ensuring international quality and environmental compliance.
