KPR Motor
1 / 5
| Model NO. | YBX4-200L1-2 |
| Number of Stator | Three-Phase |
| Species | Explosion-Proof Three-Phase |
| Rotor Structure | Winding Type |
| Casing Protection | Closed Type |
| Number of Poles | 2.4.6.8.10.12 |
| Starting Mode | y-δ Starting |
| Certification | ISO9001, CCC |
| Protection Level | IP44,IP54,IP55 |
| Working Way | S1 or Customized |
| Voltage | 380V±5% |
| Frequency | 50/60Hz |
| Bearing | C&U or Customized |
| Mounting Type | B3,B5, B35, B14, B34, V1 etc |
| Transport Package | Plywood Packing |
| Specification | 0.37KW-400kw Or customized |
| Origin | China |
| HS Code | 8501530090 |

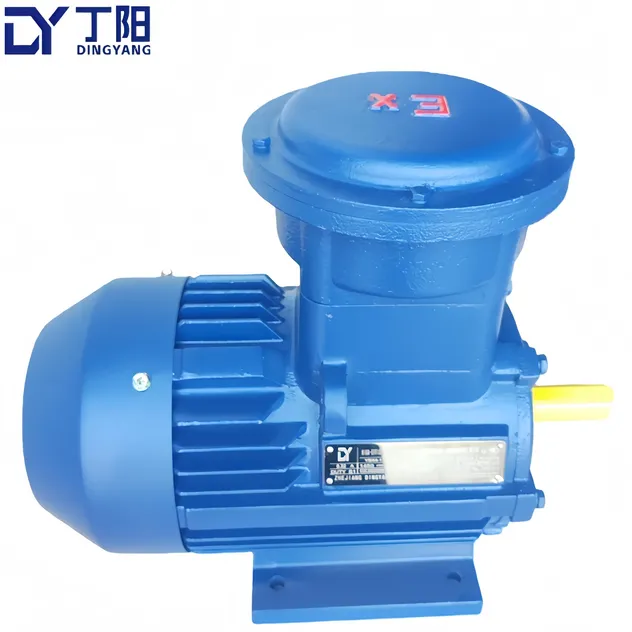

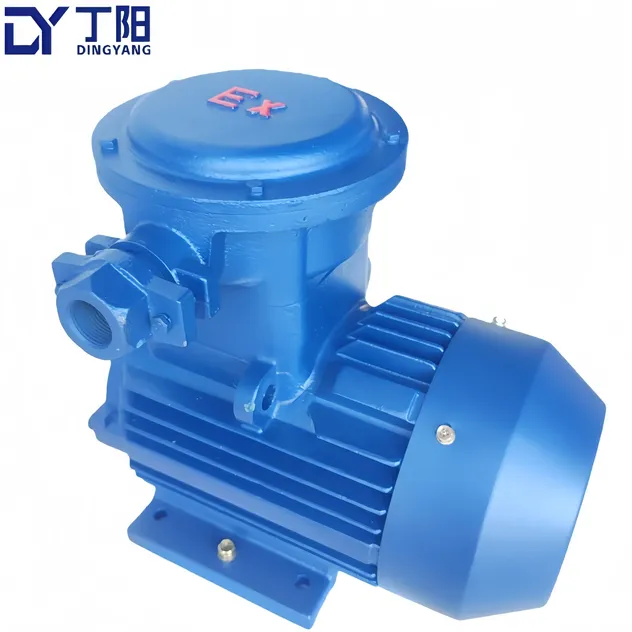

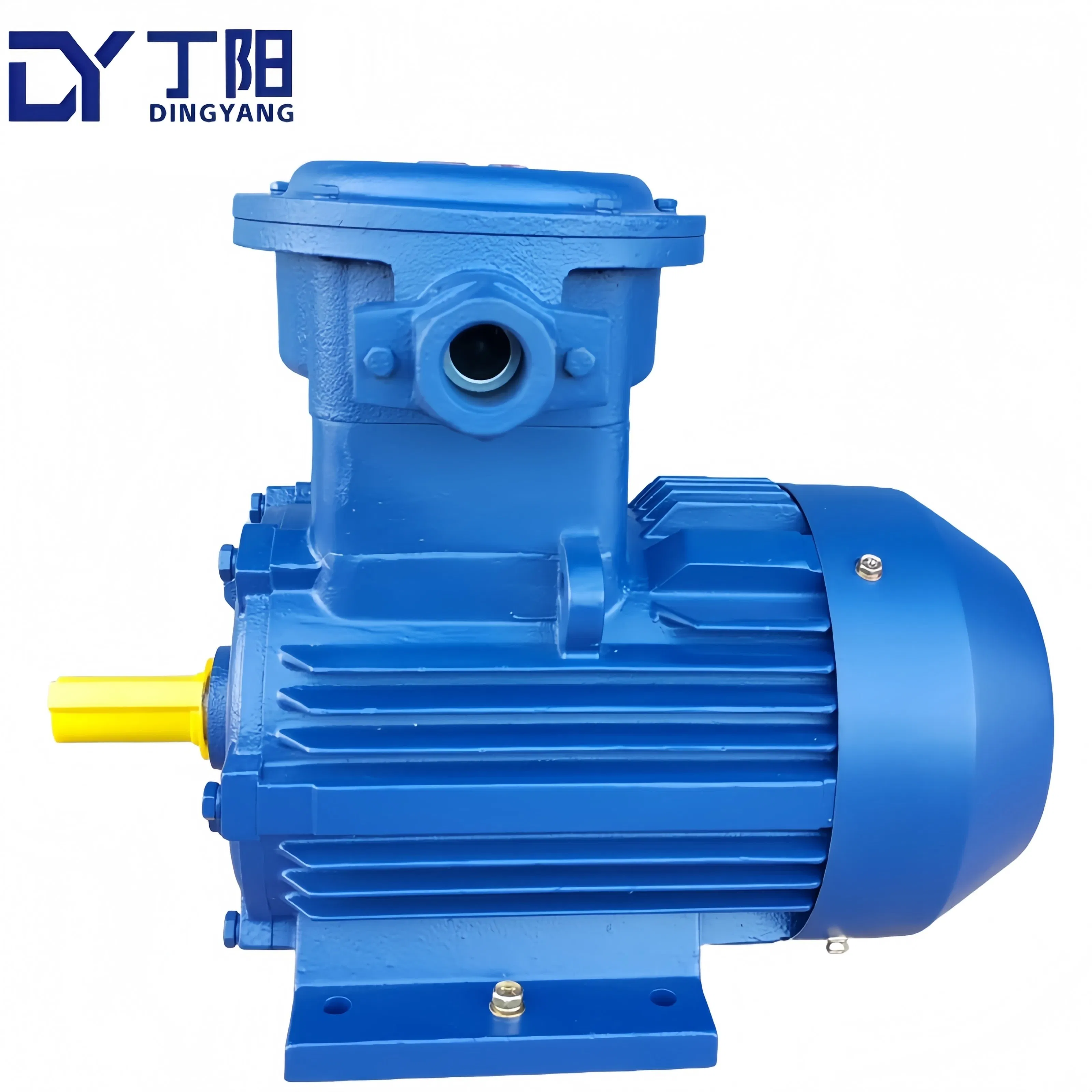

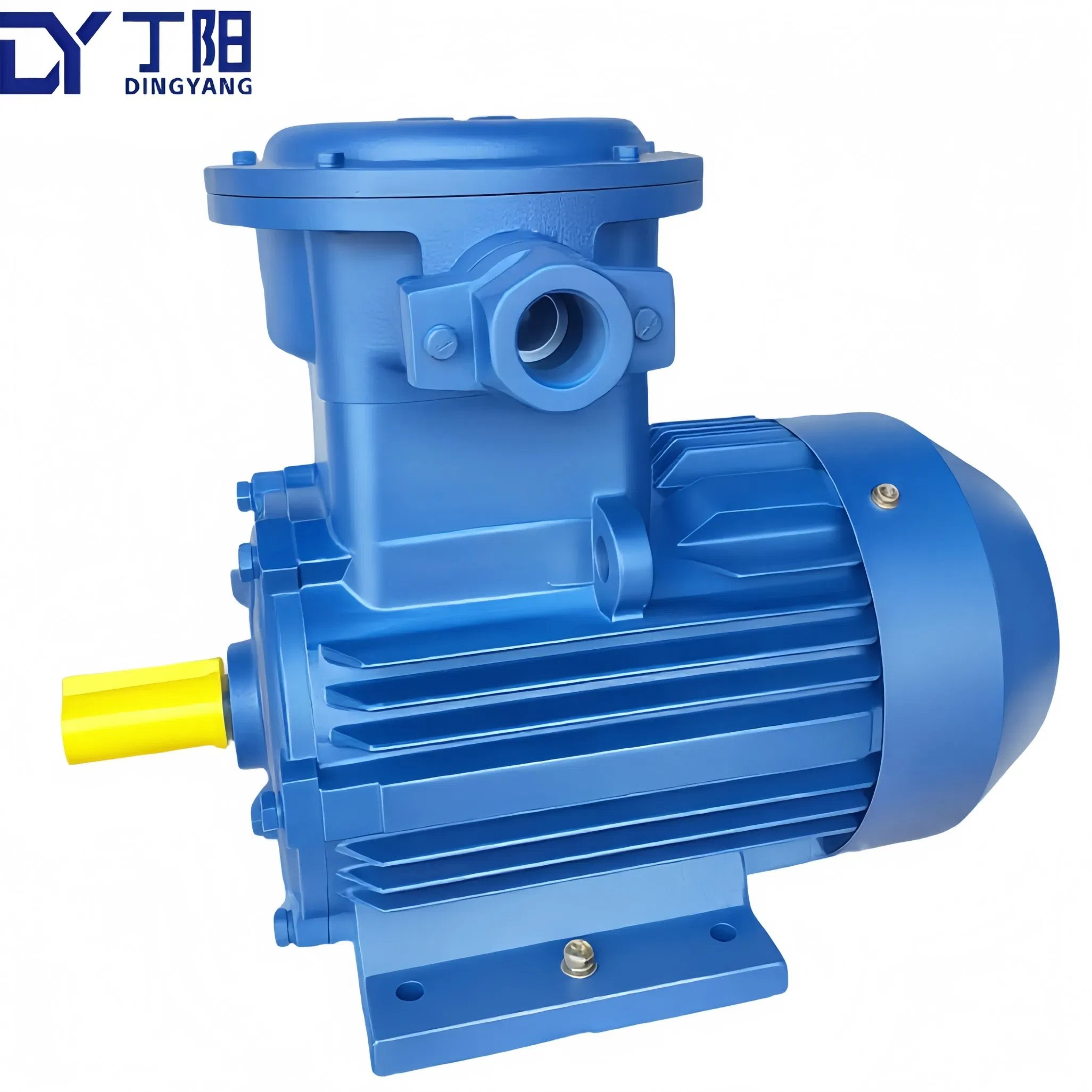

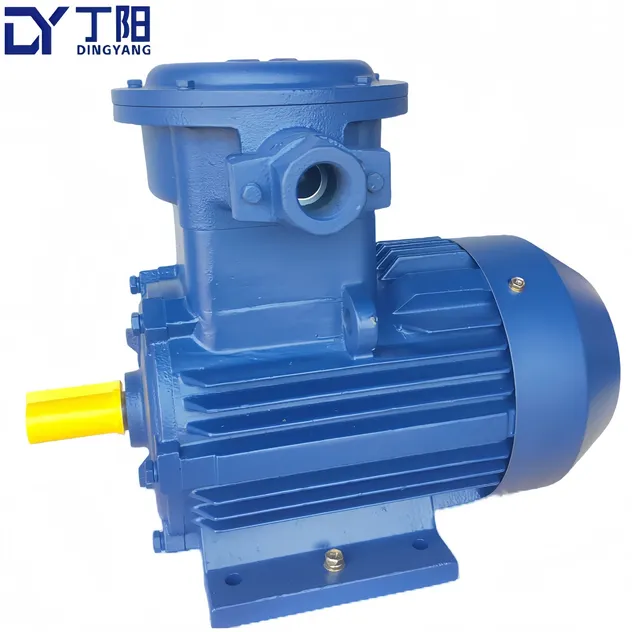

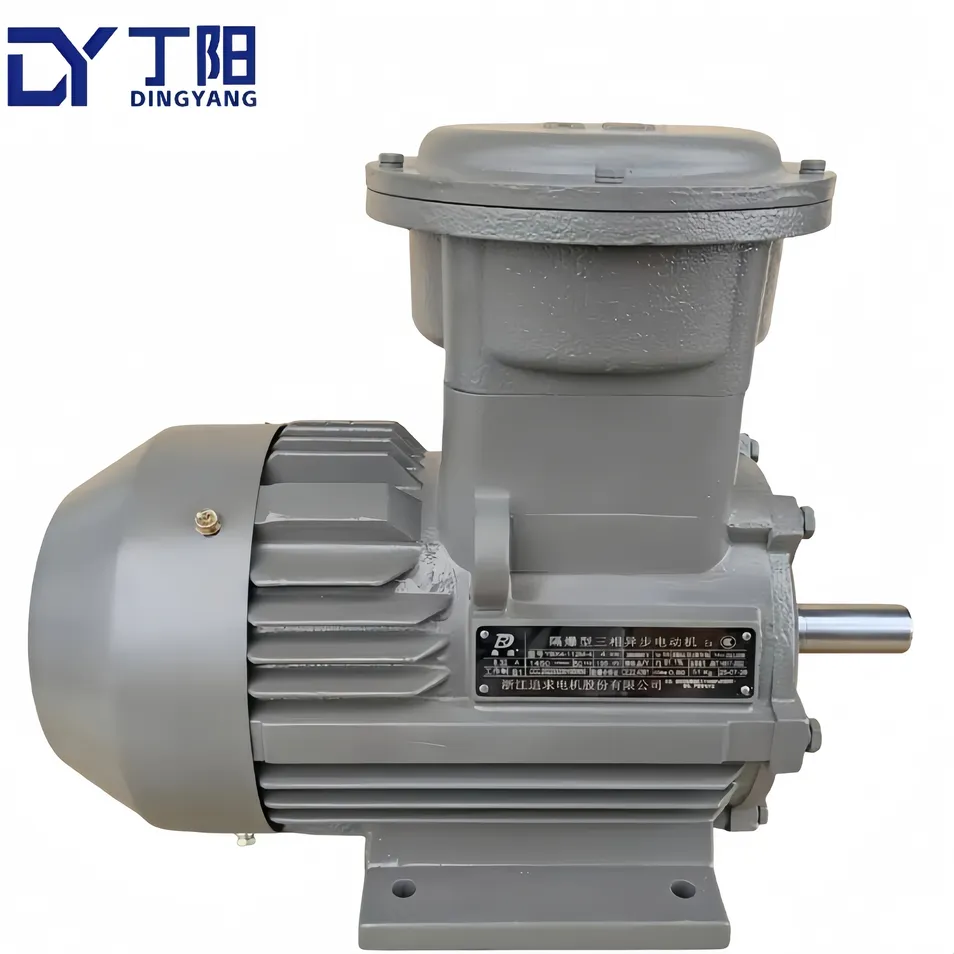

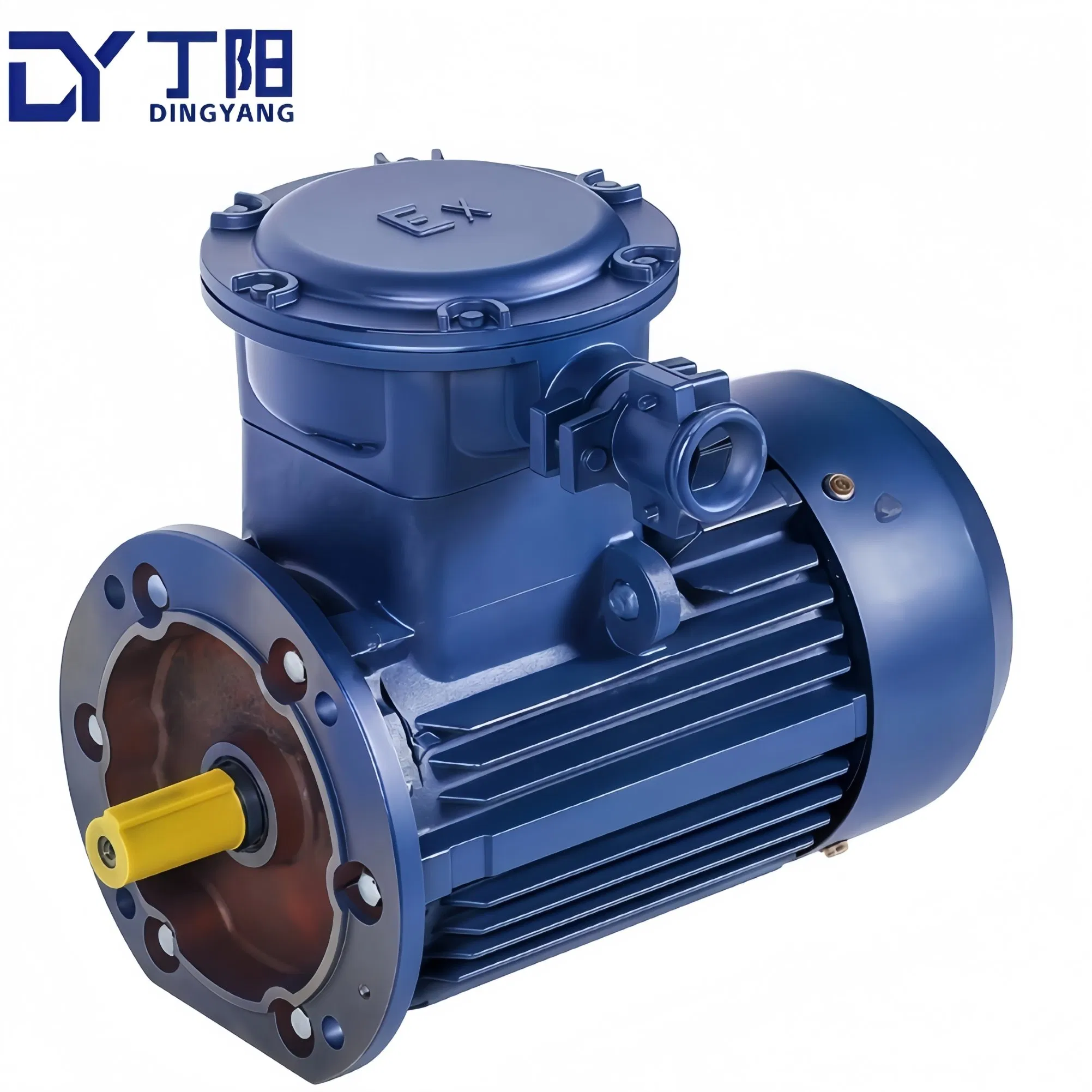

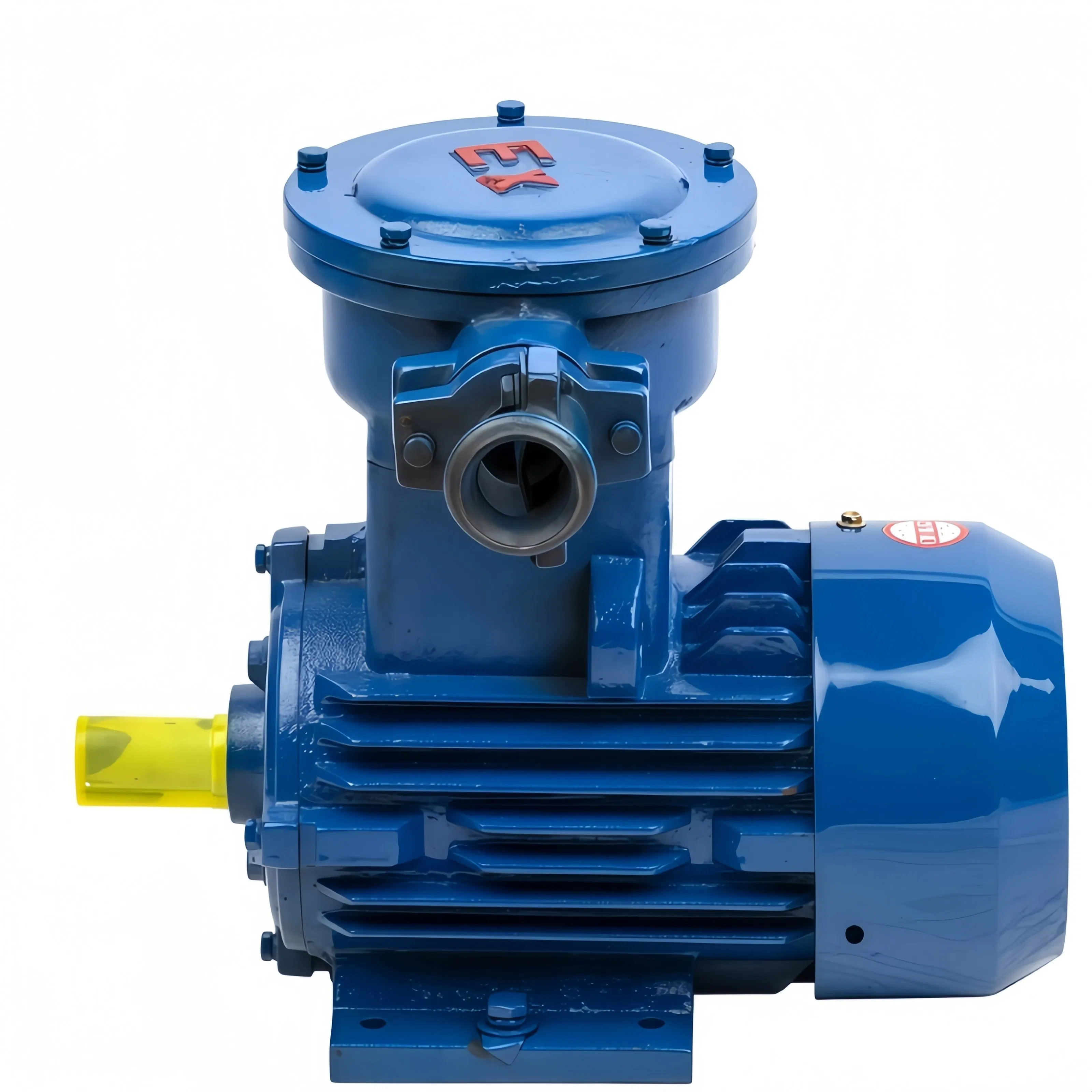

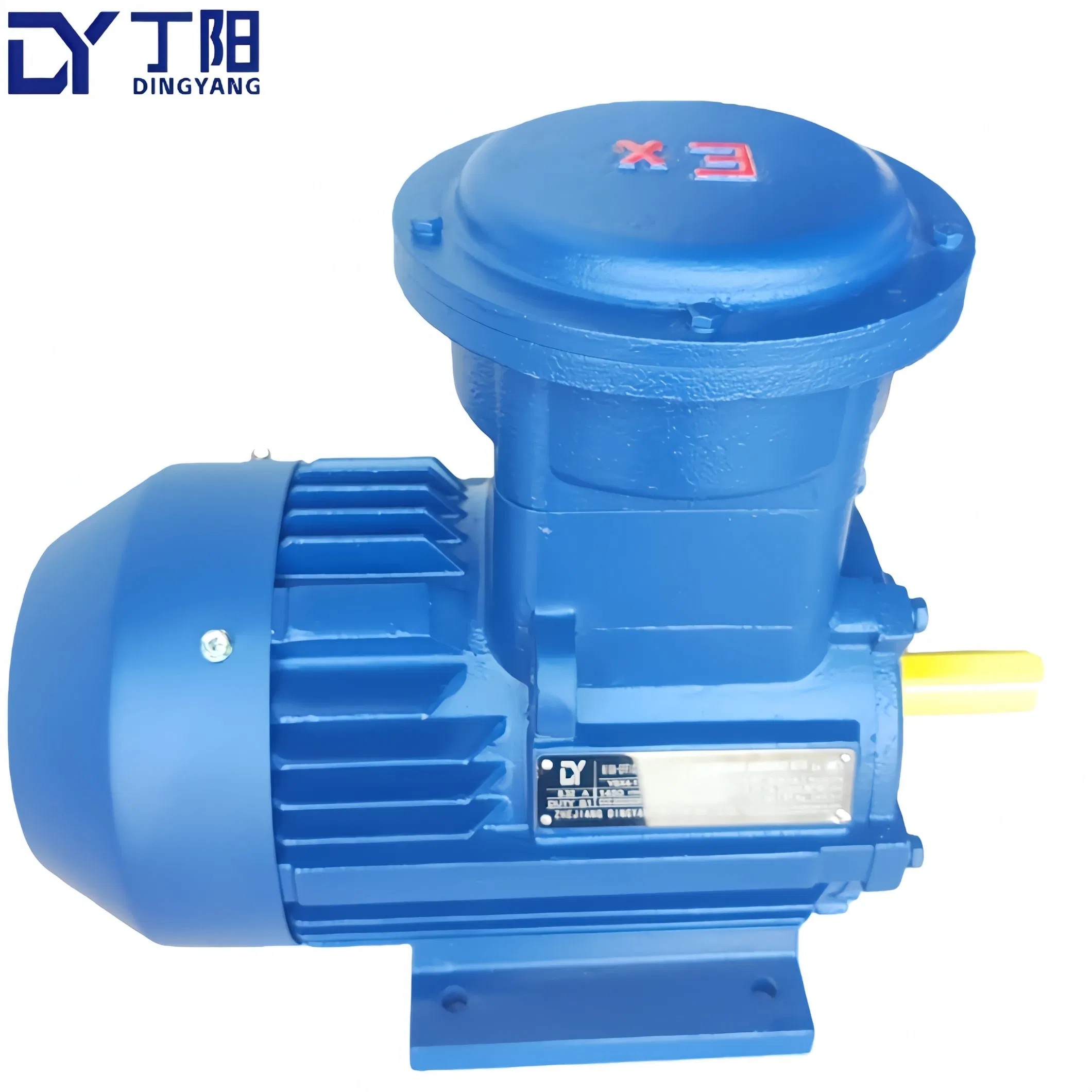

YBX4 series high-efficiency flameproof three phase asynchronous motors, explosion-proof performance in accordance with GB3836.1-2021 "Explosive Environment part 1: General Requirements for Equipment" and GB3836.2-2021 "Explosive Environment Part 2: Equipment protected by explosion-proof shell". Suitable for use as general driving force on equipment in places where combustible gas or explosive mixture of steam and air is formed. Mainly used in petroleum, chemical and other industries, but also in textile, metallurgy, city gas, transportation, grain and oil processing, paper making, medicine and other industries.
The motor efficiency index conforms to grade 2 in GB18613-2020 Motor Energy Efficiency limits and Energy Efficiency Grades, namely IE4 of IEC60034-30-1. These motors are characterized by high efficiency, energy saving, large temperature rise margin, long life, low vibration, low noise and high reliability.
| Explosion-proof Marks | Exd ll BT4 Gb |
| Protection level | IP55 |
| Cooling method | IC416 |
| Insulation class | F |
| Rated voltage | 380/660V |
| Rated frequency | 50Hz |
| Operation Mode | S1 (continuous duty) |
| Altitude | Up to 1000 meters |
| Ambient temperature | -15°C~+40°C |
