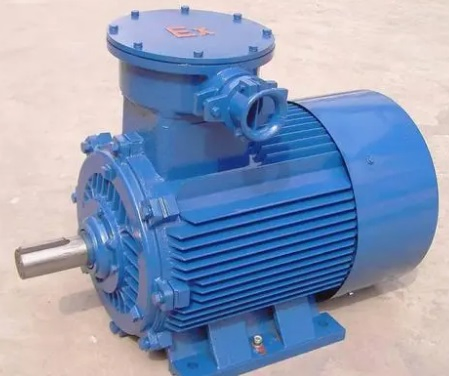

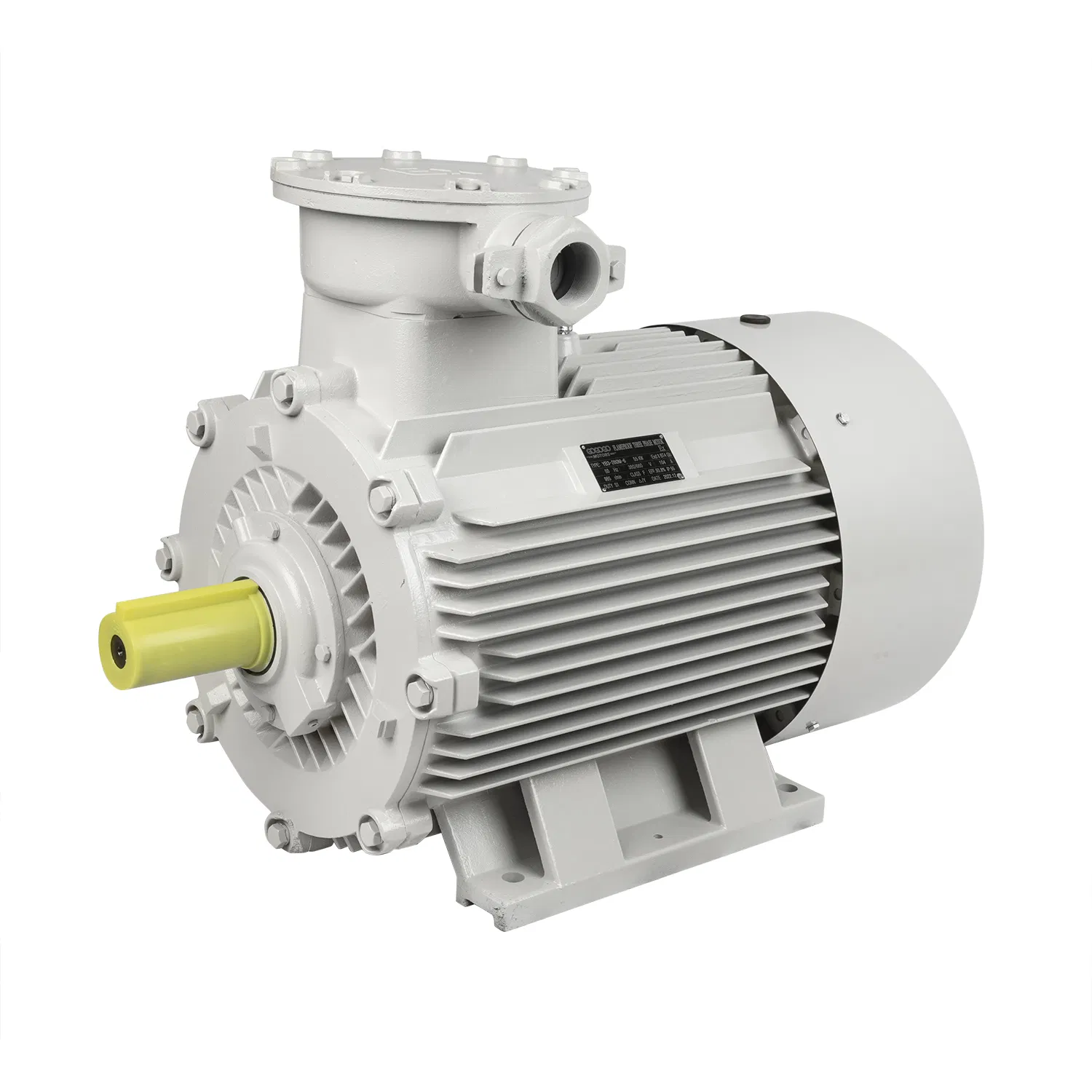

CE ISO9001 60Hz Ye2 Y2 Ie2 Ie3 Ie4 Yb2 Yb3 Ybx3 Ybx4 Yd Yej Three Phase Explosion Proof Flame Proof Electric Motor for Blower Compressor Pump LPG (0.75KW-315KW)

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
YBX3
Number of Stator
Three-Phase
Species
Explosion-Proof Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Explosion-Proof Type
Number of Poles
6
Certification
ISO9001, CCC, CE
Frequency
50Hz 60Hz
Protection Class
IP55 / IP66
Insulation Class
E, B, F, H
Winding
Copper Wire
Housing Material
Cast Iron, Aluminum, Steel, Stainless Steel
Work Duty
S1, S2, S3
Output Range
0.37kw - 400kw (1HP-460HP)

Packaging & Delivery

Package Size
80.00cm * 52.00cm * 50.00cm
Package Gross Weight
17.000kg

Product Description

We specialize in high-quality energy-efficient electric motors. Our main range includes three-phase general-use motors and explosion-proof motors ranging from 0.75kw to 315kw (2-pole, 4-pole, 6-pole, and 8-pole).

The YB2 series explosion-proof three-phase asynchronous motor is a developed product adopting the latest global technology in electromagnetic structures, craftsmanship, and materials. It offers high efficiency, energy saving, large temperature rise margins, long operational life, low noise, and high reliability.

YB2 explosion-proof motors are designed as fixed equipment for underground coal mines and industries where explosive mixtures are present (factory IIB, T1-T4 temperature groups). Applications include petroleum, natural gas, petrochemical, chemical, textile, metallurgy, city gas, transportation, and grain processing industries. They are primarily used to drive pumps, fans, compressors, and conveyors.

Operating Conditions:

  • Rated Voltage: 230V, 380V, 400V, 415V, 440V, 660V, 575V, 690V
  • Rated Frequency: 50Hz / 60Hz
  • Operation Type: S1, S2, S3
  • Elevation: Less than 1000 meters above sea level
  • Ambient Temperature: -20°C to 40°C
  • Protection Markings: EXDI, EXDII AT4, EXDII BT4
  • Cooling Type: IC411
Power:0.18kw-315kw Voltage:230V-10000V
Frequency:50/60Hz Enamelled Wire:Copper Wire
Insulation Class:F / B / H Mounting:B3, B5, B14, B34, B35
Protection Grade:IP54 / IP55 / IP44 Casing:Cast Iron / Cast Aluminum

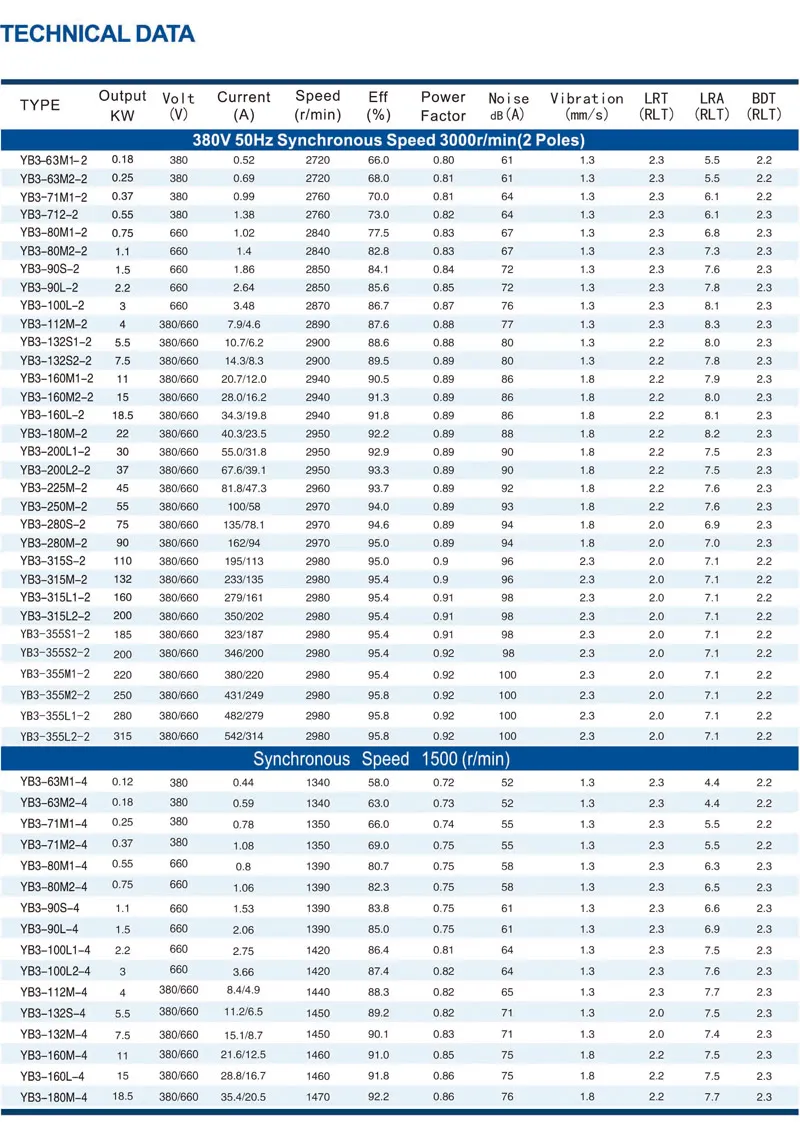

Motor Specifications Sheet

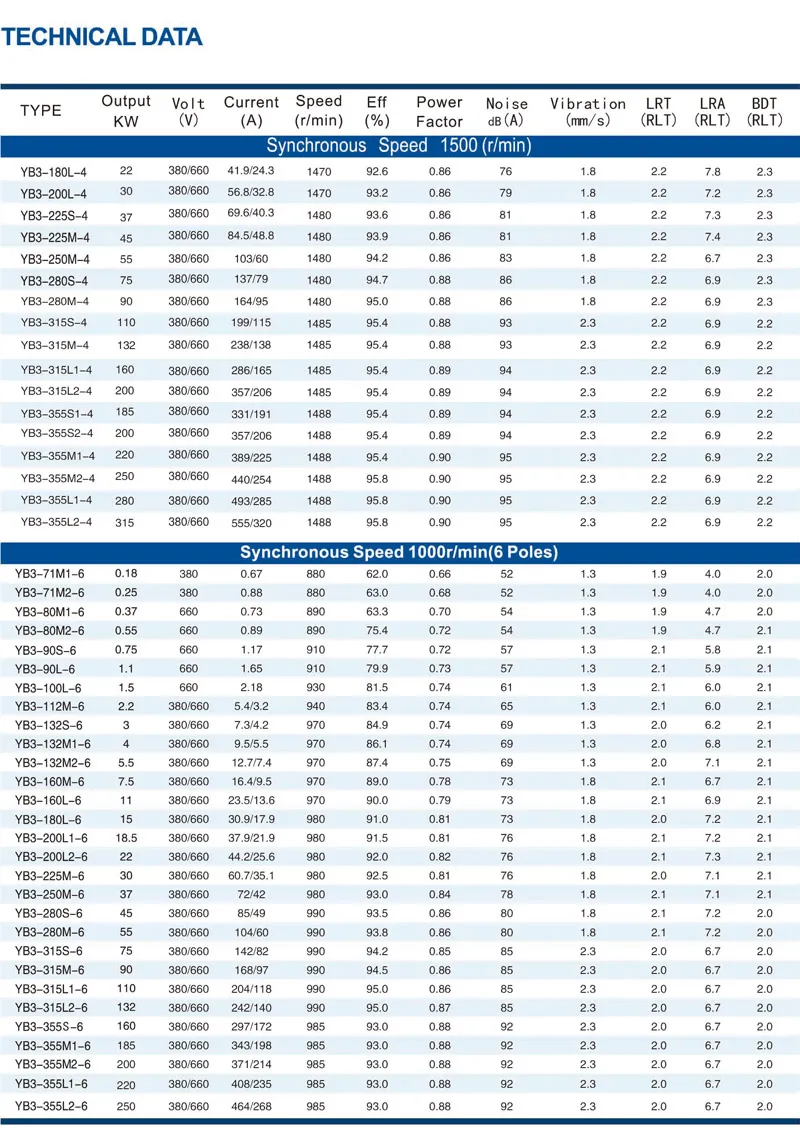

Motor Dimension Details

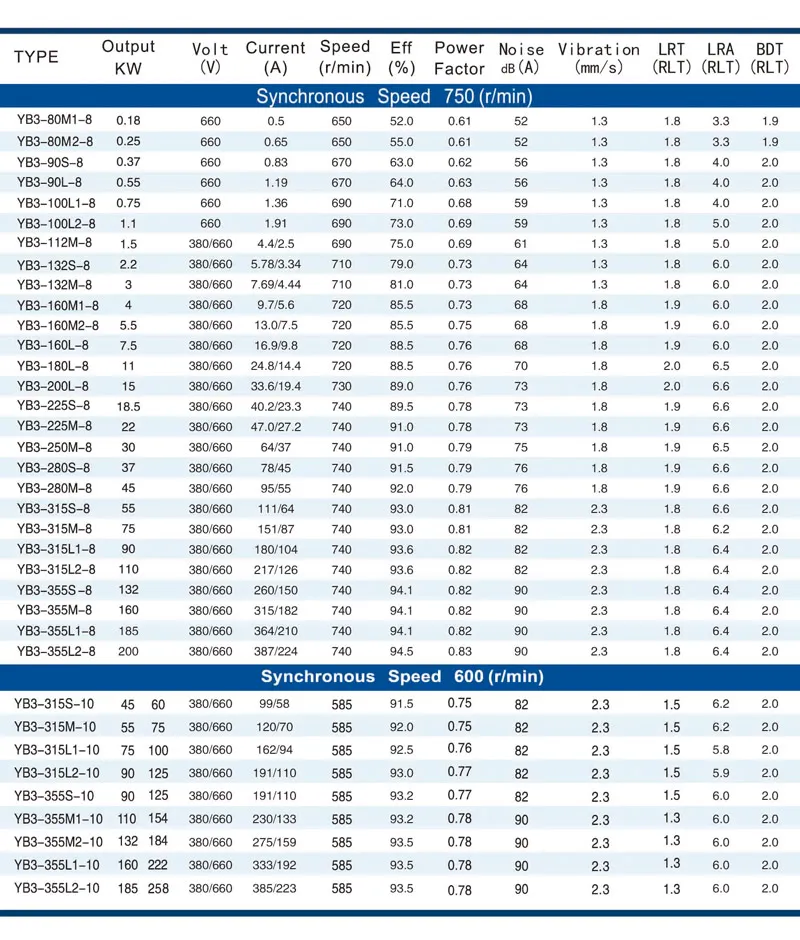

Technical Data

Why Choose Our Motors?

• Warranty: 18-24 months
• Delivery: 15-30 days
• Packaging: Strong export cartons/wooden cases
• Customization: Standard and custom AC motors available
Product Range Banner

Frequently Asked Questions

What industries are these explosion-proof motors suitable for?
They are ideal for coal mining, petroleum, petrochemical, chemical, textile, and metallurgy industries, specifically where explosive gas or steam mixtures are present.
What is the standard protection and insulation class?
Our motors typically feature IP54, IP55, or IP65 protection grades with Class F or H insulation to ensure safety in harsh environments.
Can these motors be used with different voltage standards?
Yes, we support a wide range of voltages including 230V, 380V, 400V, 440V, and up to 660V/690V for industrial compatibility.
What materials are used for the motor housing?
The motor casings are constructed from high-quality cast iron, aluminum, or stainless steel depending on the specific model and environment requirements.
Do you provide custom motor designs?
Yes, we have a dedicated design and development team that can customize single-phase or three-phase motors to meet specific customer requirements.
What are the typical mounting options available?
We offer several mounting configurations including B3 (Foot), B5 (Flange), B14, B34, and B35 to fit various machinery types.
