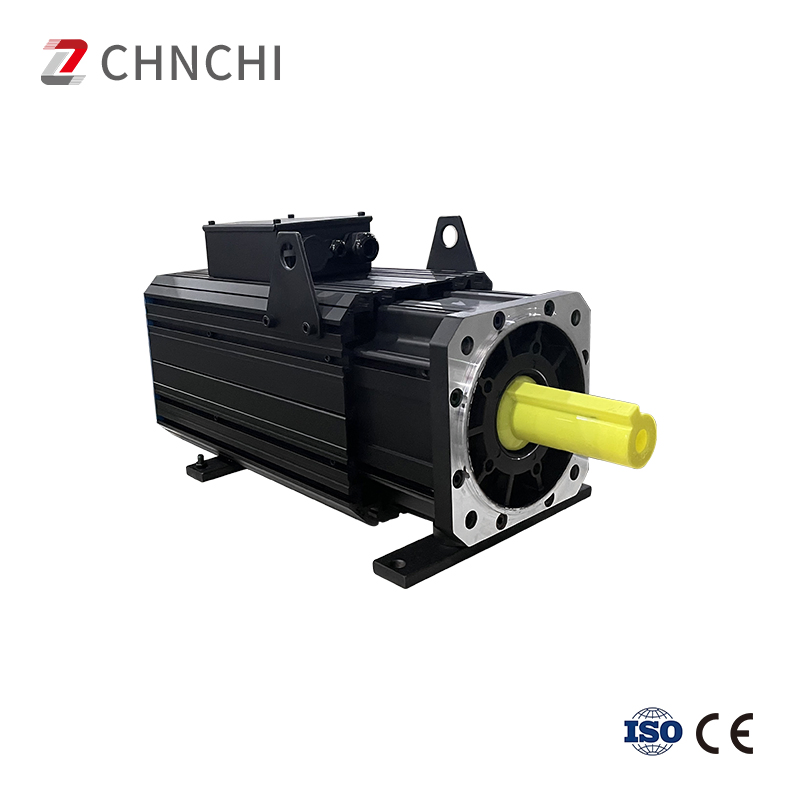

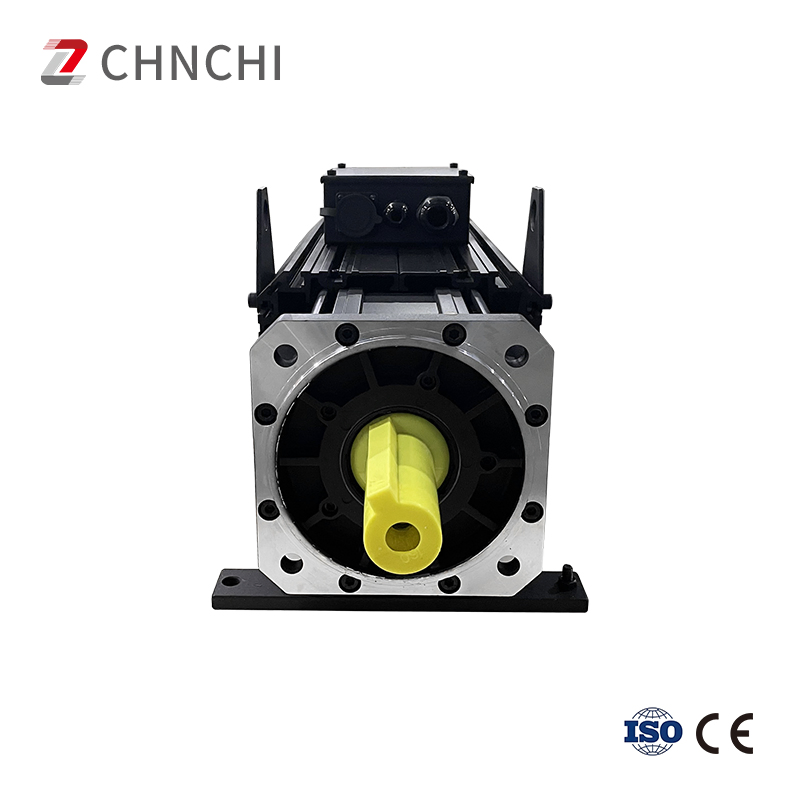

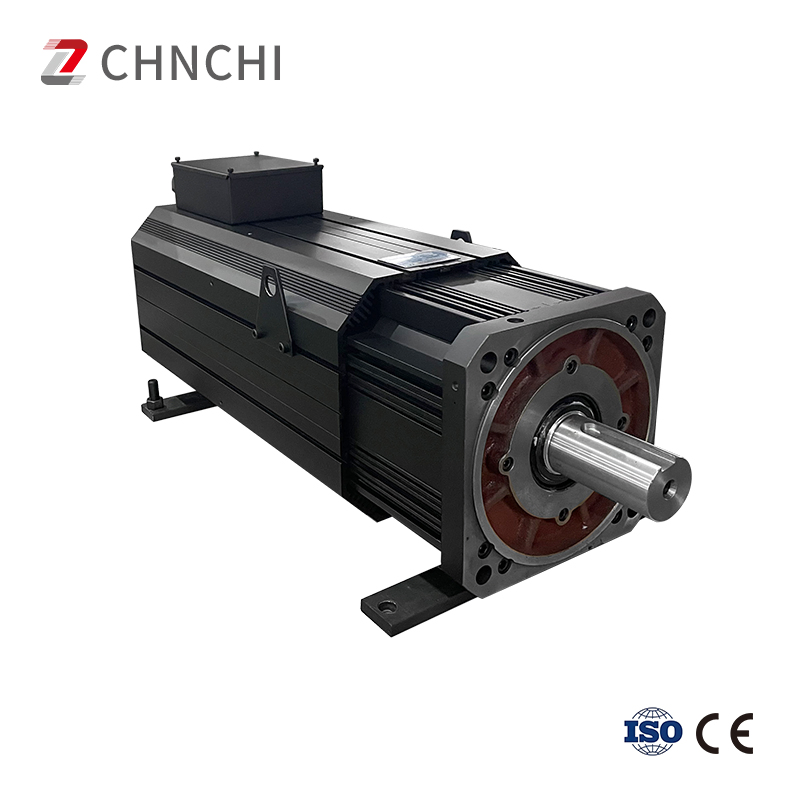

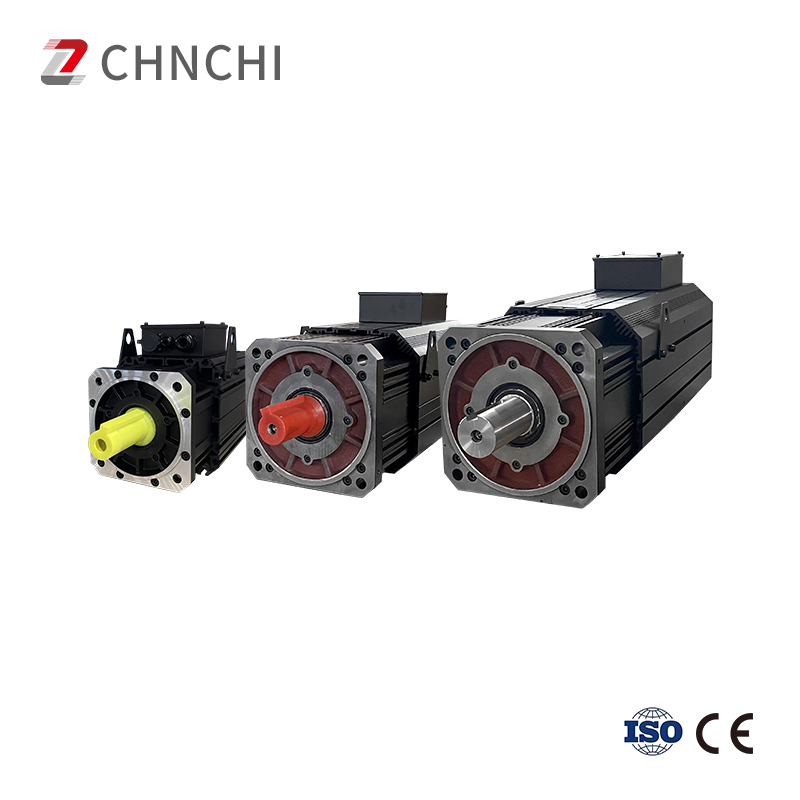

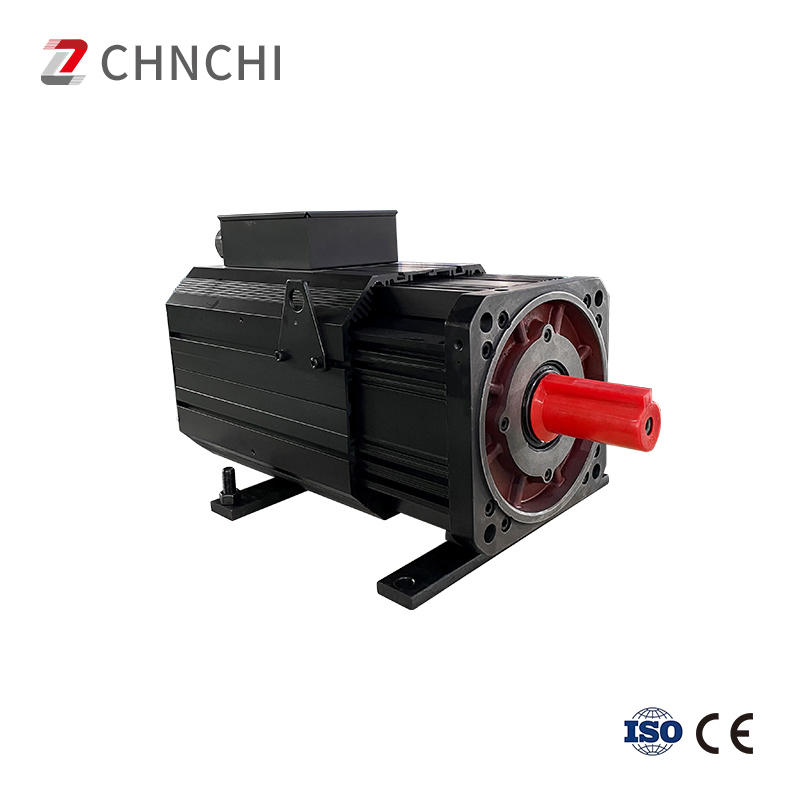

High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
1 / 5
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery
High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery

High Power Segment 7kw-111kw Servo Motor Permanent Magnet Synchronous Motor for Printing/Large Packaging Machine and Conveyor/Hydraulic Machinery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ZE high power servo motor 7.1kW-111kW
Number of Stator
Three-Phase
Function
Driving
Number of Poles
8
Starting Mode
Controlled Starting
Certification
ISO9001, CE
Rated Speed
1500rpm/1700rpm/2000rpm
Rated Torque
45n.M-520n.M
Voltage
380V
Frequency
100Hz
Specification
7.1kw-111kw
Production Capacity
50000
Product Description
⚡ 1. Structure and Cooling
It has a small volume and is flange-mounted, saving installation space. The cooling method is air-cooling.
🚀 2. Operation Performance
Strong overload capacity and high operating efficiency; small speed fluctuations with smooth operation; low temperature rise and noise.
💎 3. Comprehensive Performance
Energy-saving reached first-level standard; Protection level IP54; High-performance rare-earth permanent magnet materials ensure super stability; High precision via double-closed-loop control; Power-saving rate reaching 15% - 30%.

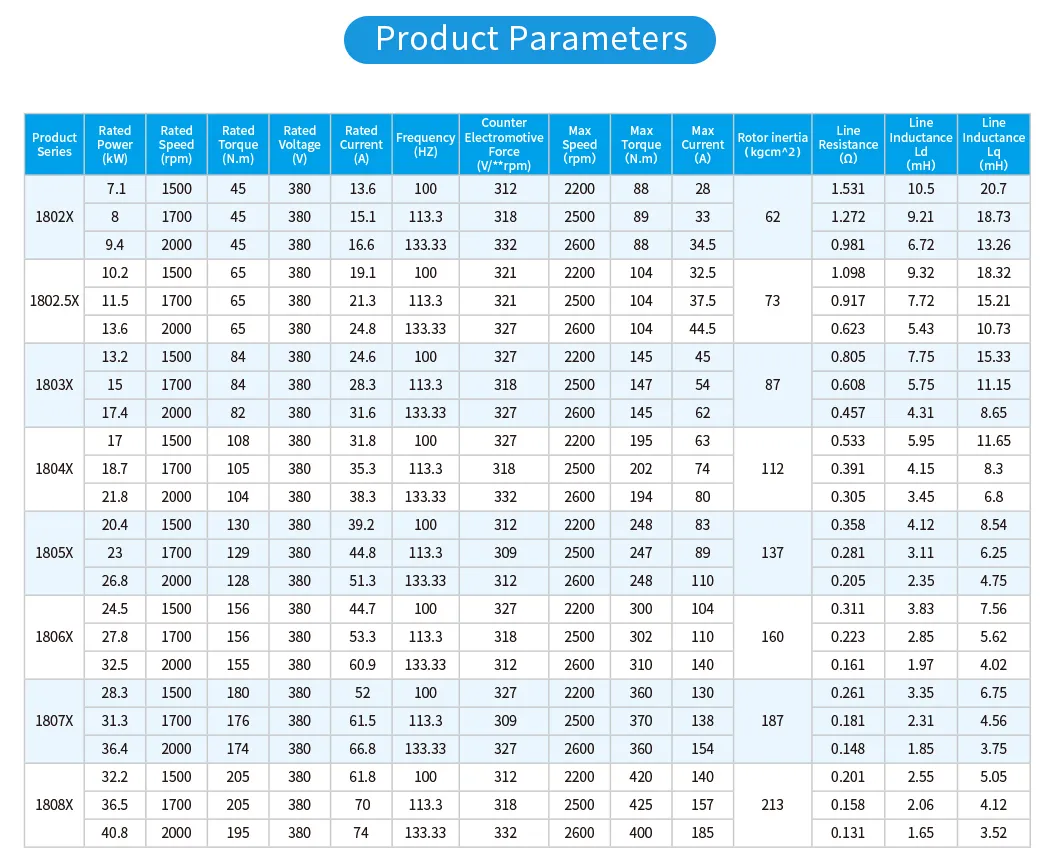

Product Parameters

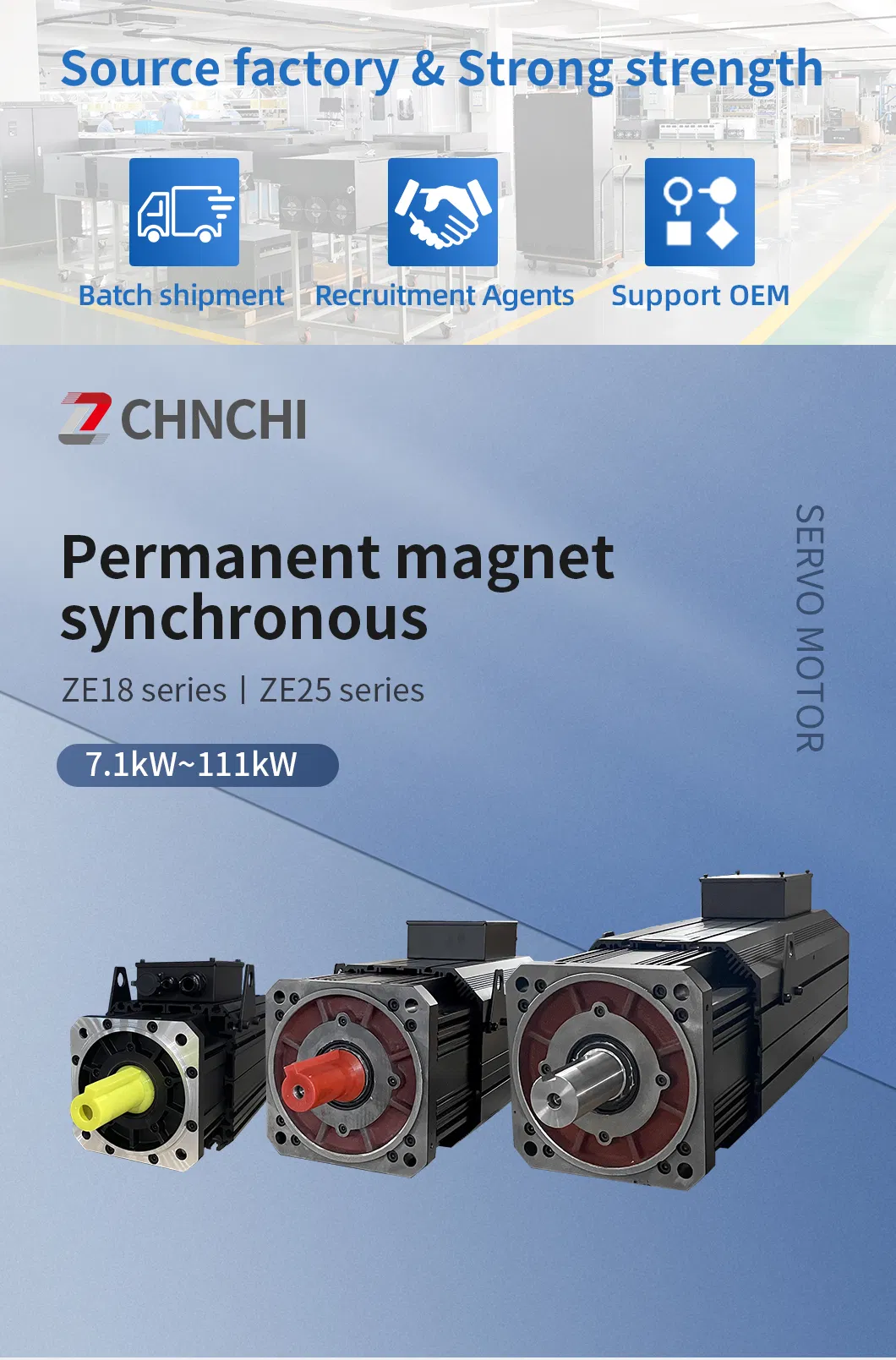

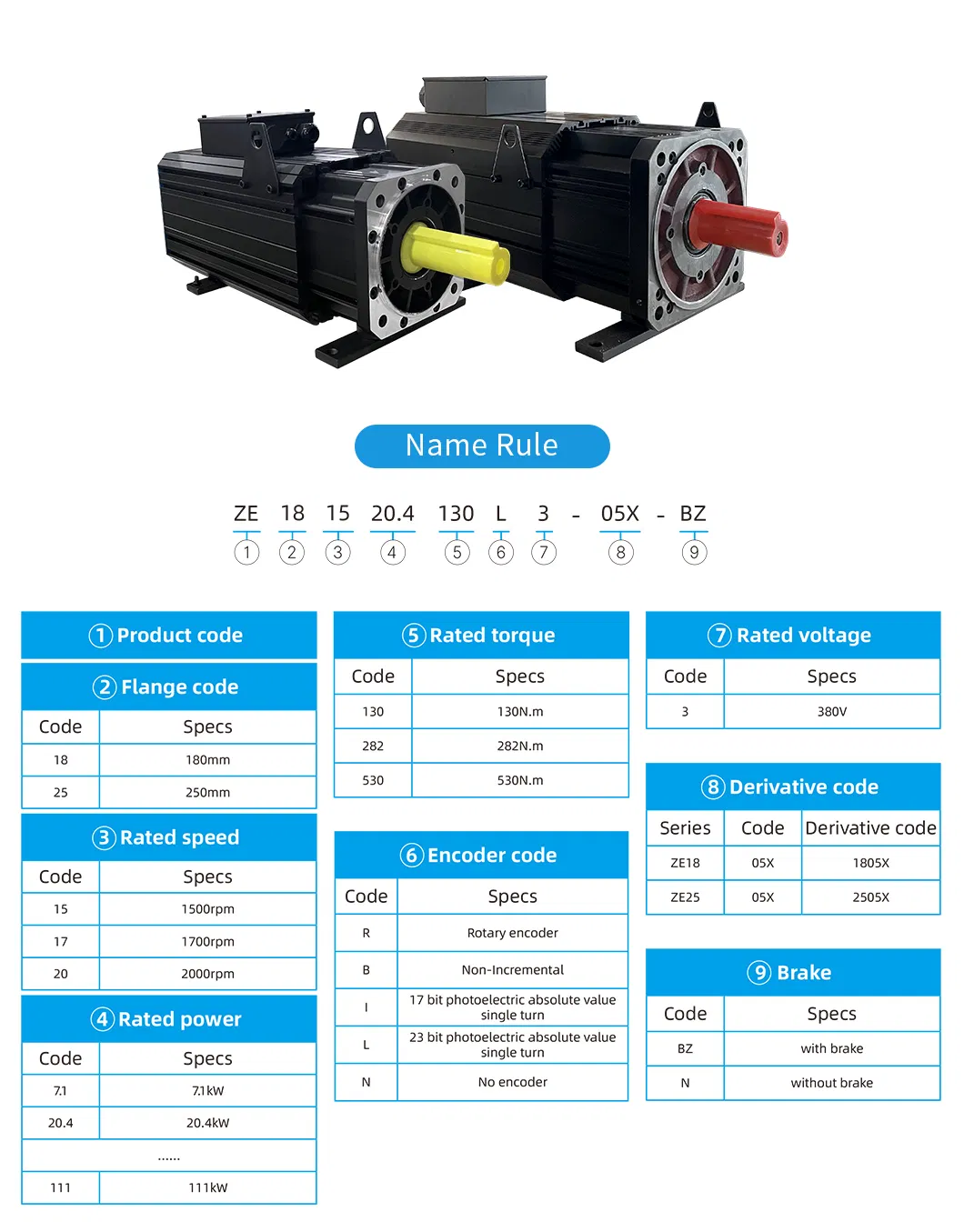

Product Parameters 1 Product Parameters 2 Product Parameters 3
Model type: ZE18
Product Code(mm)ZE18
Rated voltage (V)380
Rated power (KW)24.5
Rated torque (N.m)156
Max torque (N.m)300
Rated speed (r/min)1500
Max speed (r/min)2200
Frequency(HZ)100
Line Resistance (Ω)0.311
Line Inductance Ld(mH)3.83

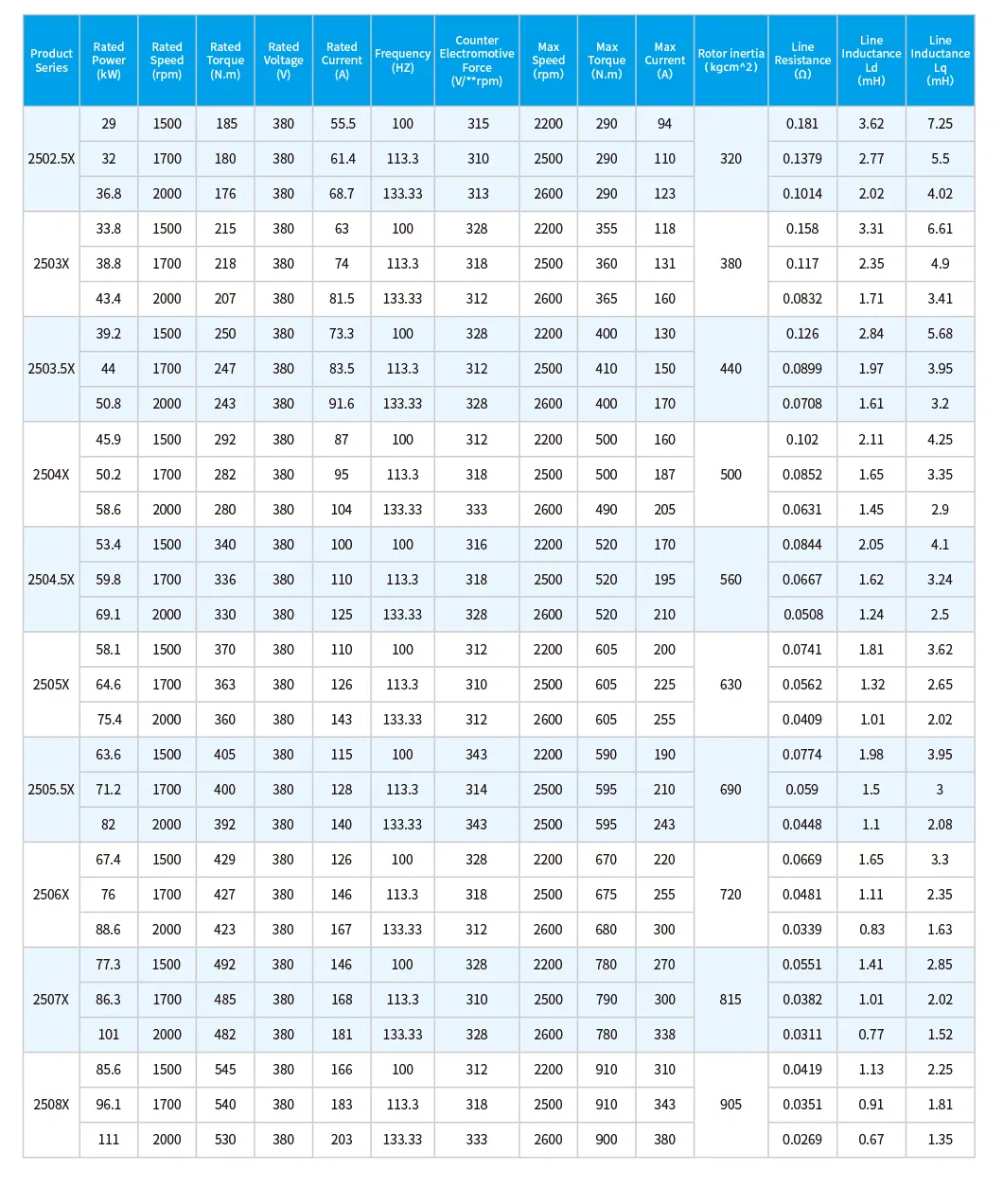

Product Drawing
Drawing 1 Drawing 2 Drawing 3

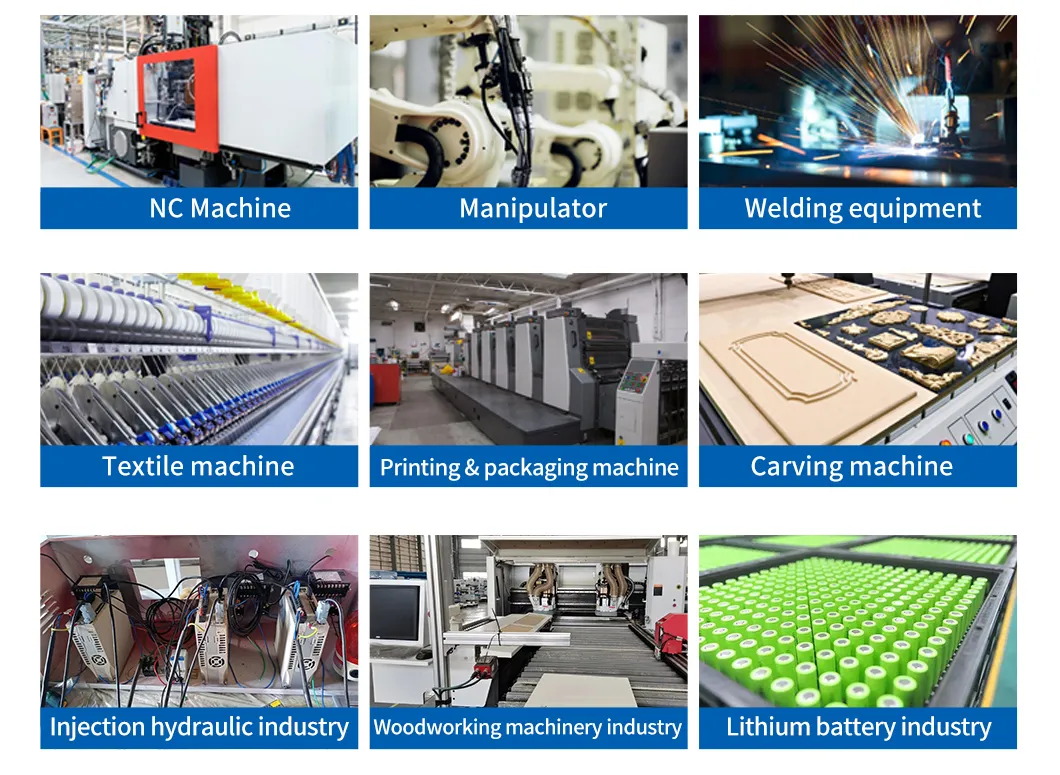

Application Areas
Application 1 Application 2 Application 3
Detailed Application
Factory & Production
Factory 1 Factory 2 Production

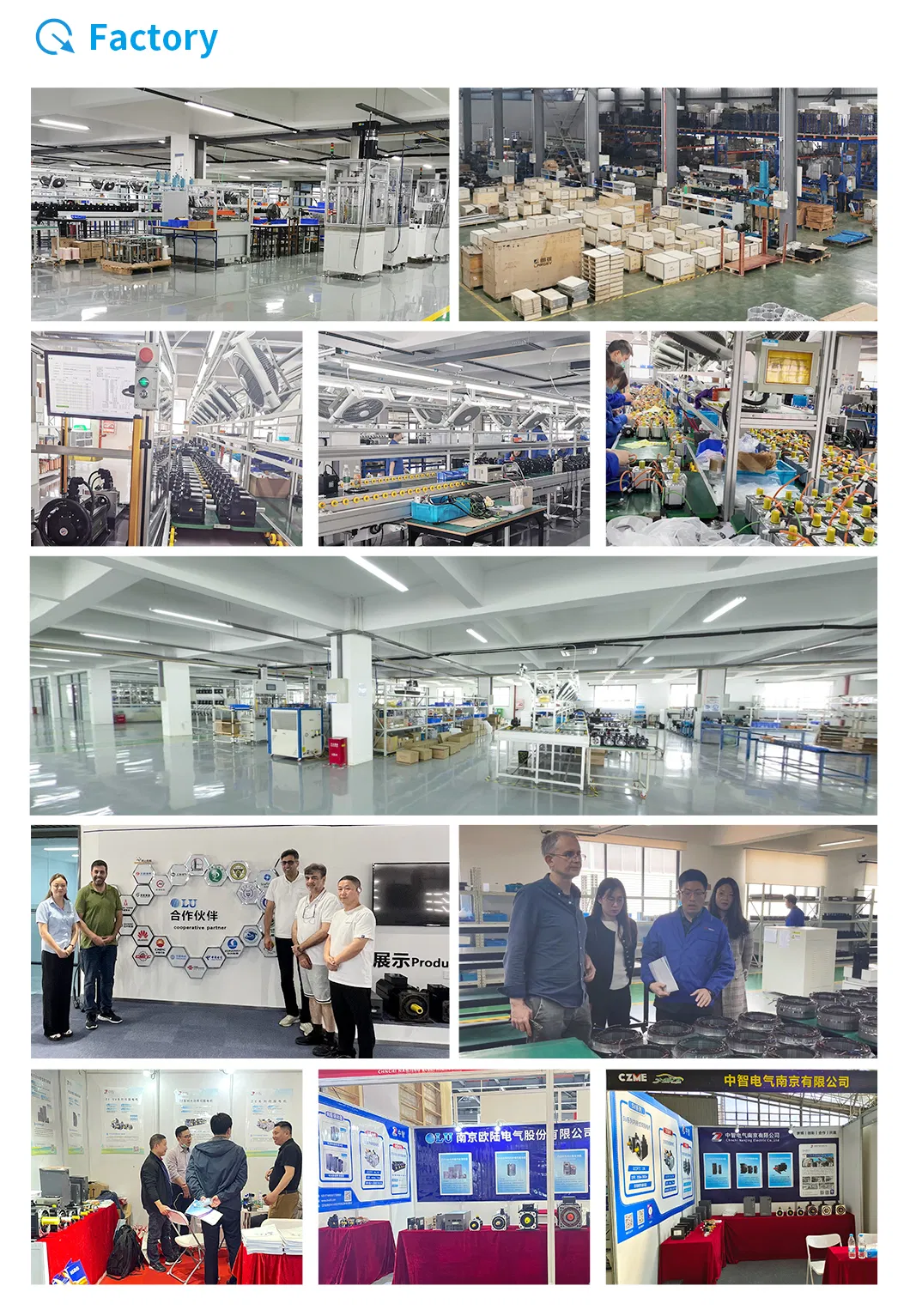

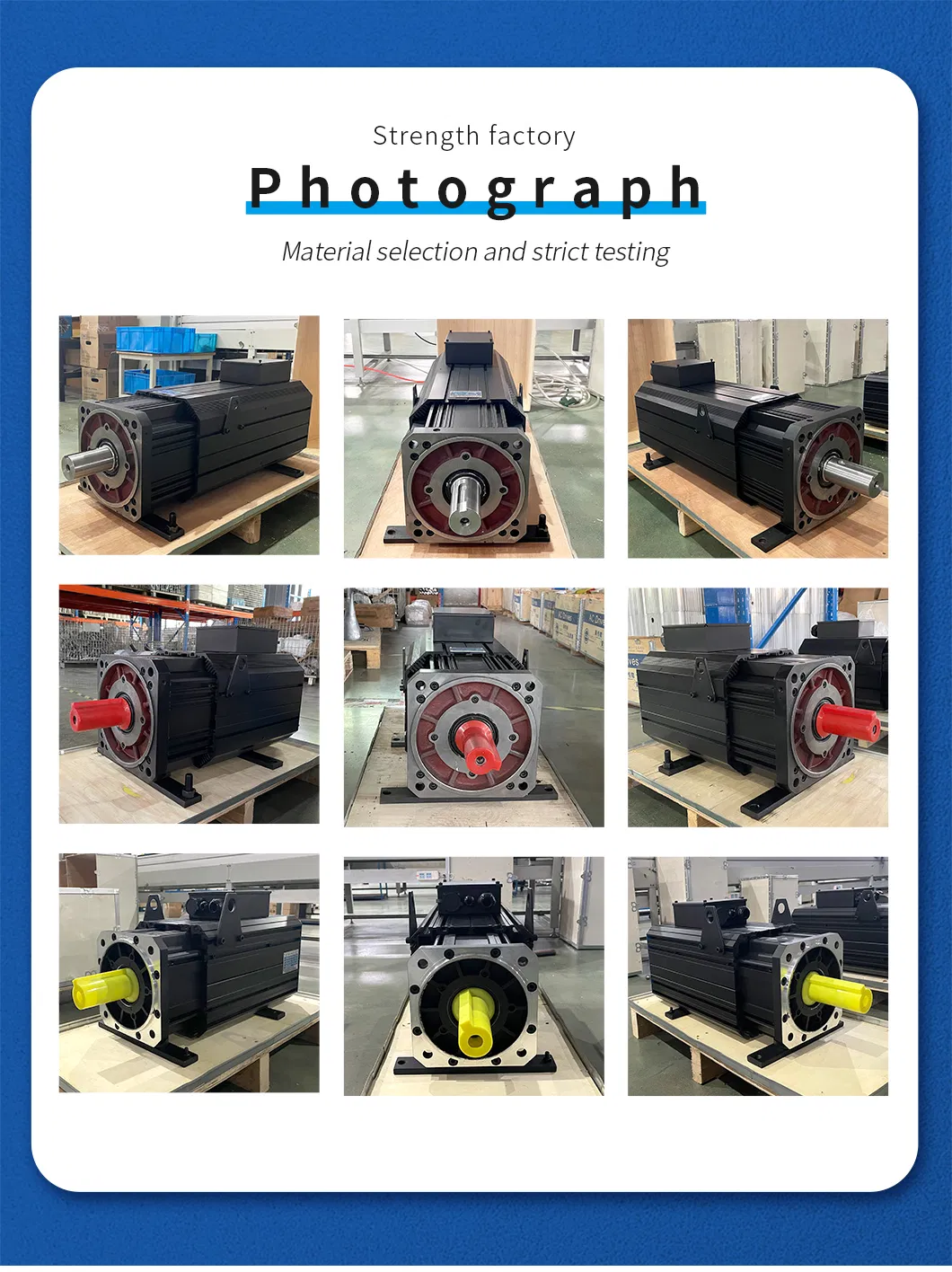

Factory Photos
Certifications
Certifications
Packaging & Shipping
Packaging
Frequently Asked Questions
What is the power range of these high power servo motors?
The ZE series offers a wide power range from 7.1kW up to 111kW, suitable for heavy-duty industrial applications.
What is the protection rating for these motors?
These motors are designed with an IP54 protection level, ensuring reliable operation in standard industrial environments.
How energy-efficient are the permanent magnet motors?
The system reaches first-level energy-saving standards, with potential power savings between 15% and 30% depending on demand.
What cooling method is used for the ZE series?
The motors utilize an air-cooling method which is efficient for maintaining optimal operating temperatures.
What kind of control precision can I expect?
By using double-closed-loop control of flow and pressure, the output is accurately managed to improve repeatability accuracy.
Are these motors suitable for hydraulic machinery?
Yes, they are specifically designed for printing, large packaging machinery, conveyors, and hydraulic systems.
