KPR Motor
1 / 5

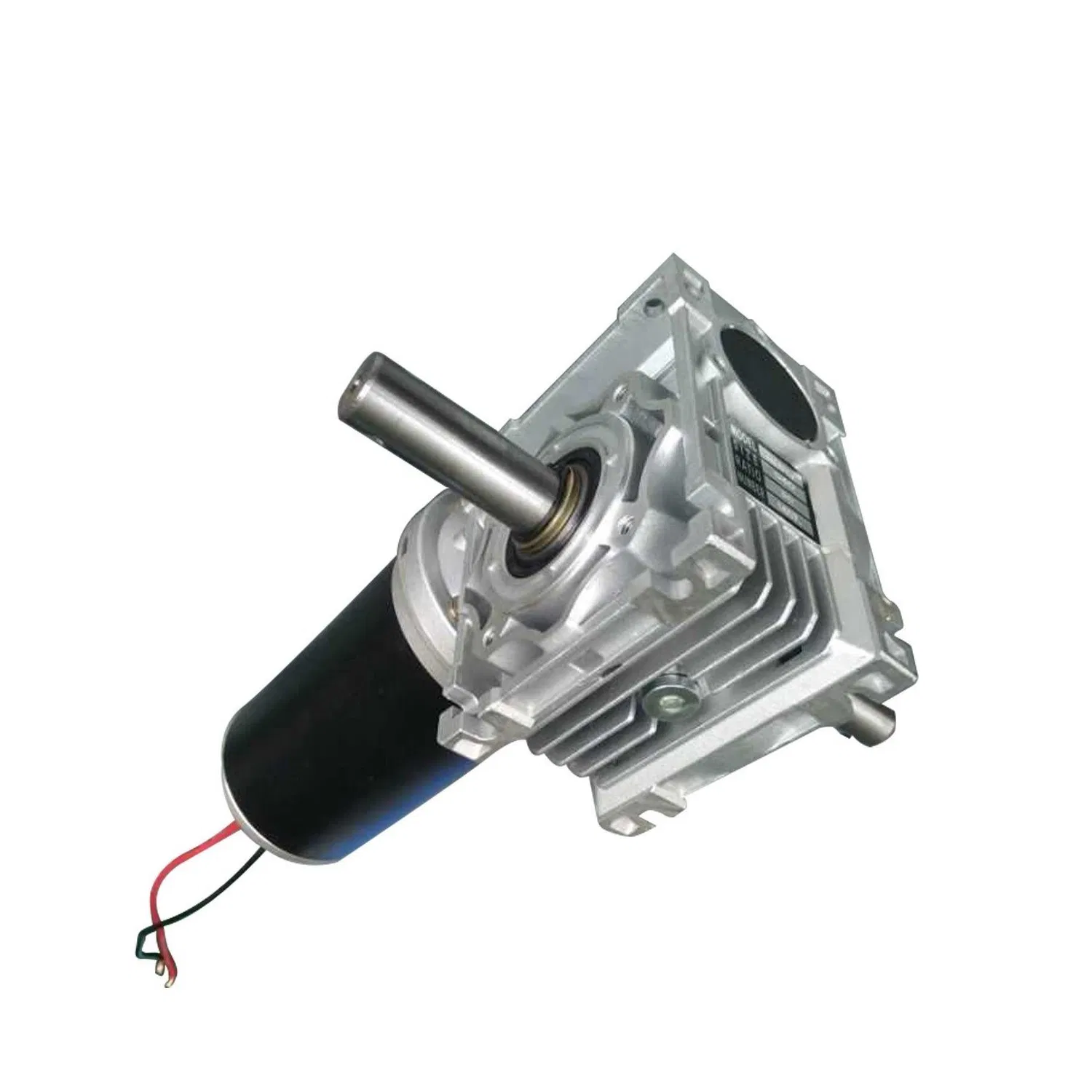

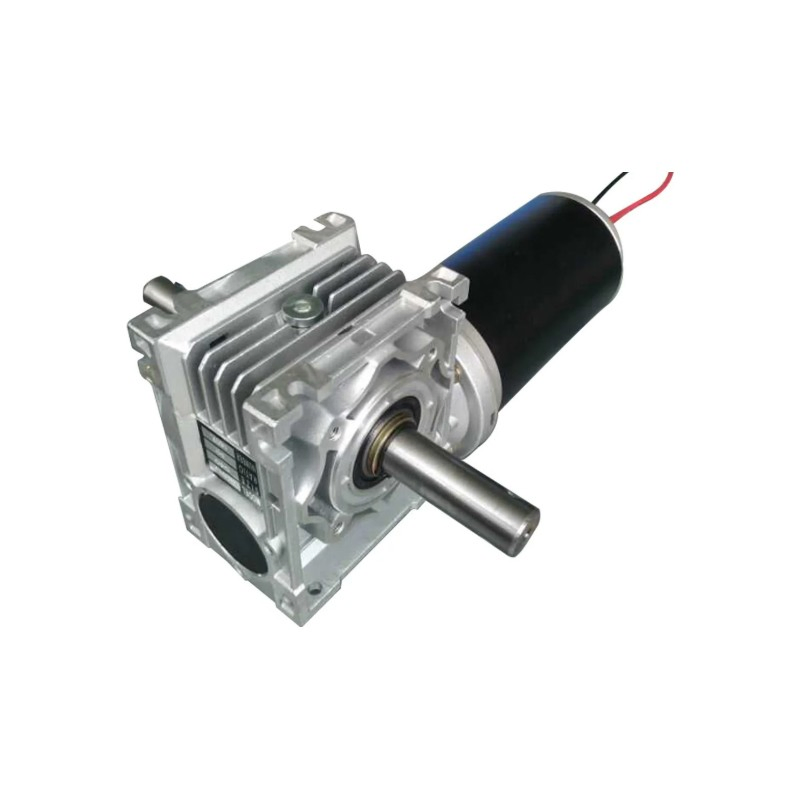

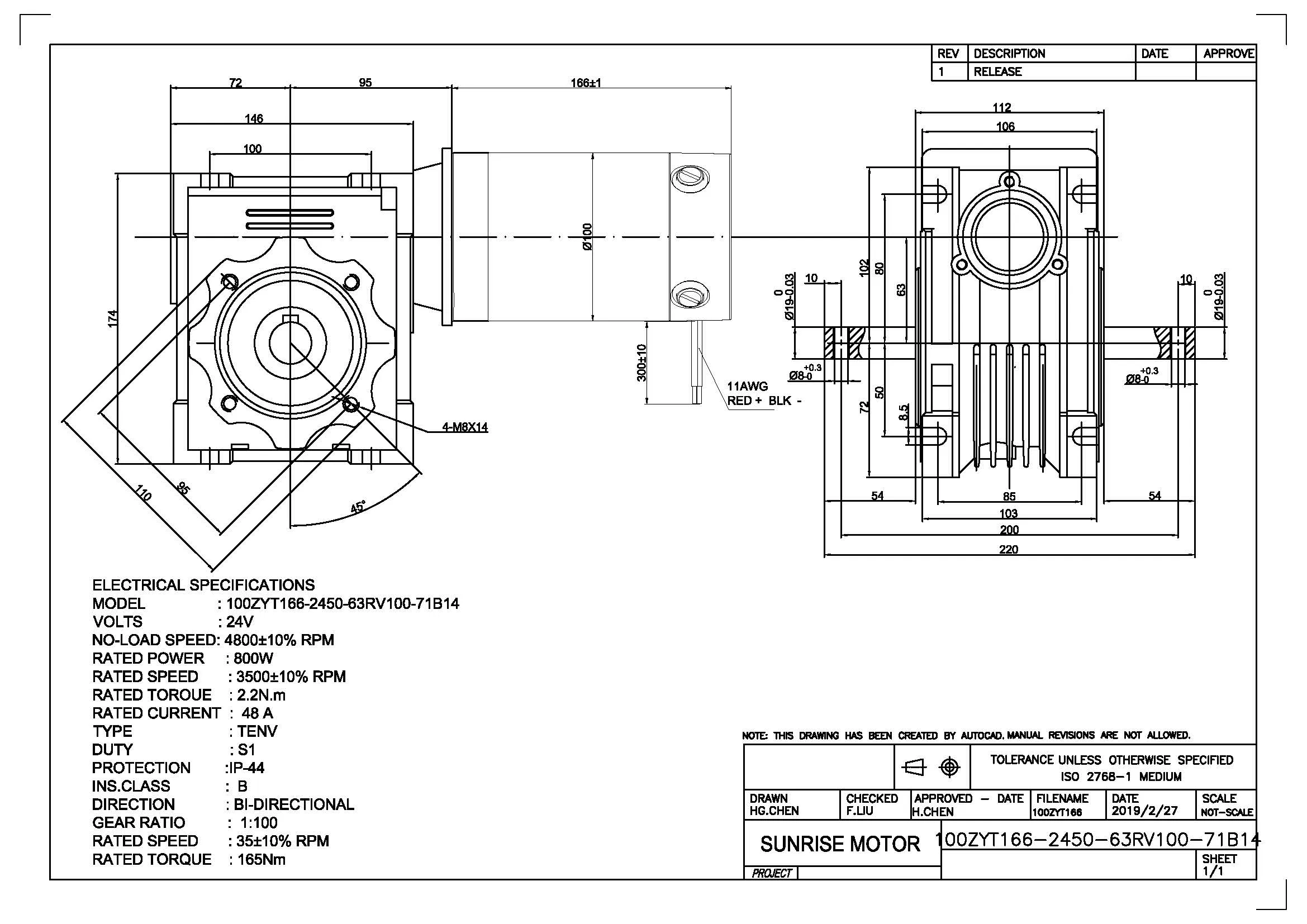

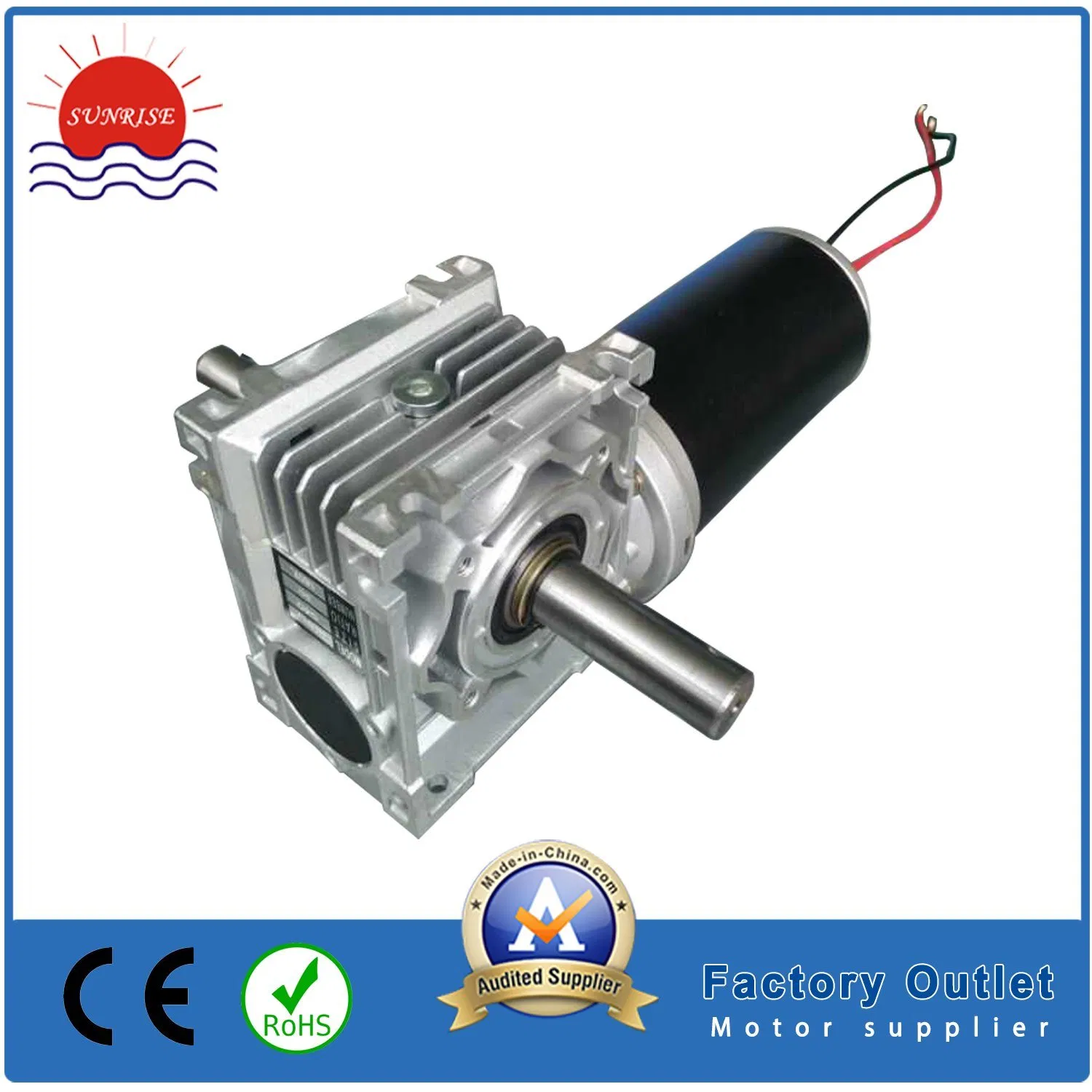

| Model NO. | 100ZYT166-2450-63RV100-71B14 |
| Type | Zyt (Brush PMDC) |
| Rated Power | 800W |
| Rated Speed | 3500rpm |
| Voltage | 24V |
| Structure | Permanent Magnet |
| Certification | ISO9001, TUV |
| Protection | Closed Type (IP-44) |
In a Permanent Magnet DC (PMDC) motor, the magnetic field is provided by permanent magnets in the stator rather than windings. This design allows PMDC motors to be more compact while maintaining high output performance.
🔹 Key Advantages: High starting torque, cost-effective design, and compact size. These motors are widely utilized in mobility equipment, industrial automation, and patient care products.

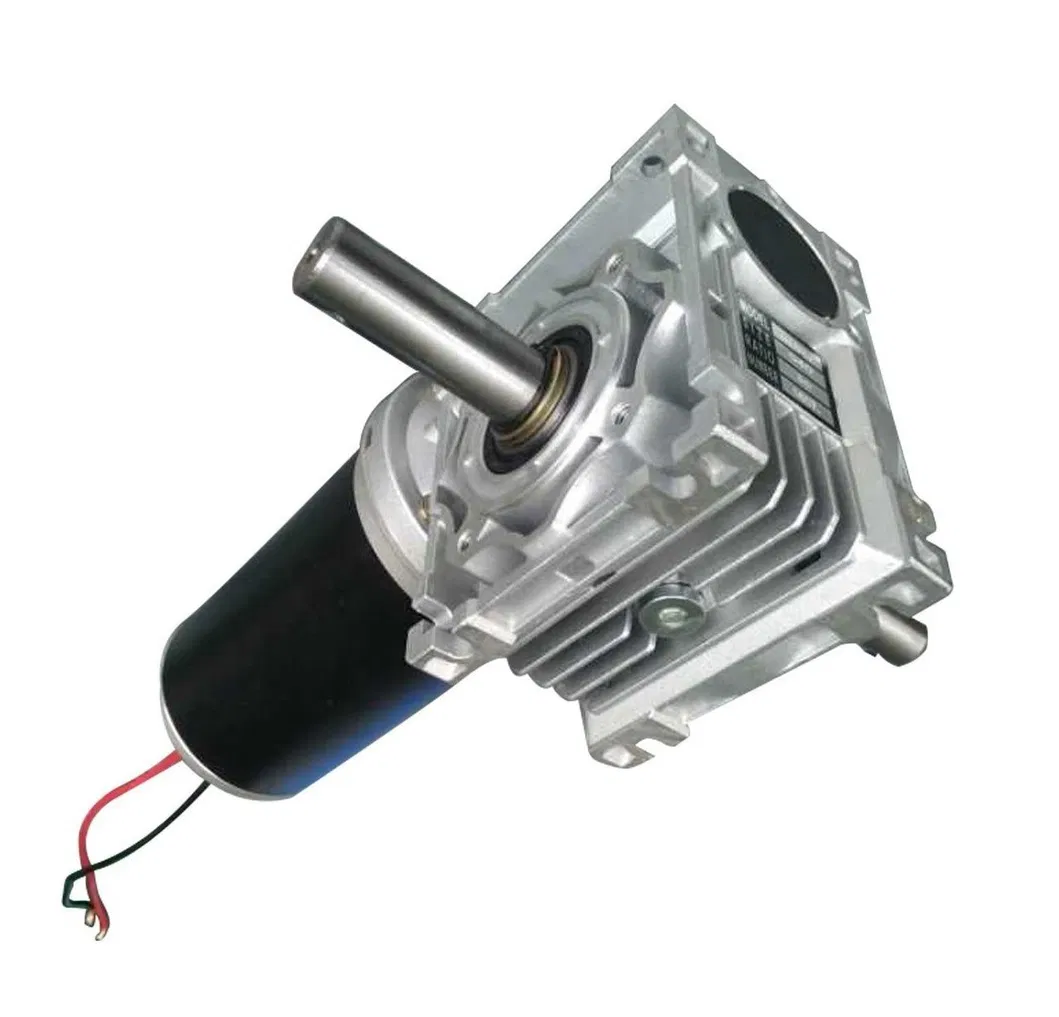

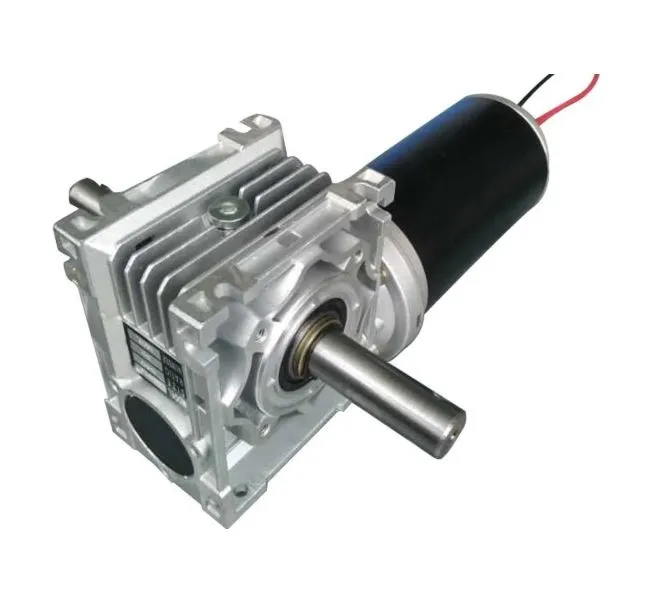

Our PMDC motors are often paired with high-precision gearboxes to reduce speed and significantly increase torque, providing a robust geared motor solution for demanding applications.
Performance Ranges:
• Speed: 1000 - 5000 RPM
• Power: Up to 2030 Watts
• Torque: 0.1 - 4.9 Nm
| 100ZYT SERIES PARAMETERS | |
|---|---|
| No-Load Speed | 4800±10% RPM |
| Rated Torque | 2.2 N.m |
| Rated Current | 48A |
| Duty Cycle | S1 (Continuous) |
| Insulation Class | Class B |
| Direction | Bi-Directional |
Customization Options: We offer comprehensive customization including shaft variations, output flange options, cable lengths, electromagnetic brakes, encoders, and specialized paint finishes.
