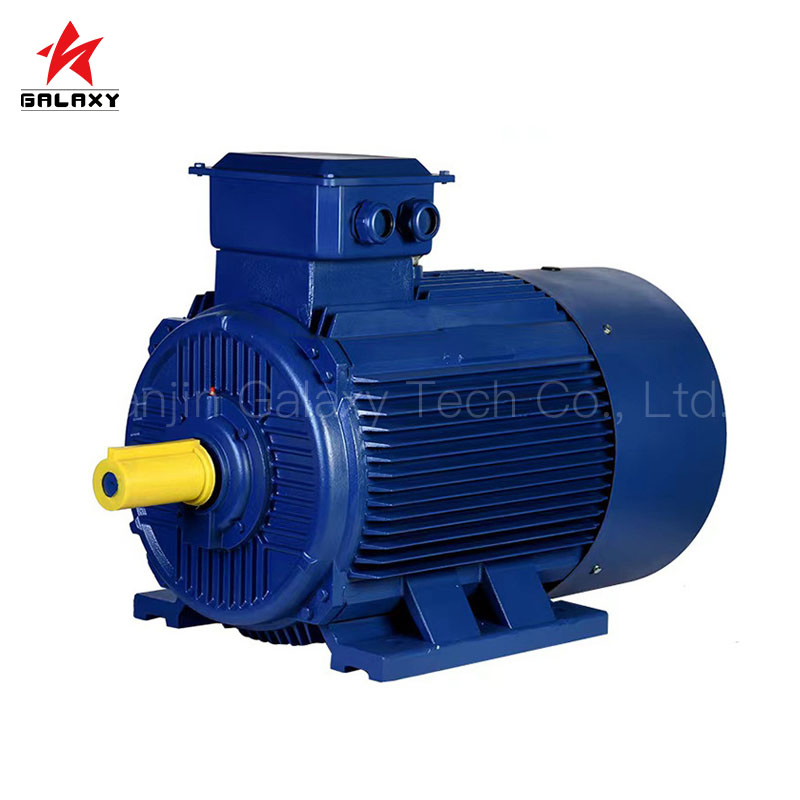

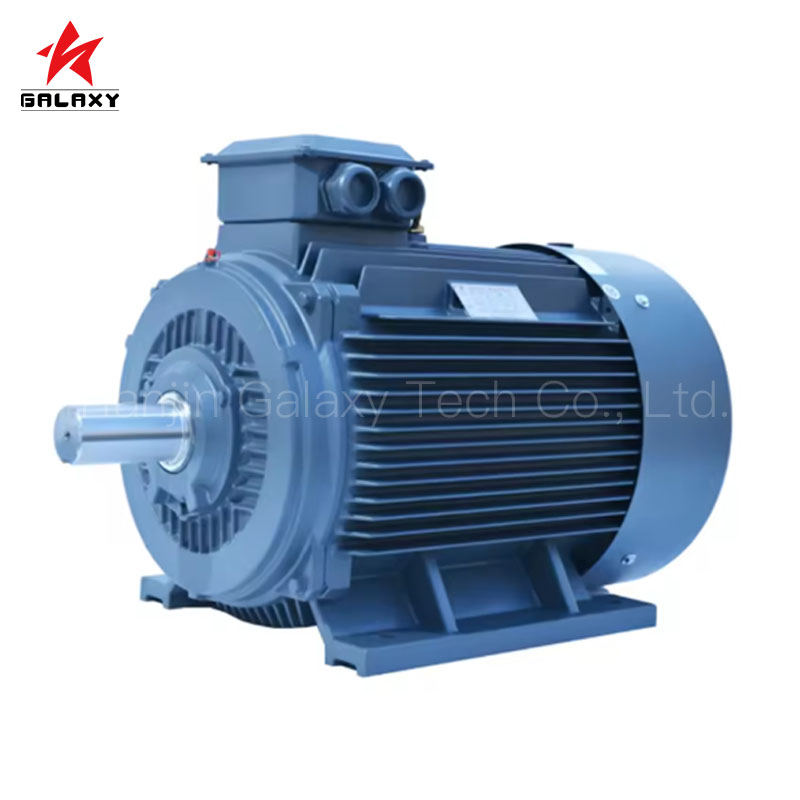

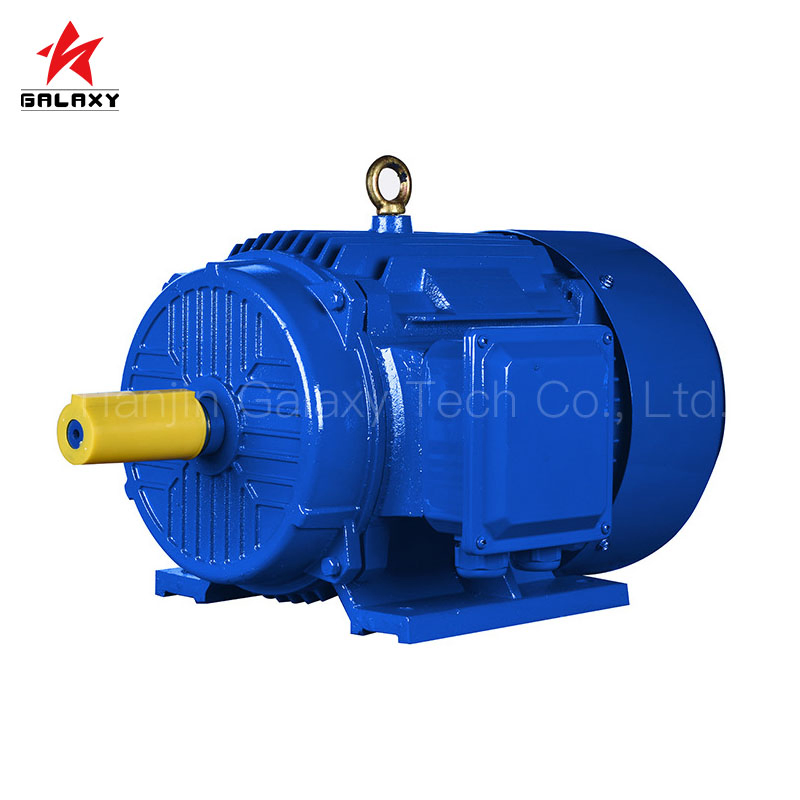

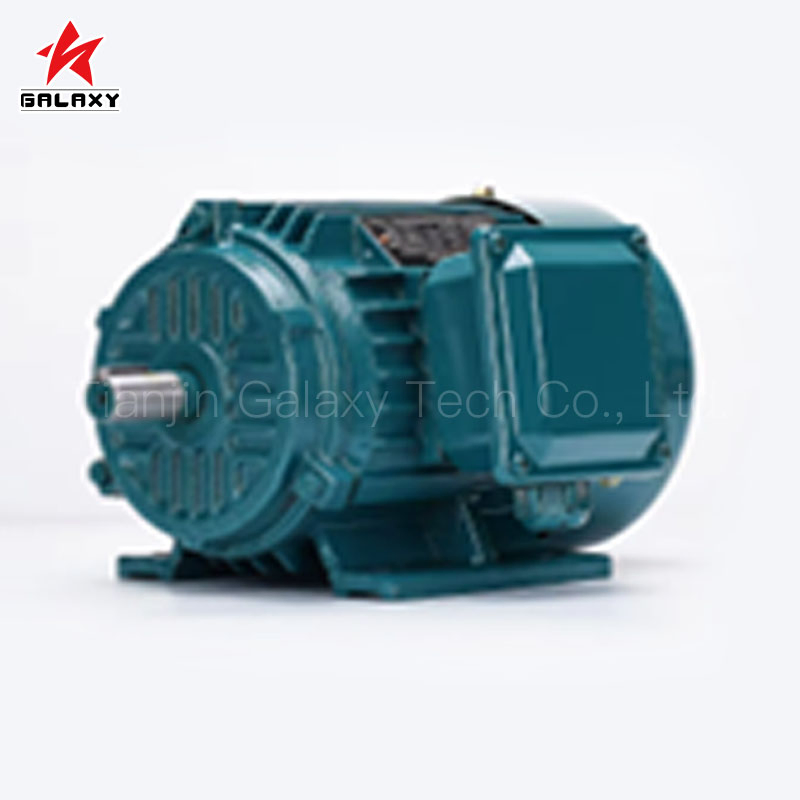

KPR Motor
1 / 5
| Model NO. | JXPMM-75KW |
| Number of Stator | Three-Phase |
| Function | Driving |
| Casing Protection | Closed Type (IP55) |
| Number of Poles | 8 |
| Starting Mode | Variable Frequency Starting |
| Certification | ISO9001 |
| Transport Package | Wooden Box |
| Specification | 980*550*705mm |
| Origin | China |
| Package Size | 105.00cm * 60.00cm * 76.00cm |
| Package Gross Weight | 60.000kg |
| Base Number | JPM280S15-75 |
| Rated Power | 75KW |
| Rated Speed | 1500RPM |
| Rated Voltage | 380Vac |
| Rated Current | 128A |
| Frequency | 100Hz |
| Efficiency | 96% (IE5 Equivalent) |
| Protection Level | IP55 |
| Rated Torque | 478Nm |
| Magnet Type | NdFeB |
| Housing Material | Cast Iron |
| Cooling Method | IC411 |
A1: This permanent magnet synchronous motor reaches up to 96% efficiency, which is equivalent to the IE5 energy efficiency level.
A2: We use high-performance NdFeB (Neodymium Iron Boron) rare-earth permanent magnets to ensure high power density and stability.
A3: Yes, the motor features an IP55 protection level and a fully enclosed structure, making it ideal for industries like mining, chemical, and petroleum.
A4: Yes, it is designed for Variable Frequency Starting to ensure smooth torque output and energy savings.
A5: The standard installation methods are B3 and B5. B35 or other specialized mounting requirements can be ordered separately.
A6: The standard cooling method is IC411. We also provide IC416 cooling options depending on the duty cycle and application needs.
