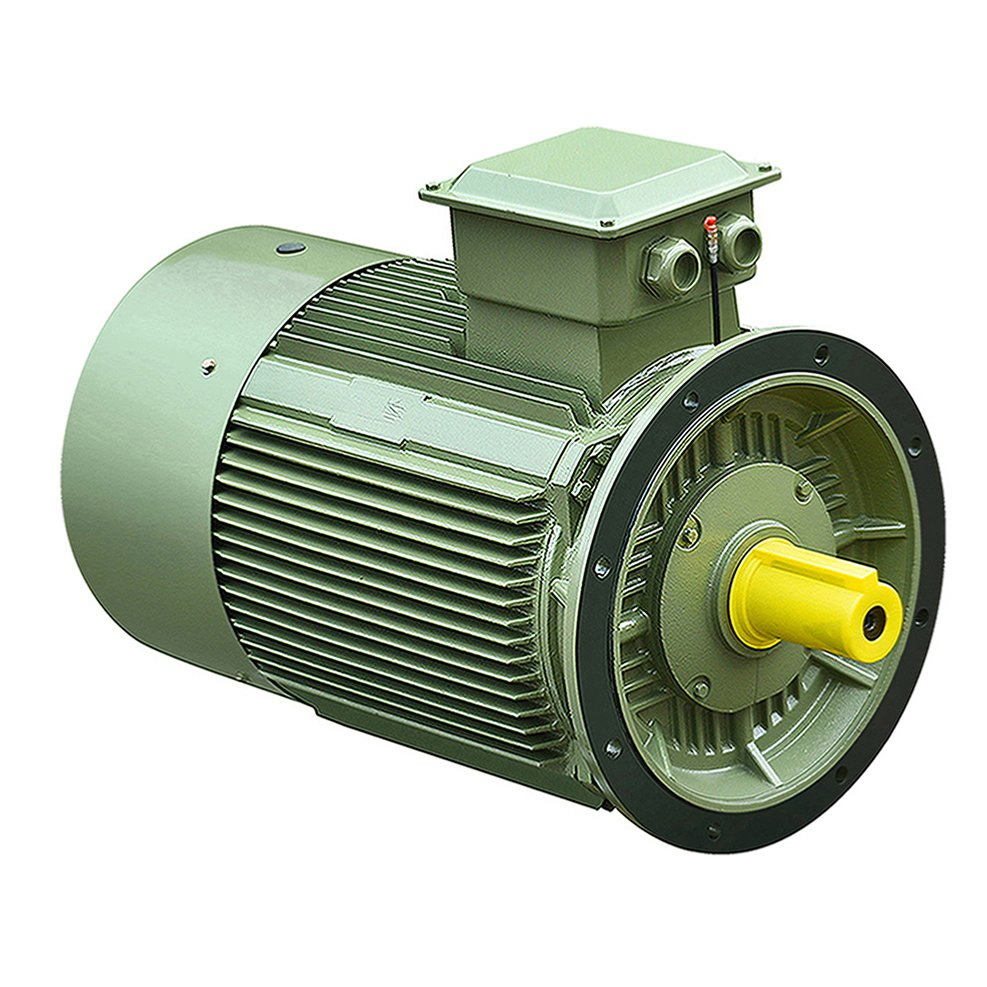

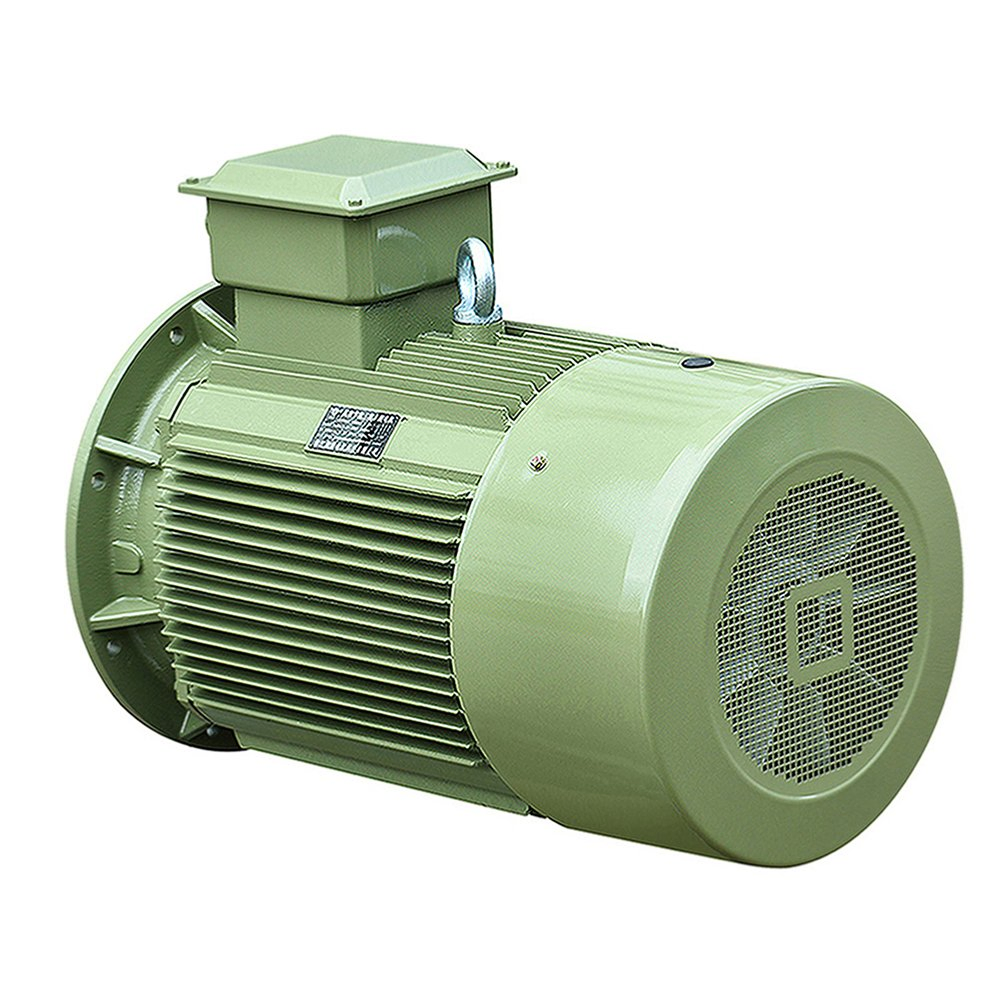

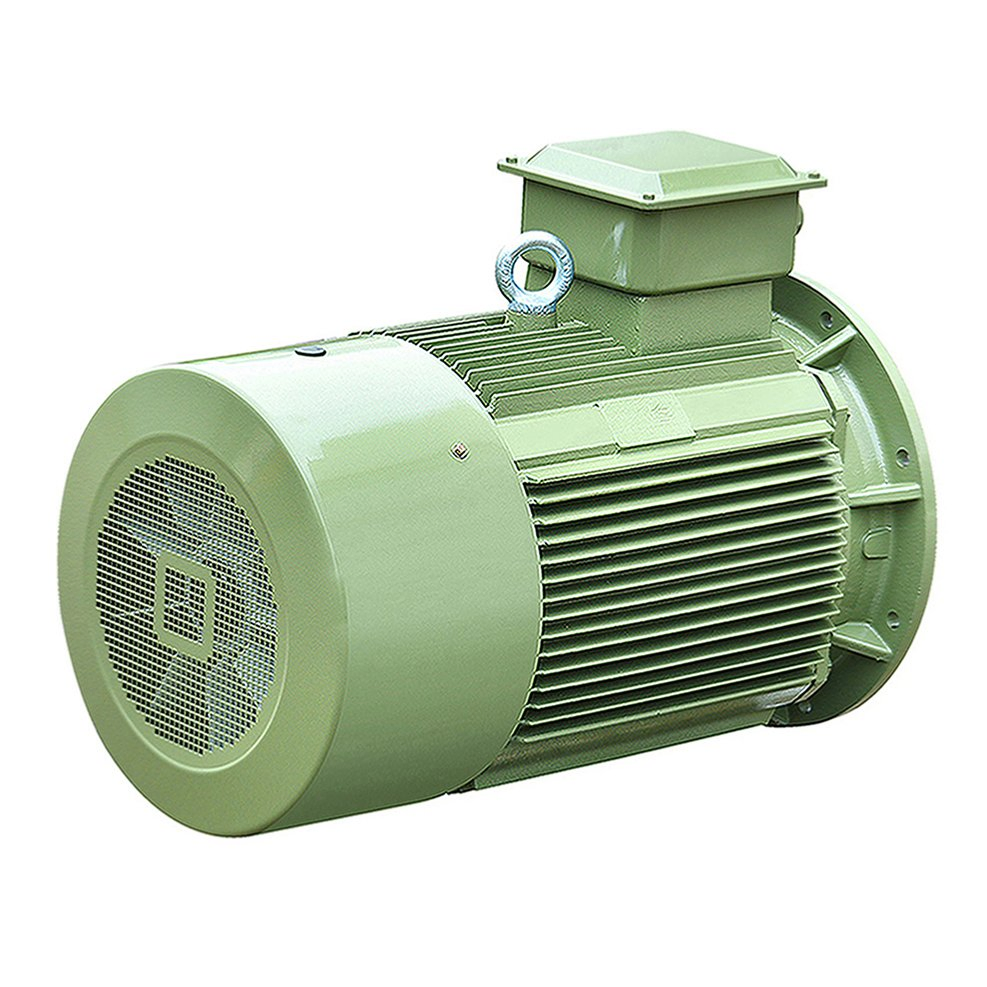

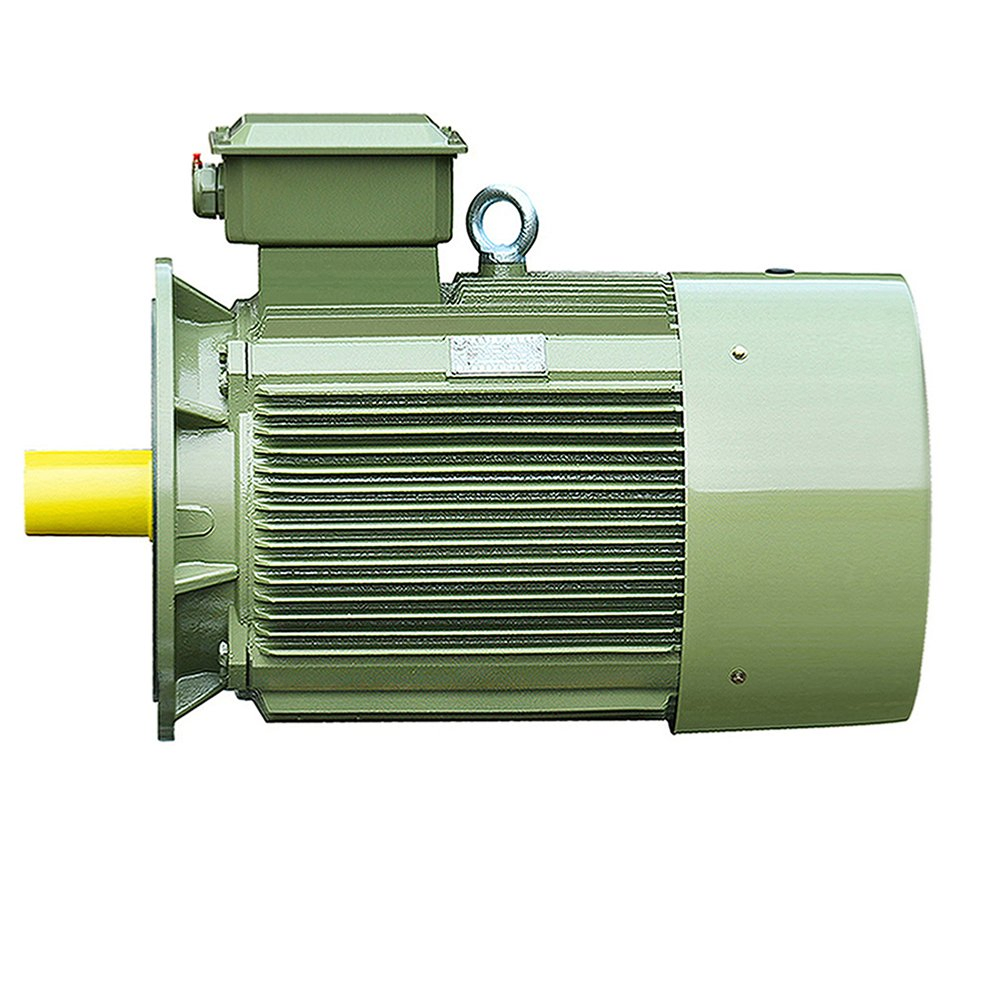

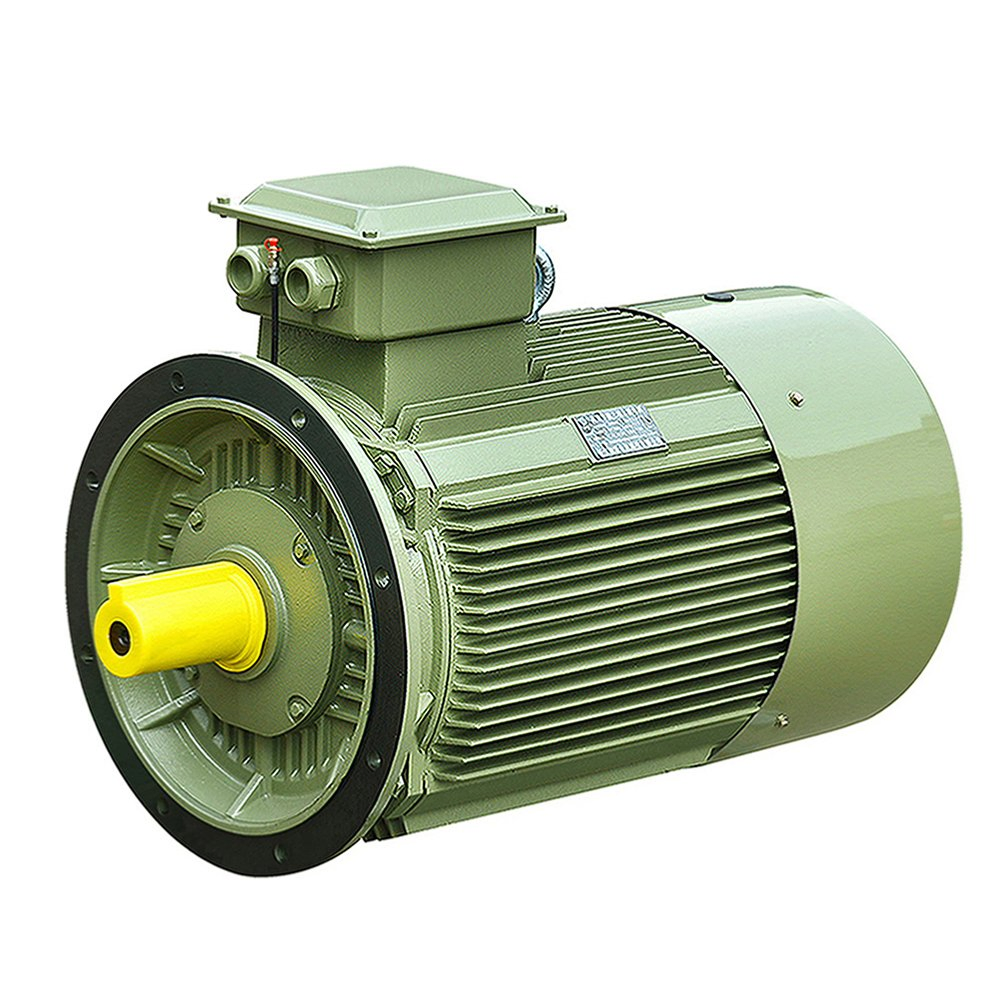

Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
1 / 5
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors
Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors

Alonmax Brand Pm Permanent Magnet Synchronous Direct Driven Electric Motors

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.ALTYP132S2-4(7.5KW)
Number of StatorThree-Phase
FunctionDriving, Transmitting Power
Casing ProtectionClosed Type (IP55/IP65)
Number of Poles2, 4, 6, 8, 10, 12
Starting ModeDirect on-line Starting
CertificationISO9001, CCC, CE
Insulation ClassF
Voltage220V, 380V, 440V, 660V
Winding100% Pure Copper
Frequency50Hz / 60Hz
Frame MaterialCasting iron or Aluminum shell
📦 Packaging & Delivery
Package Size66.00cm * 45.00cm * 52.00cm
Gross Weight211.000kg
Transport PackageCarton with Pallet, Honeycomb or Wooden Box
Delivery Time20 Days
🚀 Product Description

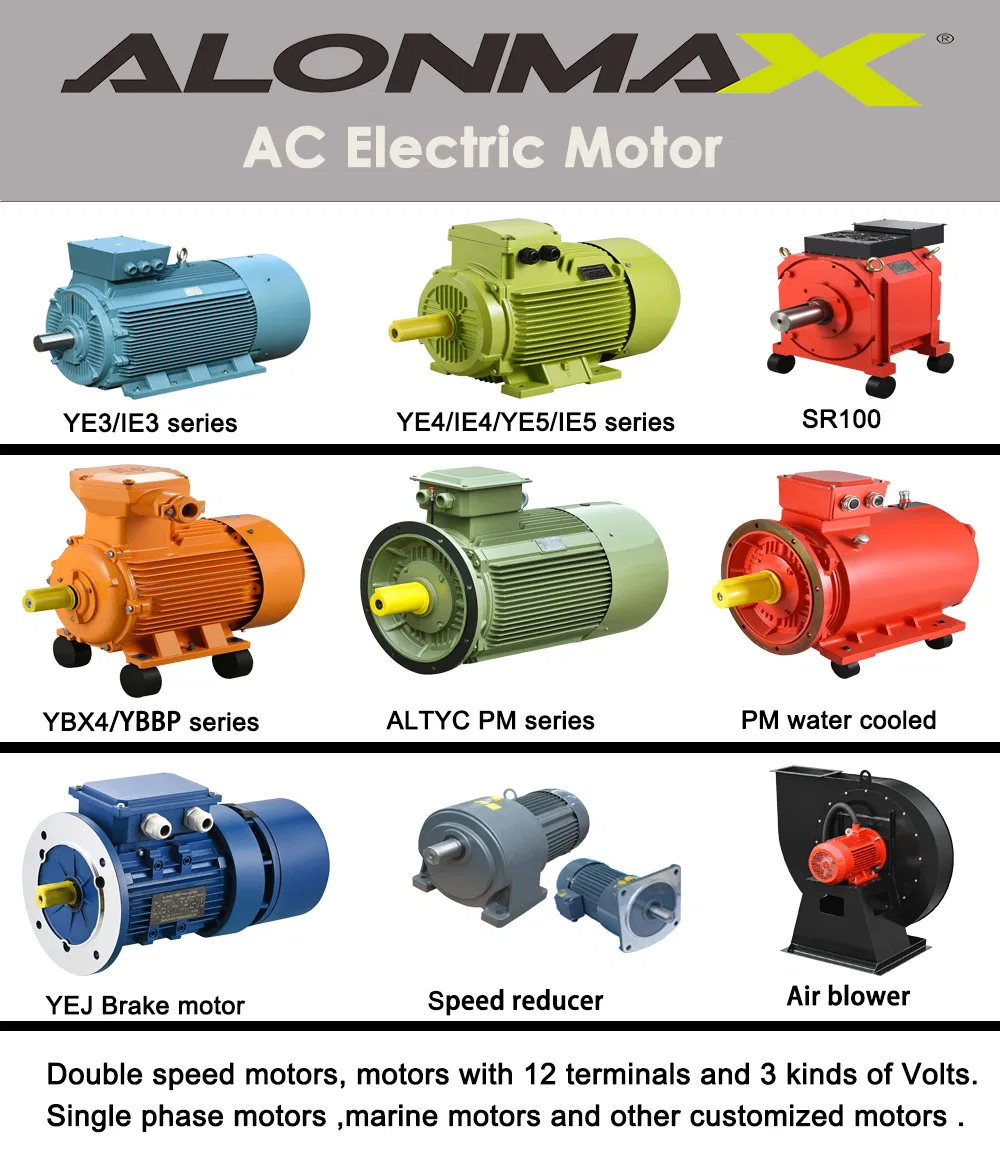

High Efficiency Electric Motor

This series of motor consists of high-efficiency and energy-saving three-phase asynchronous motors. The coolant mode is IC411, meeting GB/T 755 and JB/T 13299 specifications for High-Efficiency Induction Motors (Frame size 80-400). Its efficiency complies with Grade 2 energy efficiency standards in GB 18613-2020 and matches IE4 international standards.

Commonly used to drive water pumps, fans, compressors, conveyors, and other transmission machinery, these motors are ideal for energy conservation and environmental protection transformation projects.

📊 Technical Parameters (380V 50Hz)
Type Rated Power Rated Current (A) Rated Speed (r/min) Efficiency (%) Power Factor
KW HP
YE5-80M1-20.7511.6288086.30.83
YE5-90S-21.523289088.90.85
YE5-100L-2345.8291091.10.87
YE5-132S2-27.51013.7294093.30.89
YE5-160M2-2152027.1295094.50.89
YE5-200L2-2375065.9297595.80.89
YE5-315M-2132180233297596.90.89
⭐ Manufacturing Advantages
✔ 100% inspection of incoming parts and motor testing for each process.
✔ High-grade 100% pure copper winding (180# brand wire).
✔ High-end 270# silicon steel sheet (0.35mm thickness) for IE4/IE5 motors.
✔ Vacuum dipping and vertical paint process for superior insulation.
✔ Famous brand bearings (Renben or Tianma) with high-performance oil.
✔ Unique waterproof junction box design and integrated drilling for frame 315+.
📸 Product Showcase

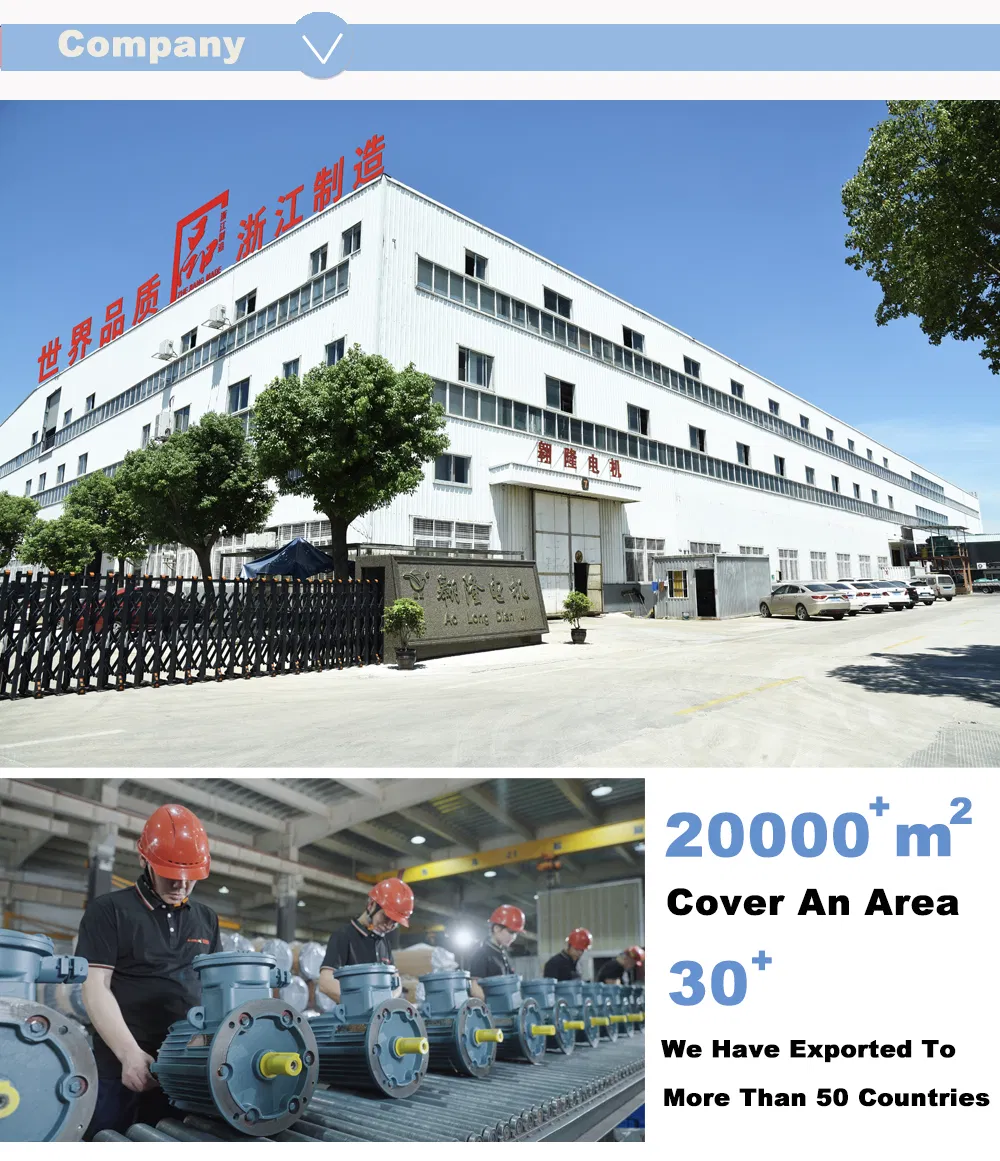

Motor Overview
Motor Application
Internal Parts

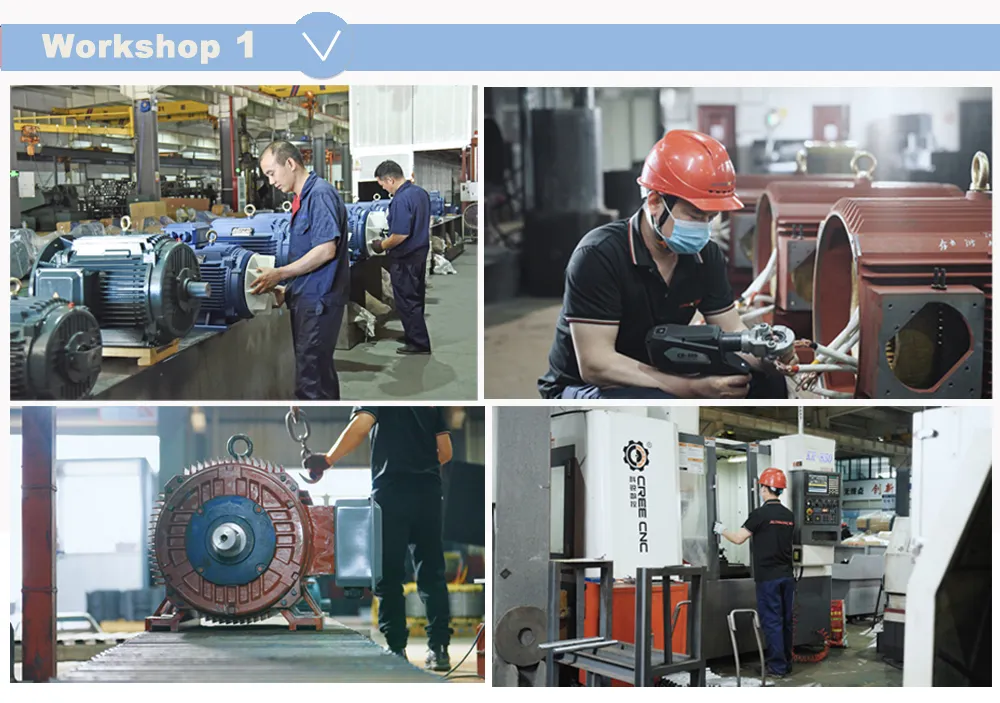

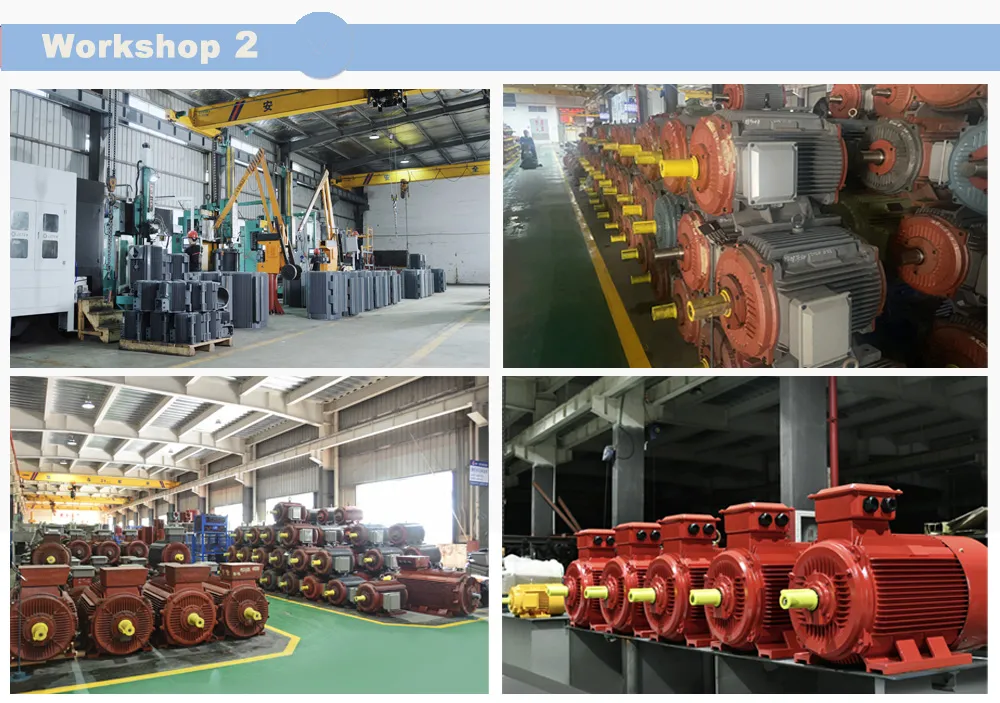

Production Line
Testing Center
❓ Frequently Asked Questions
Q1: What certifications do your electric motors hold?
Our motors are certified with CE, ISO9001:2015, CCC, Carbon footprint, and explosion-proof certificates with complete test reports.
Q2: Do you offer customized services?
Yes, both OEM and ODM services are available. We can customize specifications, colors, and branding according to your requirements.
Q3: What is the standard warranty for your motors?
We provide a one-year quality warranty. During this period, we supply free replacement parts for problems not caused by incorrect operation.
Q4: What are the main applications of these synchronous motors?
They are widely used for general purposes including water pumps, fans, compressors, conveyors, and farming or food processing machinery.
Q5: How do you ensure the high efficiency of the YE5 series?
We use 100% pure copper winding and high-end 0.35mm silicon steel sheets, combined with a vacuum dipping process and precision rotor balancing.
Q6: What is the lead time for a typical order?
Standard delivery is approximately 15-30 days after receiving the deposit or original L/C.
