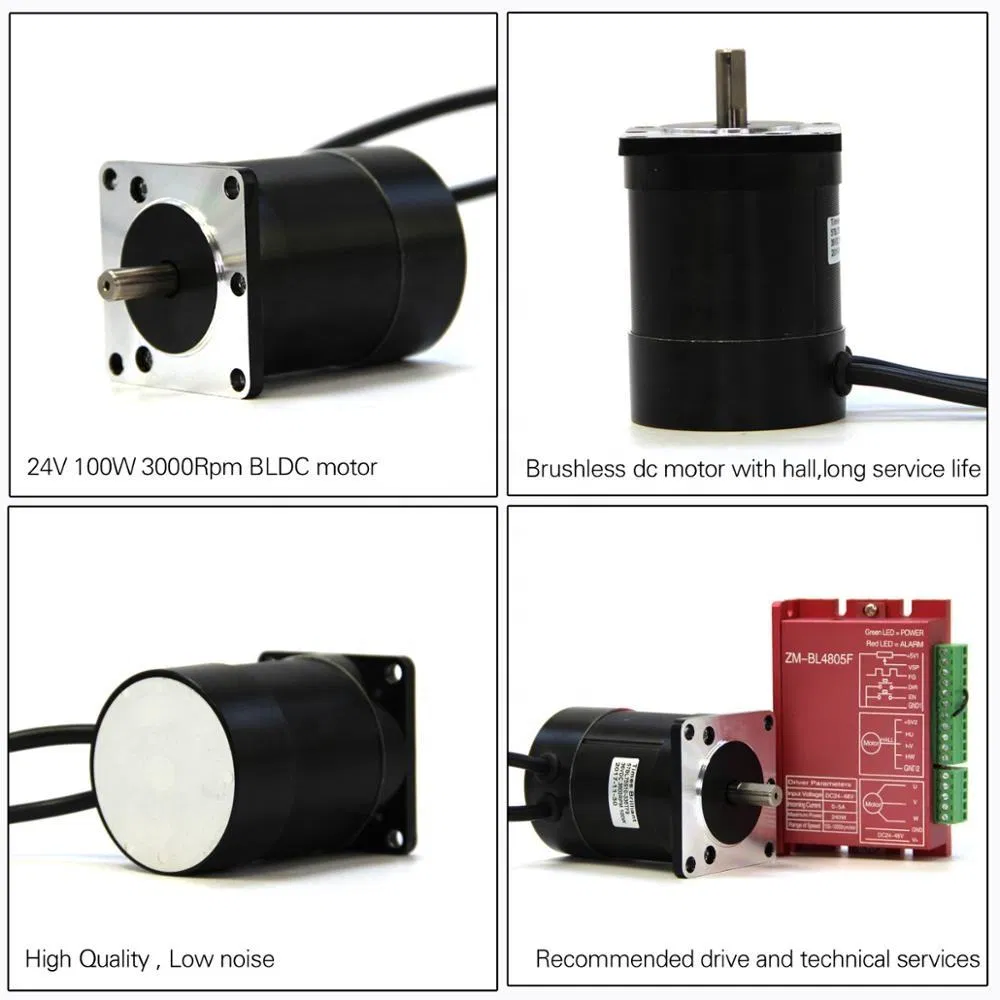

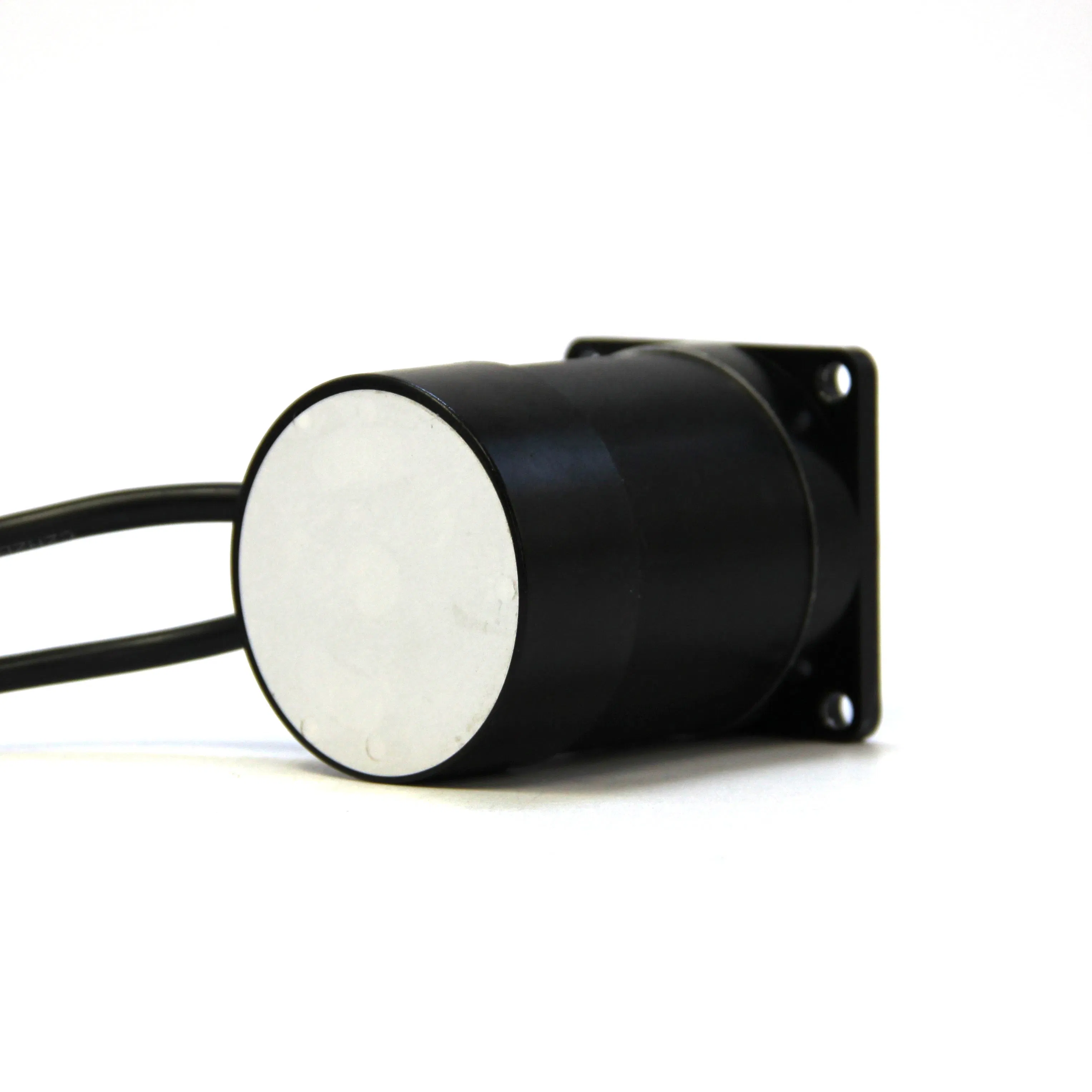

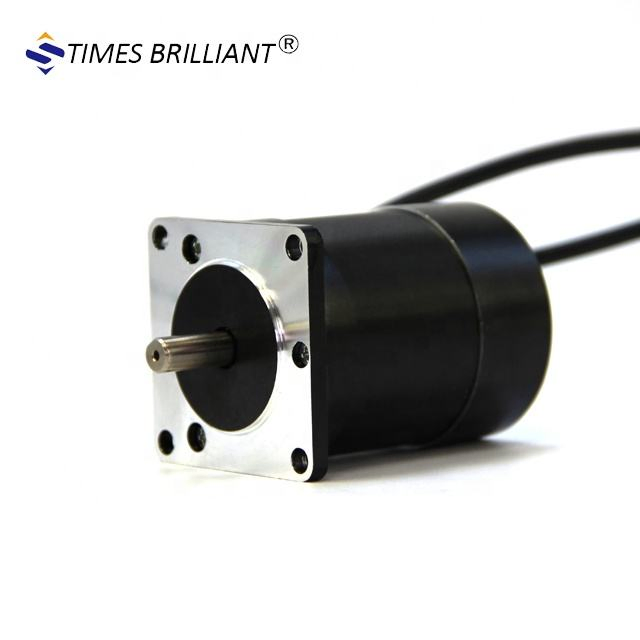

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
1 / 5
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

Customization: Available
Application: Industrial
Operating Speed: High Speed
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
57BL75S10-230TF9
Rated Voltage
24V
Rated Power
100W
Rated Speed
3000rpm
Rated Torque
0.32nm
No Load Speed
4500rpm
Structure
Brushless
Number of Poles
4
Type
Micro Motor
Certification
CE
Construction
Permanent Magnet
Protection Feature
Drip-Proof / IP40
Rated Current
5.9A
Excitation Mode
Compound
📦 Packaging & Delivery
Package Size
15.00cm * 15.00cm * 20.00cm
Gross Weight
5.000kg
Transport Package
Polyfoam, Cardboard Carton
📝 Product Description

3000RPM High Speed Low Noise 100W BLDC Brushless DC Motor 24V

High performance 3-phase permanent magnet brushless motor designed for home appliance usage and industrial driving applications.

BLDC Motor Banner

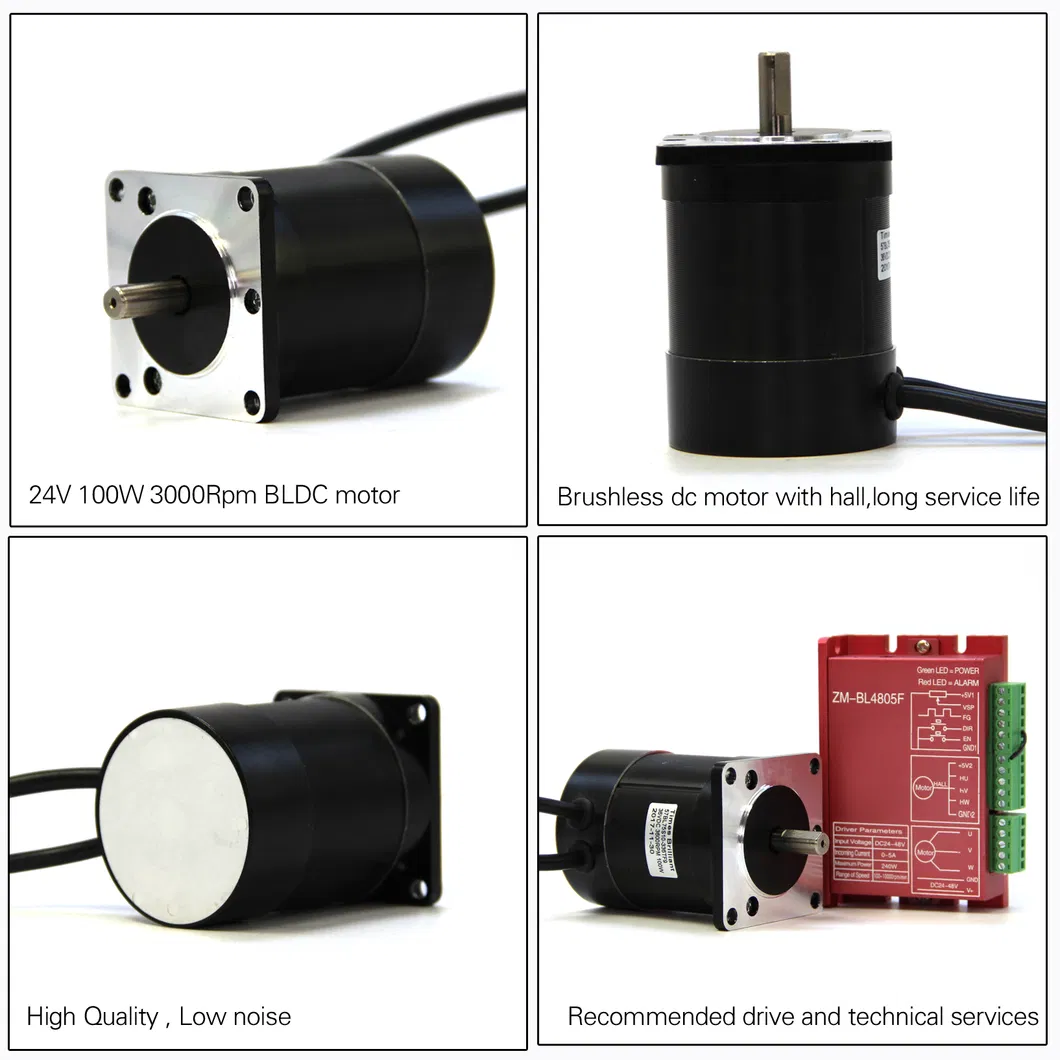

BLDC Motor Product View
Note: The motor contains magnetic components. Inspection protocols may apply during transportation.
Technical Specs Header
Parameter Specifications
KeyWordsBrushless DC Motor
Model57BL75S10-230TF9
Phase3
Rotor Poles8
Rated Voltage24V
Resistance @25°C0.42±10%Ω
Inductance1.12±20%mH
No Load Speed4500±10% rpm
No Load Current (Max)0.8A
Rated Speed3000±10% rpm
Rated Torque0.32NM
Rated Power100W
Rated Current (Max)5.9A
Rotor Inertia119gcm2
Insulation ClassB
Insulating Strength500VAC
IP ClassIP40
Quality Guarantee1 Year
Mass0.6Kg
Separator

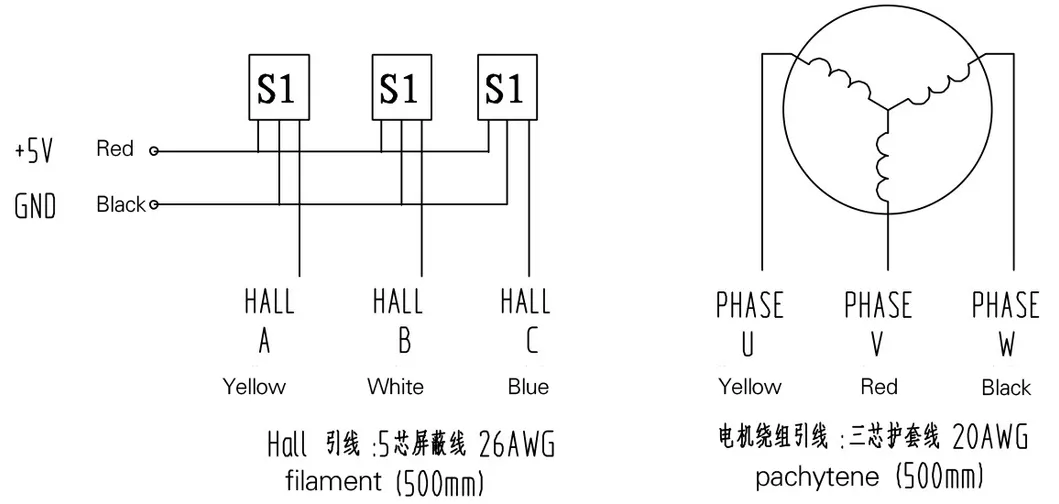

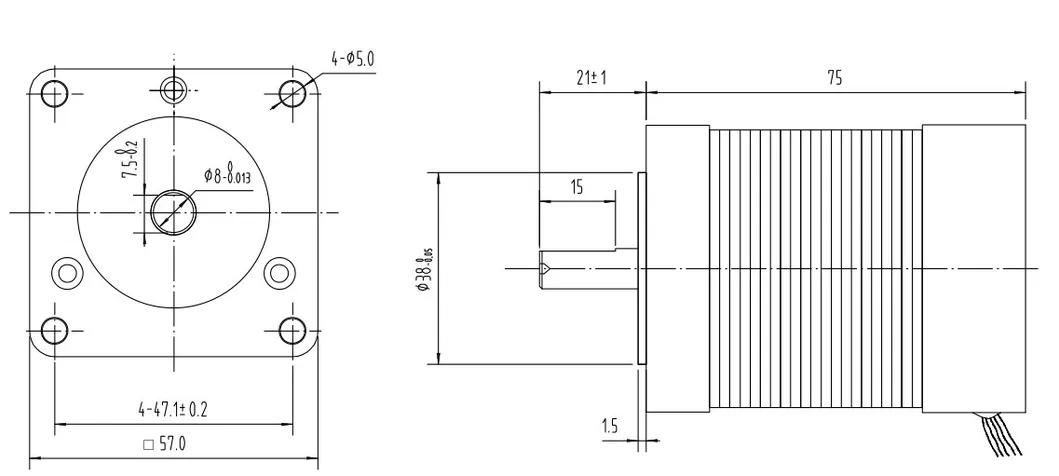

Drawing 1 Drawing 2 Technical Curves
🔍 Product Visuals & Services
Service Header

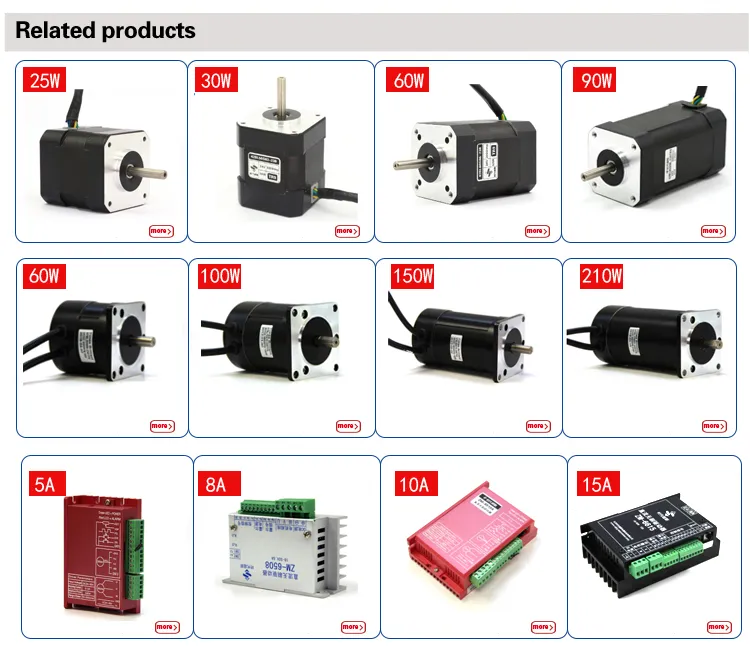

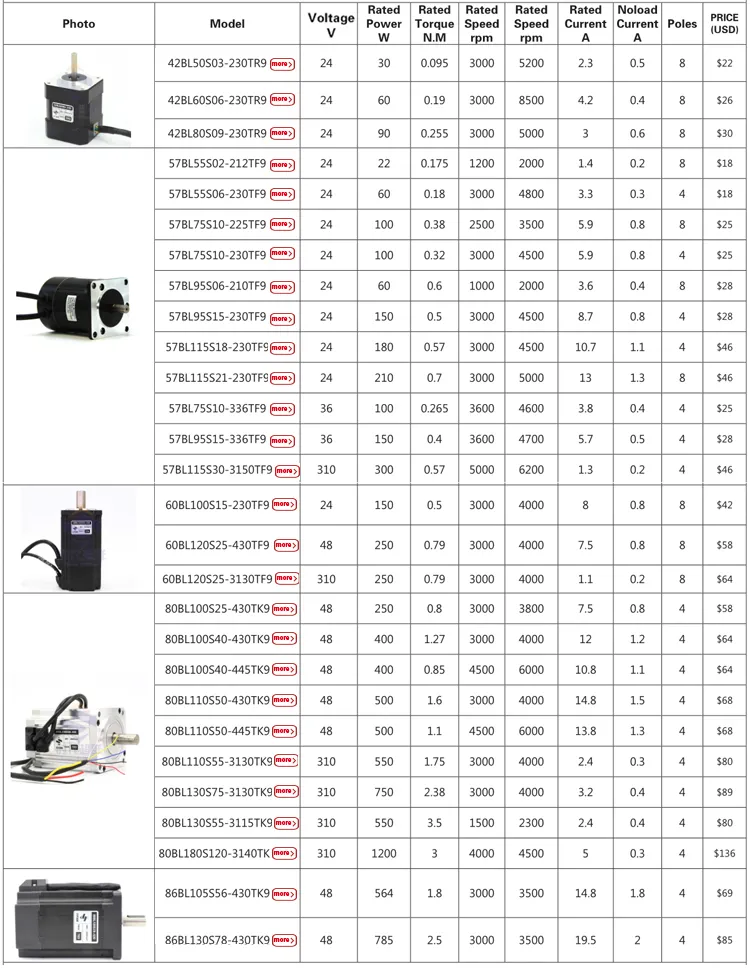

Product Options 1 Related Models

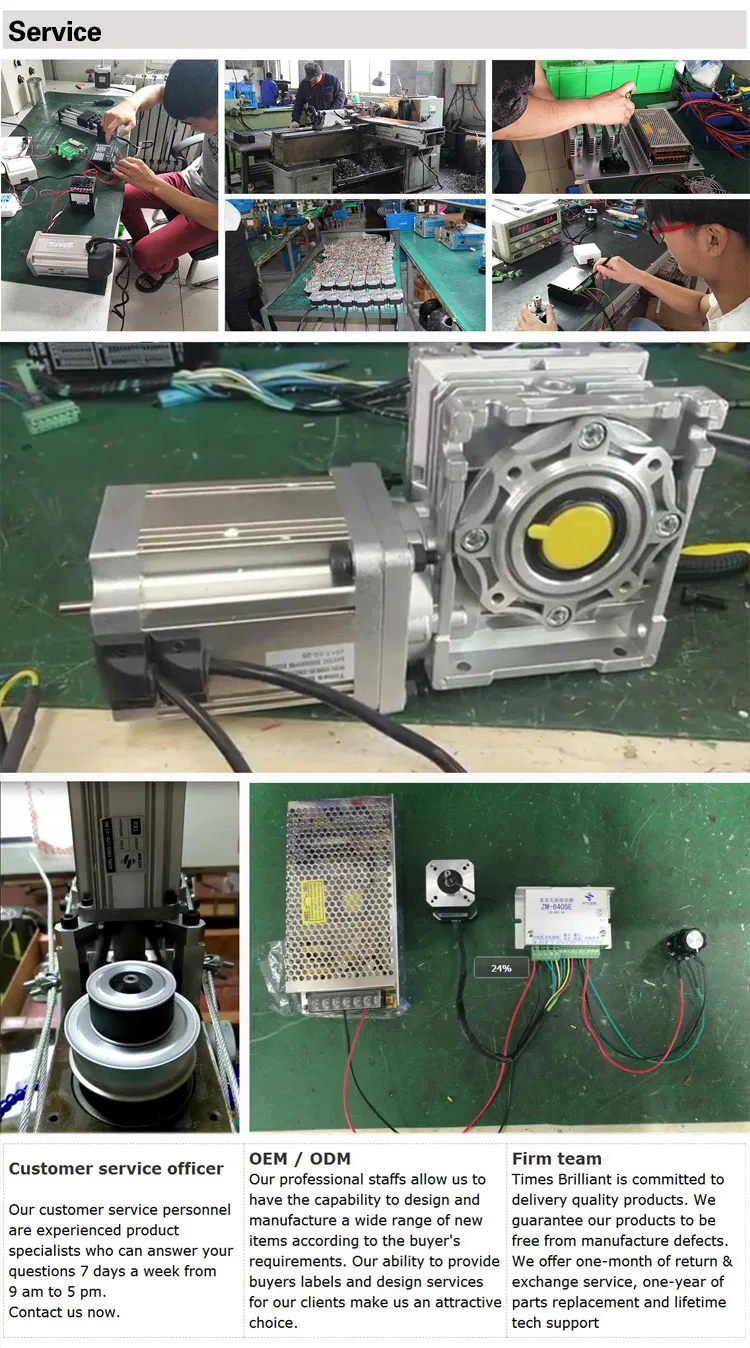

Our Services

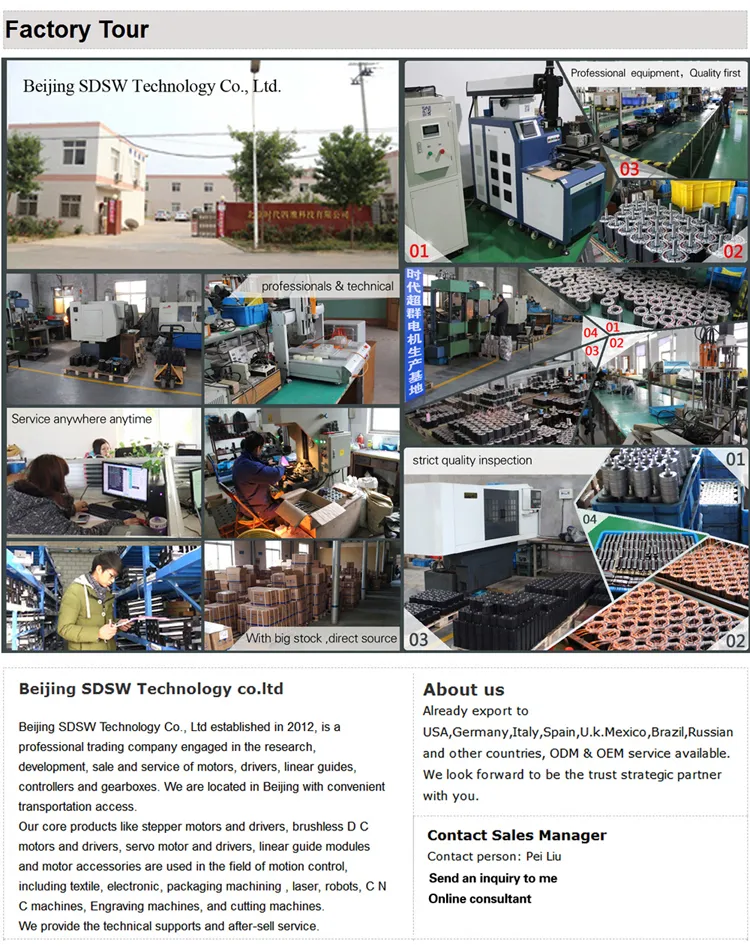

Company Capability
Certificates
❓ Frequently Asked Questions
What is the rated voltage and power of this motor?
The motor is rated at 24V DC with a power output of 100W, making it suitable for high-efficiency applications.
What is the maximum speed of the 57BL75S10 model?
The rated speed is 3000rpm, but it can reach a no-load speed of up to 4500rpm.
What is the insulation class for this BLDC motor?
This motor features Class B insulation, ensuring reliability and safety during standard operations.
Is the motor protected against dust and water?
The motor has an IP40 protection rating and is designed to be drip-proof, suitable for indoor home appliances and controlled industrial environments.
What are the main advantages of using a brushless DC motor?
Brushless motors offer high speed, low noise, higher efficiency, and a longer lifespan compared to traditional brushed motors due to the absence of physical brushes.
What is included in the standard transport package?
The motor is securely packed using polyfoam and a sturdy cardboard carton to prevent damage during shipping.
