We provide customizable solutions for voltage, dimensions, performance, shafts, and mounting. Our offerings include integrated encoders, gearboxes, and brakes to meet specific application requirements.
Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.
| Available Options & Parameters | |
|---|---|
| Diameter | 30mm, 36mm, 38mm, 42mm, 52mm, 57mm, 60mm, 63mm, 70mm, 76mm, 80mm, 86mm, 90mm, 110mm, 130mm |
| Rated Voltage | 10V, 12V, 18V, 24V, 36V, 48V up to 380VDC |
| Rated Torque | Up to 10Nm (with gearbox up to 120Nm) |
| Rated Speed | 1rpm up to 15000rpm |
| Rated Power | 10W up to 2000W |
| Protection Class | IP00, IP40, IP50, IP54, IP56, IP66, IP67 |
| EMI Suppression | Available upon request |
| Thermal Protection | Available upon request |

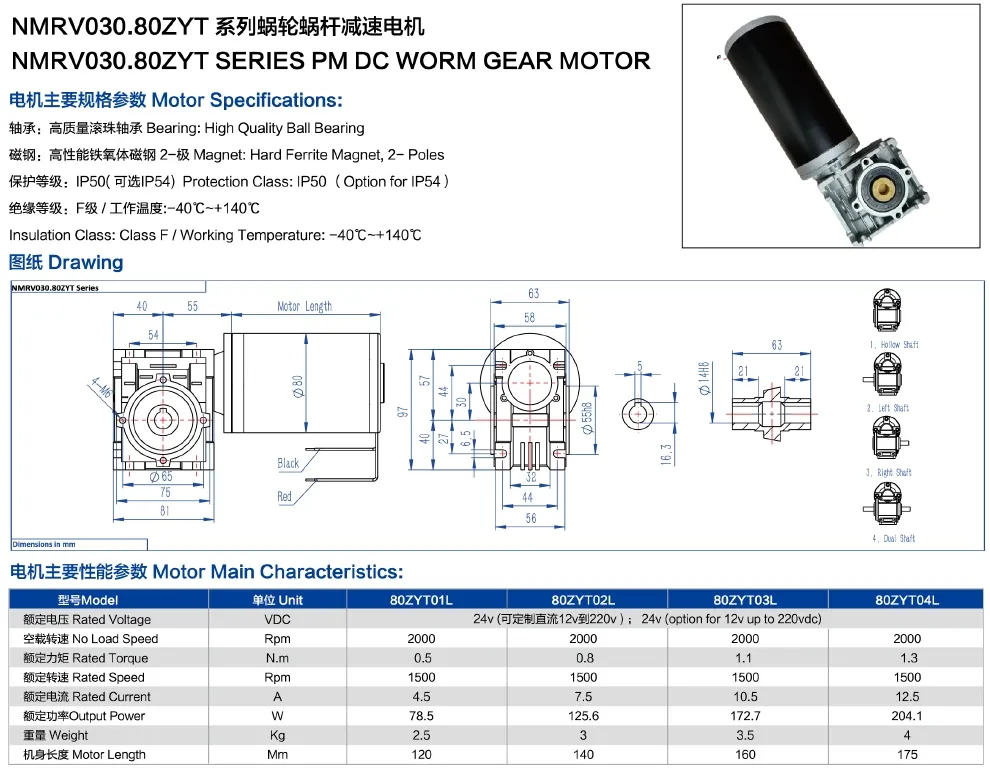

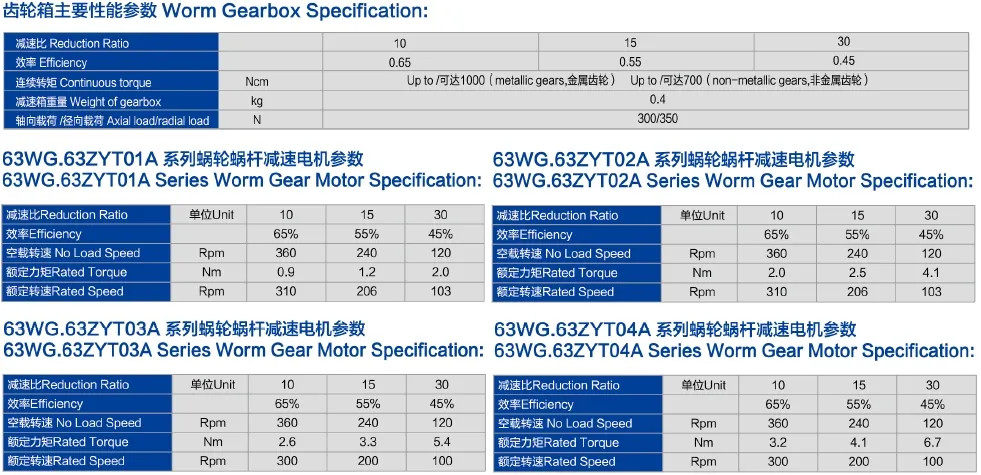

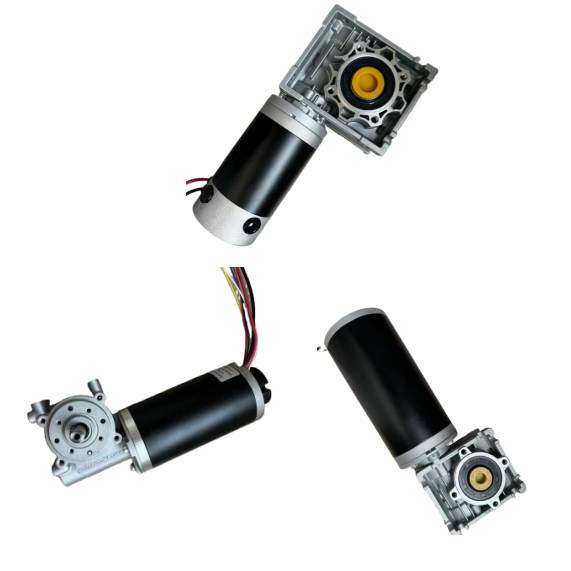

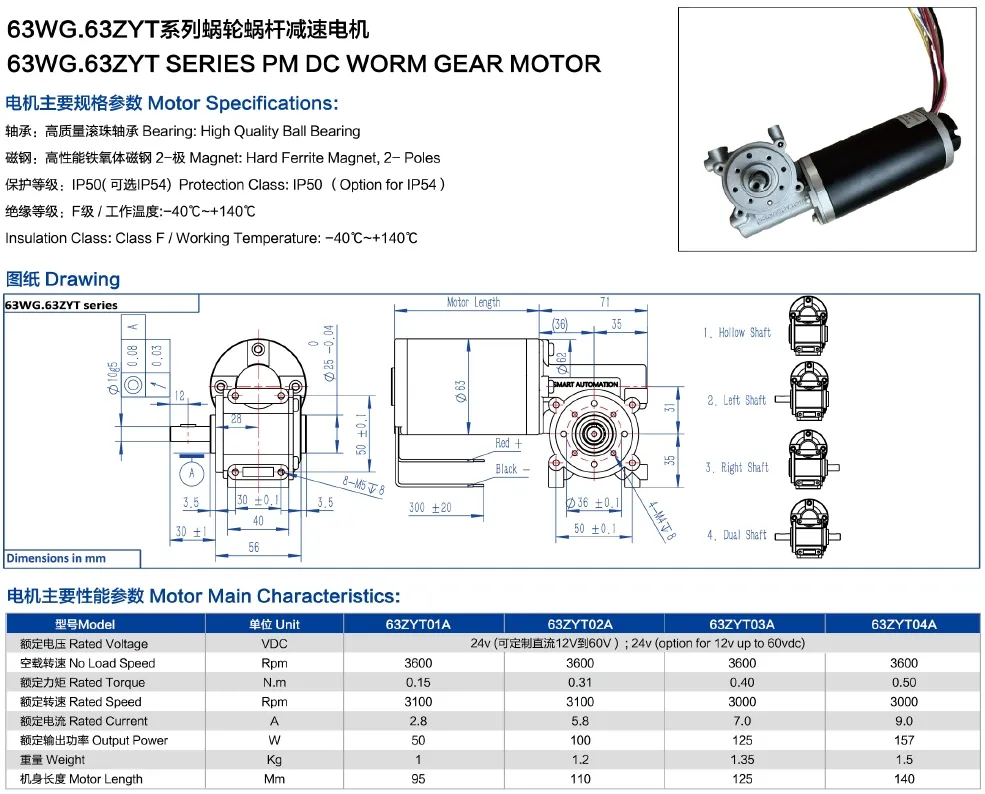

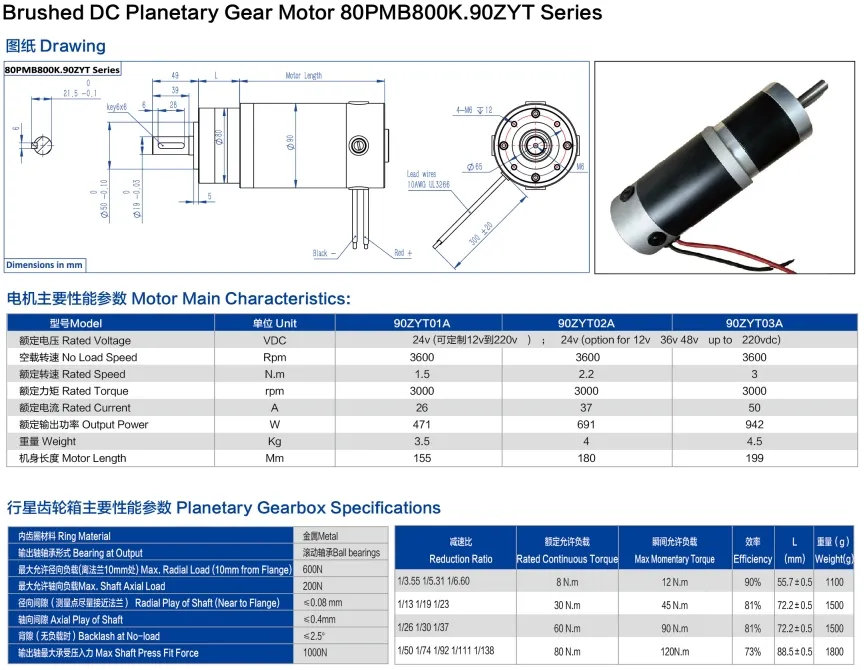

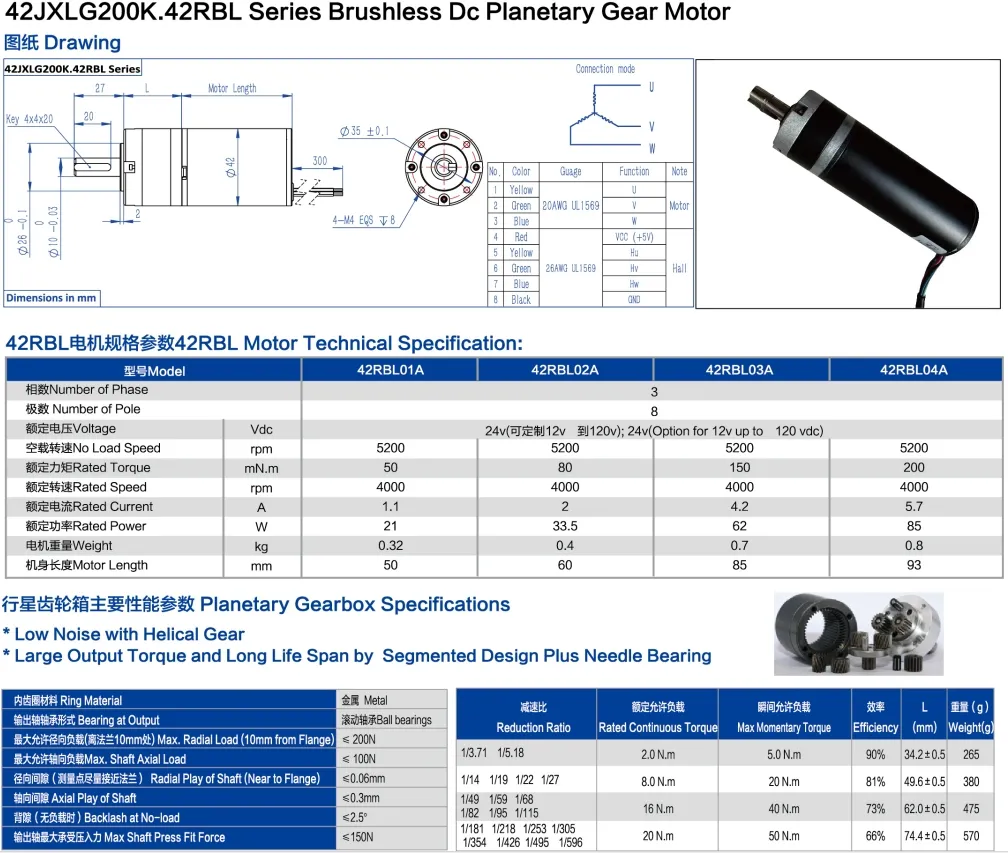

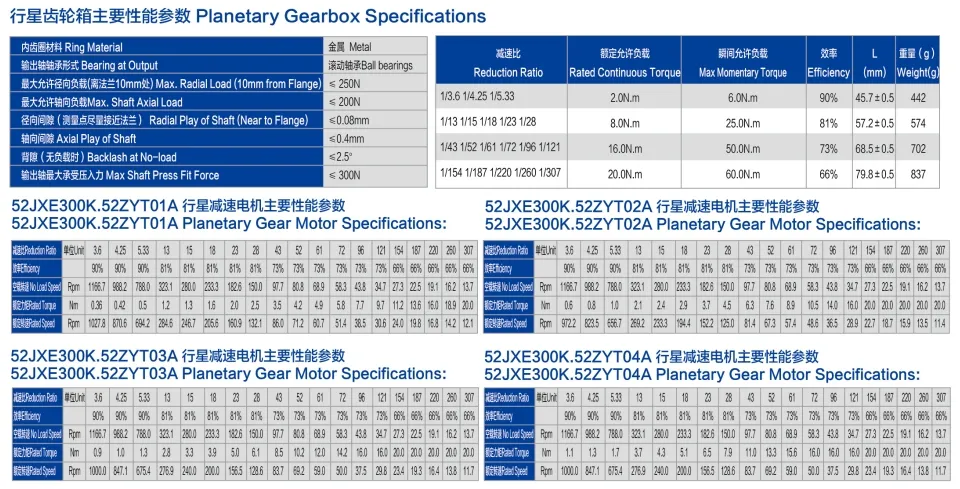

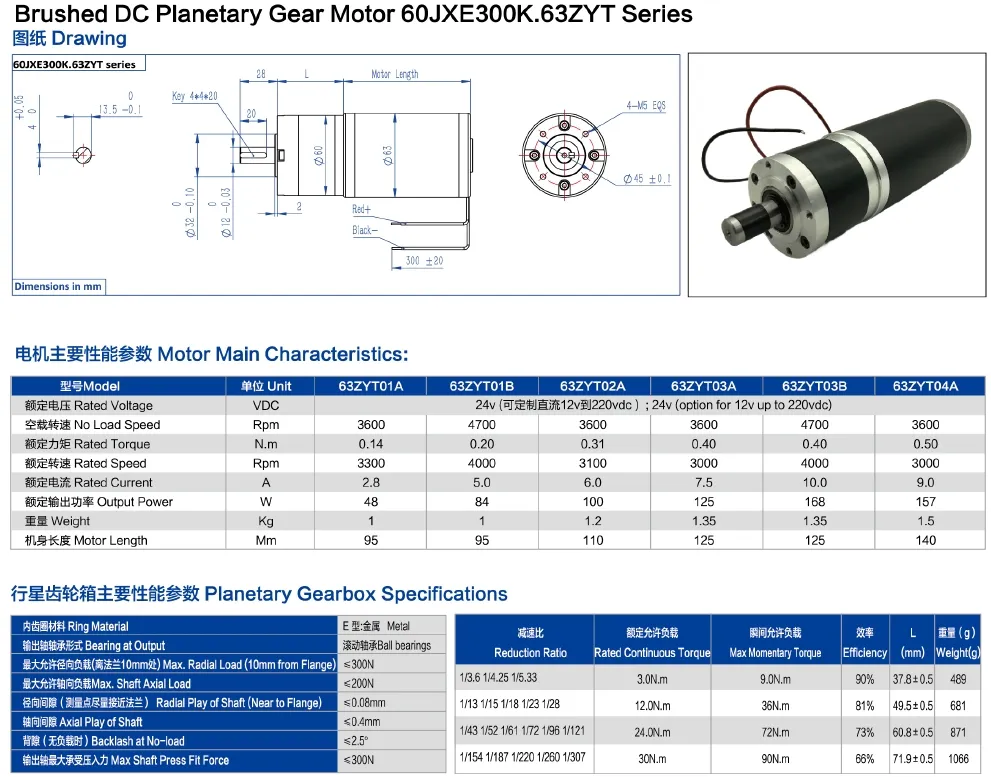

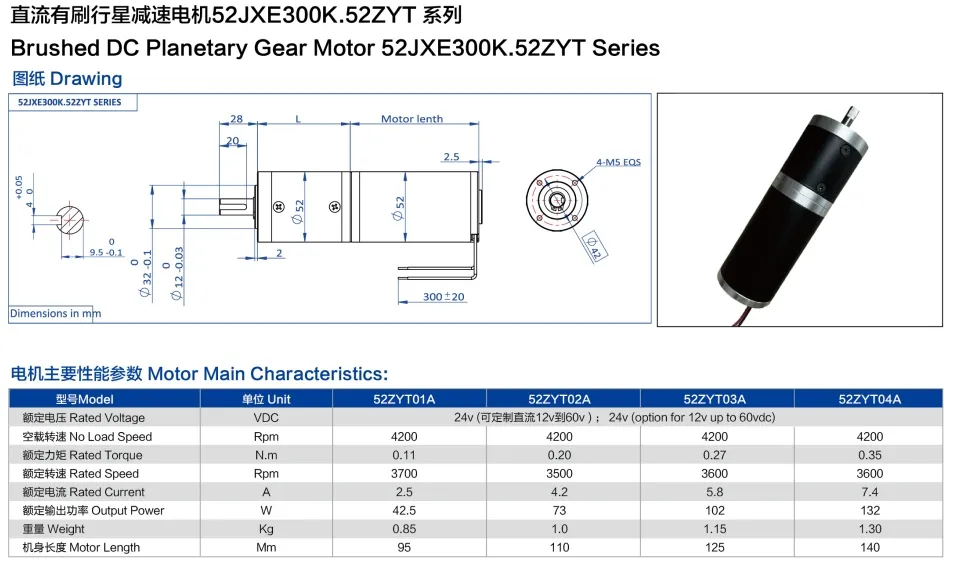

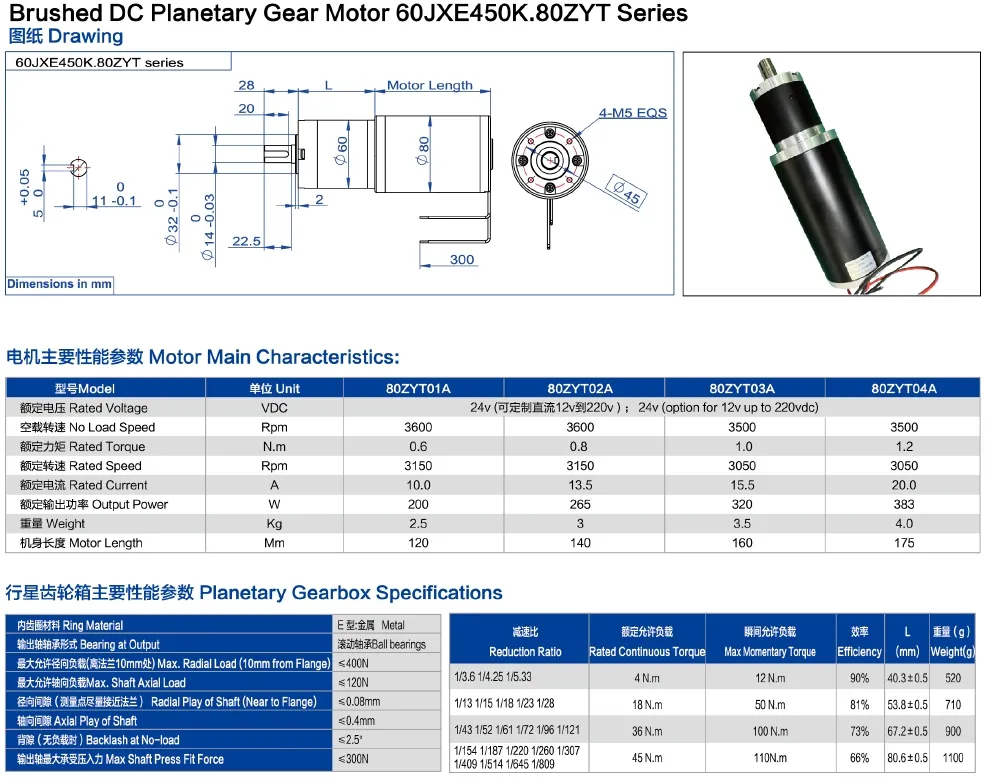

| Gearbox Options | Planetary or Worm gearbox assembly |
| Brake Options | Electric brake assembly available |
| Encoder Options | Optical or Magnetic encoders available |
| Controller | Integrated controller options for BLDC Motors |
