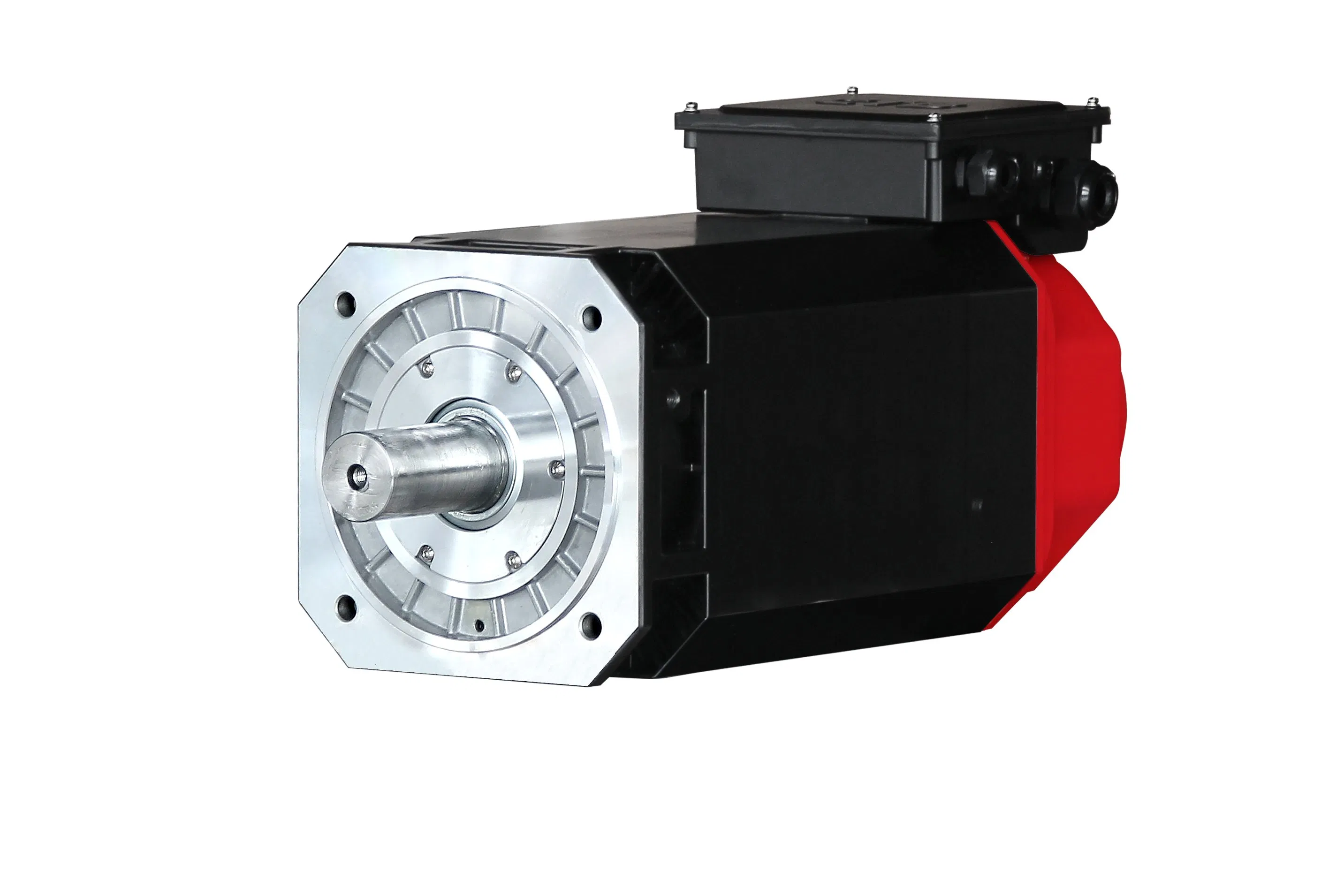

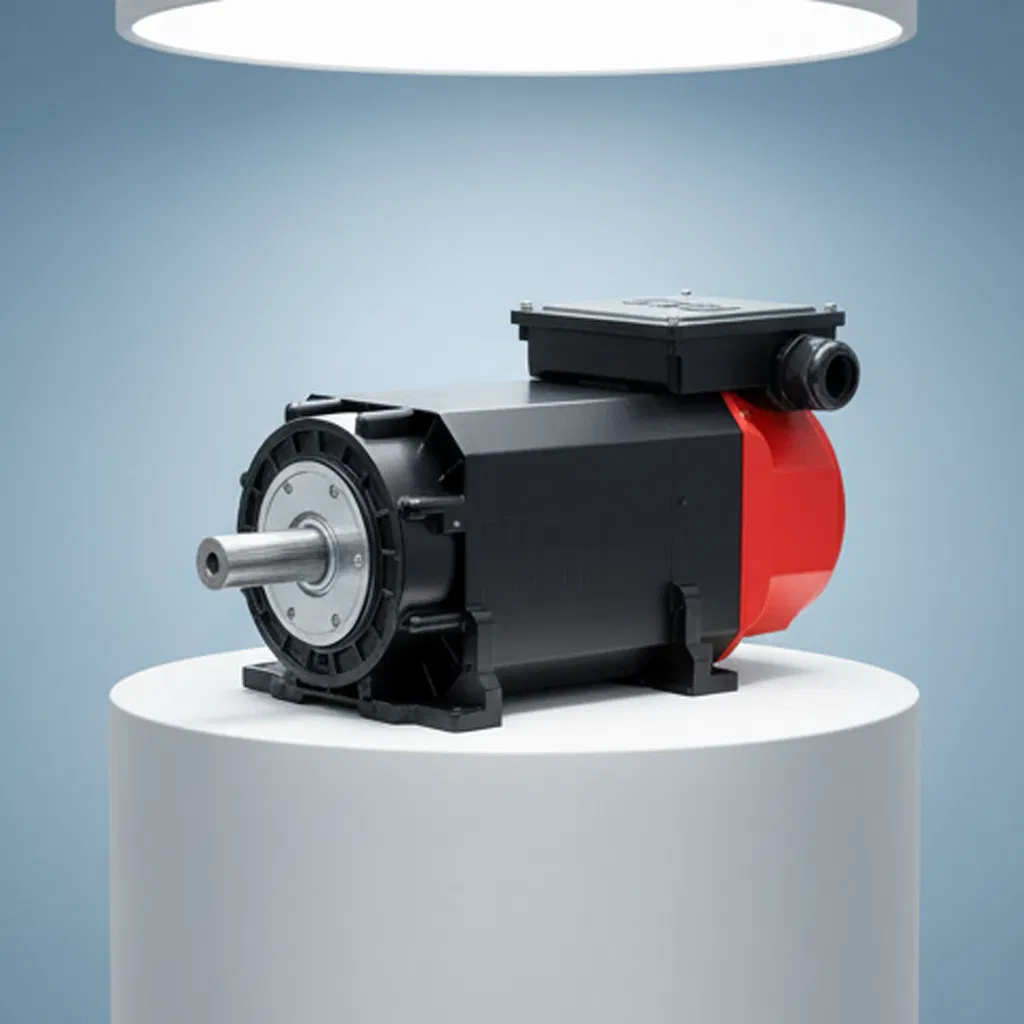

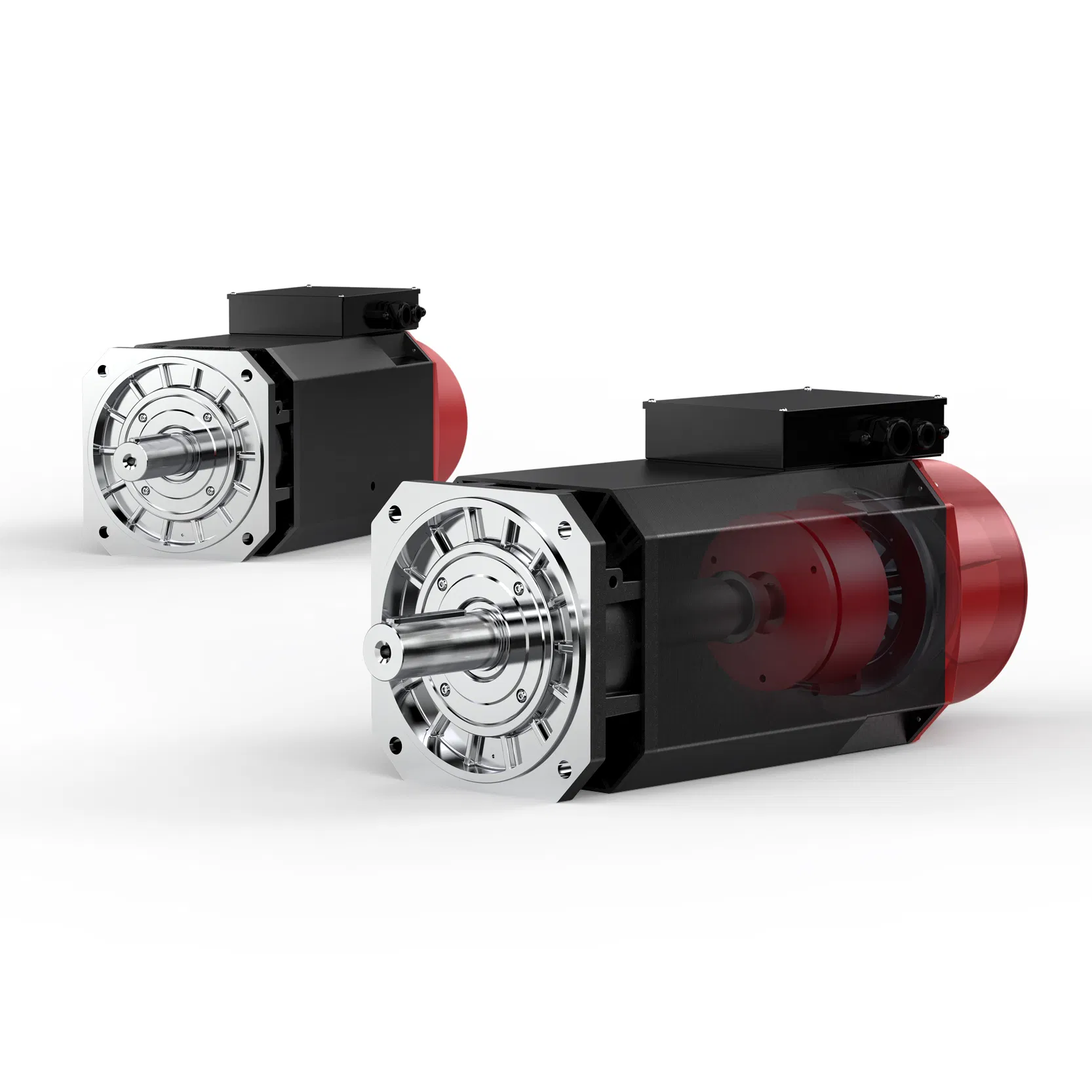

CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
1 / 5
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa
CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa

CNC Spindle Automation High Torque AC Drive Servo Electric Motor Same as Yaskawa

Customization: Available
Application: Industrial, Machine Tool, Testing Machine,...
Speed: Low, High,Constant, Variable Speed
Send Inquiry

Product Description

i

Basic Information

Model NO.
Z18
Number of Stator
Single-Phase, Three-Phase
Function
Driving
Protection
IP55 / Open Type
Number of Poles
4, 6, 8
Starting Mode
Variable Frequency / Direct on-Line
Certification
ISO9001, CE
Insulation Class
Class F
Cooling
Forced Air Cooling
Power Range
1.1kw ~ 400kw
★

Product Features

  • Optimized Structure: Advanced stator and rotor models for enhanced performance.
  • Noise Reduction: Closed rotor slots reduce high harmonics and high-speed noise.
  • Efficient Radiation: Casing-free design with built-in air paths for superior heat dissipation.
  • Vibration Resistance: Integrated feet with body structure enhances stability.
  • High Precision: Built-in magnetic encoder for minimal speed fluctuation.
  • Smart Maintenance: Maintenance-free built-in smart motor data card.
Product Features
⚙

Technical Specification

Power Range: 1.1~400kW Noise: ≤70dB(A)
Pole Number: 4, 6, 8 IP Rating: IP55(IEC40034-5)
Max. Speed: 8000r/min Dielectric Strength: AC1800V
Encoder: Built-in Magnetic/Incremental/Absolute Insulation: Class F
Cooling: Forced Air Cooling Vibration: Class A
☰

Product Gallery

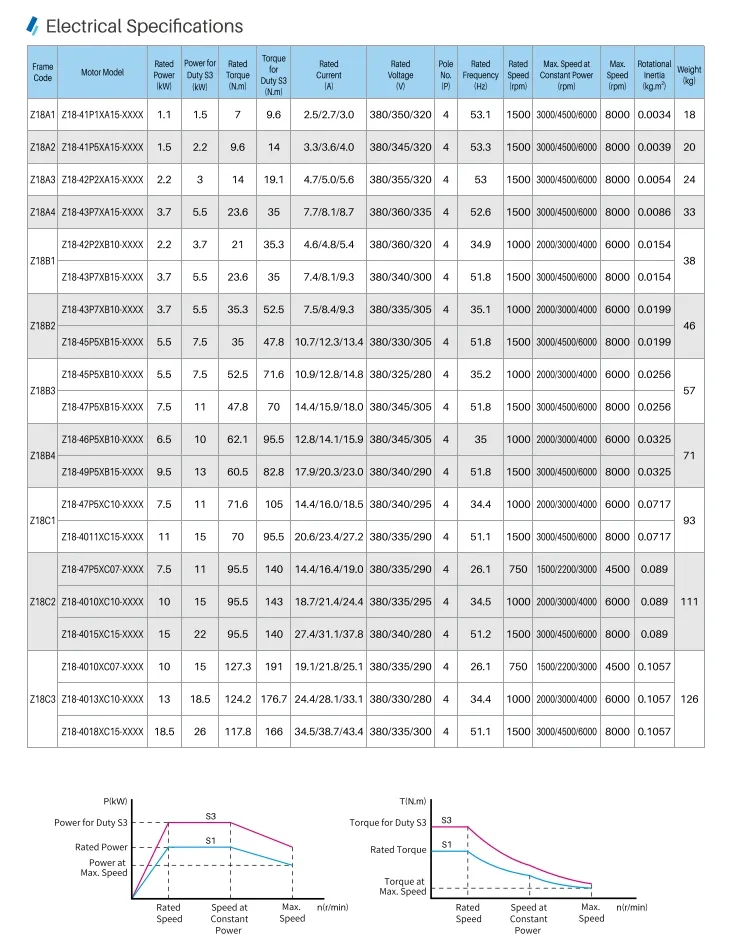

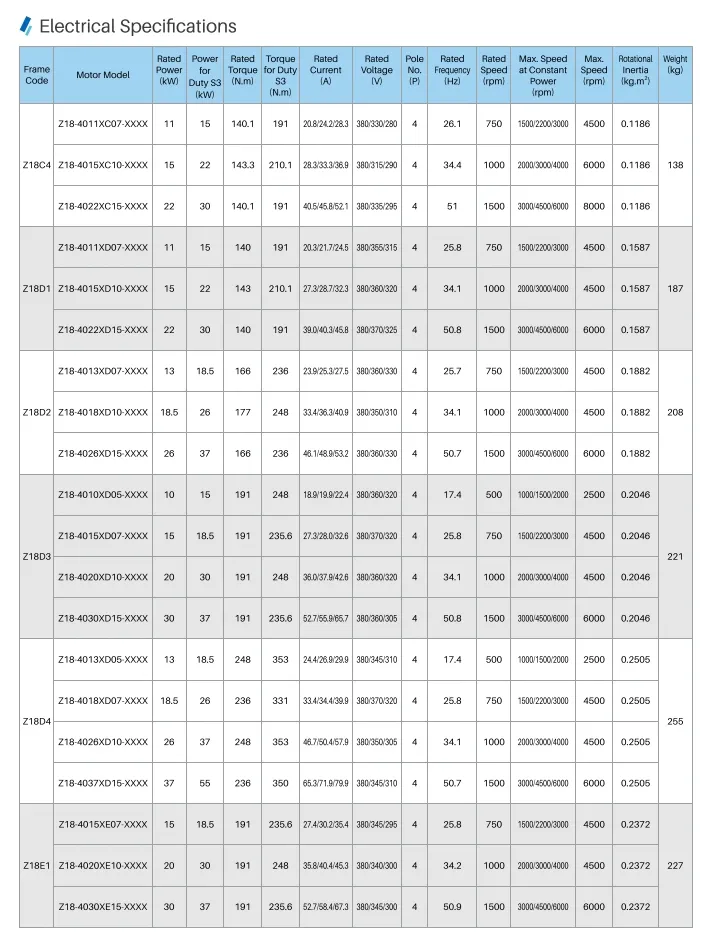

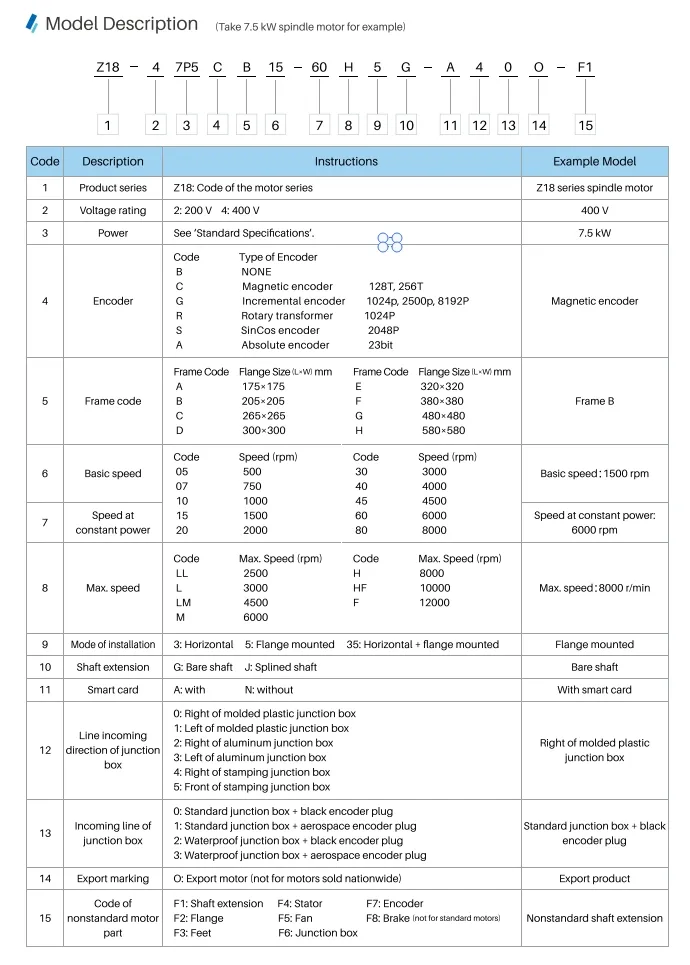

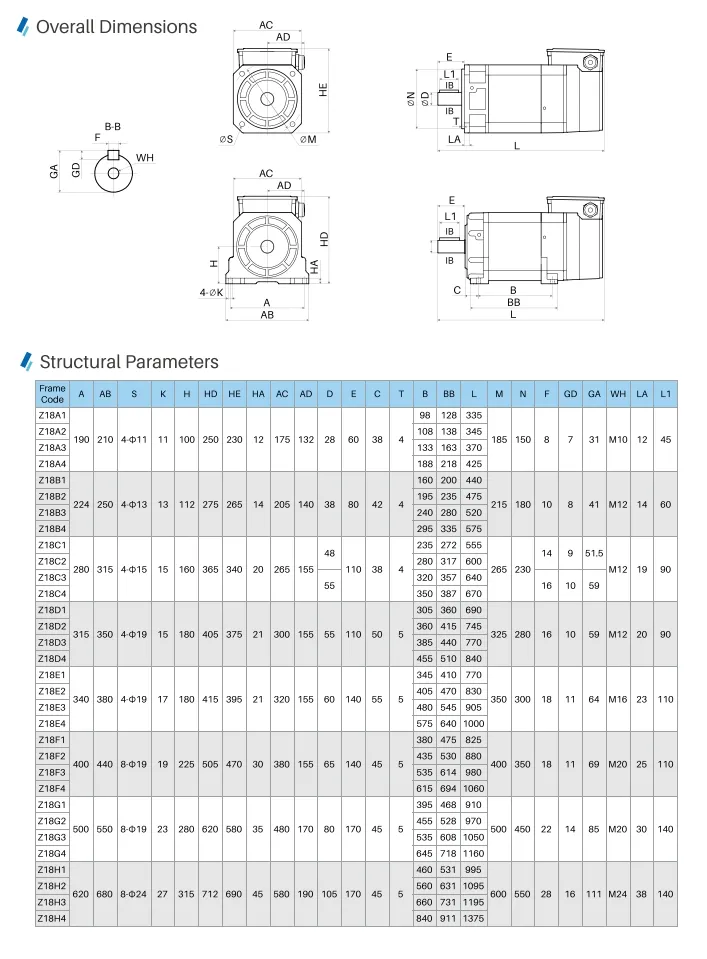

Description 1 Description 2 Description 3 Description 4
✔

Professional Capabilities

We are an integrated industrial supplier combining in-house manufacturing with strategic distribution. With more than twenty years in Metal-Cutting and Metal-Forming Machine Tools, our core team possesses deep, system-level knowledge of complete machine supply chains and long-standing upstream relationships.

Our focus includes standard lines of disc, high-elastic, jaw, and gear couplings, alongside linear guides, ball screws, and high-torque AC servo motors. Choosing our solutions means plugging into a proven, twenty-year supply chain designed for efficiency and reliability.

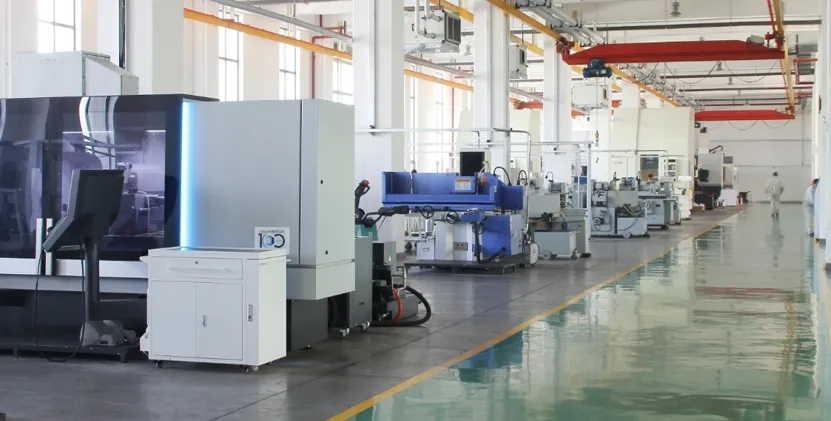

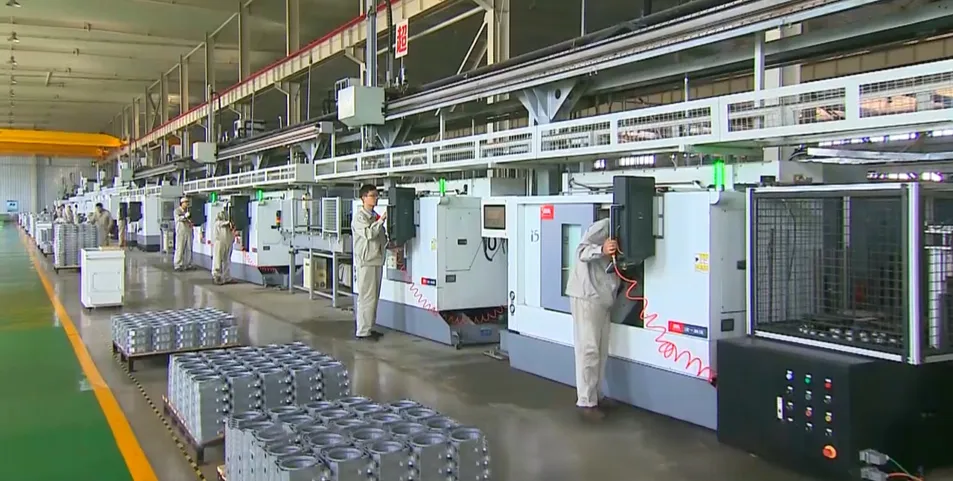

Automation Line Grinding Machine

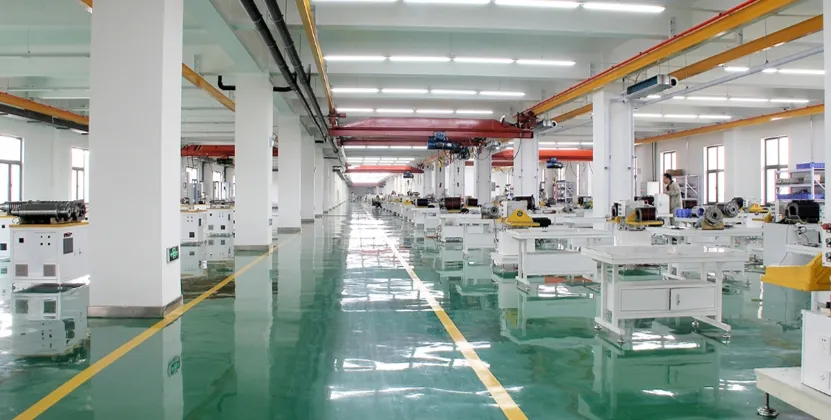

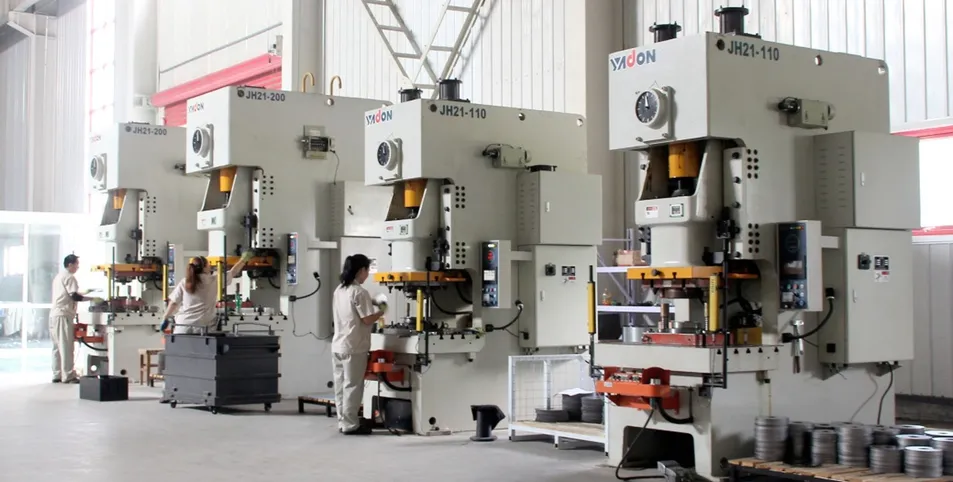

Assembly Line Stamping Cell
◈

Exhibition & Components

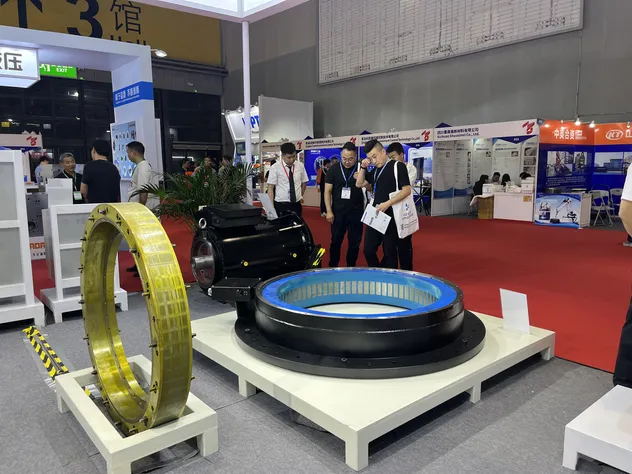

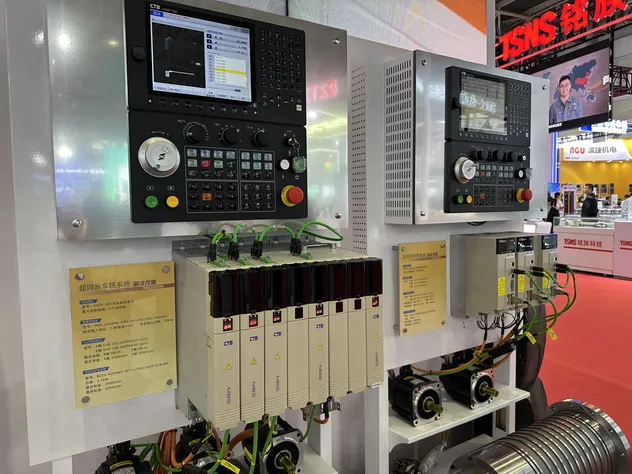

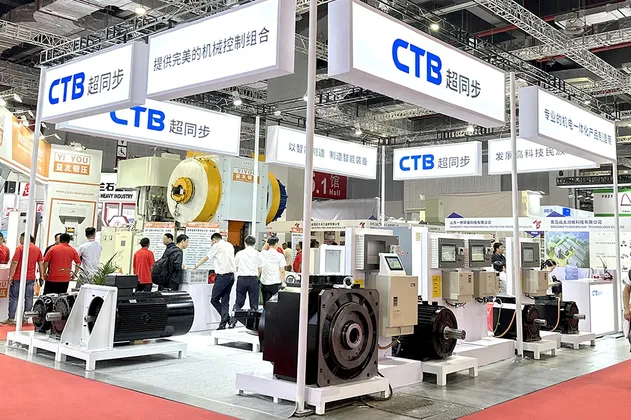

Exhibition 1 Exhibition 2 Exhibition 3

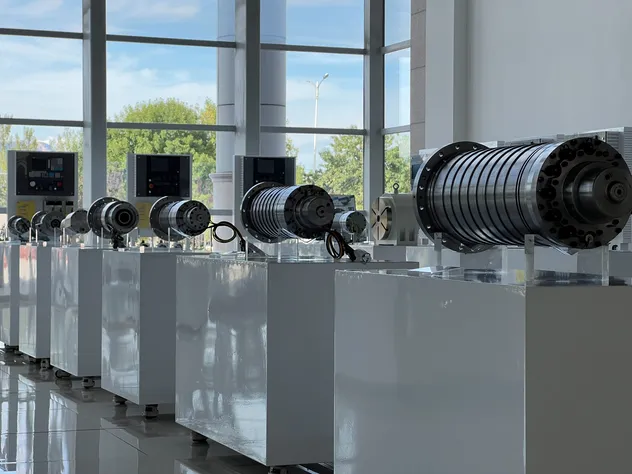

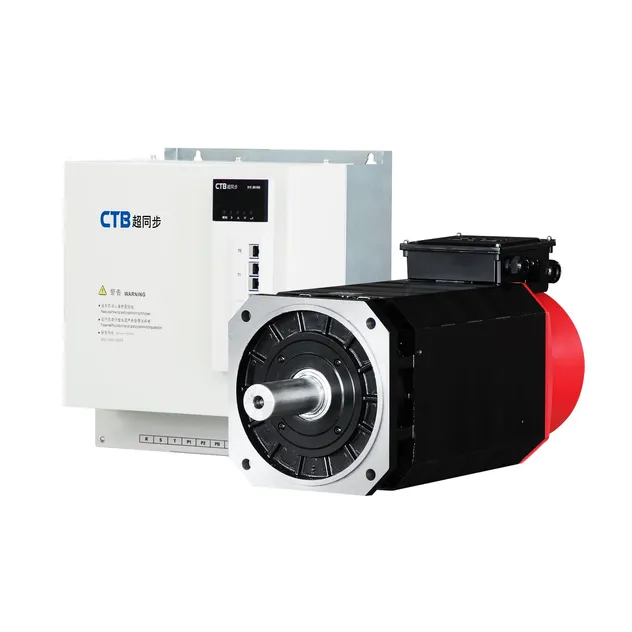

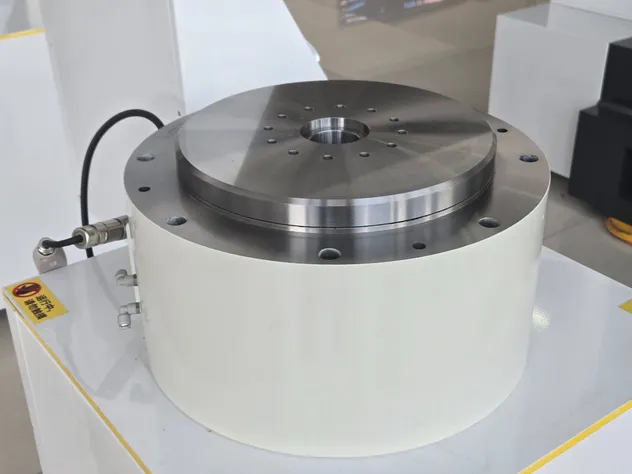

Component 1 Component 2 Component 3
?

Frequently Asked Questions

Q1: What is the maximum speed capability of the Z18 series motor?
The Z18 motor supports a maximum speed of up to 8000 r/min, making it suitable for high-speed CNC and industrial applications.
Q2: How does the motor manage heat during continuous operation?
The motor features an optimized structure without a traditional casing and includes built-in air paths to facilitate efficient forced air cooling heat radiation.
Q3: Can these motors be used in harsh industrial environments?
Yes, the motors are built with an IP55 protection rating (IEC40034-5) and Class F insulation, providing excellent protection against dust and water splashes.
Q4: What types of encoders can be integrated?
The motor supports various built-in encoder options including magnetic, incremental, rotary, SinCos, and absolute encoders for high-precision control.
Q5: Is non-standard customization supported for special requirements?
Yes, we provide flexible production capabilities for non-standard requests and customized specifications to meet specific industrial needs.
Q6: What is the power range available for this series?
The Z18 series covers a wide power range from 1.1kW up to 400kW, suitable for various driving and automation functions.
