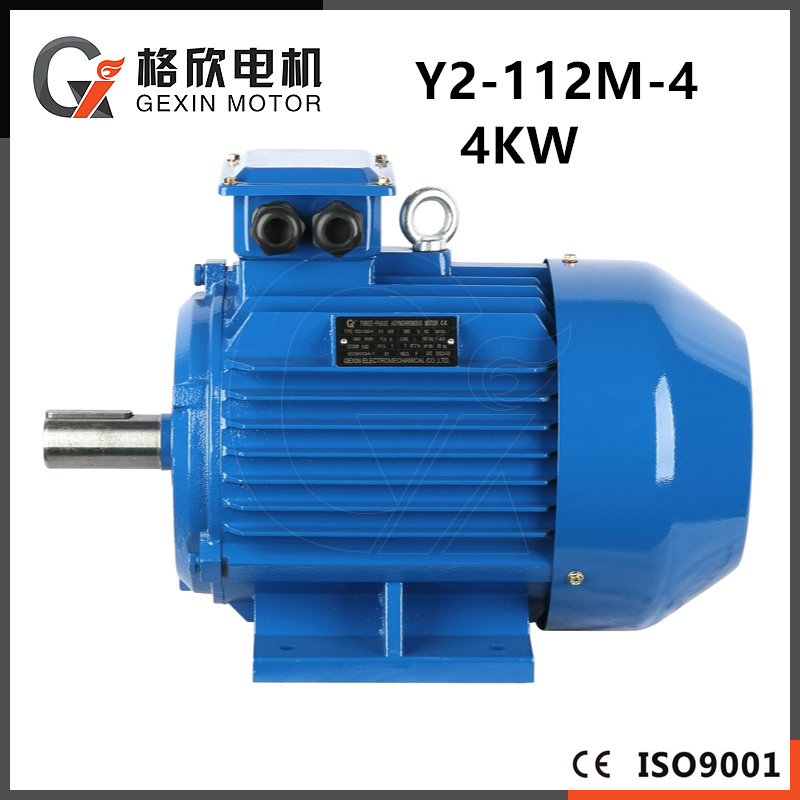

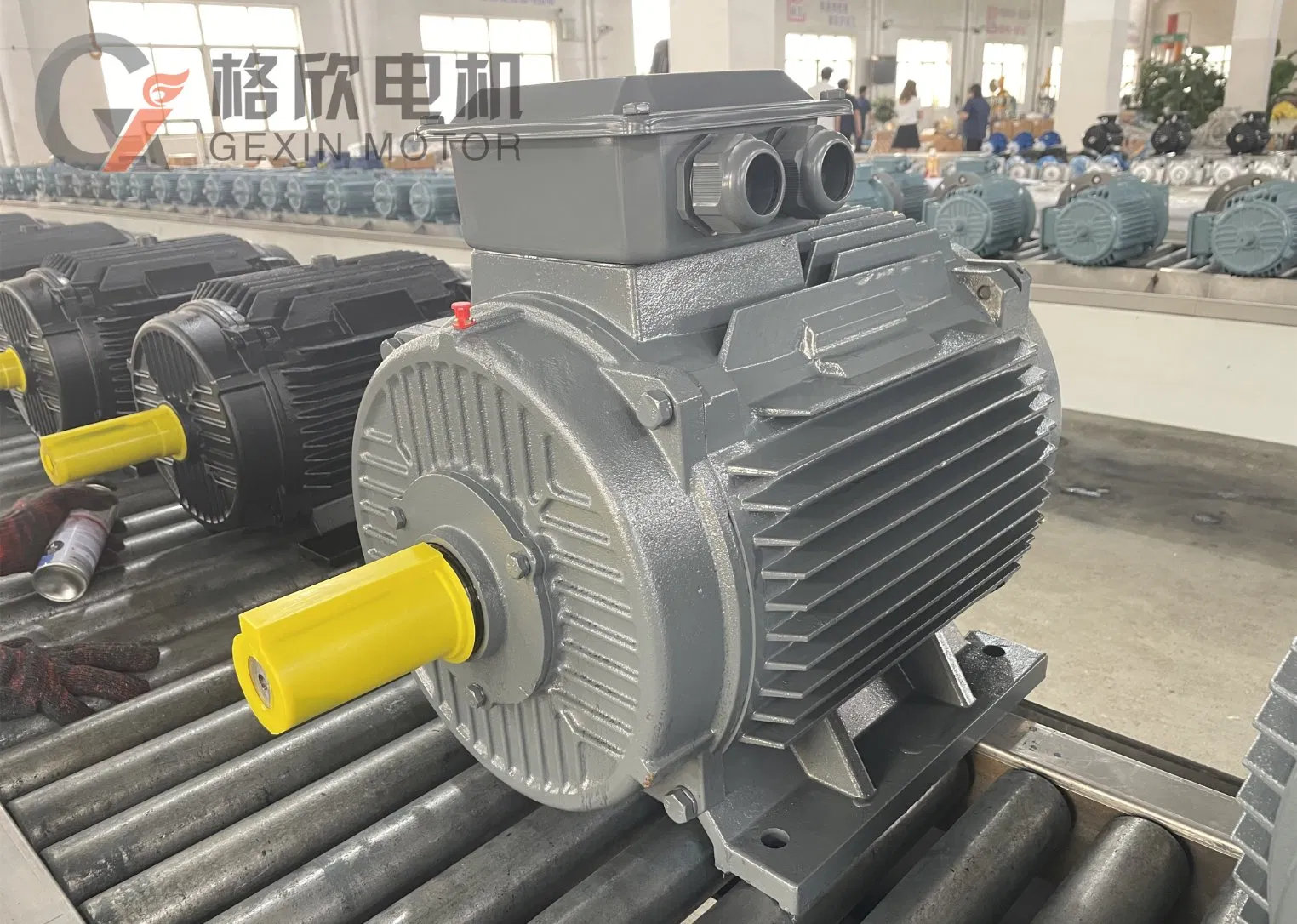

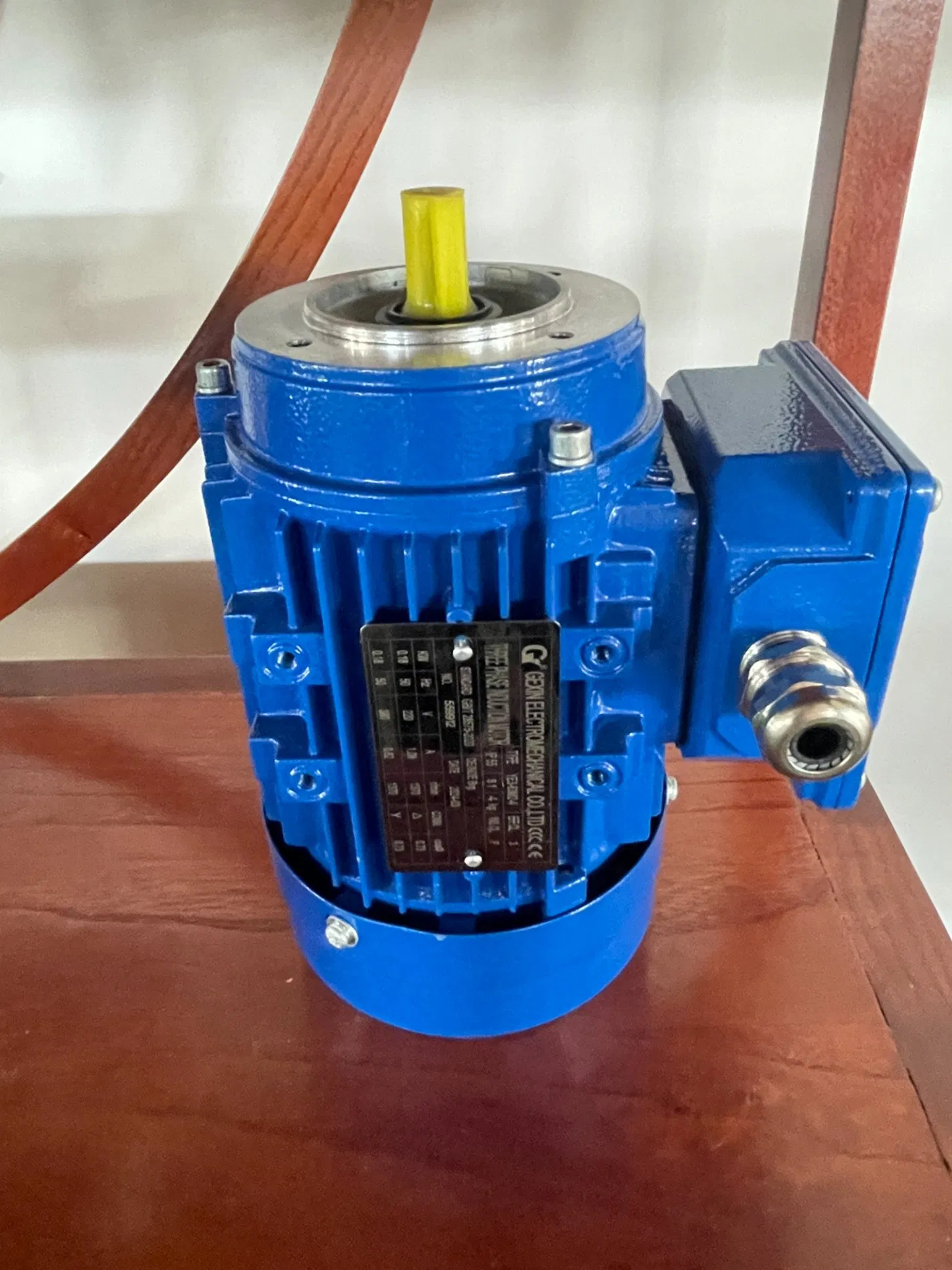

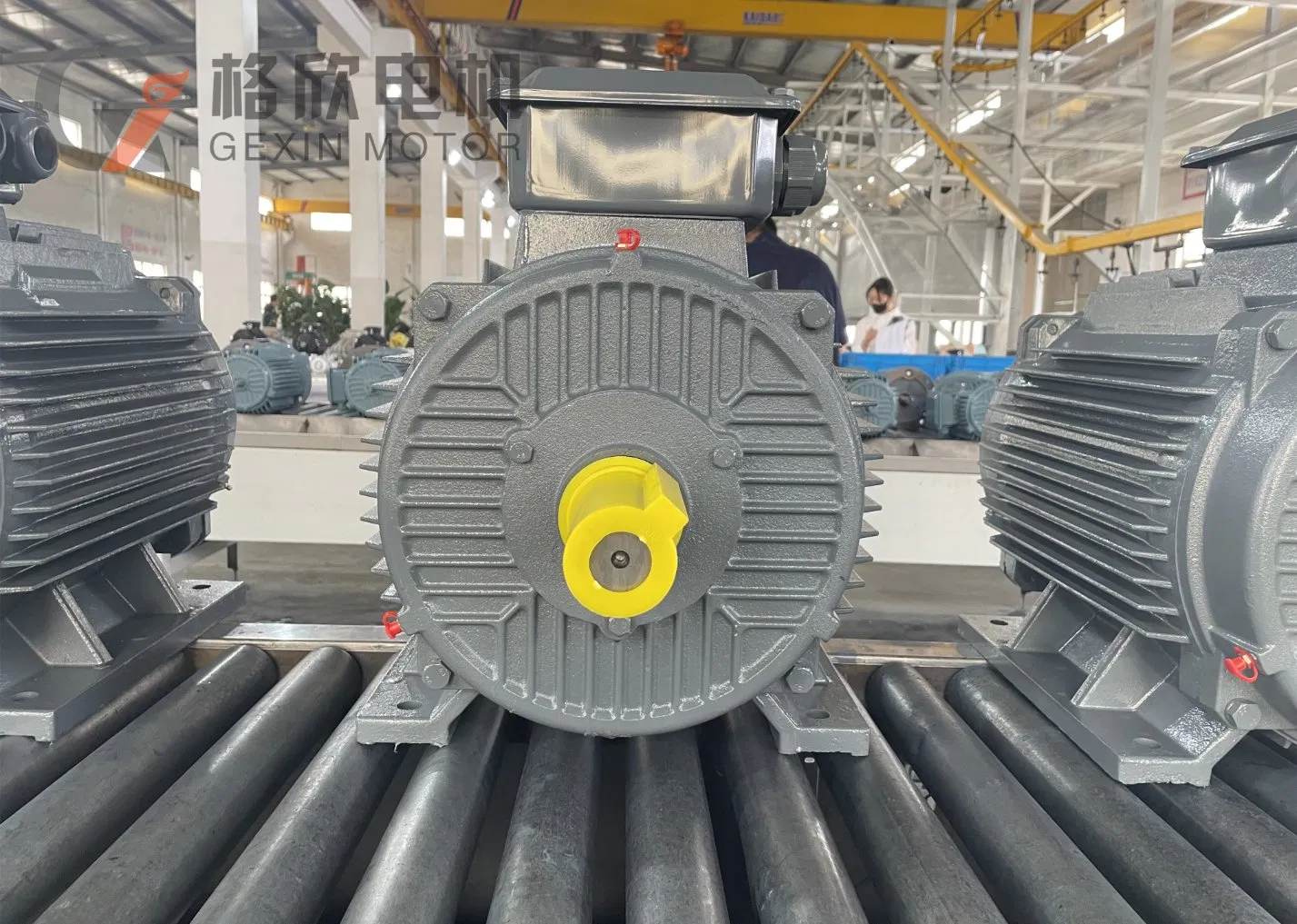

CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
1 / 5
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor
CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor

CE Approved 4kw 5.5HP 1500rpm AC Induction Electric Gear Motor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
Y2-112M-4
Number of Stator
Three-Phase
Species
Y, Y2 Series
Rotor Structure
Squirrel-Cage
Number of Poles
4
Certification
ISO9001, CCC, CE
Protection Class
IP54 / IP55
Insulation Class
Class F/H
Voltage
380V
Frequency
50Hz / 60Hz
📦 Product Description
Y2 Series Three-Phase Asynchronous Induction Electrical Motor

Adopting the national uniform design, Y2 series motors conform to ICE34-1 and GB/T25290-2010 standards. These motors feature a new structure, high-quality appearance, low vibration, and minimal noise.

Induction Motor
Operating Conditions
Power4kw
Speed1500r/min
DutyContinuous (S1)
Frame MaterialCast Iron / Aluminum Body
Ambient Temperature-15ºC ≤ θ ≤ 40ºC
AltitudeNot exceeding 1000m
Cooling MethodICO141
📷 Detailed Photos
Motor detail 1

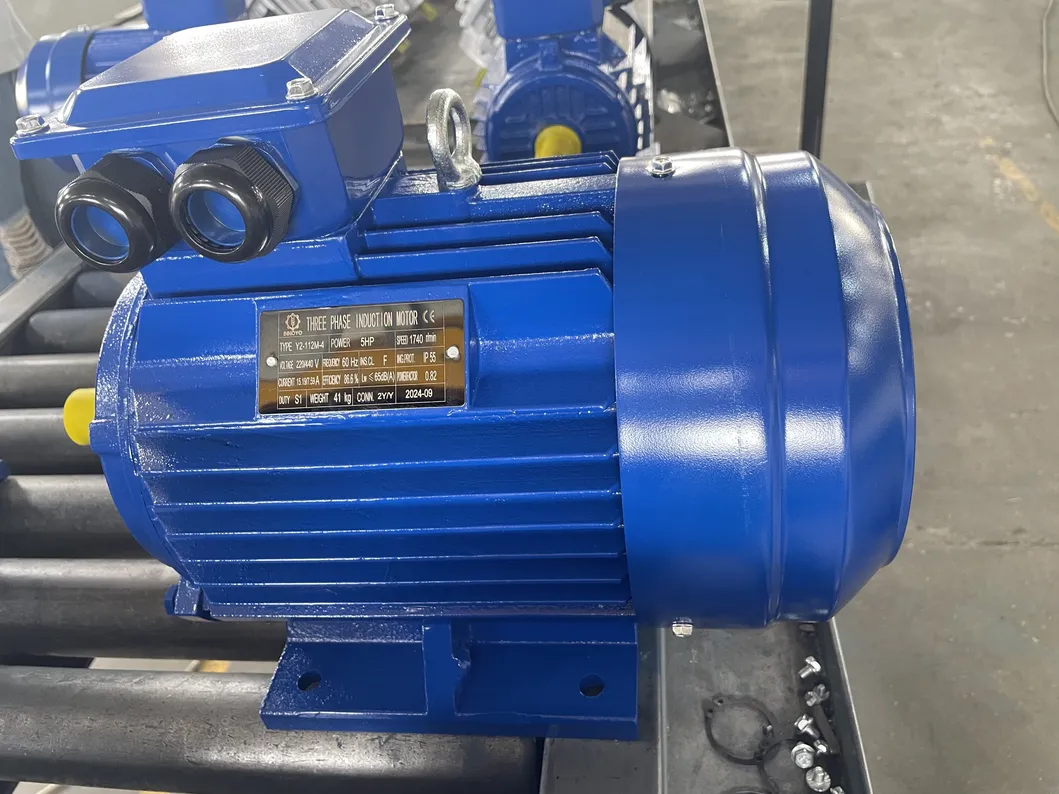

Motor detail 2

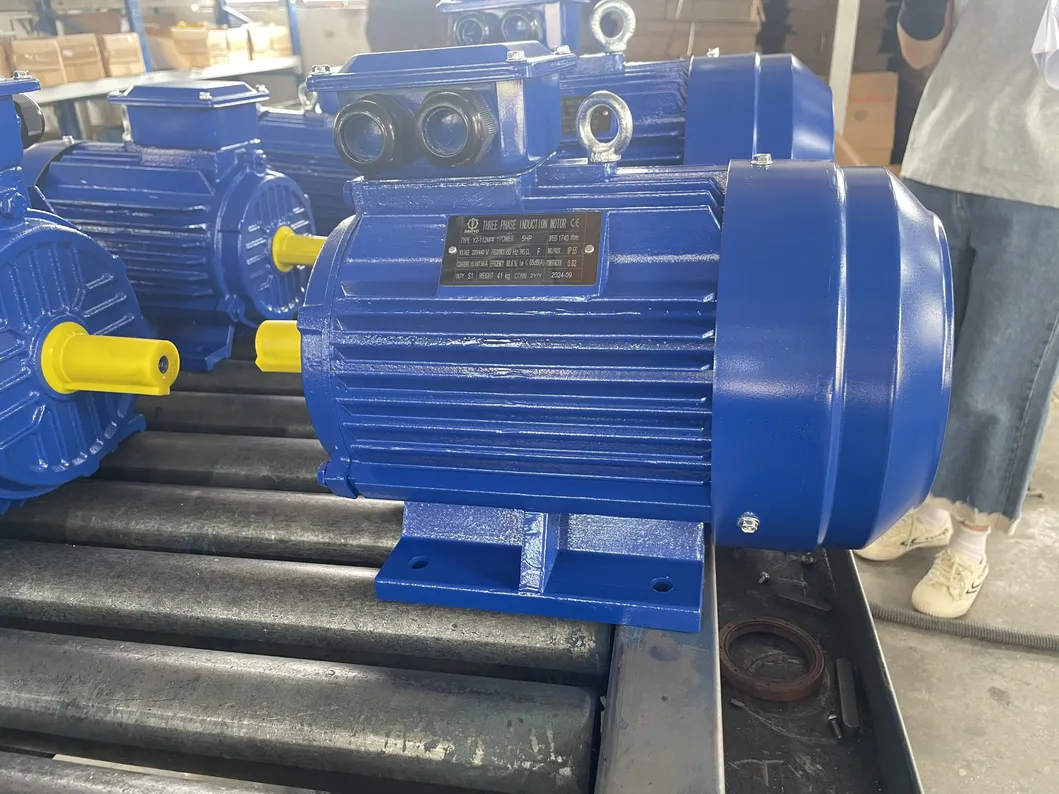

Motor detail 3

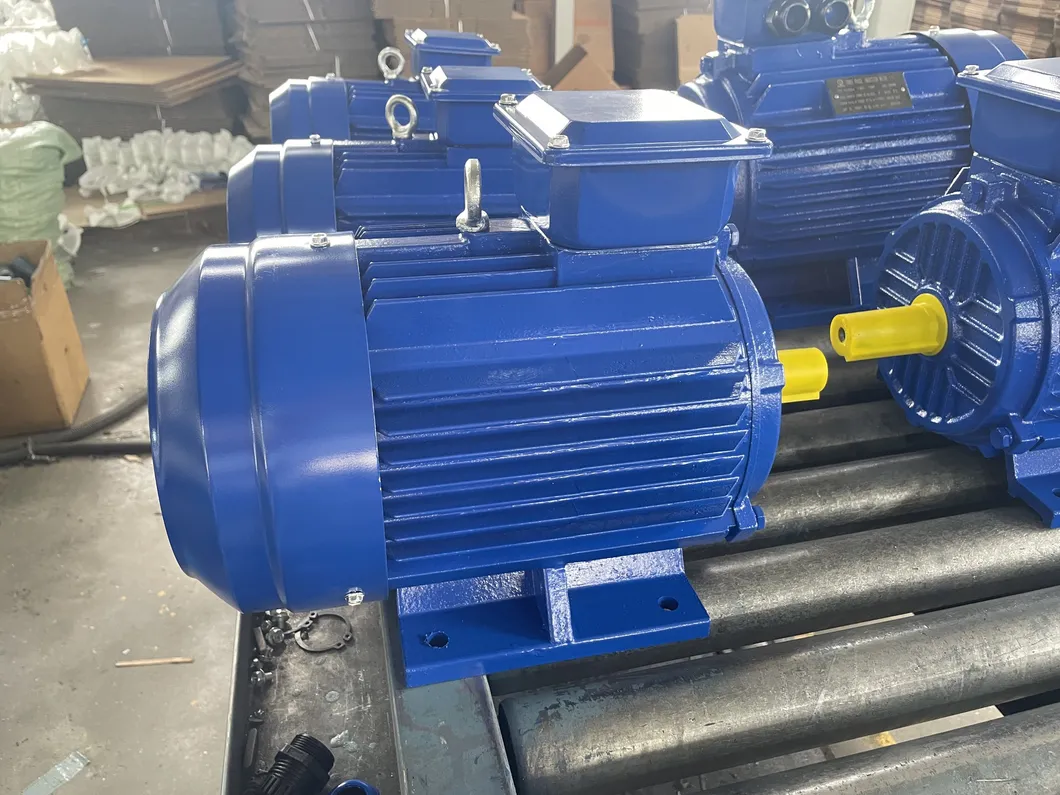

Motor detail 4
Motor detail 5

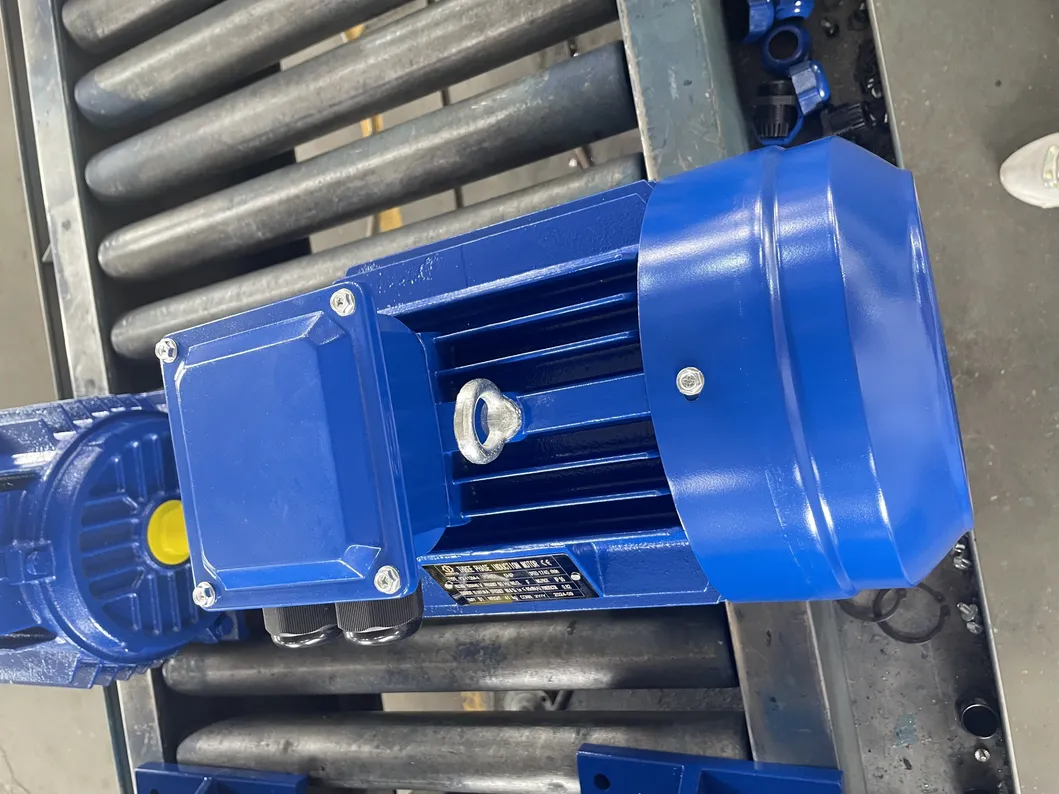

Motor detail 6
📊 Installation Dimensions

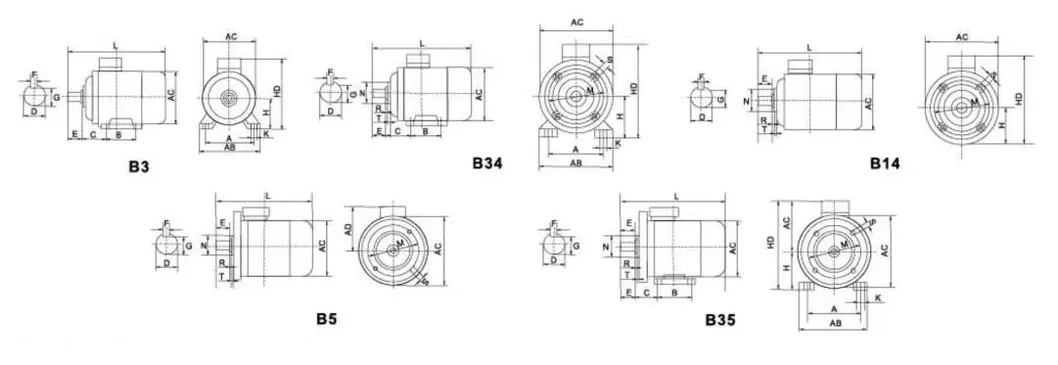

Dimensions Diagram
Frame No.ABCDEFGHKL
80125100501940615.58010284
90S1401005624508209010316
100L16014063286082410012377
112M19014070286082411212392
⭐ Product Advantages
  • 100% Copper wire and 100% Power Output
  • Energy saving and Quiet Operation
  • Superior life and Easy maintenance
  • CE / ISO Approved with 20-30 days lead time
  • 1 Year Quality Warranty and fast after-sales service
  • Strong ability to design products based on original samples
⚙️ Manufacturing Process

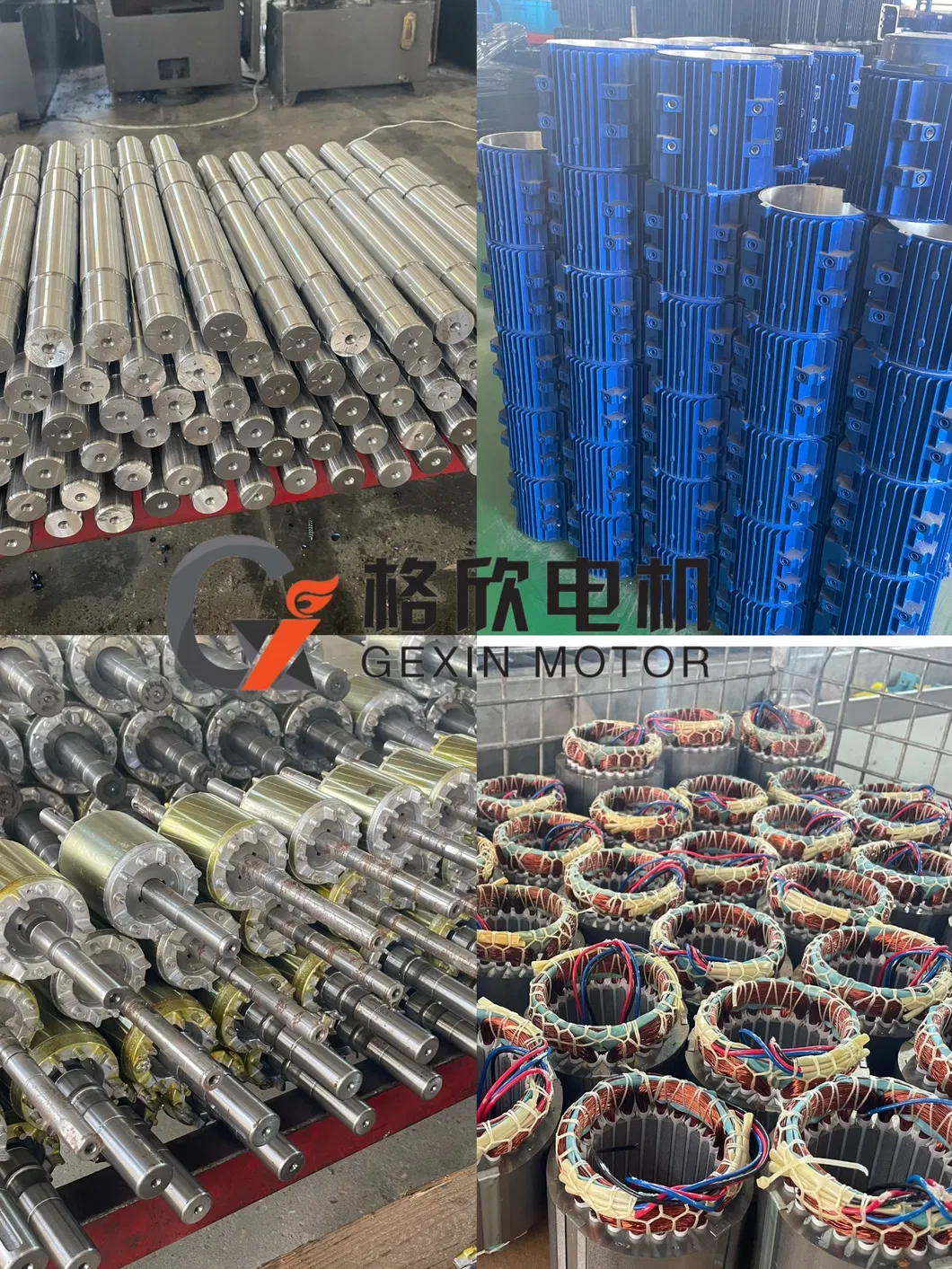

Process 1

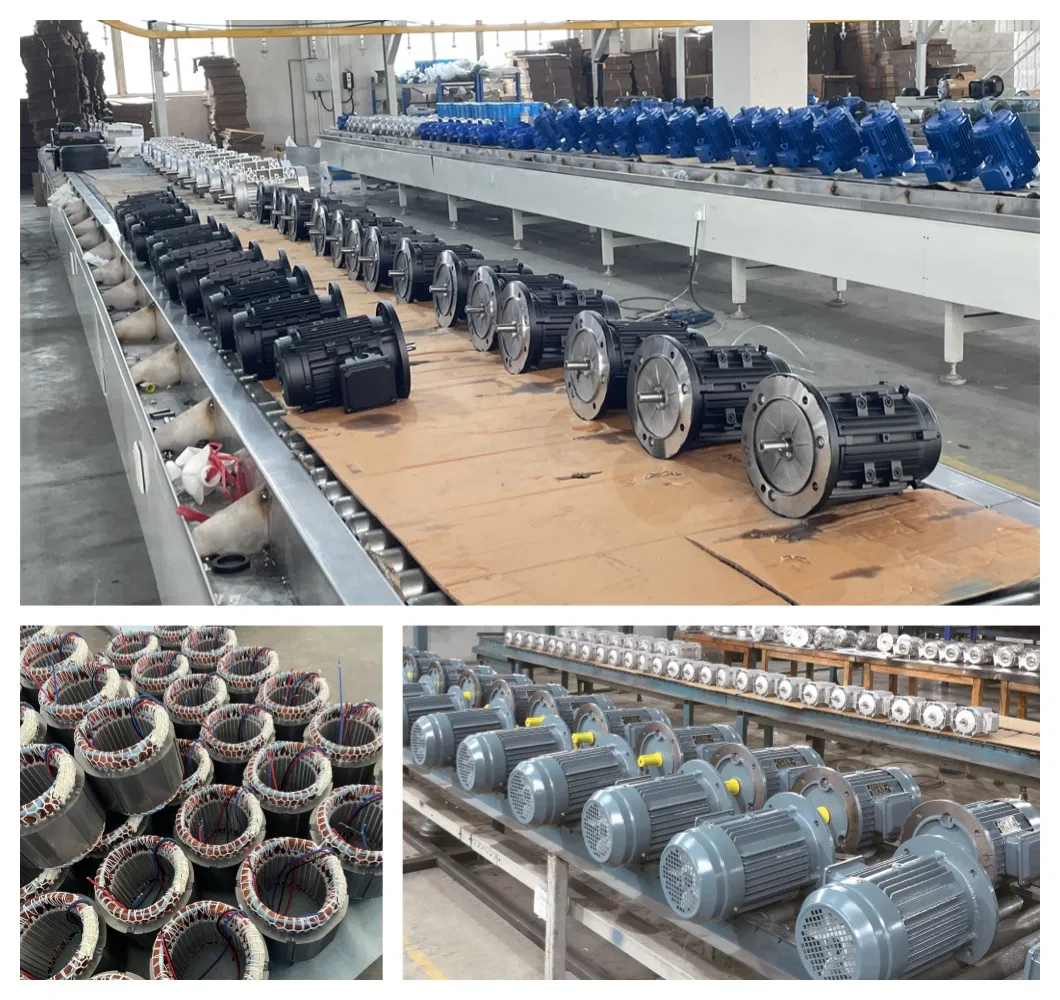

Process 2
  • Stamping of lamination & Rotor die-casting
  • Winding and inserting (Manual/Semi-auto)
  • Vacuum varnishing & Rotor balancing
  • Machining shaft, housing, and end shields
  • 100% test after each process and final inspection before packing
🛠️ Applications
Application 1

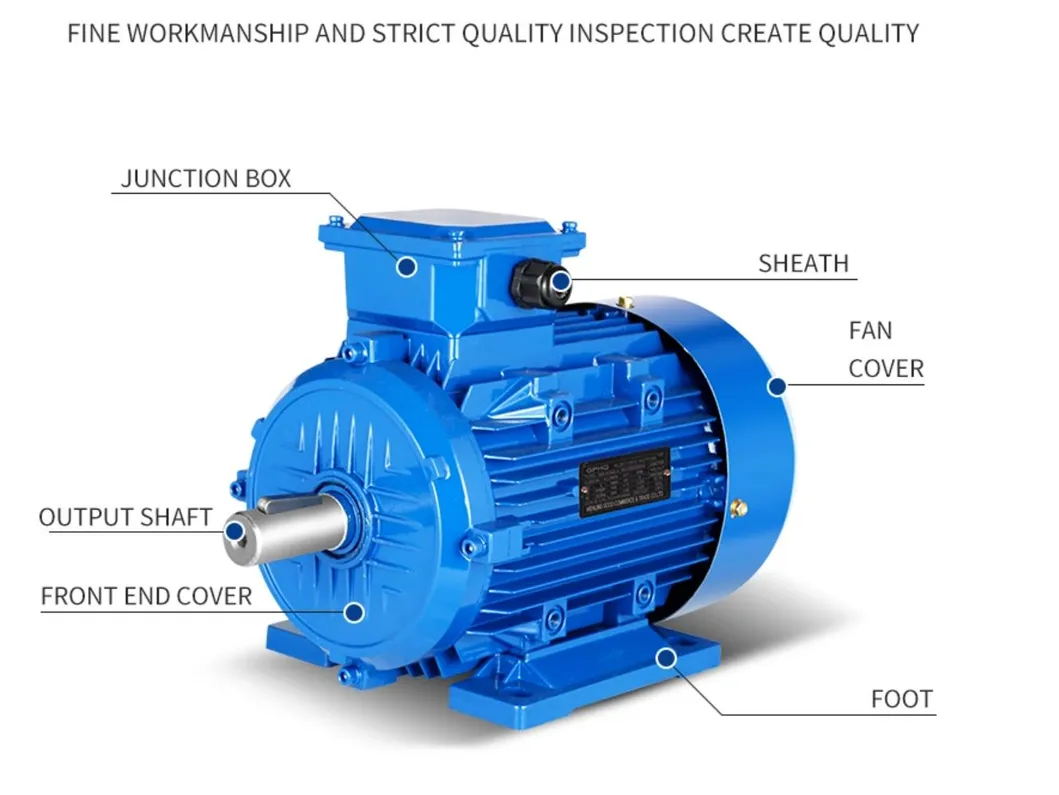

Application 2
📜 Certificates & Exhibitions
Certificate 1
Exhibition
🔗 Related Products

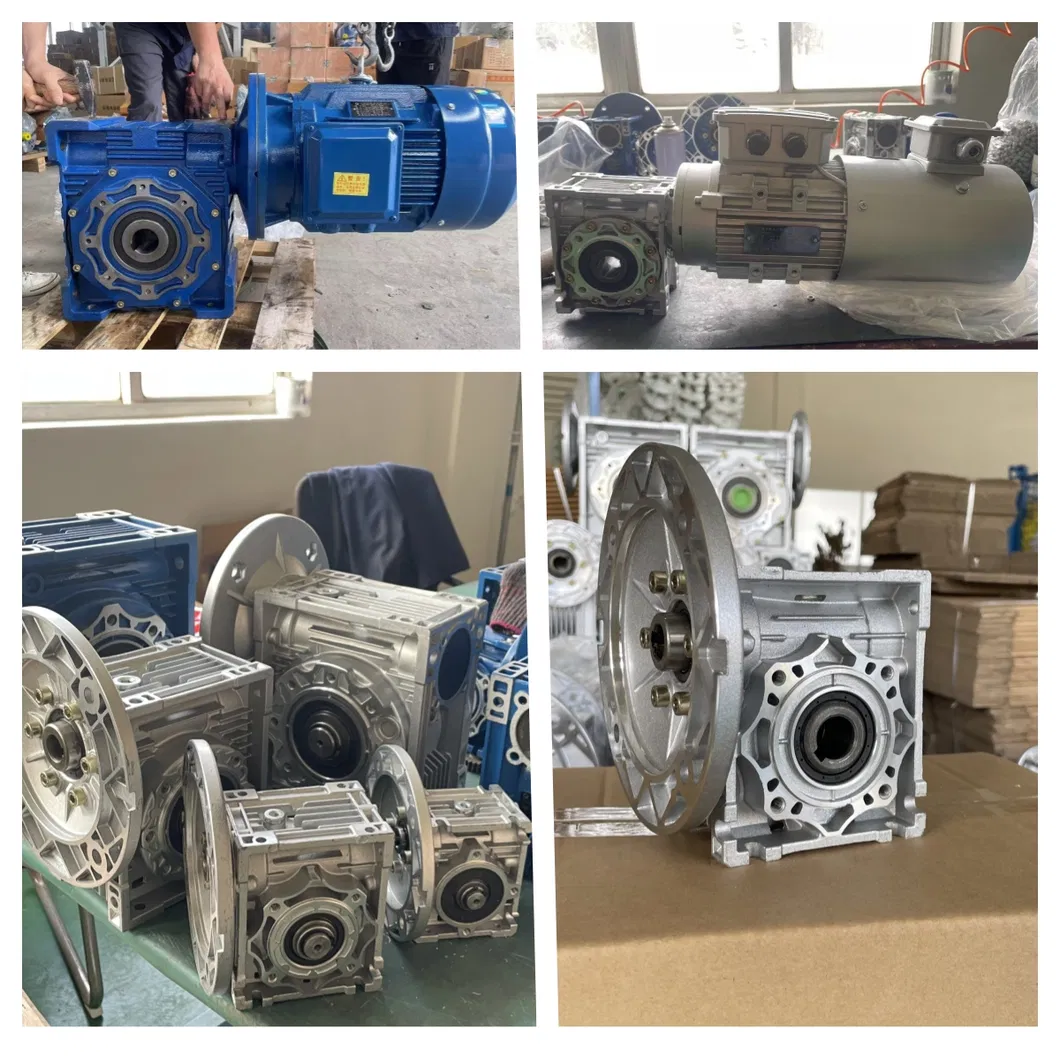

Worm Gearbox

Worm Gearbox RV Series
Speed reducer solutions for polishing and finishing machines.

Frequently Asked Questions (FAQ)
Q1: What is the warranty period for the Y2 series motors?
A: We provide a 12-month quality guarantee from the date of purchase, along with fast after-sales technical support.
Q2: What materials are used in the motor windings?
A: We use 100% high-grade copper wire to ensure 100% power output and superior durability compared to aluminum alternatives.
Q3: Can these motors operate in high-altitude areas?
A: The standard design is optimized for altitudes not exceeding 1000 meters. For higher altitudes, please consult our technical team for adjustment.
Q4: What are the available mounting options?
A: We offer various mounting configurations including B3 (foot), B5 (flange), B35 (foot and flange), and B14.
Q5: Are the motors tested before shipment?
A: Yes, we conduct a 100% test after each manufacturing process and a comprehensive final performance test before packing.
Q6: Do you provide OEM services?
A: Yes, we have a strong R&D team capable of designing products based on your original samples or specific technical requirements.
