| Projects | Specifications |
| Winding Type | Star |
| Hall Effect Angle | 120° electrical angle |
| Shaft Axial Play | 0.025mm |
| Ambient Temperature | -20~ + 50°C |
| Ambient Humidity | <80% |
| Max. Radial Force | 115N@20mm from the flange |
| Max. Axial Force | 45N |
| Insulation Class | Class B |
| Dielectric Strength | one minute@500VAC |
| Insulation Resistance | 100MΩMin.@500VDC |

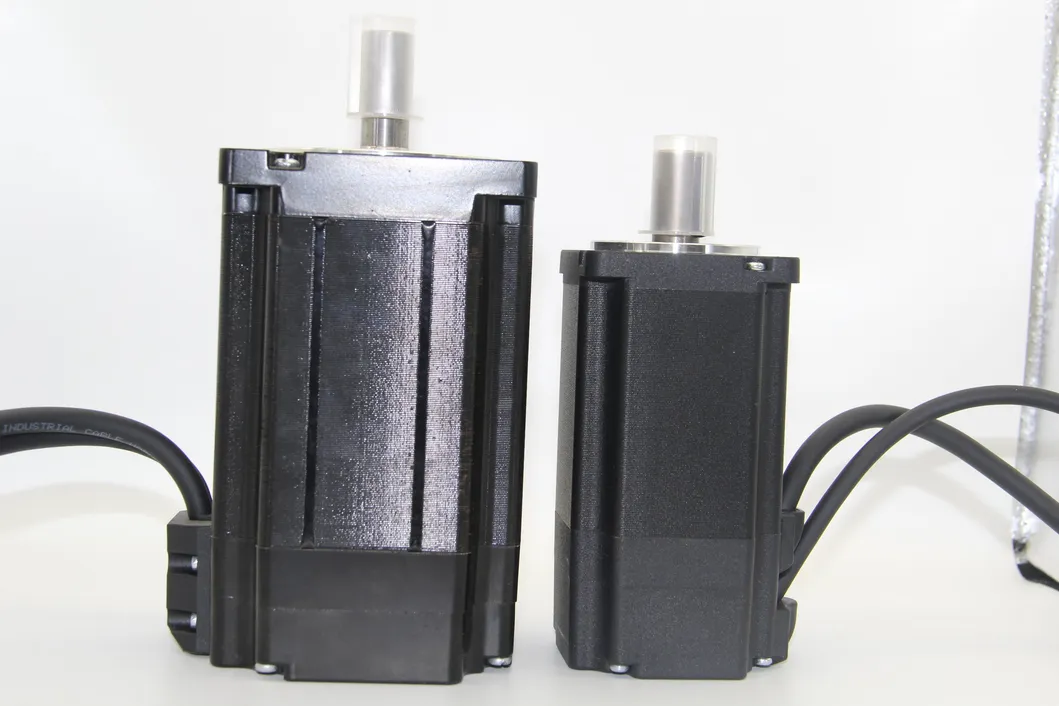

| Model | Rated Voltage (VDC) | Rated Torque (N.M) | Rated Speed (RPM) | Rated Current (A) | Rated Power (W) | Peak Torque (N.M) | Torque Constant (N.M/A) | Body Length (MM) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 60BL80-230 | 24 | 0.32 | 3000 | 5.6 | 100 | 0.96 | 0.057 | 77 | 0.85 |
| 60BL80-215 | 24 | 0.32 | 1500 | 2.8 | 50 | 0.96 | 0.114 | 77 | 0.85 |
| 60BL100-230 | 24 | 0.64 | 3000 | 11.1 | 200 | 1.92 | 0.057 | 98 | 1.25 |
| 60BL100-215 | 24 | 0.64 | 1500 | 5.6 | 100 | 1.92 | 0.114 | 98 | 1.25 |
| 60BL120-430 | 48 | 0.96 | 3000 | 8.3 | 300 | 2.88 | 0.115 | 119 | 1.7 |
| 60BL120-415 | 48 | 0.96 | 1500 | 4.2 | 150 | 2.88 | 0.228 | 119 | 1.7 |
| 60BL140-430 | 48 | 1.28 | 3000 | 11.1 | 400 | 3.84 | 0.115 | 140 | 2.1 |
| 60BL140-415 | 48 | 1.28 | 1500 | 5.6 | 200 | 3.84 | 0.228 | 140 | 2.1 |
Note: Brake, reducer, encoder, handwheel and other devices can be installed.

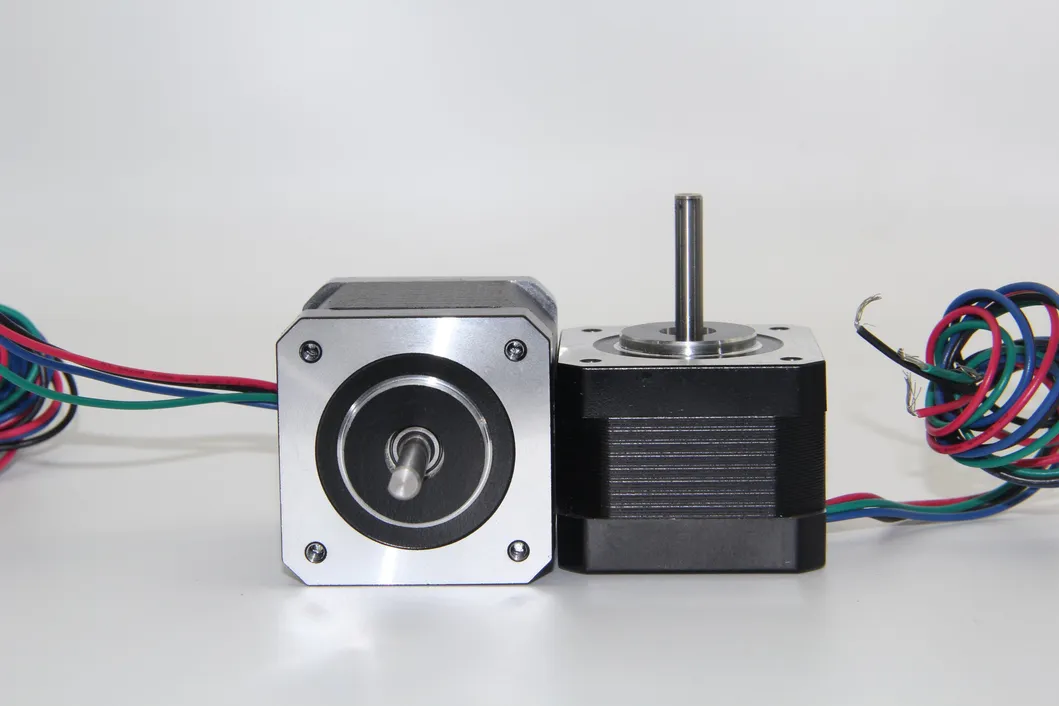

Stepper Motor

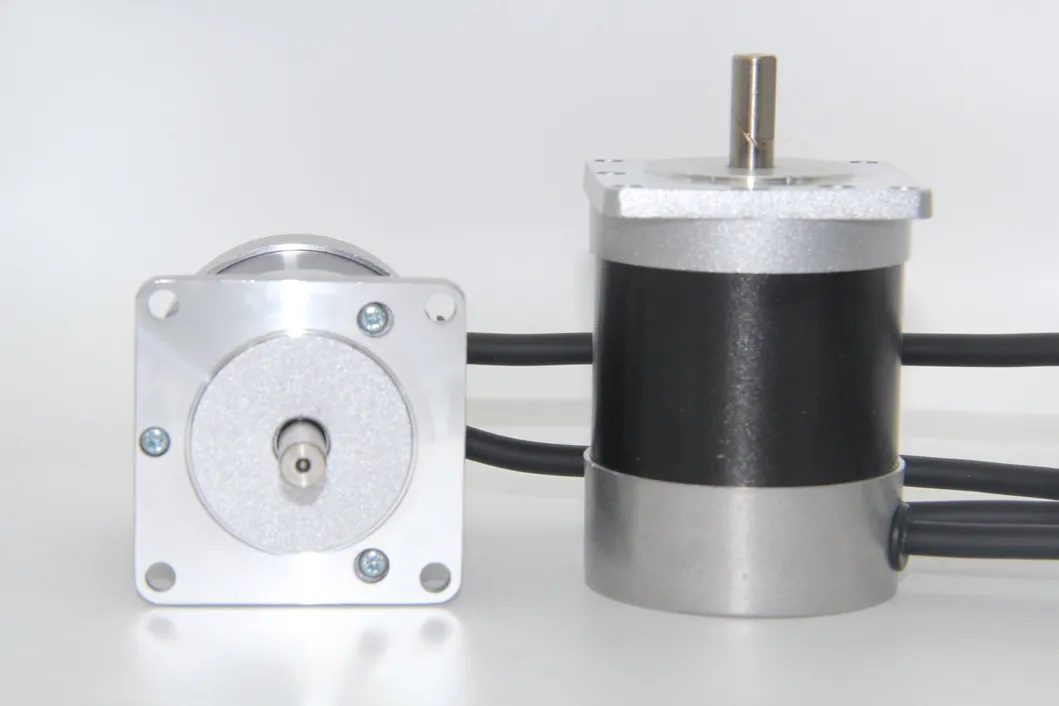

Brushless Motor

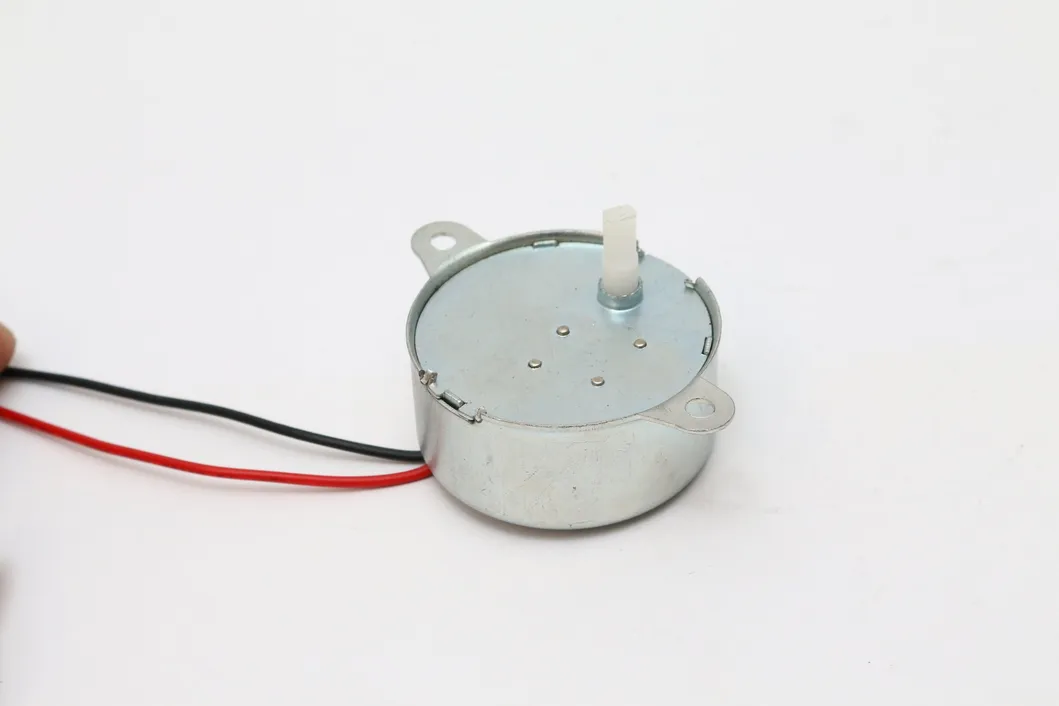

Synchronous Motor
