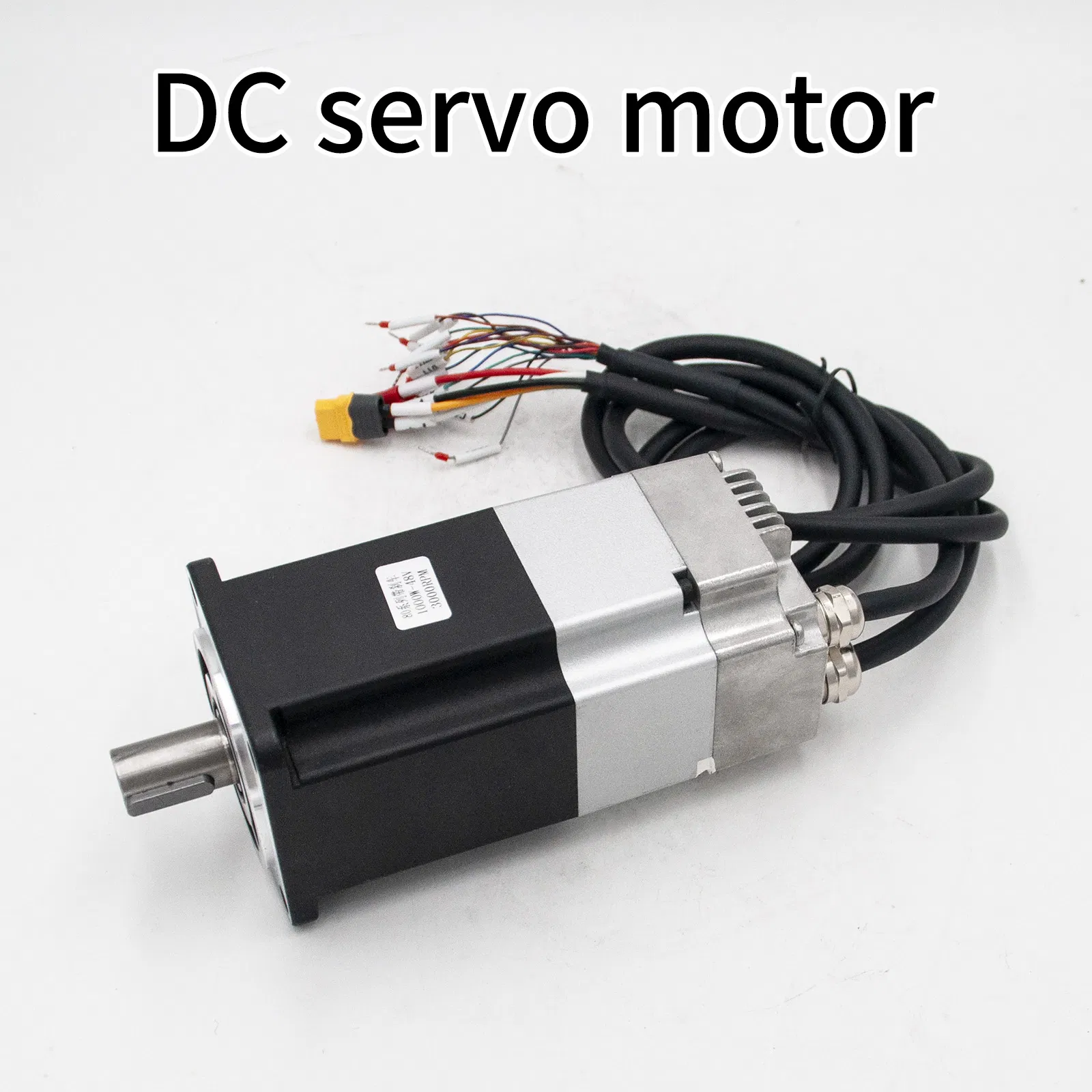

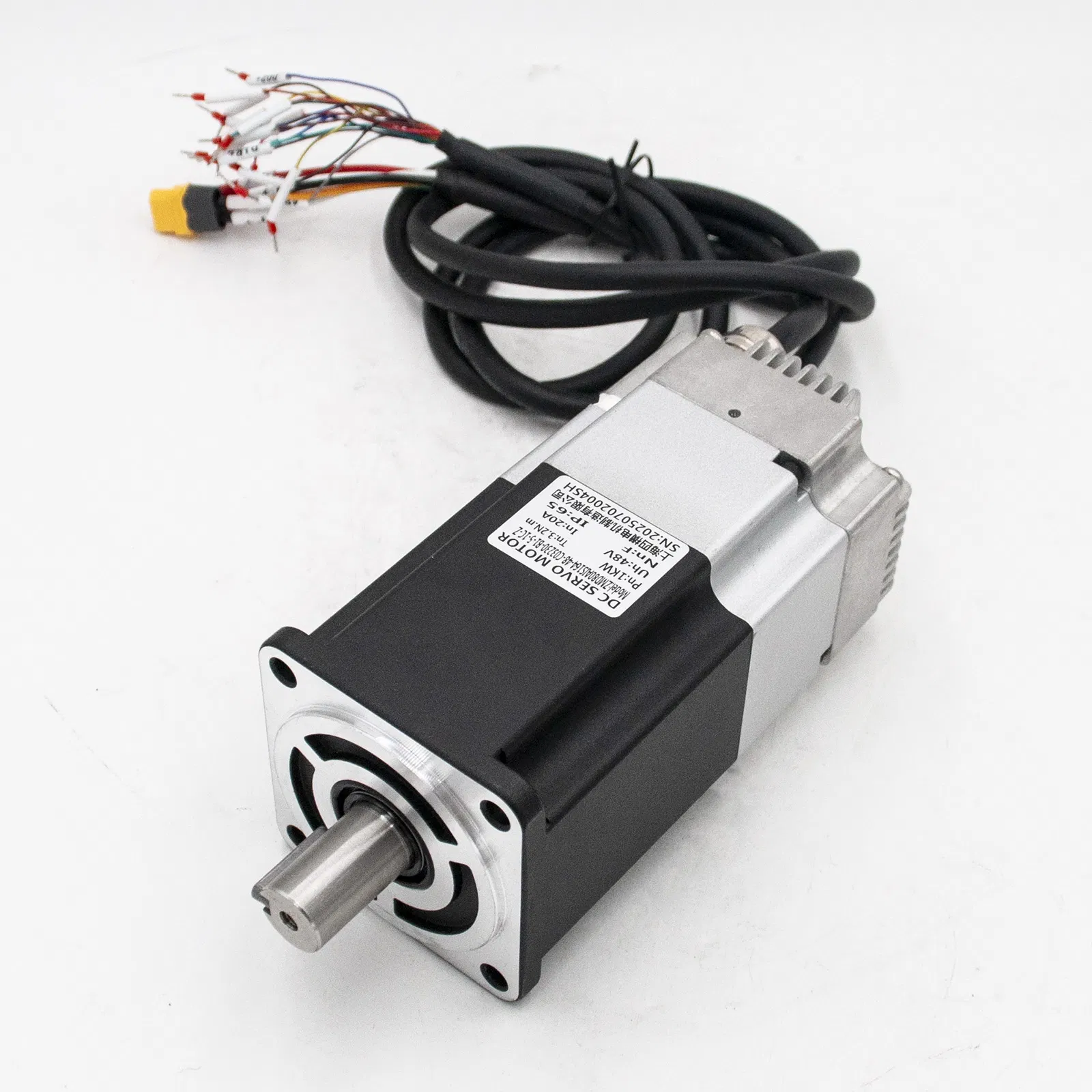

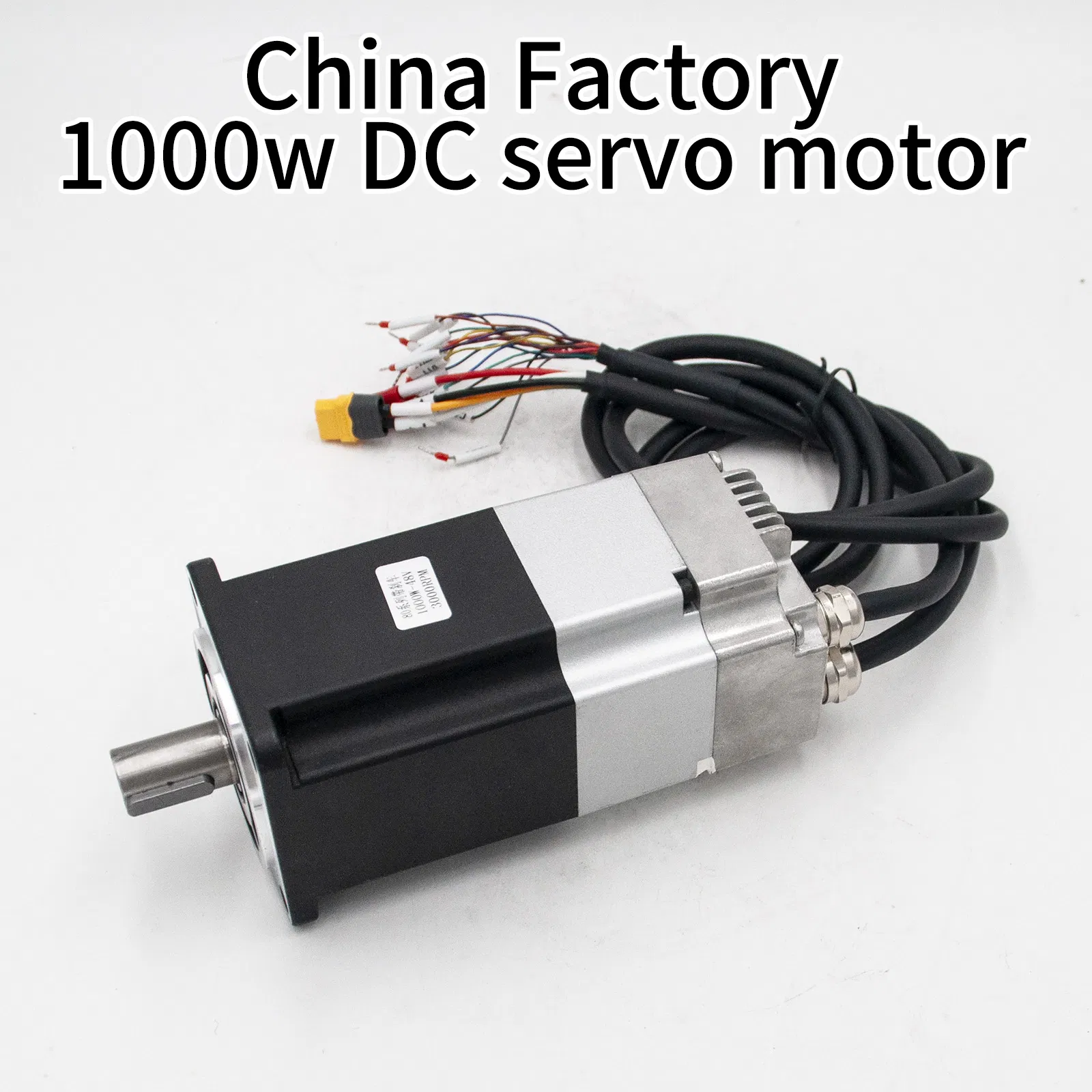

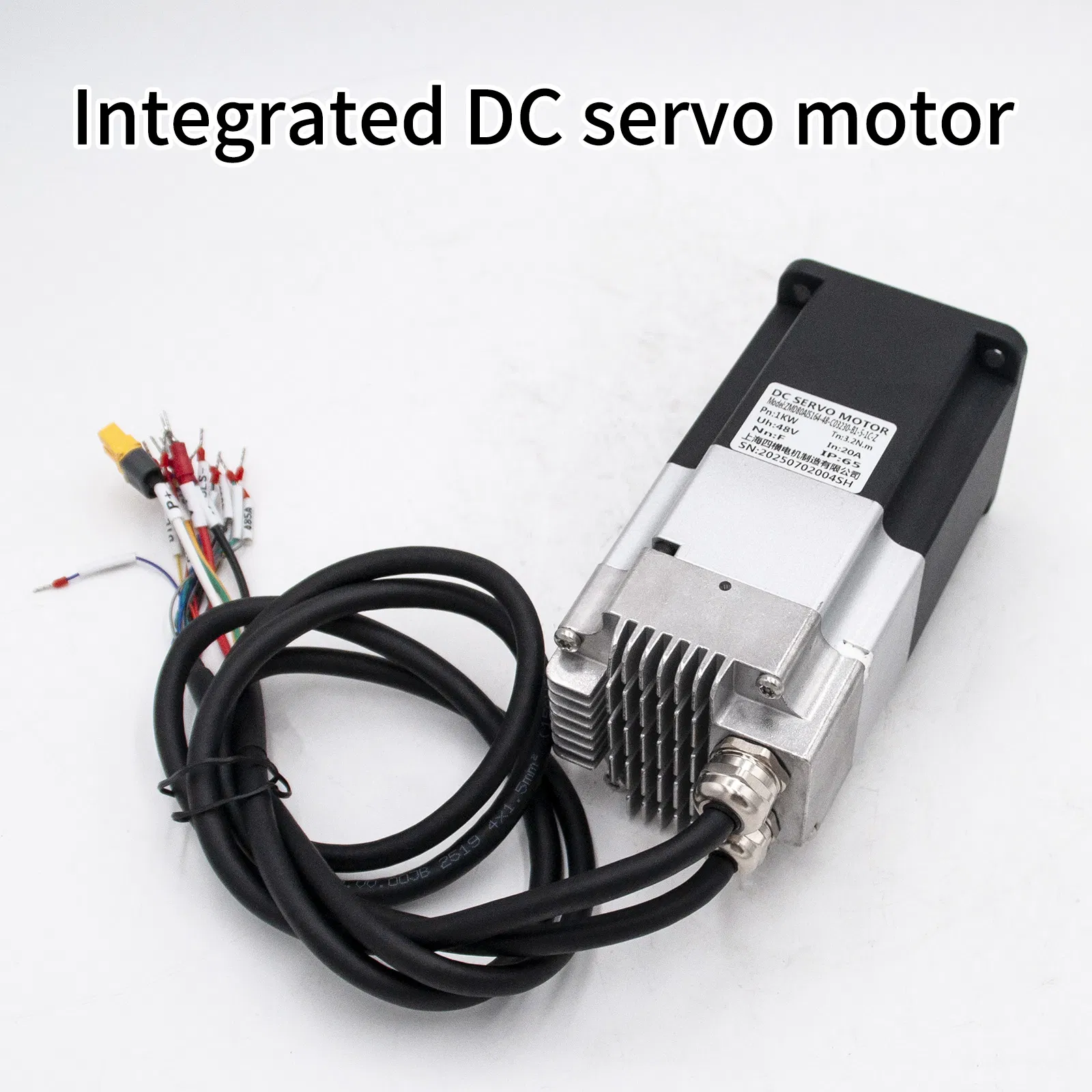

80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
1 / 5
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver
80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver

80mm 1kw 3000rpm 3.2nm 48V 72VDC Integrated Servo Motor and Driver

Customization: Available
Application: Industrial
Operating Speed: High Speed
Send Inquiry

Product Description

Technical Specifications

Model NO.
MD80AIS145-72-03230-1R001
Function
Control
Casing Protection
Closed Type
Number of Poles
10
Structure
Brushless Servo
Rated Power
1000W
Voltage
48V / 72VDC
Rated Speed
3000rpm
Rated Torque
3.2 N.M
Certification
ISO9001, CE
Efficiency
IE 3
Shaft Diameter
19mm

Integrated Servo Motor & Driver

80mm 1000W 3000rpm 3.2nm High Performance Integrated Solution for AGV/RGV Equipment

Stepper Motor Electrical Motor Brake Motor Motor Driver BLDC Motor Servo Motor

🚀 Application Fields

Textile & Engraving machinery
Security & 4G Antenna systems
Solar energy equipment
Medical & Industrial automation
Office & Printing automation
Advertising & AGV equipment

Technical Parameters

Parameter MD80AIS130-48-C02430 MD80AIS145-72-C03230
Rated Voltage (V)4872
Rated Power (W)7501000
Rated Current (A)2029
Rated Torque (N.M)2.43.2
Peak Torque (N.M)4.86.4
Rated Speed (RPM)3000 ± 10%3000 ± 10%
Body Length (MM)130145
Protection LevelIP54IP54
Insulation ClassClass FClass F

Product Showcase

Integrated Servo Motor

Installation Dimensions

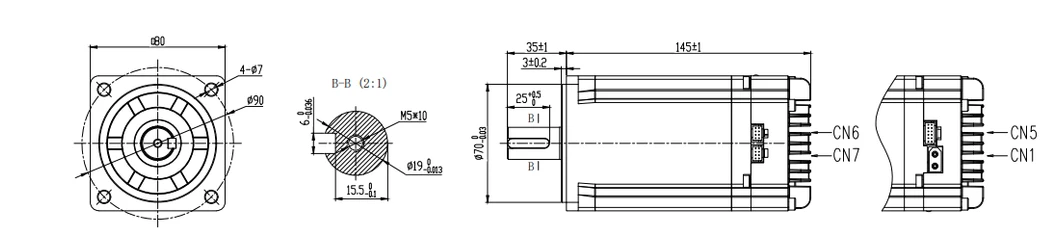

Installation Size 1

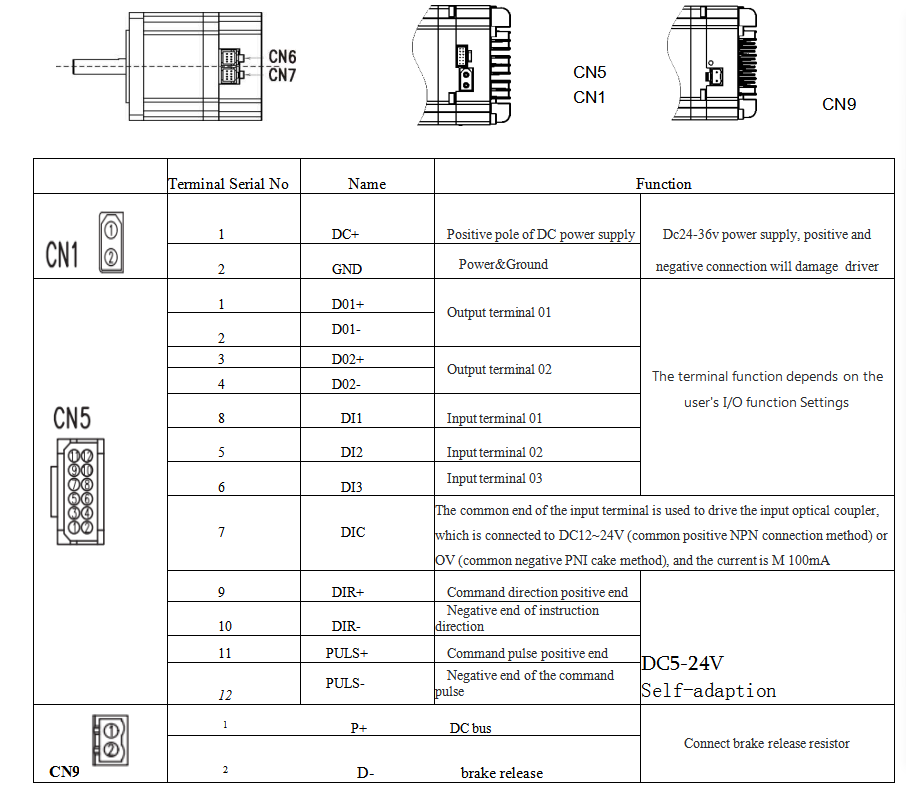

Installation Size 2

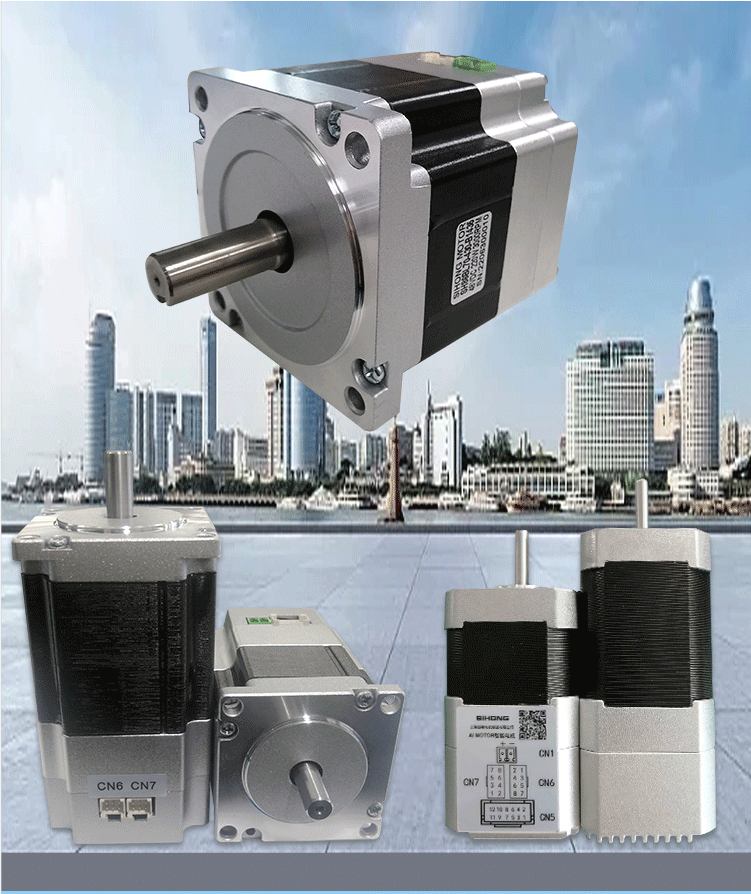

Installation Size 3

Manufacturing & Quality Control

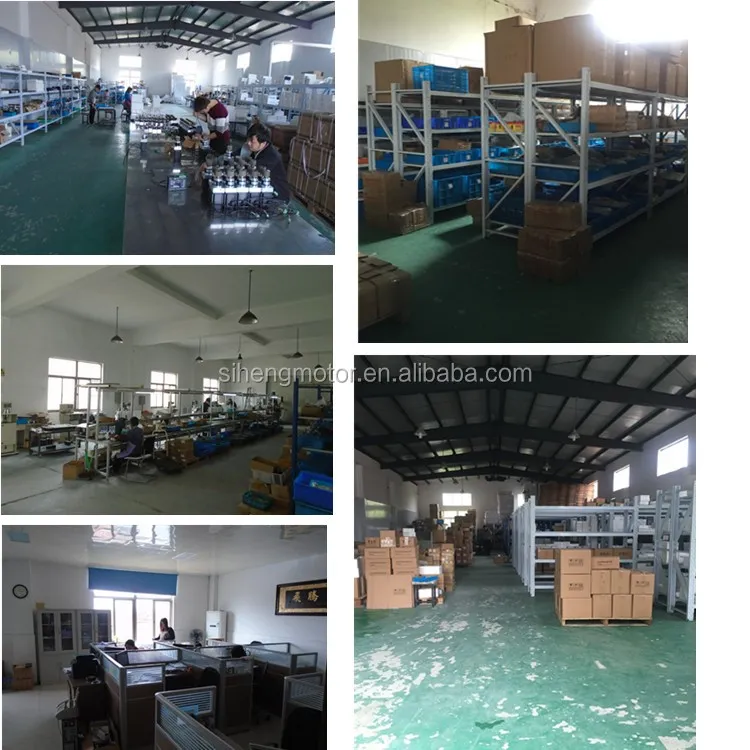

Factory Production

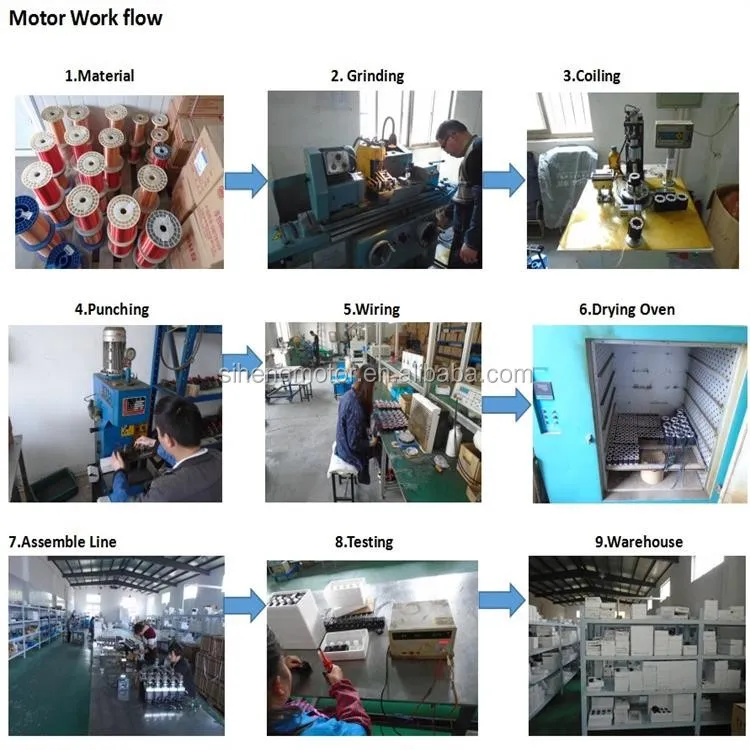

Assembly Line

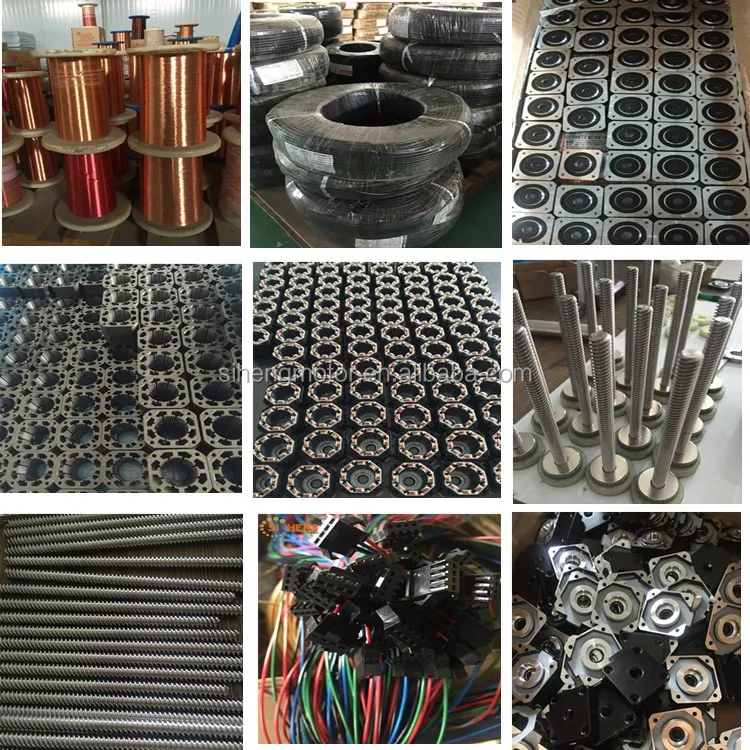

Raw Materials

Packaging & Shipping

Standard Packaging

Logistics: Global shipping available via Express (DHL, UPS, FEDEX, TNT, EMS), Air, and Sea. Professional packaging ensures product safety during transit.

Customization: Motor performance and parameters can be tailored to your specific technical requirements or samples.

Warranty: 1-year comprehensive warranty for all electronic products.

Frequently Asked Questions

How can we ensure product quality?
We recommend ordering a sample for testing. Detailed production photos and technical data sheets are available upon request for verification.
Can we customize the motor parameters?
Yes, our engineers can customize performance and physical parameters based on your diagrams or samples.
Do you offer samples?
Yes, samples can be provided. Please contact us to discuss shipping arrangements.
What is the warranty period?
We provide a 1-year warranty. If any quality issues occur within this period, we handle technical support and replacements.
What are the available payment terms?
We accept T/T, Western Union, and PayPal. Standard terms involve a 30% deposit and 70% balance before shipment.
Is there a discount for bulk orders?
Our pricing is factory-direct. For larger quantities, we are happy to offer competitive volume discounts.
