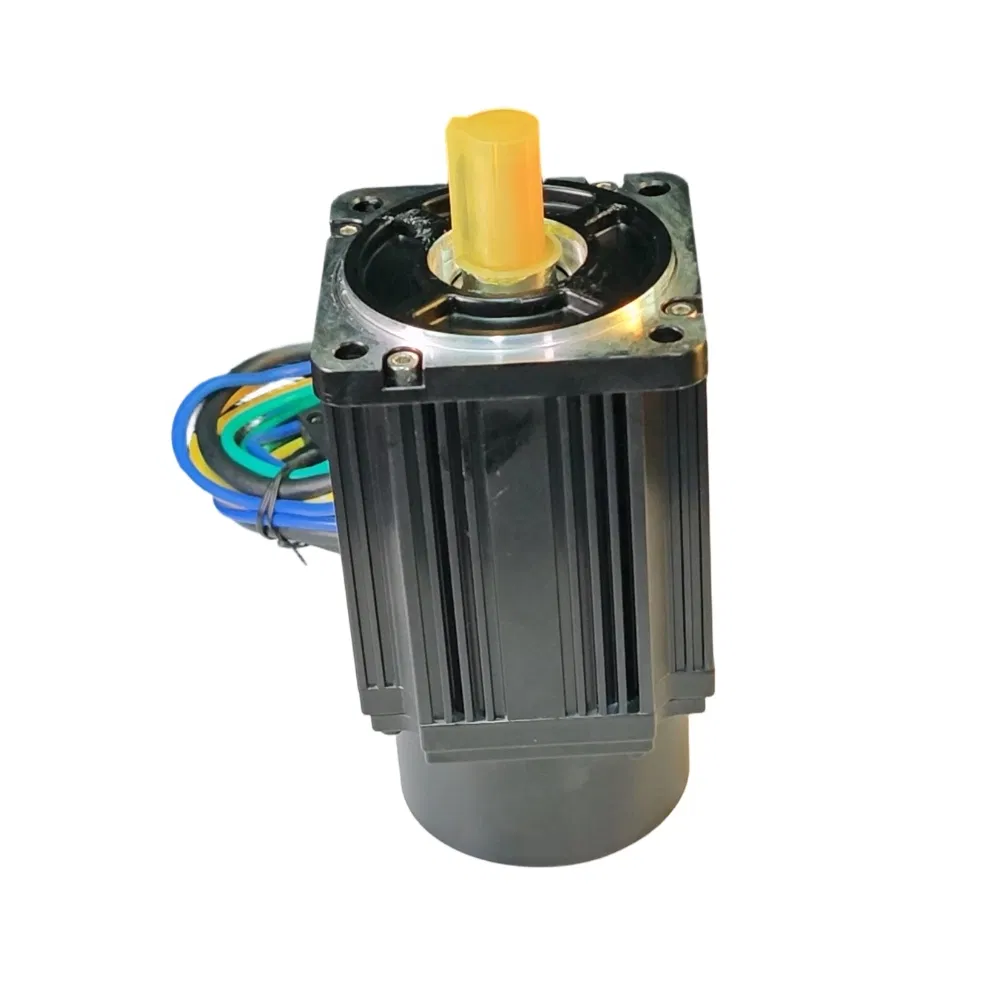

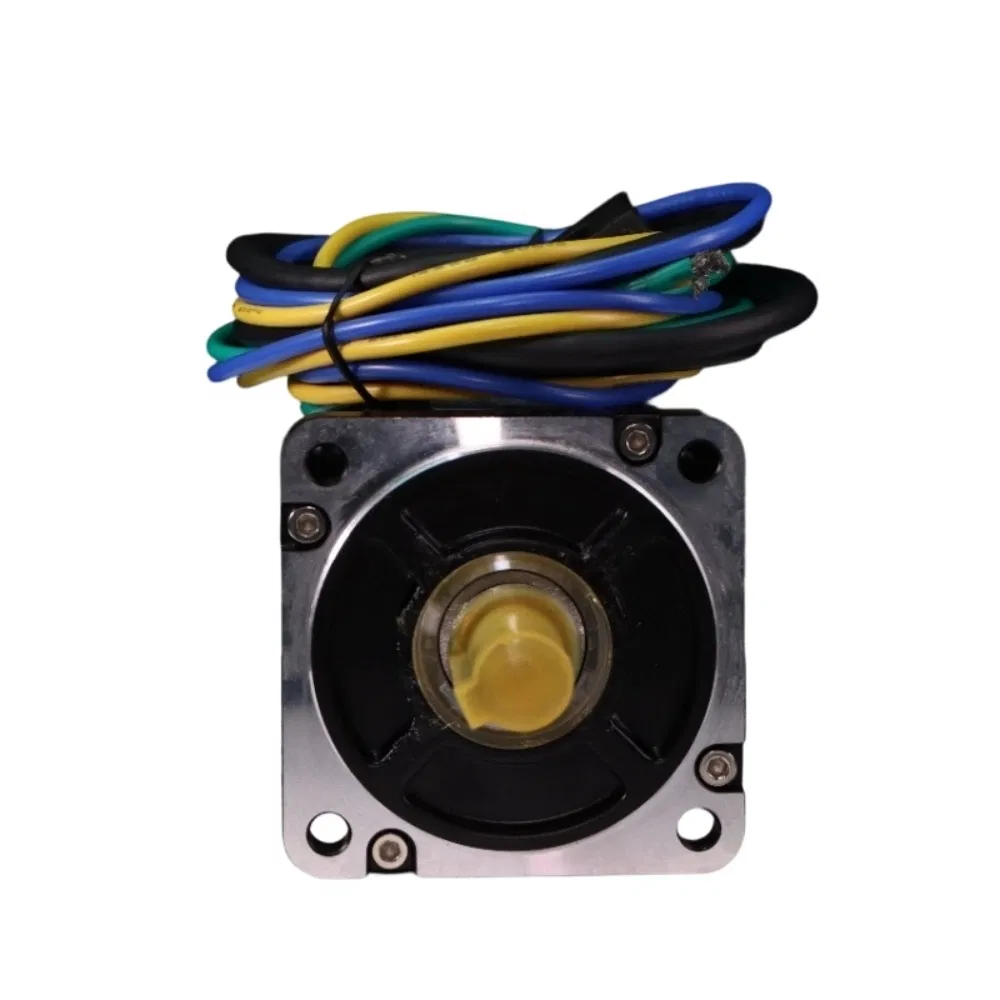

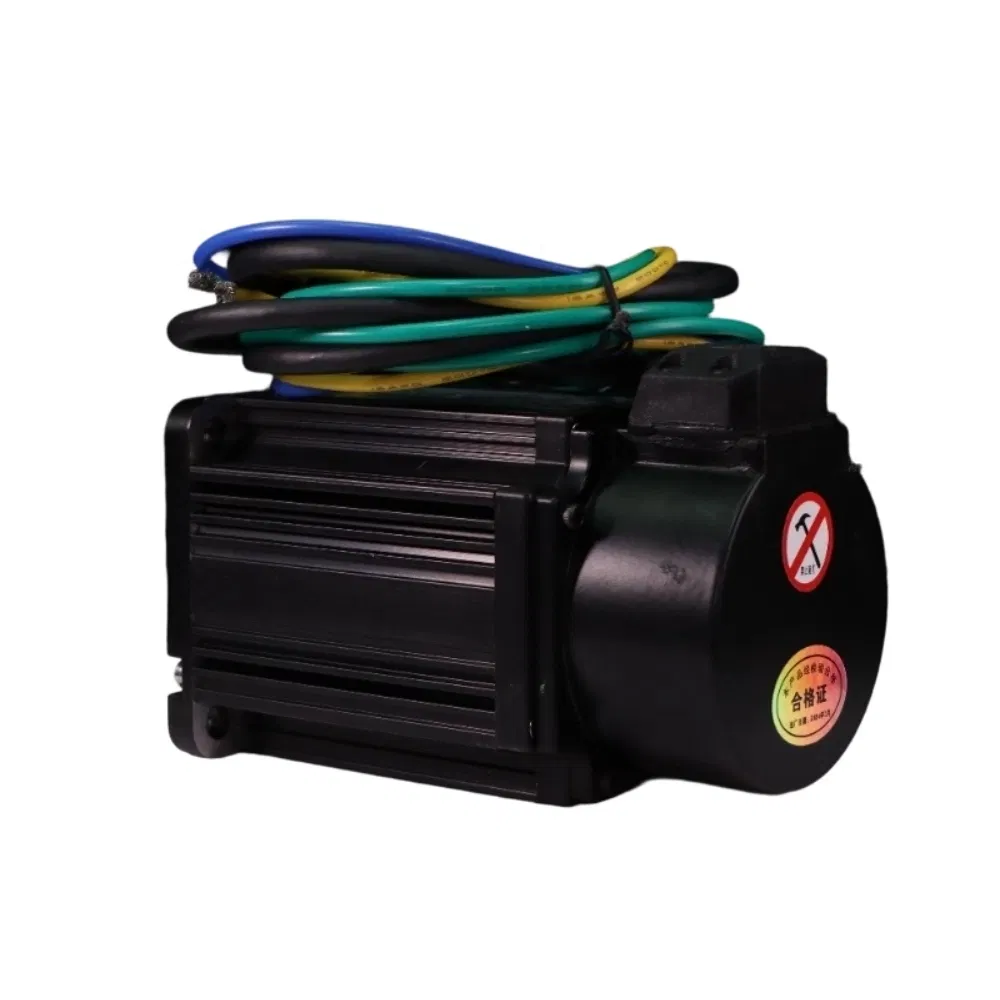

48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
1 / 5
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization
48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization

48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
KY80ACS0407-30
Function
Driving
Casing Protection
Closed Type
Number of Poles
10
Structure
Brushless
Rated Voltage
48V/96V
Rated Power
750W
Rated Speed
3000rpm
Rated Torque
2.39n·M
Protection Grade
IP55
🚀 Product Description
DC Servo Motor Overview
💎
High Efficiency: Can reach grade 1 energy efficiency with permanent magnet synchronous technology.
⚡
Fast Response: Excellent response speed and high heat conduction efficiency for rapid heat dissipation.
🔄
Smooth Operation: Multi-slot pole design minimizes cogging pulsation torque for stable performance.
🛡️
Durable Build: Stator uses H-class enameled wire, resistant to high temperatures with strong overload capability.
⚙️
Customizable: Support for various technical customizations to meet specific application needs.
📊 Technical Specifications
Parameters Details
ModelKY80ACS0407-30 / KY80ACS0407-30B
Rated Voltage48V / 96V
Rated Power750W
Rated Current19.5A
Rated Speed3000 RPM
Rated Torque2.39 N·m
Max. Speed4000 RPM
Instantaneous Max. Torque7.17 N·m
Feedback PartIncremental encoder (Standard), Absolute encoder (Optional)
Brake (Optional)Braking MethodPower Loss Braking
Static Friction2 N·m
Protection GradeIP55
Cooling MethodNatural Cooling
Weight (Without Brake)2.3kg
📐 Technical Drawings & Gallery

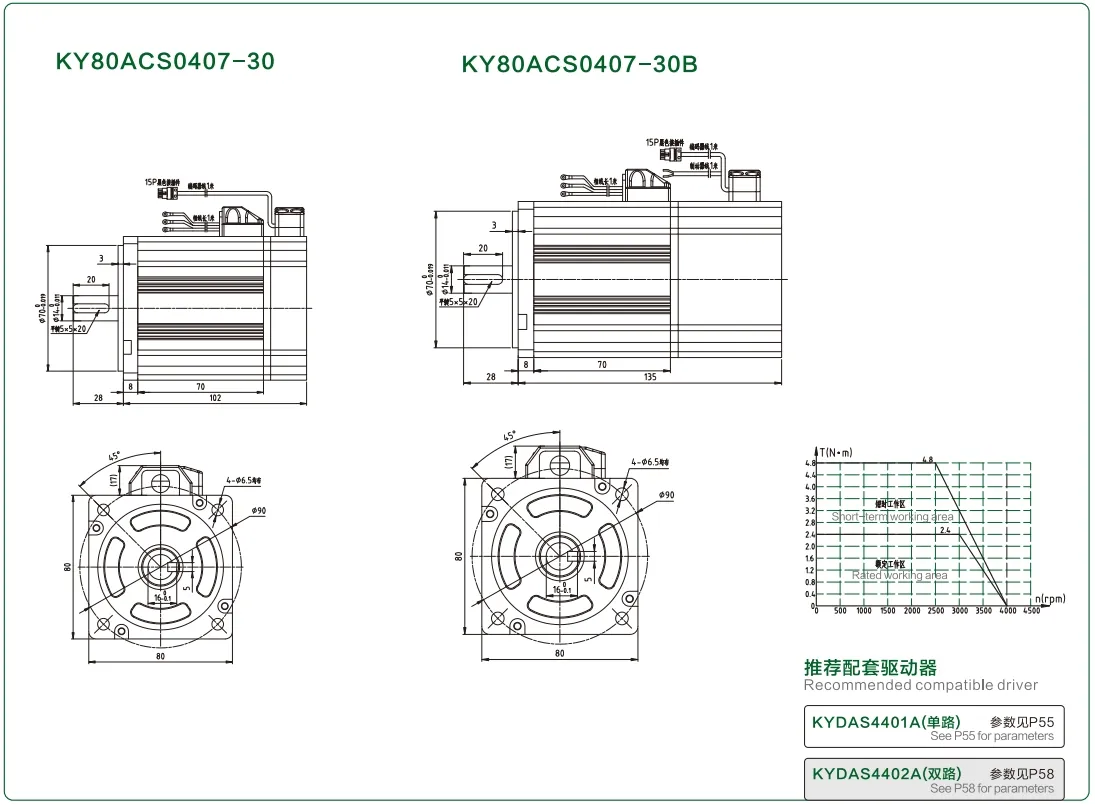

Technical Drawing 1

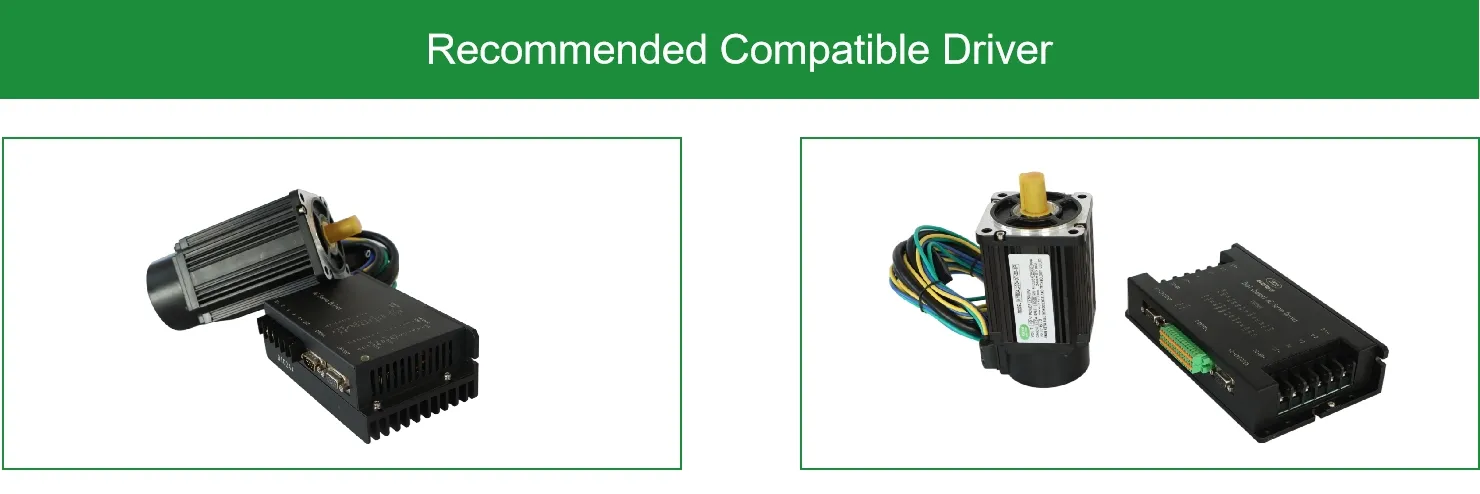

Technical Drawing 2

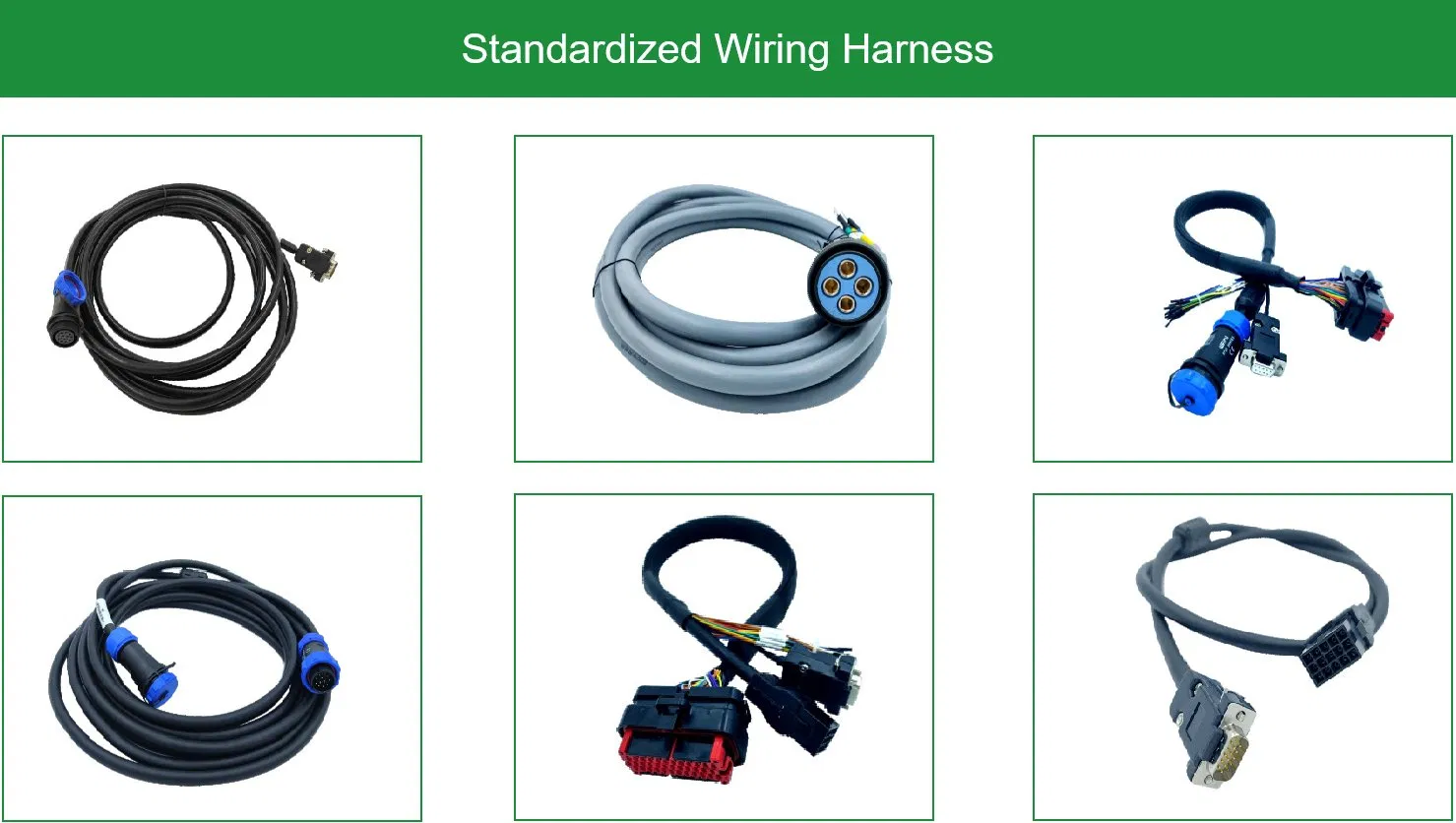

Technical Drawing 3
🏭 Advanced Workshop & Quality Control

A well-established product quality control system is in place, following ISO9001 international standards. Process quality control implements "four controls": first item control, inspection control, final inspection control, and finished product inspection before shipping. We utilize the "8D" model and PDCA cycles for continuous improvement.

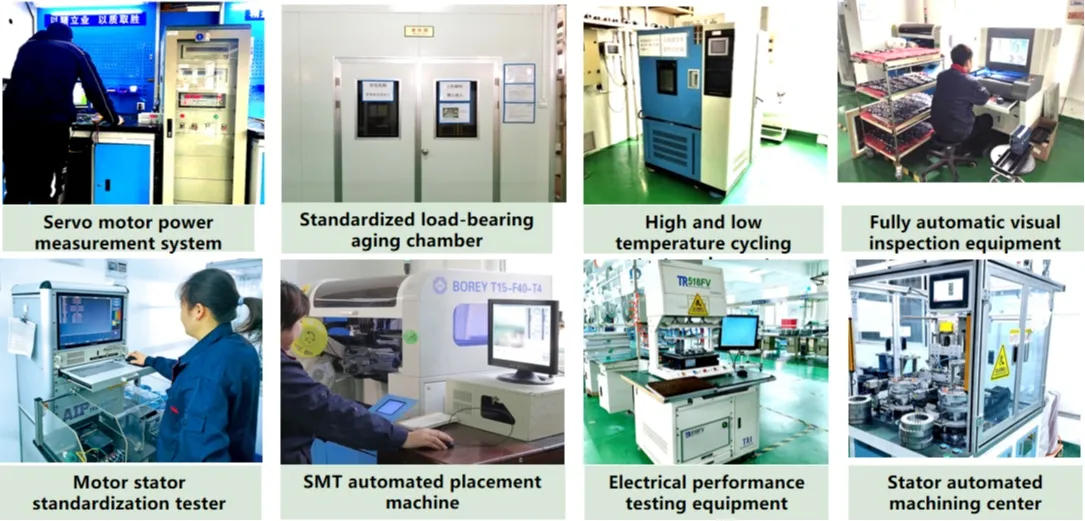

Advanced Equipment
Certificates
Corporate Advantage
❓ Frequently Asked Questions
Is there any price discount for bulk purchase?
Yes, we offer competitive tiered pricing for bulk orders. The unit price becomes more favorable as order quantity increases. Please provide your specific requirements for a dedicated quotation.
What is the production and delivery cycle?
For in-stock products, dispatch occurs within 3-5 working days. For out-of-stock items, the timeline depends on order volume and production cycles, which will be estimated clearly before order confirmation.
How is the product quality guaranteed?
Quality is ensured through strict ISO management systems, covering everything from raw materials to finished products. We have a professional R&D team and offer full after-sales support.
Can these motors be customized?
Yes, we support customization for various technical parameters including voltage, power, and feedback components (Incremental or Absolute encoders) to suit your specific application.
What is the protection grade and cooling method?
The motor features an IP55 protection grade, making it suitable for various industrial environments, and utilizes natural cooling for heat dissipation.
What safety certifications do the products hold?
Our products are manufactured under ISO9001 standards and hold CE certification, ensuring compliance with international safety and quality requirements.
