63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
1 / 5
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor
63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor

63mm Gr63 Permanent Magnet Brushed DC Motor 12V 24V 36V 48V to 220V 12 24 36 48 Volt 50W 100W 150W 200W Pm Brush Planetary Worm Gear Drive Motor

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

63zyt Series Brushed DC Motor

📋 Basic Specifications
Model NO.
63zyt series
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Structure
Brush
Certification
ISO9001, CE, RoHS
Voltage
12V 24V Up to 230VDC
Power
Customized 10W Up to 300W
Specification
Size 63mm
Trademark
OEM ODM
Origin
China
Capacity
10000 PCS Per Month
⚙️ Product Description

Customizable Solutions

We provide customizable options for voltage, dimensions, performance, shafts, and mounting to meet your specific requirements. Additionally, we offer integration with encoders, gearboxes, and brakes.

Please send an inquiry to receive the most cost-effective solution and proposal for your project.

Diameter63mm
Rated Voltage12V, 18V, 24V, 36V, 48V up to 380VDC
Rated TorqueWith gearbox up to 30Nm - 45Nm
Rated SpeedCustomized
Rated Power30W - 200W
Protection ClassOptions: IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMISuppression available
ThermalThermal protection available
GearboxOptional Planetary or Worm gearbox assembled
BrakeOptional electric brake assembled
EncoderOptional Optical or Magnetic encoders assembled
ControllerOptional integrated controller for motors
📸 Product Gallery

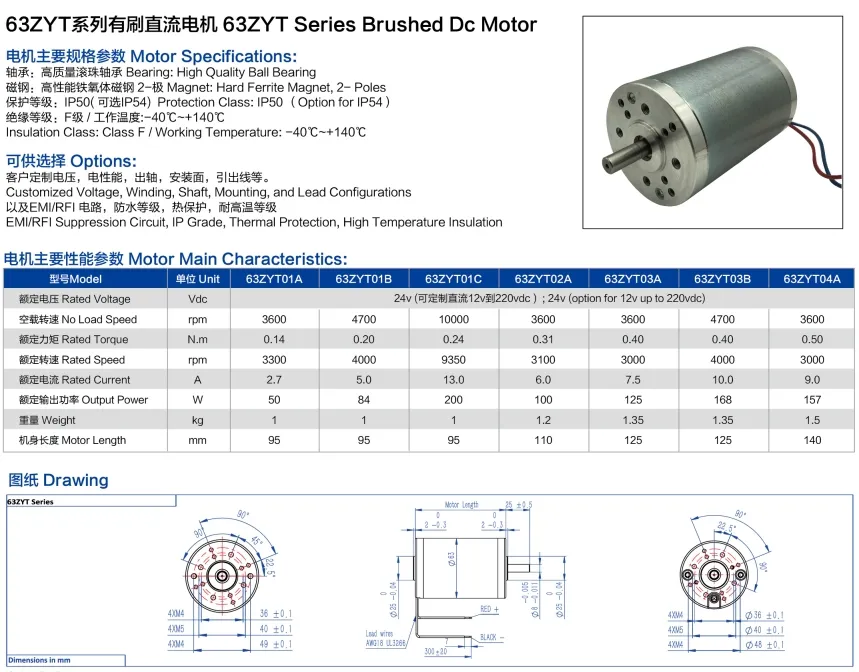

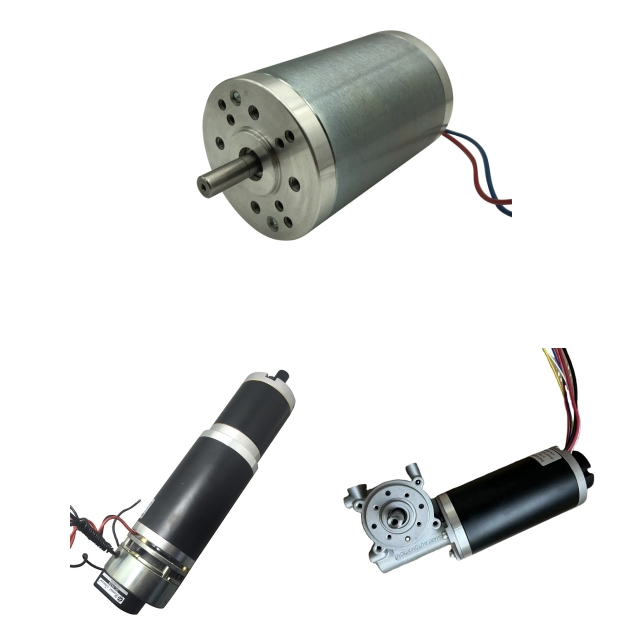

63zyt Series Brushed DC Motor
63mm DC Motor Dimensions
63mm Motor Front View
63mm Motor Side View

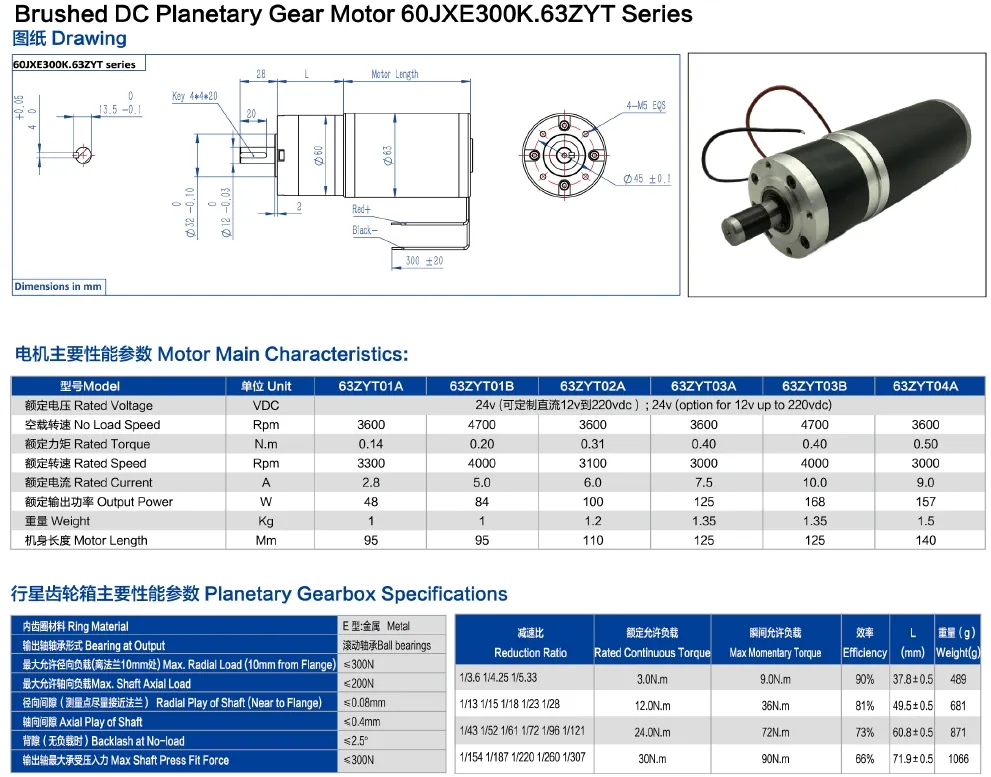

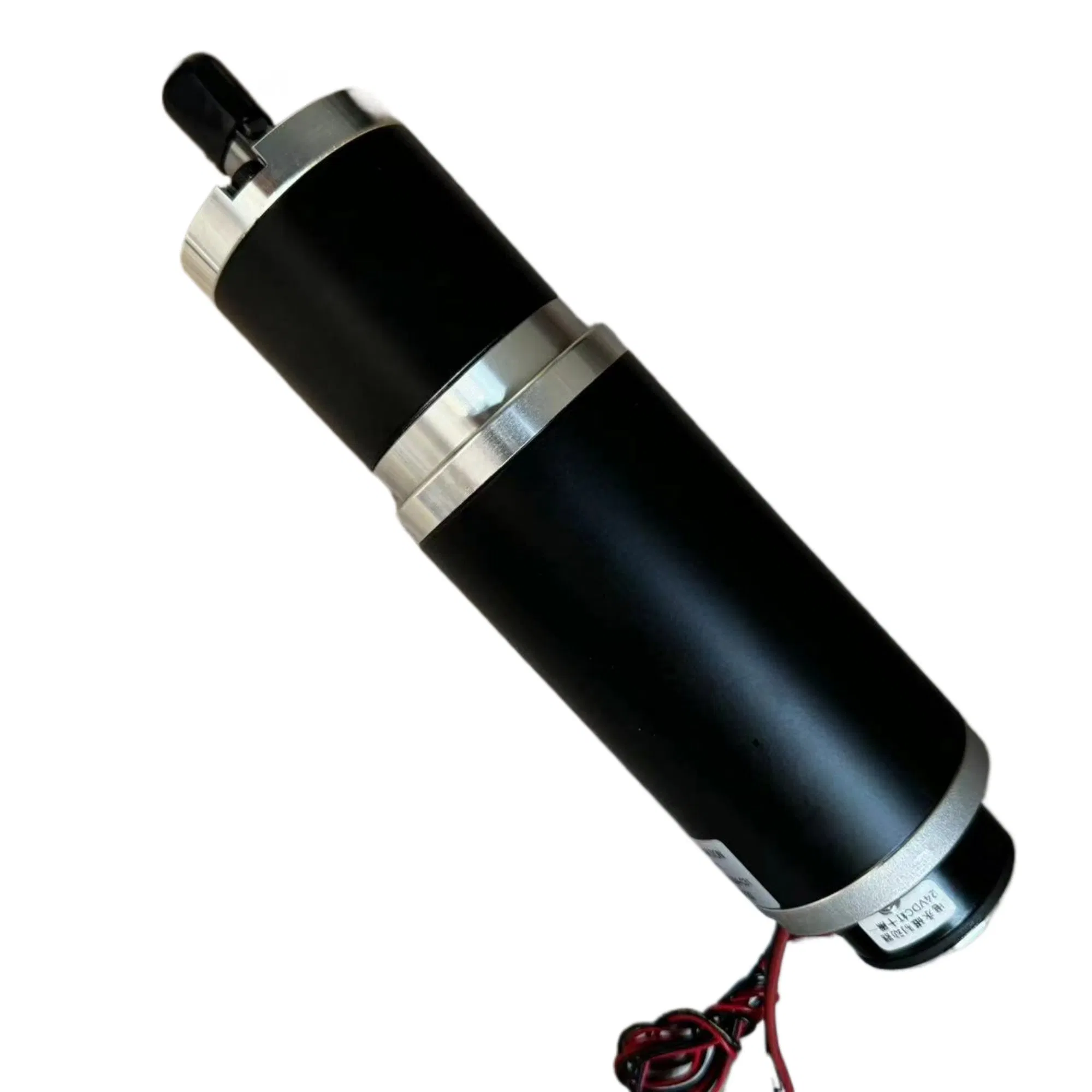

63mm Planetary Gear Motor
63mm Planetary Gear Motor

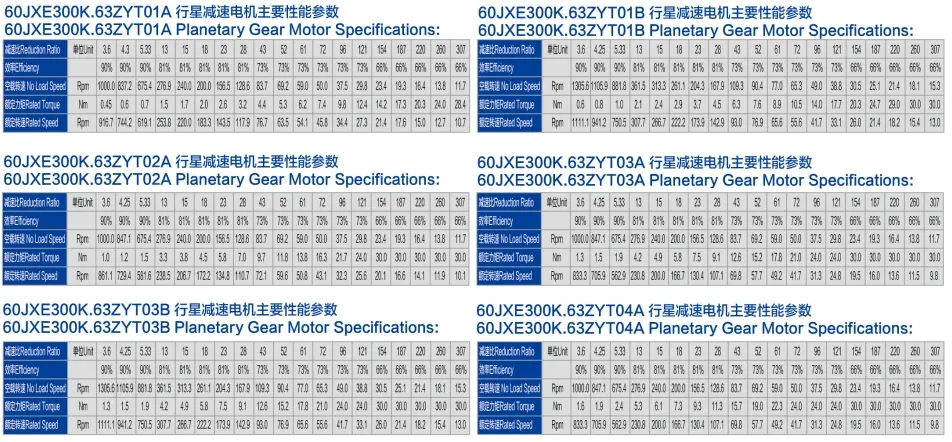

Planetary Gear Details
63zyt Series Worm Gear Motor

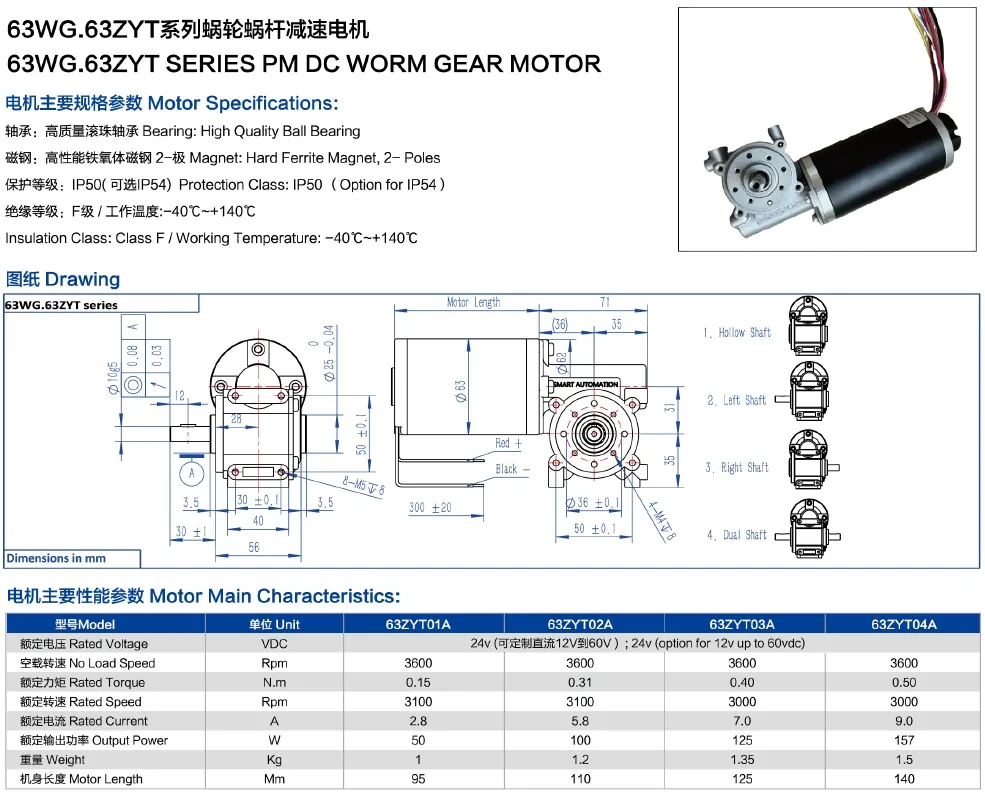

63zyt Worm Gear Motor

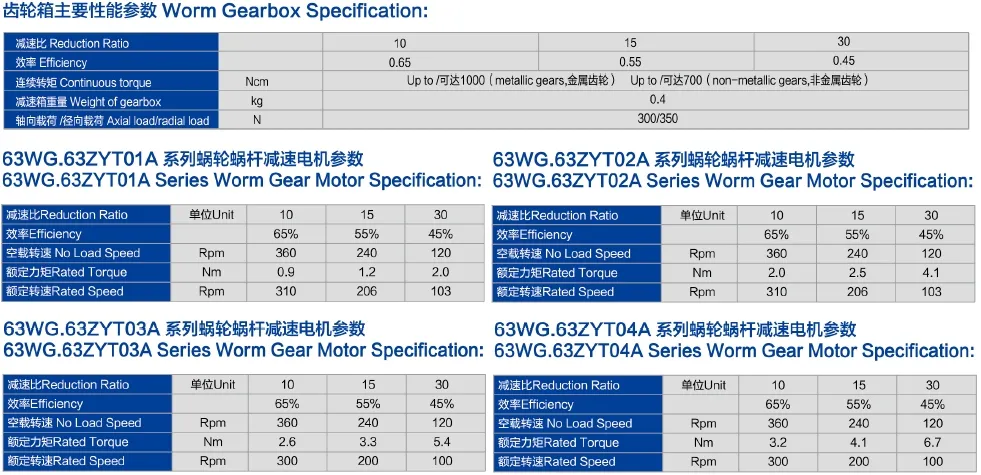

Worm Gear Motor Specifications
❓ Frequently Asked Questions
What is the standard diameter of the 63zyt series motors?
The standard diameter for this series is 63mm.
What voltage ranges are supported for these DC motors?
We support a wide range of voltages, typically 12V, 18V, 24V, 36V, 48V, and up to 380VDC.
Can the motor performance and hardware be customized?
Yes, we offer full customization for voltage, dimensions, shaft types, mounting configurations, and overall performance.
Are there options for integrated gearboxes?
Yes, the 63zyt series can be assembled with either Planetary or Worm gearboxes depending on your torque requirements.
What certifications do these products hold?
Our 63zyt series motors are manufactured under ISO9001 standards and hold CE and RoHS certifications.
Is it possible to add protection or feedback components?
Absolutely. We offer options for EMI suppression, thermal protection, electric brakes, and optical or magnetic encoders.
