In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications.
Our range of PMDC motors is trusted by global manufacturers and is often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.

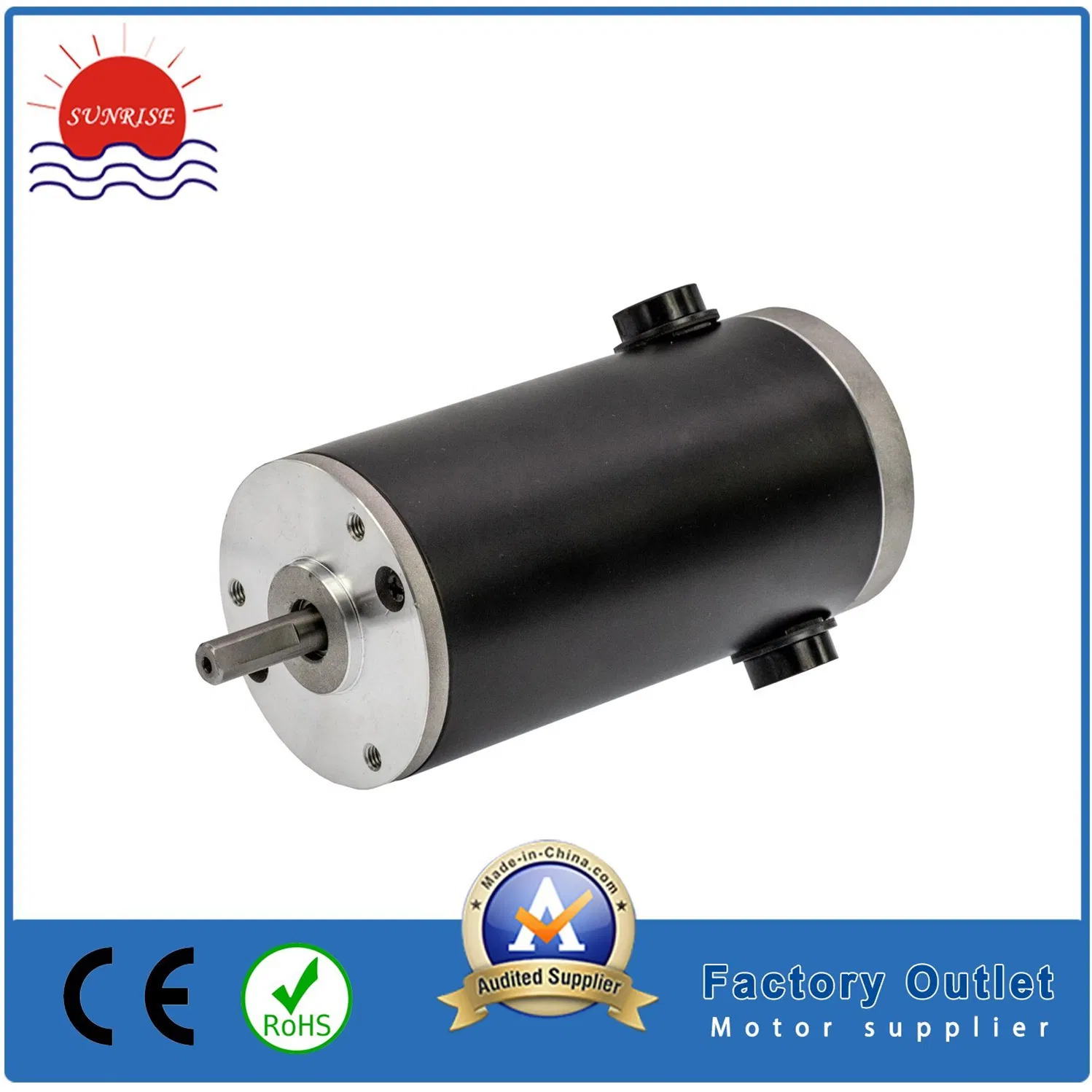

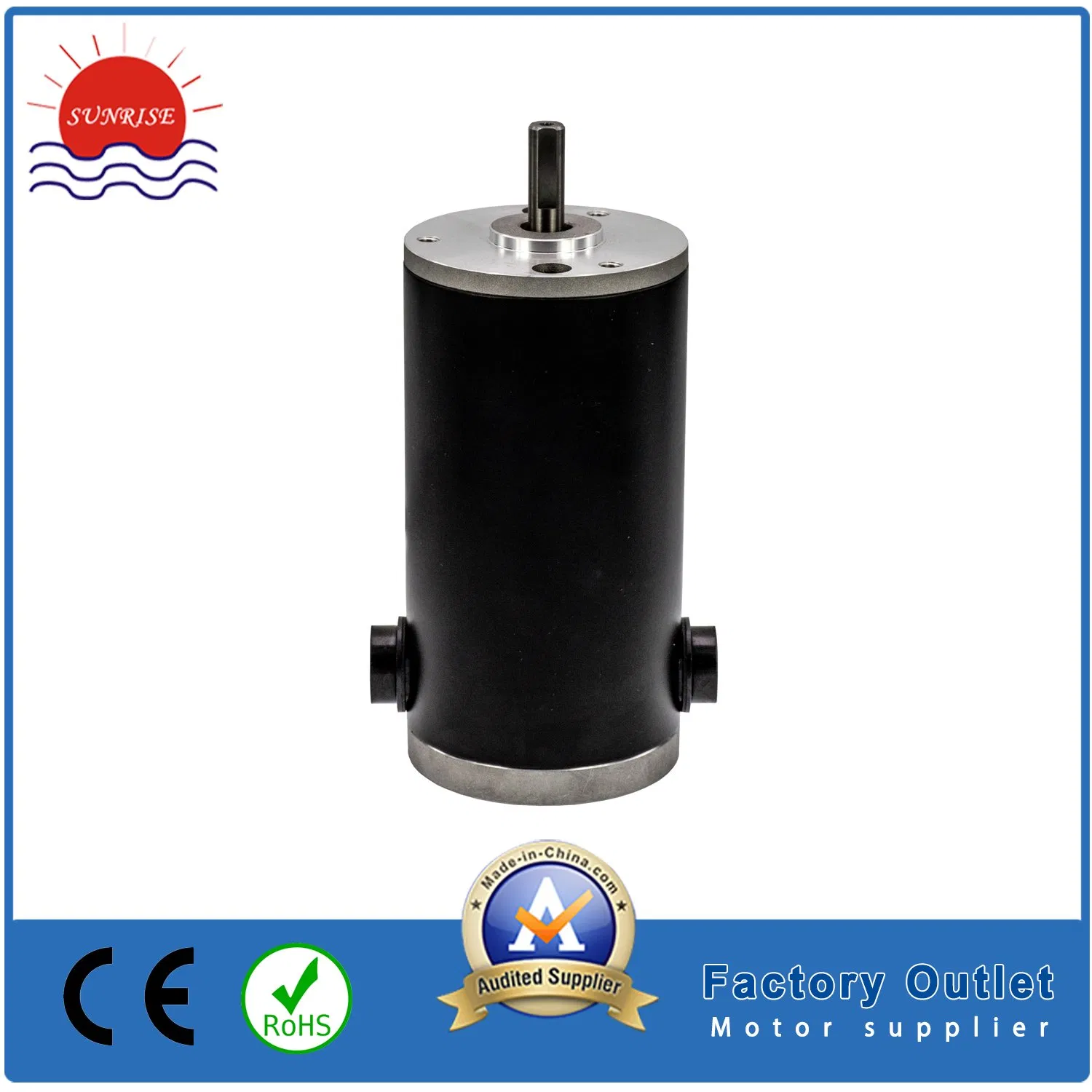

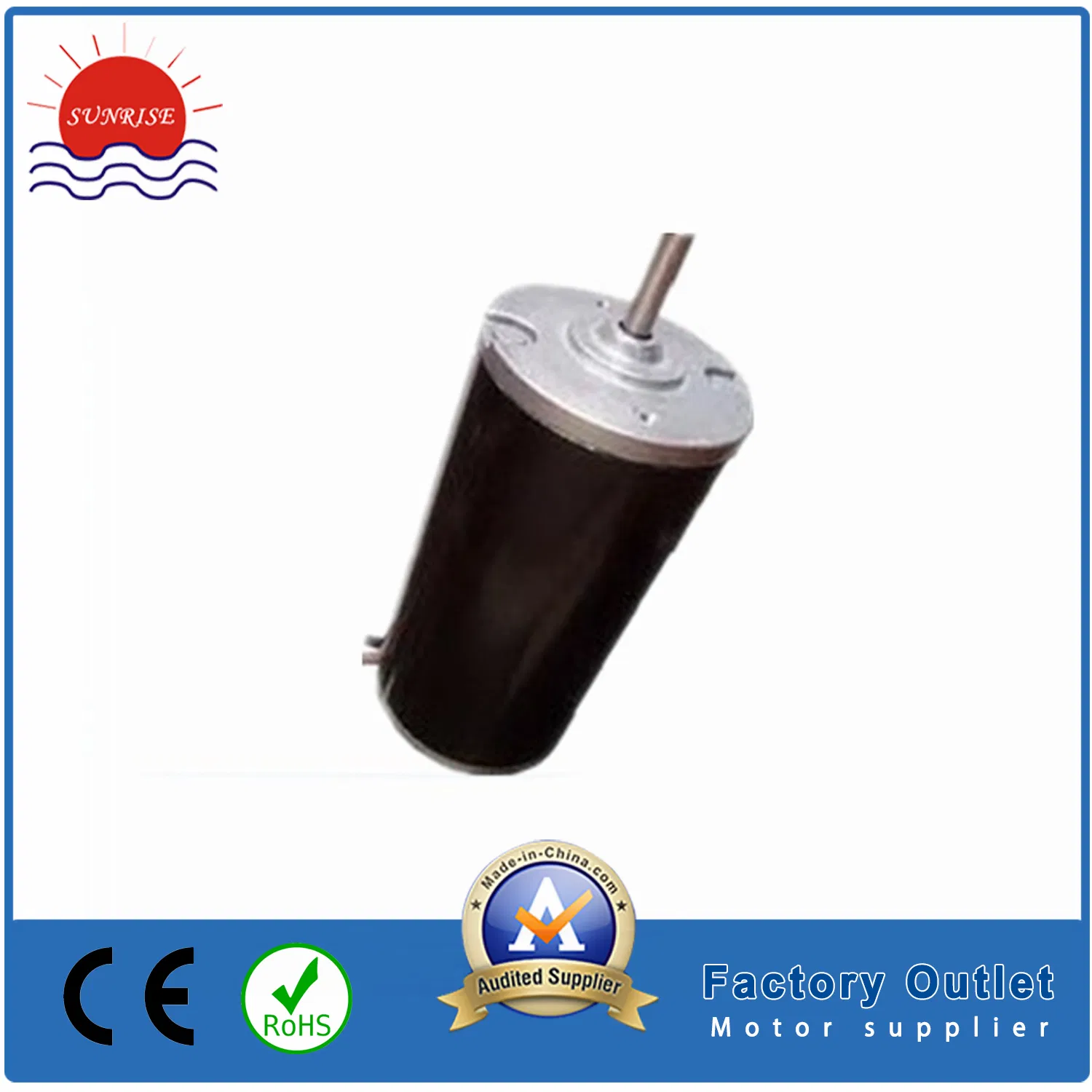

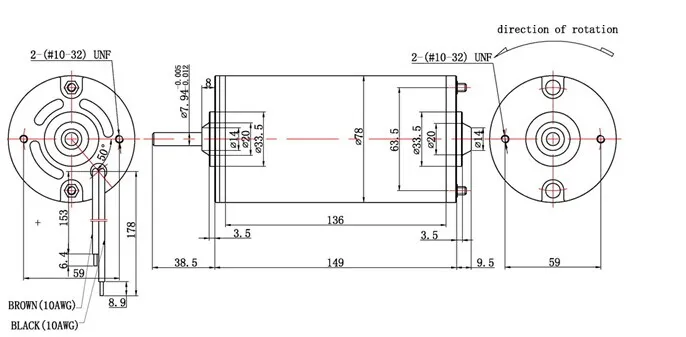

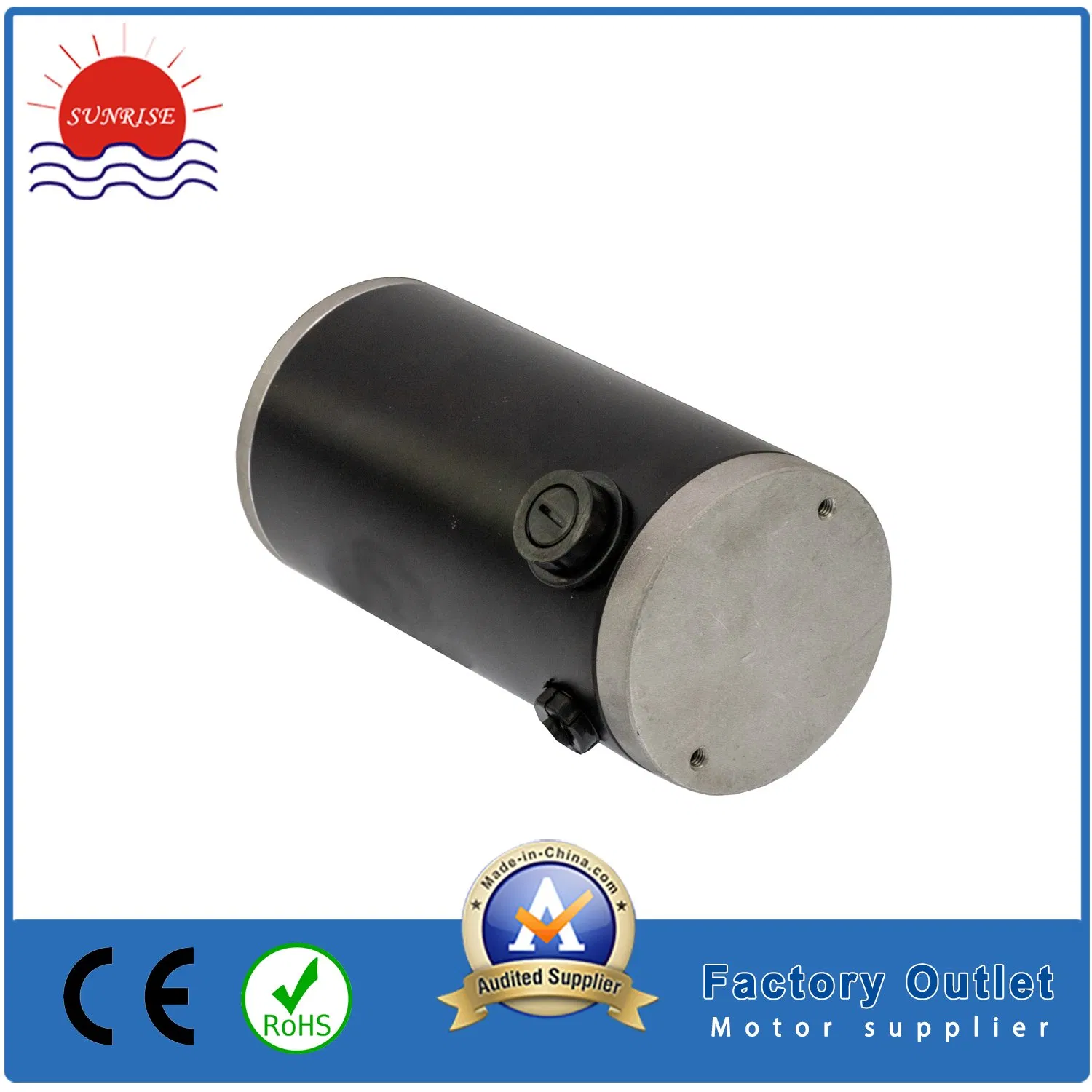

78mm Series Electric Permanent Magnet (PMDC) Motor
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 78ZYT149-1224 | 12 | 2 | 2400 | 0.4 | 9 | 2200 | 149 |
Remark: Special motors can be customized per your requirements. Encoder and gearbox can be fixed.
Our standard permanent magnet DC motor products cover the following performance range:
Right-angle and inline PMDC geared motor combinations:
We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
