| Model NO. | YE5-280S | Number of Stator | Three-Phase |
| Species | Ye5 Series | Rotor Structure | Squirrel-Cage |
| Casing Protection | Closed Type | Number of Poles | 2 4 6 8 10 |
| Starting Mode | Direct on-Line / Soft Starter | Certification | ISO9001, CCC, CE |
| Protection Level | IP55 | Cooling Method | IC411 |
| Rated Voltage | 380V | Rated Frequency | 50Hz |
| Production Capacity | 4000PCS/Day | HS Code | 8501530090 |

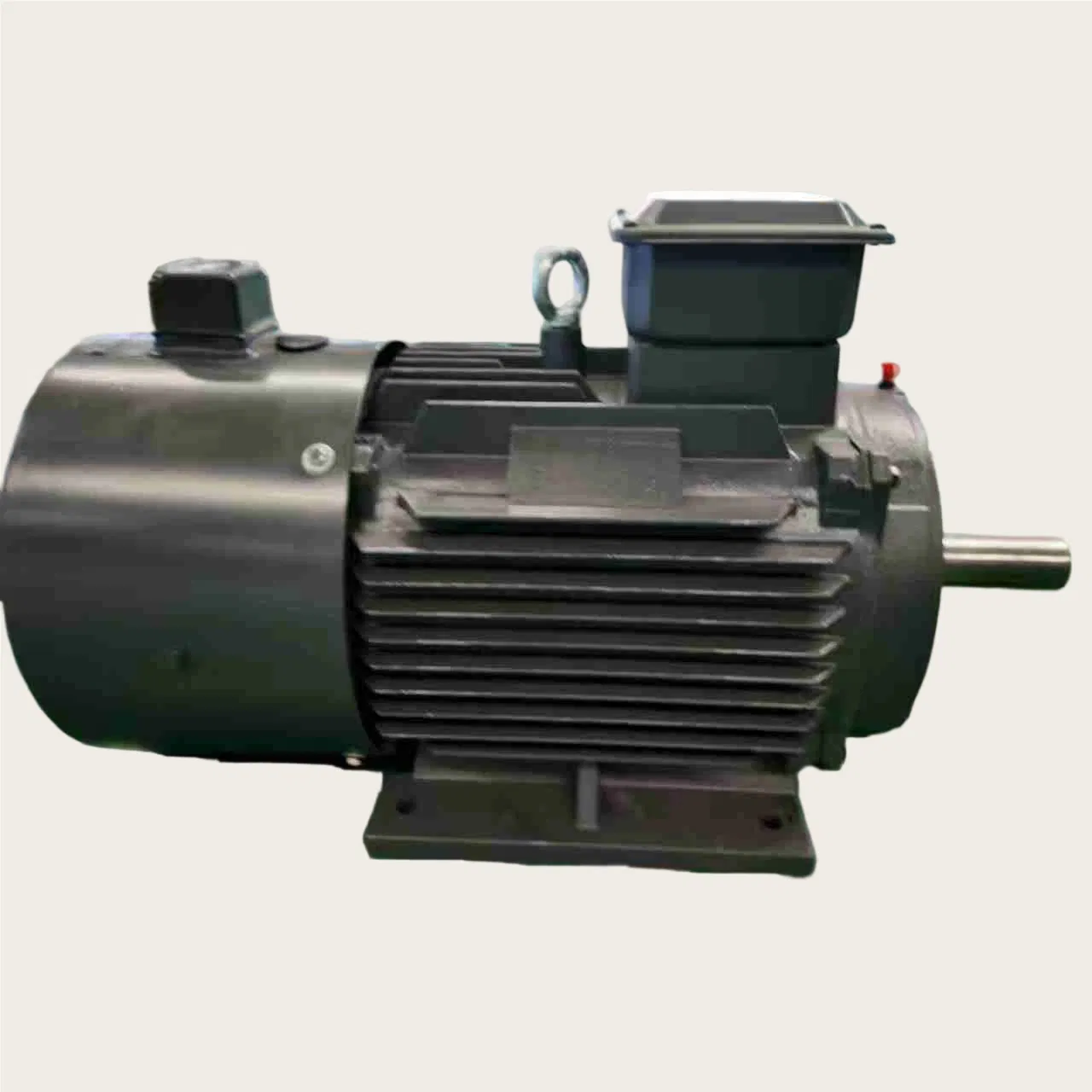

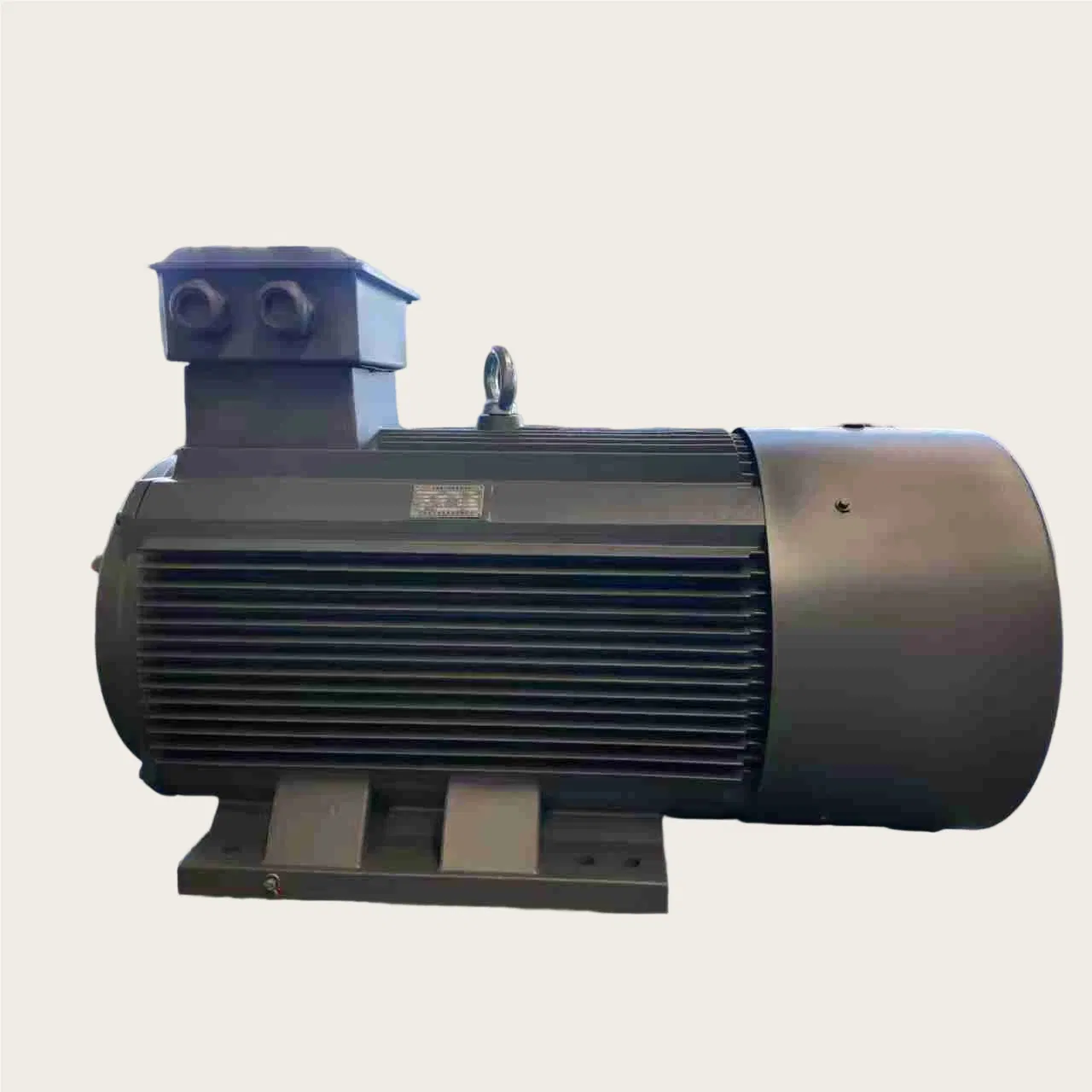

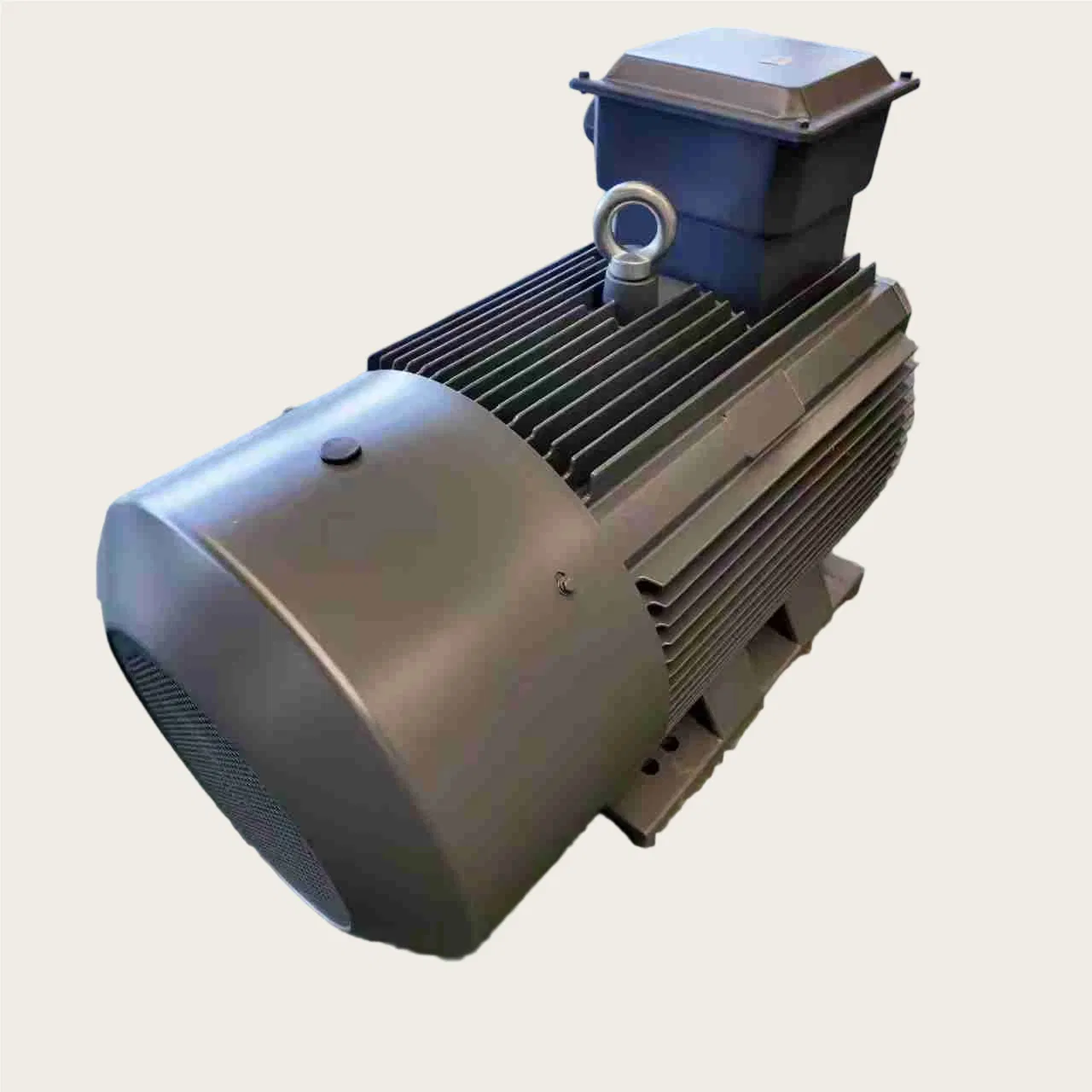

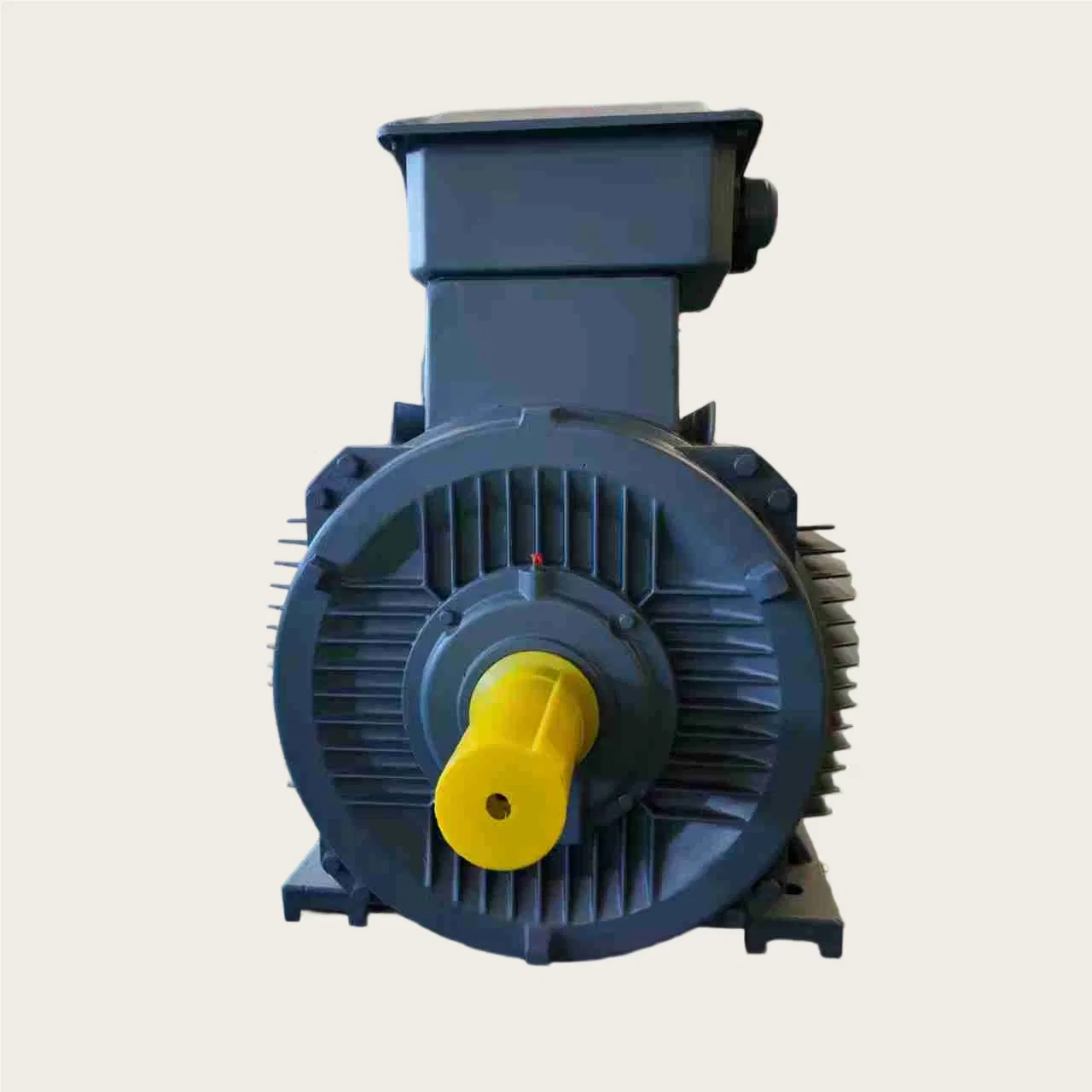

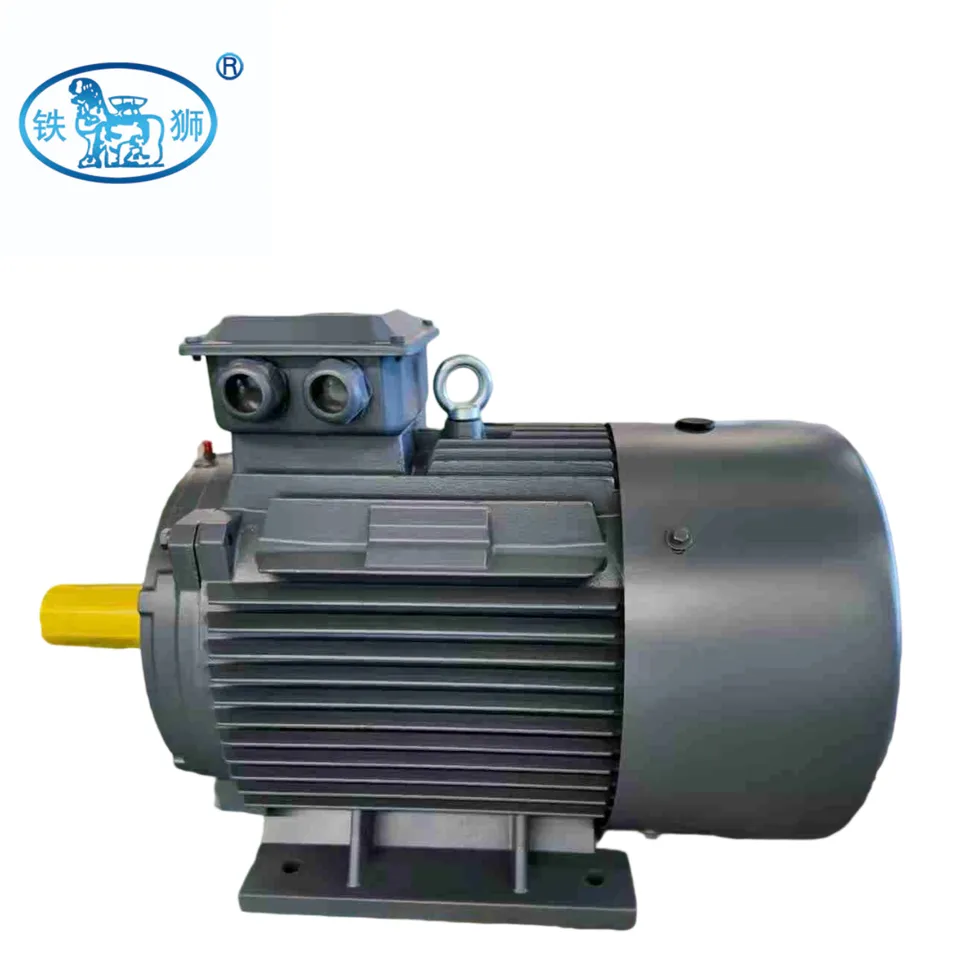

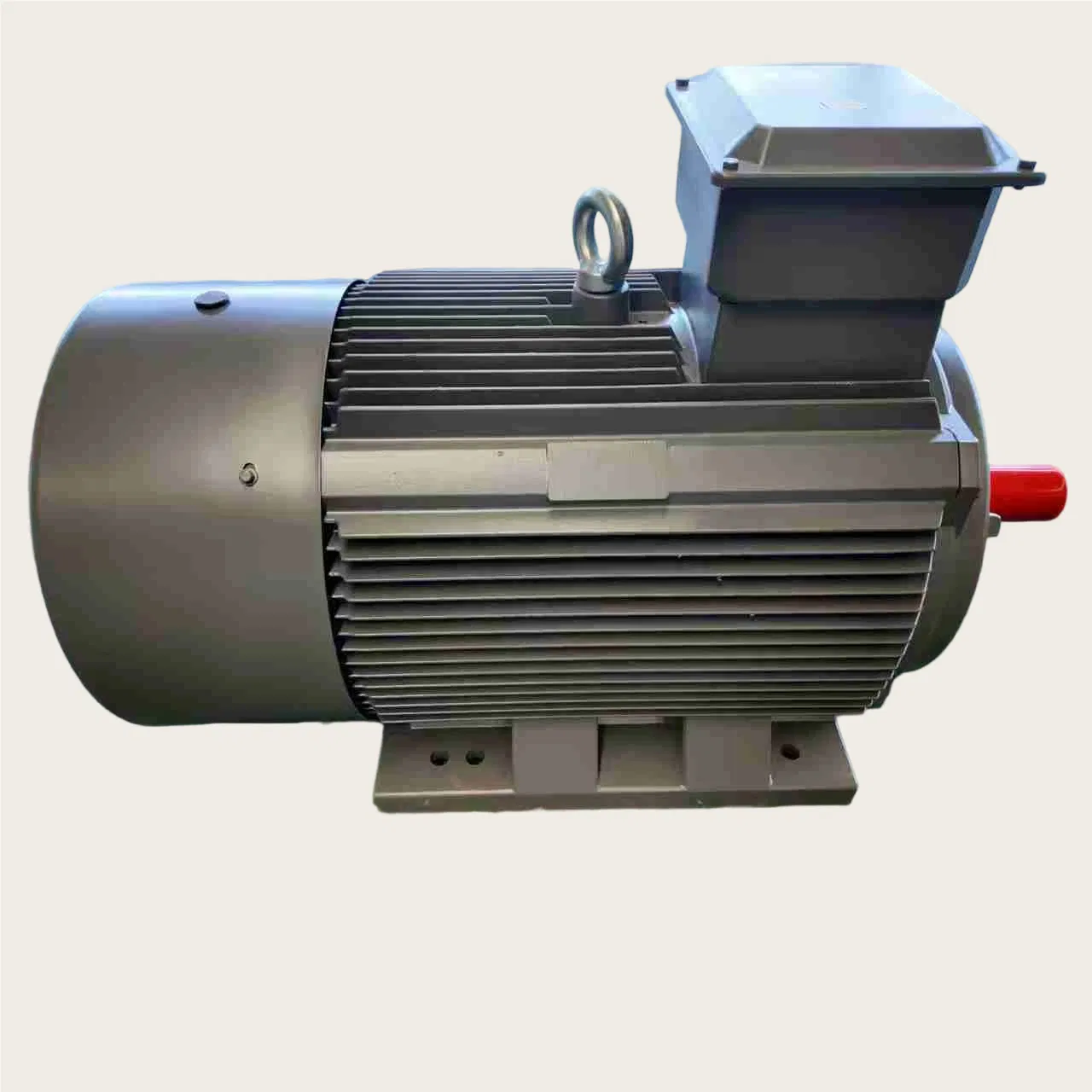

The YE5 series high-efficiency three-phase asynchronous motors are general-purpose enclosed squirrel-cage rotor motors, with efficiency indicators meeting the level 1 efficiency as specified in GB 18613-2020. These products are widely used in various general mechanical equipment such as fans, pumps, compressors, and crushers, making them an ideal product for achieving energy saving and emission reduction.
The power rating and mounting dimensions comply with IEC international standards. The motor casing features protection level IP55, cooling method IC411, and continuous duty (S1) operation mode. Standard operation occurs at 380V/50Hz at altitudes up to 1000 meters.

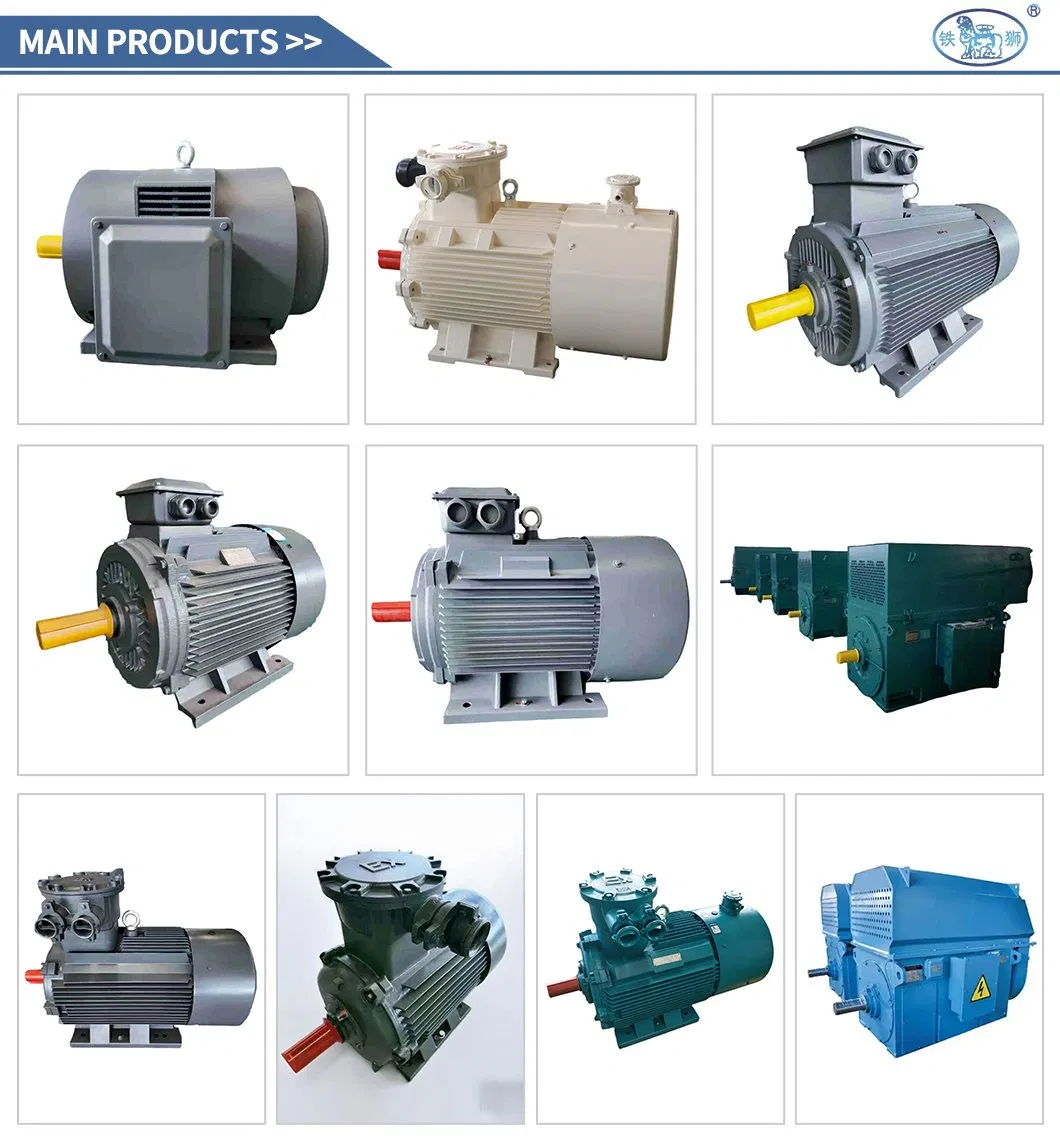

Our main products include TYZD series permanent magnet synchronous motors, IP23 compressor motors, YBBP flameproof variable frequency motors, YBX3/YBX4 flameproof motors, and YE3/YE4/YE5 high-efficiency motors. We also provide high-voltage motor maintenance for YYX, YKK, YKS, and YR series.
The system is certified under ISO9001 Quality Management, ISO45001 Occupational Health, and ISO14001 Environmental Management. Products carry CE, CCC, and Explosion-proof certifications. We advocate for lean production and a zero-defect working concept.
