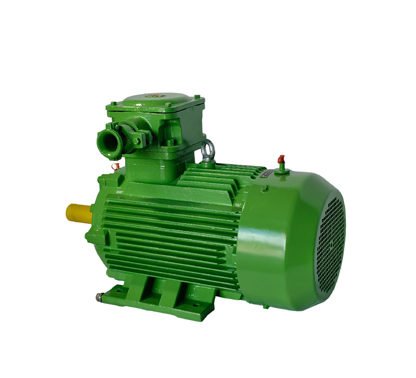

Ybx5 Series Flame Proof Three Phase Asynchronous Induction Motors for Hazardous Areas

1 / 5

Ybx5 Series Flame Proof Three Phase Asynchronous Induction Motors for Hazardous Areas

Customization:	Available
Application:	Industrial
Speed:	OEM

Send Inquiry

Product Description

Basic Information

Model NO.

YBX5 Low Voltage

Number of Stator

Three-Phase

Function

Driving

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC, ATEX

Transport Package

Wooden Cases

HS Code

8501530090

Production Capacity

99999

Product Description

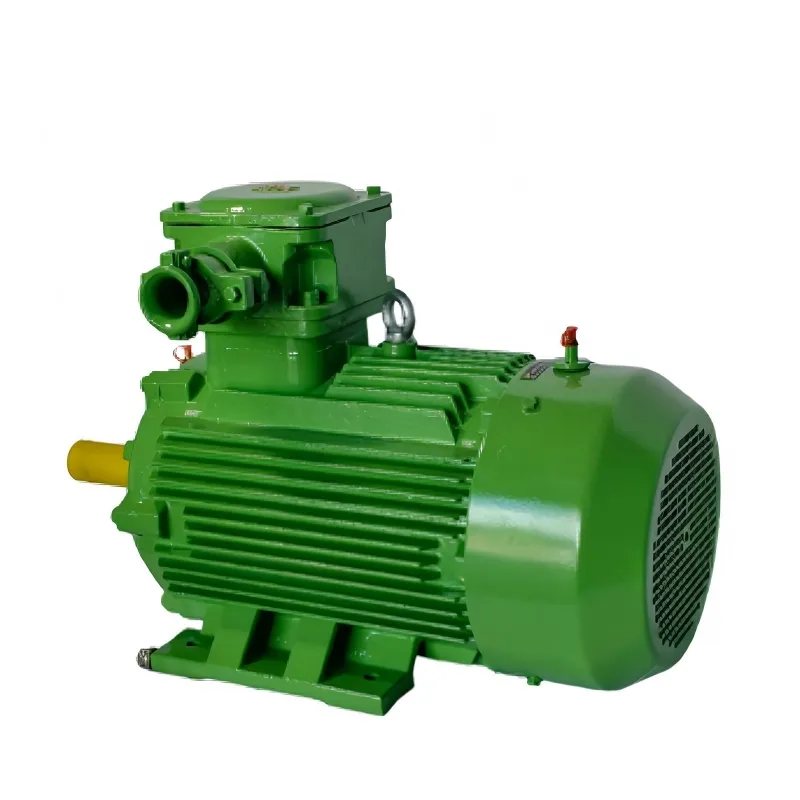

The YBX5 series motor is a fully enclosed, self-cooled, squirrel-cage, ultra-high-efficiency explosion-proof three-phase asynchronous motor. Its efficiency meets the highest energy efficiency level (Level 1) specified in GB18613-2020 "Energy Efficiency Limits and Energy Efficiency Grades for Small and Medium-Sized Three-Phase Asynchronous Motors."

It features excellent performance, safe and reliable operation, and lower vibration and noise compared to similar products, meeting environmental protection requirements. This product is at the leading domestic and advanced international level.

The YBX5 series explosion-proof motor complies with the requirements of GB3836.2 "Explosive atmospheres - Part 2: Equipment protected by flameproof enclosures 'd'", and is suitable for areas where explosive gas mixtures are present (Zone 1 and Zone 2). Explosion-proof markings include ExdIMb, Exd IIBT4Gb, and ExdICT4Gb.

Applications include petrochemicals, coal mines, mining, ports, power plants, and machinery manufacturing for driving fans, compressors, water pumps, crushers, and transportation machinery.

Technical Specifications

Frame number: 80-355 H
Rated power: 0.18-315 kW
Efficiency class: IE 5 (Grade 1 GB18613-2020)
Number of poles: 2P, 4P, 6P, 8P
Rated voltage: 220V to 690V
Frequency: 50Hz / 60Hz
Work system: S1, S2, S3
Installation mode: B3, B5, B35, V1

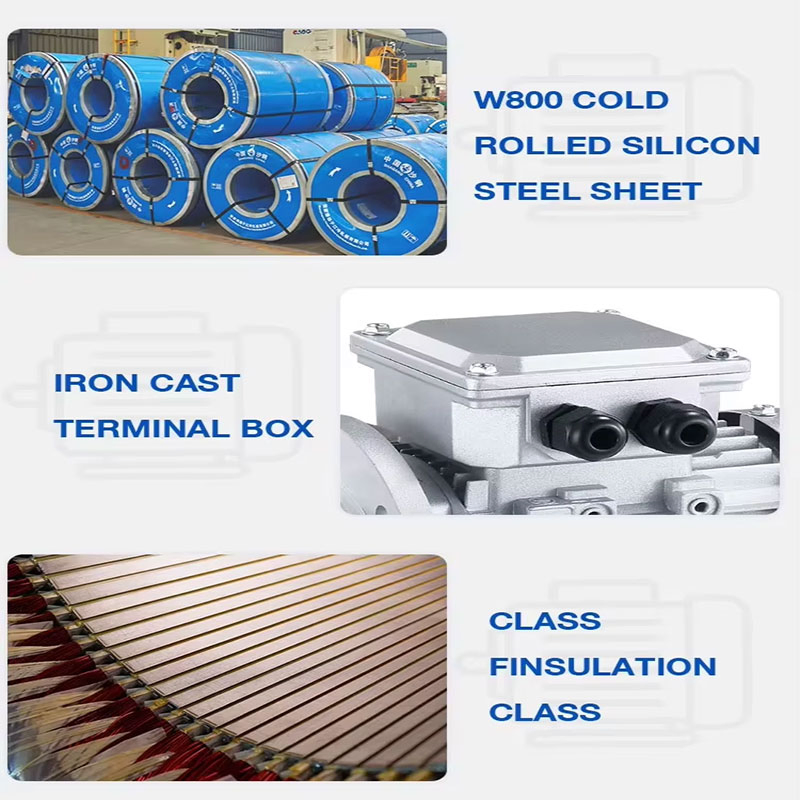

Insulation grade: F
Protection levels: IP55, IP56, IP65, IP66
Cooling method: IC411

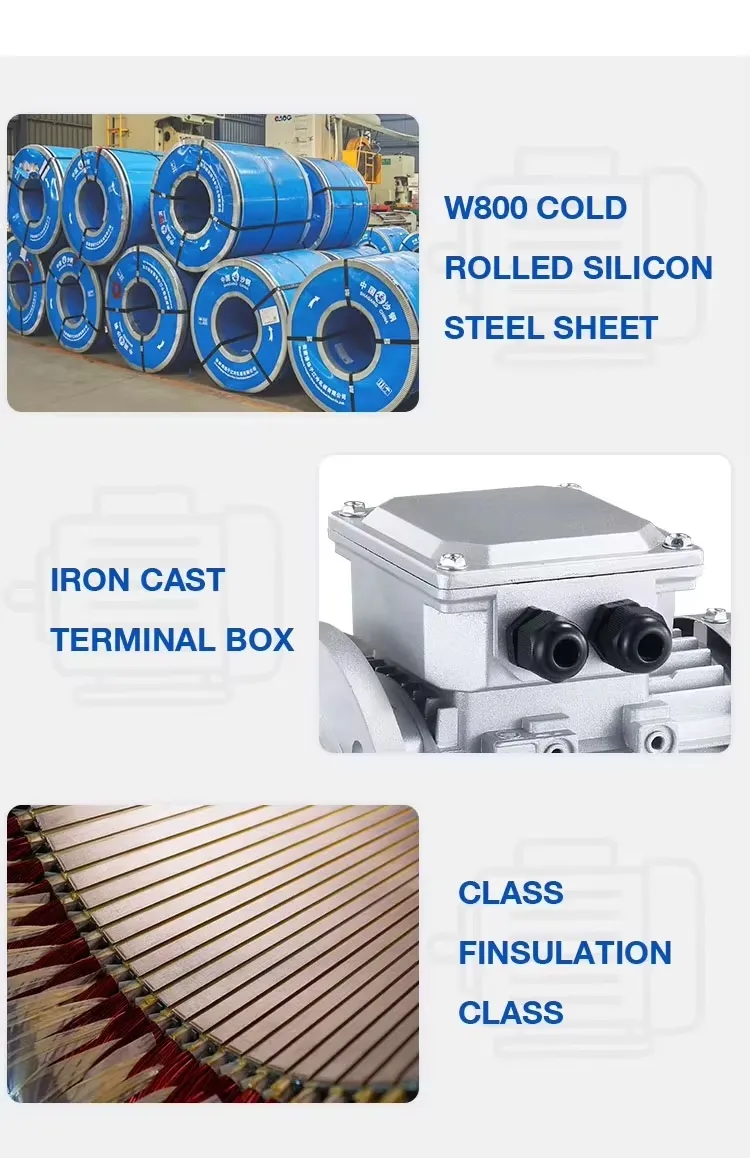

Product Showcase

Frequently Asked Questions

Q1: What is the energy efficiency rating of the YBX5 series motor? A1: The YBX5 series is an ultra-high-efficiency motor that meets IE5 (Grade 1) standards according to GB18613-2020.

Q2: In which hazardous areas can this motor be safely operated? A2: It is designed for Zone 1 and Zone 2 hazardous areas where explosive gas mixtures are present.

Q3: What are the available explosion-proof markings? A3: The standard markings are ExdIMb and Exd IIBT4Gb, and it can also be customized to ExdICT4Gb.

Q4: What types of machinery can the YBX5 motor drive? A4: It is ideal for driving general machinery such as fans, compressors, water pumps, crushers, hoists, and centrifuges.

Q5: What protection levels (IP) are supported? A5: The motors offer various protection levels including IP55, IP56, IP65, and IP66 to suit different environmental requirements.

Q6: What is the insulation and cooling standard for this series? A6: The YBX5 series features Class F insulation and utilizes the IC411 cooling-down method.
