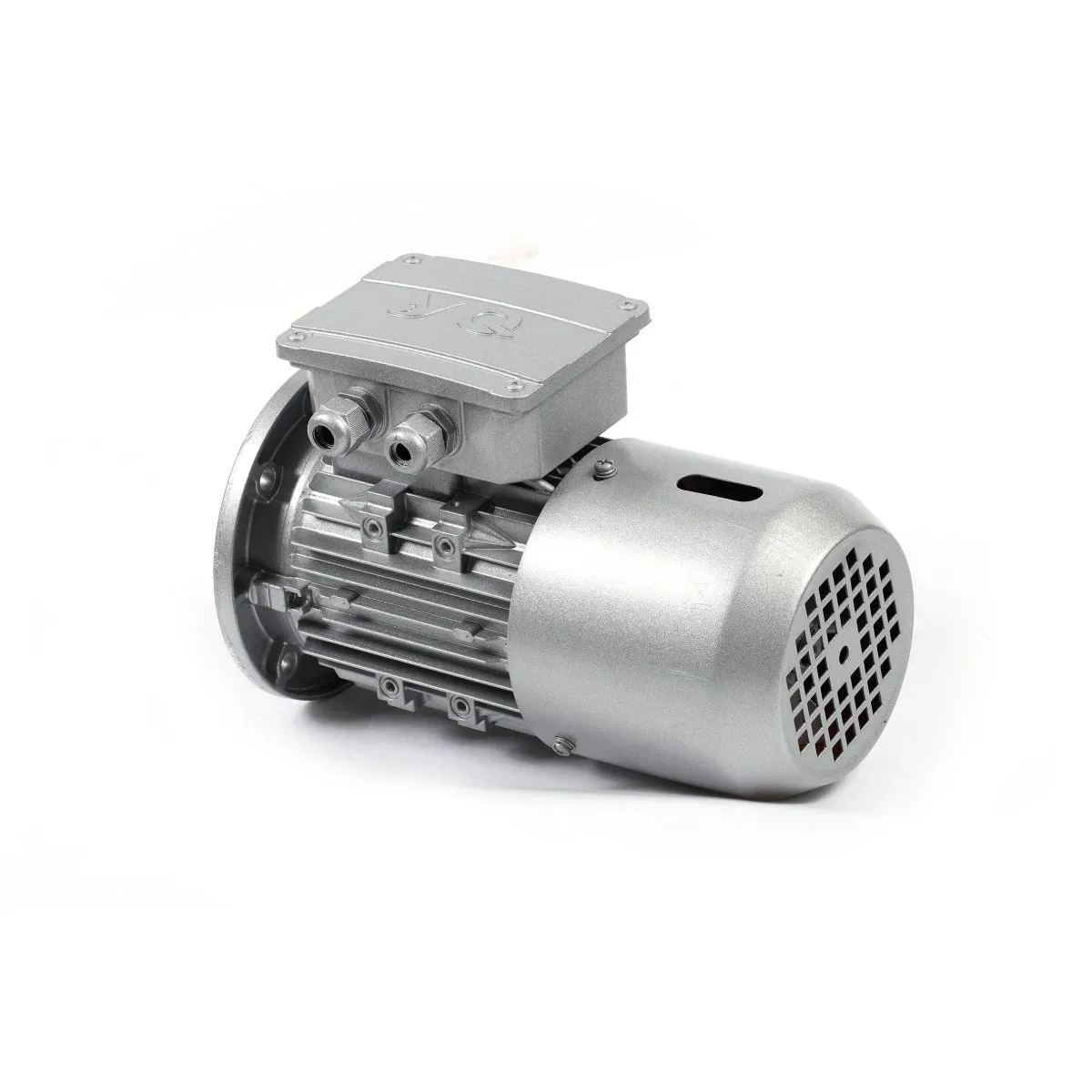

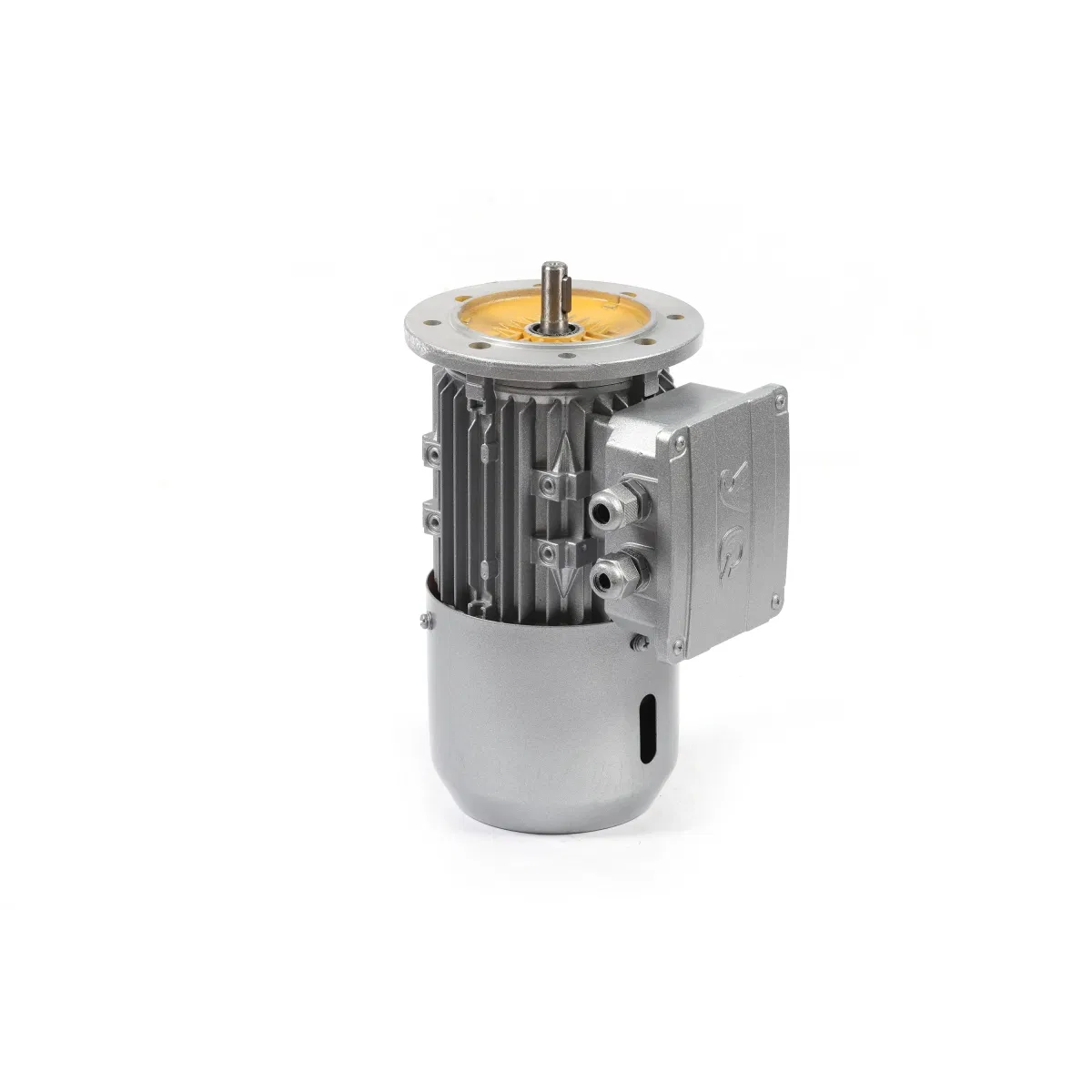

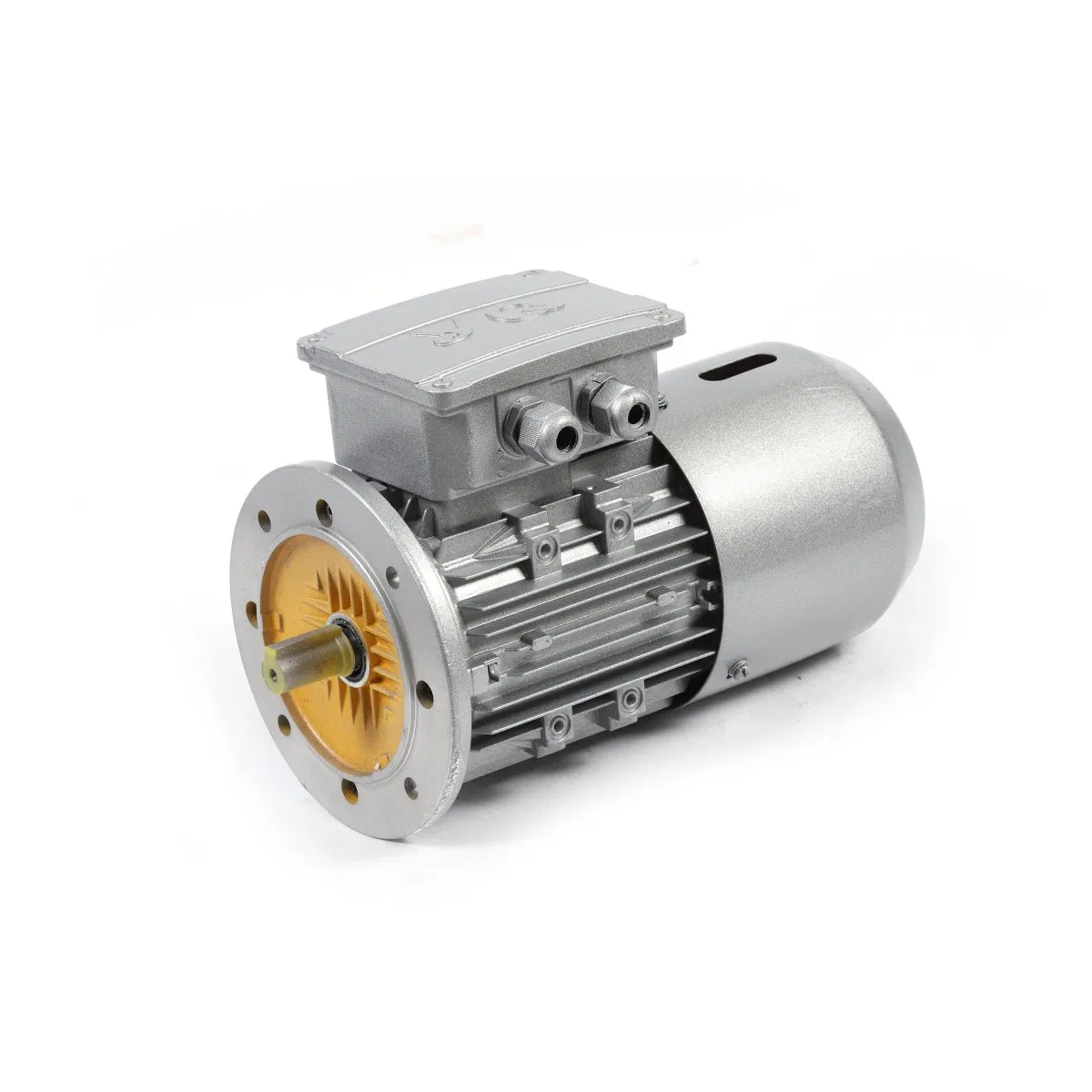

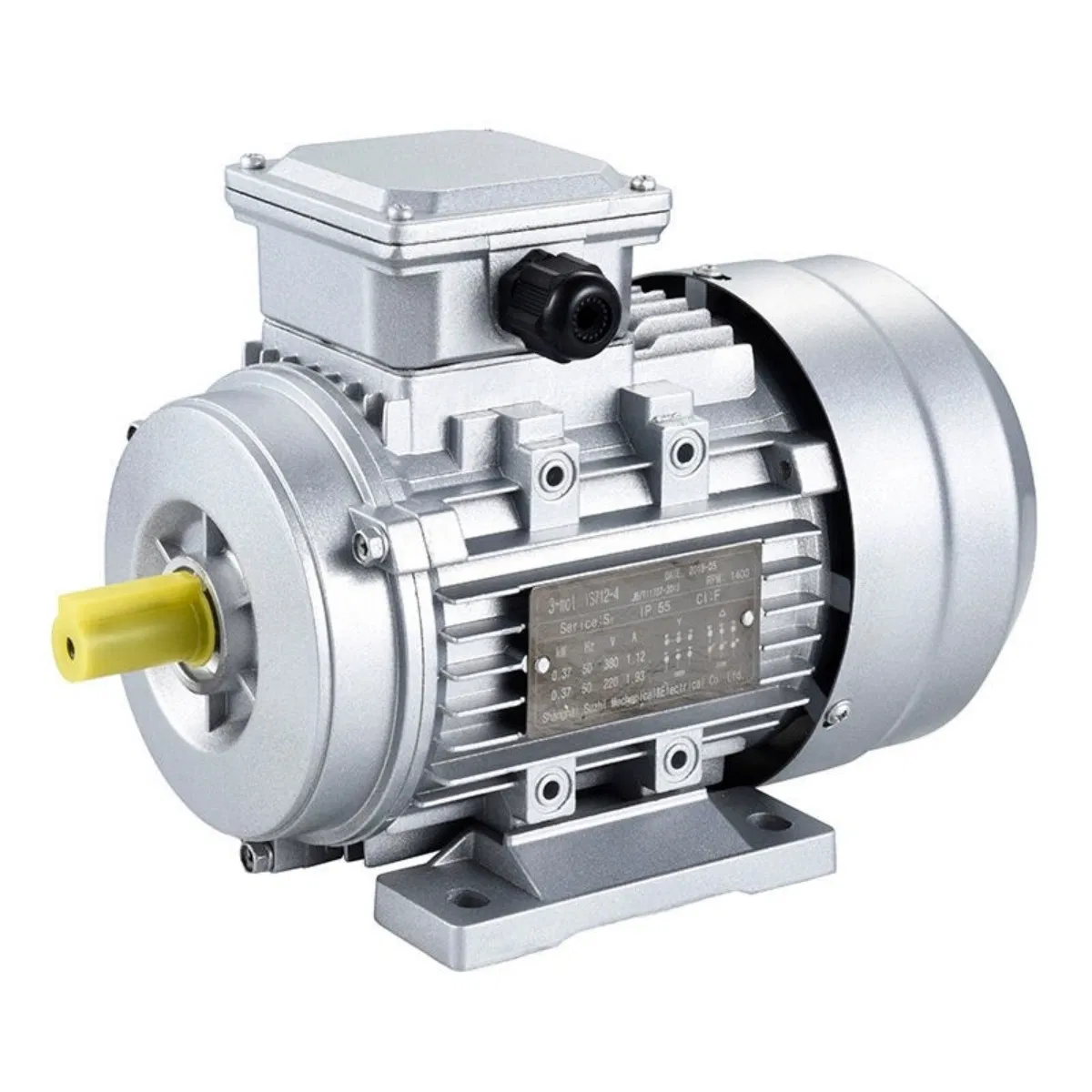

The YE2 series of high efficiency three phase asynchronous motors feature a high-strength cast iron structure. They are characterized by high efficiency, high reliability, aesthetic appearance, low noise, and minimal vibration. These motors are ideally suited for various industrial applications including fans, pumps, compressors, and construction machinery.

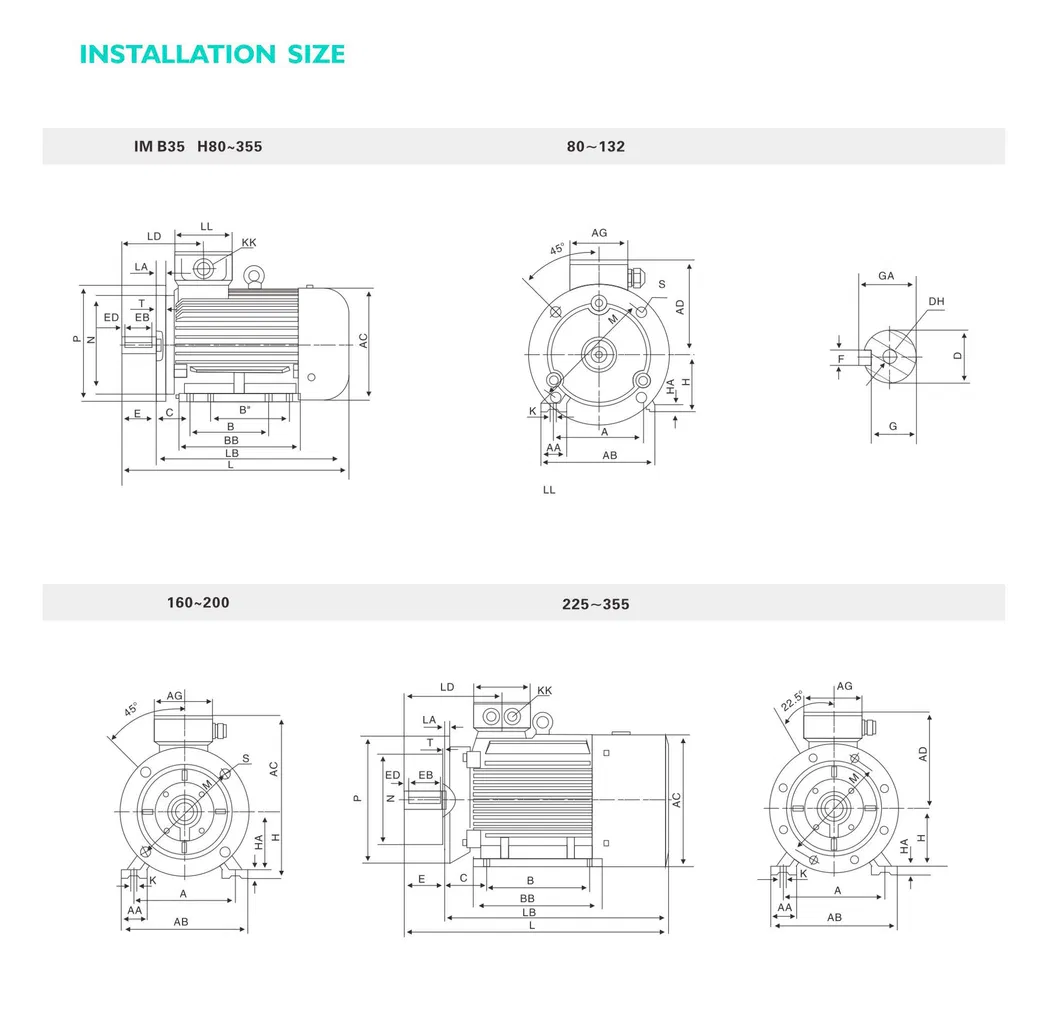

The mounting dimensions and accessories of the YE2 series—including fans, fan covers, and terminal boxes—are designed to be fully compatible with the YE3 series ultra-high efficiency motors.
| Rated Power | 0.75~375kW |
| Frame Size | 80~355 |
| Poles | 2p, 4p, 6p |
| Protection Degree | IP55 |
| Insulation Class | F |
| Cooling Method | IC411 |
| Duty | S1 |
| Efficiency Class | GB18613-2012 grade3 (IE2) |
| Type | Power (kW) | Current (A) | Speed (r/min) | Eff. (%) | P.F | Tst/Tn | Tmax/Tn | Ist/In |
|---|---|---|---|---|---|---|---|---|
| YE2-80M1-2 | 0.75 | 1.8 | 2865 | 77.4 | 0.82 | 2.3 | 2.3 | 6.8 |
| YE2-80M2-2 | 1.1 | 2.5 | 2880 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 |
| YE2-90S-2 | 1.5 | 3.3 | 2900 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 |
| YE2-100L-2 | 3 | 6.2 | 2900 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 |
| YE2-132S1-2 | 5.5 | 10.9 | 2920 | 87.0 | 0.88 | 2.2 | 2.3 | 8.2 |
| YE2-160M1-2 | 11 | 21.0 | 2942 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 |
| YE2-200L1-2 | 30 | 55.7 | 2965 | 92.0 | 0.89 | 2.0 | 2.3 | 7.5 |
| YE2-250M-2 | 55 | 100.7 | 2970 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 |
| YE2-315S-2 | 110 | 196.9 | 2975 | 94.3 | 0.9 | 1.8 | 2.2 | 7.0 |
| YE2-355M1-4 | 220 | 390.5 | 1490 | 95.1 | 0.9 | 2.1 | 2.2 | 6.9 |
