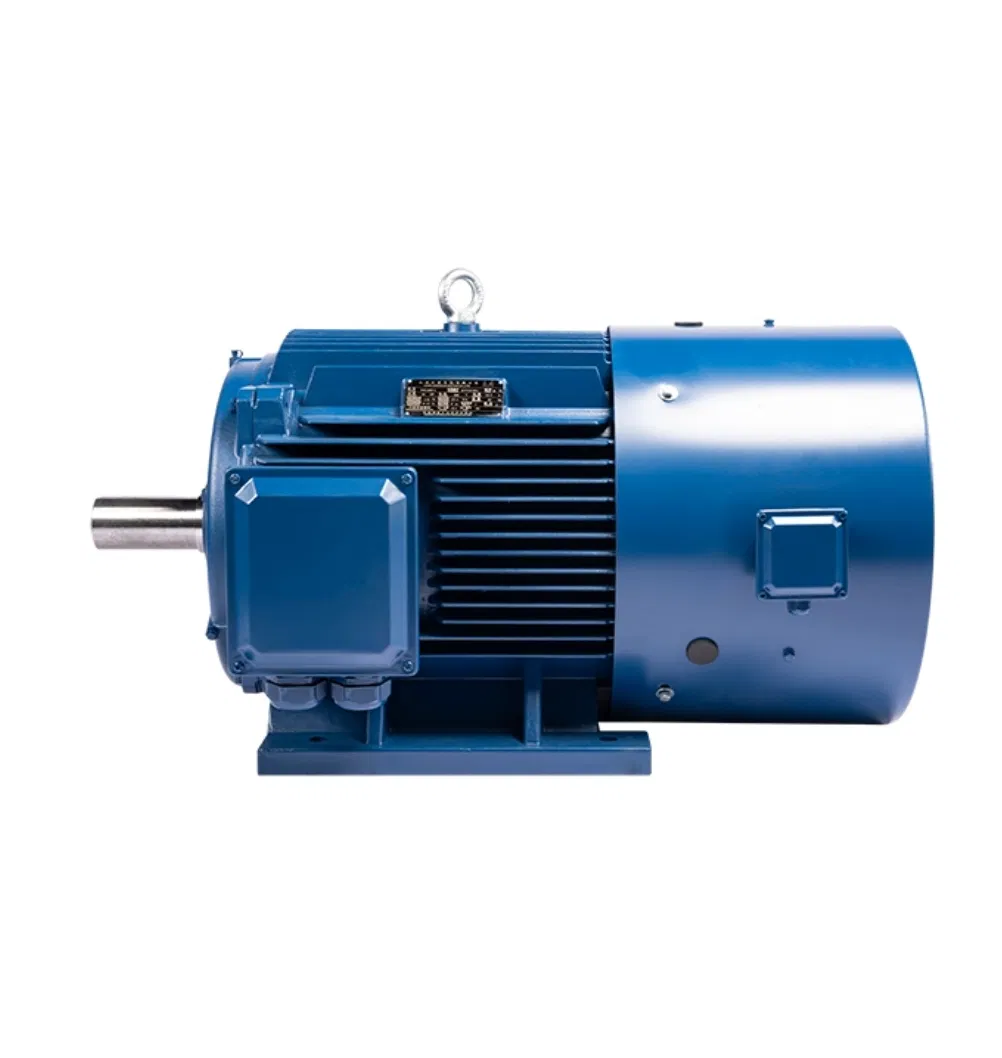

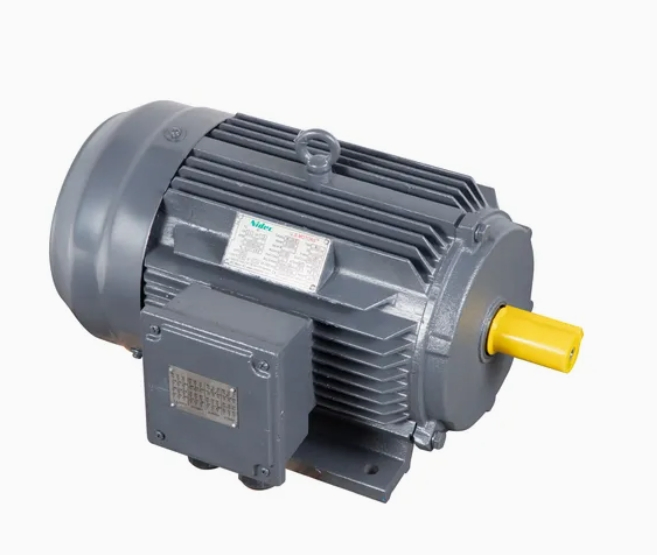

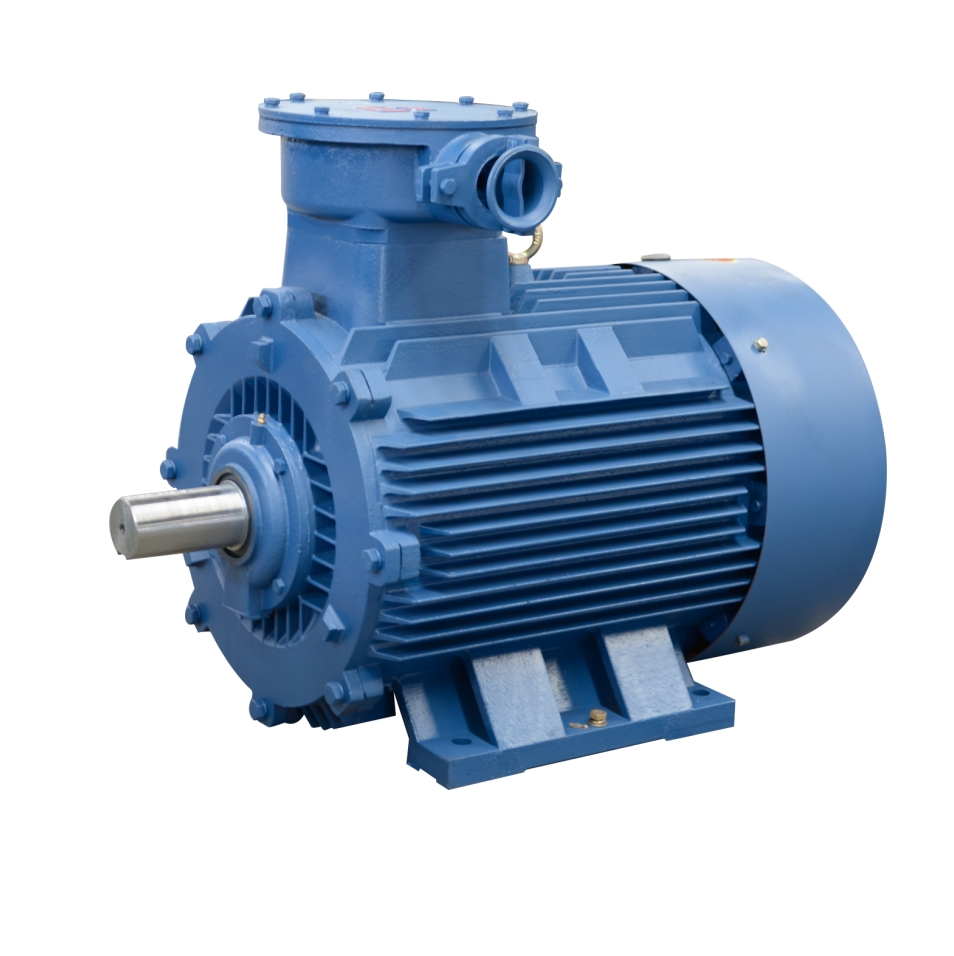

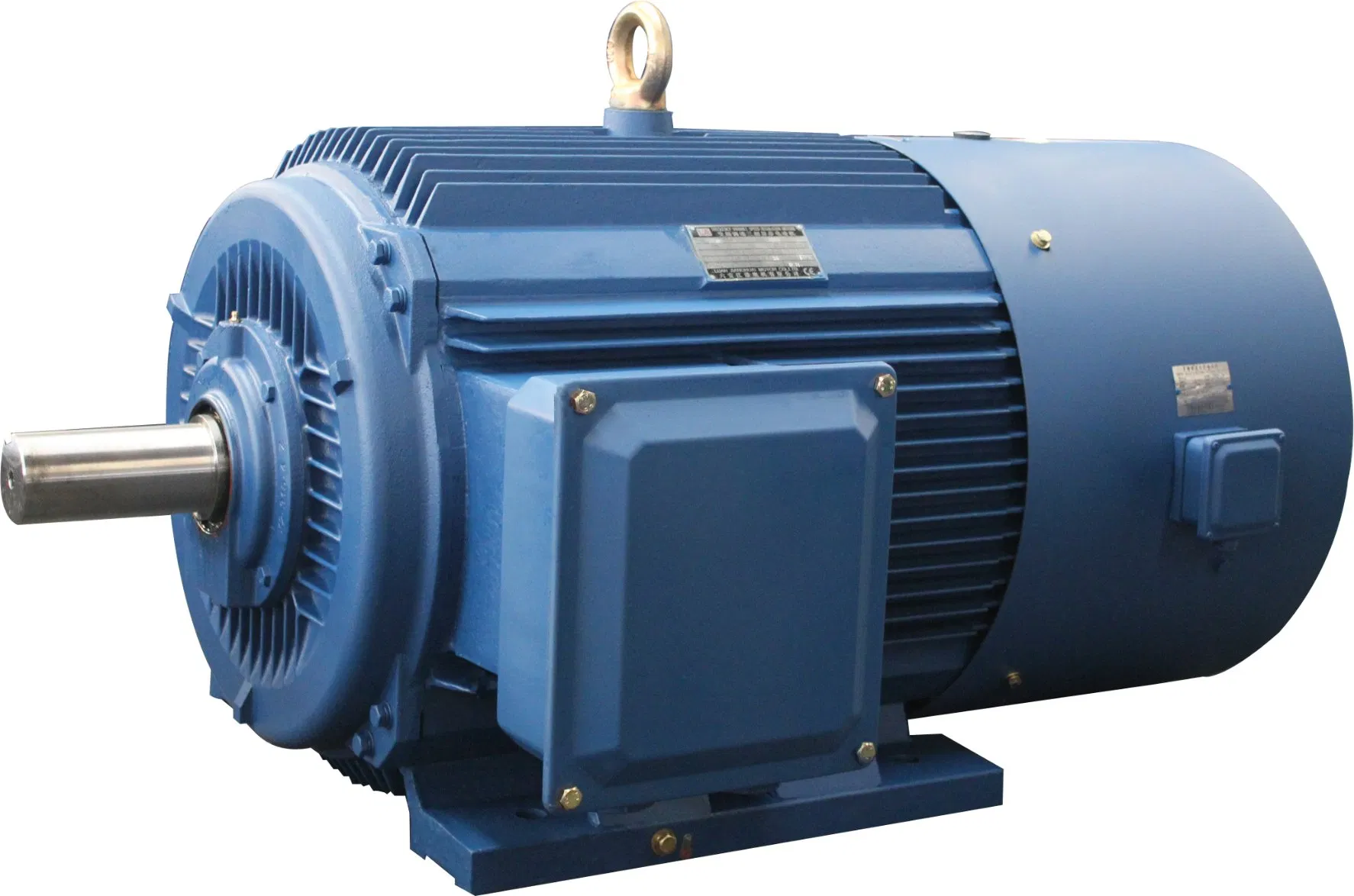

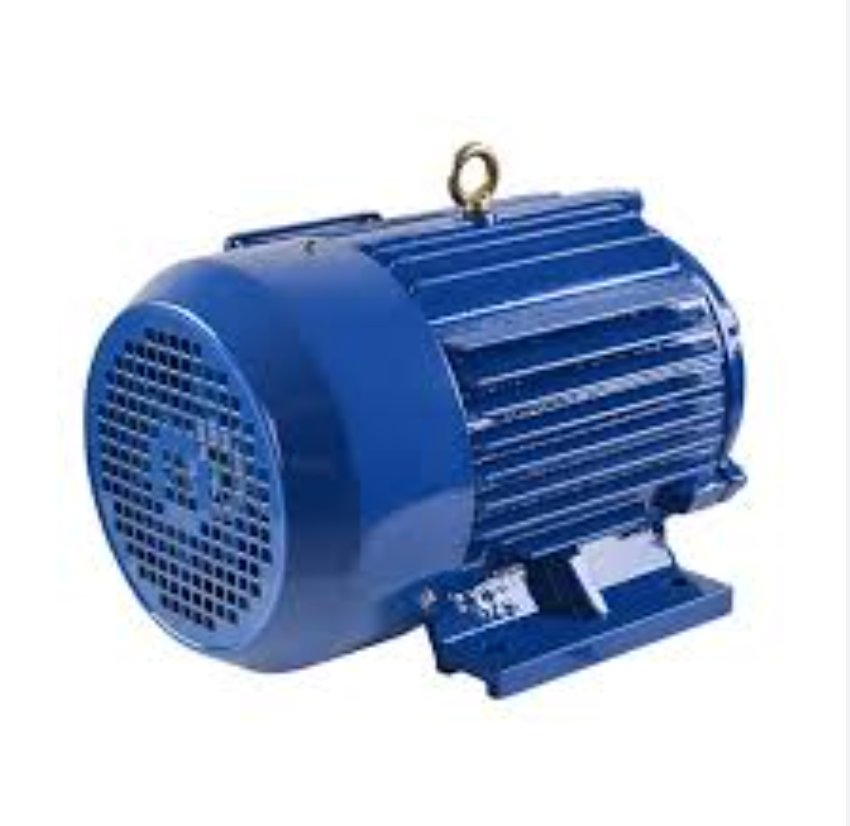

Electric Motors Optimized for Industrial Drive Systems with Enhanced Cooling Efficiency and Structural Balance Ie2

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.:YE2-225M-2
Number of Stator:Three-Phase
Species:Y, Y2 Series Three-Phase
Rotor Structure:Squirrel-Cage
Casing Protection:Closed Type
Number of Poles:8
Starting Mode:Direct on-line Starting
Certification:ISO9001, CCC, CE
Insulation:F, H
Protection Degree:IP55/56/65
Voltage:380V, or Customized
Frame:63-450mm
Frequency:50Hz, 60Hz
Housing:Cast Iron, Aluminum
Package Size:110.00cm * 99.00cm * 98.00cm
Gross Weight:2000.000kg
M

Product Profile

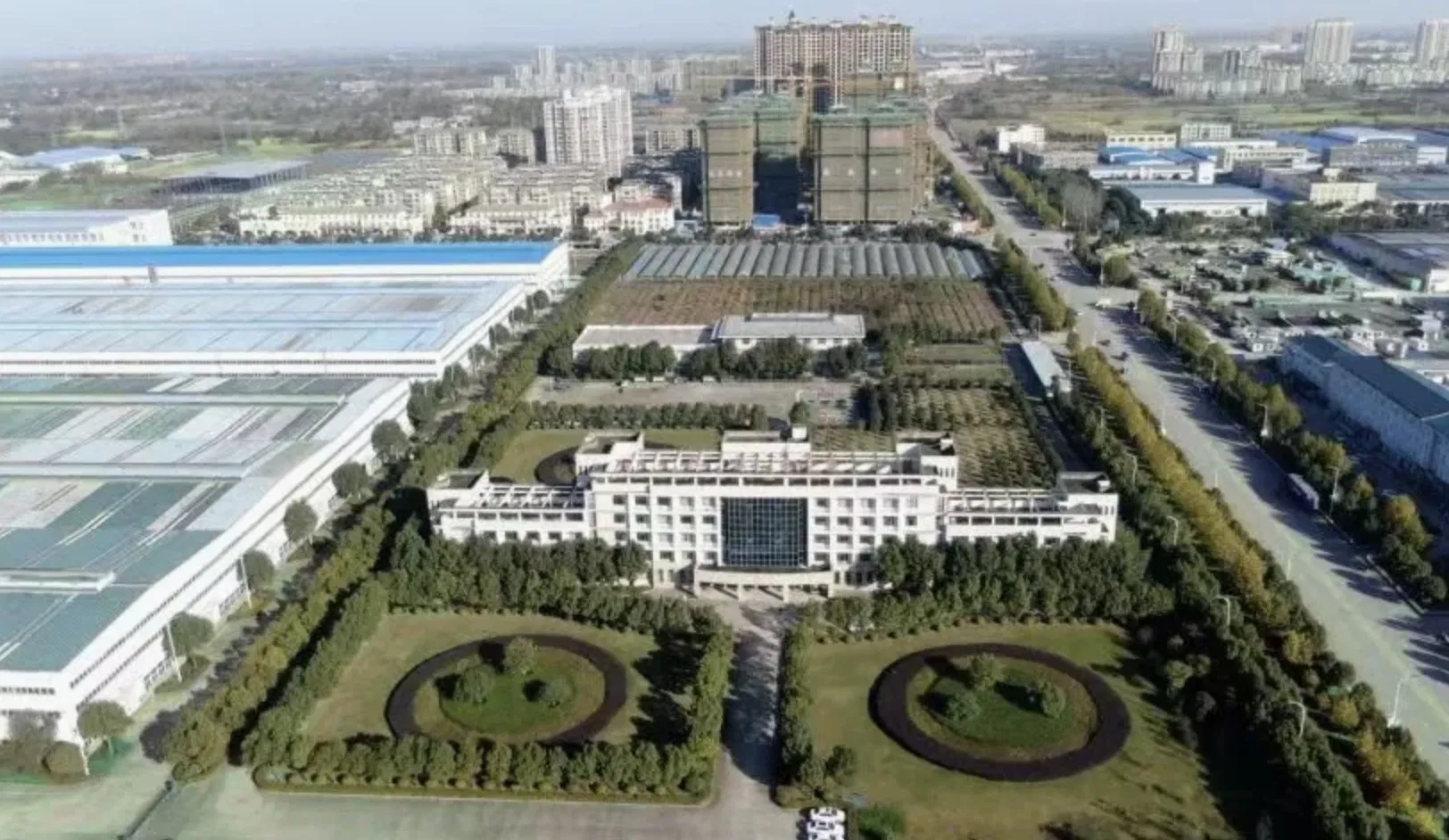

Industrial Drive Systems
After more than 55 years of construction and development, our enterprise has become a leader in the small, medium, and large motor industry, featuring an extensive product series and a robust service network. Main products include high-efficiency and energy-saving low-voltage/high-voltage motors, DC motors, explosion-proof motors, special motors, permanent magnet motors, and other synchronous/asynchronous motors. These motors are primarily applied in industries such as power stations, metallurgy, steel, sugar making, coal mining, machinery, petroleum, chemical engineering, water conservancy, cement, papermaking, environmental protection, and pharmaceuticals.
S

YE2 Series Specifications

General Description:
Frame sizes: 63 to 355M/L | Rated output: 0.12 to 400kW | Voltage: 380V | Frequency: 50Hz or 60Hz | Poles: 2, 4, 6, 8, 10

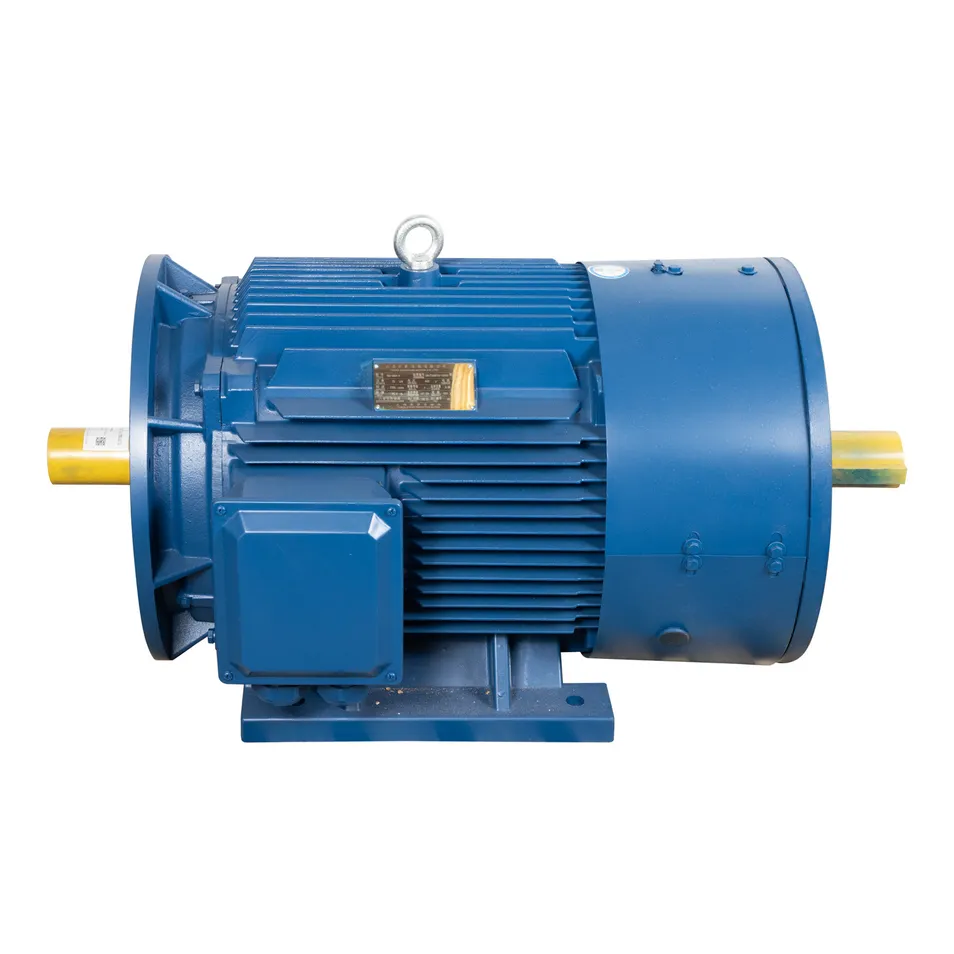

Motor View 1

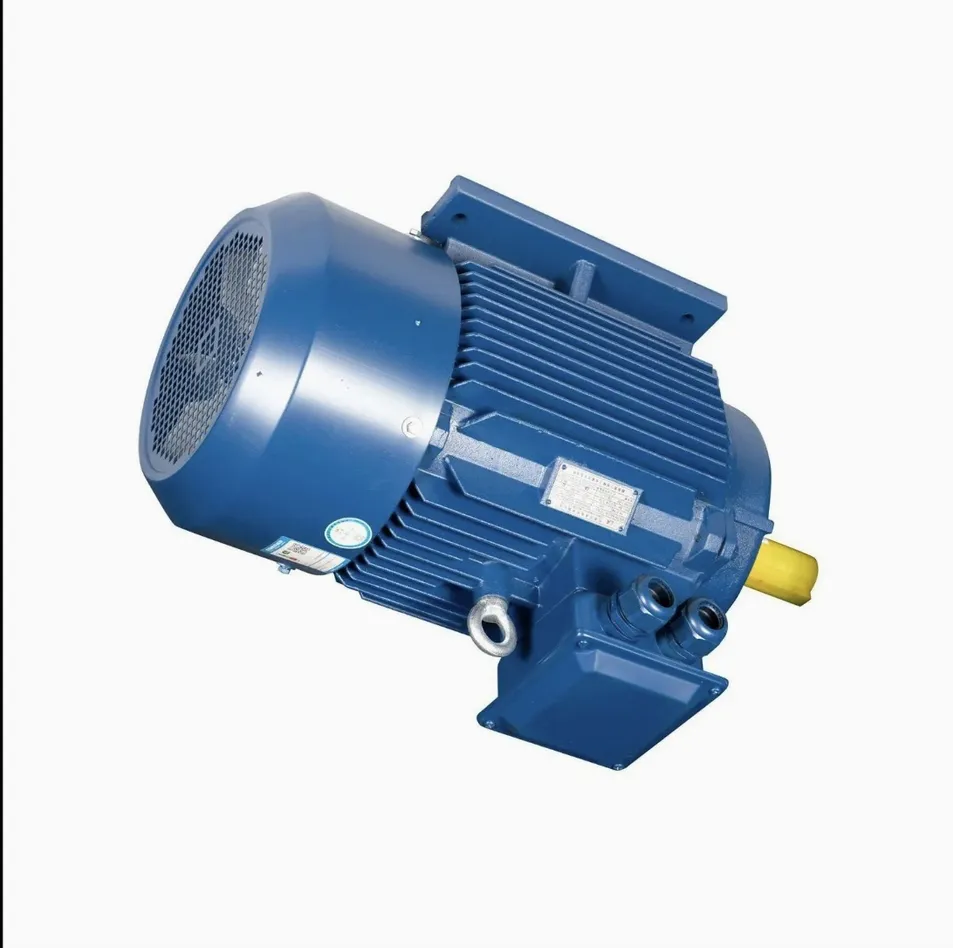

Motor View 2
Model Power (kw) Voltage (V) Current (A) Speed (r/min) Freq (Hz) Eff (%) P.F (cosφ) Insulation
YE2-80M1-20.753801.828555077.40.82F
YE2-90S-21.53803.328905081.30.84F
YE2-100L-233806.228805084.60.87F
YE2-132S2-27.538014.529155088.10.89F
YE2-160L-218.538034.729355090.90.89F
YE2-200L2-23738068.329605092.50.89F
YE2-225M-24538082.729655092.90.89F
YE2-315S-211038019729755094.30.90F
YE2-355L2-231538055429805095.00.91F
A

Motor Application & Environment

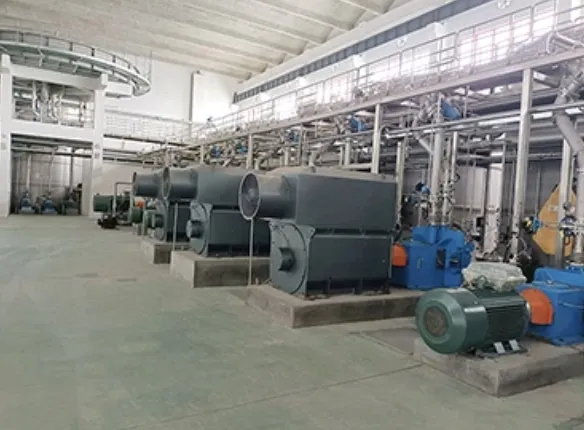

Application 1

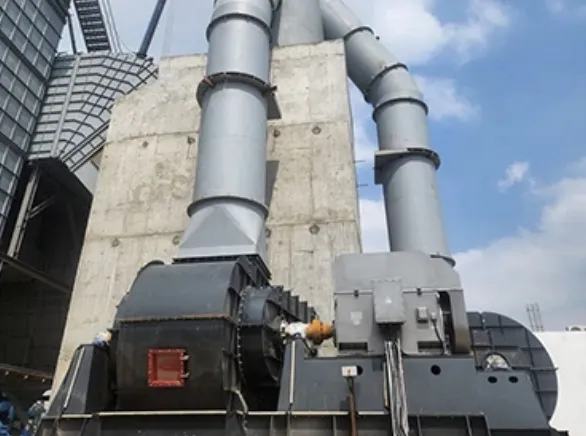

Application 2

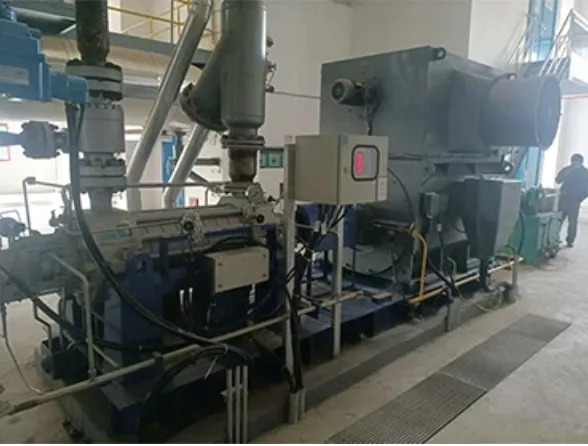

Application 3
Factory environment: Our facility scale and advanced product lines ensure high-quality manufacturing standards.

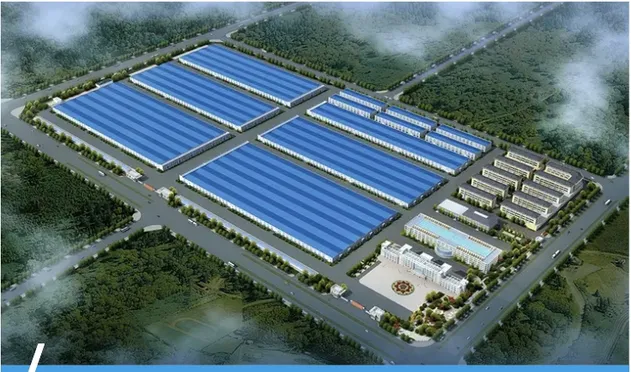

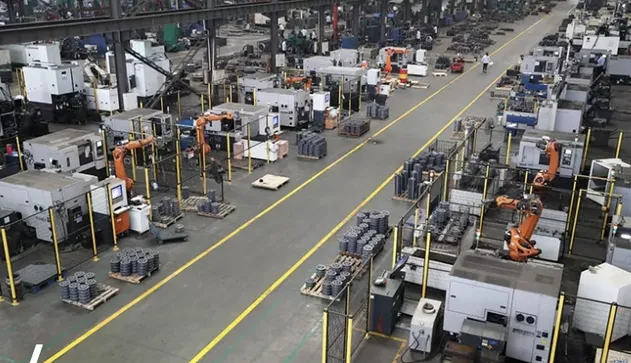

Factory 1

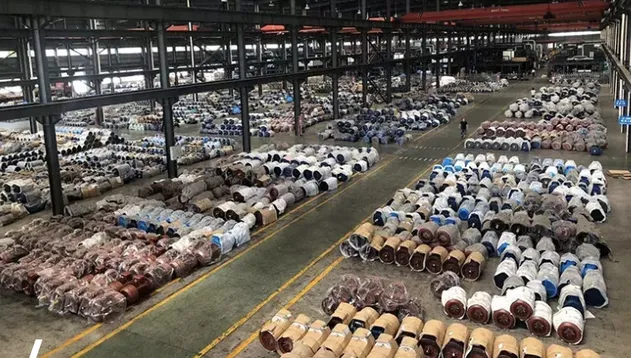

Factory 2
Factory 3
C

Certification & Packaging

Certificate 1
Certificate 2
Package 1
Package 2
Package 3
?

Frequently Asked Questions

Are you a factory or trading company?
We are a professional factory that has been focusing on motors and accessories for more than 50 years.
What is the warranty period for your motors?
We offer a 12-month warranty period as a quality guarantee for our products.
Do you provide OEM services?
Yes, we offer comprehensive OEM services to meet specific customer requirements.
What are your terms of delivery?
Generally, we ship using FOB terms, but we can also offer solutions for CNF, CIF, and DDP based on your needs.
What is the typical delivery time?
Delivery usually takes 15 to 35 days after receiving your advance payment.
What is your service principle?
We provide pre-sale, in-sale, and after-sale services with a "customer first" principle to pursue long-term cooperation.
