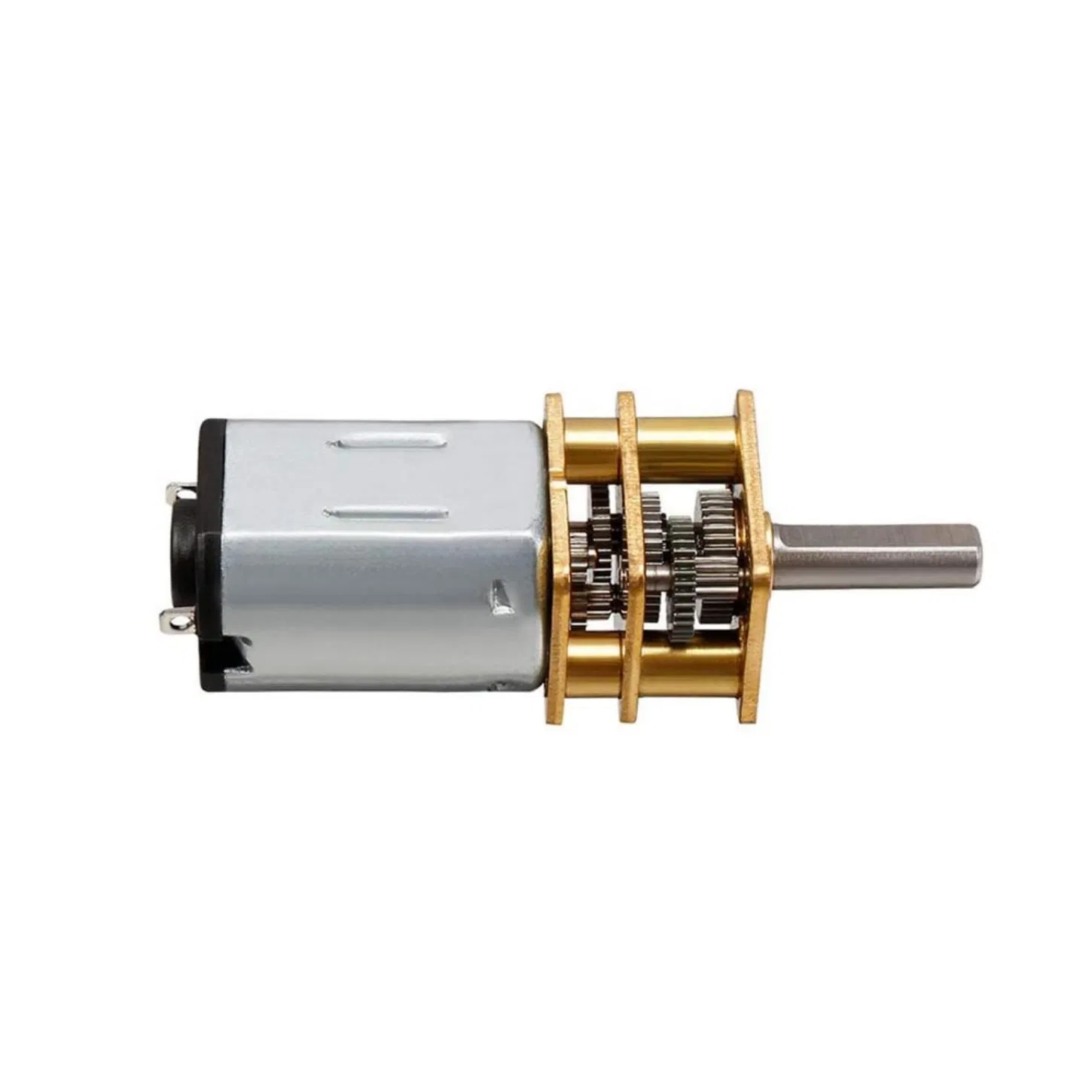

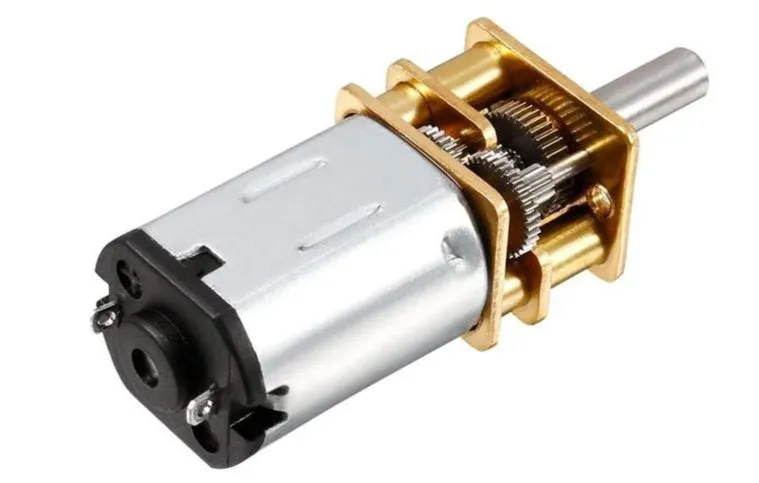

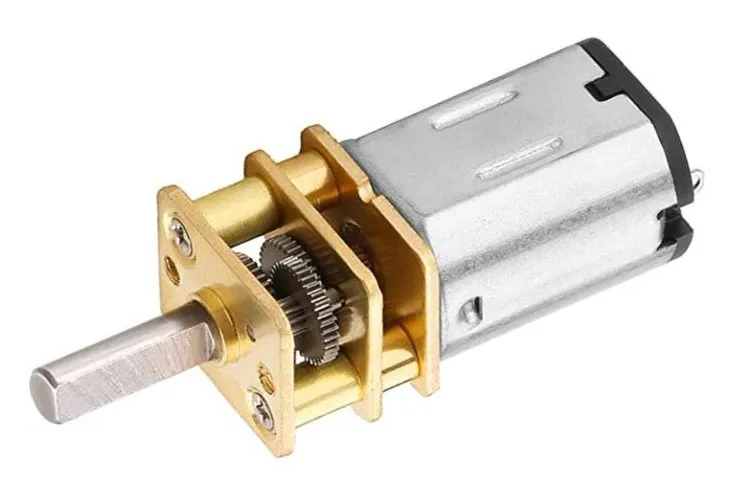

| Model NO. | LGM12-N20 | Type | DC Geared Motor |
|---|---|---|---|
| Structure | Brush | Rotation | CW / CCW |
| Material | Stainless Steel | Voltage Range | 1.5V - 24V |

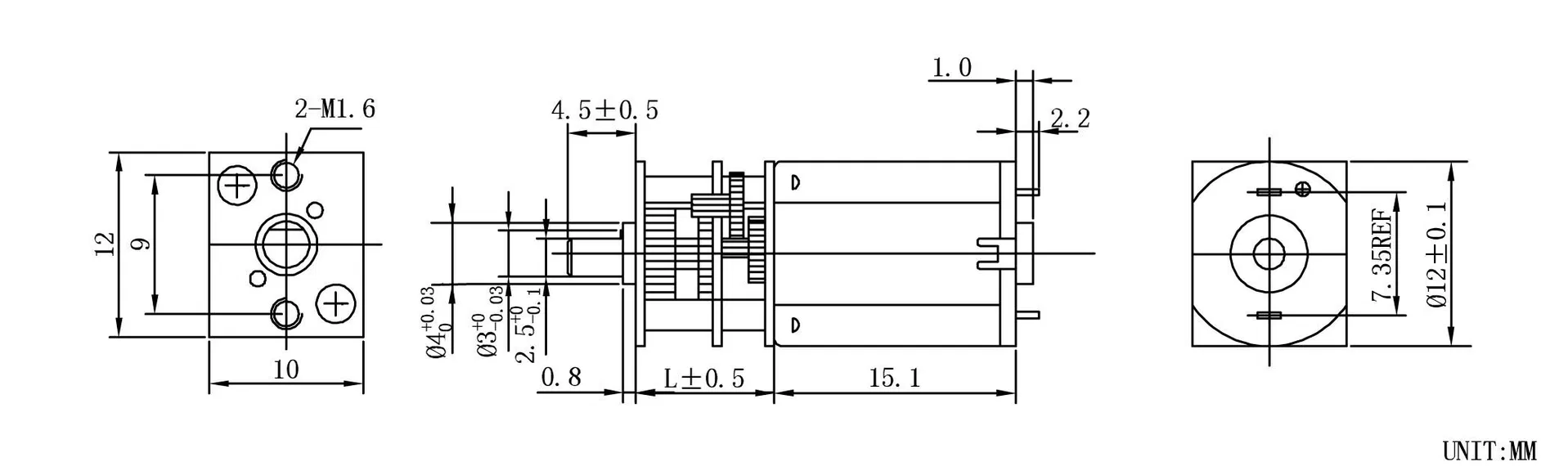

| Brush Type | Metal-Brush | Dimensions | Φ12*10*15mm |

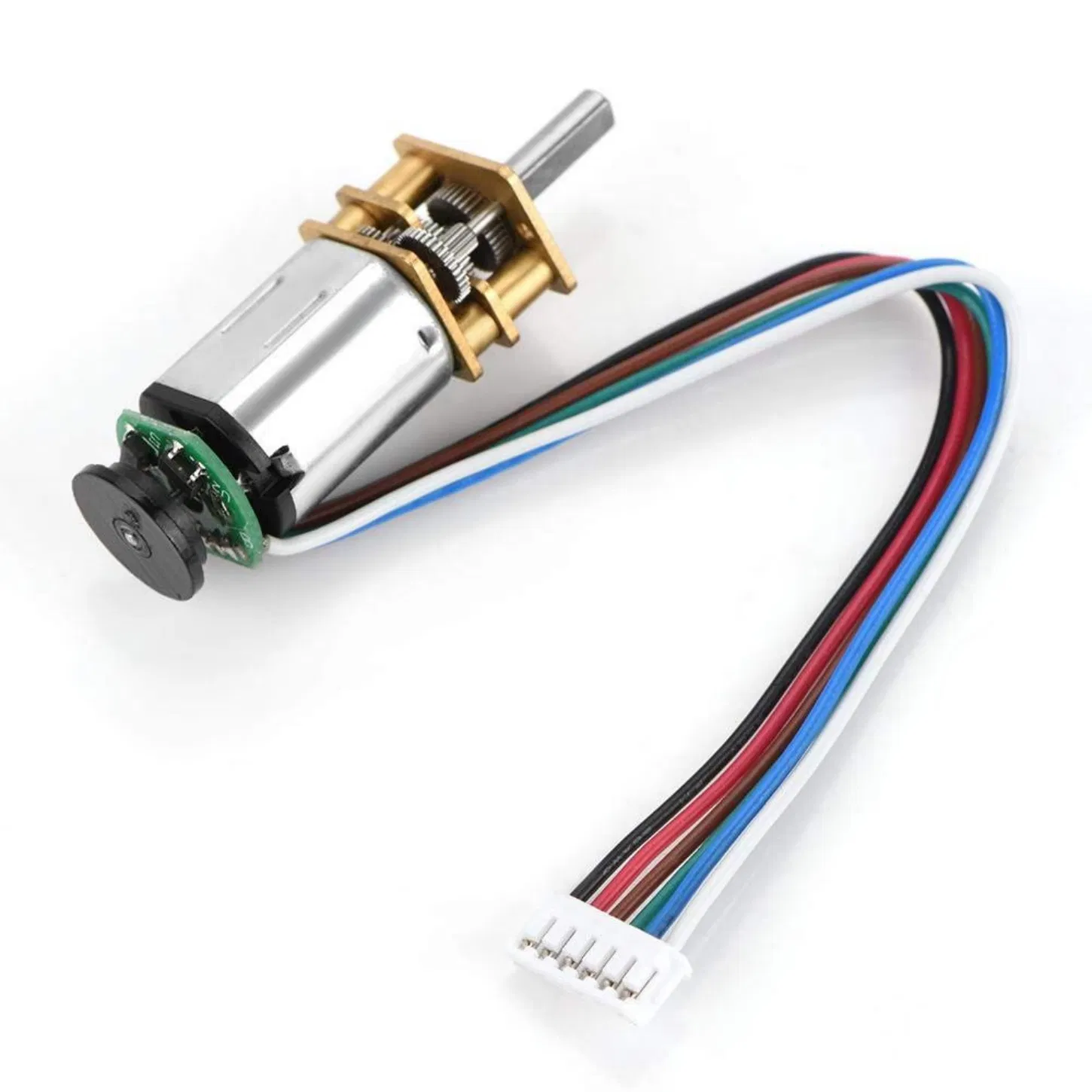

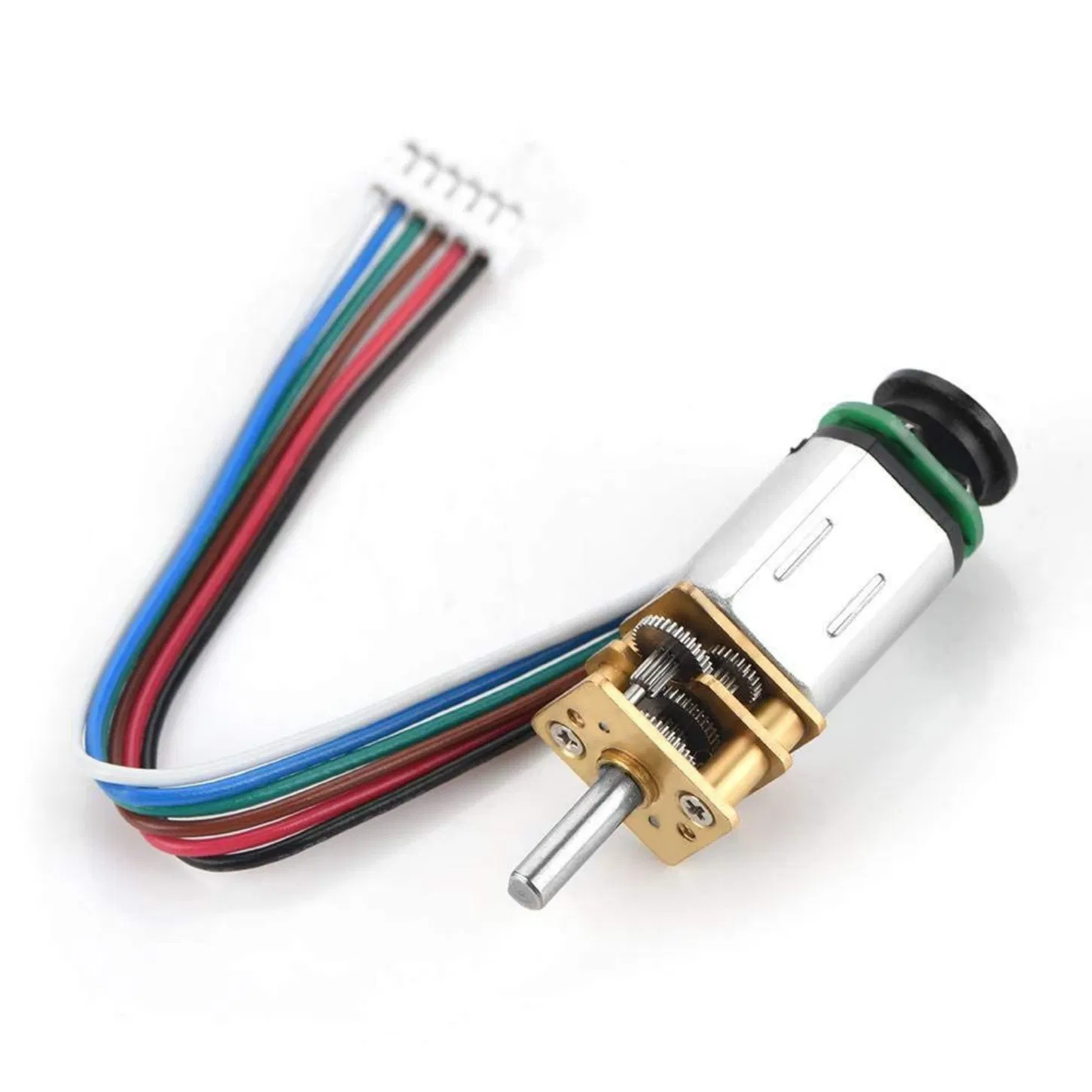

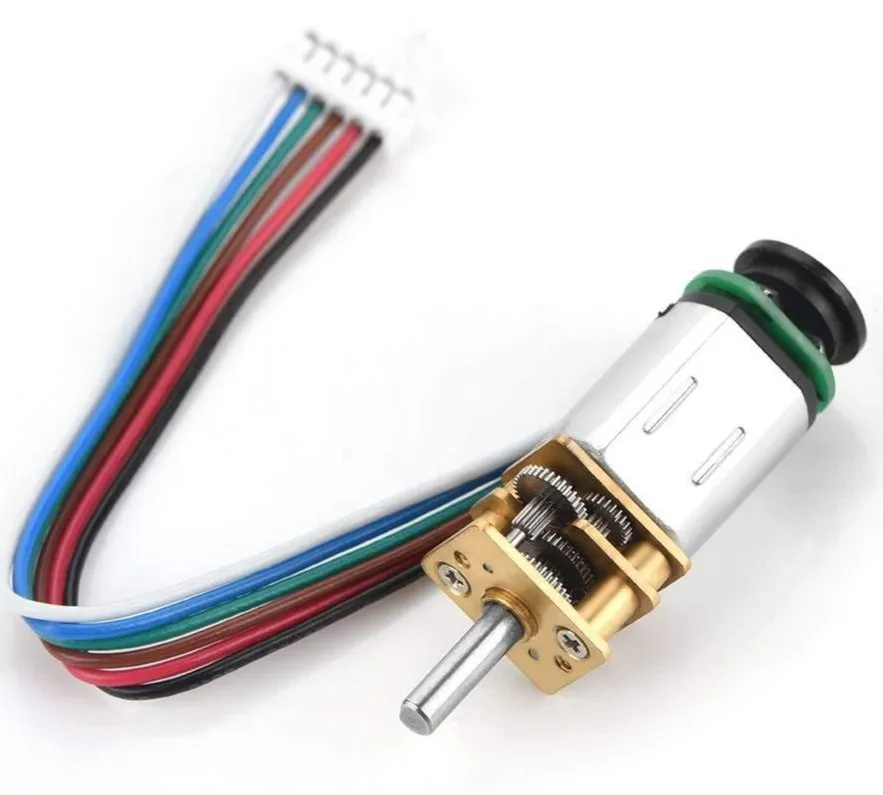

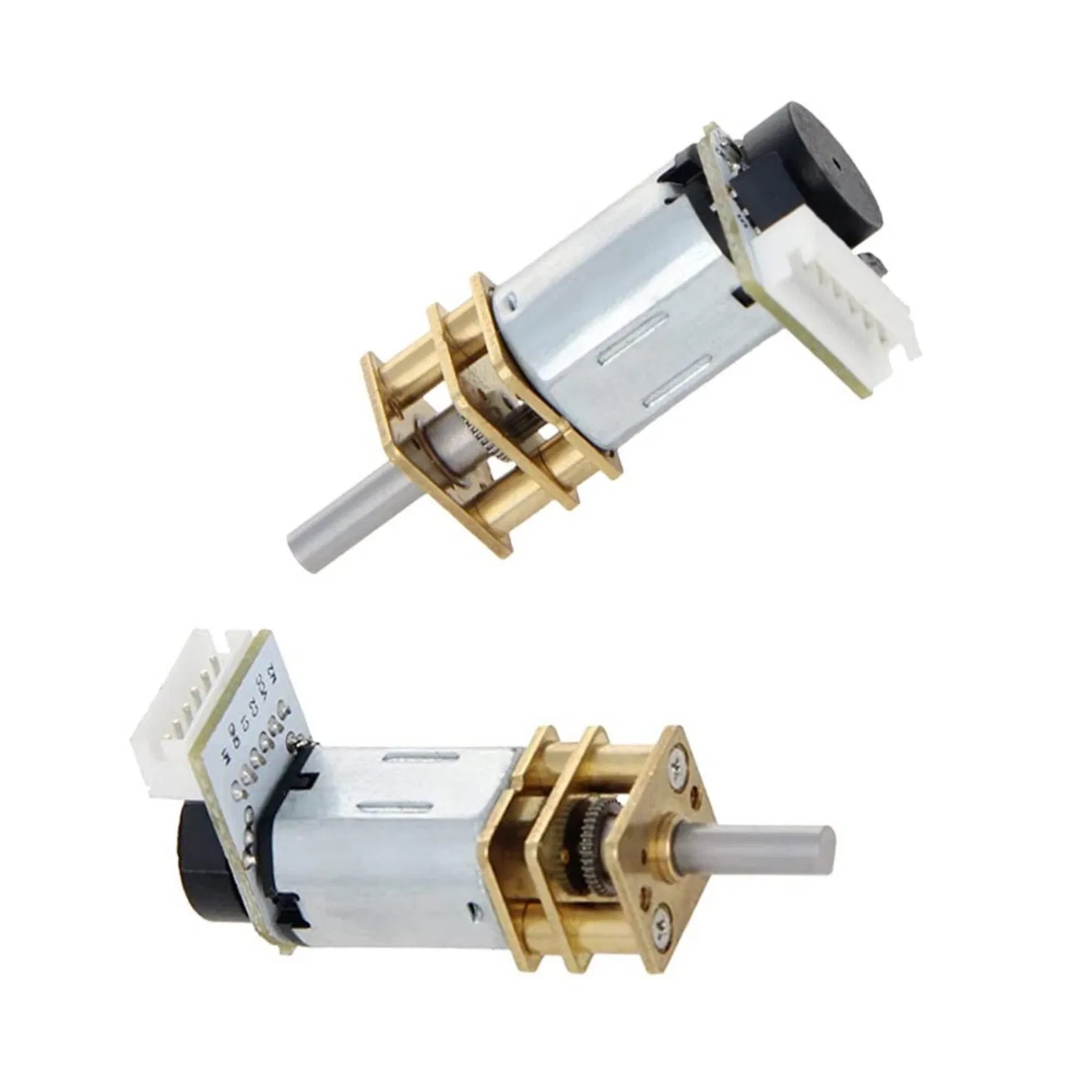

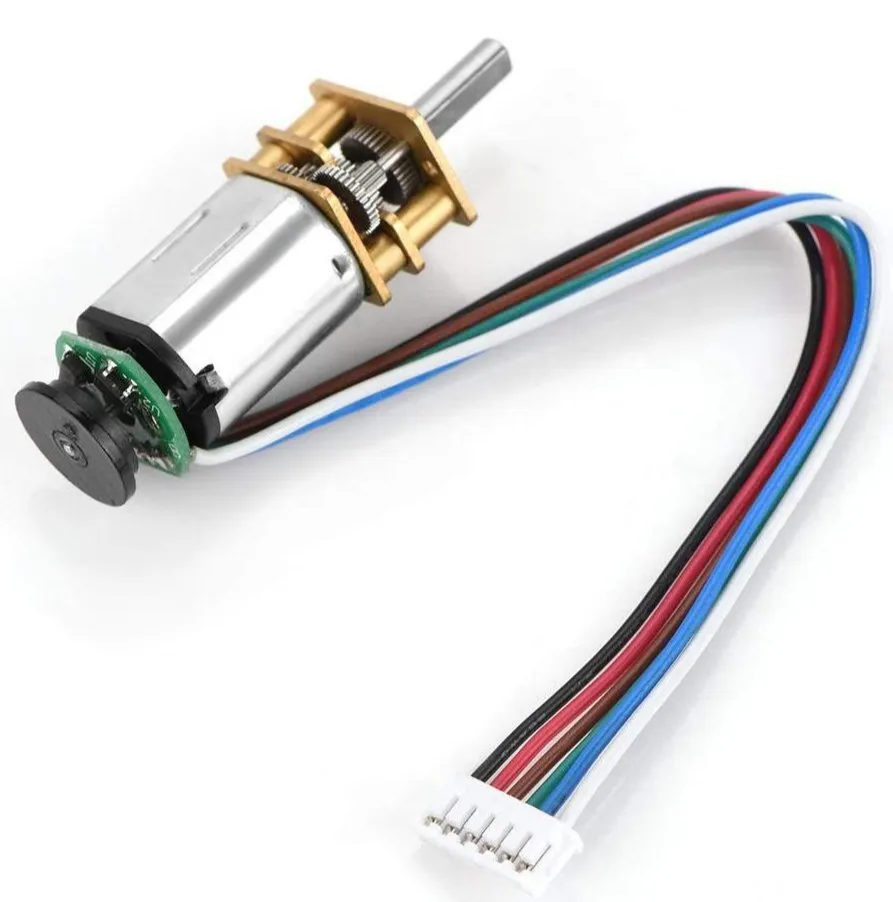

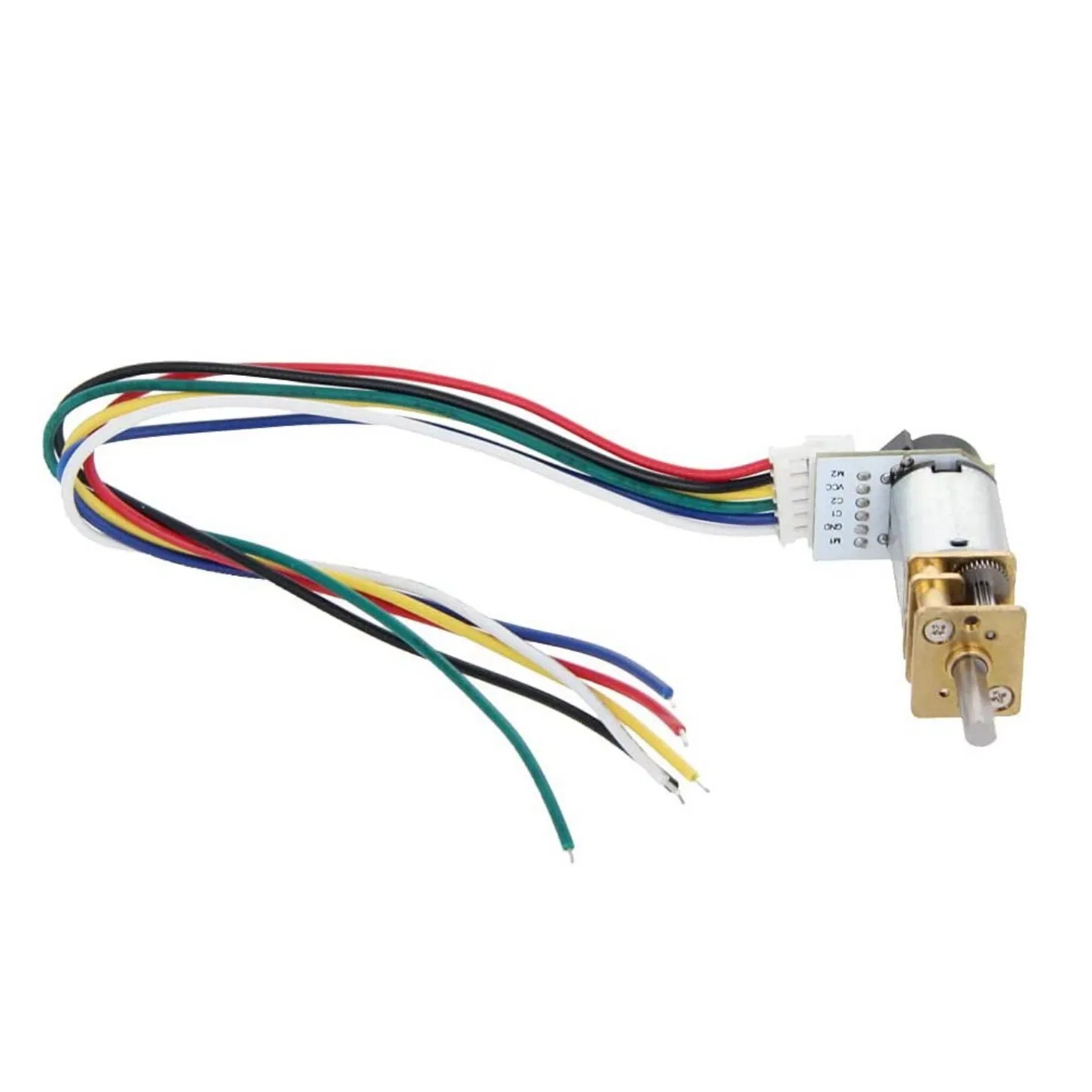

The 12mm gearbox can be integrated with N10, N20, N30 motors or encoders. All specific parameters are fully customizable upon request to meet various industrial and commercial needs.
Main Applications:
| 12mm Micro DC Geared Motor Reference | |||
|---|---|---|---|
| Model | LGM12-N20 | Speed Range | 5rpm - 3000rpm |
| Voltage | 1.5V - 24V | Stall Torque | ≤ 1kg.cm |
| Gearbox Size | 12 * 10 * L mm | Current | ≤ 0.3A |
| Shaft Type | Customizable shape, size, and length | ||
| MODEL | VOLTAGE (V) | NO LOAD SPEED | RATED TORQUE | STALL TORQUE |
|---|---|---|---|---|
| LGM12-N20-10 | 6 | 1804 rpm | 8 mN.m | 23 mN.m |
| LGM12-N20-30 | 12 | 700 rpm | 1 mN.m | 29 mN.m |
| LGM12-N20-75 | 6 | 260 rpm | 27 mN.m | 74 mN.m |
| LGM12-N20-150 | 3 | 85 rpm | 15 mN.m | 98 mN.m |
| LGM12-N20-380 | 6 | 24 rpm | 49 mN.m | 98 mN.m |

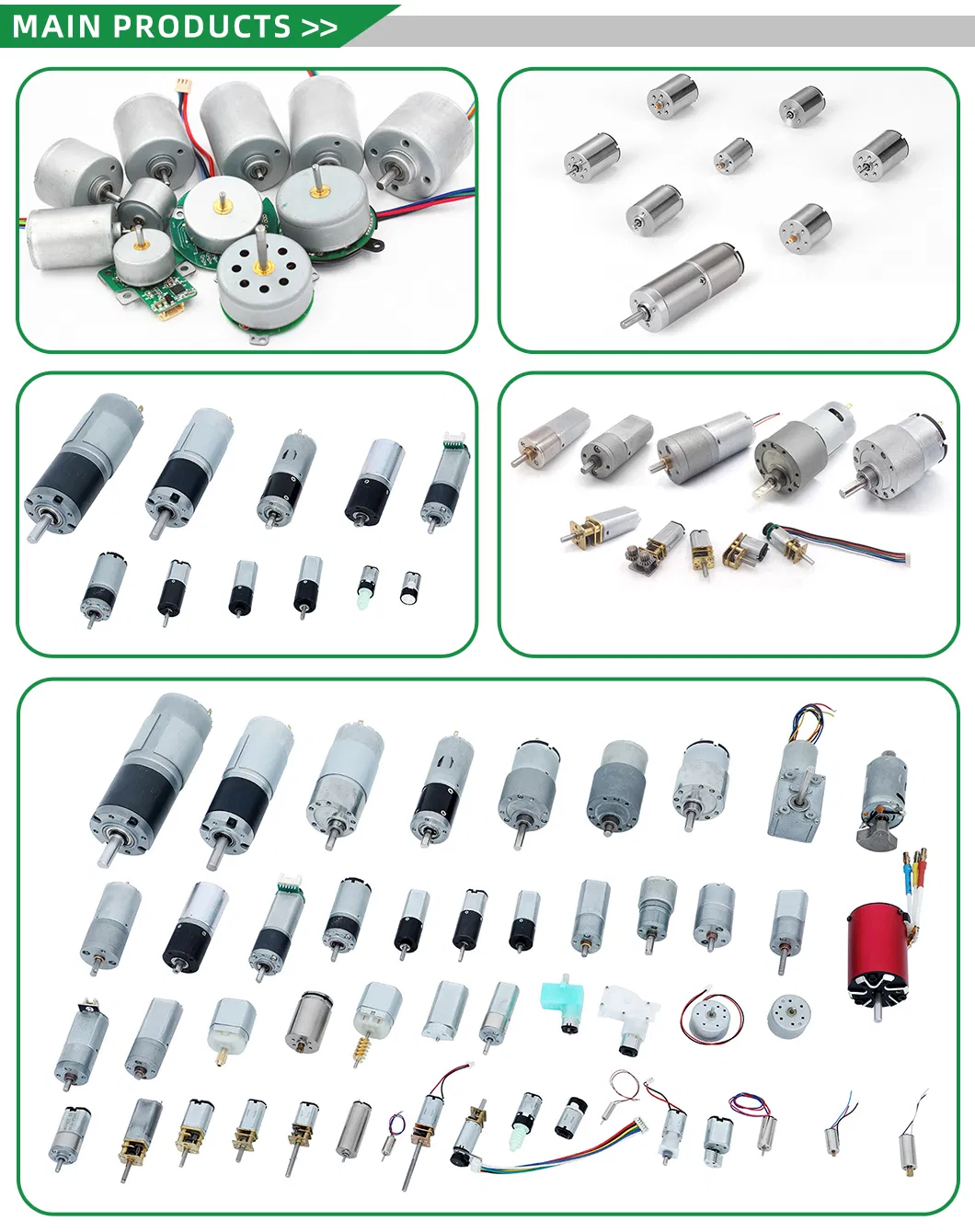

Specializing in hardware modules, small gear modules, and miniature precision planetary gearboxes for many years. We provide comprehensive drive system solutions for industrial tools, personal care, security locks, automotive parts, and healthcare devices.

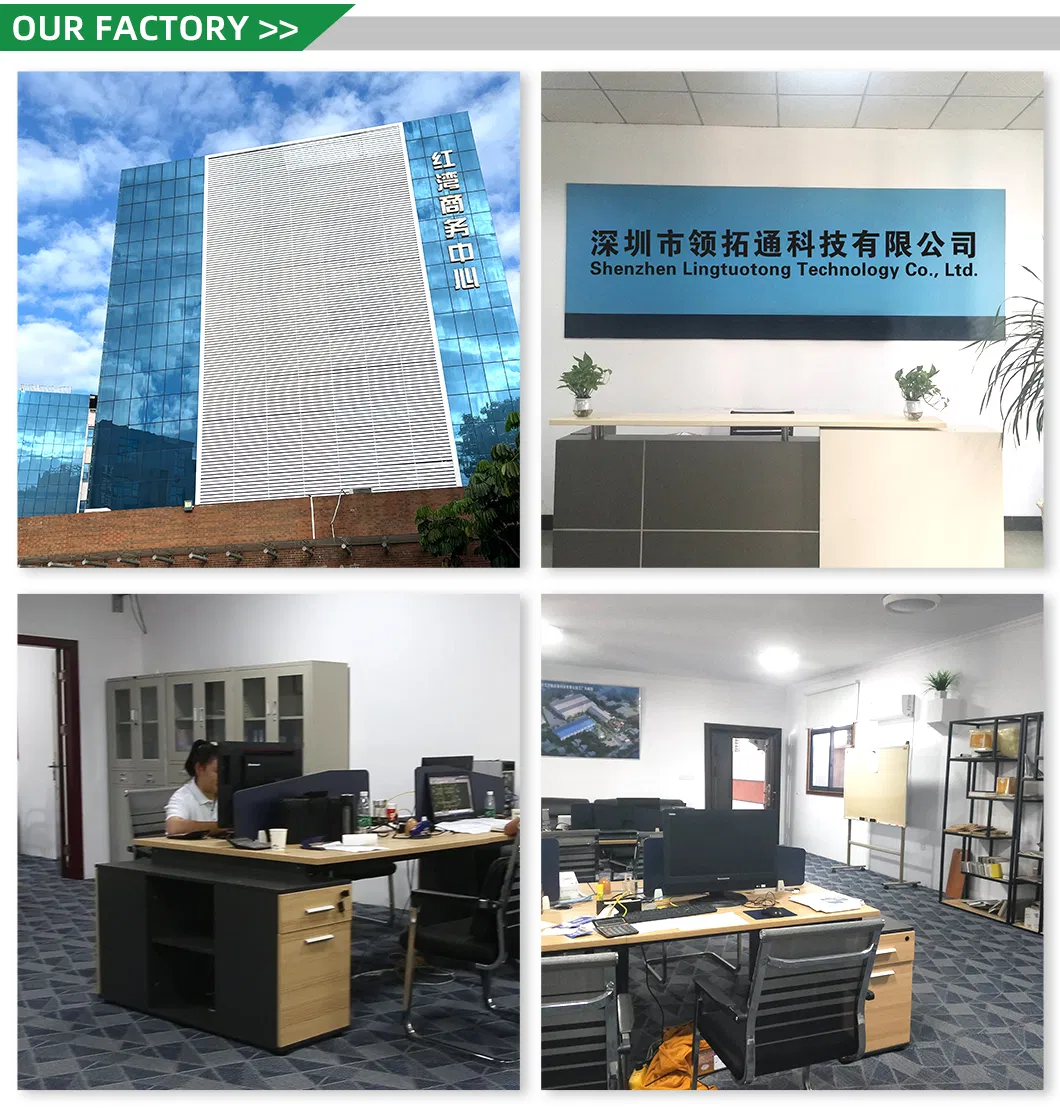

Our stable technical team ensures profound accumulation in R&D and production, adhering to high standards of manufacturing and customer service.
A: Yes, we provide samples for all clients to test before proceeding with mass production. The typical lead time is 7-15 days.
A: Absolutely. Our company has strong R&D capabilities, and we can offer full technology support to help you integrate our motors into your products.
A: Please provide us with your requirements such as voltage, speed, torque, motor size, and working duty cycle. Photos or drawings of your application are also very helpful for our recommendation.
A: We can customize the voltage, speed, torque, and shaft dimensions. Additionally, we can add wires, connectors, capacitors, or EMC components as per your request.
A: Most of our products are manufactured to order to ensure they meet the specific technical requirements of each client.
A: We ship via air (DHL, FedEx, UPS, TNT) or sea. For payments, we accept T/T, PayPal, and credit cards.
