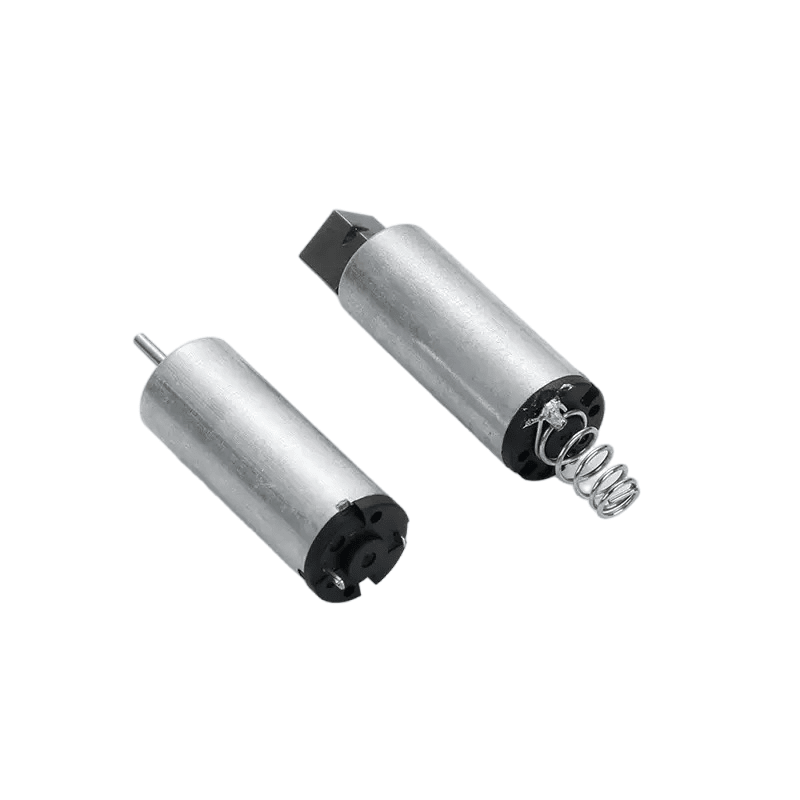

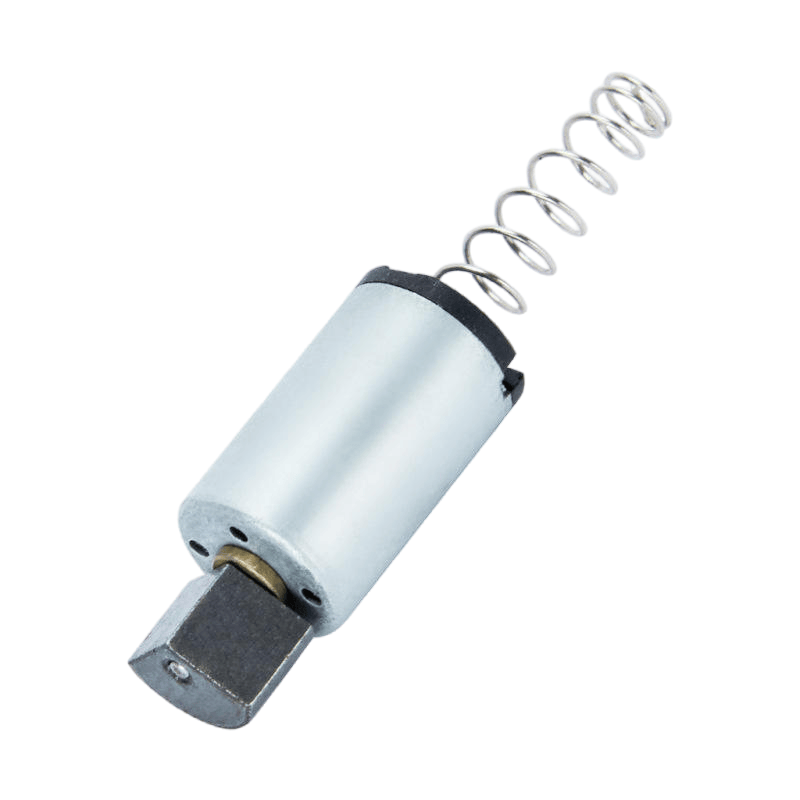

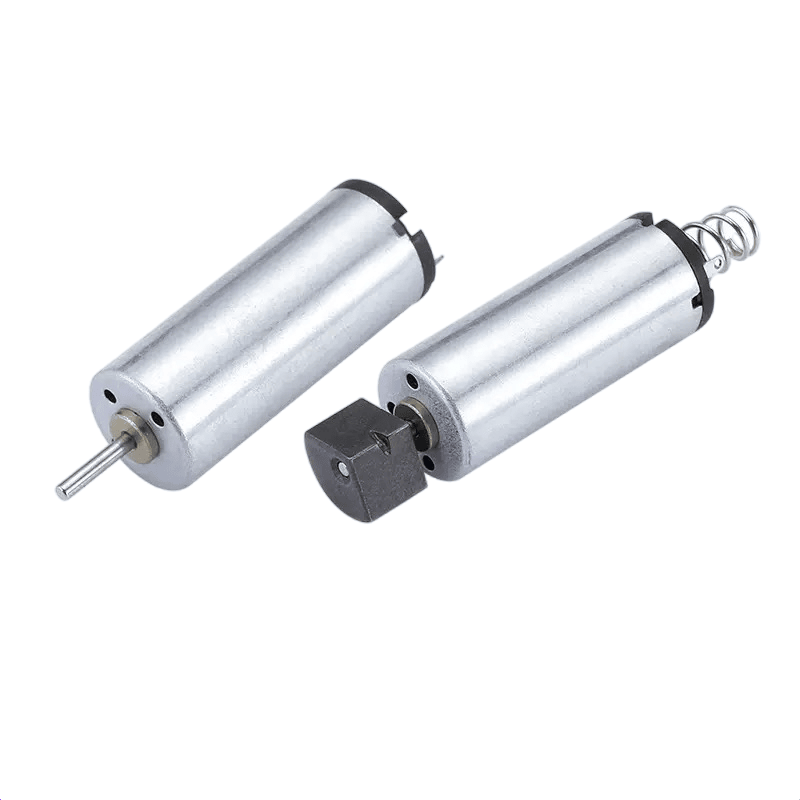

1220 1230 12V Electric DC Brush Motor 5000-12000rpm for Toys

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

1220/1230

Type

Brushed DC Motor

Rotation Speed

5000-12000rpm

Rated Power

0.62W

Rated Voltage

DC 3-12V

Torque

6g.Cm

Certification

ISO9001, CCC, VDE, RoHS

Specification

Dia24.3mm*L30.8mm

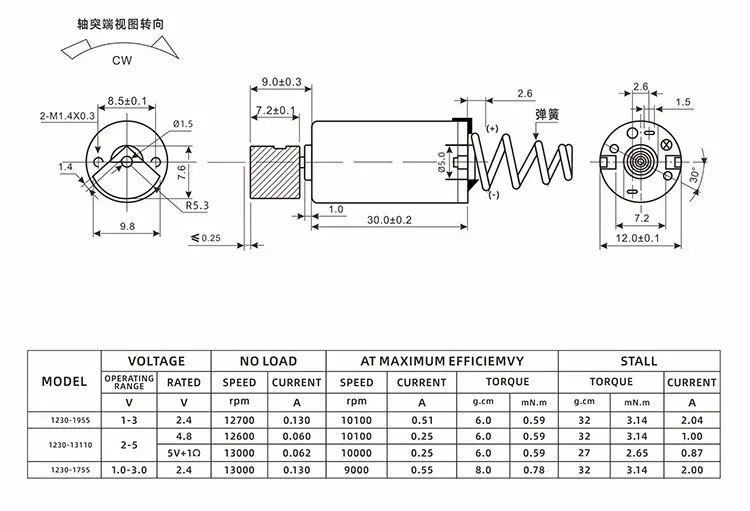

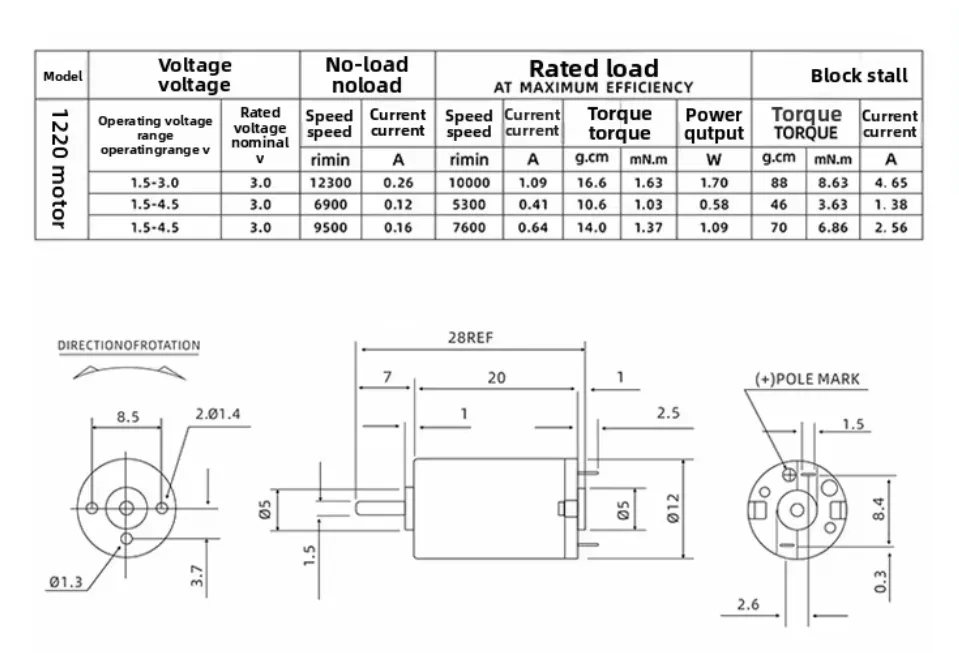

Product Drawing & Dimensions

⚙️

We can customize various shafts, speed, torque, wire, lead, etc. according to your requirements. Please share your choice of voltage, rotation speed, and torque for a tailored solution.

Product Overview

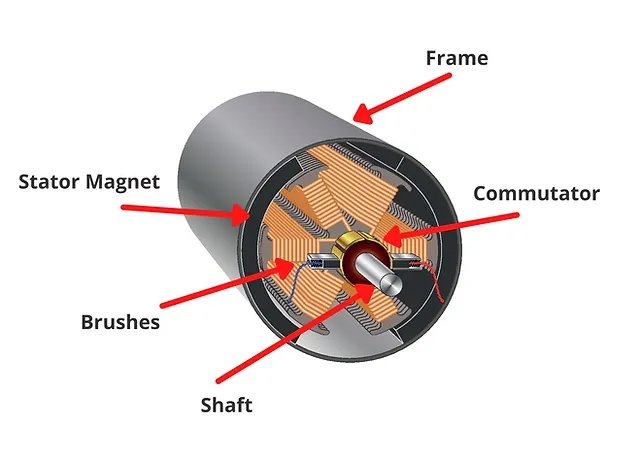

What is a PMDC motor?

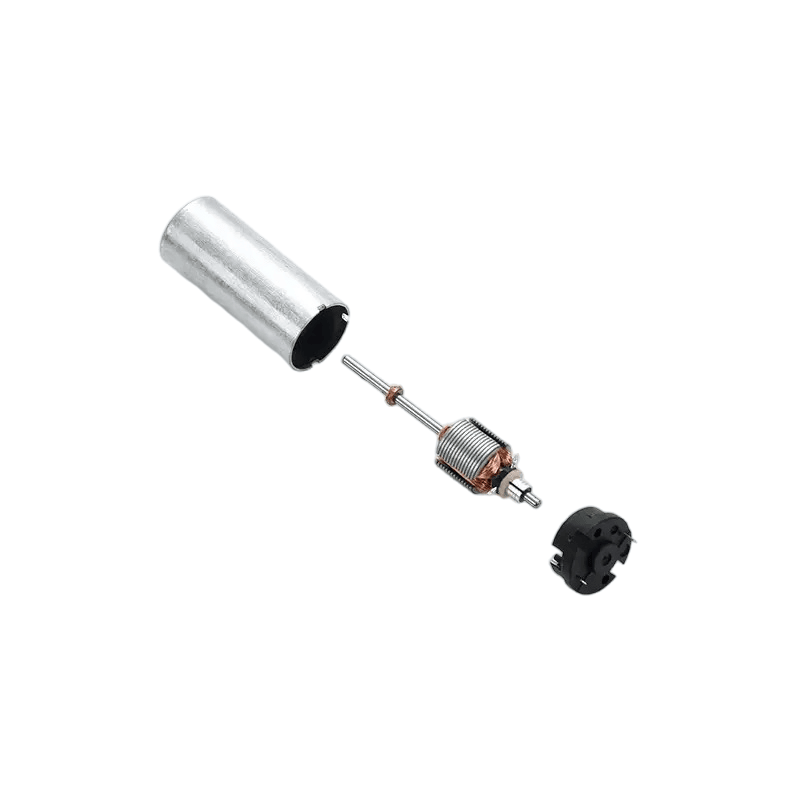

PMDC motors consist of a stator and a rotor. Permanent magnets on the stator generate a fixed magnetic field, while the rotor contains armature windings and commutators. When current passes through the armature winding, it interacts with the magnetic field to drive rotation.

⚡

Fast Response

Quick response to voltage changes due to permanent magnet technology.

💰

Lower Cost

Reduced manufacturing costs compared to brushless alternatives.

🕹️

Convenient Control

Simple control mechanism suitable for tools, appliances, and industrial equipment.

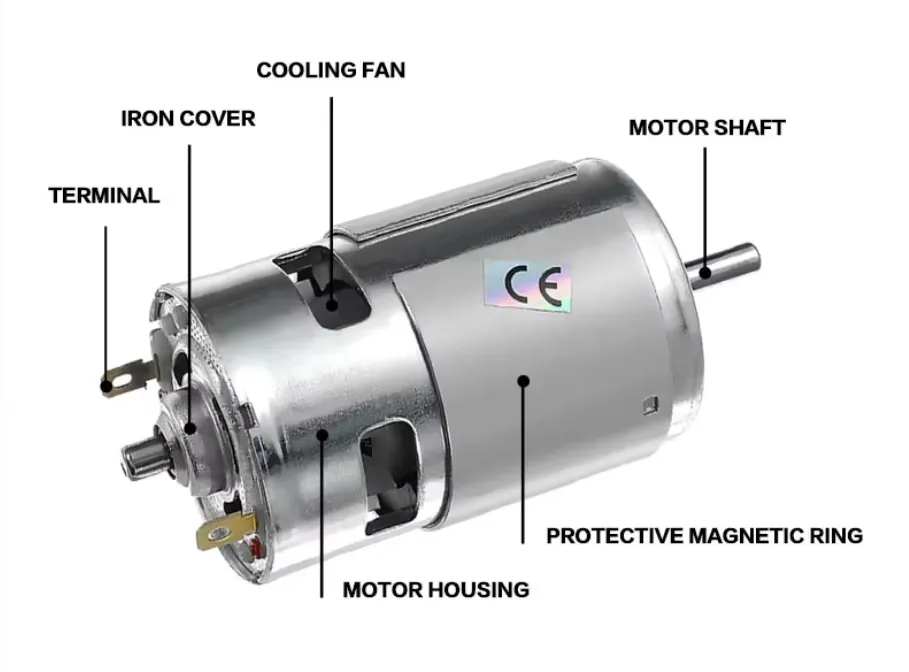

Technical Details & Components

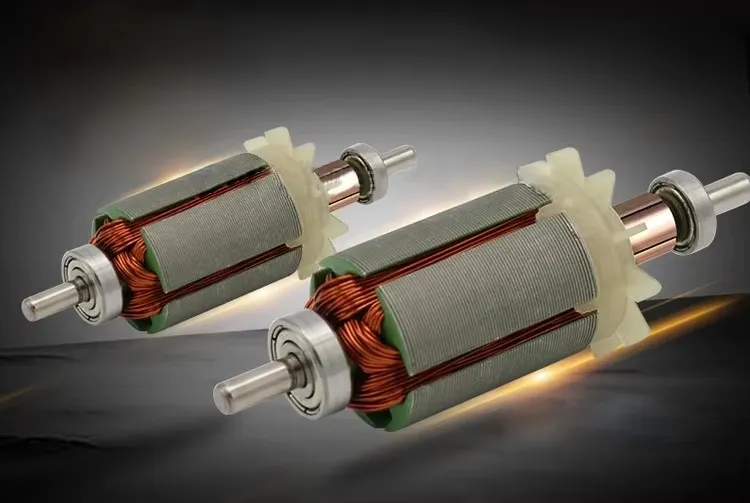

Pure Cu Coils
Stable Performance

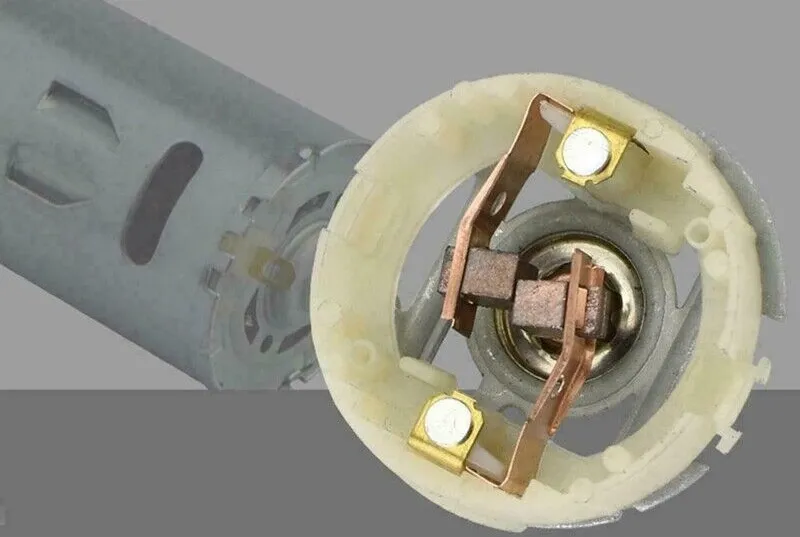

Quality Carbon Brush
High Durability

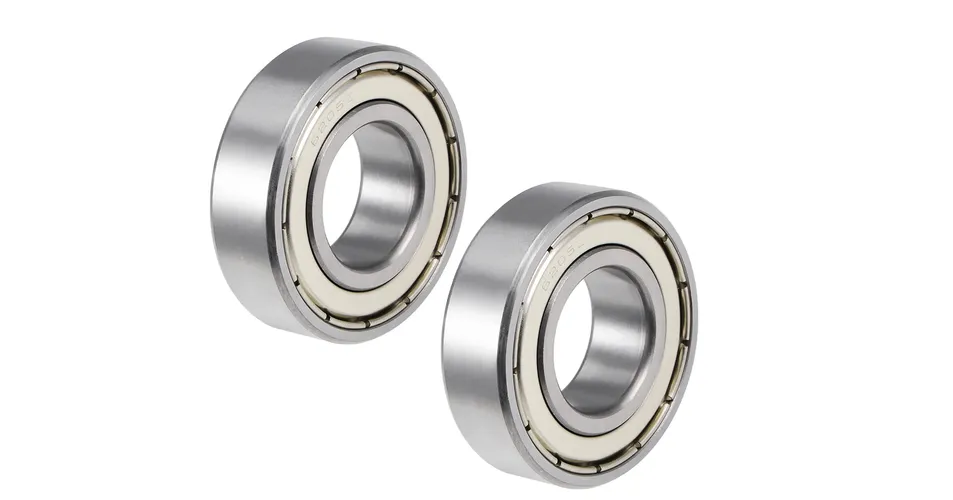

Ball Bearing
Low Noise & Long Life

High Grade Magnetic Arc
High Efficiency

Product Specifications

Main Products	Synchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
Certifications	CCC, VDE, CB, RoHS and ISO9001-2015
OEM Service	Accepted and Customizable
Application Fields	Electric tools, household appliances, industrial equipment, etc.

Frequently Asked Questions

What is the operating voltage range for this DC motor?

The rated voltage for the 1220/1230 model is DC 3-12V.

What is the rotation speed of the motor?

The motor operates within a speed range of 5000 to 12000rpm.

Can I customize the motor for specific requirements?

Yes, we can customize various shafts, speeds, torques, and wiring according to your specific needs.

What are the main advantages of this PMDC motor?

It offers fast response to voltage changes, lower manufacturing costs, and simple control mechanisms.

What high-quality components are used in this motor?

The motor features pure copper coils, high-grade carbon brushes, high-quality ball bearings, and high-grade magnetic arcs for maximum efficiency and durability.

What quality certifications does the motor have?

The product is certified by ISO9001, CCC, VDE, CB, and RoHS, ensuring international quality standards.
