Product Description

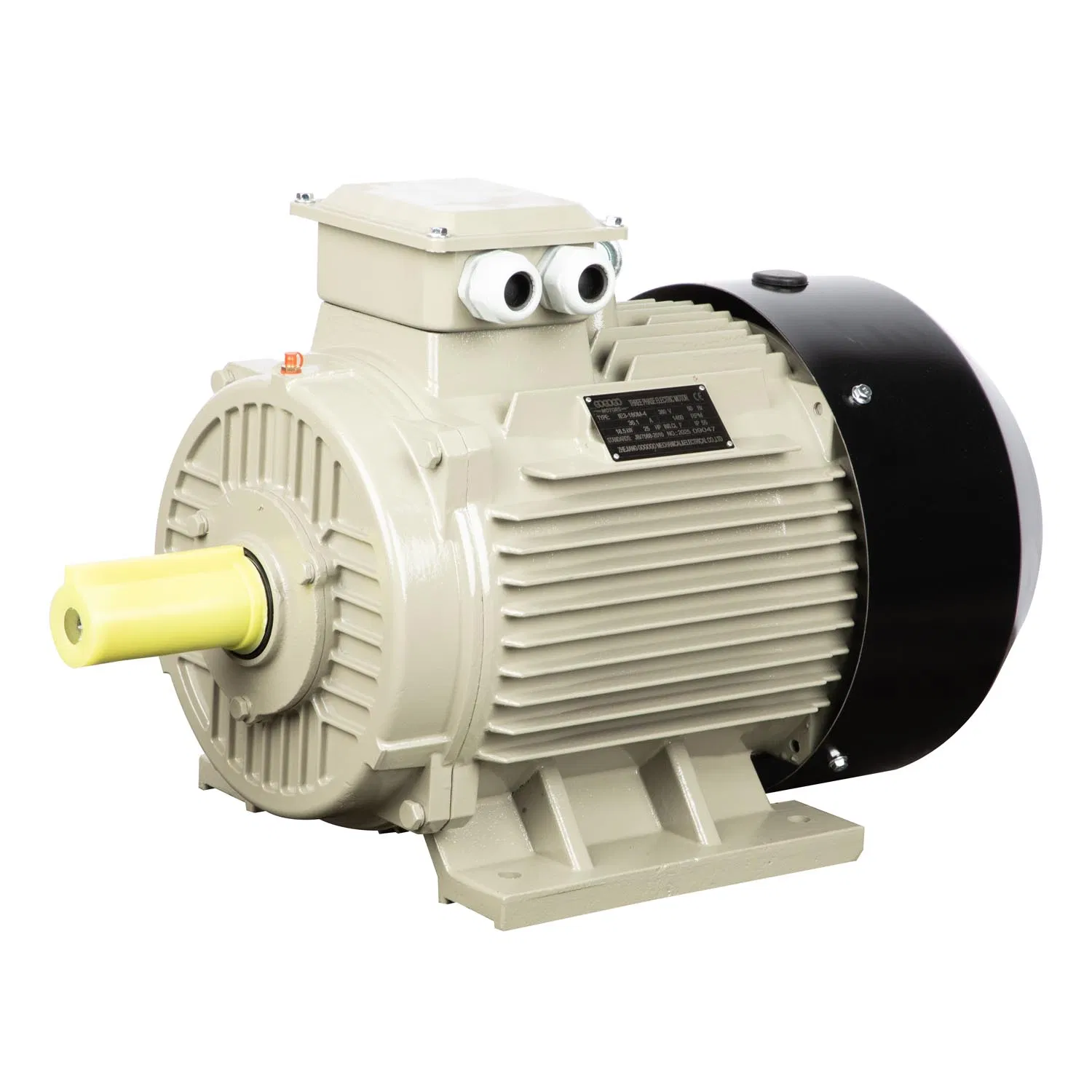

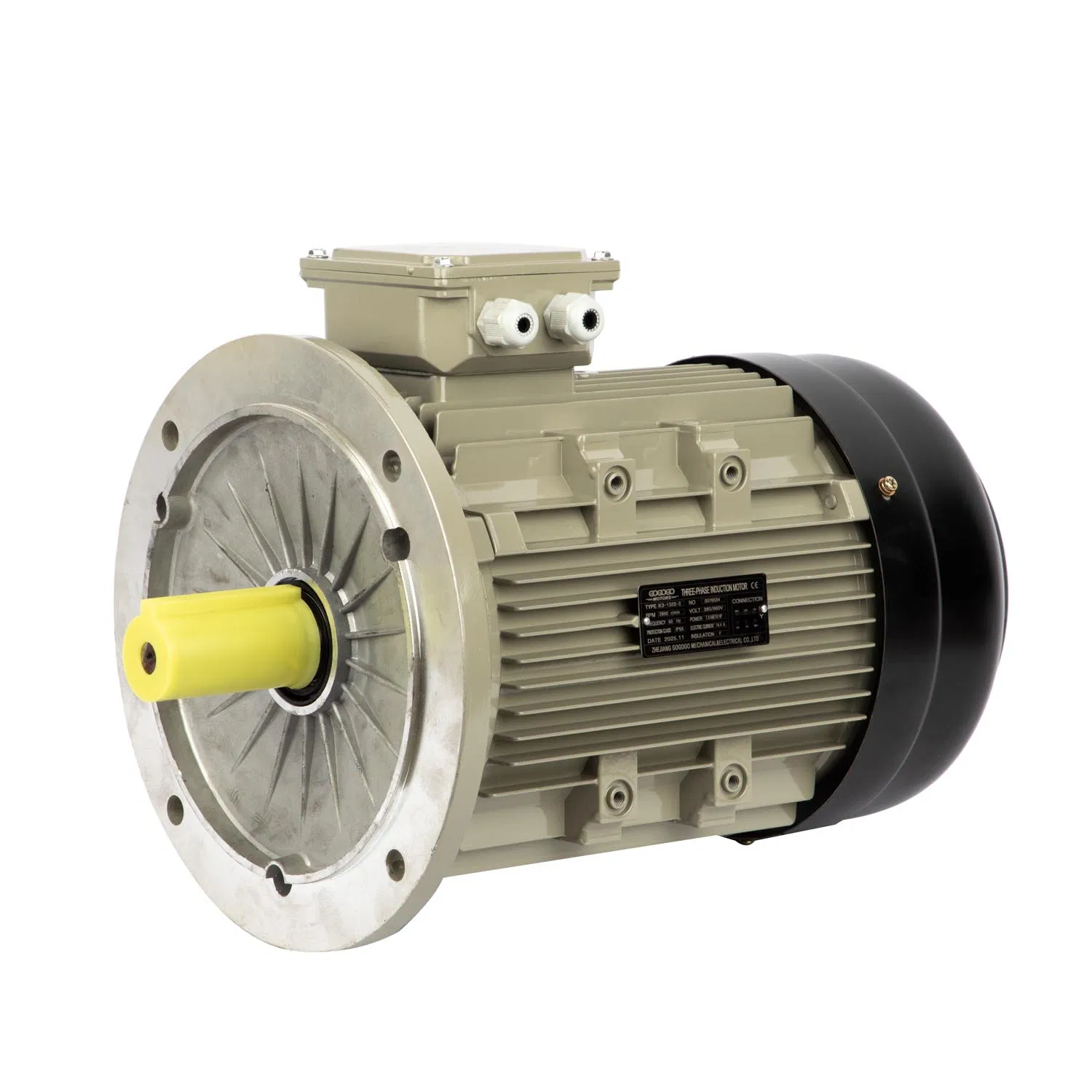

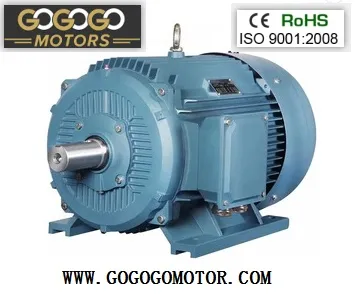

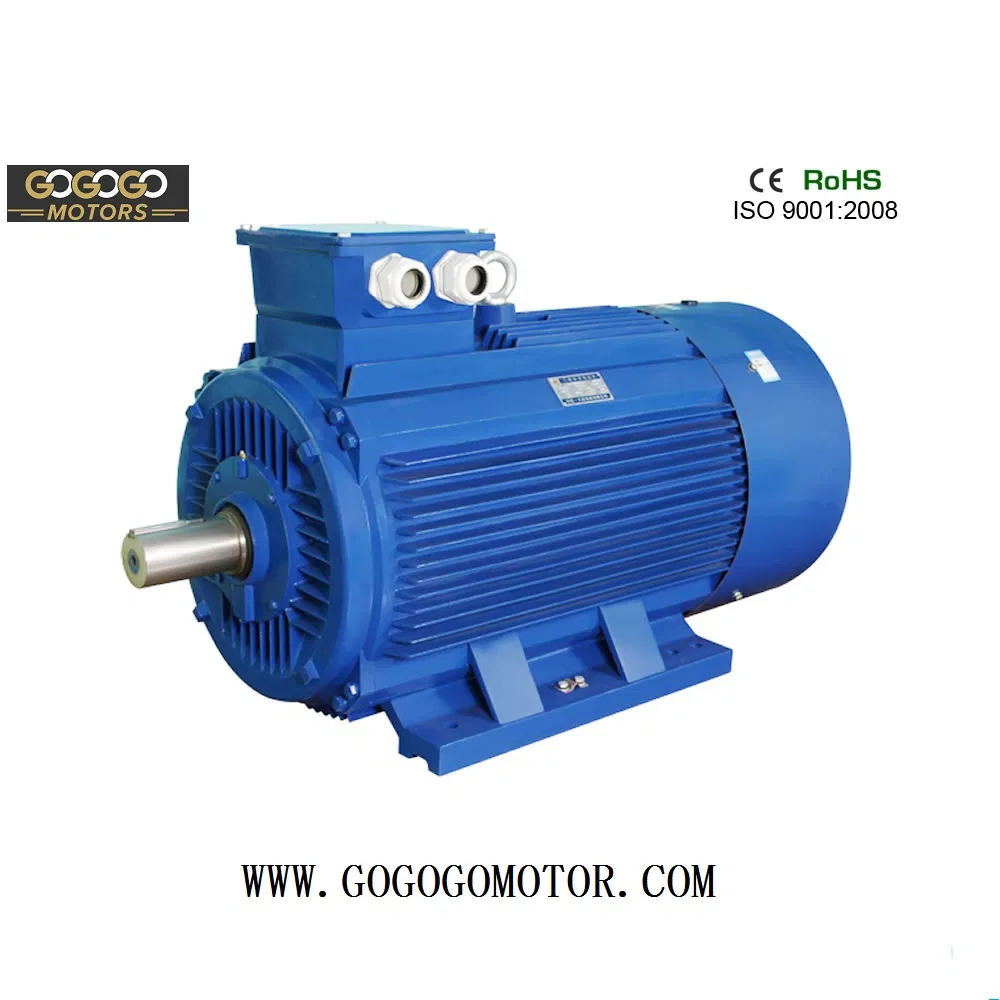

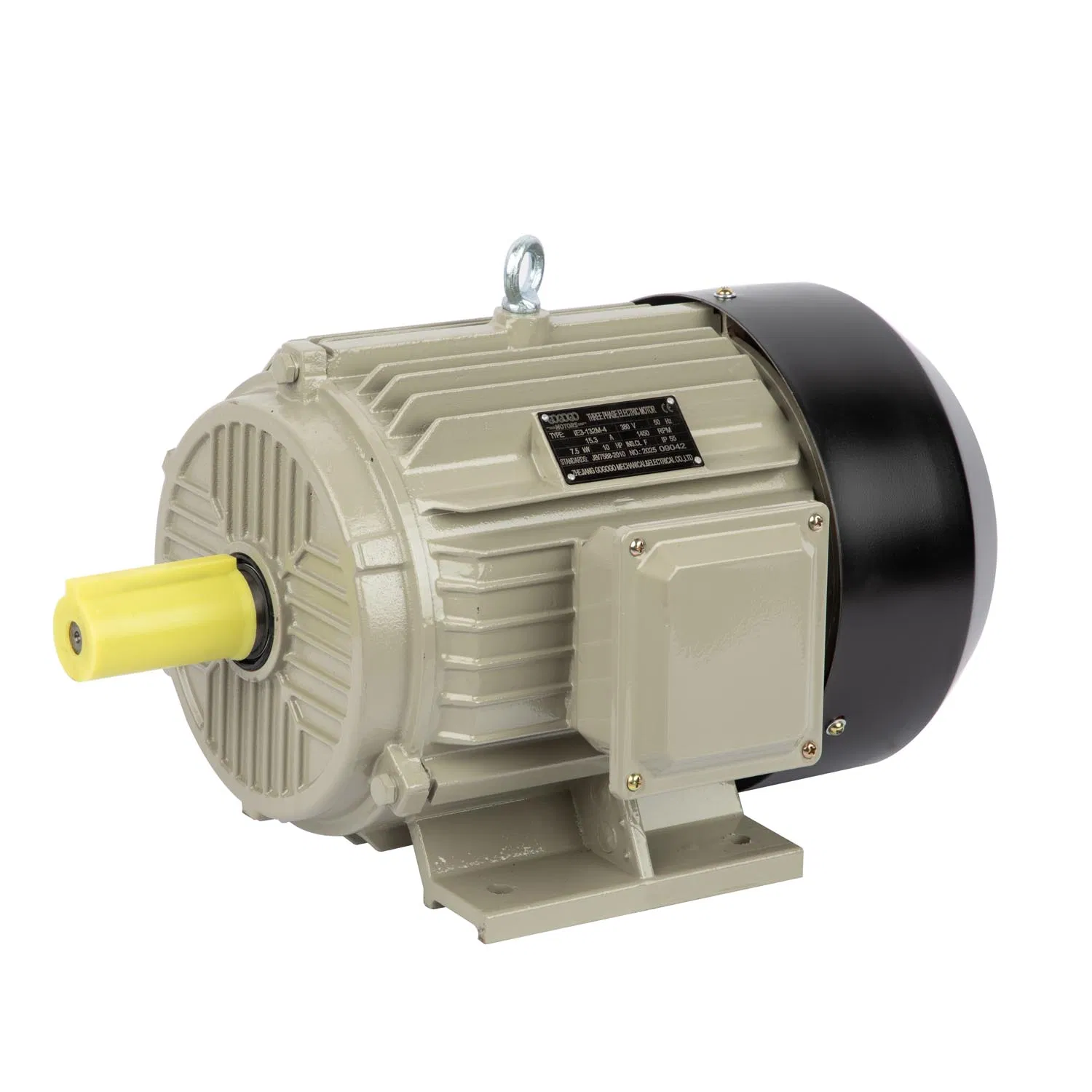

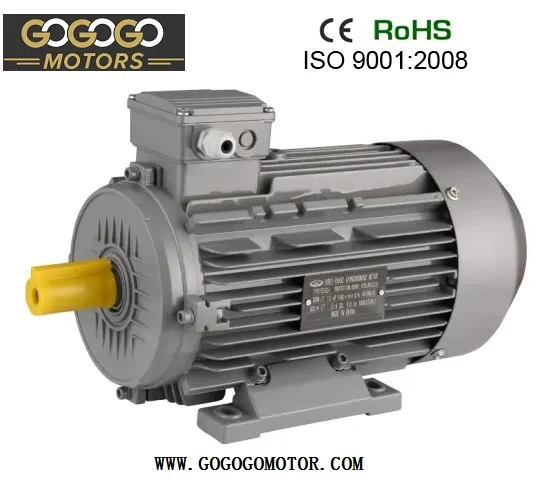

We specialize in high-quality energy-efficient electric motors. The combination of the best available materials, high-quality sheet metal, and the right amount of copper in the rotor/stator makes these electric motors highly energy-efficient.

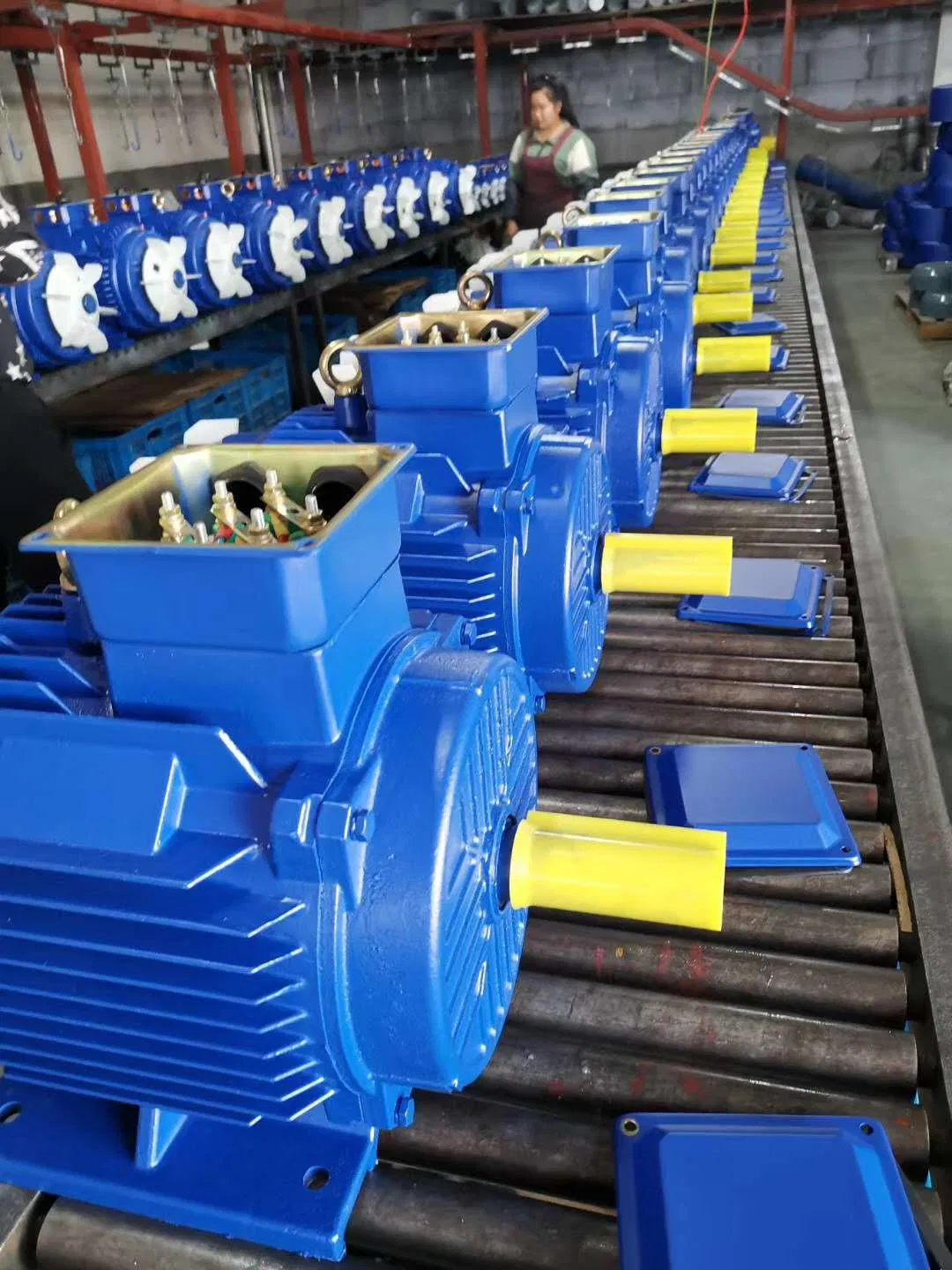

We design our electric motors to fit and match requirements at our production site. The electric motors can be supplemented with a range of options and accessories or modified with a special design to endure any environment.

!Efficiency Standards

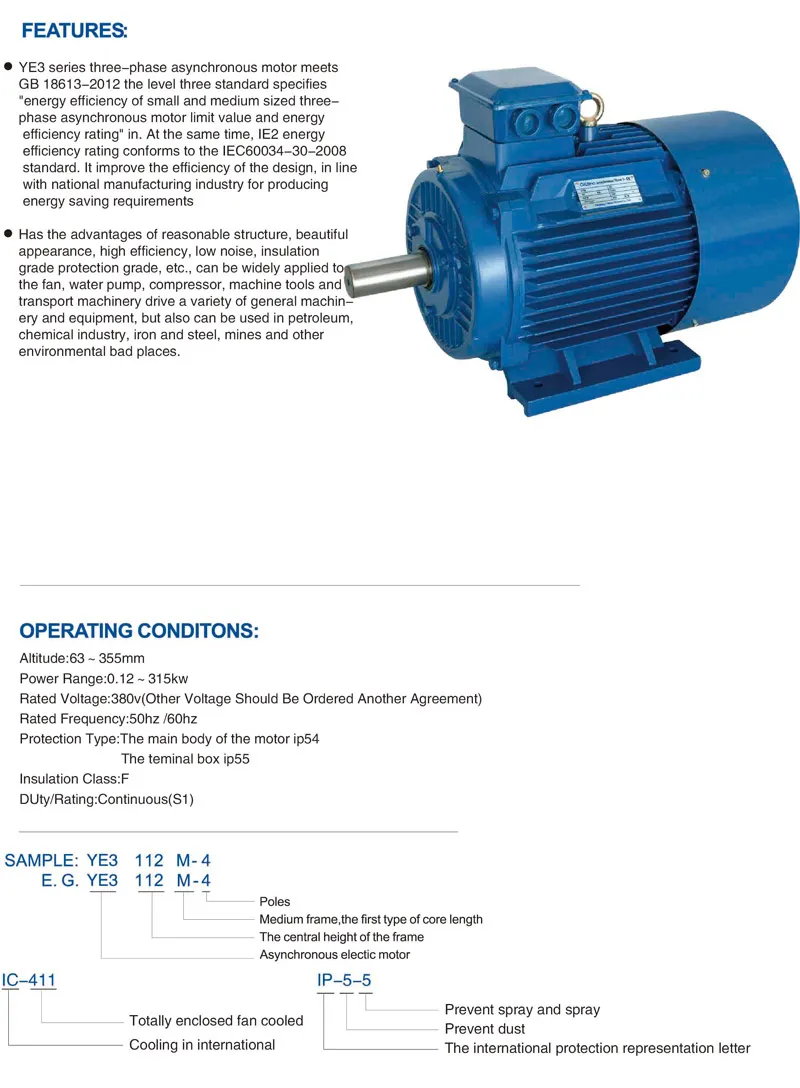

Electric motors account for about 65 percent of the electricity used in industry. To reduce this use of electricity, there are legal requirements regarding the efficiency of electric motors manufactured in or exported into the EU. Three-phase, single-speed asynchronous motors are covered by the requirements today.

Energy efficiency classes are designated as IE1, IE2, IE3, and IE4, where IE4 represents the highest efficiency.

iRevision of Standards

From July 1, 2021: 2-, 4-, 6- and 8-pole motors from 0.75 - 1000 kW are included in efficiency class IE3. Motors within the range 0.12 - 0.75 kW must meet efficiency class IE2.

From July 1, 2023: The higher efficiency class IE4 applies to 2, 4 and 6-pole motors between 75 - 200 kW. Single-phase motors greater than 0.12 kW are covered by IE2.

⚙Exemptions

• Operation other than S1 (continuous drive) or S3 (intermittent drive) with a nominal cyclicity factor of 80% or lower.
• Electric motors made for use in liquid.
• Brake motors.
• Electric motors intended for operation at altitudes exceeding 4,000 meters or ambient temperatures exceeding 60°C.

Why Choose Our Motors?

• Guarantee: 18-24 months
• Delivery Time: 15-30 days
• Packaging: Strong export cartons, wooden cases, or plywood cases
• Payment Terms: T/T, L/C, D/P, etc.
• Wide Range: IE3/YE3, IE2/YE2, IE1/Y2, Y, YS, MS, YC, YL, YY, MC, MY, ML motors
• Standards Compliance: NEMA (American), GOST (Russian), AEEF (Taiwan)
