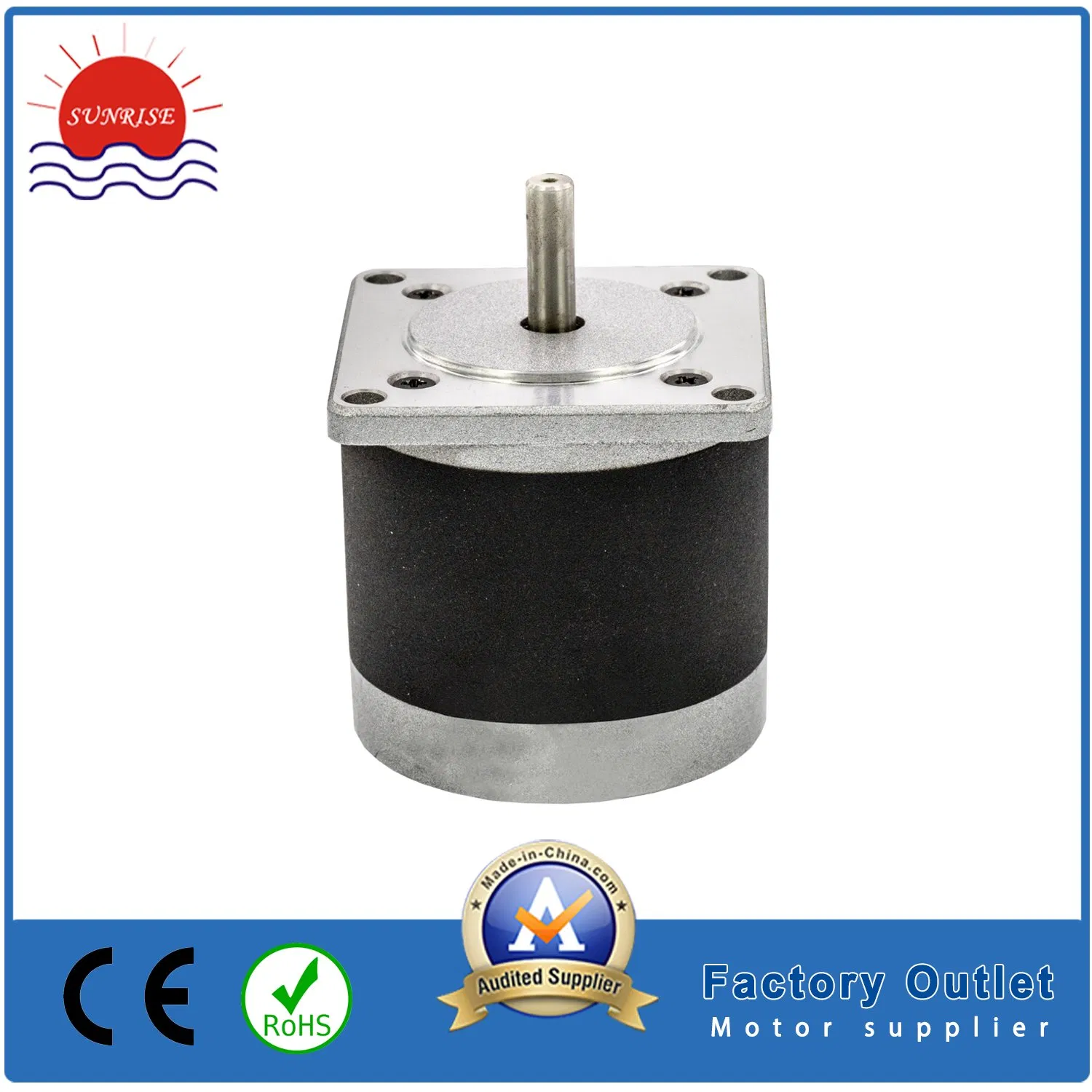

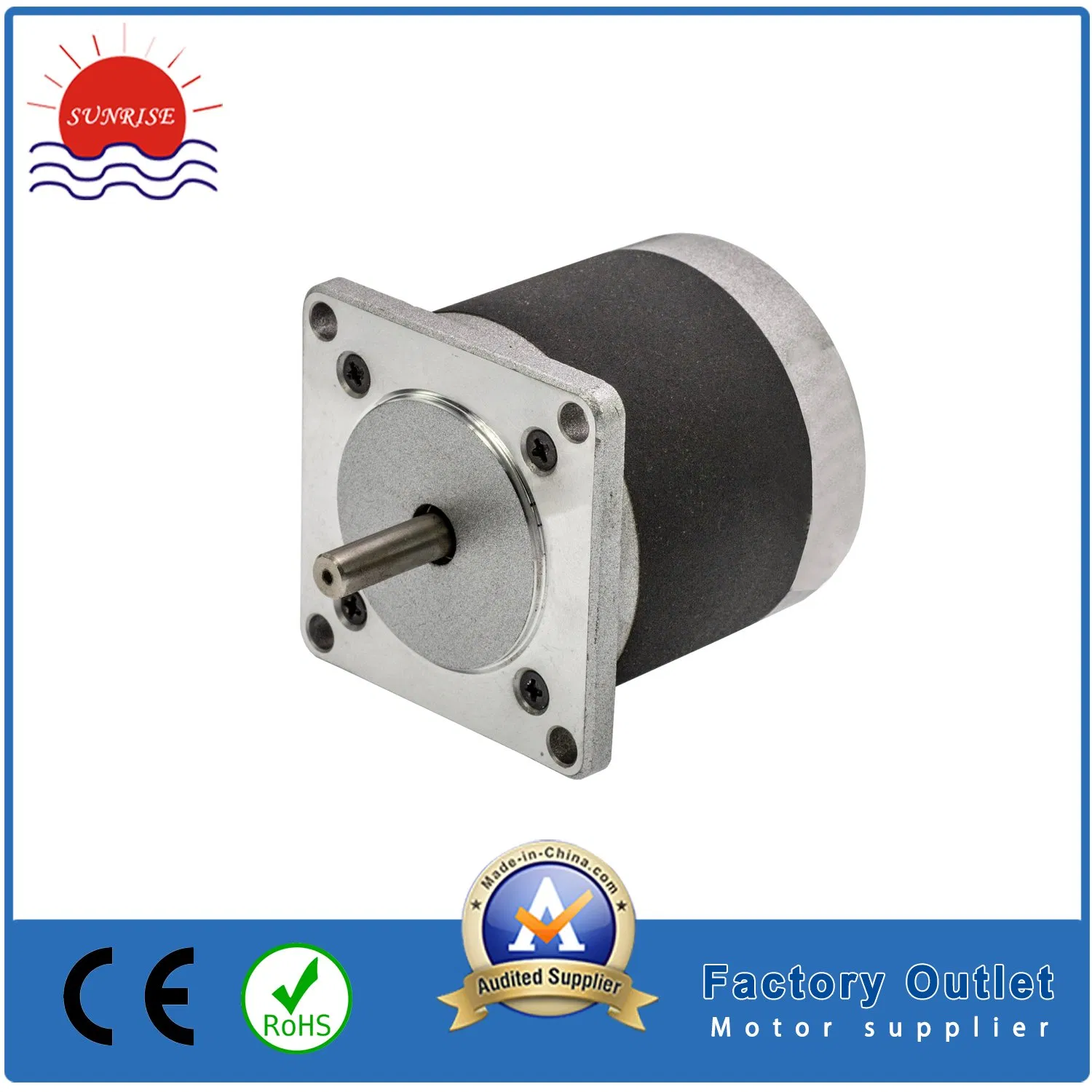

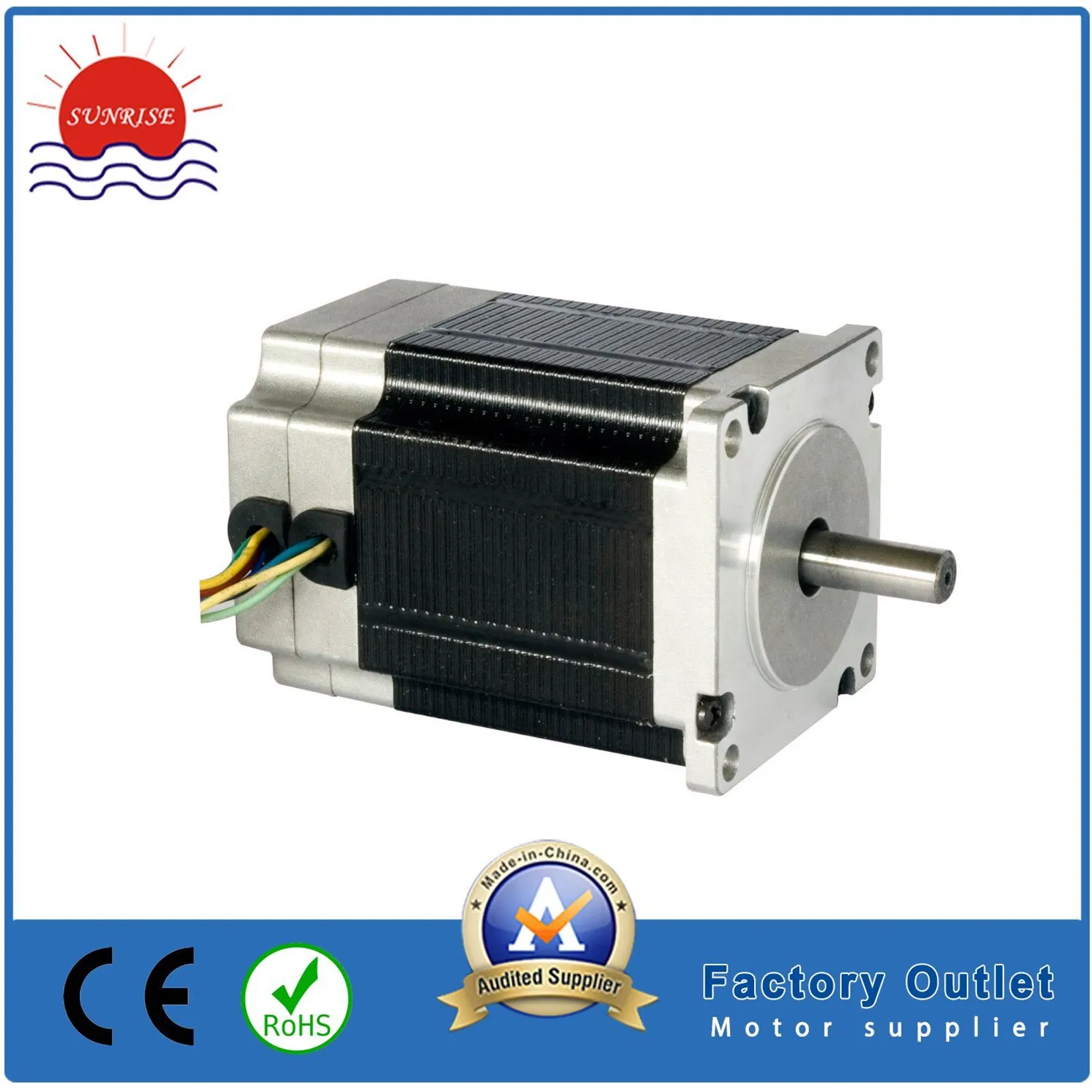

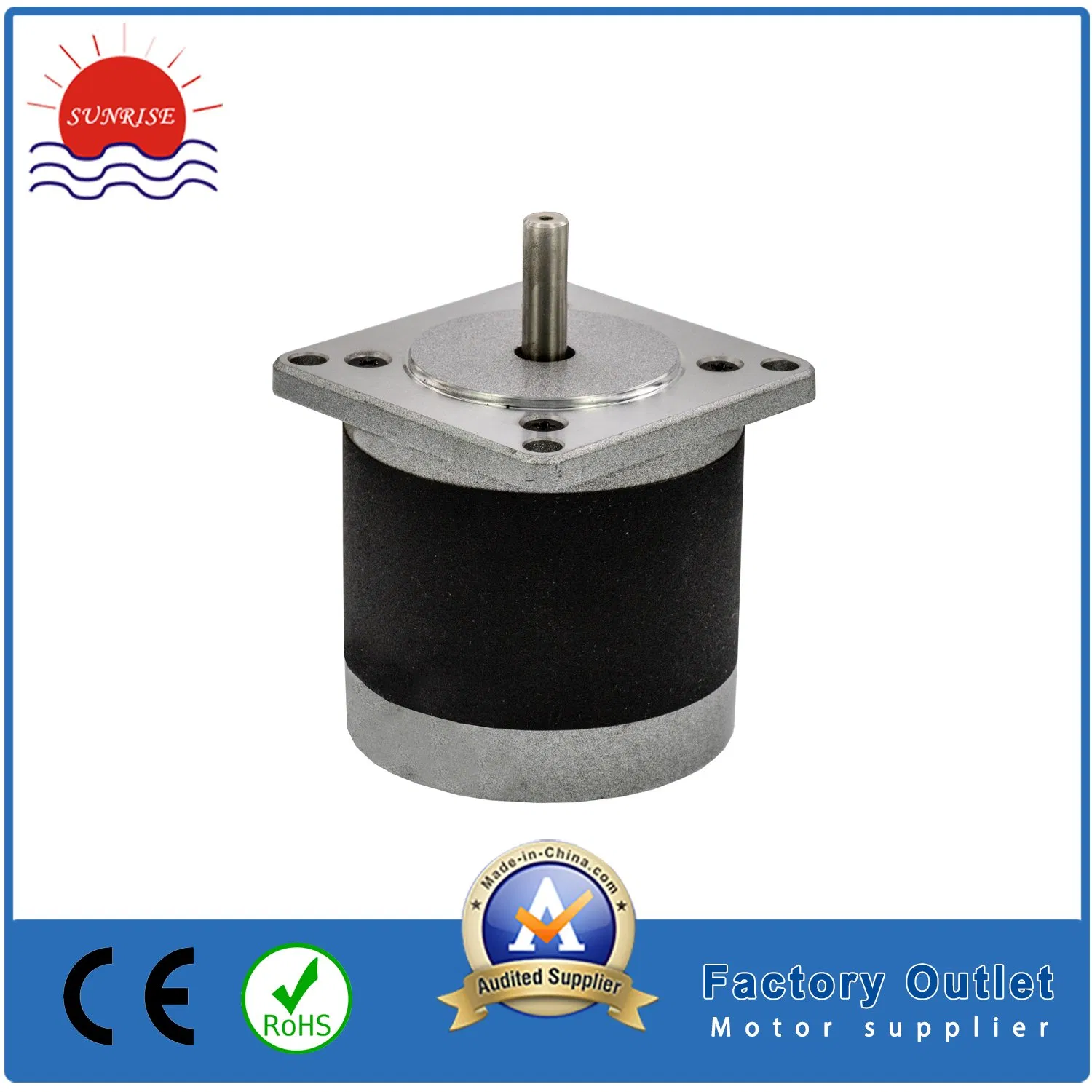

57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor

🔹 Basic Info & Specifications

Model NO.

57BL3A90

Excitation Mode

Shunt

Function

Driving

Casing Protection

Closed Type

Number of Poles

8

Structure

Brushless

Type

BLDC

Certification

ISO9001

Voltage

36VDC/48VDC

Rated Torque

0.6Nm

Speed

3000 rpm

HS Code

85013100

📝 Product Description

Brushless DC Motor (57BLY Series):

The BLDC motor offers exceptional torque and speed, higher efficiency, as well as package sizes suited to meet the most stringent of application requirements. These brushless DC motors are electronically commutated and can be supplied in either sensored or sensorless versions, with all having 3 phase windings.

✅ Winding Type: Star
✅ Hall effect angle: 120°Electrical angle
✅ Insulation Class: B
✅ Ambient Temperature: -20ºC~+50ºC
✅ Insulation Resistance: 100MΩ Min.500V DC
✅ Dielectric Strength: 600VAC 1 minute
✅ Max Radial Force: 75N
✅ Max Axial Force: 15N

📊 Technical Parameters (57BL Series)

Specification	Unit	57BL3A50-A	57BL3A50-B	57BL3A70-B	57BL3A70-C	57BL3A90-B	57BL3A90-C
Rated Voltage	V	24	36	36	48	36	48
Rated Power	W	62	62	125	125	185	185
Rated Speed	rpm	3000	3000	3000	3000	3000	3000
Rated Current	A	3.3	2.2	4.4	3.2	6.5	4.8
Rated Torque	N.m	0.2	0.2	0.4	0.4	0.6	0.6
Peak Torque	N.m	0.58	0.6	1.29	1.31	1.9	2
Number of Poles	-	8	8	8	8	8	8

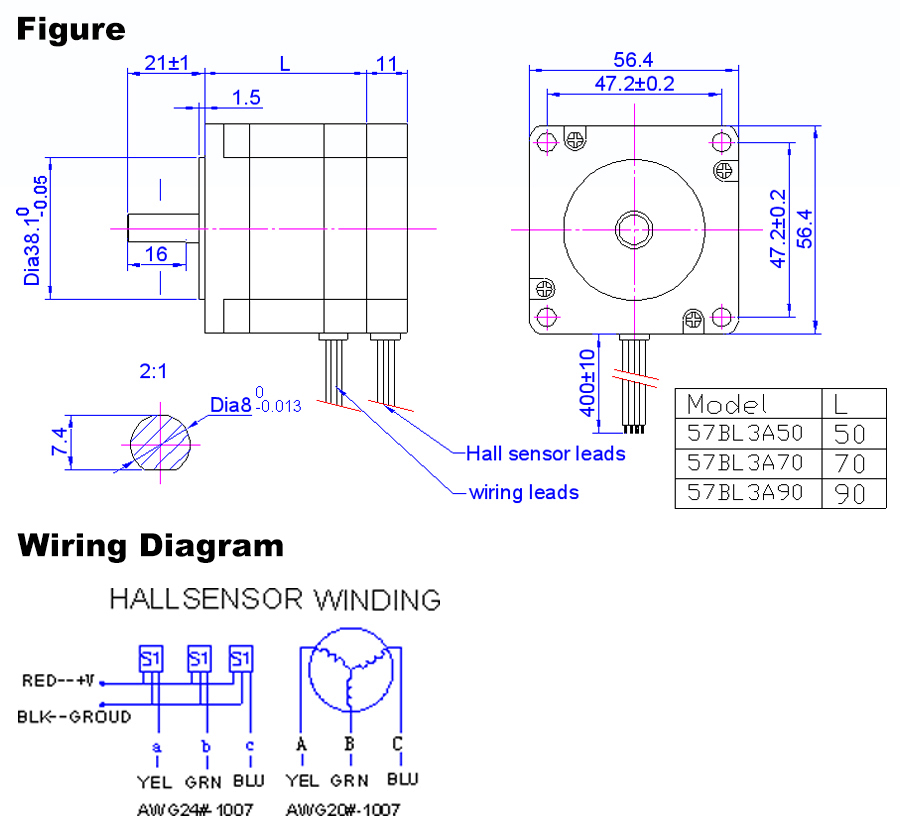

🔌 Wiring Diagram

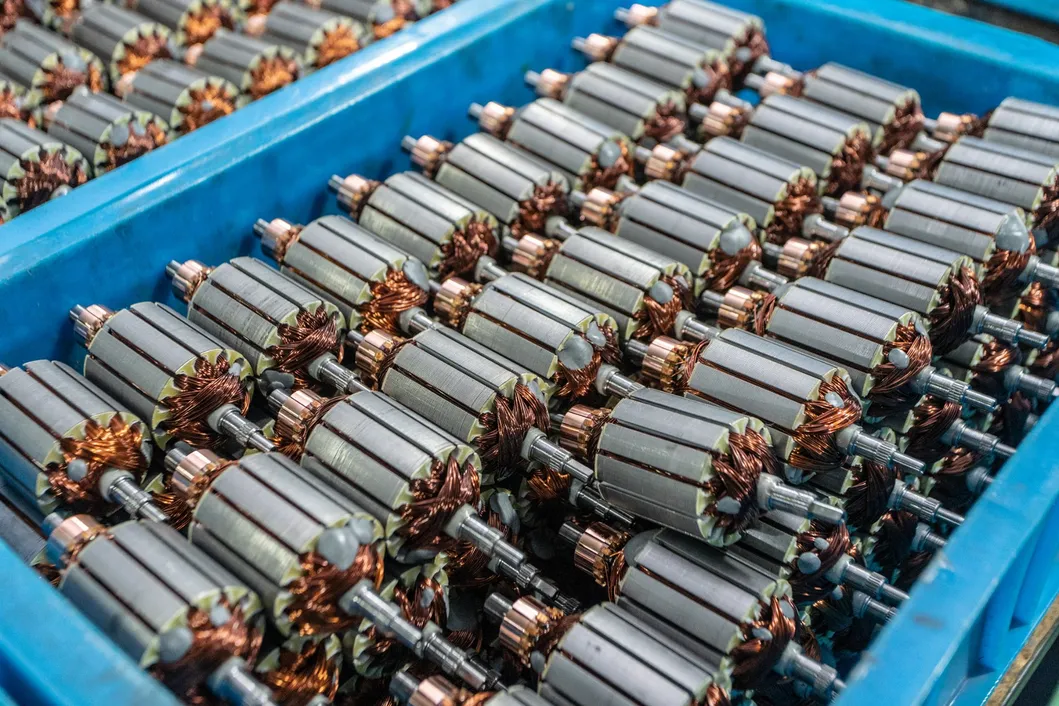

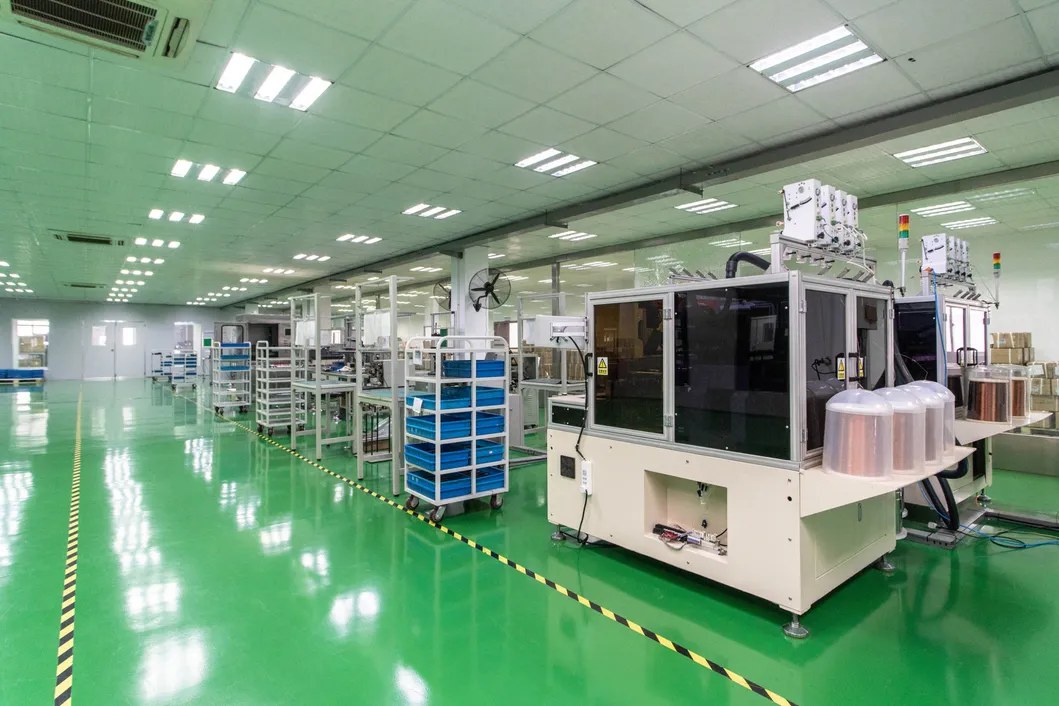

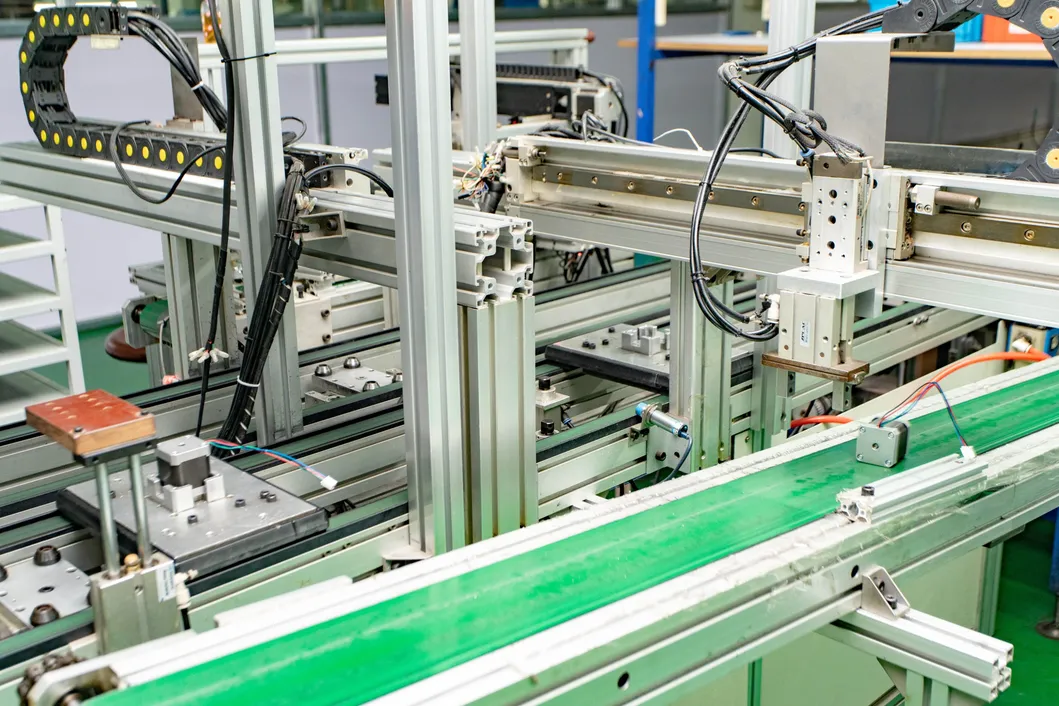

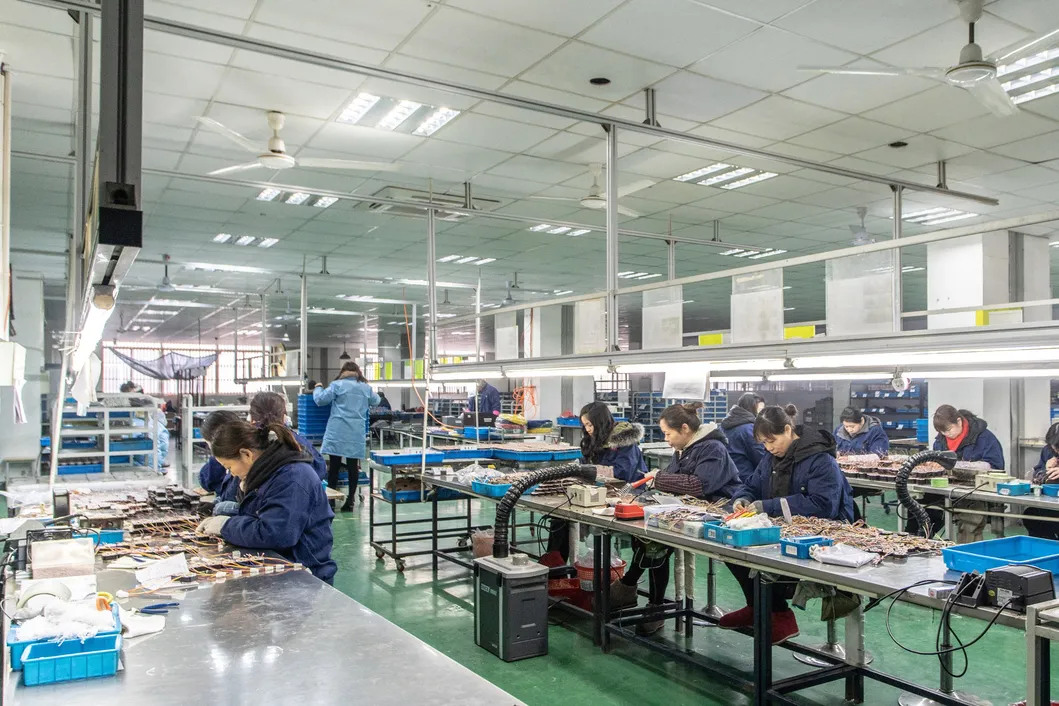

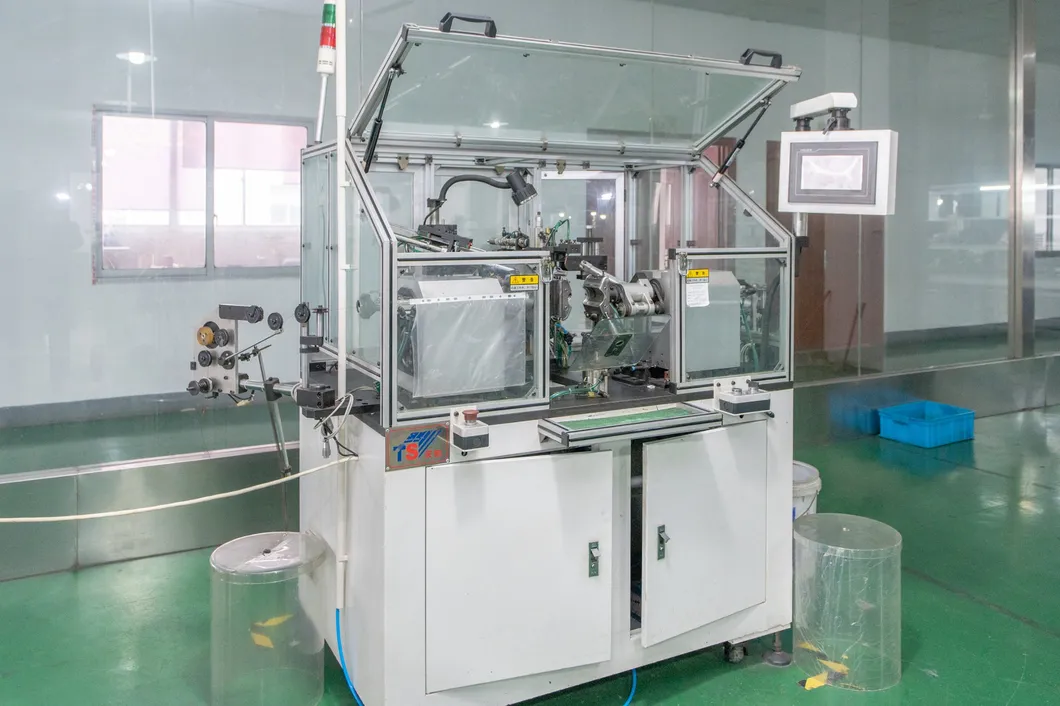

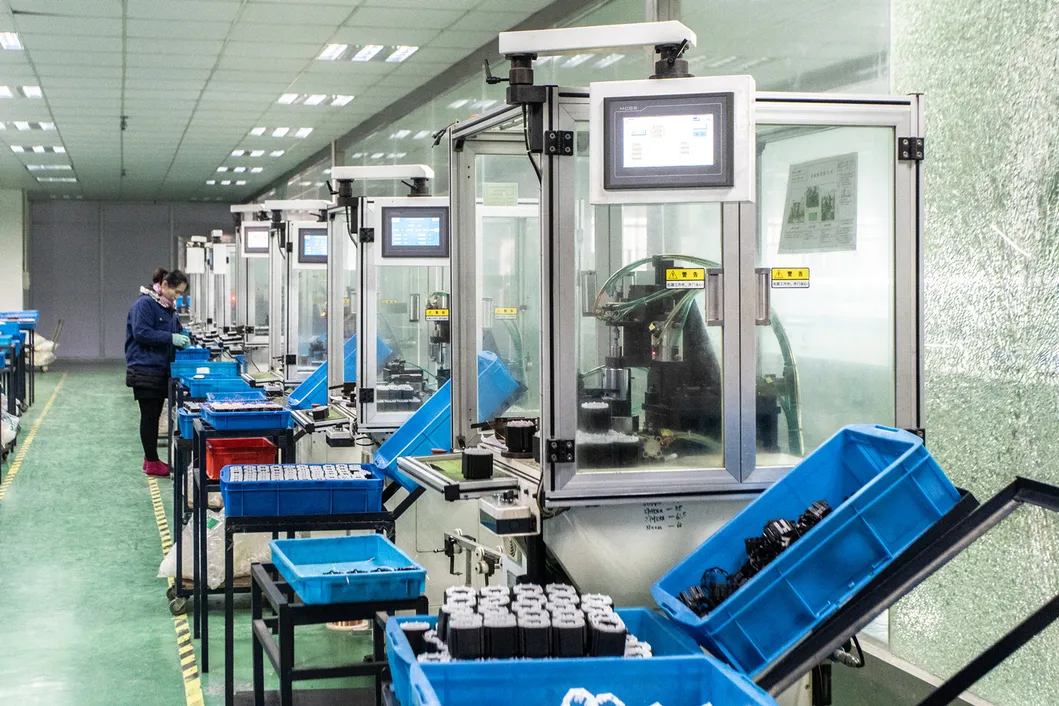

🏭 Production & Facility Gallery

📜 Certifications

❓ Frequently Asked Questions

How to place an order?

Send us an inquiry → Receive our quotation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery.

Can I request a sample order?

Yes, samples are available for quality verification. Please contact our team for specific sample details.

What shipping methods are available?

We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other methods can be arranged upon request.

What is the typical delivery lead time?

Delivery time depends on order quantity, but typically ranges from 15 to 25 working days.

How do I handle missing products in my package?

Please contact our support team immediately. We will verify the package contents against your order and resolve the issue.

What are the accepted payment terms?

We accept T/T and PayPal. Usually, a 30-50% deposit is required, with the remaining balance paid before shipping.
