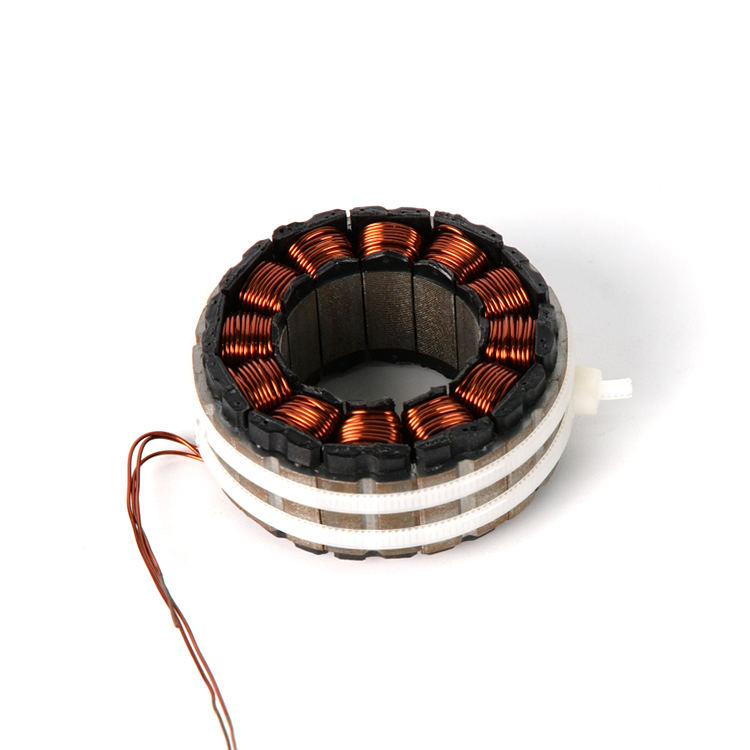

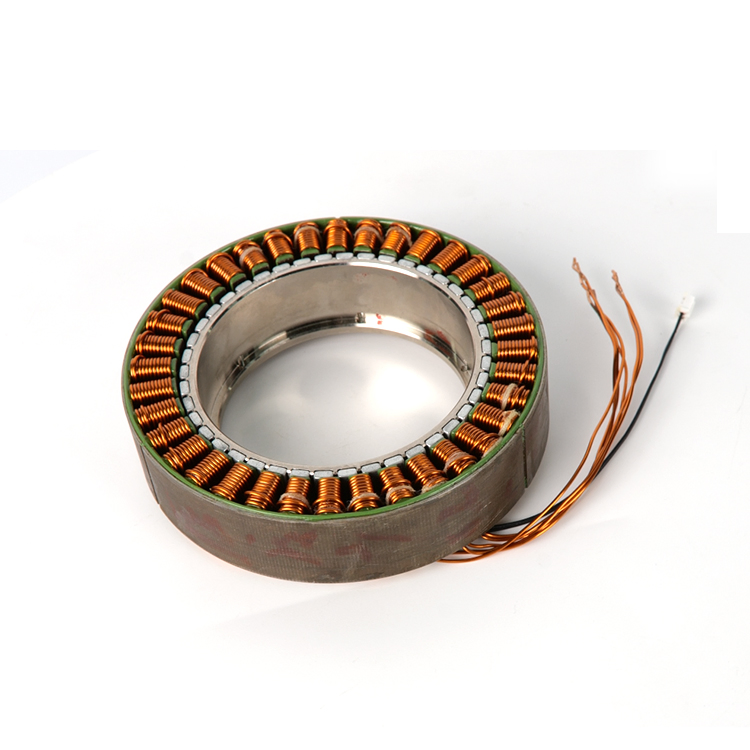

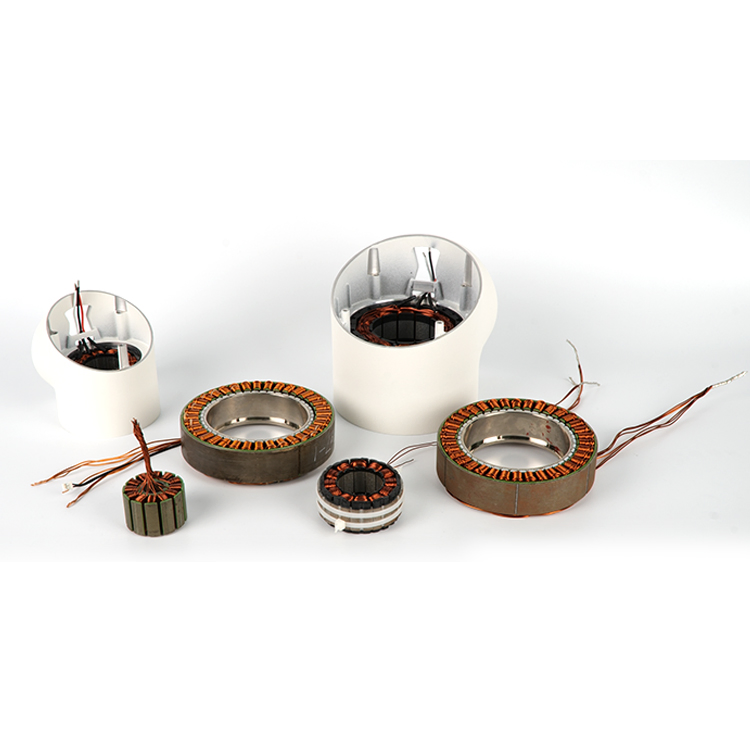

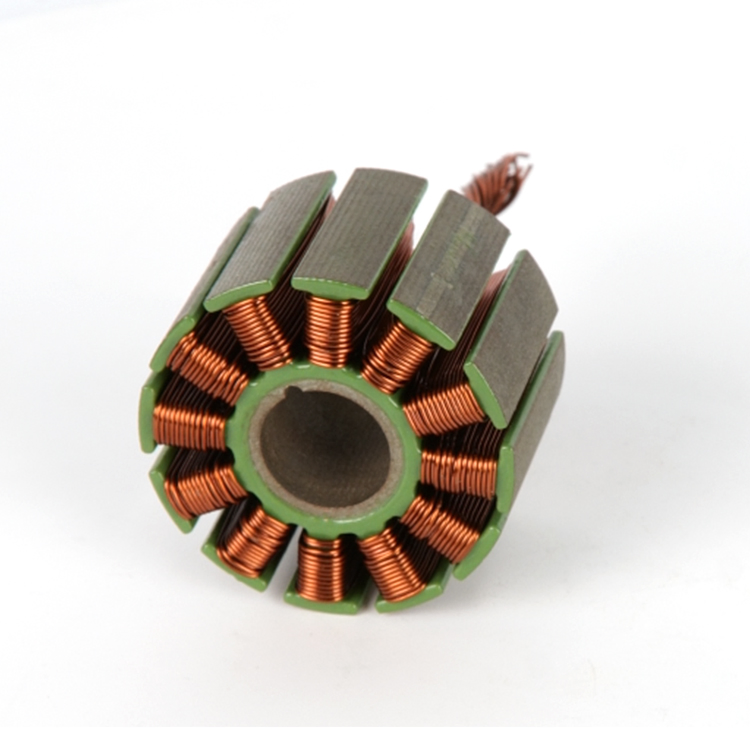

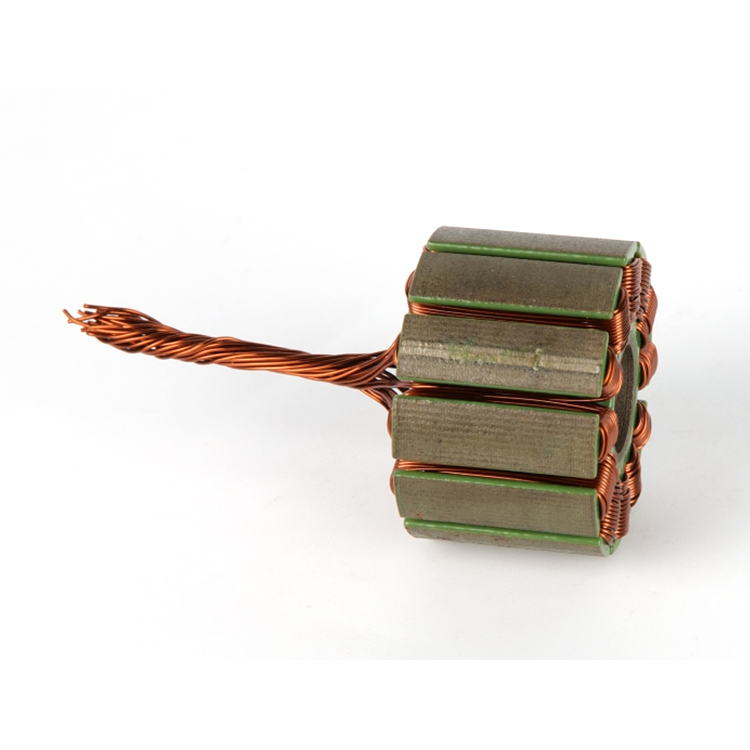

Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
1 / 5
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor
Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor

Beudmke Cobot Robot Arm Frame Less DC Motor Robotico Arm Industrial Frameless Direct Drive Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙ Basic Information
Model NO.
DMFL-60-48A
Excitation Mode
Compound
Function
Control, Driving
Casing Protection
Open Type
Number of Poles
4
Structure
Brushless
Certification
ISO9001
Rotor ID
36.2mm
Rated Speed
3000rpm/Min
Voltage
DC 48V
Motor Type
Frameless Robot Joint DC Motor
Specification
Dia 60mm
📋 Product Description

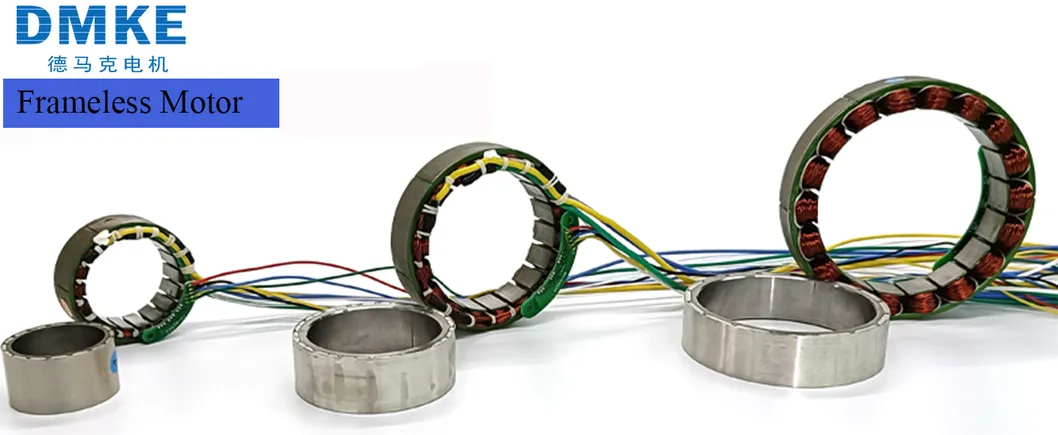

Frameless DC Motor Direct Drive Motor

Motor Size Drawing:

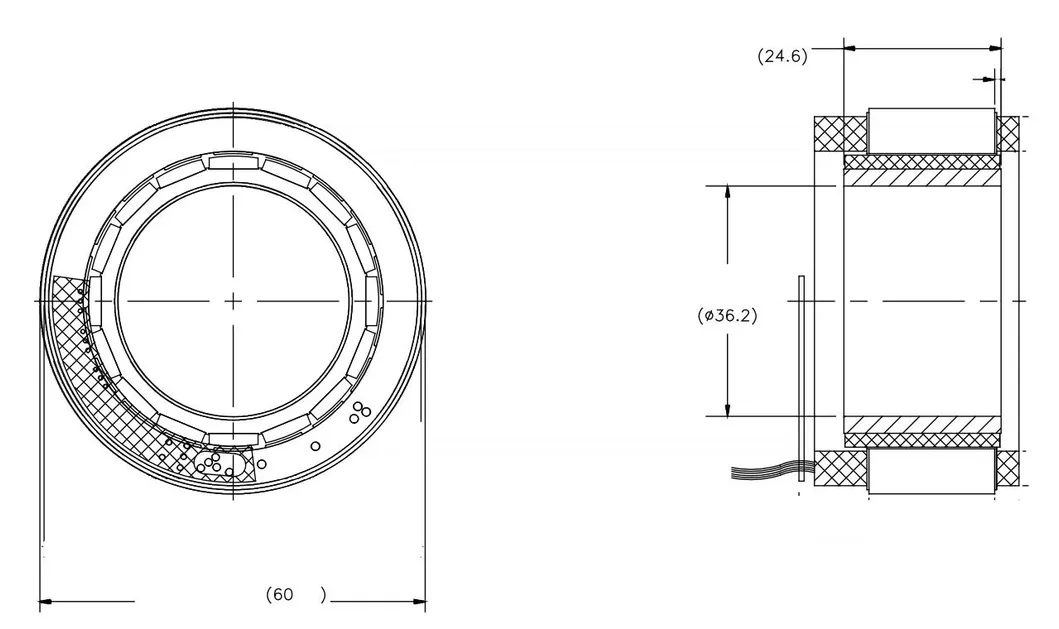

Motor Drawing 1

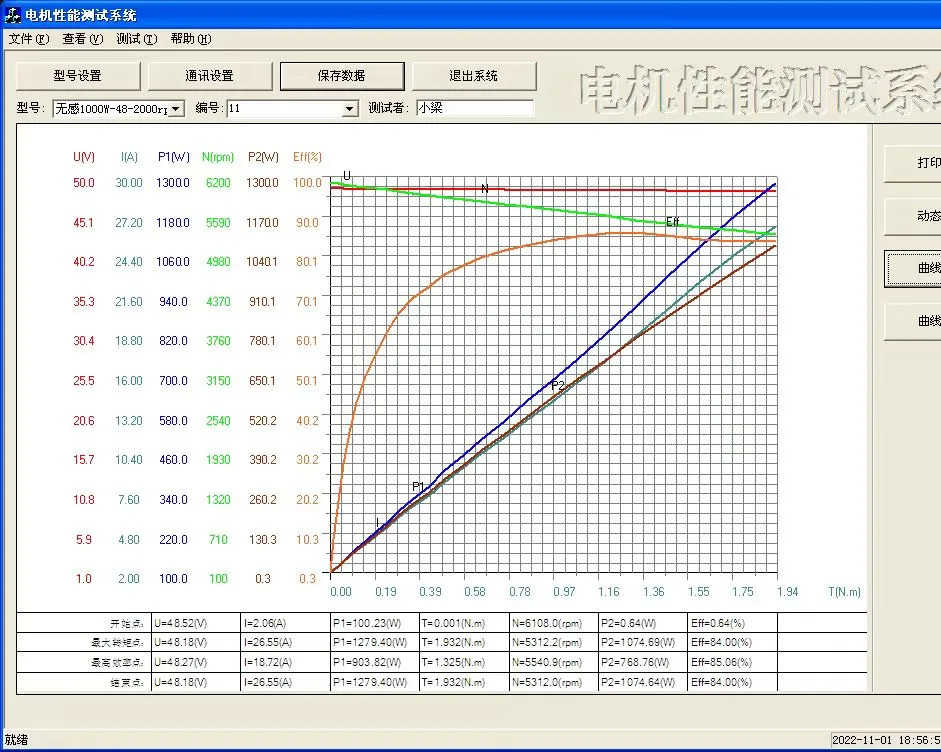

Motor Drawing 2

Robot Joint Frameless DC Motor Specification:

Maximum Rated Torque2.85 Nm
Continuous Stall Torque0.442 Nm
Max Speed7300rpm @ 0.663Nm
Standard Speed2000rpm @ 0.436 Nm
Phase ConnectionY connected
Operating VoltageDC 48v
Additional FeaturesHall and thermistor added
🔍 More Motor Options
Motor Selection

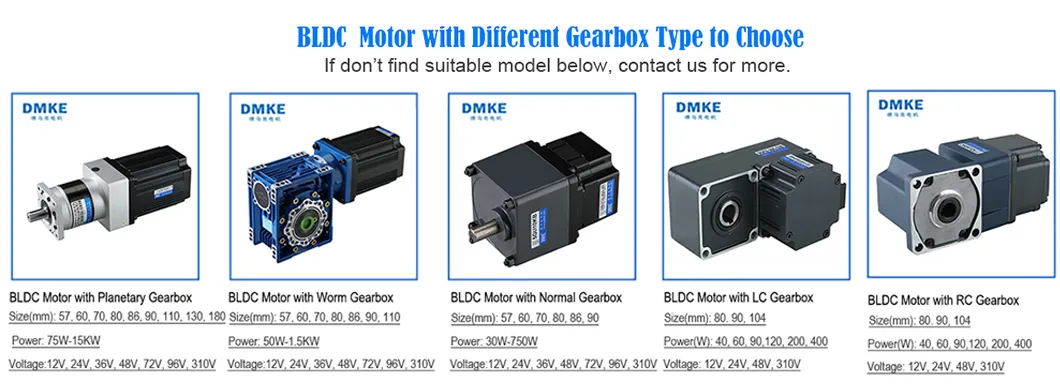

⚙ BLDC Motor with Gearbox Range
Gearbox Range 1
Gearbox Range 2
🏭 Professional Manufacturing

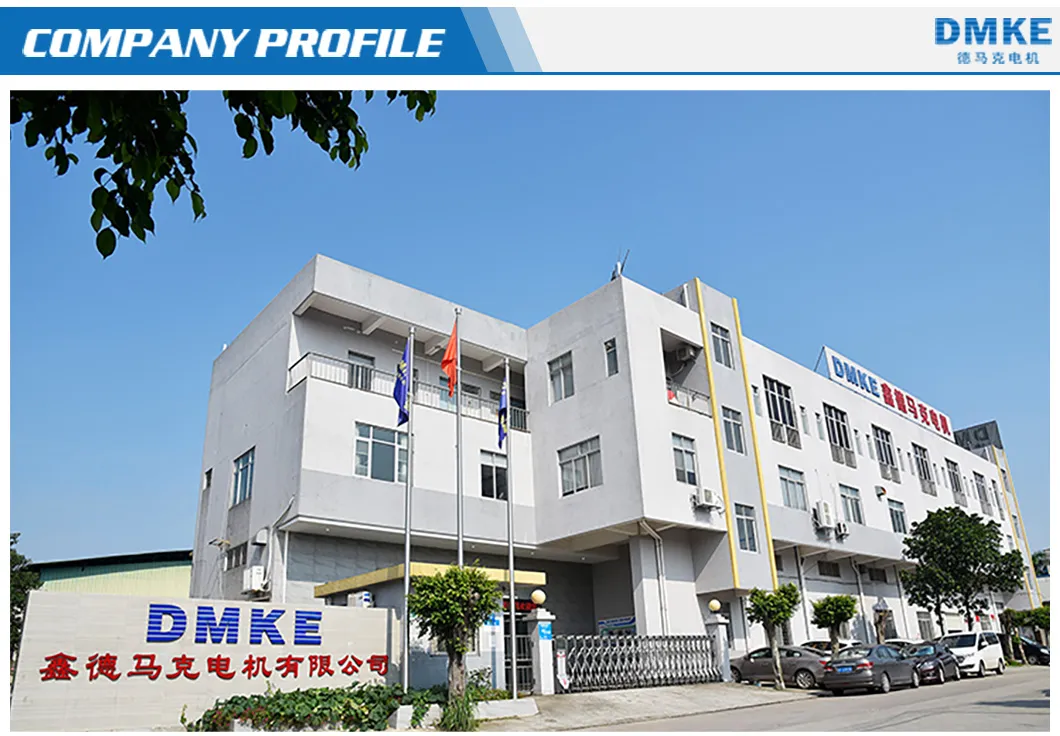

Production Facility

Specializing in high precision micro DC gear motors, brushless motors, brushless controllers, DC servo motors, and controllers. The product range covers power from 5 watts to 20 kilowatts for brushless DC motors, and 50 watts to 10 kilowatts for DC servo motors. These solutions are widely applied in automated guided vehicles, robotics, lifting equipment, medical devices, and industrial automation.

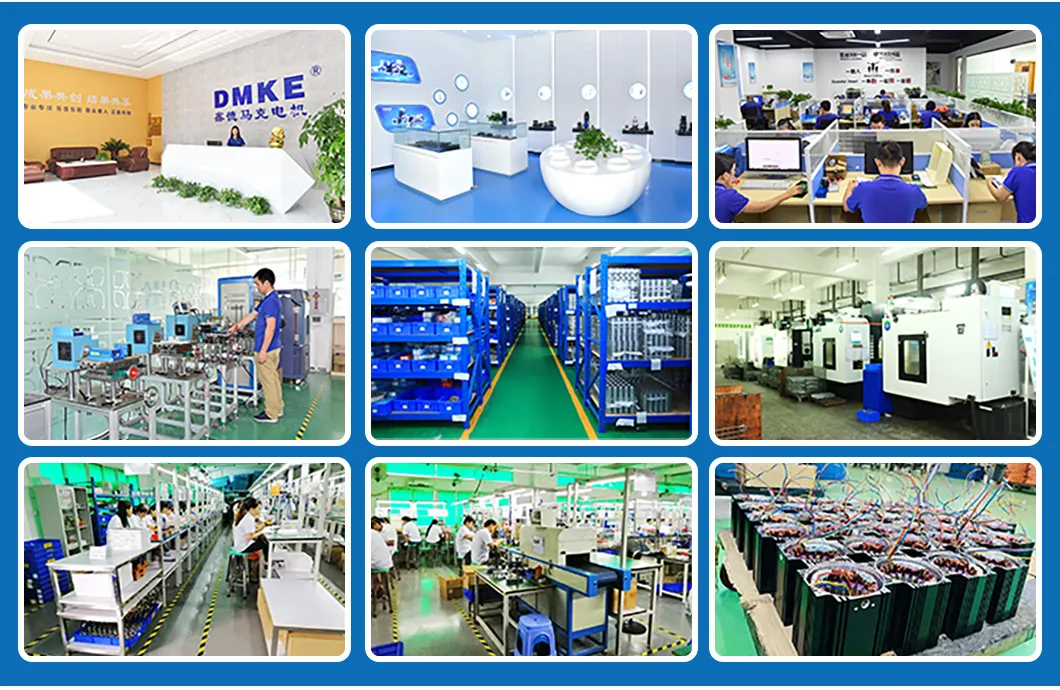

Factory Internal 1

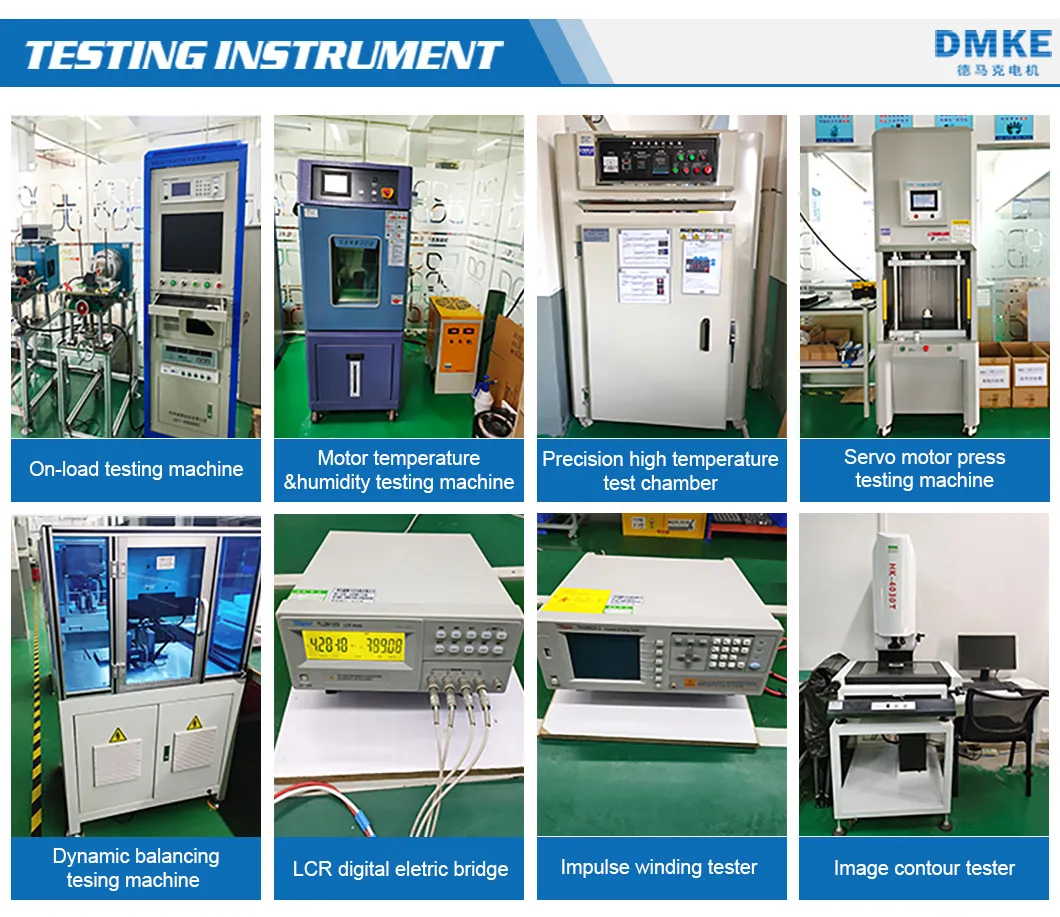

Factory Internal 2
Quality Control
❓ Frequently Asked Questions
Q1 What kind of motors can be provided?
Currently, we provide permanent magnet brushless DC motors, DC gear motors, micro DC motors, planetary gear motors, DC servo motors, and brush DC motors, with diameters ranging from 16 to 220mm and power from 5W to 20KW.
Q2 Is there a minimum order quantity (MOQ)?
No, we accept 1 piece for sample testing. Please note that sample pricing may differ from bulk pricing by 10% to 30% depending on the model.
Q3 Are the motors reversible?
Yes, nearly all DC and AC motors are reversible. Technical support is available to guide you on achieving this function through different wire connections.
Q4 Is it possible to develop new motors?
Yes. If you provide specific requirements such as performance, size, annual quantity, and target price, our engineering team can evaluate the development of customized motors.
Q5 What is the typical delivery time?
For micro brush DC gear motors, samples take 2-5 days and bulk orders 15-20 days. For brushless DC motors, samples take about 10-15 days and bulk orders 15-20 days.
Q6 What are the warranty terms?
All products come with a one-year warranty.
