Automatic Sliding Door Opener System Motor Square DC Brushless Motor

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

🔹 Basic Info

Model NO.

YFS120

Structure

Square Motor

Driving Type

Electromechanical

Electric Current Type

DC

Feature

Easy Operation

Usage

Auto Doors

Material

Aluminum Alloy

Rated Voltage

DC 24V

Name

Automatic Door Motor

Application

Supermarket, Office Building, Hotel

HS Code

85013100

Capacity

500,000 PCS/Year

📦 Product Description

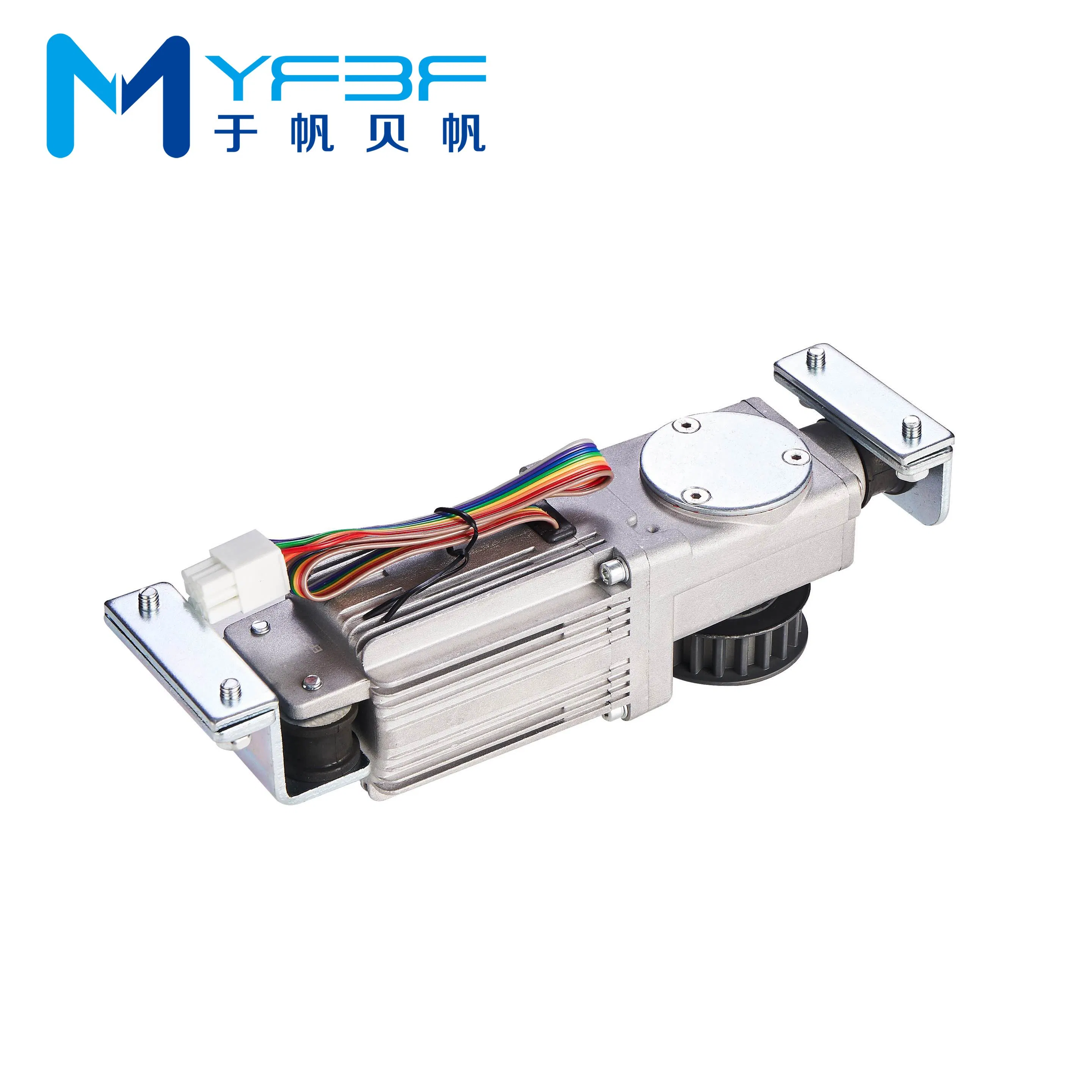

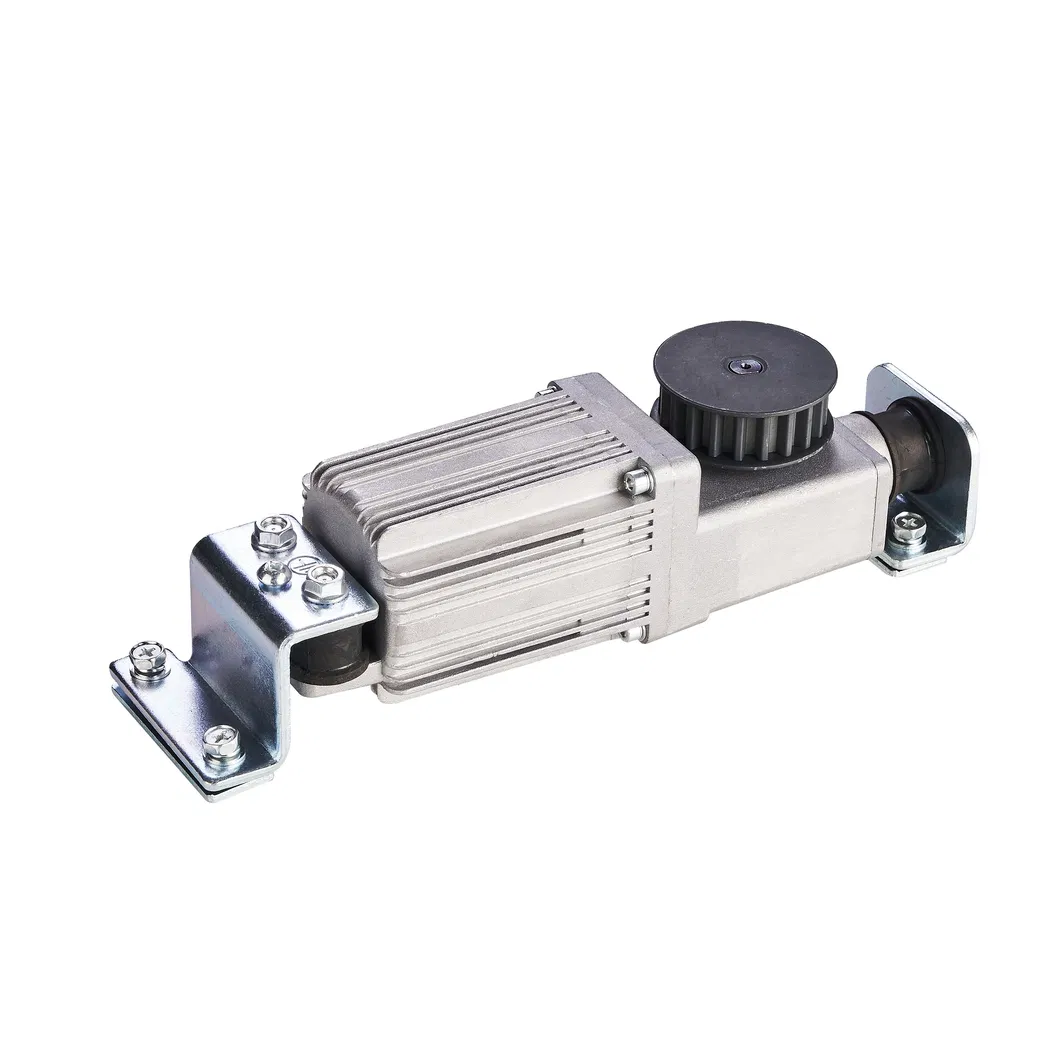

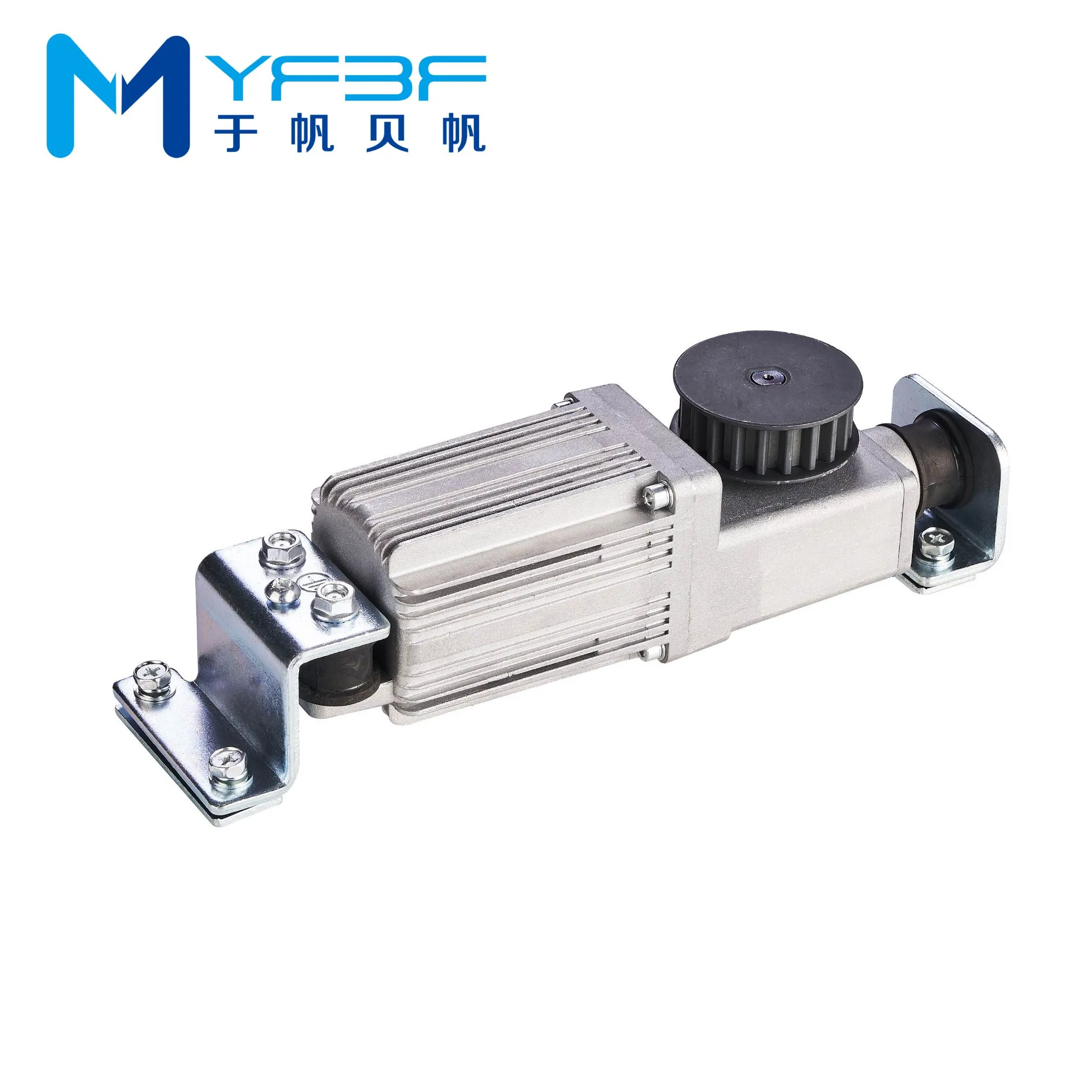

Automatic Sliding Door Opener System Motor Square DC Brushless Motor

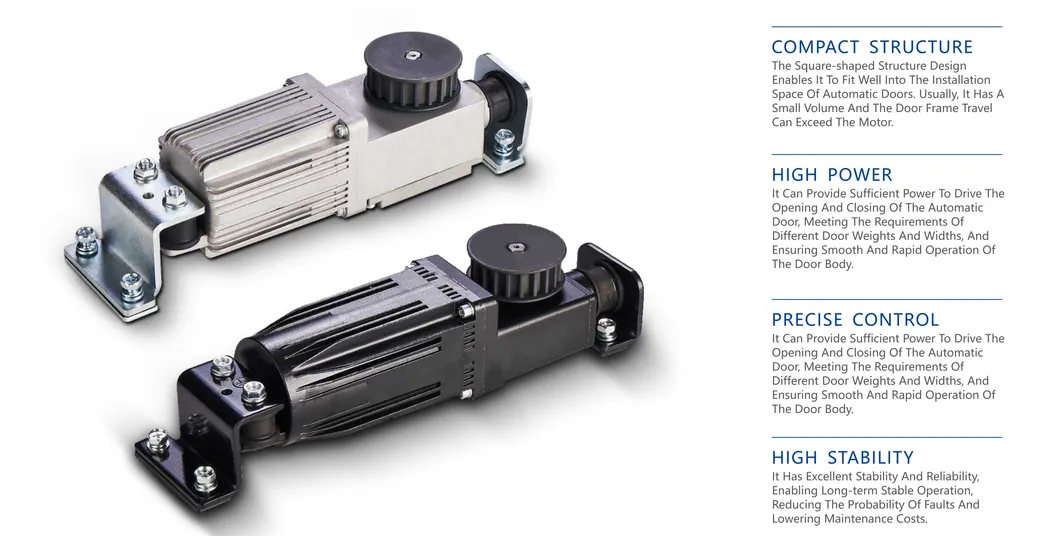

The YFS120 auto sliding door motor is widely utilized in automatic sliding door operators. Thanks to its innovative square shape, the motor allows automatic door operators to open fully, maximizing the width of the entrance for better accessibility.

Advanced Brushless DC Technology: Offers a longer service life and higher reliability compared to traditional brushed motors.
Compact & Powerful: Small volume design that delivers strong power and high working efficiency.
Ultra-Quiet Operation: Engineered for low noise and minimal vibration using automatic lubrication technology.
Durable Construction: Built with high-strength aluminum alloy material for long-lasting durability.
High Stability: Compatible with bearing metal alloy wheel driving belts for stable and smooth performance.
Fully Sealed Structure: Features a rubber band protection for screws, making it anti-pressure, weight-bearing, and leak-proof.
Circuit Protection: Equipped with an internal security protection circuit, allowing frequent operation without trouble.

📊 Product Parameters

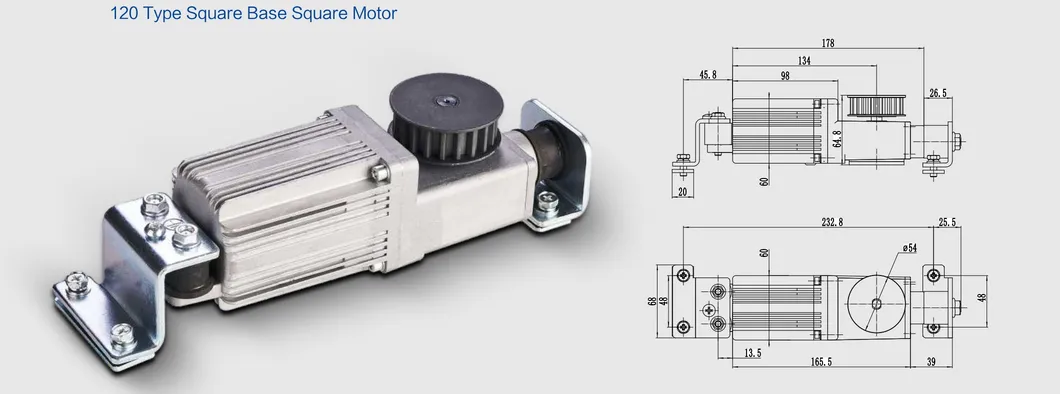

Product	120 type square base square motor	Rated Current	2.1A
Model	YFS120A/12	Rated Speed	2600RPM
Color	Natural/Black/Customize	On Load Speed	217RPM
Stator Slots	12	Gear Ratio	1:12
Magnetic Poles	4 pairs	Rated Torque	0.35Nm (Without Gearbox)
Motor Pulley	S8M powder metallurgy	Stall Torque	0.5Nm (Without Gearbox)
Rated Voltage	DC 24V	Motor Socket	JST/ELP-09V
Rated Power	50W	IP Level	IP54

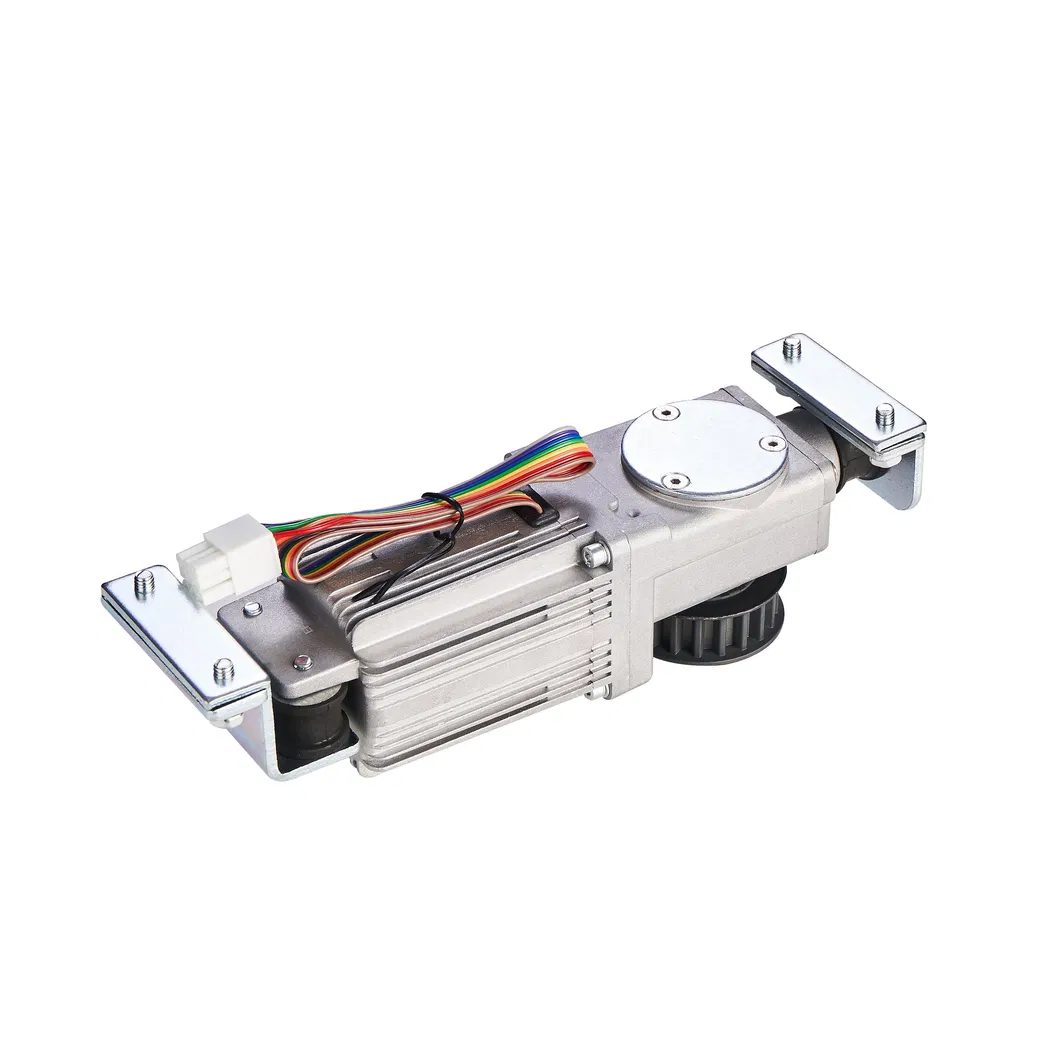

📷 Detailed Photos

🏢 Industry Expertise

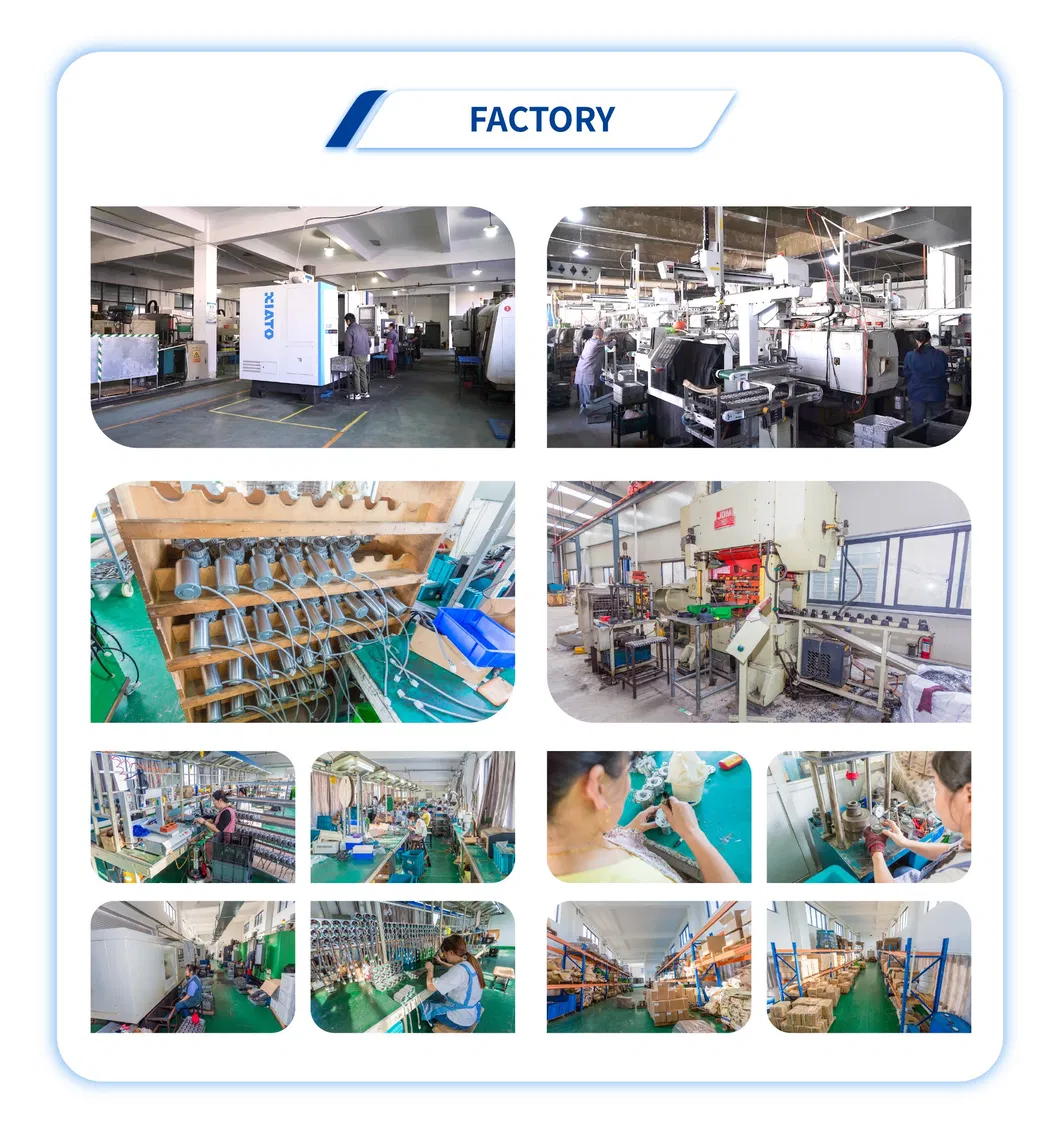

Specializing in the production of high-quality automatic door motors, sliding door operators, and swing door systems. With years of technical expertise, our solutions are designed to provide smooth, efficient, and reliable access for commercial, industrial, and residential environments.

Our motors utilize precision engineering to ensure long-lasting performance. We offer complete systems including sensors, control panels, and accessories, ensuring a seamless integration for any entrance requirement. All products undergo rigorous quality control to meet industry safety standards.

❓ Frequently Asked Questions

What are the main advantages of using a brushless DC motor for automatic doors?

Brushless DC motors offer significantly higher reliability, lower operational noise, and a longer lifespan compared to brushed versions. They are also more energy-efficient and require less maintenance.

Can this motor handle heavy-duty sliding doors?

Yes, the YFS120 is designed with a high-strength aluminum alloy and a powerful 50W output, making it suitable for standard and heavy-duty automatic sliding doors in high-traffic areas like supermarkets and hotels.

What is the typical lead time for an order?

Samples are generally ready within 7 days. For mass production, the average lead time is between 20 to 30 days after the final approval and deposit receipt.

What kind of documentation do you provide for international shipping?

We can provide all necessary export documentation, including Certificates of Origin, Insurance, and Certificates of Conformance to ensure a smooth customs process.

What is the warranty policy for these motors?

We provide a full warranty on materials and workmanship. Our commitment is to ensure total customer satisfaction and resolve any technical issues promptly.

How are the products packaged for safe delivery?

We use high-quality, standardized export packaging, including reinforced cartons or wooden cases, to ensure that the motors arrive in perfect condition even during long-distance seafreight.
