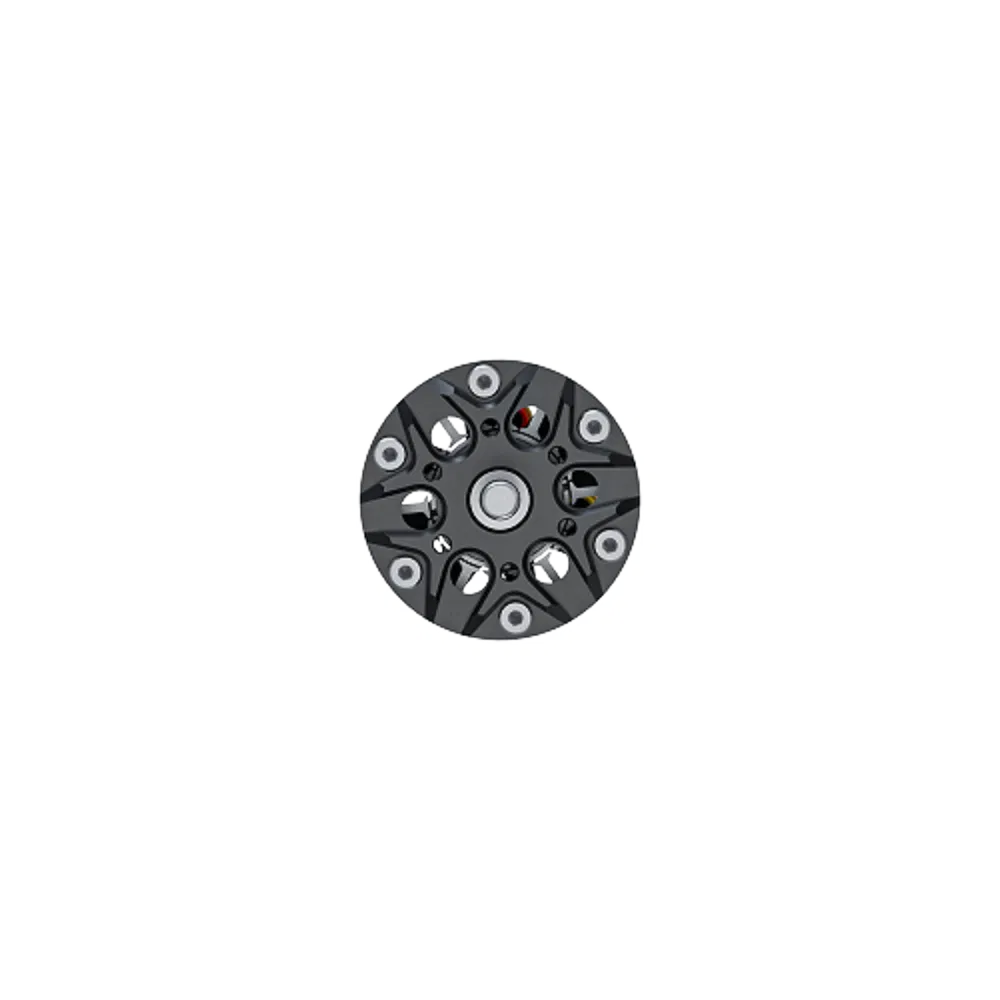

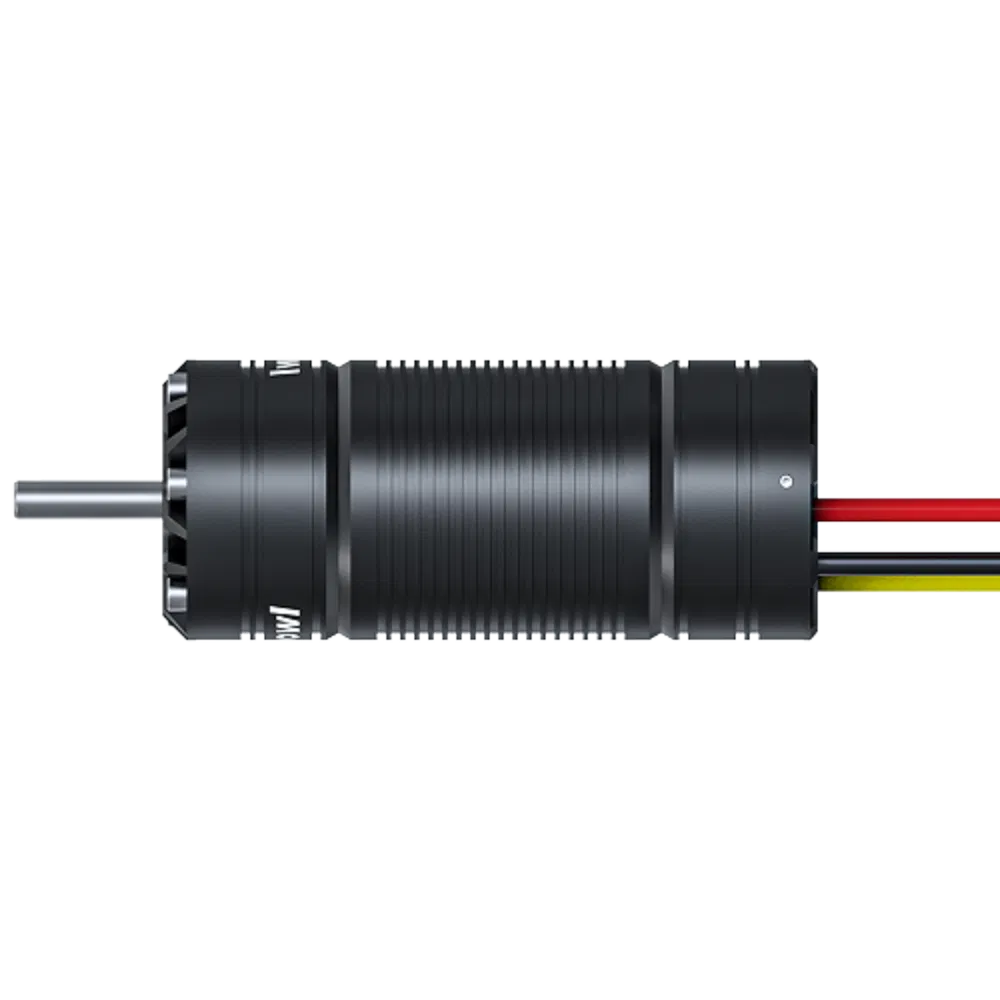

Advanced BLDC Motor with 4500W Power for DIY Electric Motor Projects Brushless DC Motor

1 / 5

Advanced BLDC Motor with 4500W Power for DIY Electric Motor Projects Brushless DC Motor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

YO58135

Excitation Mode

Excited

Function

Control

Structure

Brushless

Poles

Certification

ISO9001

Max Voltage

96V

Max Amps

99A

Max RPM

28000

Continuous Power

4000W

Weight

1520g

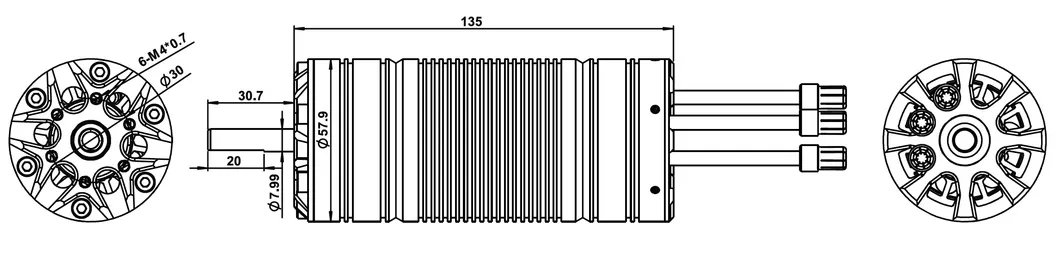

Size

57.8*135mm

Product Features

✓

High Power: Rated up to 4000W for demanding applications.

✓

Efficiency: Motor efficiency levels available above 92%.

✓

Durability: Extended lifespan exceeding 10,000 continuous hours.

✓

Protection: IP68 protection rank available for harsh environments.

✓

Versatility: Size range from 57.8mm to 135mm with low noise output.

✓

Control: High-performance and stable matching for drivers/controllers.

Our motors are crafted with robust materials and cutting-edge engineering, significantly reducing wear and tear. This design ensures long-lasting reliability and delivers substantial cost savings over time.

Technical Parameters

Model No.	KV	Max Amps	Max Volt	Continuous (W)	Max Power (W)	Max RPM	Weight (g)
58135-2.66T	560	190A	50V	4500	9500	28000	1520
58135-3T	490	190A	55V	4500	10000	28000	1520
58135-4T	370	140A	72V	4500	10000	28000	1520
58135-5T	300	110A	90V	4500	10000	28000	1520
58135-6T	250	90A	110V	4500	10000	28000	1520
58135-3Y	290	99A	96V	4000	9500	28000	1520

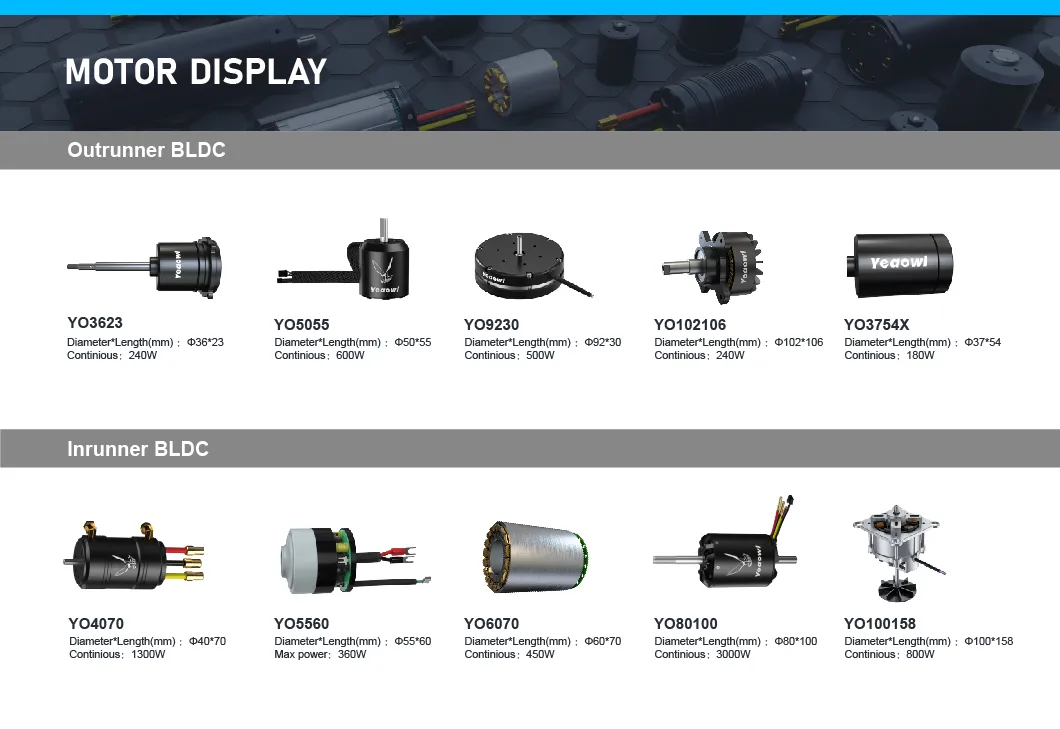

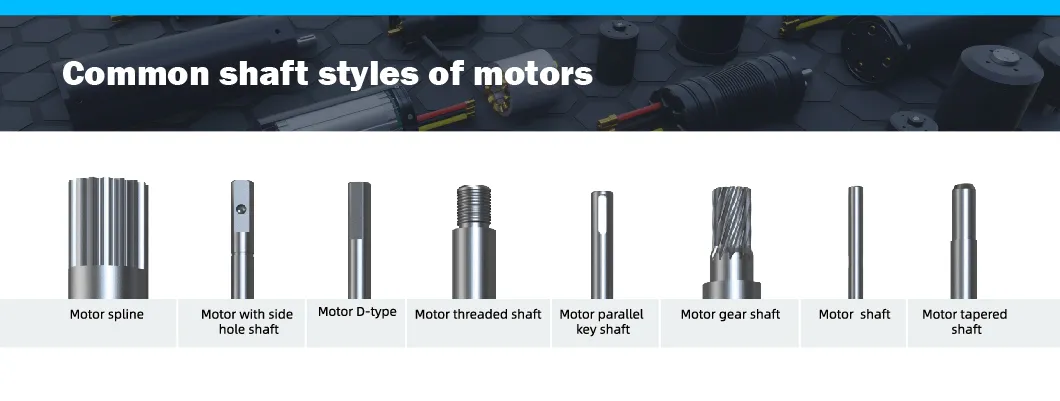

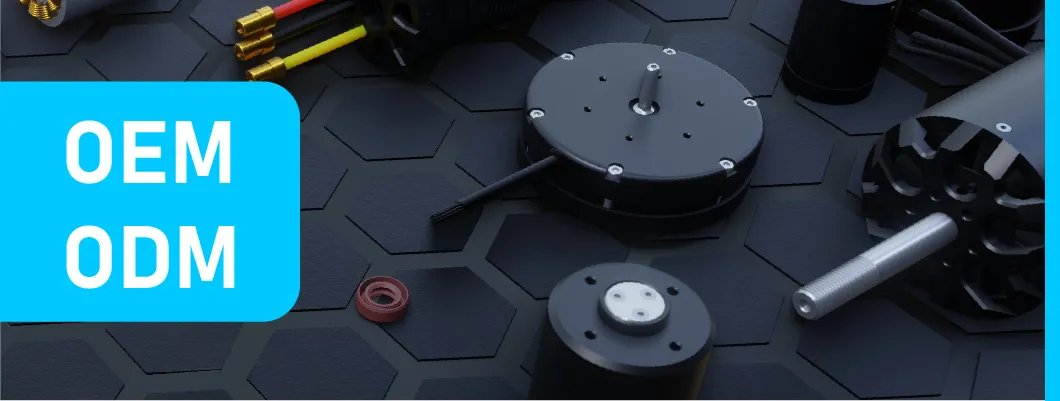

Motor Display & Customization

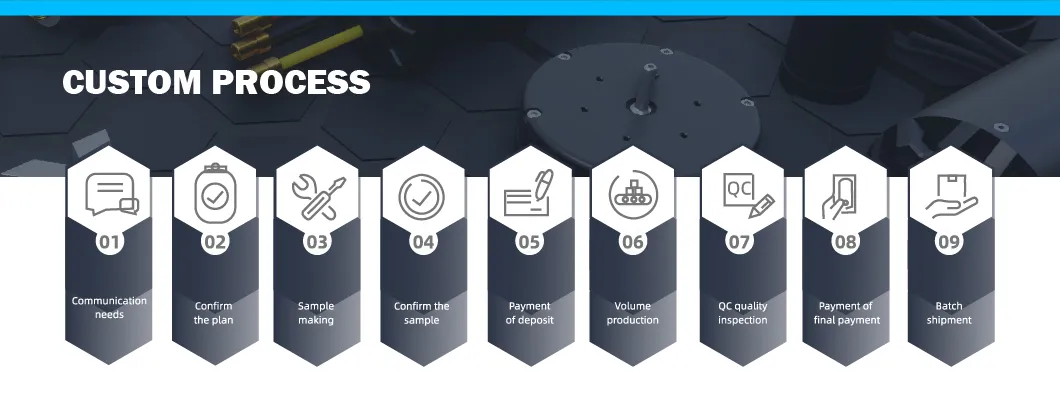

We specialize in crafting high-quality motors precisely suited to your specifications. Our personalized approach guarantees that motor costs, compatibility, and functional requirements are met with exactness.

Quality & Innovation

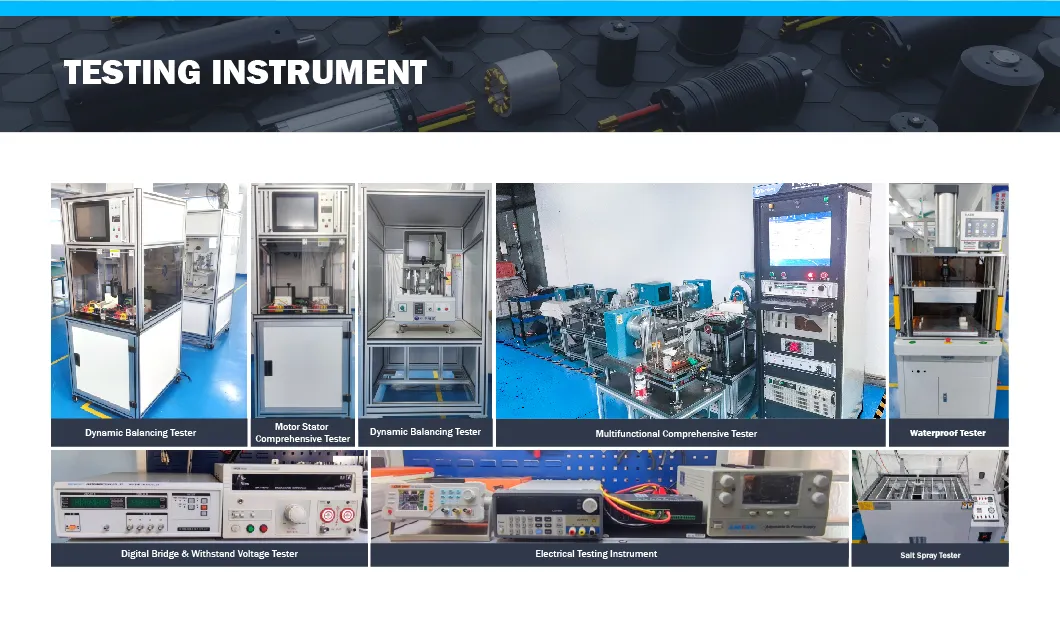

Our High-Power Waterproof Brushless DC Motors are crafted for a wide array of electric drive applications. We utilize state-of-the-art instruments for rigorous inspection from raw materials to finished products, ensuring superior quality through data-driven assurance.

Frequently Asked Questions

What kind of motors can you provide?

We mainly provide DC permanent magnet motors, DC brushless motors, waterproof motors, BLDC motors, motor drives, motor controllers, and comprehensive solutions for electric drive products.

Is there a MOQ for your motors?

Yes, our minimum order quantity is 100 units. However, we can accept 1 piece for sample testing, though sample pricing differs from bulk rates.

Are your motors reversible?

Yes, nearly all DC and AC motors are reversible. Our technical team can guide you on achieving this through different wire connections.

Can you develop new motors if we provide tooling costs?

Yes. Please share your detailed requirements regarding performance, size, annual quantity, and target price for our evaluation.

What is the typical delivery time?

For brushless DC motors, sample delivery takes approximately 45-60 days, while bulk production typically takes 50-70 days.

What are your warranty terms?

We provide a standard one-year warranty on our motor products.
