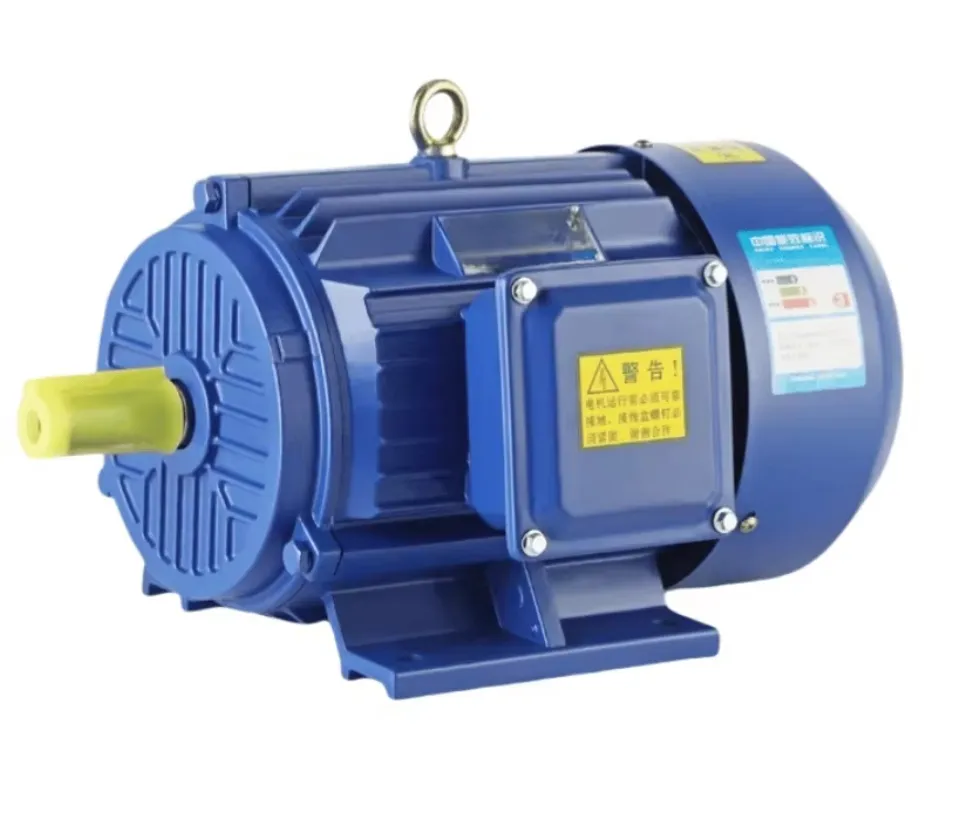

KPR Motor
1 / 5
| Model NO. | YE2 IE2 Y2 |
| Number of Stator | Three-Phase |
| Species | Y, Y2 Series Three-Phase |
| Rotor Structure | Squirrel-Cage |
| Casing Protection | Protection Type |
| Number of Poles | 4 |
| Starting Mode | Direct on-line Starting |
| Certification | CCC |
| Bearing | SKF/C&U/ NSK |
| Frequency | 50Hz / 60Hz |
| Motor Winding | 100% Copper Winding |
| Voltage | 380V |
| Color | Blue or to Request |
| Winding | Copper Wire |
| Transport Package | Wooden Case/Carton/Pallet |
| Production Capacity | 5000PCS/Month |
IE3/YE3 AC Electric Motors Parameter
The YE3 series high efficiency three-phase asynchronous motor is a fully enclosed squirrel-cage type motor manufactured using advanced materials and innovative processes. Its efficiency meets the Level 3 energy efficiency requirements specified in GB18613-2020, equivalent to the IEC 60034-30-1 standards.
This motor series features an efficiency-optimized design that complies with energy conservation and consumption reduction requirements. It is suitable for various applications including machine tools, fans, pumps, packaging machinery, and conveying equipment, making it the ideal replacement for Y2 and YE2 series motors.
| Warranty Period | 1 year |
| Type | AC asynchronous motor |
| Frequency | 50Hz/60Hz |
| Voltage | 220V/380V/440V/480V/660V/1140V (Customizable) |
| Power Range | 0.75HP - 420HP / 0.55KW - 355KW |
| RPM (at 50Hz) | 2P(2900r/min), 4P(1480r/min), 6P(960r/min), 8P(720r/min) |
| Phase | Three phase and Single-phase |
| Center Height | 80mm-355mm |
| Efficiency Class | IE3 |
| Protection Level | IP54, IP65 |
| Casing Material | Iron, Aluminium |
| Installation Method | B3, B5, B14, B34, B35 |
