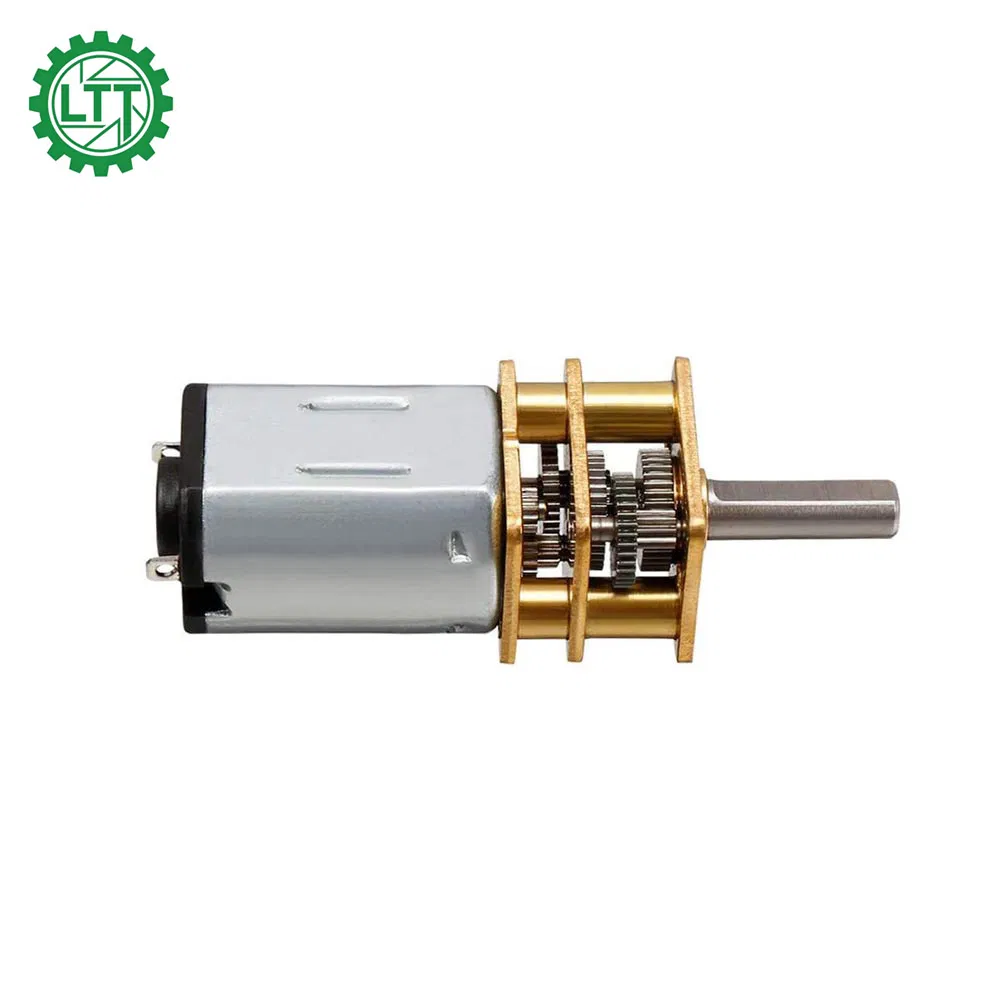

12mm High Torque Low Noise Micro N10 N20 N30 3V 4.5V 6V 12V Brush DC Gear Motor

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Info
Model NO. LGM12-N20 Type DC Gear Motor
Excitation Mode Shunt Function Control, Driving
Casing Protection Protection Type Number of Poles 2
Structure Brush Construction Permanent Magnet
Gearbox Size 12*10*L mm Motor Size φ12*10*15mm
Rated Voltage 3V 4.5V 6V 12V Certification ISO9001, CE, RoHS
HS Code 8501101000 Capacity 500000 pieces/Month
Product Description
12mm Micro DC Gear Motor Specifications
Voltage Range 1.5v-24v Speed Range 5rpm-3000rpm
Current ≤0.3A Stall Torque ≤1kg.cm
Typical Applications Commercial Products, Door lock, Educational robot, Electric shaver, Hub lock, Industrial Tools, Model train, Monitor, Security and Locks, Toy robot, etc.
Shaft Shape Circular, D-shape, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole

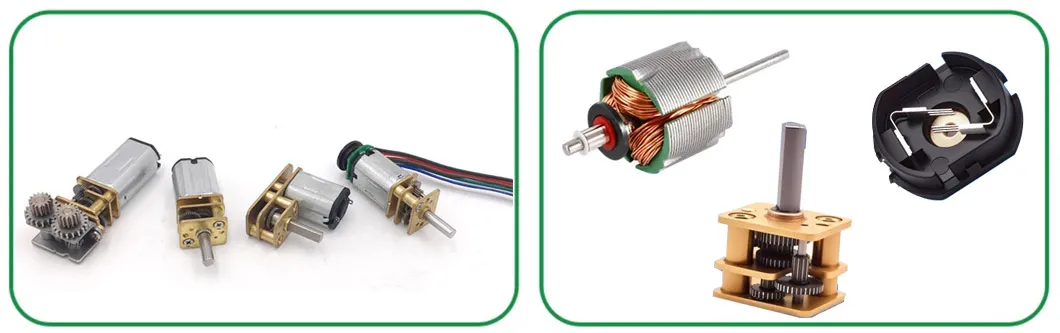

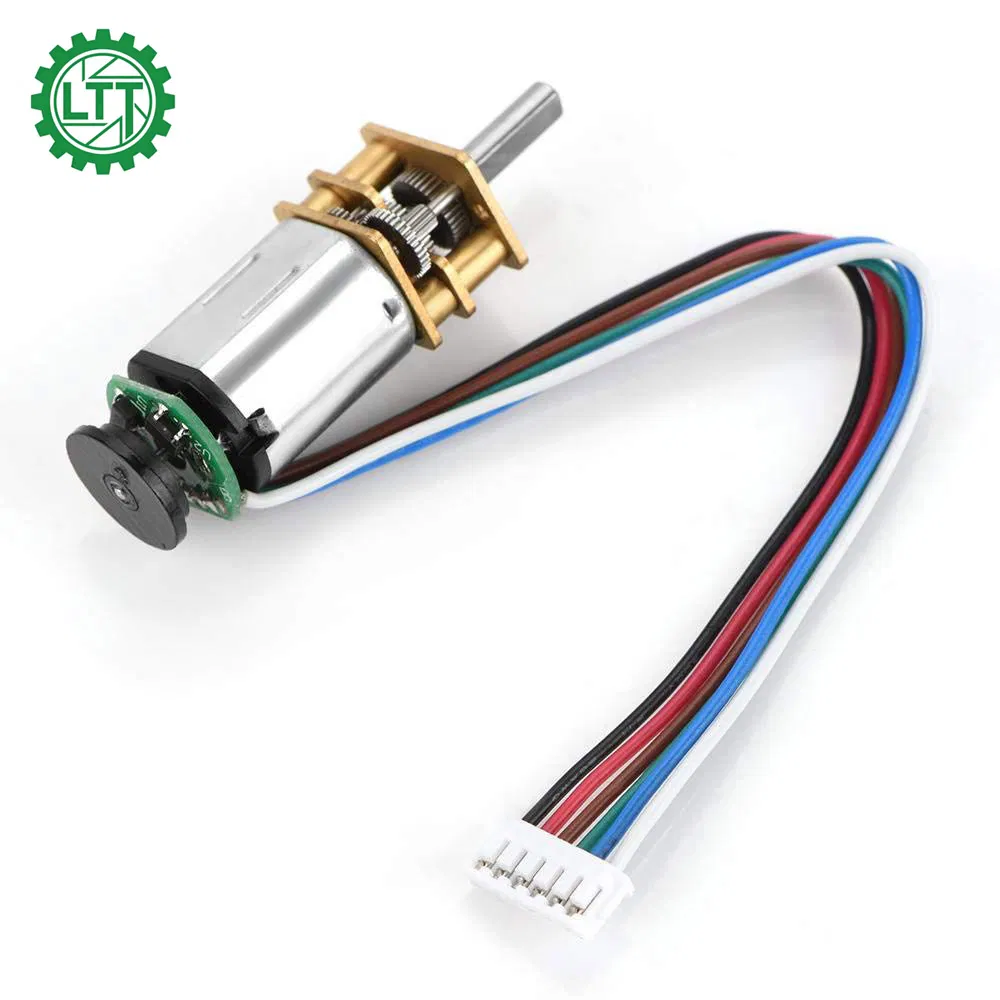

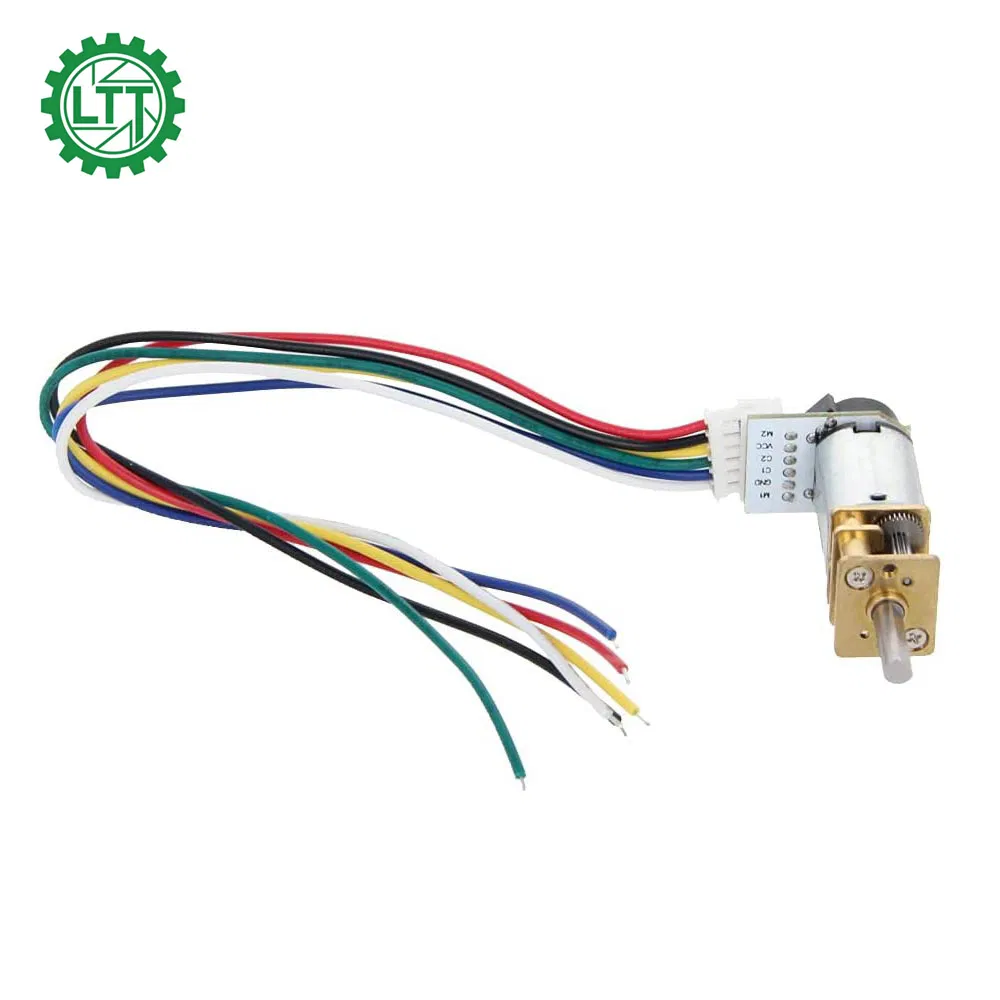

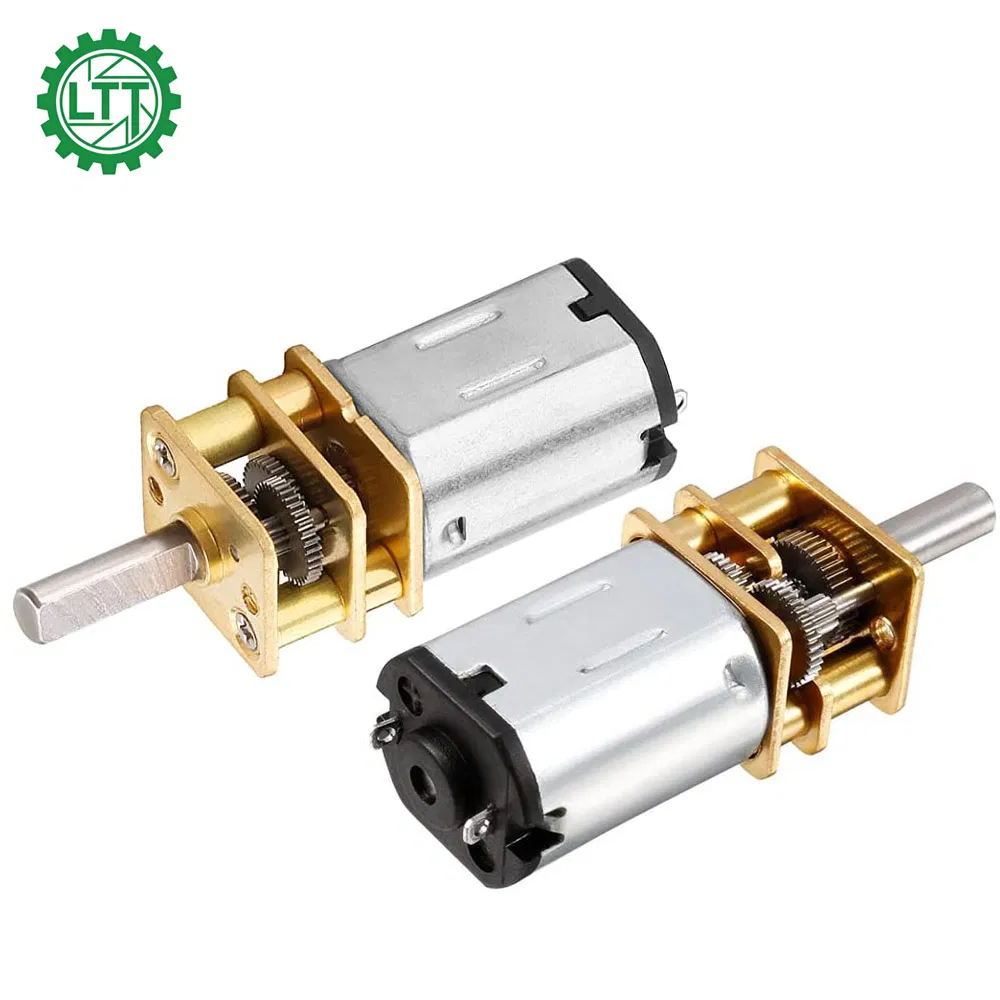

DC Gear Motor View 1

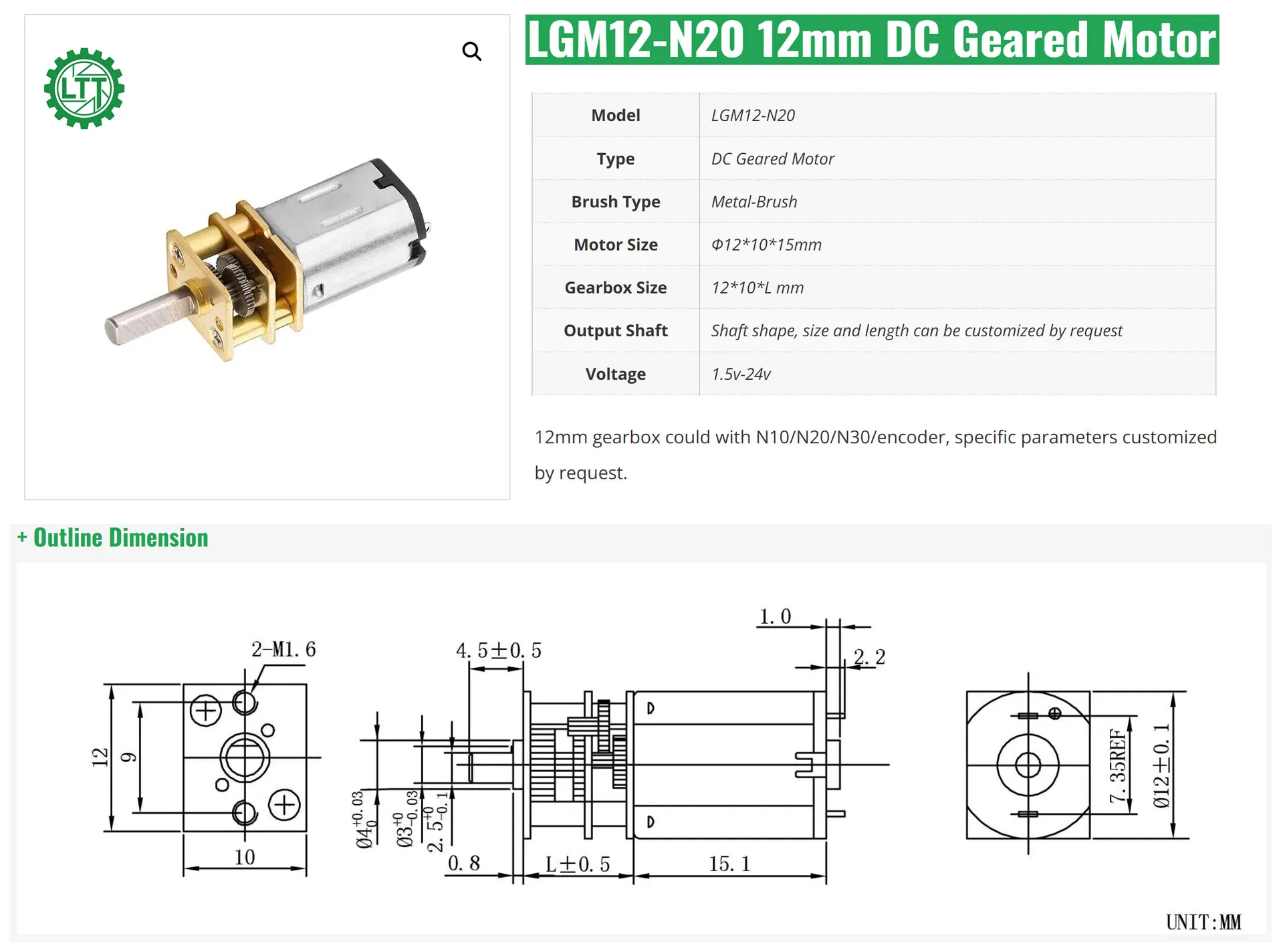

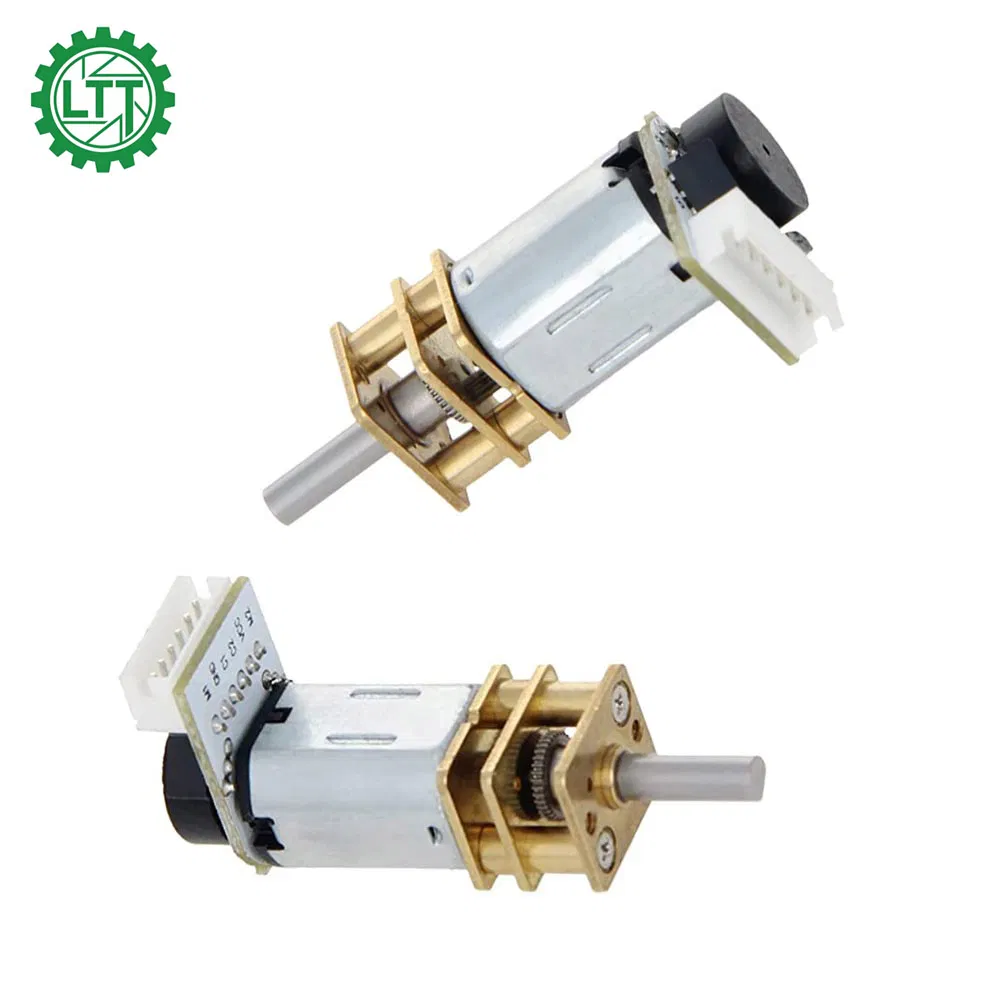

DC Gear Motor View 2
Technical Specification

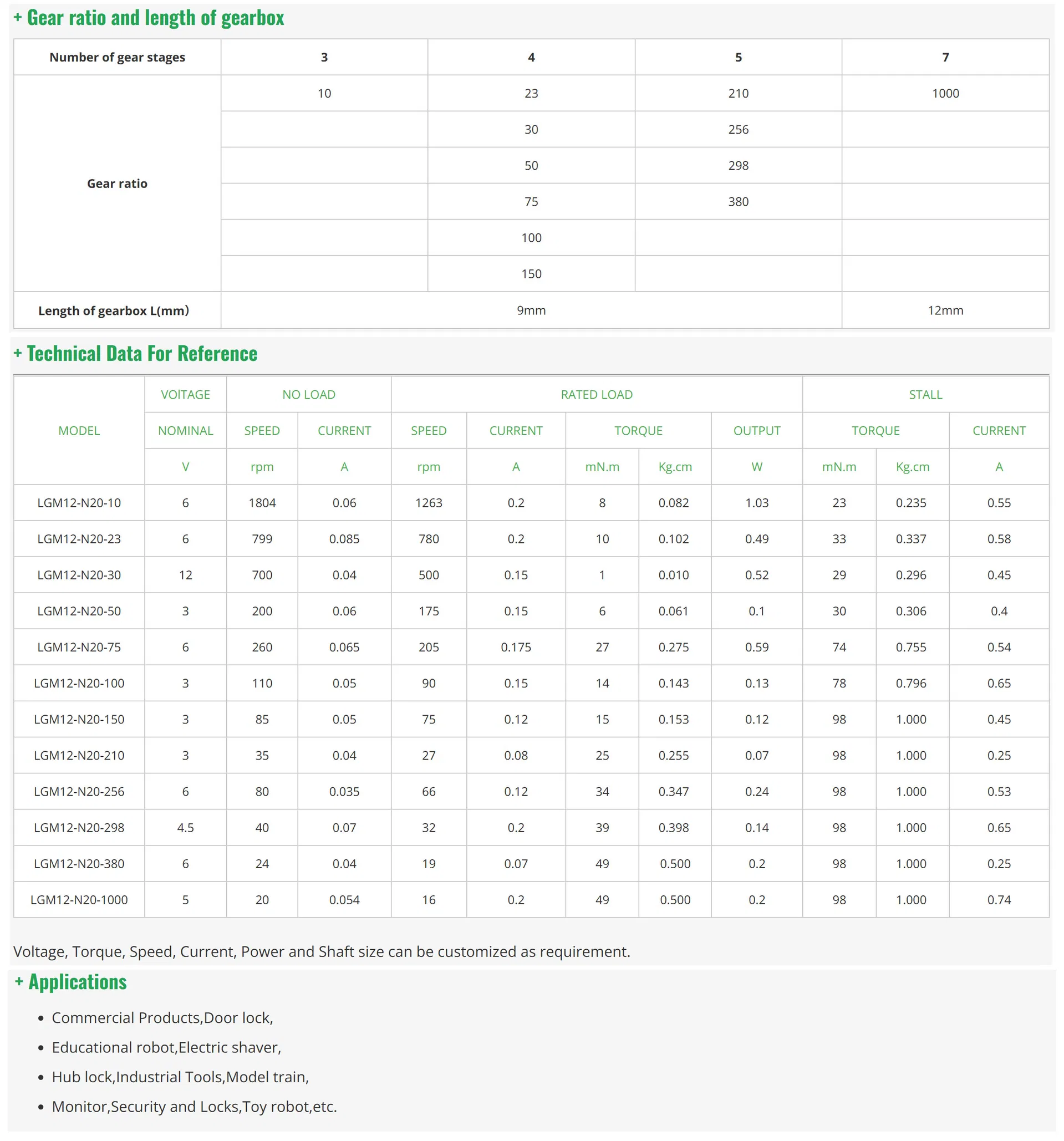

Specification Sheet 1
Specification Sheet 2
Product Range

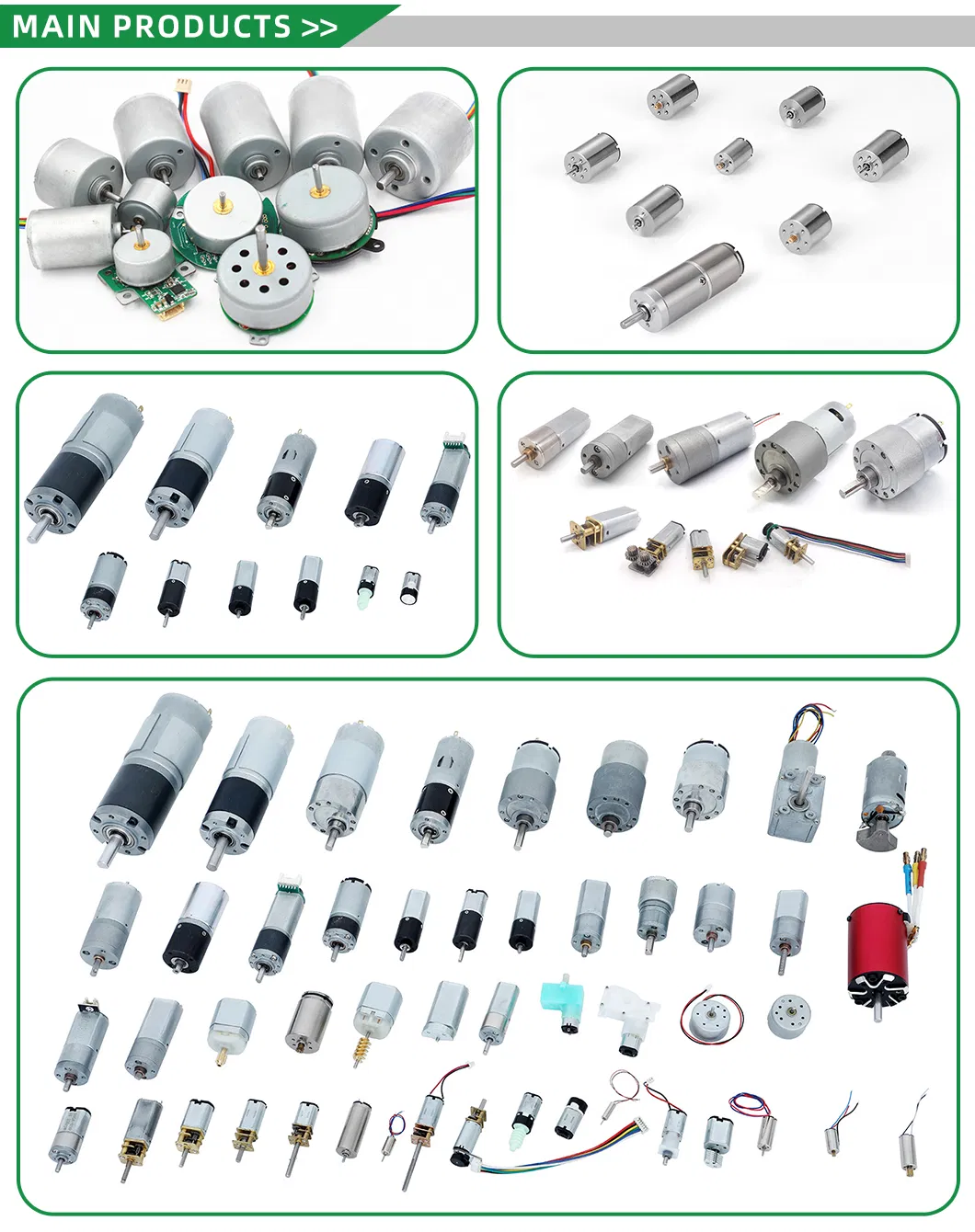

Main Product 1
Main Product 2
Company Profile & Core Advantages

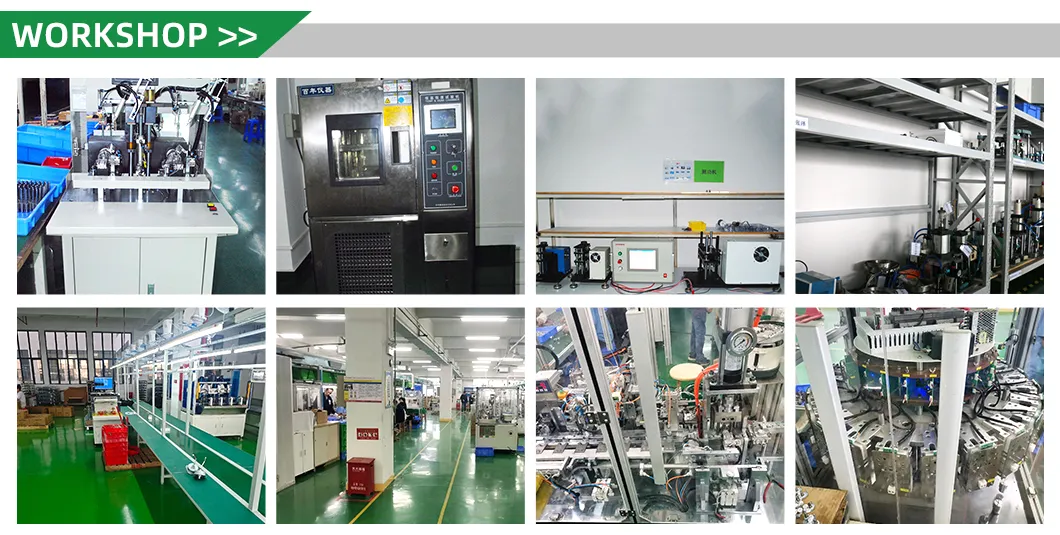

Workshop
Deeply involved in hardware modules, small gear modules, and miniature precision planetary gearbox industries. We provide comprehensive drive system solutions for industrial tools, personal care, automotive parts, and smart locks.
1
Expert Focus: Over 10 years of experience in manufacturing and R&D of Micro DC Motors.
2
Customization: Quick 7-day sample production based on specific customer requirements.
3
Certified Quality: ISO9001:2008 compliant with international safety certifications (CE, RoHS, UL).
4
Premium Materials: Precision components using high-quality imported materials.
5
Durability: Long service life ranging from 3-20 years under standard conditions.
6
Reliable Service: 24/7 online response with a dedicated technical support team.
Facility 1
Facility 2
Certifications
Certification 1
Certification 2
Packaging & Shipping
Packaging details
Shipping Methods: Packing by crate, carton, or pallet. Shipping via air (DHL, FedEx, UPS, TNT), sea, or express delivery depending on customer preference.
Frequently Asked Questions
Q: Do you provide samples for testing?
A: Yes, we provide samples for all clients to test before mass production. The typical lead time is 7-15 days.
Q: How do I select a suitable DC Gear Motor?
A: Provide us with your voltage, speed, torque, motor size, and application requirements. If you have drawings or pictures, sharing them will help us recommend the best fit.
Q: Can you customize the motor shaft and specifications?
A: Yes. We can customize voltage, speed, torque, and shaft size/shape. We can also add specific wires, connectors, or capacitors upon request.
Q: Do you keep items in stock?
A: We generally produce items per order. We do not keep a standard inventory for immediate shipping.
Q: What are your shipping and payment methods?
A: We ship via air (Express like DHL/UPS) or sea. We accept T/T in advance, PayPal, and credit cards.
Q: Do you offer technical support?
A: Yes, our strong R&D team provides comprehensive technical support throughout your project development.
