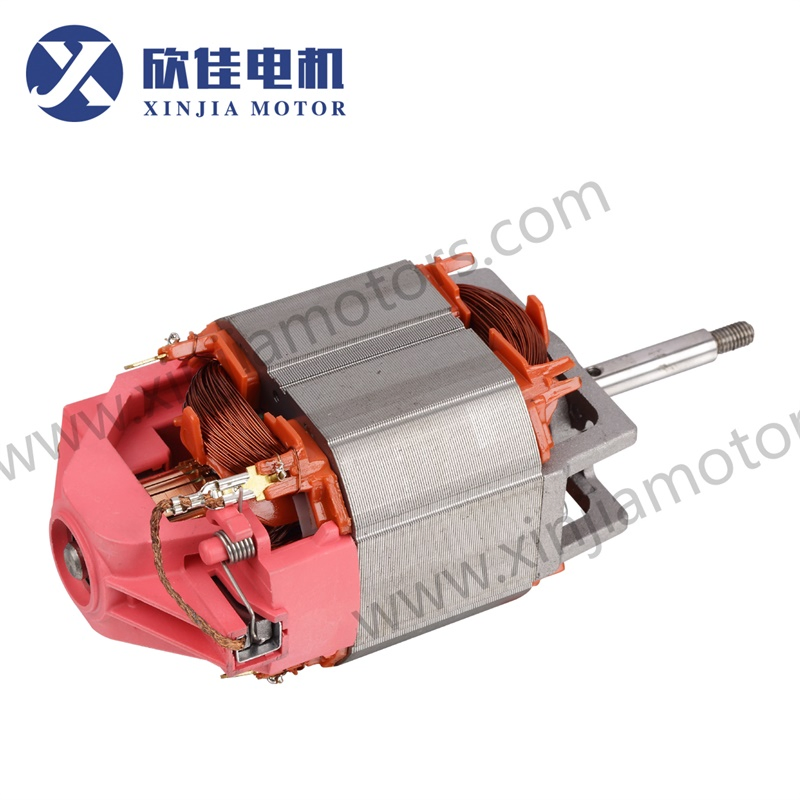

127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
1 / 5
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower
127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower

127V Single Phase 76 Series High Speed Universal Motor for Lawn Mower

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️
Basic Information
Model NO.
XJ7643L
Stator
Single-Phase
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Garden Tool
Lawn Mower
Rotation
Ccw/Cw
Type
AC Single Phase Series Motor
Materials
Pure Copper
Efficiency
High Efficiency
Thermal Protector
PTC/VDE/Ksd
Voltage
100-240V
MOQ
1000
Protection Grade
IP00-IP68
📋
Product Description
Single Phase Series Motor
⚙️
Customization Available: Power, Speed, Torque, Shaft, Stator Lamination, Rotation, and Installing Location can be customized according to requirements.
Product Name AC Single phase series motor
Model No. XJ7643L
Application for Lawn mower / High Speed Blender
Rated Voltage 100/110/120/127/220/230/240 V
Rated Frequency 50/60 Hz
No-load Power 50-200W
No-load Speed 13000-30000rpm
Load Power 100-450W
Load Speed 7000-16000rpm
Insulation Class A/E/B/F
Protection Grade IP00 ~ IP68
Packing Foam & carton, or according to specific requirements
Remarks:
  • Performances above are for reference. Specifications can be adjusted.
  • OEM & ODM are both available.
  • When requesting a quotation, please specify voltage, draft, input power, and air flow for a faster response.
🔍
Detail View

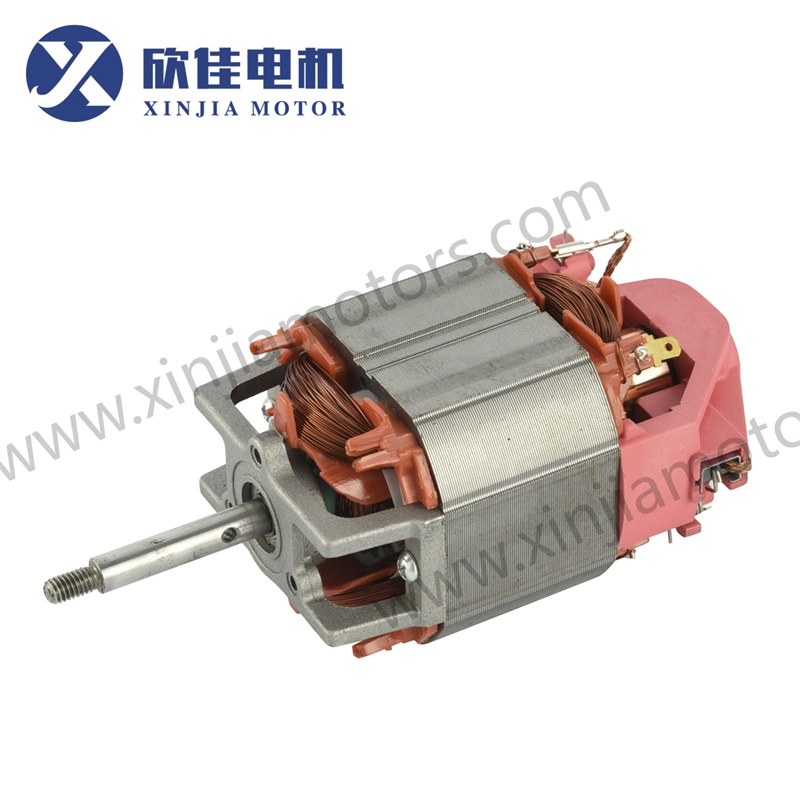

Motor Detail 1

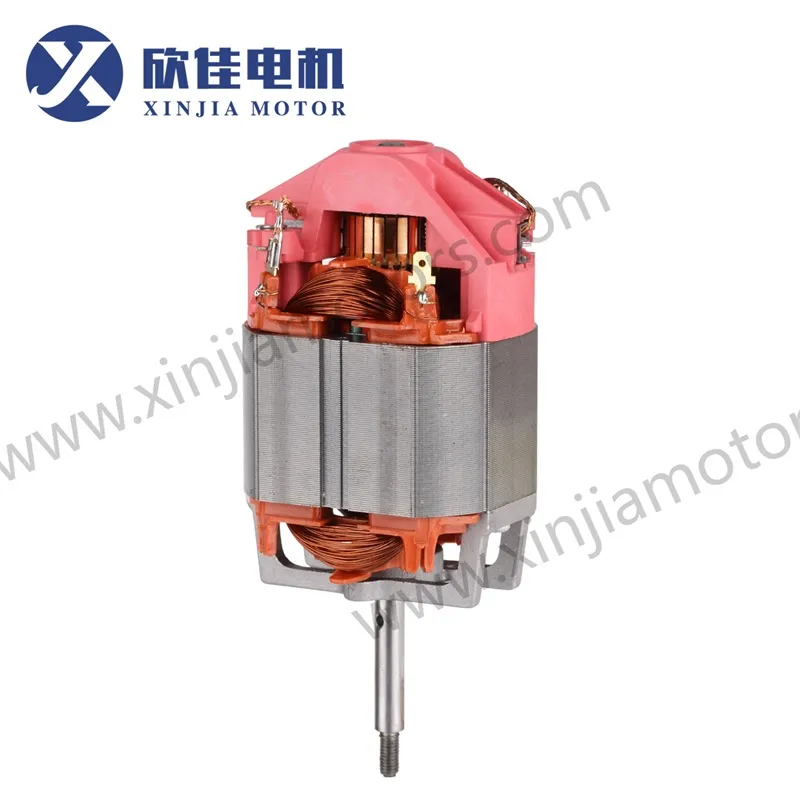

Motor Detail 2
📐

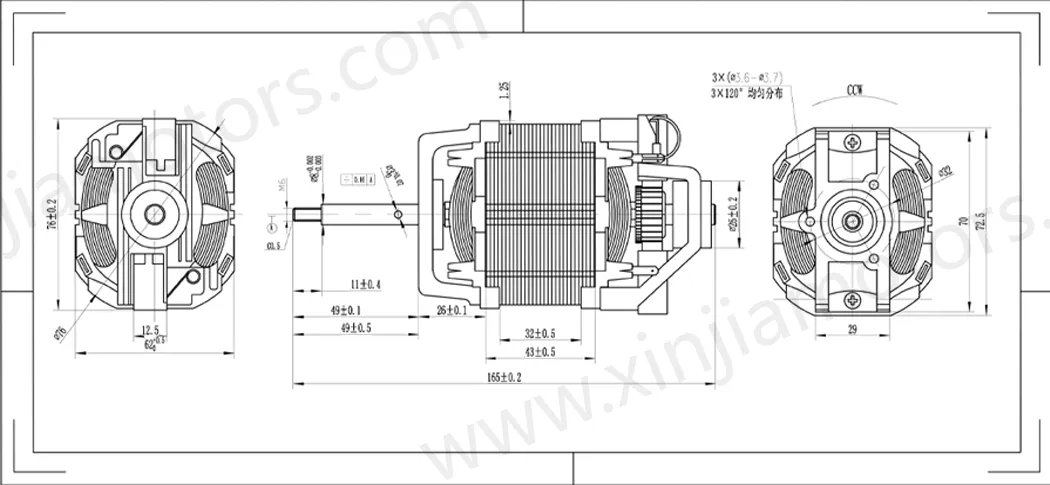

Assembly Drawing
Assembly Drawing
Technical Specifications
Dimensions
Frequently Asked Questions
What applications is the XJ7643L motor suitable for?
This AC single-phase series motor is specifically designed for high-speed garden tools such as lawn mowers and household appliances like high-speed blenders.
Can the motor specifications be customized?
Yes, we offer full customization for power, speed, torque, shaft dimensions, stator lamination, and rotation direction to meet your specific project requirements.
What materials are used in the motor's construction?
The motor is built using high-quality pure copper materials to ensure high efficiency, durability, and stable performance.
What type of protection does the motor include?
The motor is equipped with thermal protectors (PTC/VDE/Ksd) and supports protection grades ranging from IP00 to IP68, depending on the application needs.
What is the standard lead time for an order?
Delivery time typically depends on the order quantity, generally ranging from 2 weeks to 4 weeks.
What certifications does this motor hold?
The product is manufactured under ISO9001 standards and holds CCC certification, ensuring compliance with rigorous quality and safety regulations.
