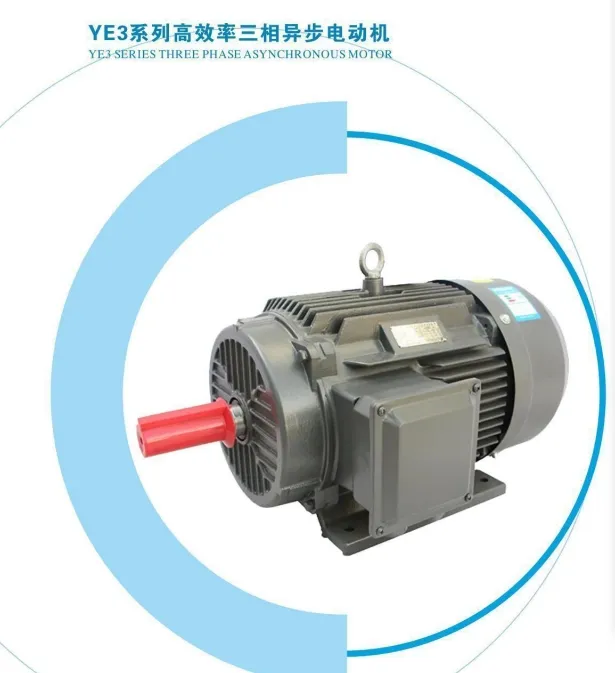

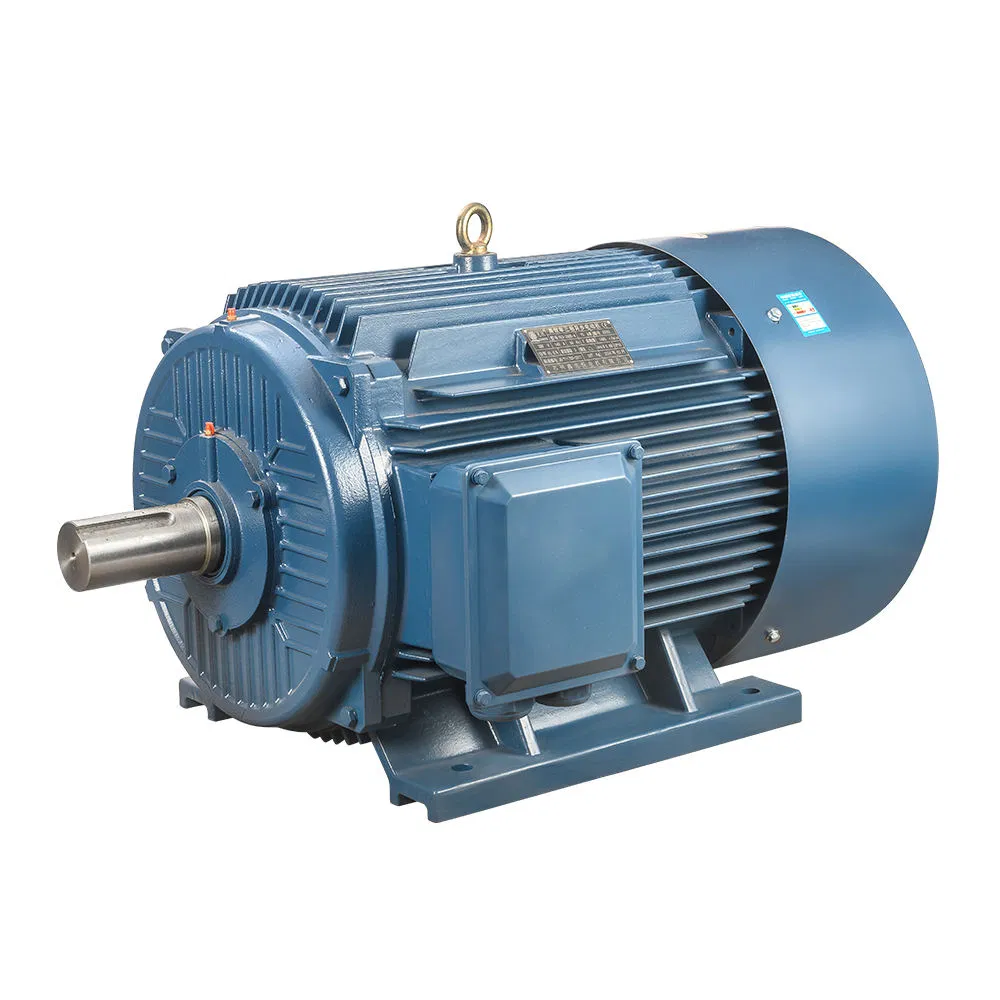

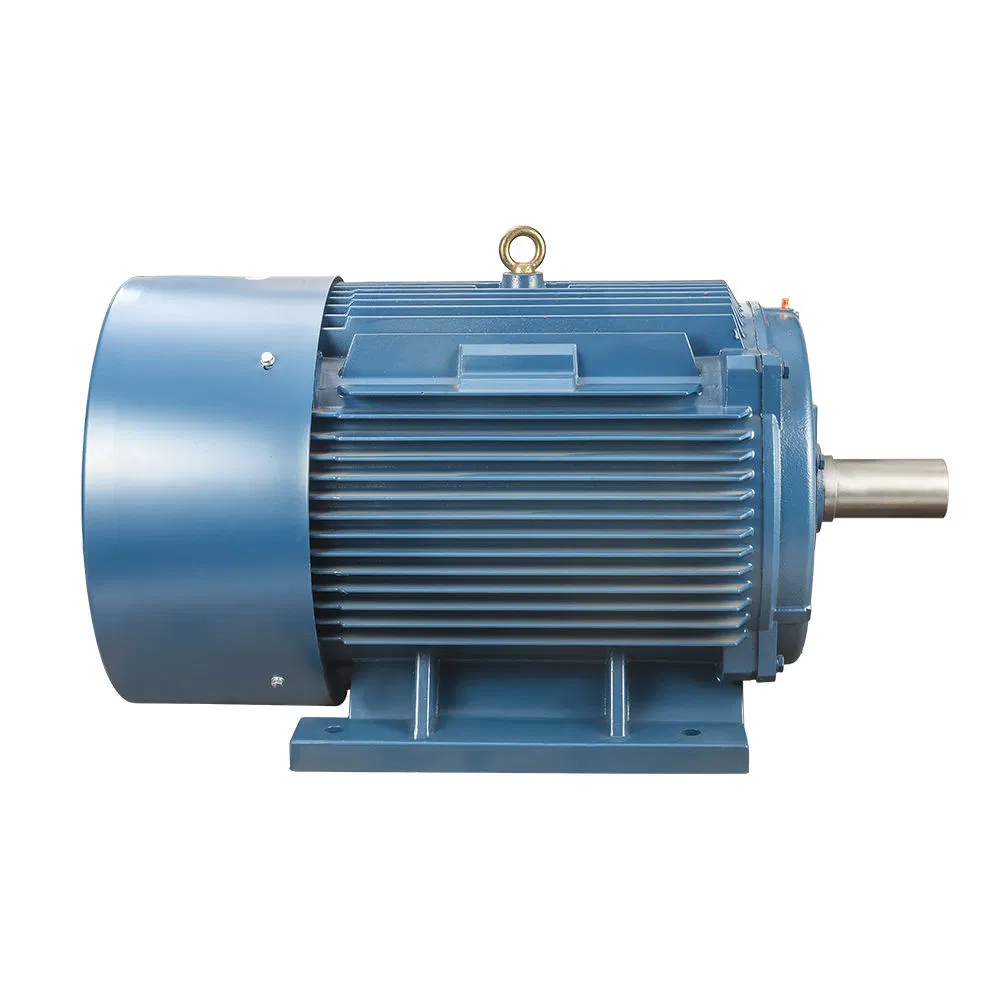

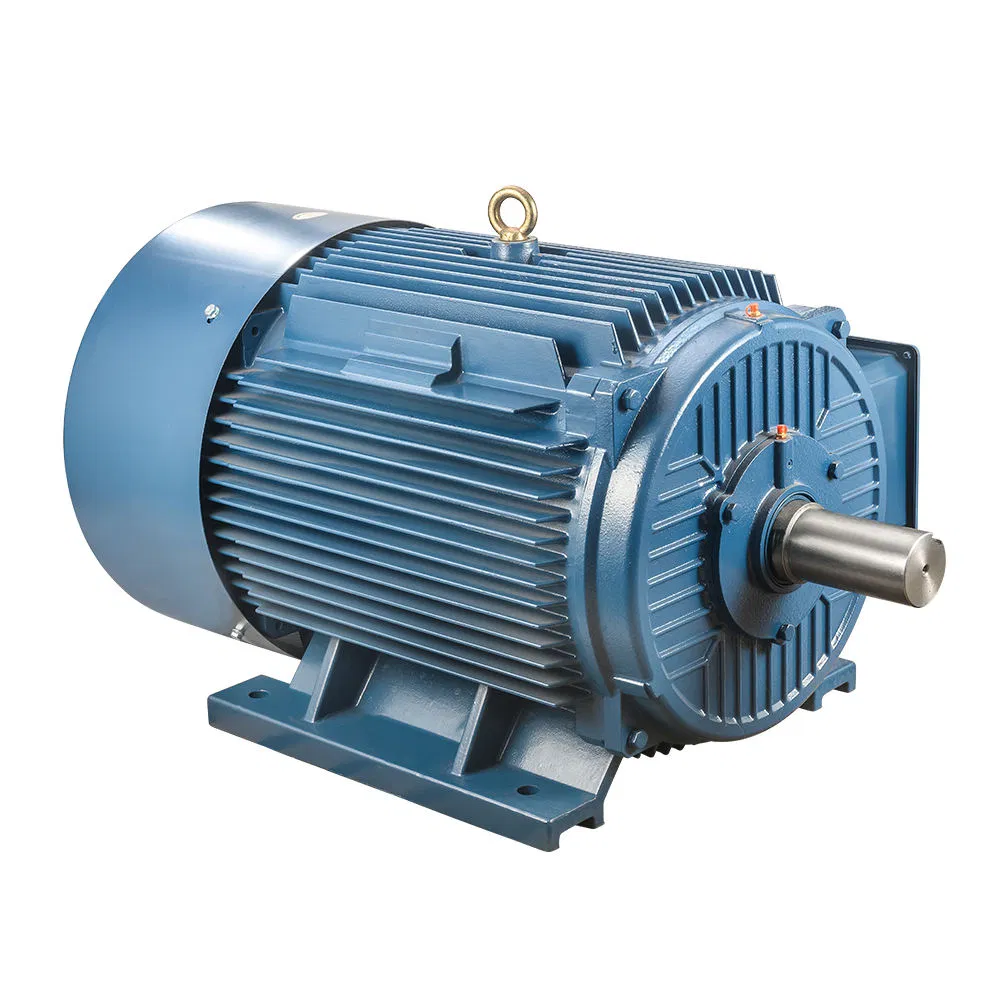

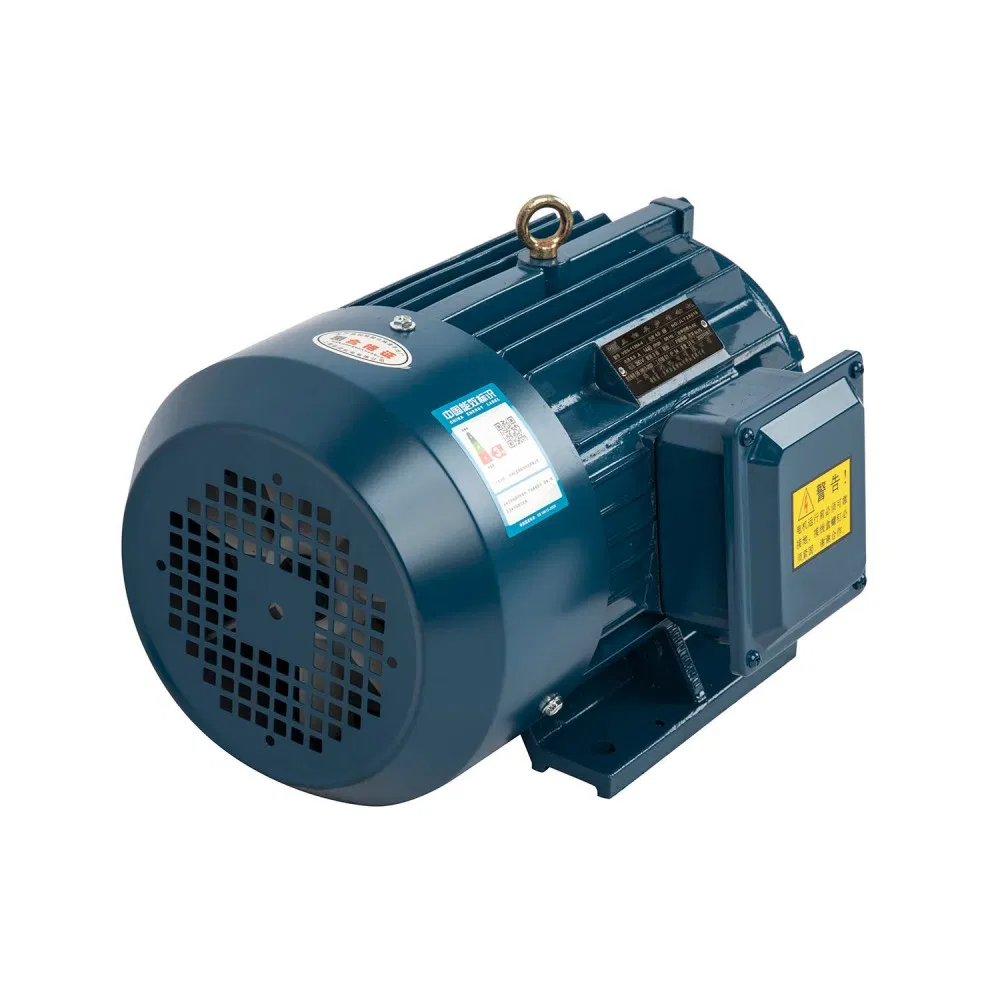

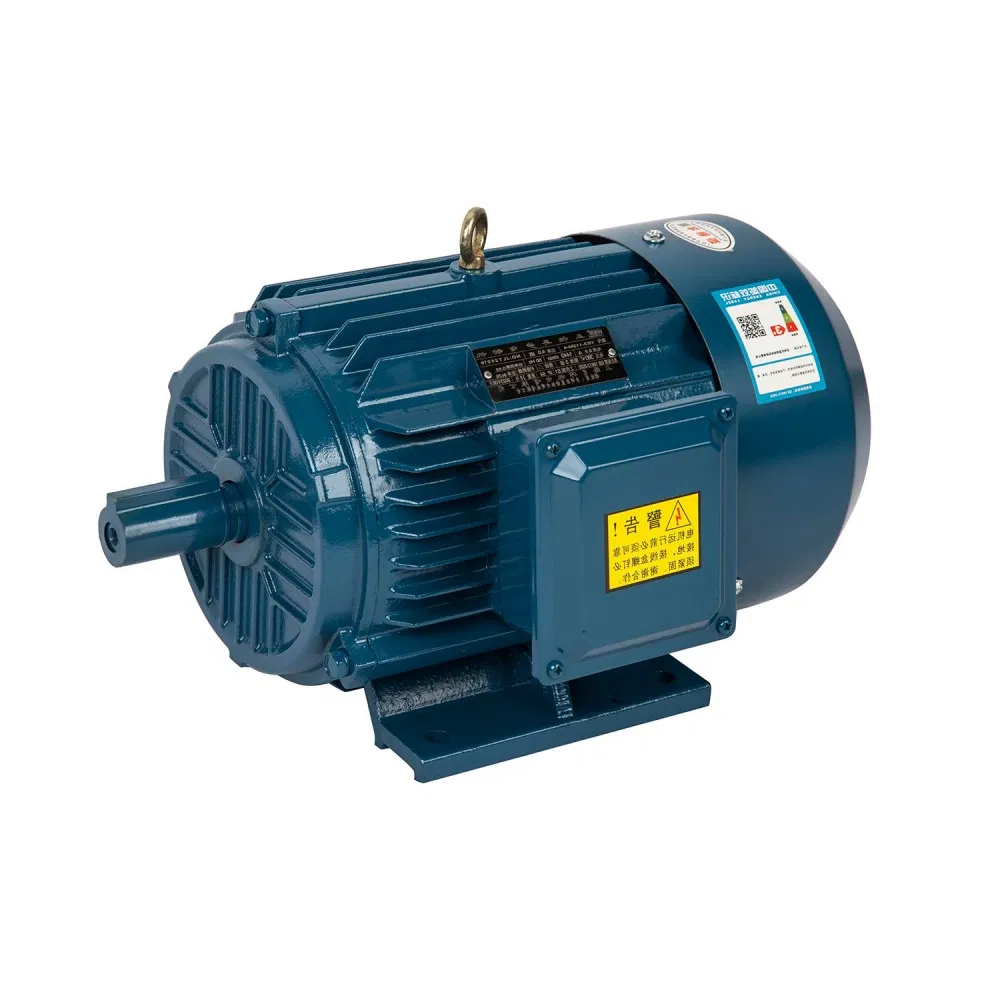

Y3 series low voltage high power totally enclosed squirrel cage three phase asynchronous motors adopt new material, new process and new technology. The products use high strength castings with horizontal and vertical cooling fins on the housing, ensuring overall good rigidity. The structure contour is similar to Y2 series products. It adopts Class F insulation, Enclosure protection IP66, rated voltage 380V or 660V, and rated frequency 50Hz. Installation methods include IMB3, IMB5, IMB35, and cooling method IC411. This product features a small body, light weight, compact structure, high efficiency, and low noise.
This series is suitable for driving universal machinery equipment, such as water pumps, blowers, compressors, and transportation equipment. It can also be used in Petrochemical and mining trades as a prime motor. We can design and produce low voltage high power electric motors with steel plate fabricated housing with center height up to H560.
