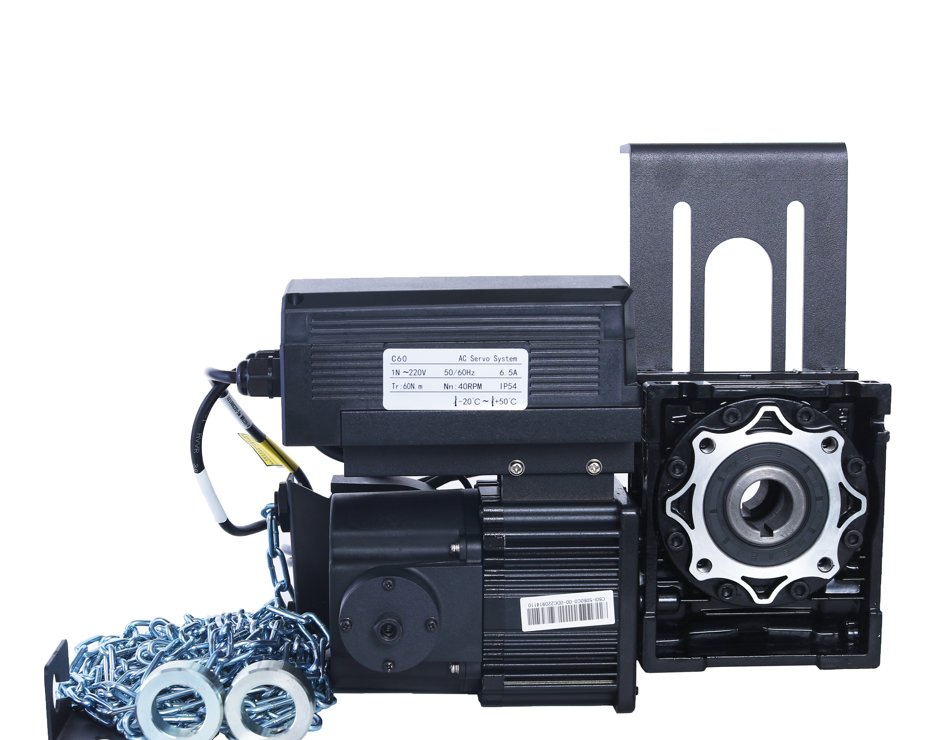

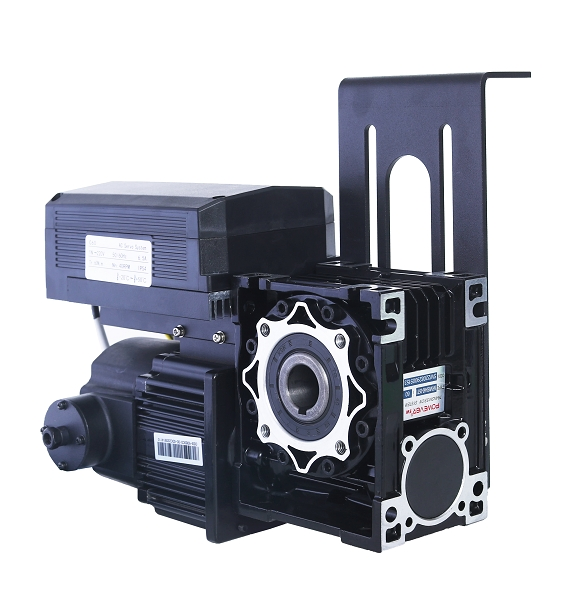

Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
1 / 5
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor
Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor

Heavy-Duty Waterproof Electric Control Vertical Lift Door Motor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
C40 40N
Stator
Single-Phase
Function
Control
Casing
Open Type
Poles
2
Certification
ISO9001, CCC
Rated Torque
40nm
Rated Speed
30rpm
Motor Power
0.45 Kw
Power Supply
1n ~ AC200-240 V
Frequency
50/60Hz
IP Degree
IP54
Limit Mode
Absolute Encoder
Material
ABS / Stainless Steel
Hollow Shaft
25.4 mm
Weight
11kg

Packaging & Delivery

Package Size
43.00cm * 29.00cm * 24.00cm
Gross Weight
13.000kg

Product Description

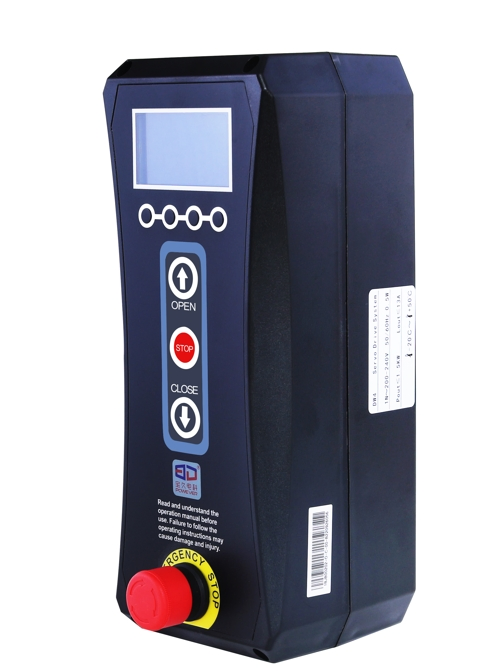

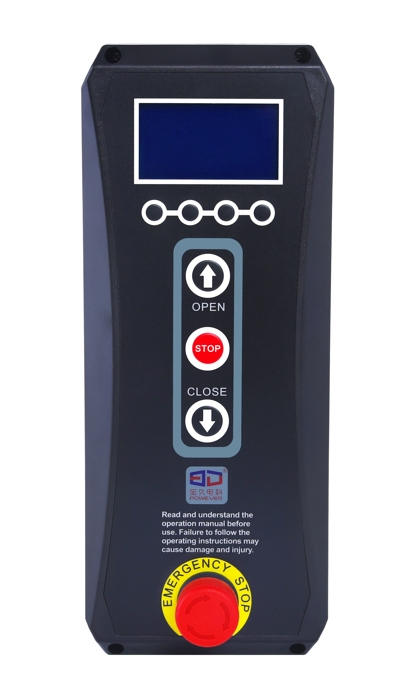

Control Box

Control Box: The essential brain behind seamless industrial door operations.

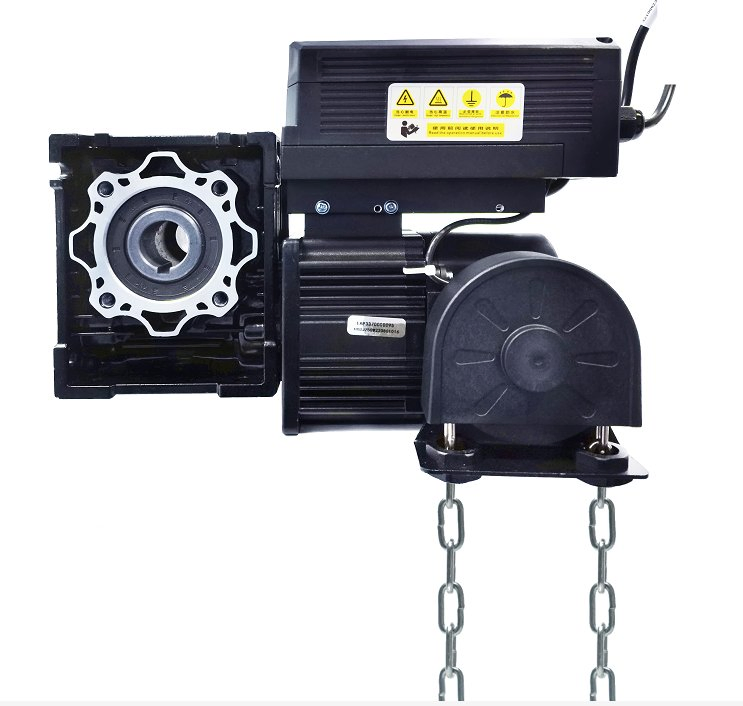

Motor Group

Motor Group: Engineered for excellence, the powerhouse for high-speed doors.

🛡️ Dustproof

Keep operations clean and efficient.

💧 Waterproof

Designed to resist the elements.

❄️ Low Temp

Resistant to frigid conditions.

🔥 High Temp

Superior performance in heat.

Technical Specifications

Parameter C40 Series Value
MaterialsStainless steel
Open StyleRoll / Power wheel drive
Output Rated Torque40N.m
Motor Power550W
Input PowerSingle-phase AC200-240V, 50/60Hz
Output Rated Speed40 rpm
Maximum Adaptation Area20 m²
Motor IP GradeIP54
Standard Line Length5m
Working Environment-20 ºC to 50 ºC
Display ScreenLCD Display (Chinese and English)
Limit ModeElectronic limit

Dimensions & Diagrams

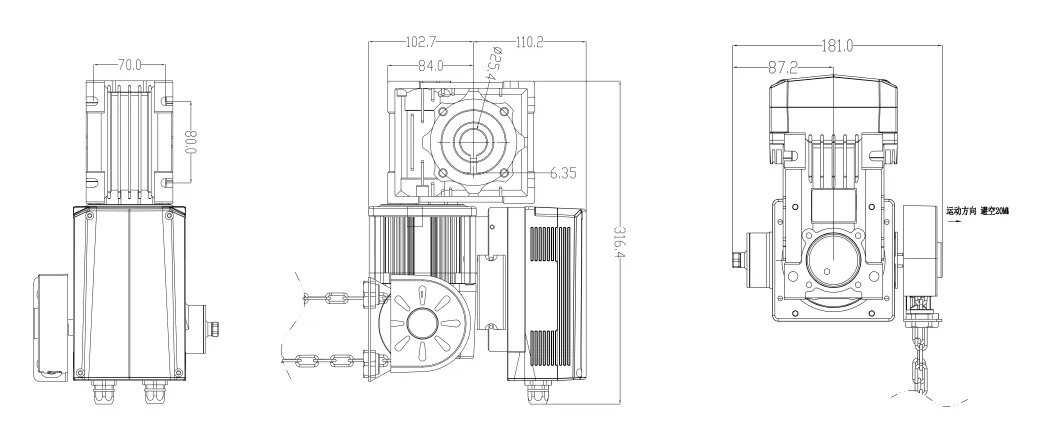

Control Box Size Diagram:

Control Box Diagram

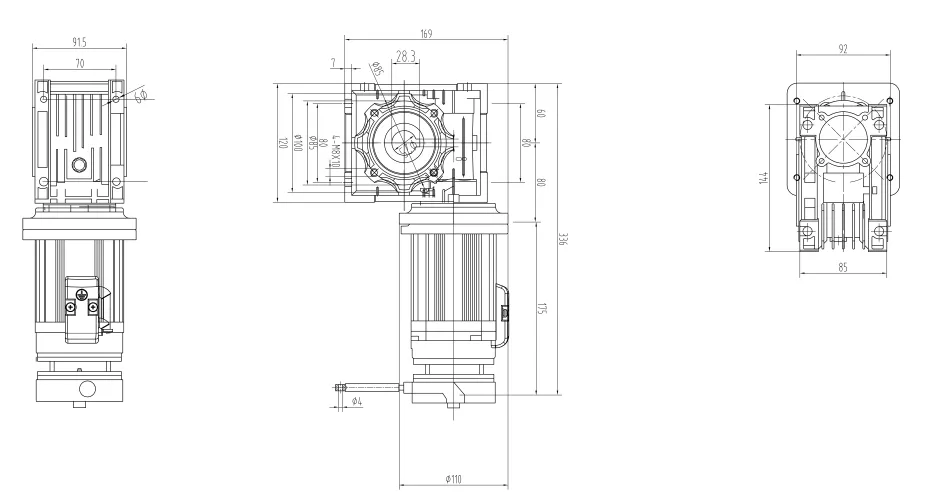

Electric Unit Size Diagram:

Electric Unit Diagram

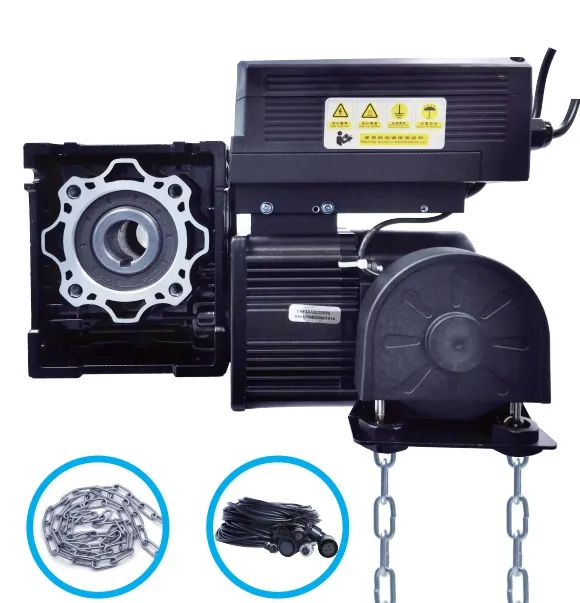

Industrial K Fast Door C40 Part 1
Industrial K Fast Door C40 Part 2

Frequently Asked Questions

Q1: What is the rated output torque of the C40 model?
A1: The C40 series provides a robust rated output torque of 40N.m, ensuring powerful and reliable performance for industrial door operations.
Q2: Can the display screen be switched to English?
A2: Yes, the system features a dual-language LCD screen that supports both Chinese and English for easy navigation.
Q3: What are the environmental protection characteristics?
A3: The unit is designed to be dustproof, waterproof (IP54), and resistant to both high and low temperatures ranging from -20ºC to 50ºC.
Q4: What type of power supply is required?
A4: It requires a single-phase power supply of AC200-240V at a frequency of 50/60Hz.
Q5: Does it support safety features like slow start and stop?
A5: Yes, the system comes standard with slow start and slow stop functions, as well as a self-test function and active maintenance reminders.
Q6: What is the maximum limit of turns for the electronic limit mode?
A6: The system supports a maximum of 50 limit turns using its advanced electronic limit mode.
