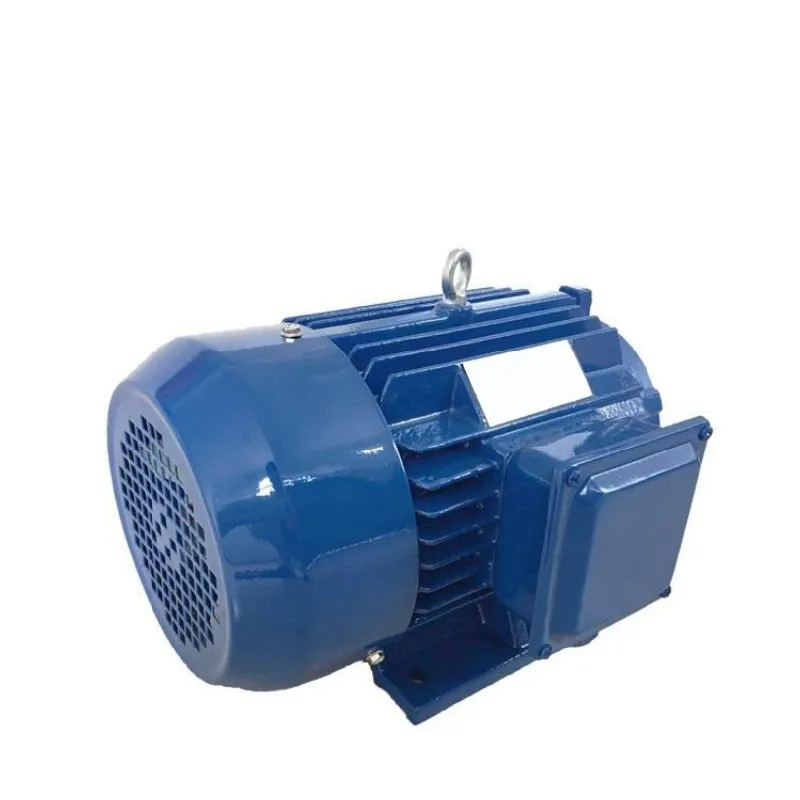

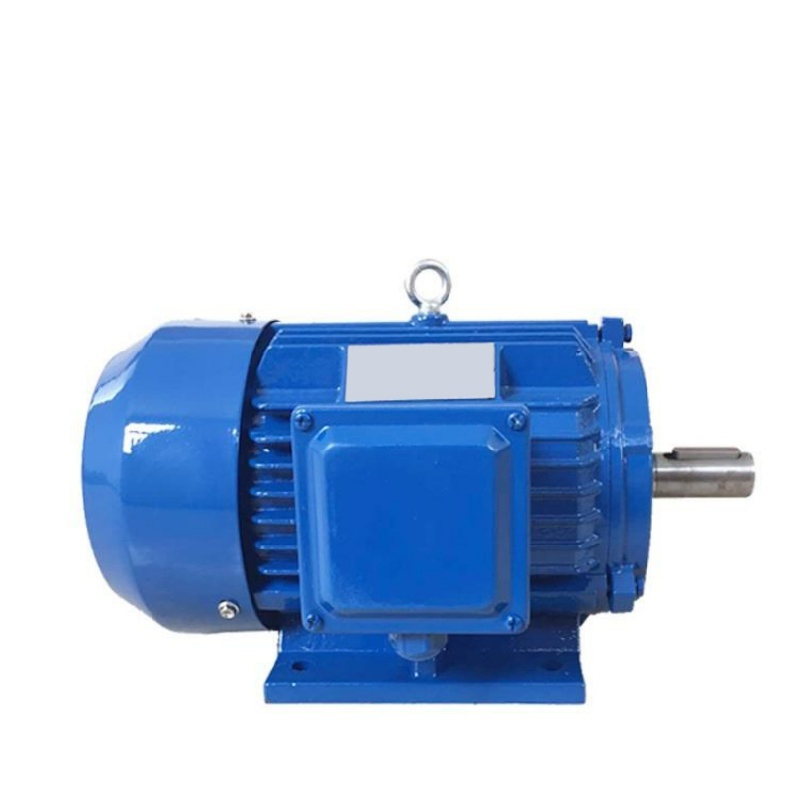

Advanced Engineering: The YE2 series features high-efficiency three-phase asynchronous motors constructed with high-strength cast iron. Designed for durability and performance, these motors are characterized by high reliability, low noise levels, and minimal vibration.

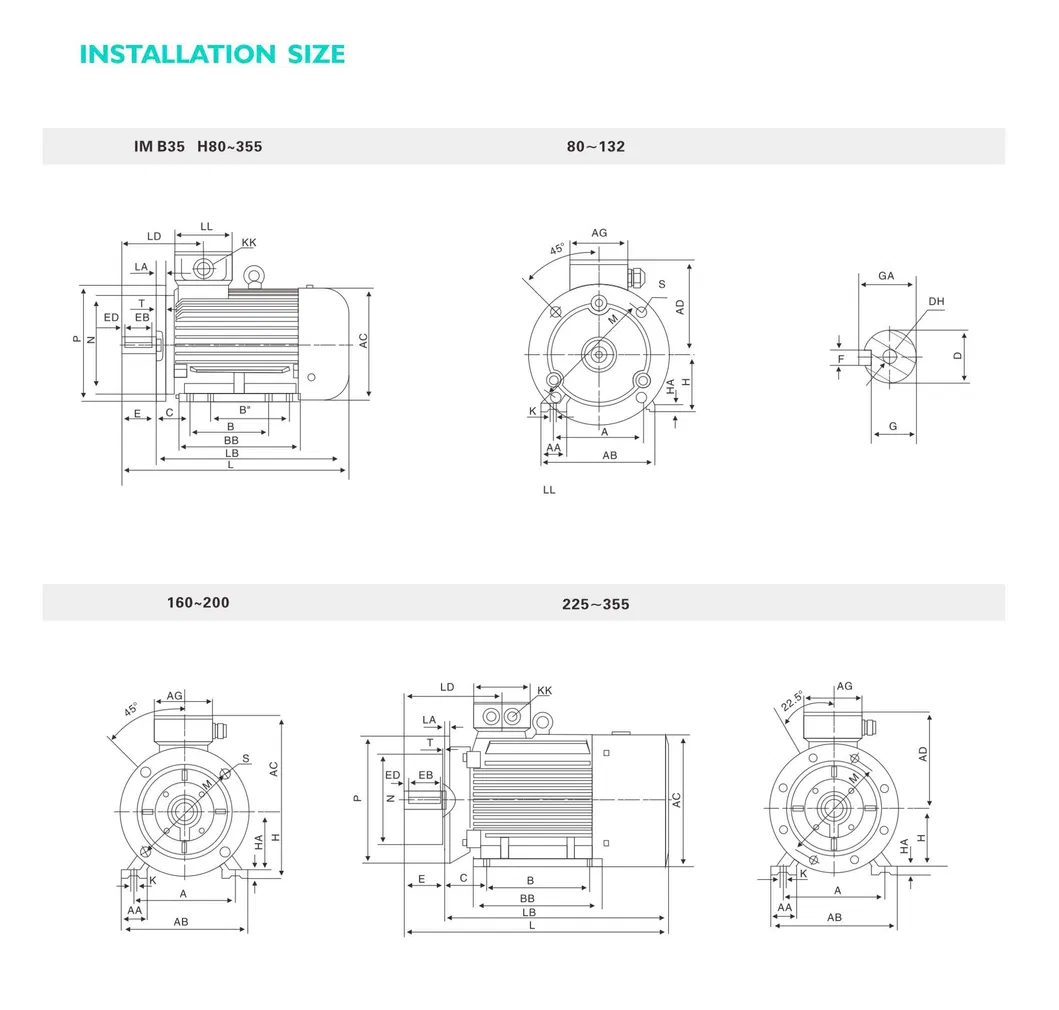

Industrial Versatility: Perfectly suited for a wide array of industrial applications including fans, water pumps, compressors, construction machinery, and conveyor systems. The YE2 series mounting dimensions and key accessories (fan, fan cover, terminal box) are fully compatible with YE3 series ultra-high efficiency motors, allowing for seamless integration and replacement.
| Standard Specifications | |
|---|---|
| Rate Power | 0.75~375kW |
| Frame Size | 80~355 |
| Poles | 2p, 4p, 6p |
| Protection Degree | IP55 |
| Insulation Class | F |
| Duty Cycle | S1 (Continuous) |
| Efficiency Standard | GB18613-2012 grade3 (IE2) |
| Type | Power (kW) | Current (A) | Speed (r/min) | Eff. (%) | P.F | Tst/Tn | Tmax/Tn | Ist/In |
|---|---|---|---|---|---|---|---|---|
| YE2-80M1-2 | 0.75 | 1.8 | 2865 | 77.4 | 0.82 | 2.3 | 2.3 | 6.8 |
| YE2-90S-4 | 1.1 | 2.7 | 1435 | 81.4 | 0.77 | 2.3 | 2.3 | 6.6 |
| YE2-100L-2 | 3 | 6.2 | 2900 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 |
| YE2-132M-4 | 7.5 | 15.5 | 1460 | 88.7 | 0.83 | 2.0 | 2.3 | 7.3 |
| YE2-160L-2 | 18.5 | 34.7 | 2942 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 |

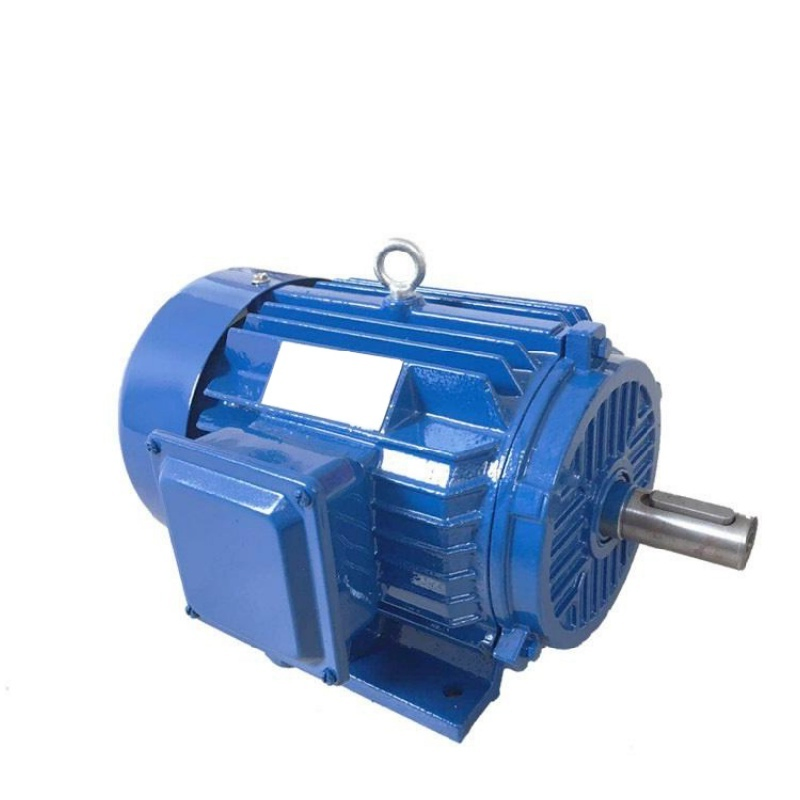

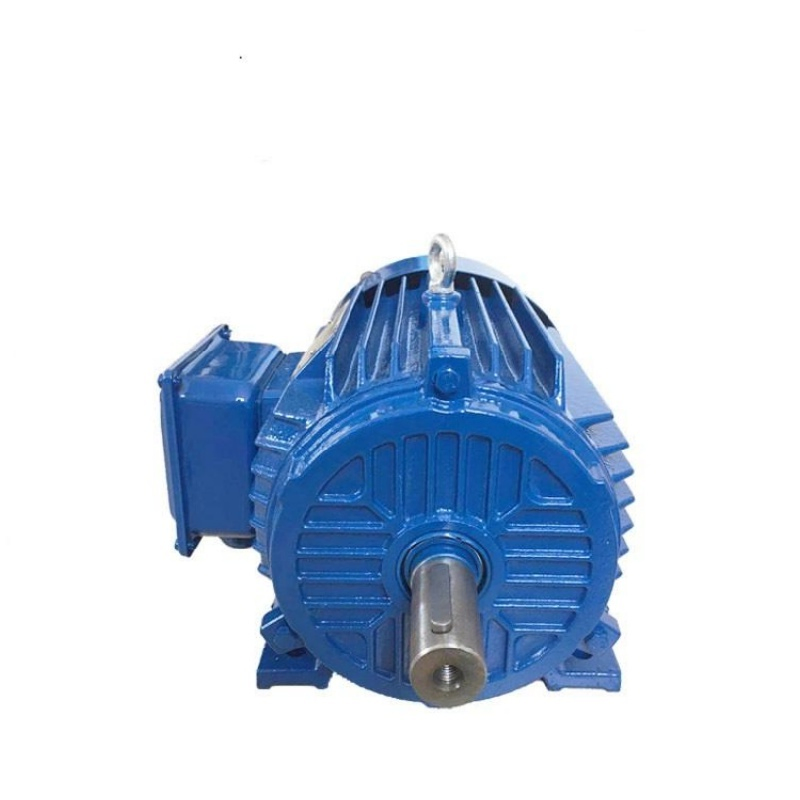

| YE2-225M-4 | 45 | 85.4 | 1480 | 93.4 | 0.86 | 2.1 | 2.3 | 7.3 |
