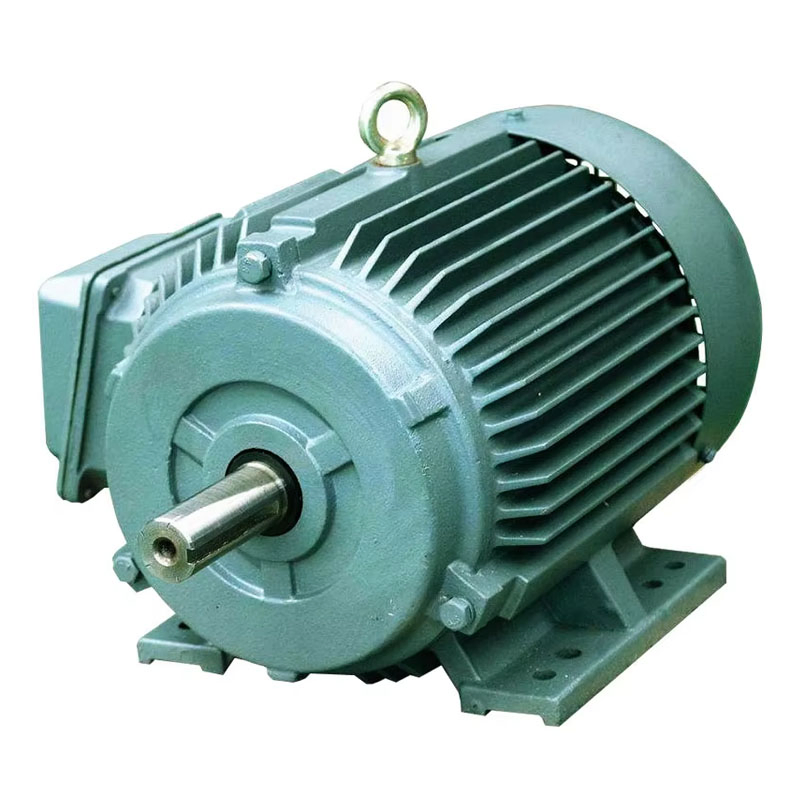

The YE3 series high-efficiency three-phase asynchronous motors are developed based on the latest super-efficient squirrel cage design requirements. Consistent with IE3 energy efficiency levels in IEC60034-30 and the advanced American NEMA ultra-efficient standards, these motors represent the pinnacle of modern industrial driving technology.
Compared to standard series, the YE3 series offers superior energy saving, low carbon operation, and environmental protection. With standardized installation sizes, they can directly replace ordinary motors to achieve immediate electricity savings.
Power Range: 0.75KW-315KW
Frame Base: H80-H355
Protection: IP54 / IP55
Insulation: Class B / F
Technical Motor Specifications
Voltage: 380V / 415V / 480V
Frequency: 50Hz / 60Hz
Poles: 2 / 4 / 6 / 8 / 10
Speed: 590-2985 rpm
Duty: Continuous (S1)
Material: Heavy-duty Cast Iron
Cooling: IC411 (Self-fan cooling)
Certifications: CE, CCC, ISO9001

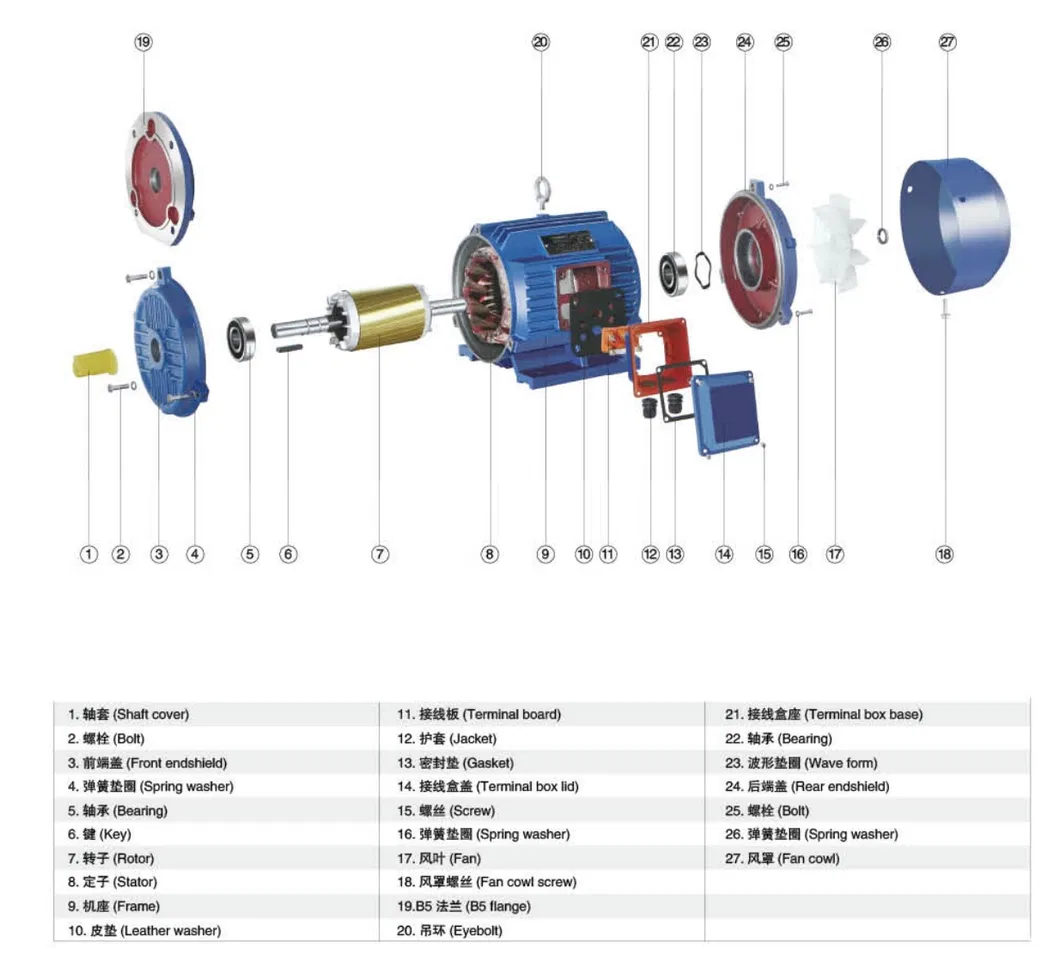

Exploded View & Structure
Product Parameters
Type
Rated Power
Rated Current(A)
Speed (r/min)
Eff (%)
Power Factor
KW
HP
380V
400V
420V
Synchronous Speed 3000r/min (2 Poles) / 50HZ
YE3-80M1-2
0.75
1
1.7
1.62
1.54
2870
80.7
0.82
YE3-90S2-2
1.5
2
3.2
3.04
2.90
2880
84.2
0.84
YE3-112M-2
4.0
5.5
7.8
7.41
7.06
2915
88.1
0.88
YE3-160M1-2
11
15
20.6
19.6
18.6
2950
91.2
0.89
Synchronous Speed 1500r/min (4 Poles) / 50HZ
YE3-80M2-4
0.75
1
1.80
1.71
1.63
1430
82.5
0.75
YE3-100L2-4
3.0
4
6.30
5.99
5.70
1455
87.7
0.82
YE3-160L-4
15
20
28.8
27.4
26.1
1470
92.1
0.86

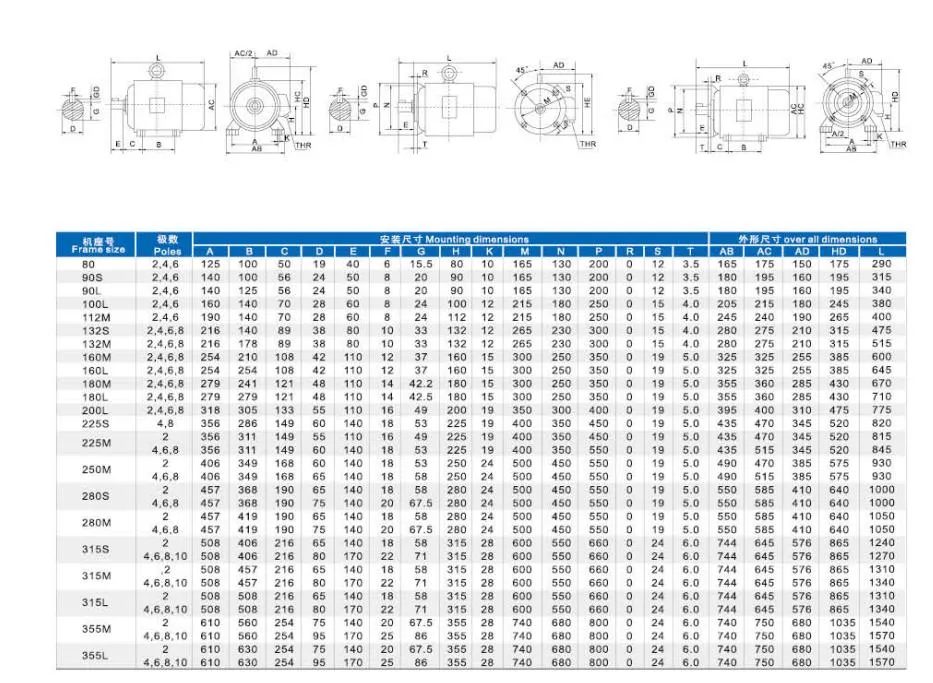

Installation & Mounting Configuration
Conventional mounting types (B3, B5, B35, V1, etc.) are available across various frame sizes:
Frame Size
B3
B5
B35
V1
V3
V5
B14
63~112
√
√
√
√
√
√
√
132~160
√
√
√
√
√
√
-
180~280
√
√
√
√
-
-
-
315~355
√
-
√
√
-
-
-

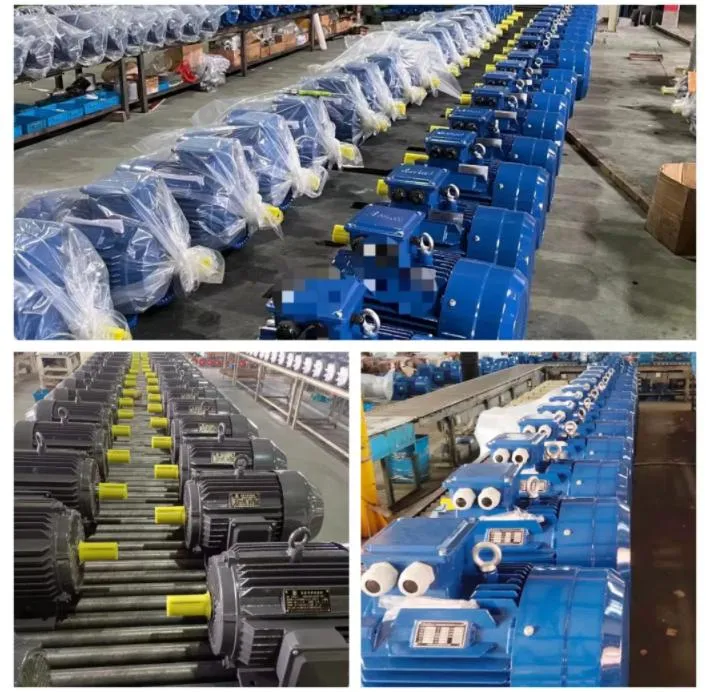

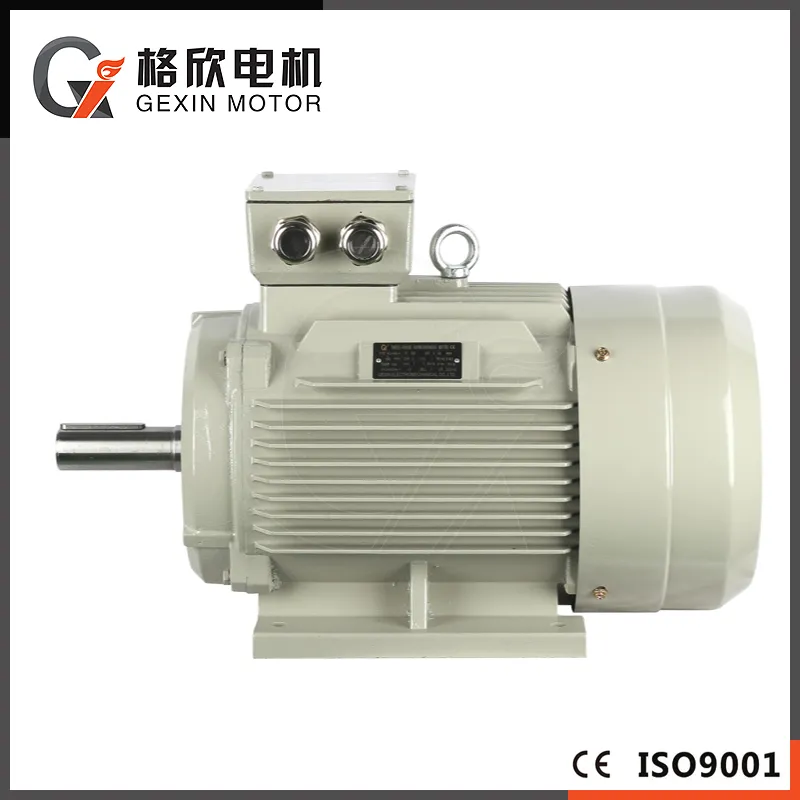

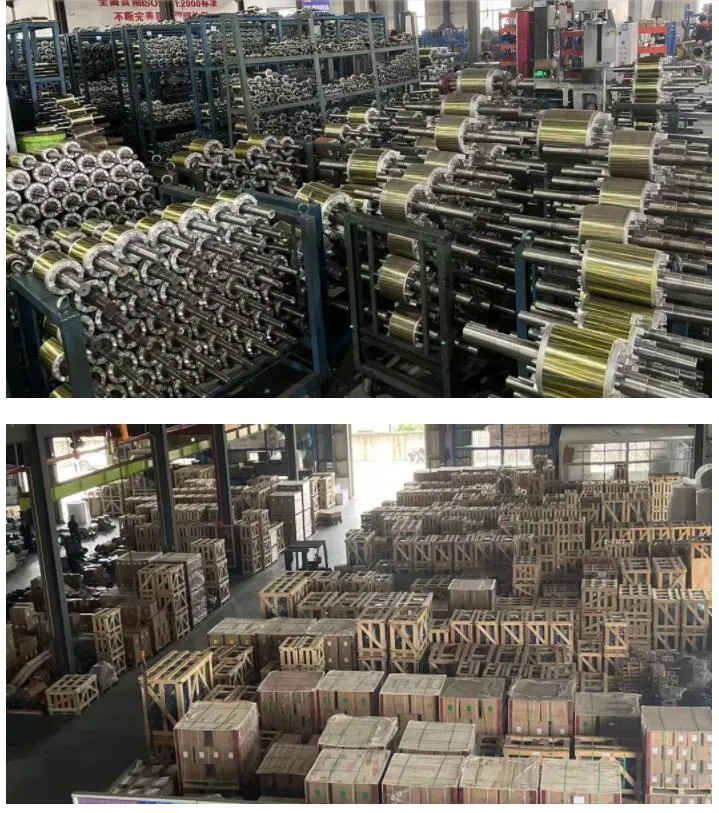

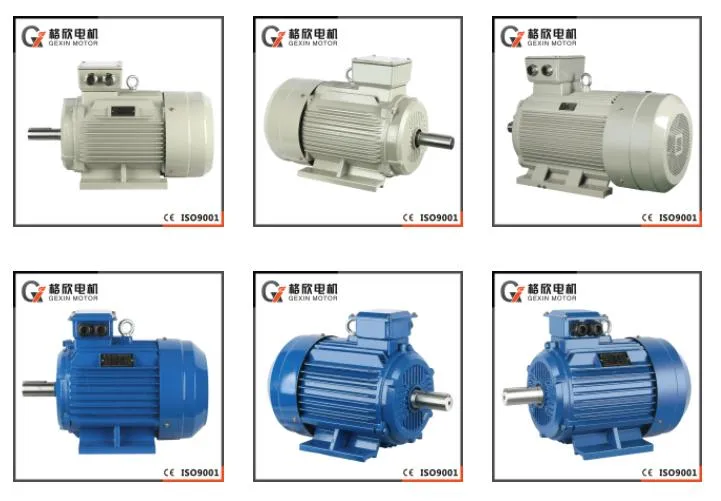

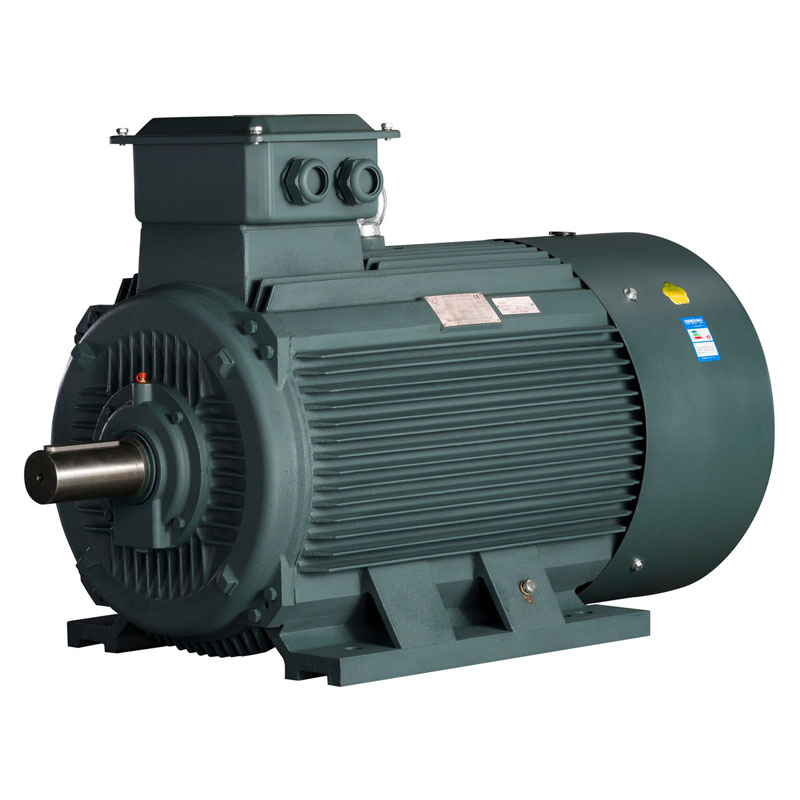

Detailed Product Photos
Core Advantages
100% Pure Copper: Ensuring full power output and longevity.

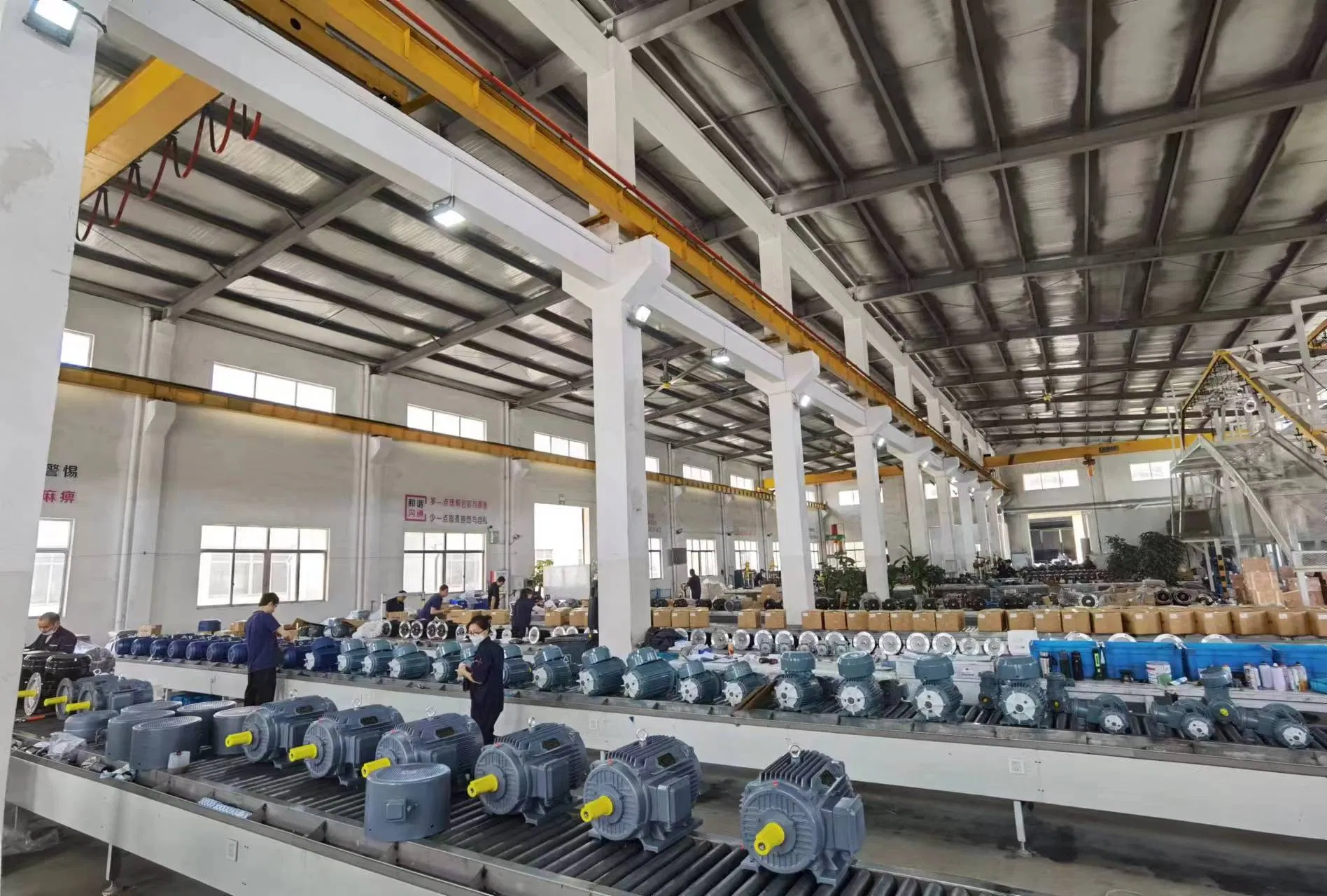

20+ Years Experience: Decades of specialized manufacturing expertise.
Energy Efficient: Optimized design for minimum power consumption.
Quiet Operation: Precision balanced rotors and premium bearings.
Full Certification: CE, ISO, and 3C approved components.
Q1: Are you a manufacturer or a trading company?We are a professional manufacturer focusing on the development and production of high-efficiency electric motors for over 20 years.
Q2: Do your motors use 100% copper wiring?Yes, all our motors are built with 100% national standard all-copper stator and rotor components to ensure maximum efficiency and performance.
Q3: What certifications do your products hold?Our products have achieved CE, CCC, and ISO9001:2008 certifications. We can also apply for specific certificates like SONCAP, COI, or SASO depending on regional requirements.
Q4: What is the typical lead time for an order?The standard lead time is approximately 20-30 days after receiving the advance deposit or original L/C.
Q5: What kind of warranty do you provide?We provide a 1-year quality warranty. During the guarantee period, we supply damaged parts freely for possible manufacturing issues, excluding incorrect operation.
Q6: Is customized (OEM/ODM) service available?Yes, we provide full OEM and ODM services to meet specific technical requirements and branding needs for our global clients.
