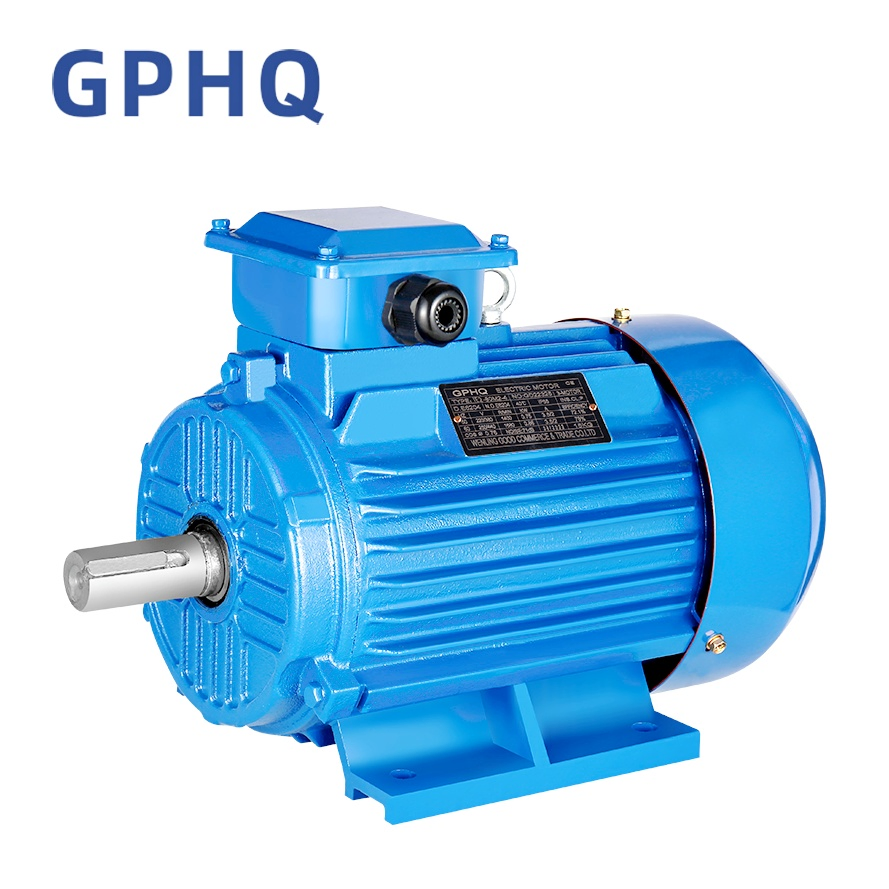

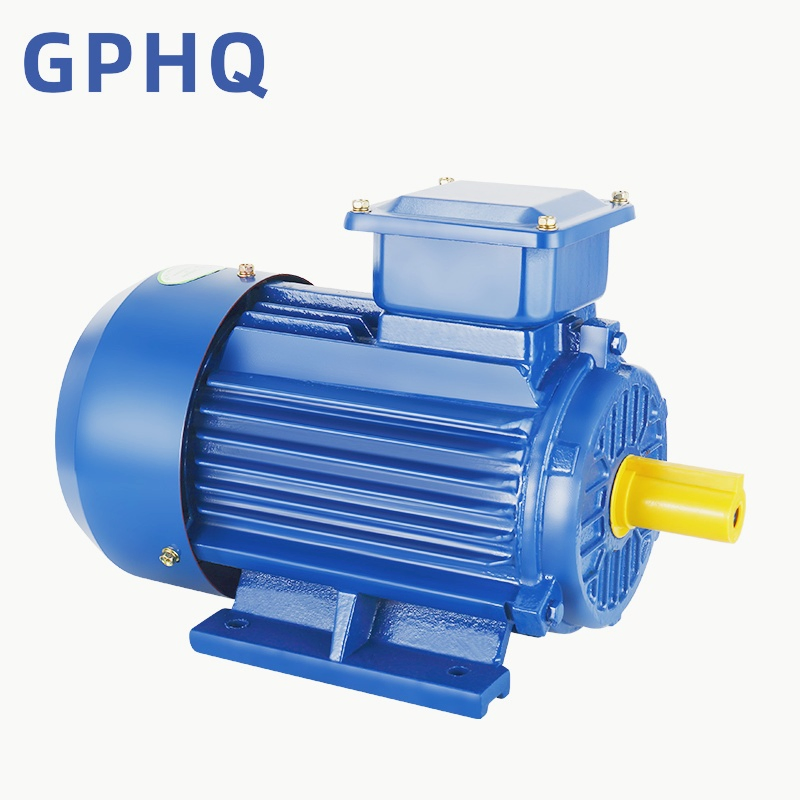

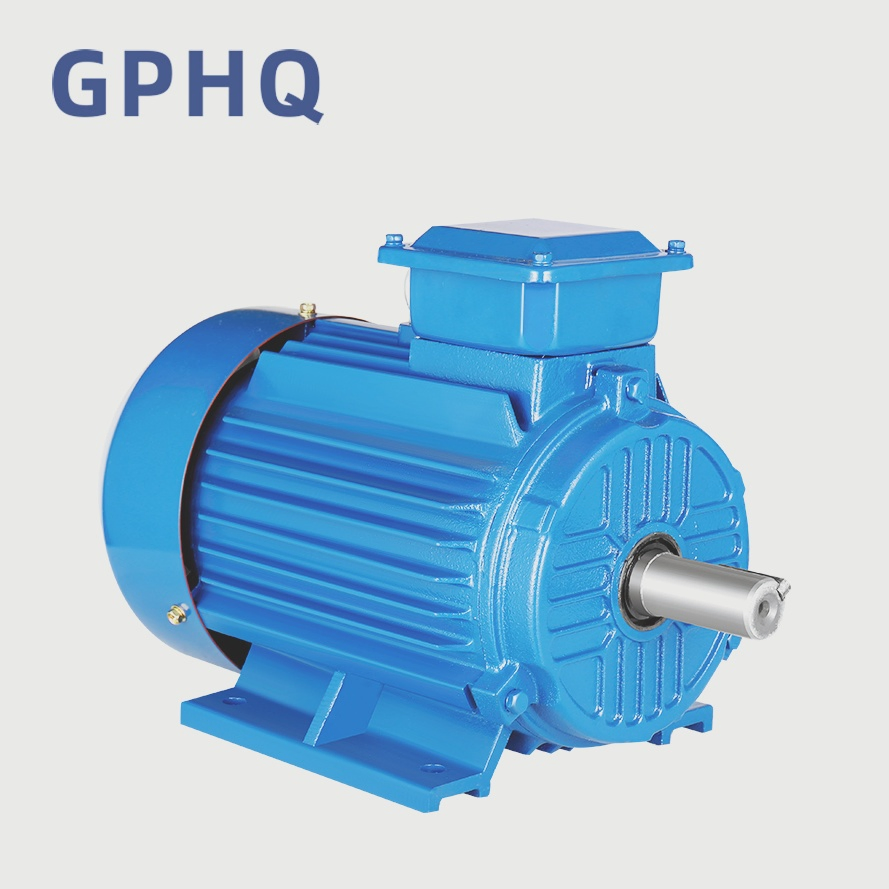

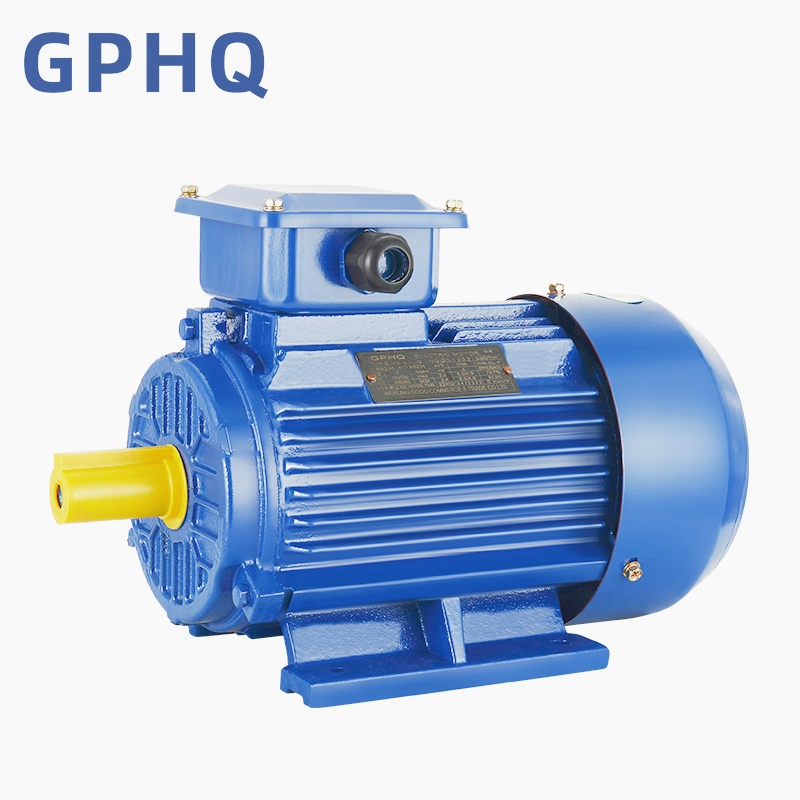

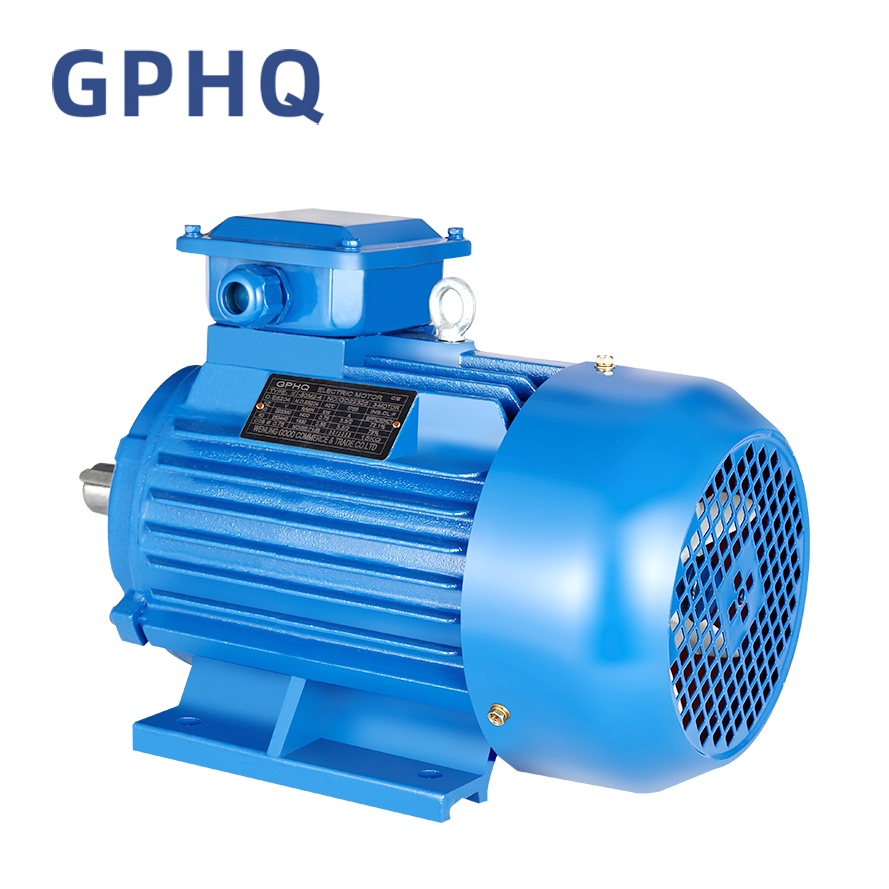

Three phase squirrel cage asynchronous induction motor (7.5kW, 11kW, 15kW)

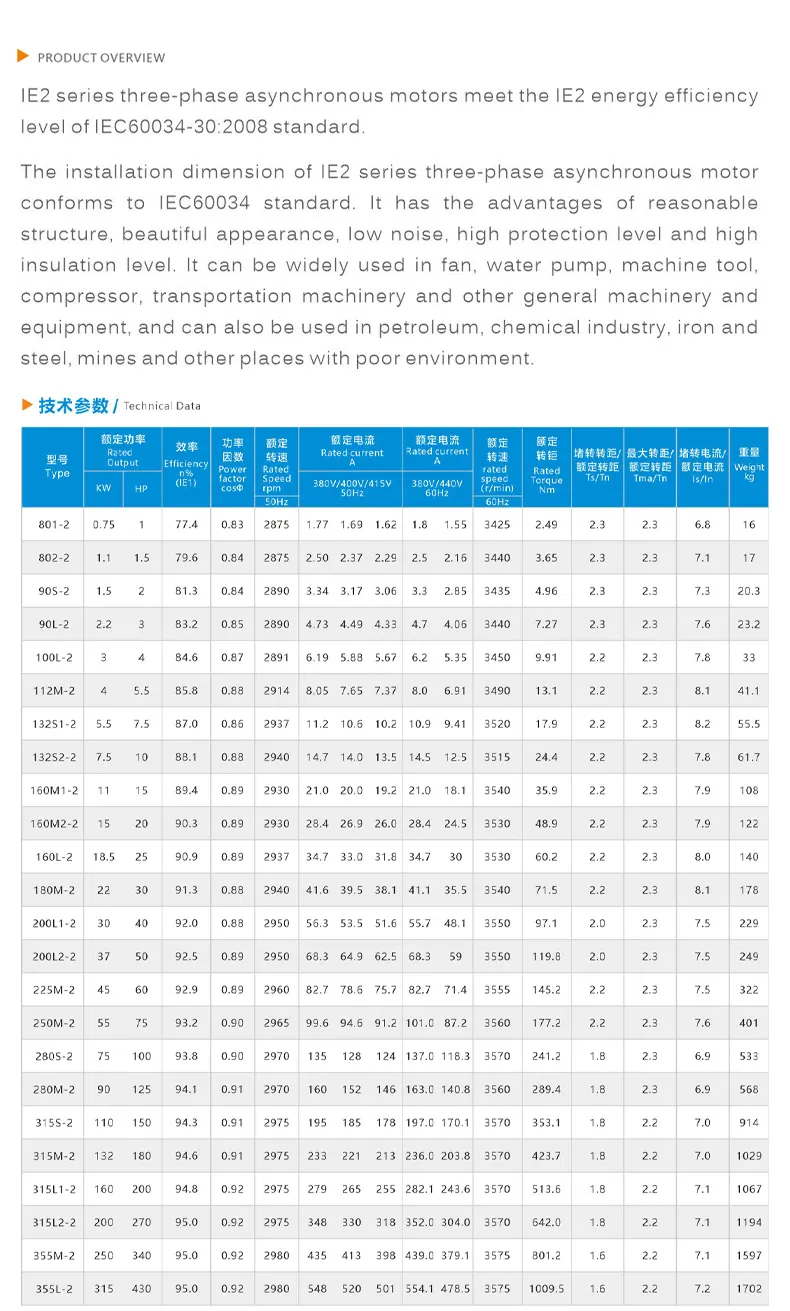

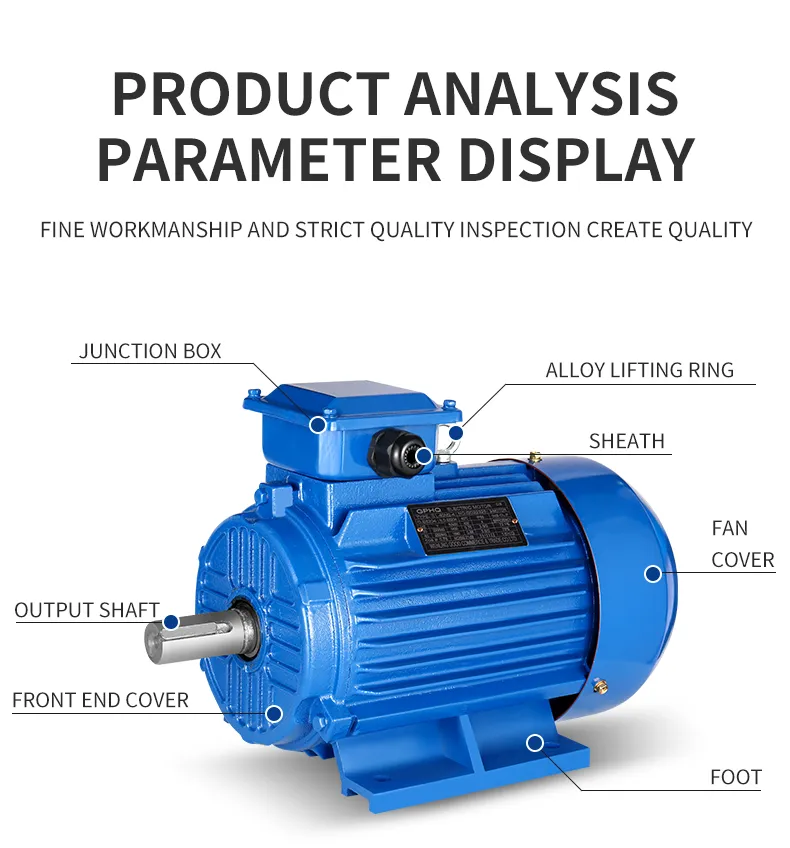

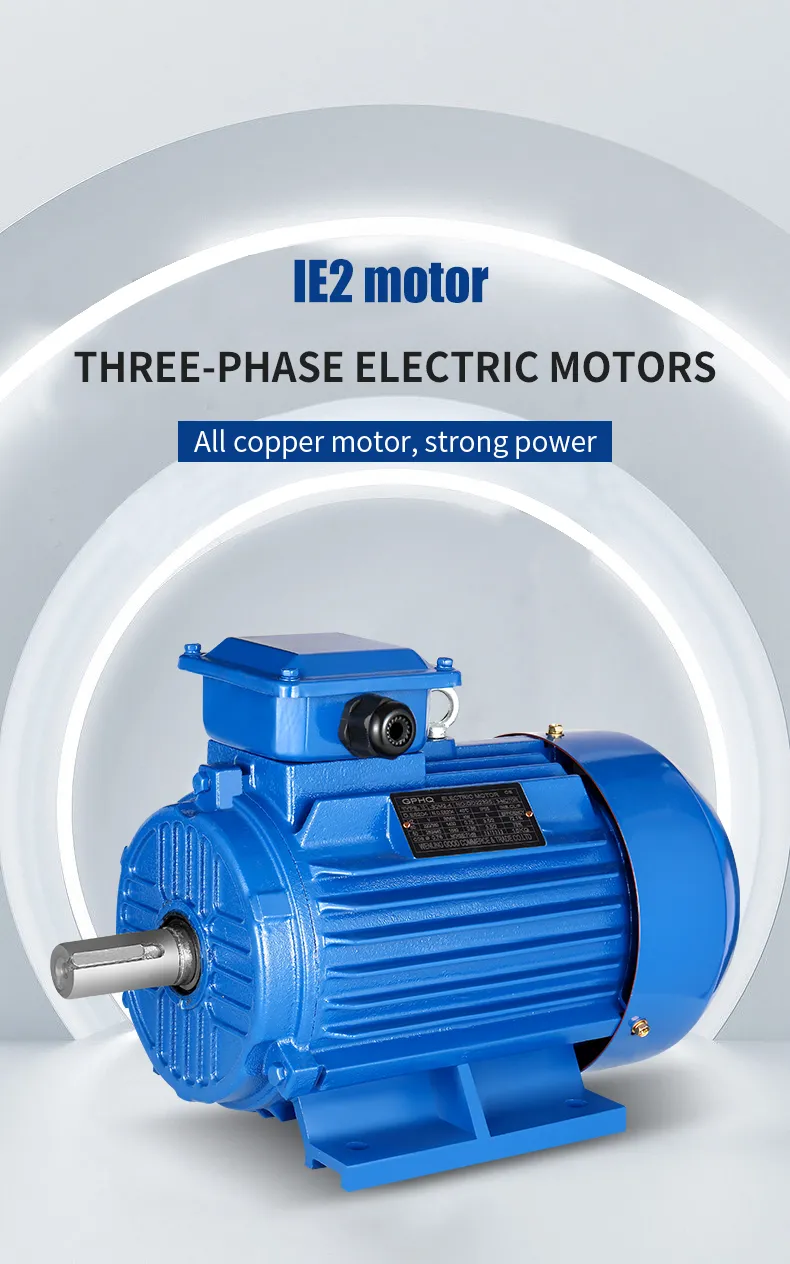

IE2 Series Cast Iron Three Phase Induction Motor is specially designed for the European market, with the terminal box located on the top of the motor. These units are totally enclosed and fan-cooled. They are newly designed in conformity with the relevant requirements and rules of IEC standards.
For the Connection Model (2p, 4p, 6p, 8p Y2 motor), please refer to the Name Plate: Y Connection is adopted for output ≤ 3kW; Delta-Connection is adopted for output > 4kW.

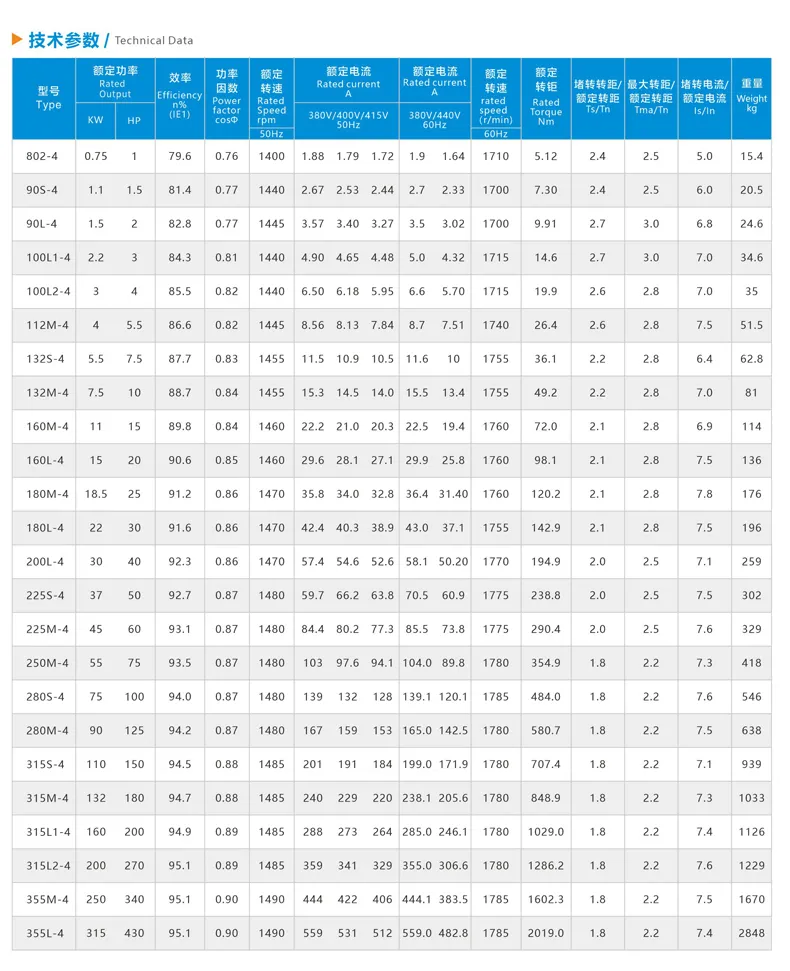

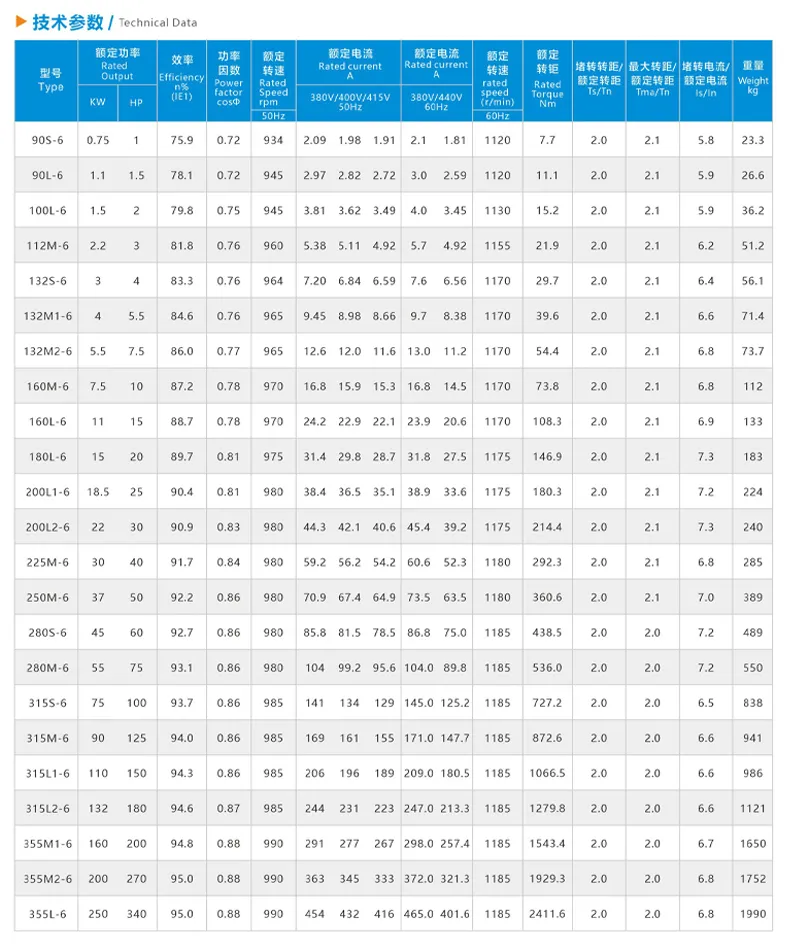

| Power: | 0.55kw-315kw | Voltage: | 380/415/440V (Customizable) |

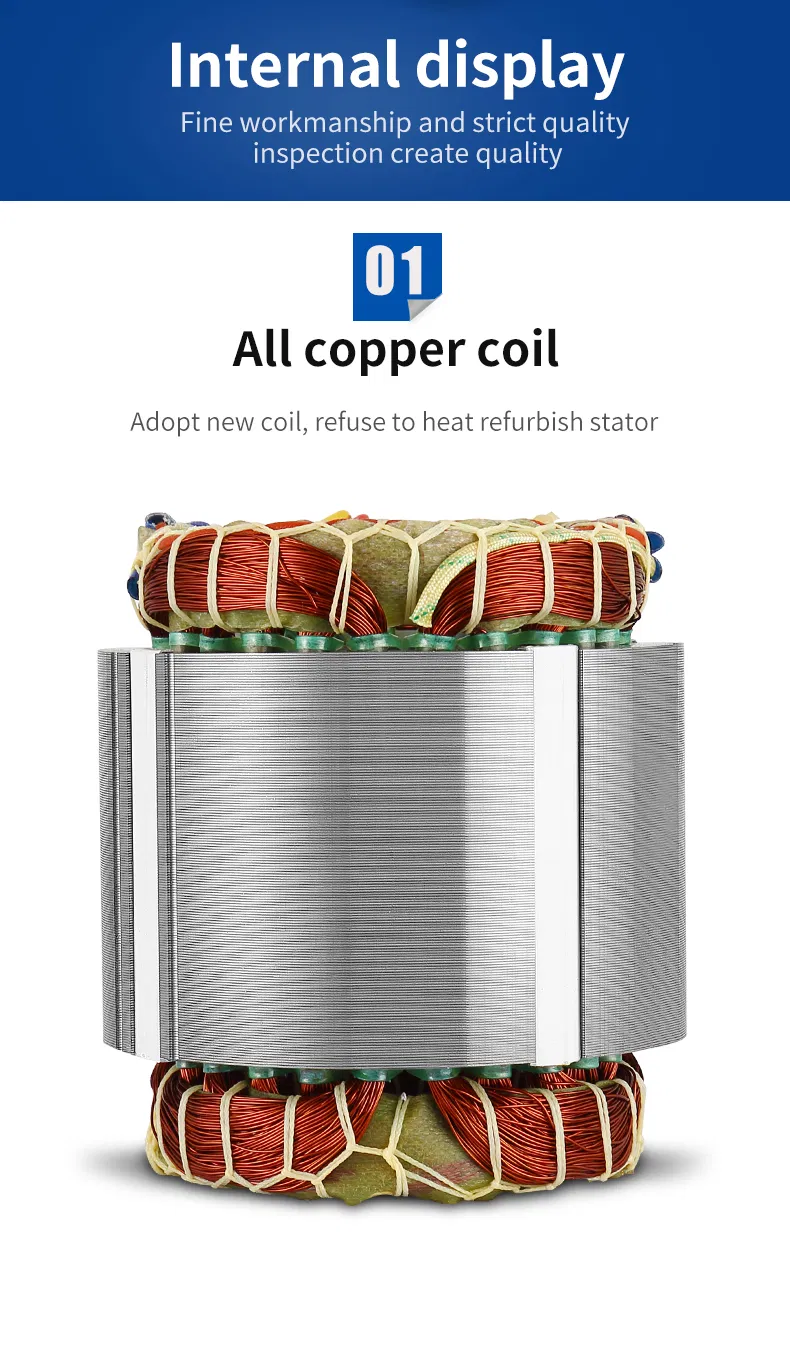

| Frequency: | 50/60Hz | Enamelled Wire: | Copper (Aluminum optional) |
| Insulation Class: | F | Mounting: | B3 Foot / B5 Flange / B35 |
| Protection: | IP55 | Motor Body: | Cast Iron |

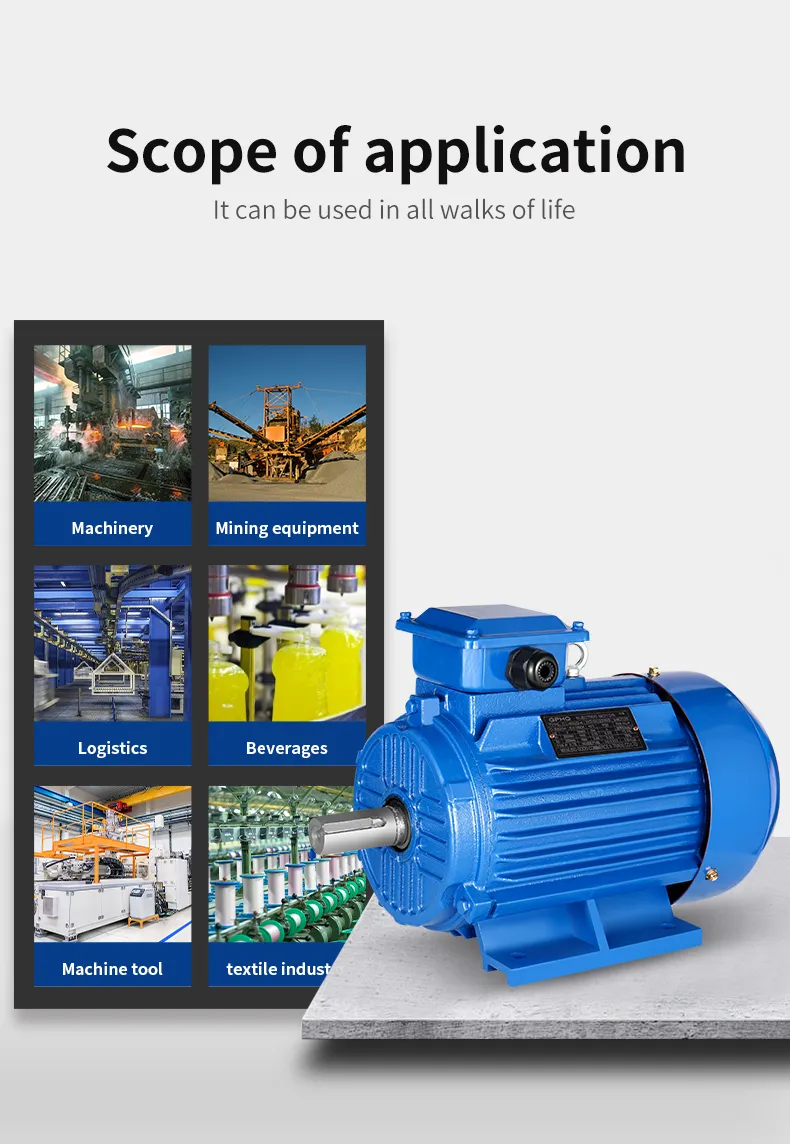

Application: Suitable for general places and machines without special requirements, such as machine tools, pumps, fans, transport machinery, mixers, agricultural machinery, food machines, air compressors, etc.
