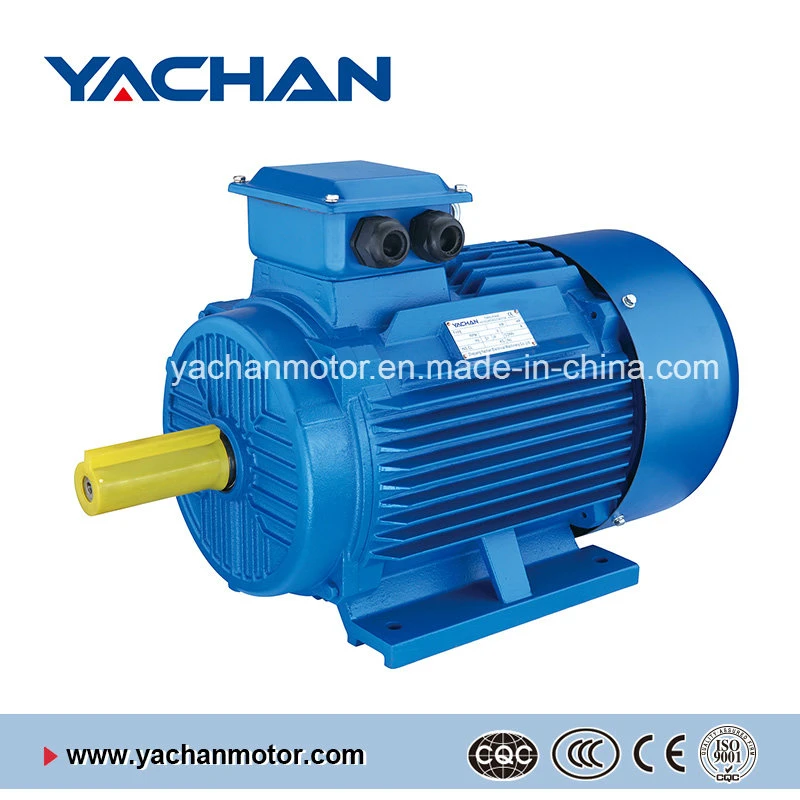

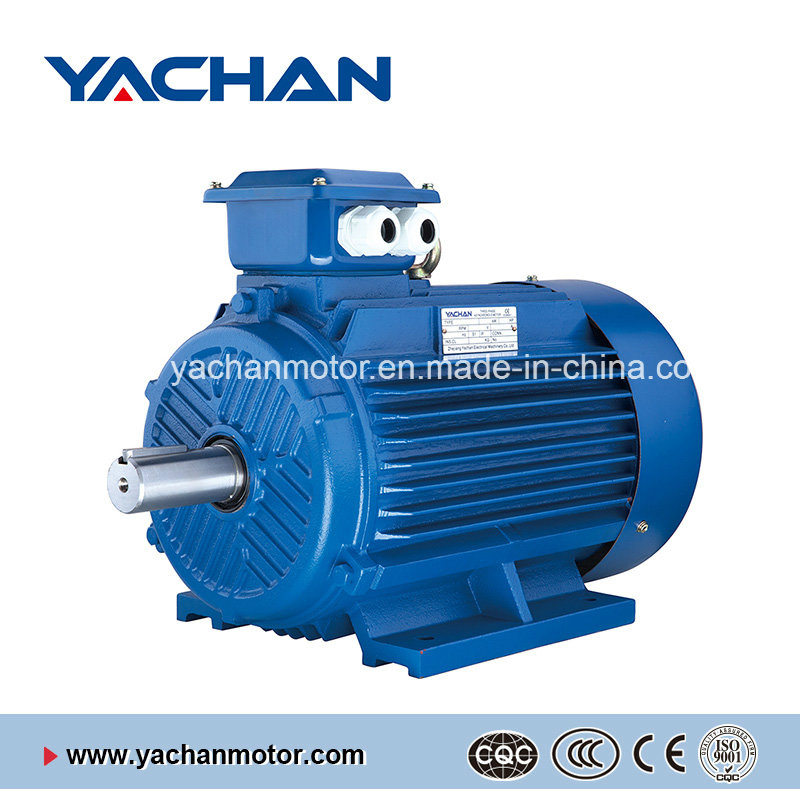

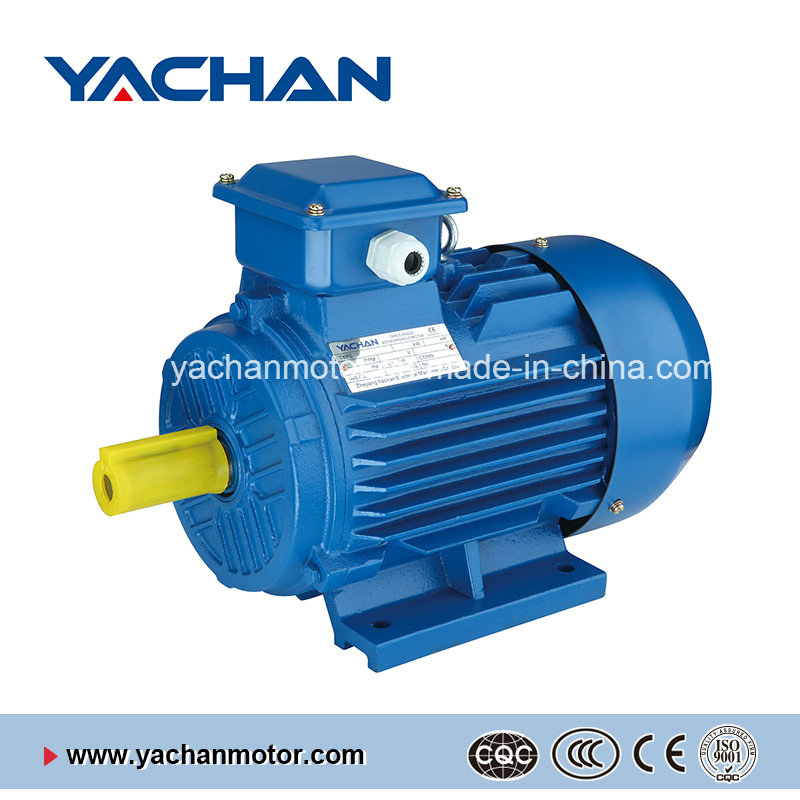

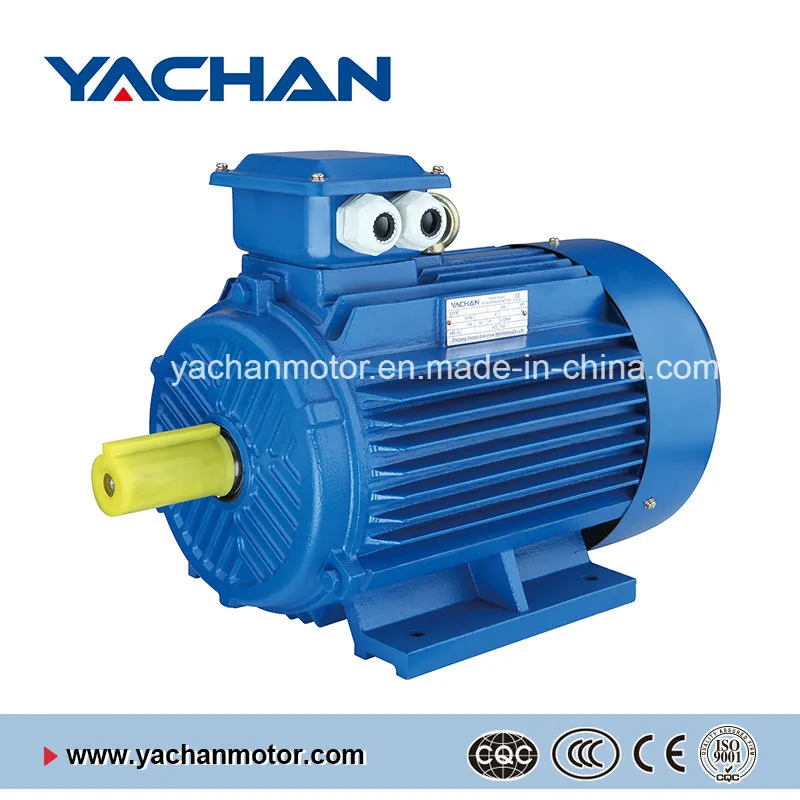

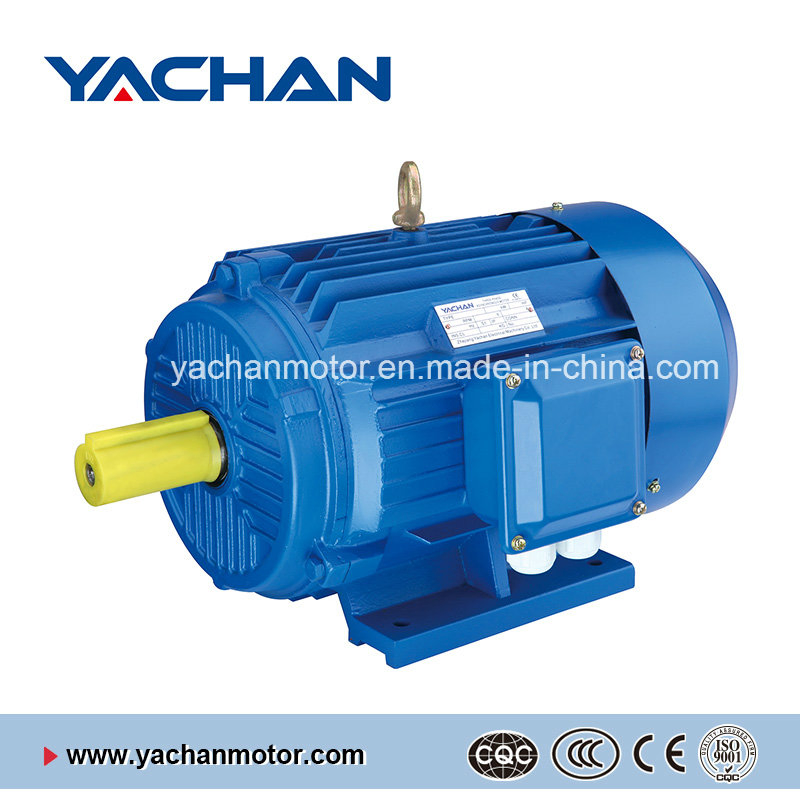

The Y2 series three-phase asynchronous motor is an upgrade of the Y series motor, featuring a totally enclosed, fan-cooled induction design for general-purpose applications. As a high-standard industrial product, its overall performance level matches international benchmarks.
These motors are widely applicable in various fields including machine tools, water pumps, fans, and compressors. They are also suitable for transportation, stirring, printing, agricultural machinery, and food processing—excluding environments with inflammable, explosive, or corrosive gases.
The installation size and power grades conform to IEC and Germany DIN42673 standards. The protection grade is IP54/IP55, with an IC411 cooling method. It operates continuously (S1) using F-class insulation.

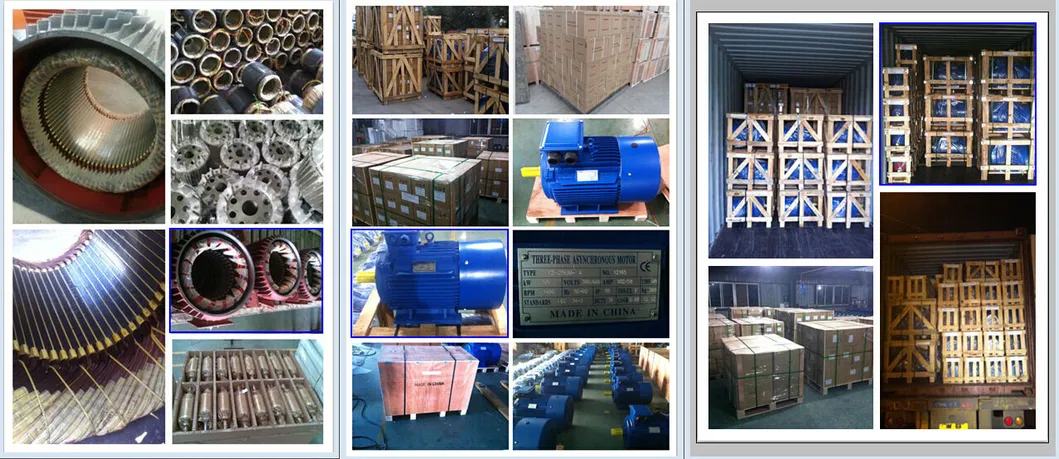

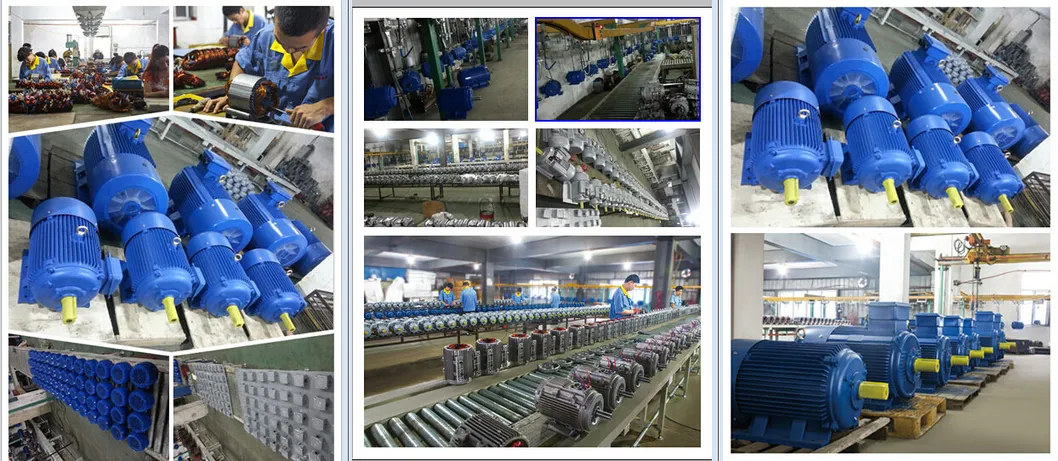

The manufacturer is a modern enterprise specializing in producing small and medium motors. With 15 years of history, the facility utilizes 100% copper wire, cold-rolled silicon steel sheets, and high-quality bearings to ensure durability and efficiency.
| Power Range | 0.12KW - 315KW |
| Frame Range | H56 to 355 |
| Shell Material | Cast Iron or Aluminum Body |
| Pole Configuration | 2/4/6/8 Poles |
| Voltage Options | 220V, 380V, 400V, 415V, 440V (50/60Hz) |
| Protection Rating | IP54 / IP55 / IP65 |
| Insulation Class | F Class |
| Compliance | IEC EN60034-1 & EN1060204-1 |
