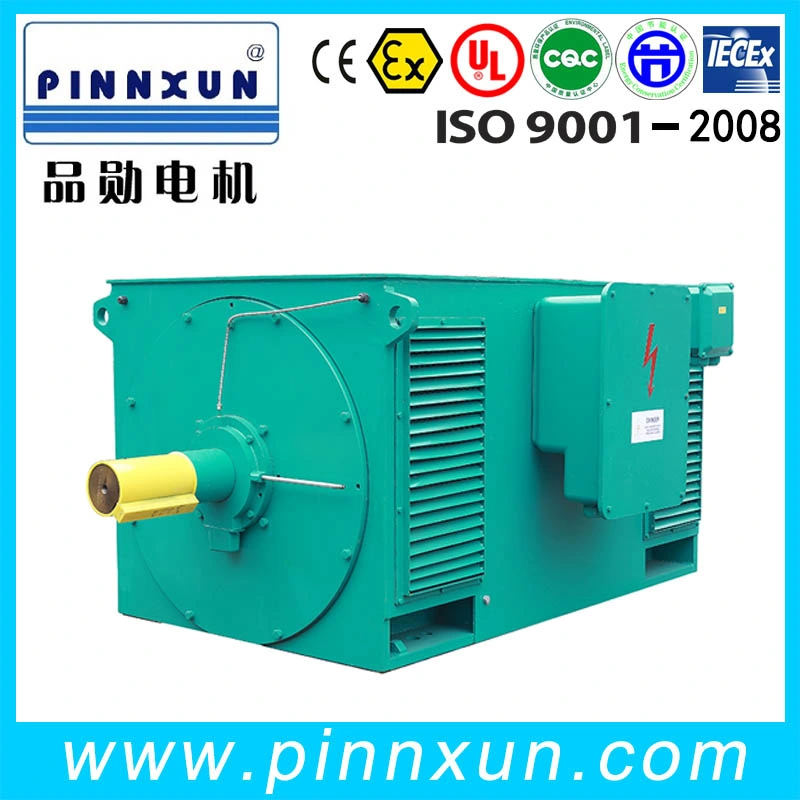

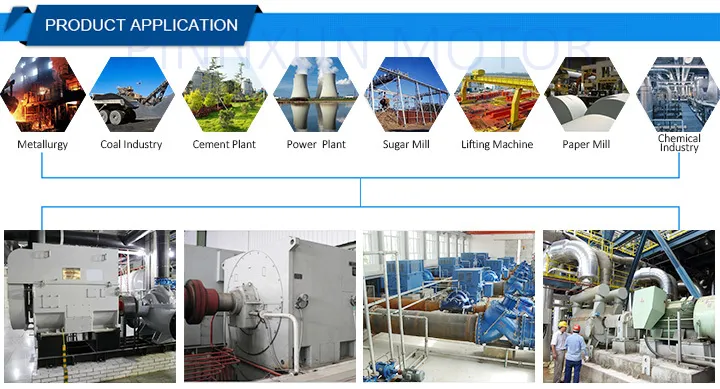

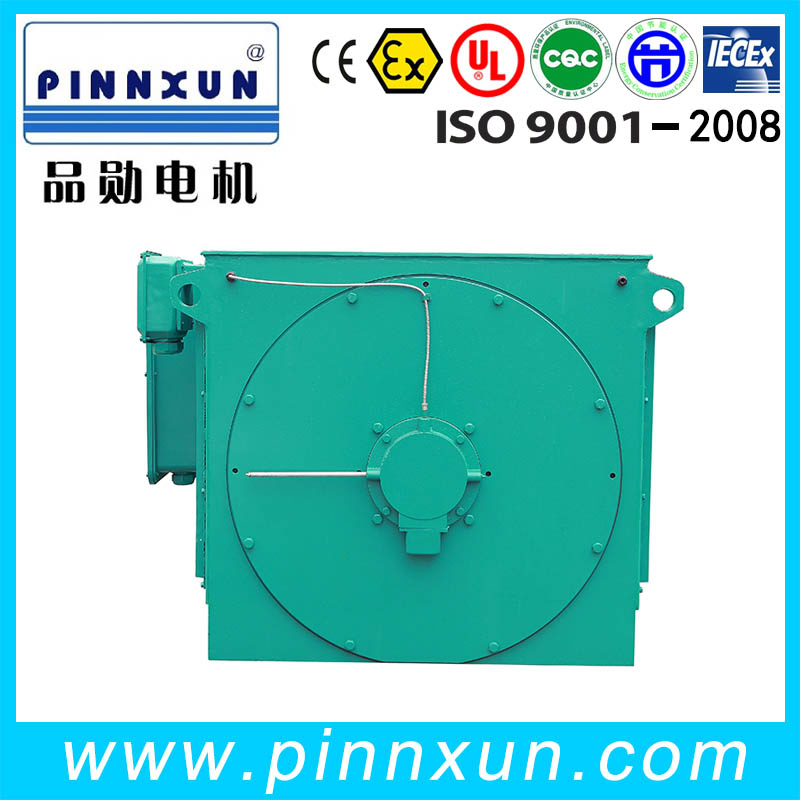

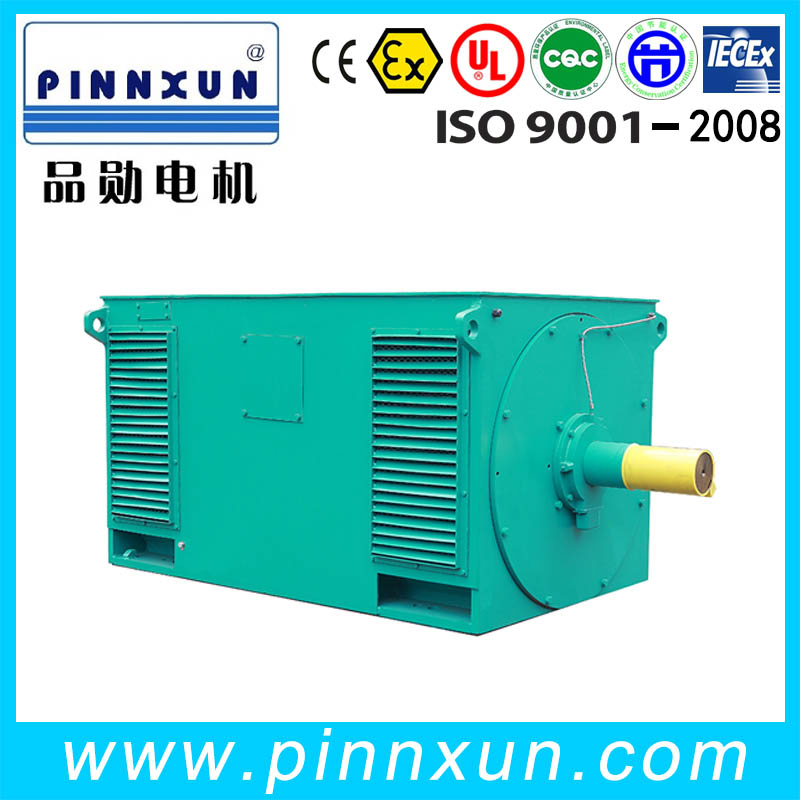

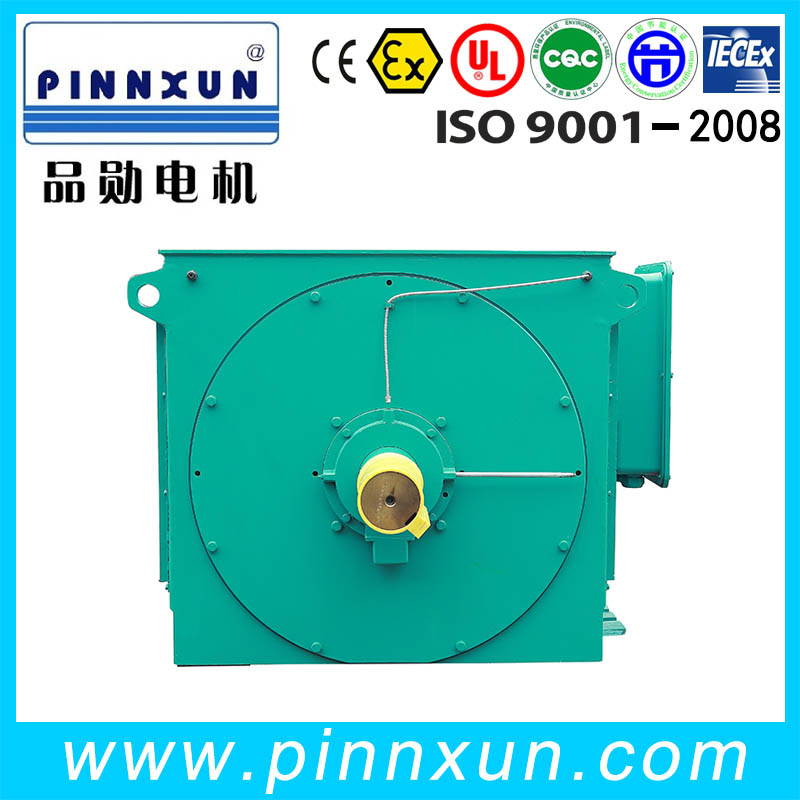

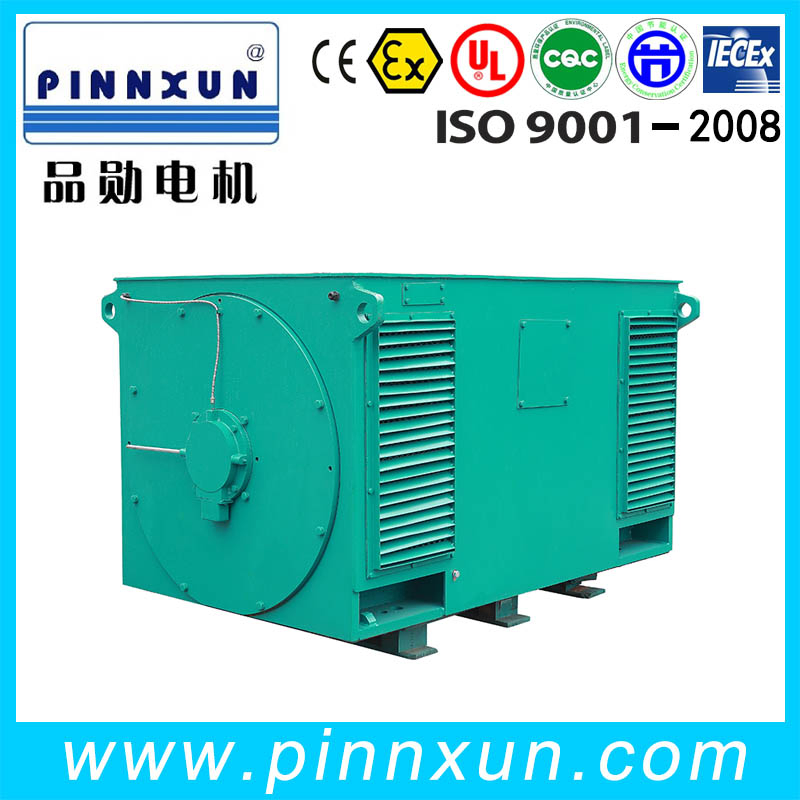

Y series high voltage motors are a new series of motors replacing the older types. These motors feature a box structure welded from steel sheets, resulting in a lighter weight, excellent performance, and high efficiency. As an open-type series, they are designed for indoor use to drive blowers, compressors, pumps, crushers, stock-removing machines, and other general-purpose machinery. They serve as reliable prime movers in power plants, steel mills, and various industrial fields.
| Type | Y Series |
| Power Range | 180kw ~ 6000kw |
| Insulation Class | F / B, H / B |
| Voltage & Frequency | 3.3kv / 6kv / 6.6kv / 10kv / 13.8kv (50 / 60HZ) |
| Speed | 3000 / 1500 / 1000 / 750 / 600 rpm |
| Mounting | IMB3 / IMV1 |
| Cooling & Ventilation | IC01 of IEC60034-6 |
| Winding Material | 100% Copper Wire |
| Protection Class | IP23 |
| Vibration | Vibration class A (Class B available on request) |
| Quality Assurance | ISO9001 Certified |
| Site Conditions | -15°C to +40°C; altitude below 1000 meters |
A complete set of optimal solutions can be provided for various applications, bringing innovation and added value to projects. Special customized solutions are formulated according to the specific needs of different customer requirements.

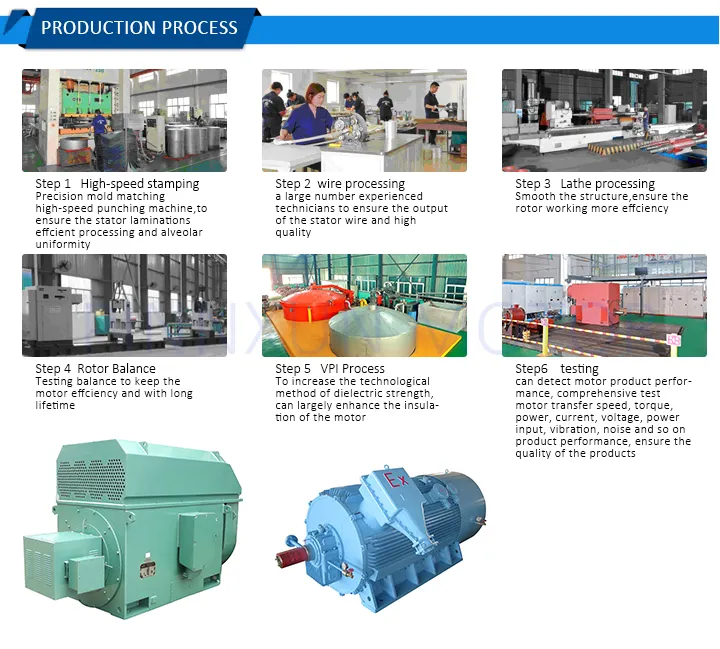

Management philosophy centers on good faith, responsibility, and excellence. Every step in the manufacturing process receives full attention to ensure customers receive superior quality products.
Commitment to quality is demonstrated through strict compliance with international mainstream standards and a comprehensive quality management system.
A global marketing service network penetrates more than 60 countries and regions including South America, North America, Europe, Asia, the Middle East, and Africa. This infrastructure allows for rapid capacity in sales, service, procurement, and transportation. Products are widely used in global industry, offering stable and safe performance tailored to different industries.
