KPR Motor
1 / 5

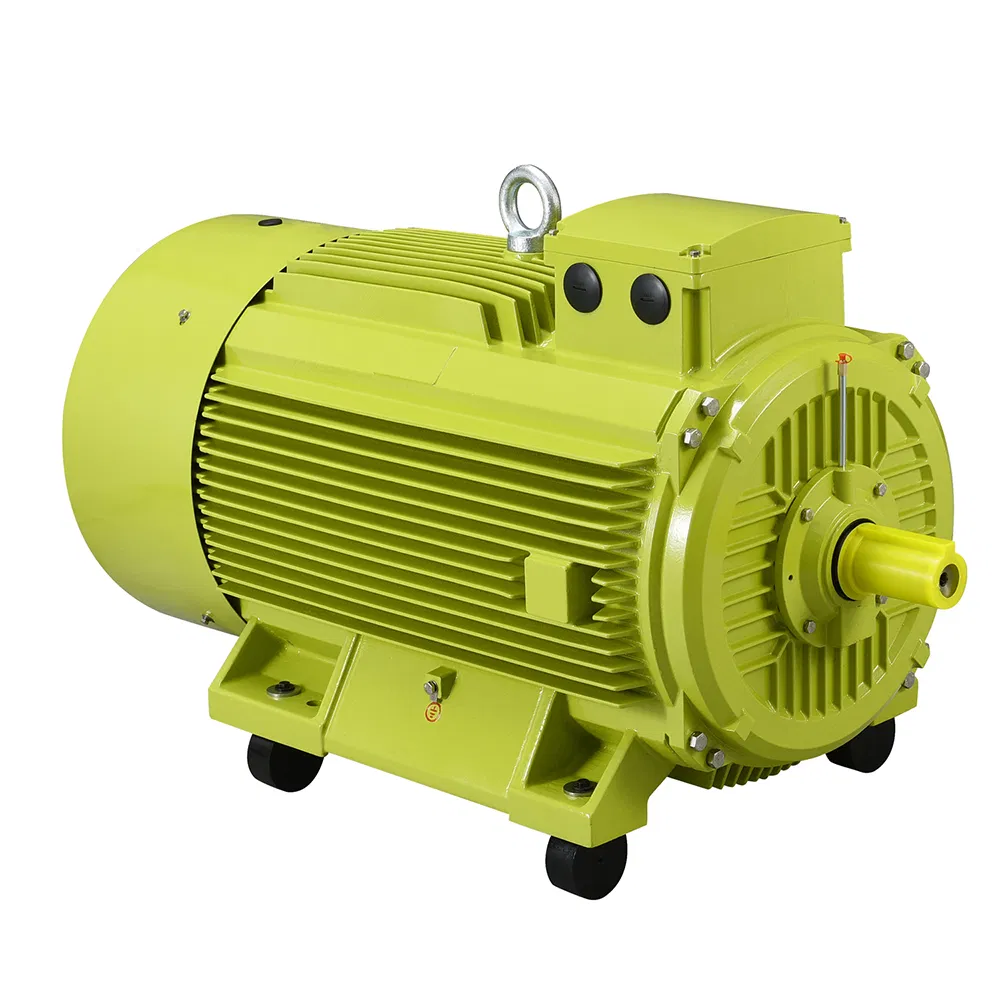

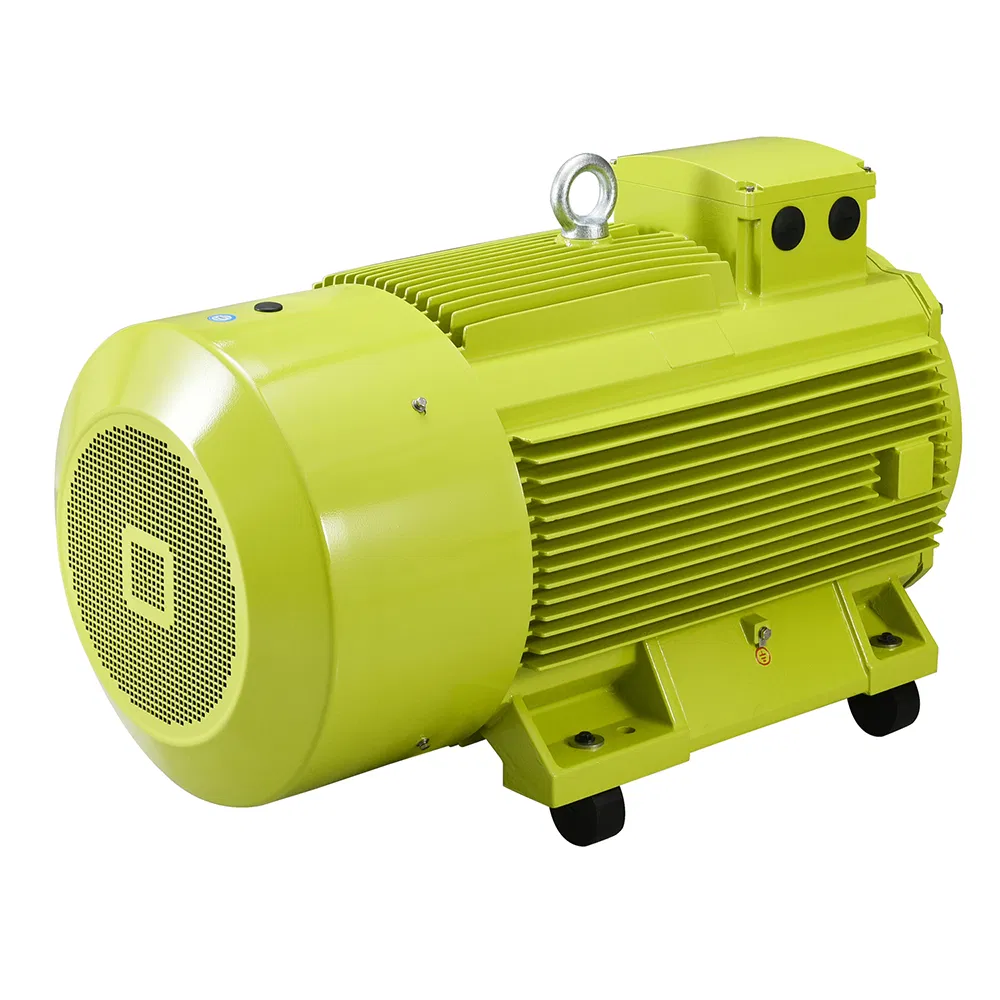

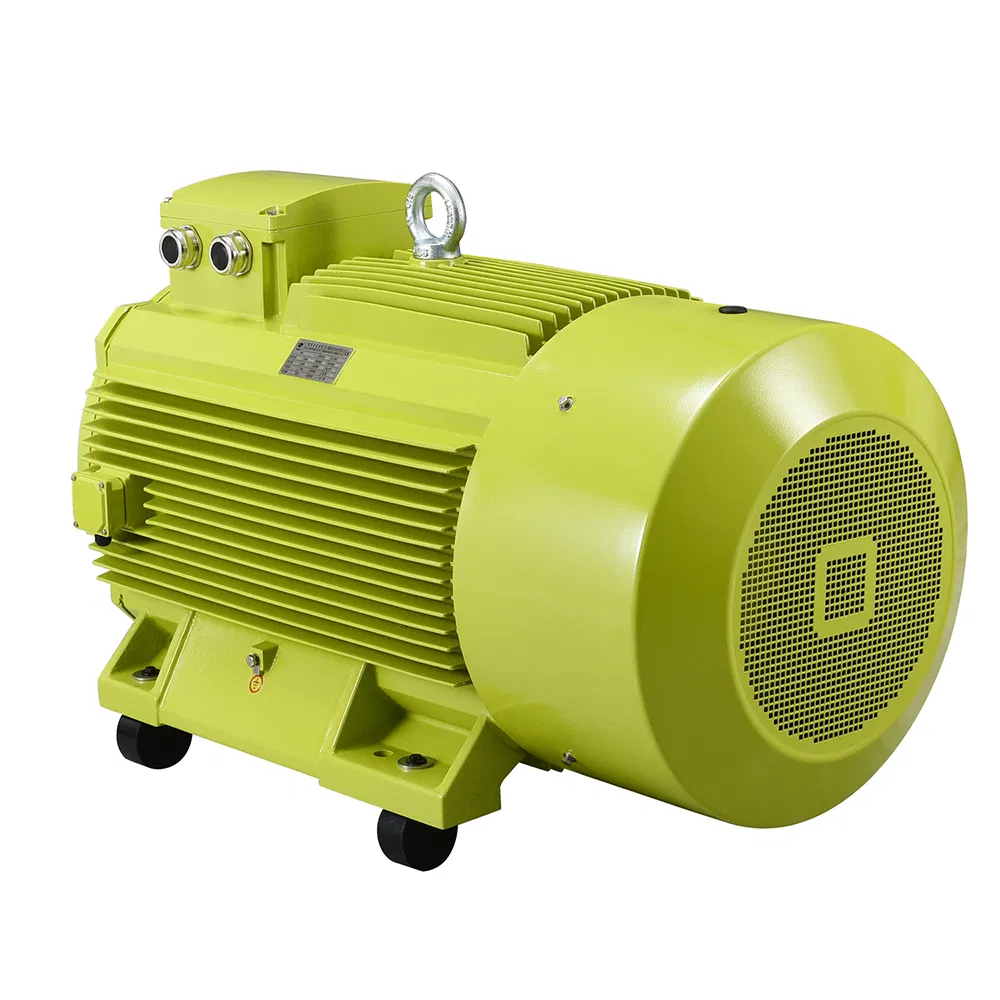

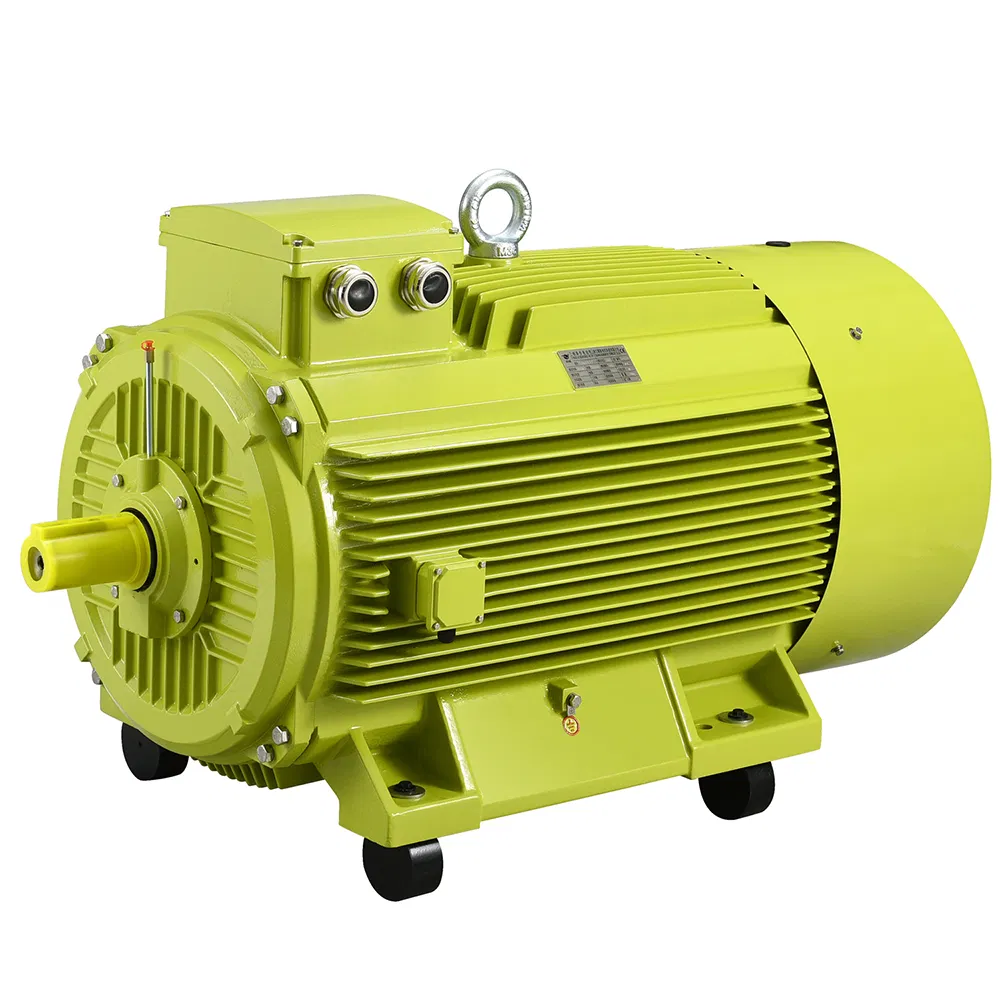

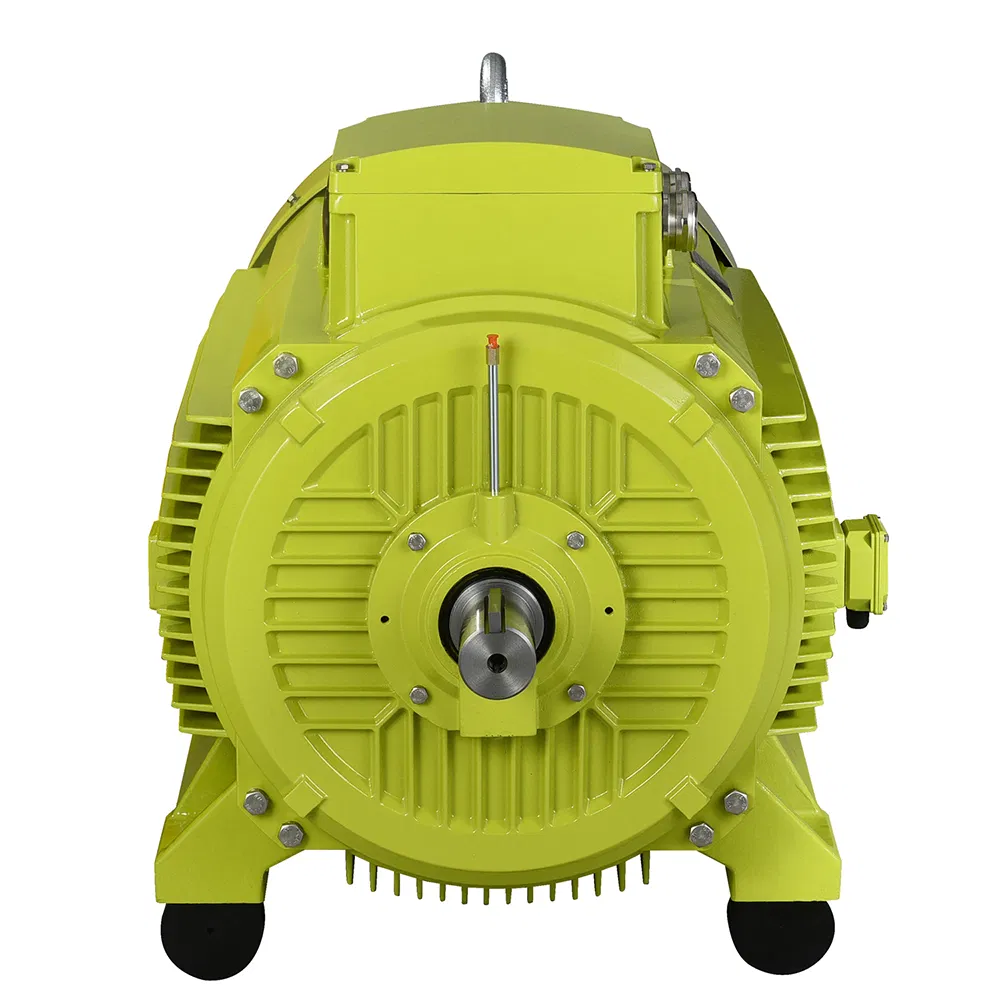

This series represents high-efficiency, energy-saving three-phase asynchronous motors developed for optimal performance. Using the IC411 coolant mode, these units comply with GB/T 755 and JB/T 13299 standards. The efficiency rating meets the Grade 2 standard in GB 18613-2020 and matches the international IE4/IE5 standard (IEC 60034-30).
These motors offer superior energy conservation, low vibration, high reliability, and an excellent temperature rise margin. They are ideal for driving water pumps, fans, compressors, conveyors, and other transmission machinery in national water conservancy and environmental transformation projects.
| Type | Rated Power | Rated Current (A) | Rated Speed (r/min) | Efficiency (%) | Power Factor (CosΦ) | |
|---|---|---|---|---|---|---|
| KW | HP | |||||
| Synchronous Speed 3000r/min (2 Poles) | ||||||
| YE5-80M1-2 | 0.75 | 1 | 1.6 | 2880 | 86.3 | 0.83 |
| YE5-90S-2 | 1.5 | 2 | 3 | 2890 | 88.9 | 0.85 |
| YE5-100L-2 | 3 | 4 | 5.8 | 2910 | 91.1 | 0.87 |
| Synchronous Speed 1500r/min (4 Poles) | ||||||
| YE5-112M-4 | 4 | 5.5 | 8.2 | 1450 | 92.8 | 0.8 |
| YE5-132S-4 | 5.5 | 7.5 | 11.2 | 1470 | 93.4 | 0.8 |
| YE5-160M-4 | 11 | 15 | 21.3 | 1475 | 94.6 | 0.83 |

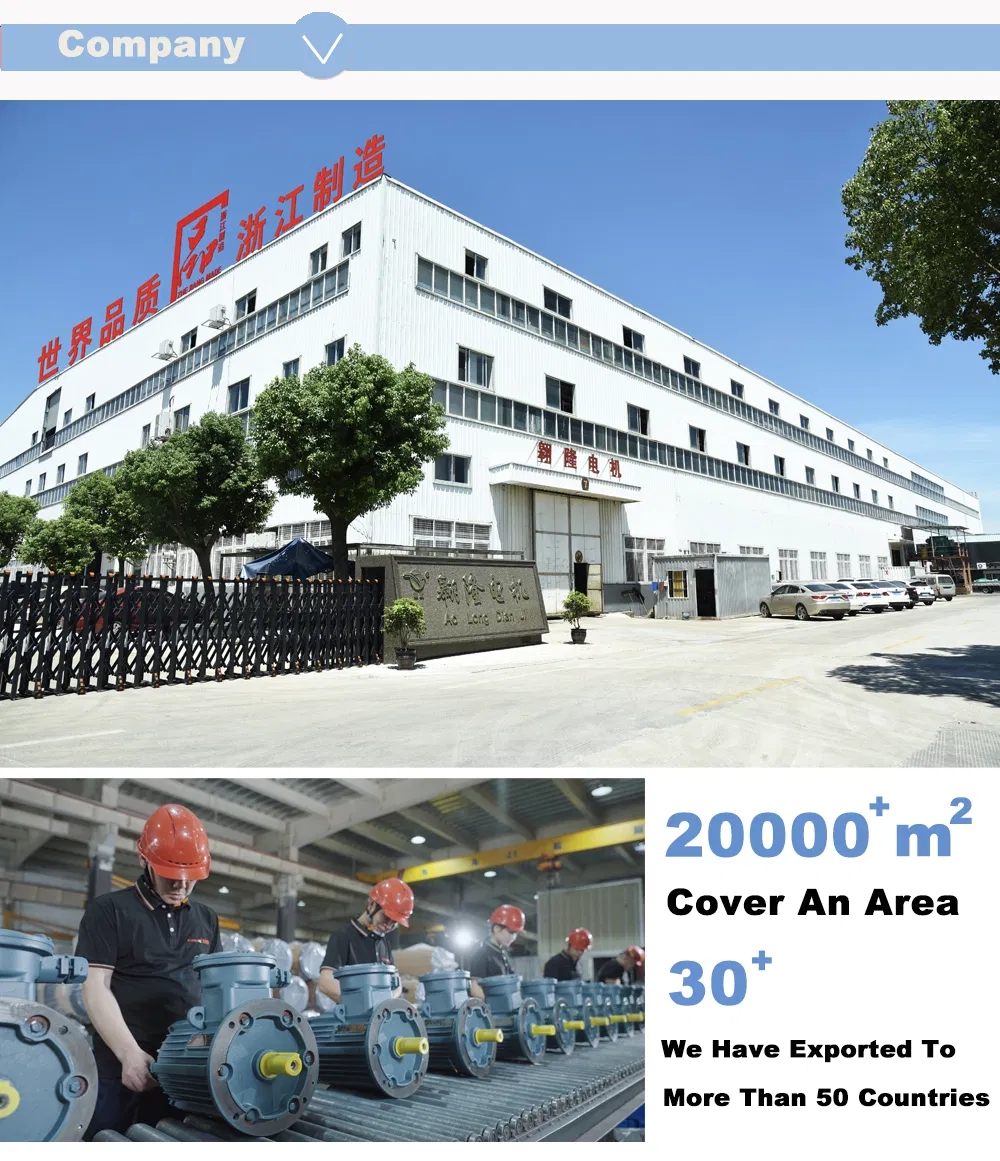

Yes, we are a professional factory specializing in manufacturing and developing high-quality electric motors for over 36 years.
Both OEM and ODM services are available to meet specific customer requirements and applications.
The standard lead time is approximately 15 to 30 days after receiving the deposit or original L/C.

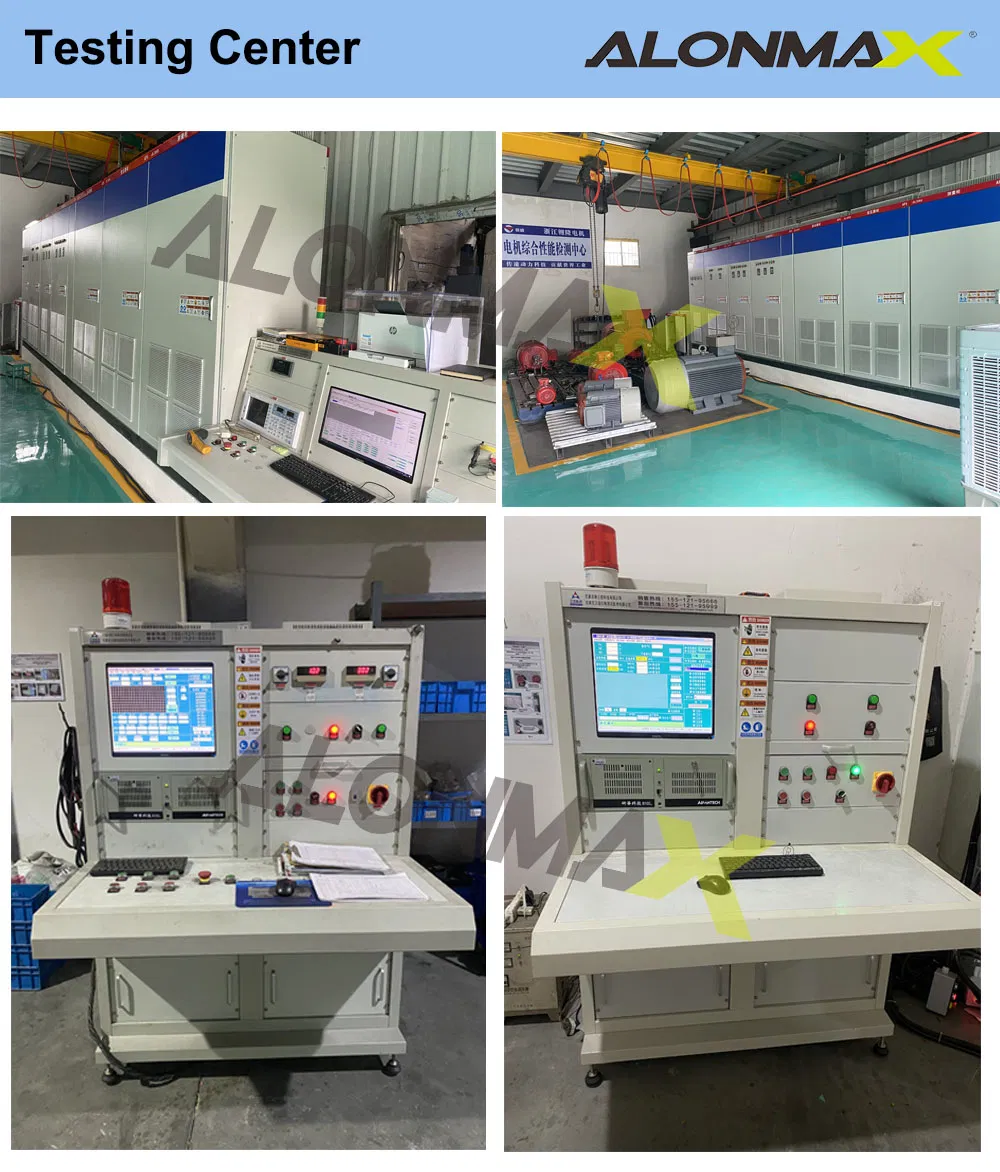

We implement strict quality control standards, including 100% inspection of incoming parts and motor testing at every production stage.
Our products are certified with CE, ISO 9001-2015, CCC, and Explosion-proof certificates with complete test reports.
We provide a one-year quality warranty. During this period, we supply replacement parts for potential issues arising from normal operation.
