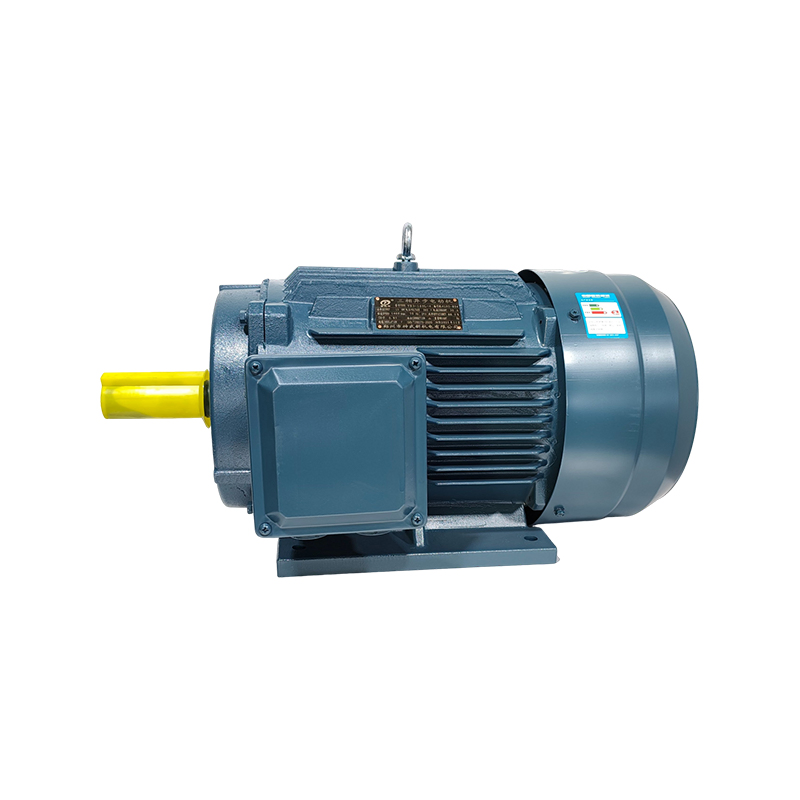

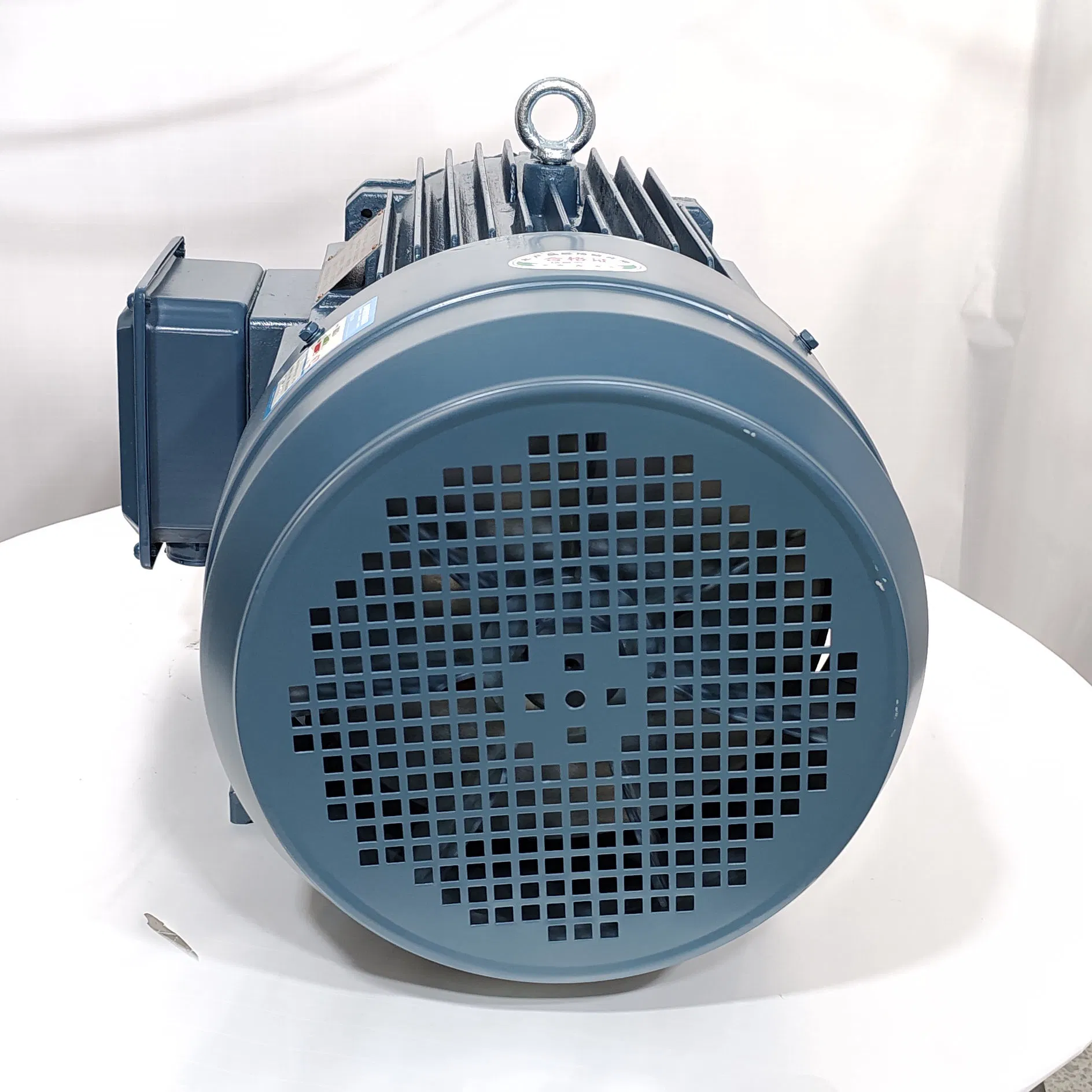

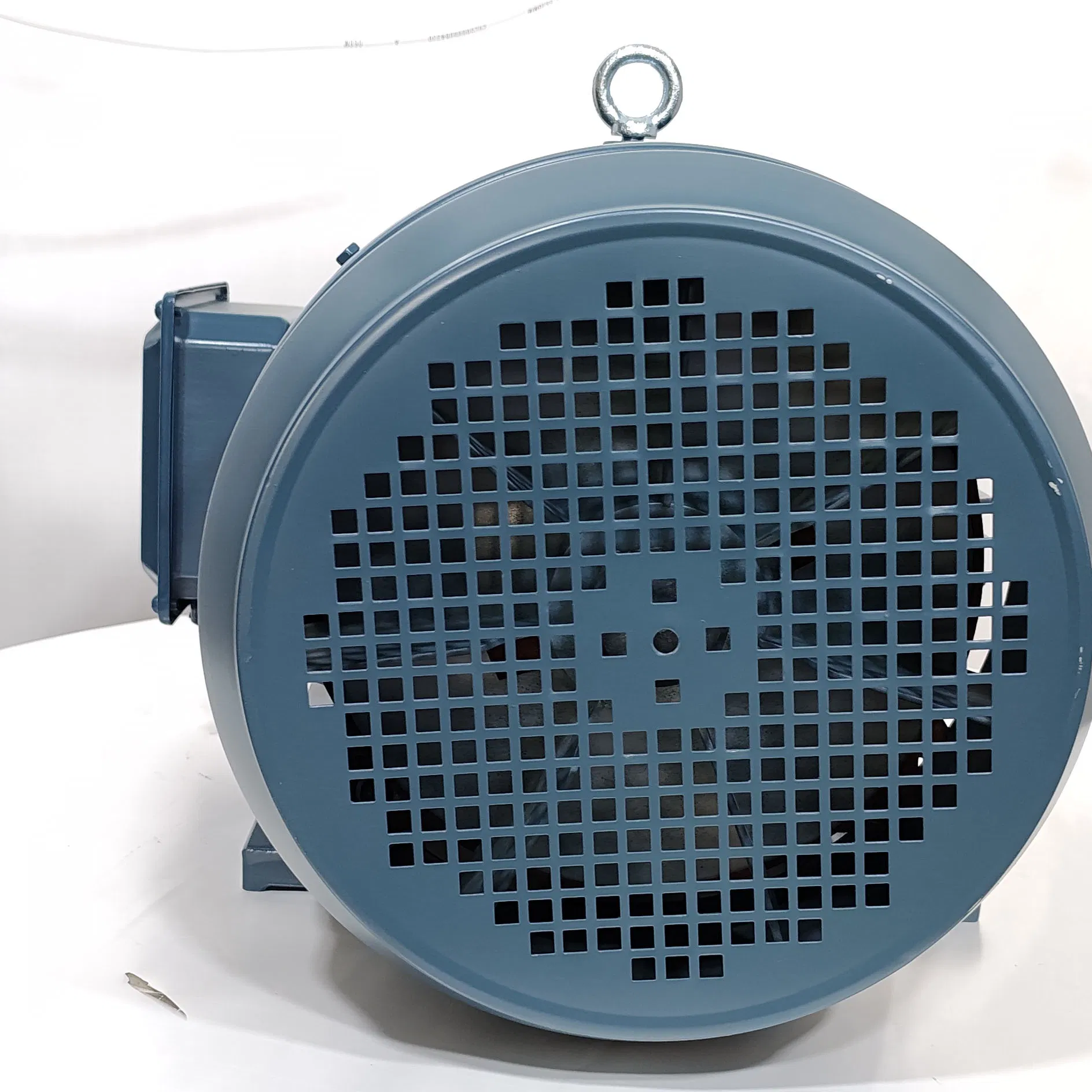

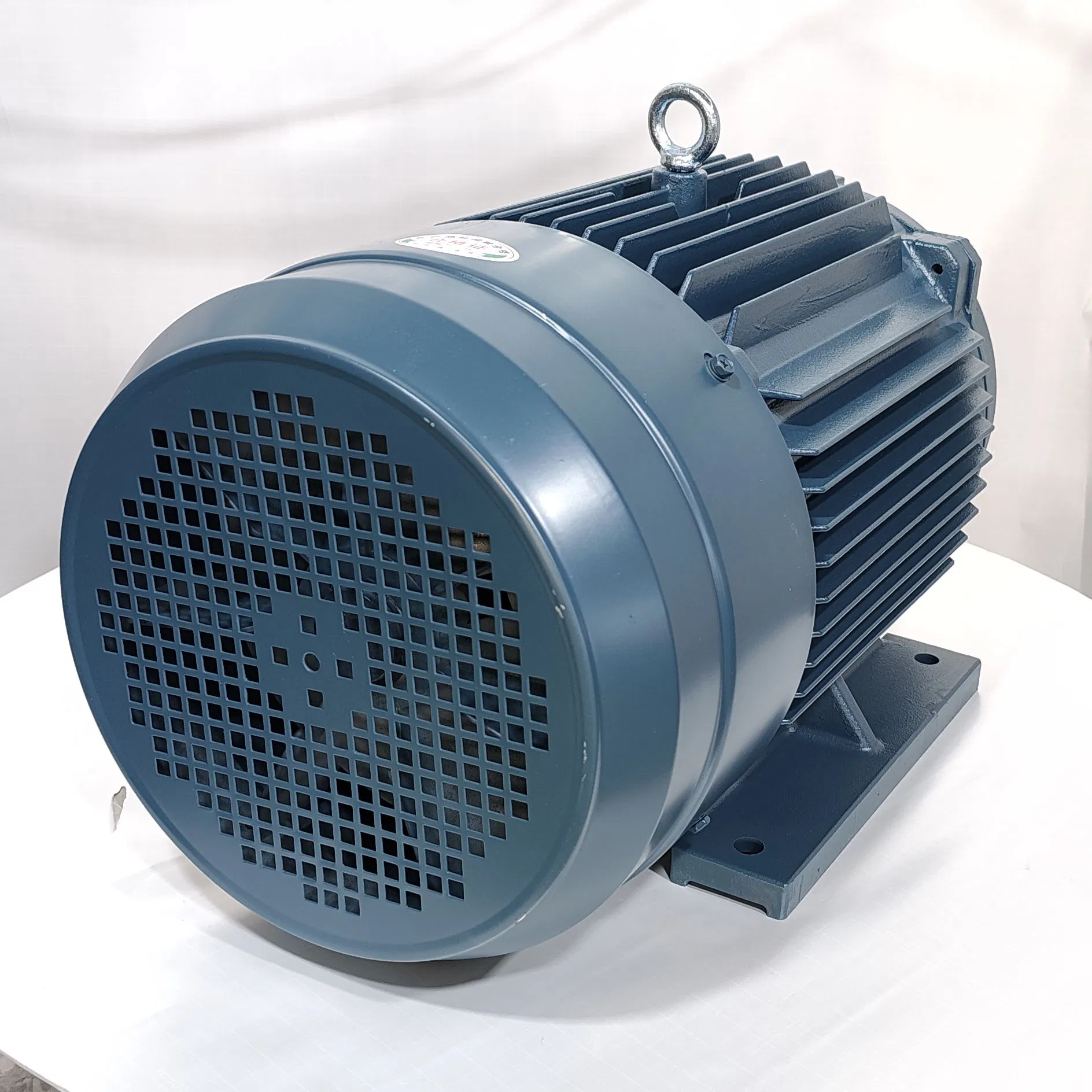

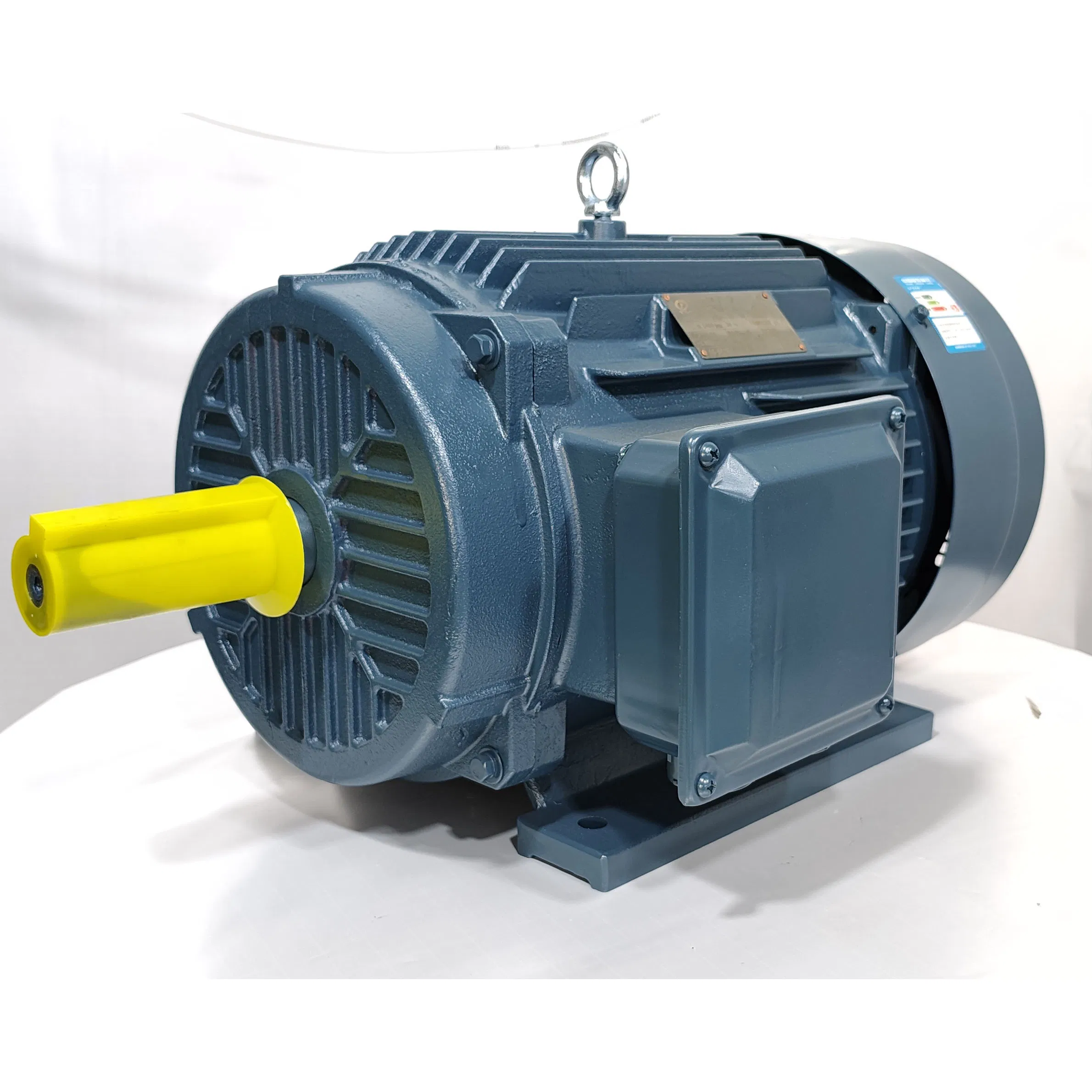

AC Motor 15 HP Three Phase Electric Motor for Heavy-Duty Use

Basic Specifications

Model NO.YE3-200L-4-30kw-210

PhaseThree-Phase

SpeciesAsynchronous Motor

Rotor StructureSquirrel-Cage

ProtectionExplosion-Proof / IP55

Voltage380V or Customized

Insulation ClassF

Material100% Pure Copper Wire

Product Overview

Asynchronous motors, commonly known as induction motors, are the backbone of modern industrial and agricultural power. These machines are engineered for heavy-duty applications including grain mills, pellet machines, feed mixers, industrial fans, and high-capacity water pumps. Designed for stability and durability, these motors offer a service life spanning several decades with minimal maintenance requirements.

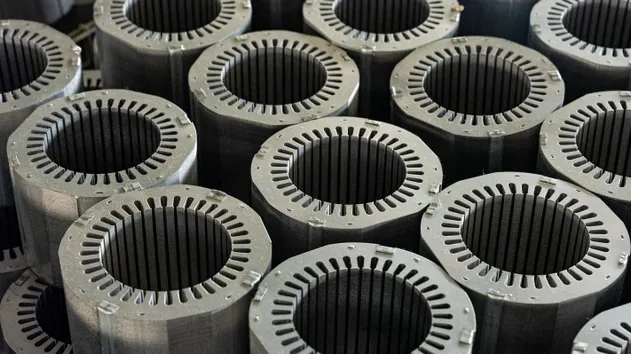

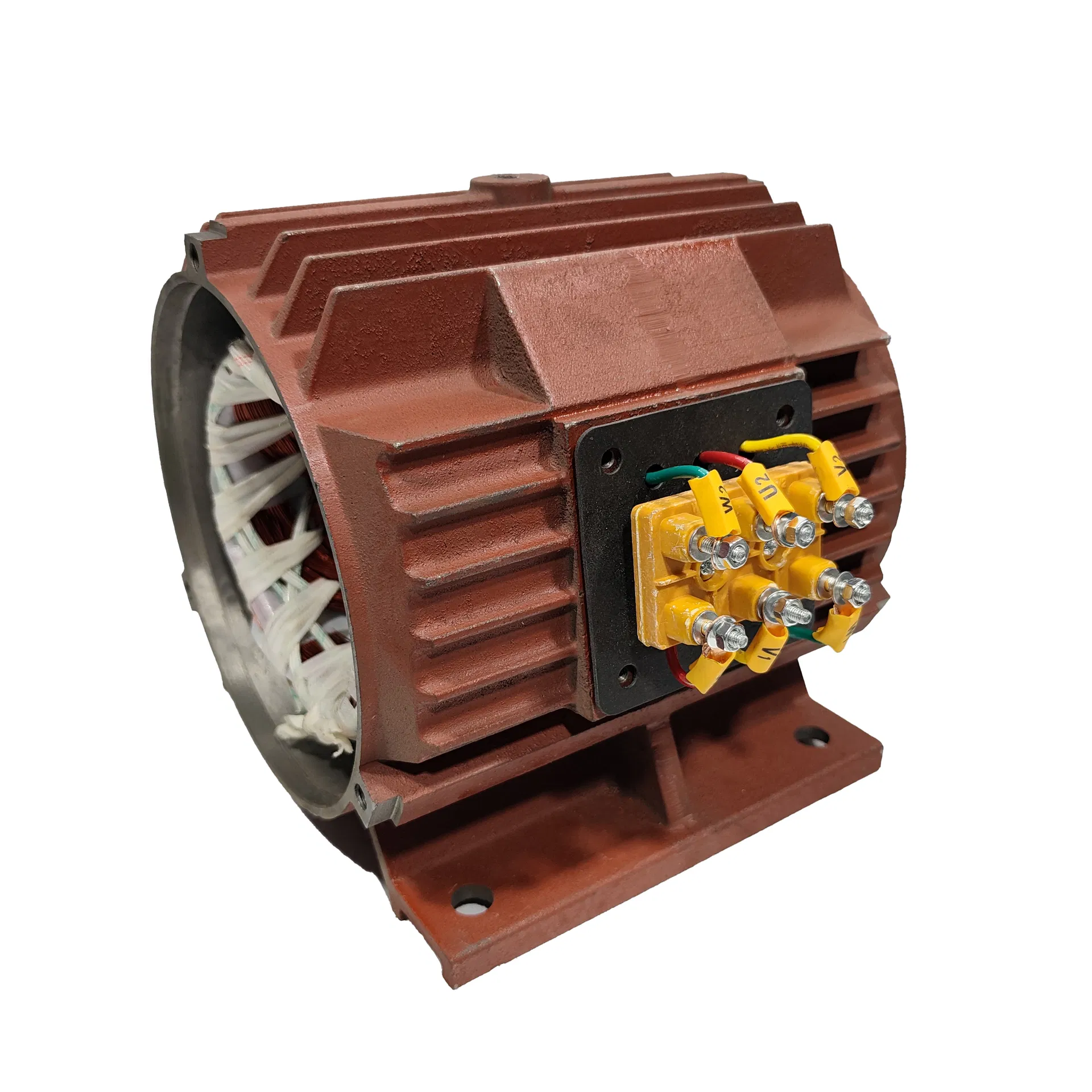

High-Performance Core: Both the rotor and stator are constructed using high-performance silicon steel stamping. This technology ensures low iron loss, superior magnetic induction intensity, and a compact design that significantly boosts overall energy efficiency.

Pure Copper Advantage: Utilizing 100% pure copper wire winding, our motors achieve exceptional conductivity, lower heat generation, and an increased current-carrying capacity, directly translating to a longer operational lifespan.

Performance Data (380V / 50Hz)

Model Type	Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor	Rated Torque (N.m)
YE3-80M1-2	0.75	1.7	2870	80.7	0.82	2.50
YE3-90S-2	1.5	3.2	2880	84.2	0.84	4.97
YE3-112M-2	4	7.8	2915	88.1	0.88	13.1
YE3-160M1-2	11	20.6	2950	91.2	0.89	35.6
YE3-200L-4	30	56.6	1475	93.6	0.86	194
YE3-315S-4	110	197	1490	95.4	0.89	705

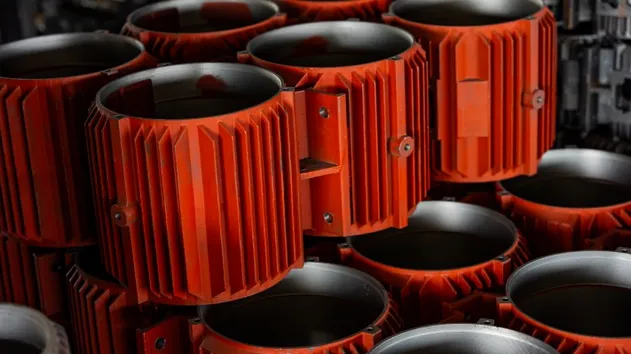

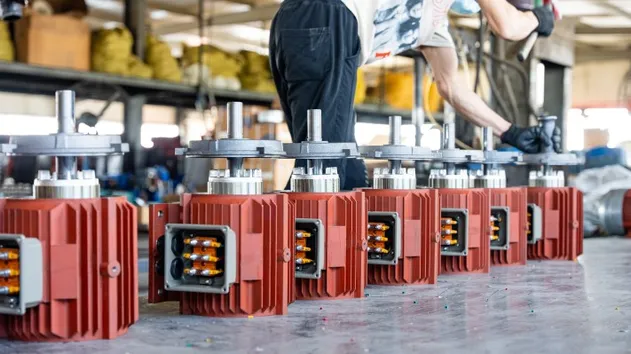

Operation Showcase

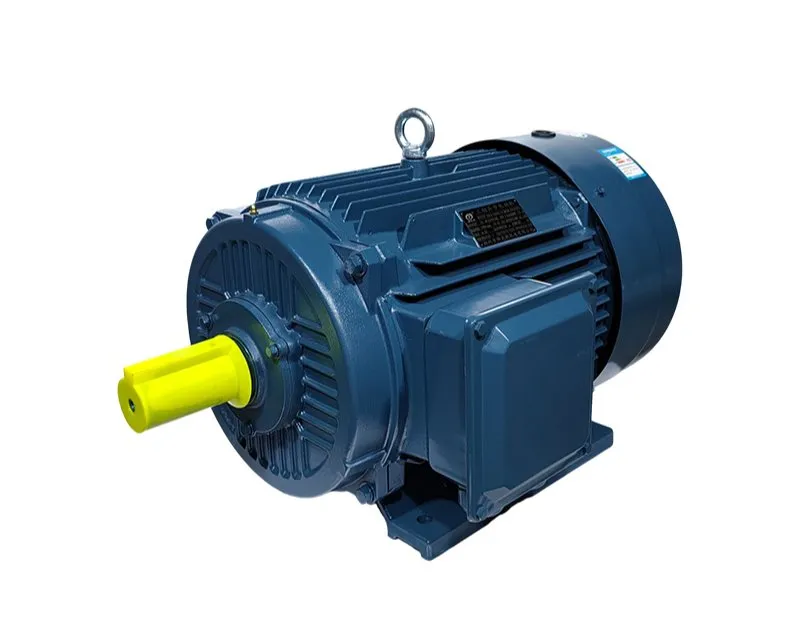

Main Product Display

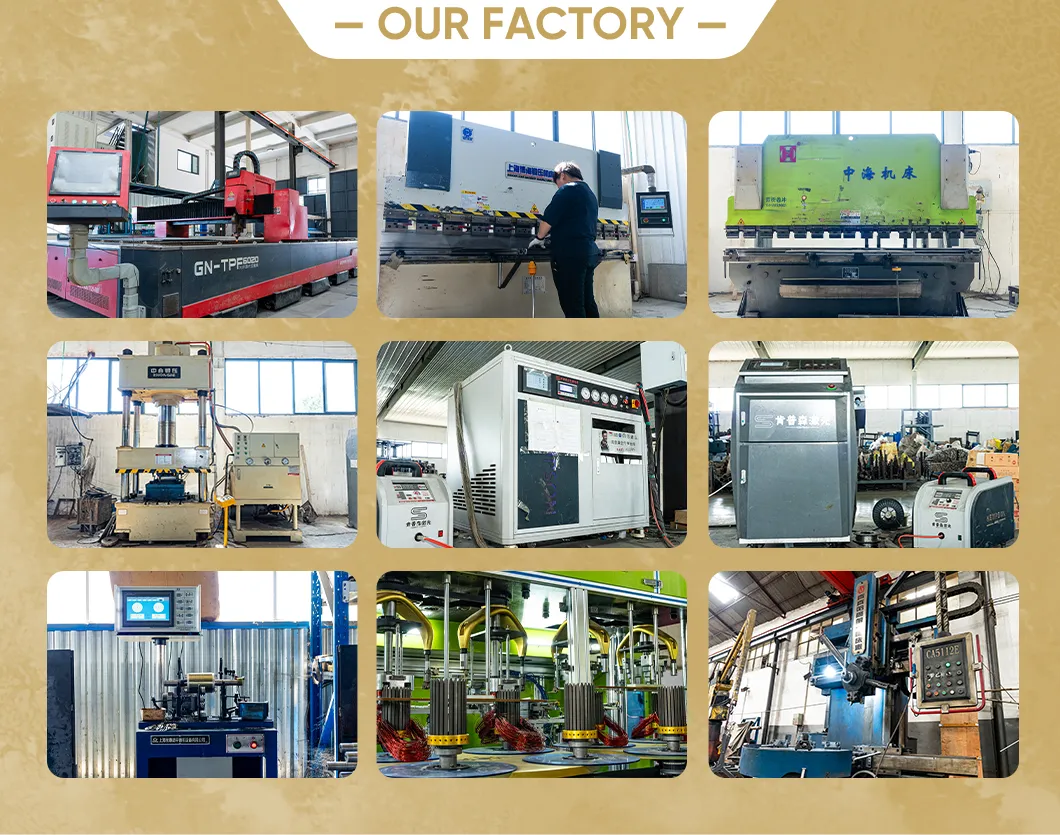

Factory Advantages & Certifications

Frequently Asked Questions

Q1: Are you a professional manufacturer of induction motors?

Yes, we are a manufacturing factory specializing in small agricultural machinery, motors, and water pump equipment with independent export rights.

Q2: How do you ensure the quality of your electric motors?

We use high-grade silicon steel and 100% pure copper wiring. Each unit undergoes strict performance testing and detection to meet industrial energy-saving and safety standards.

Q3: Do you provide OEM or customization services for specialized equipment?

Yes! We offer both OEM & ODM services, including logo customization and technical design adjustments based on your specific industrial or agricultural requirements.

Q4: What are the standard payment terms for bulk orders?

We generally accept T/T and L/C. Standard terms include a 30% deposit in advance and the 70% balance settled before shipping.

Q5: Can these motors be used in high-vibration agricultural environments?

Absolutely. Our motors are designed for heavy-duty use in equipment like grain mills and feed pellet machines, featuring stable power output and explosion-proof protection types.

Q6: What is the typical service life of your YE3 series motors?

With proper maintenance, our high-efficiency asynchronous motors are designed to operate reliably for several decades.
