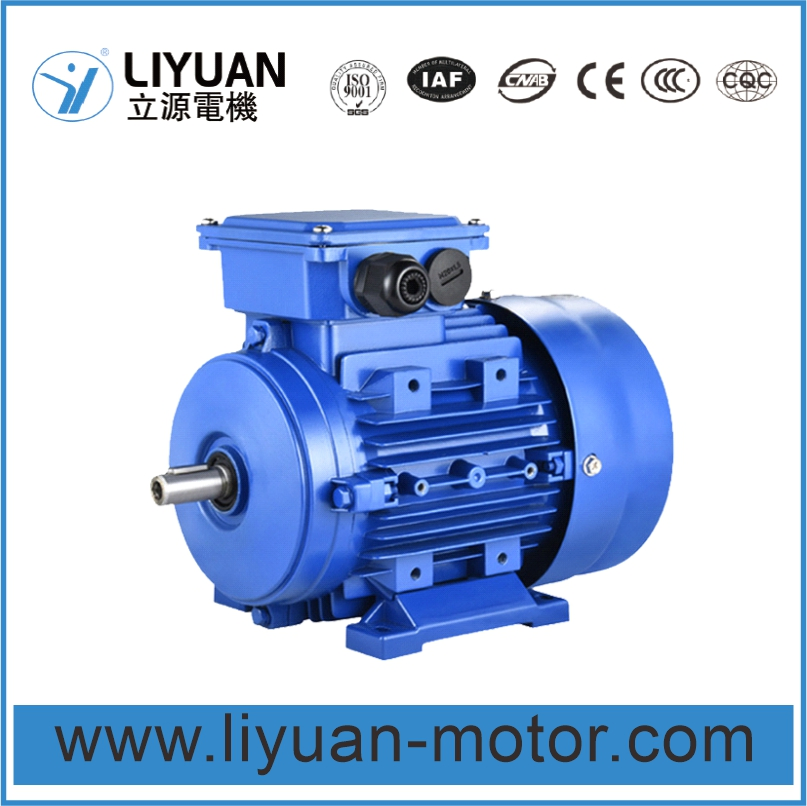

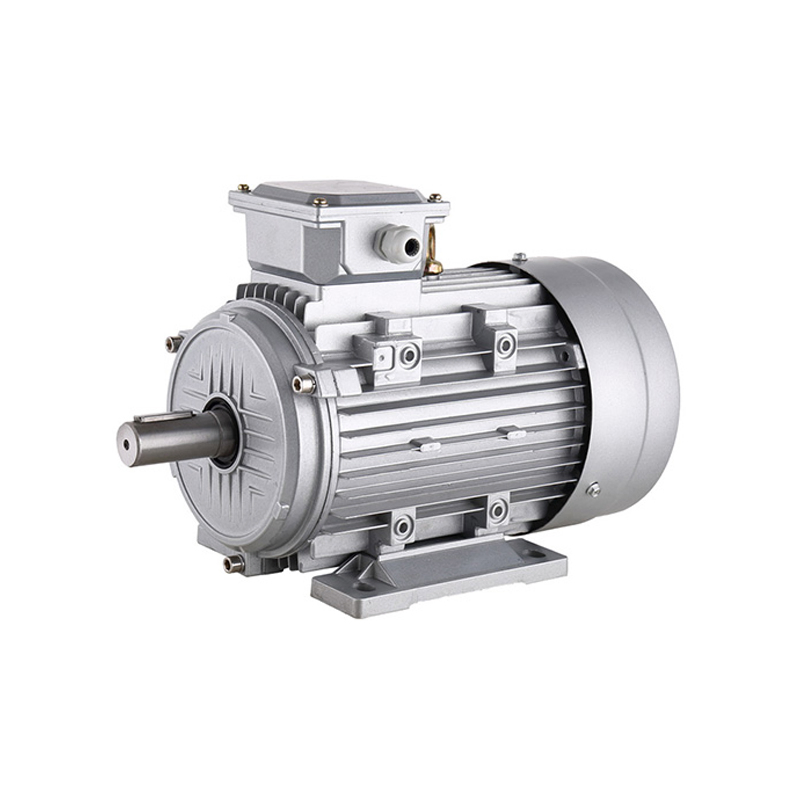

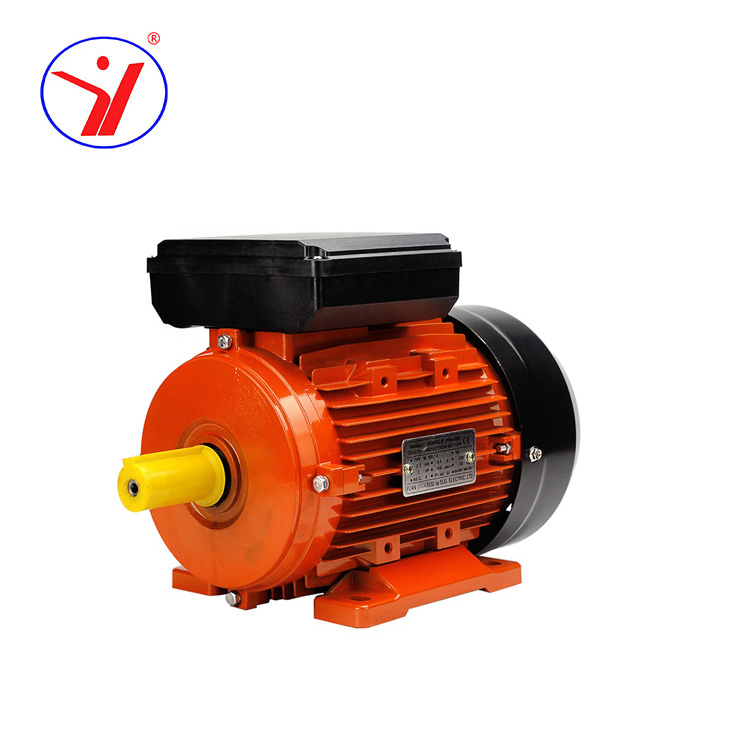

Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
1 / 5
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor
Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor

Ie1 Ie2 Ie3 Ms Series 0.5HP 1HP 1.5HP 2HP 3HP 4HP 5HP 7.5HP 10HP Three 3 Phase AC Induction Asynchronous Electric Motor

Send Inquiry

Product Description

Recommendation

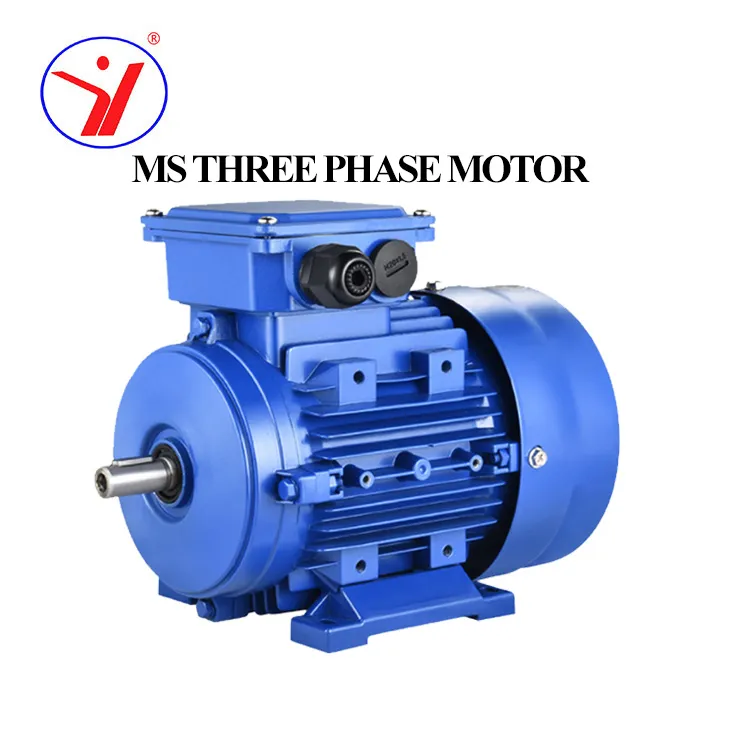

MS Series Electric Motor

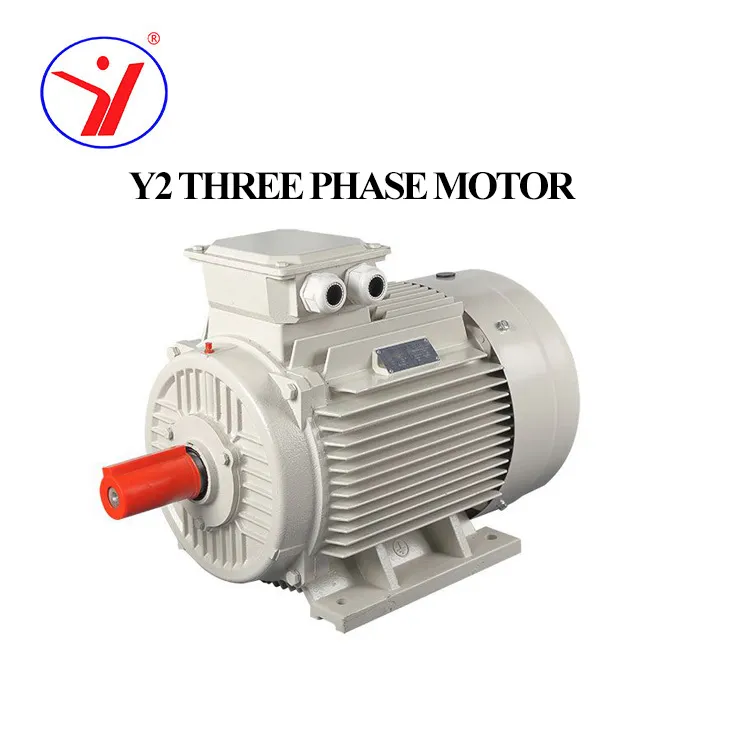

Industrial Three Phase Motor

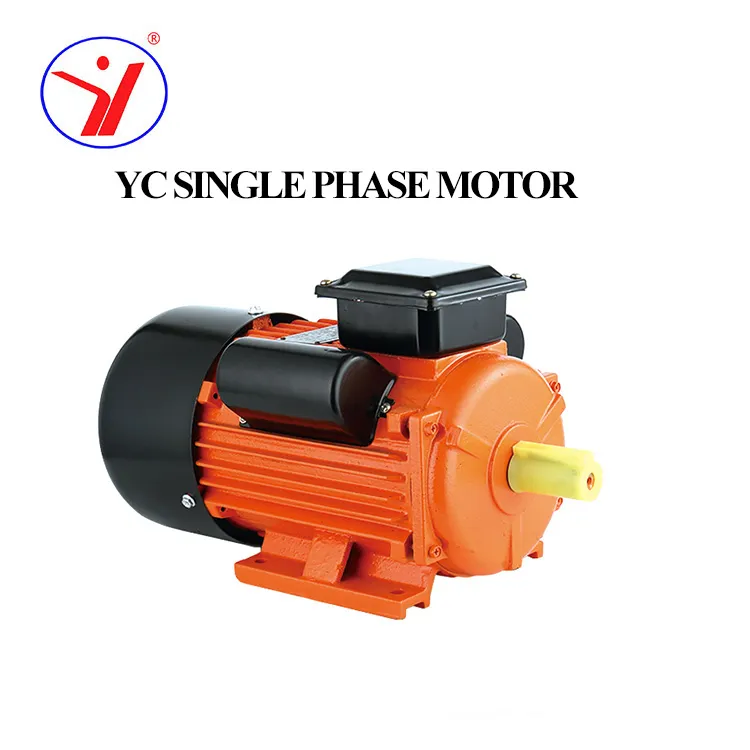

Single Phase Electric Motor

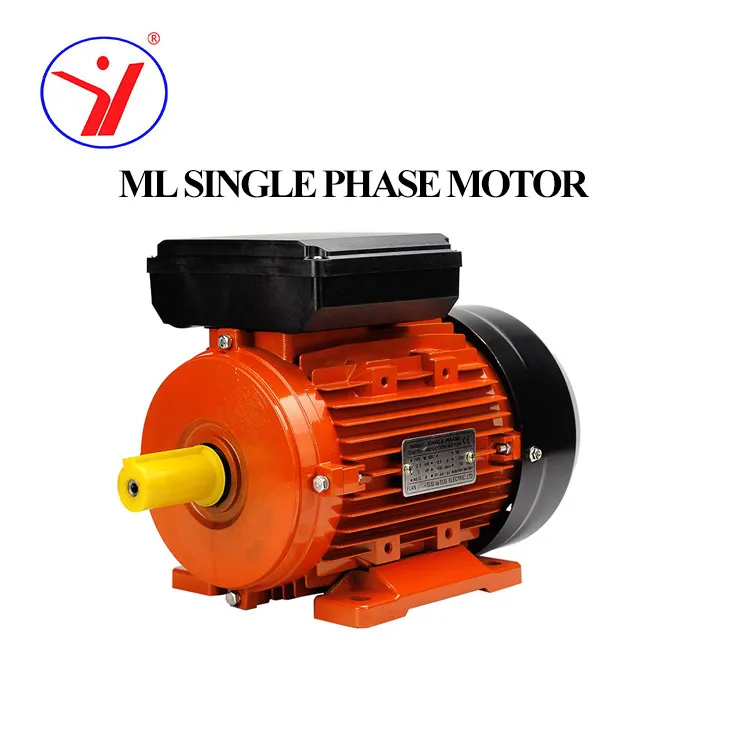

Aluminum Housing Motor

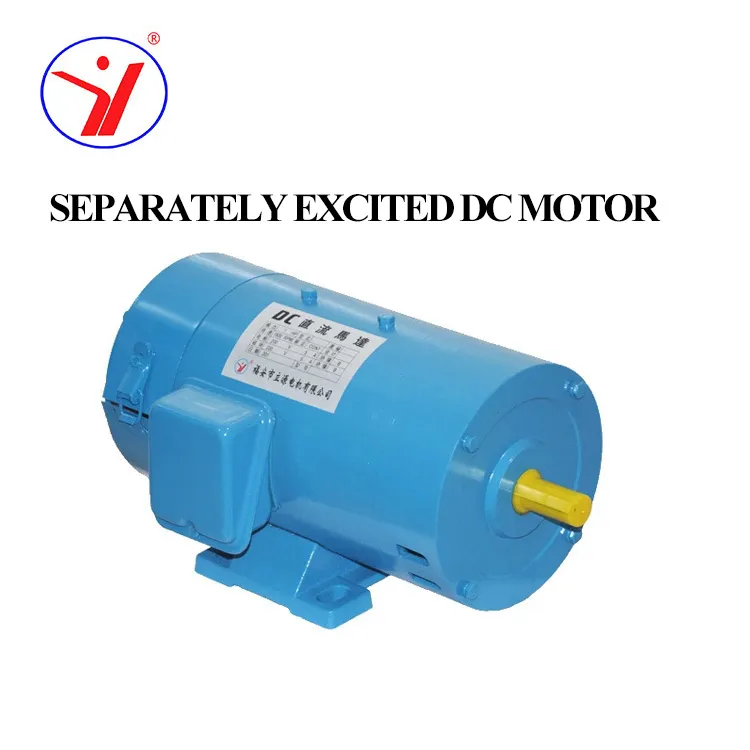

DC Electric Motor

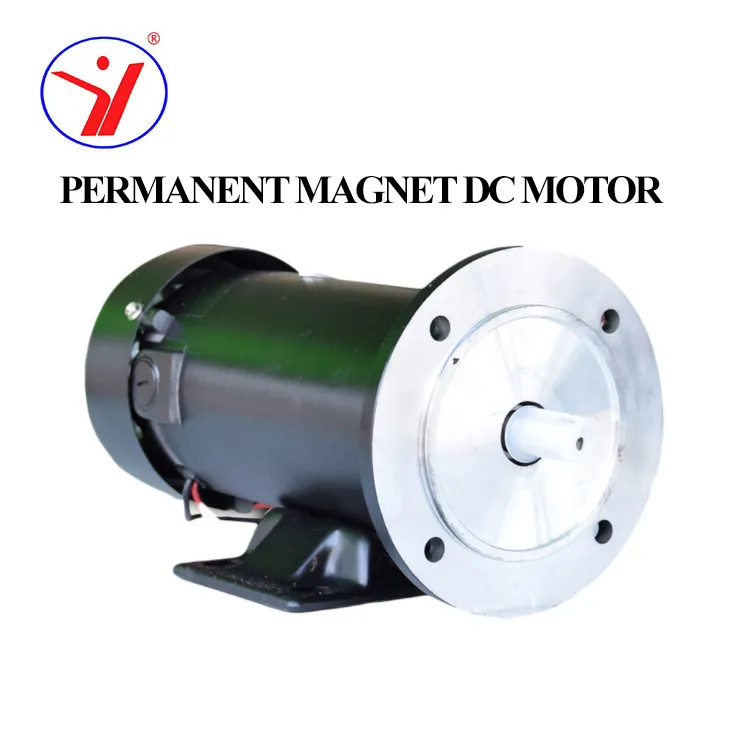

Brushed DC Motor

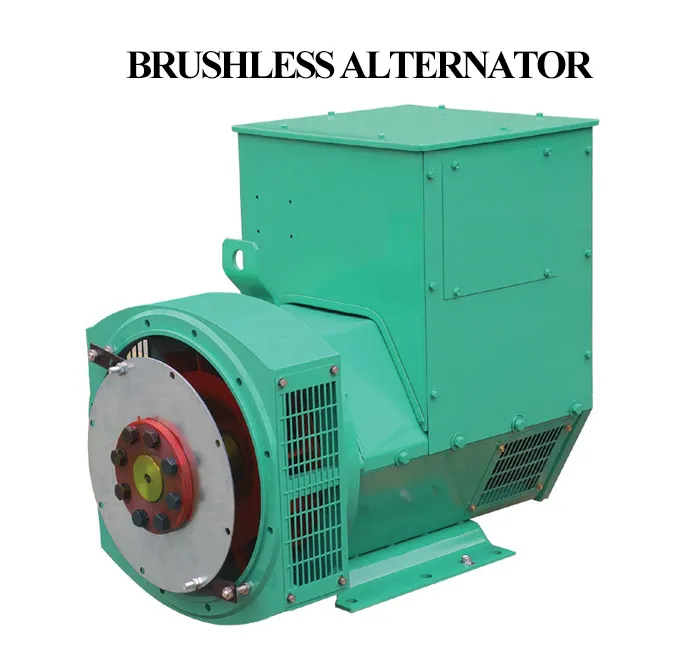

Brushless Alternator

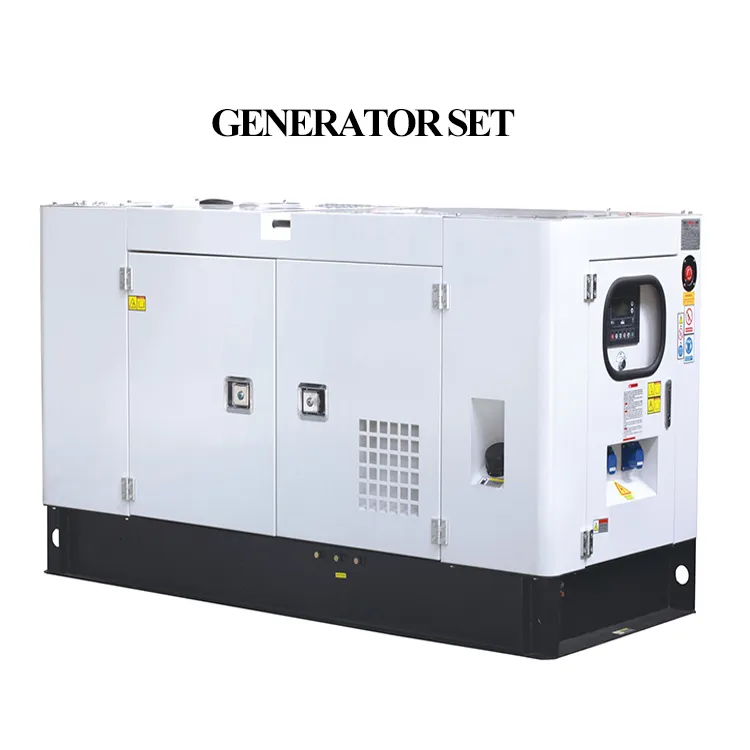

Diesel Generator
Product Description

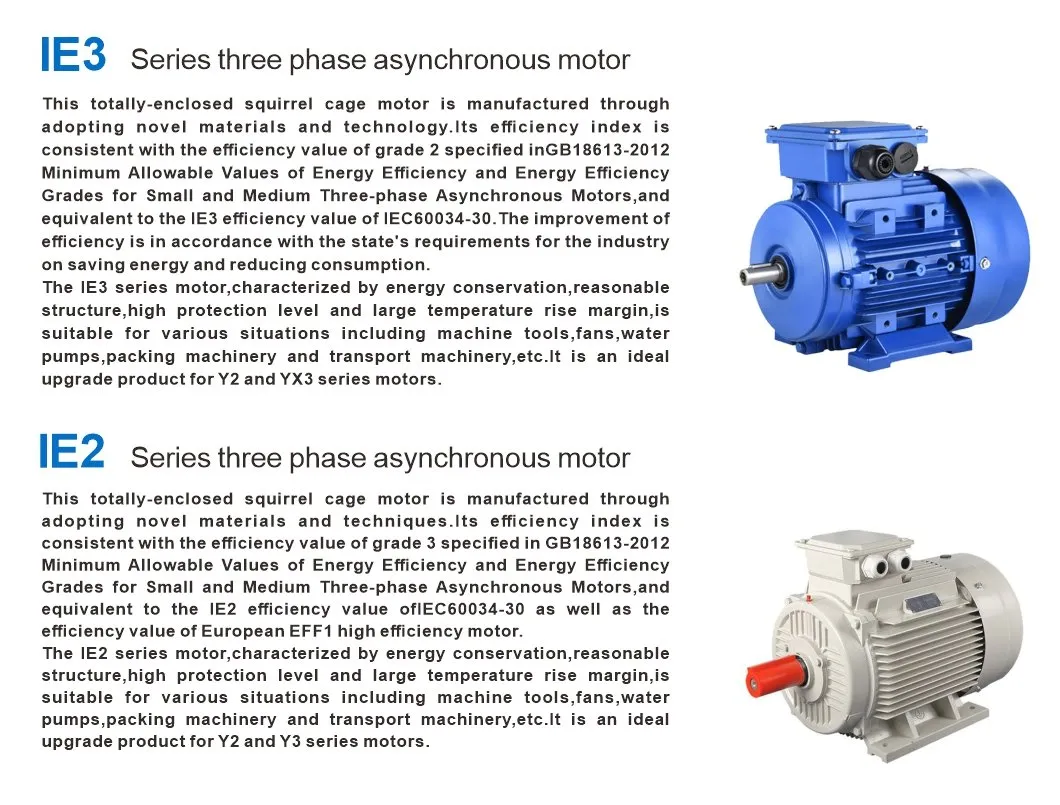

Motor Applications

⭐ Typical Applications

Can be applied in the machines where continuous duty is required, typical applications like:

  • Pumps
  • Fans
  • Compressors
  • Lifting equipment
  • Production industry
General Specifications
  • Frame sizes: 63 to 355M/L
  • Rated output: 0.12 to 400kW
  • Voltage: 380V
  • Frequency: 50Hz or 60Hz
  • Poles: 2, 4, 6, 8, 10
  • Efficiency levels: IE1, IE2, IE3
  • Duty Cycle: S1
  • Enclosure: IC411 - TEFC
  • Insulation class: F
  • Degree of protection: IP55/56/65/66
  • Service Factor: 1.0
  • Regreasing system: Frame 250 and above
Optional Features

Electrical

• Insulation Class: H
• Thermal Protection: PTC Thermistor, Thermostat or PT100

Mechanical

• Others mountings
• Protection Degree: IP56, IP65, IP66
• Sealing: Lip seal, Oil seal
• Space Heater, Double shaft ends
• Drain Hole

Technical Data Table
Model kw Torque (N.m) Current (A) Speed (rpm) Eff (%) Power Factor Tst/Tn Tmax/Tn Ist/In
MS561-20.090.320.46268045.00.652.22.46
MS562-20.120.430.59266045.00.692.22.46
MS711-20.371.291.12273063.90.792.22.46
MS802-21.13.792.68277075.00.832.22.46
MS90L2-2310.096.52284081.50.862.22.46
MS112M2-25.518.2611.2288084.70.882.22.37.5
MS132M2-21135.8521.2293087.60.922.27.5
MS160L-218.560.0934.6294089.30.9122.37.5
MS712-40.372.581.15137066.00.742.22.46
MS90L2-42.215.015.24140079.70.812.22.37
MS160L-41598.1229.5146088.70.862.22.27.5
MS160L-611109.4324.596086.40.8122.26.5
Motor Detail 1

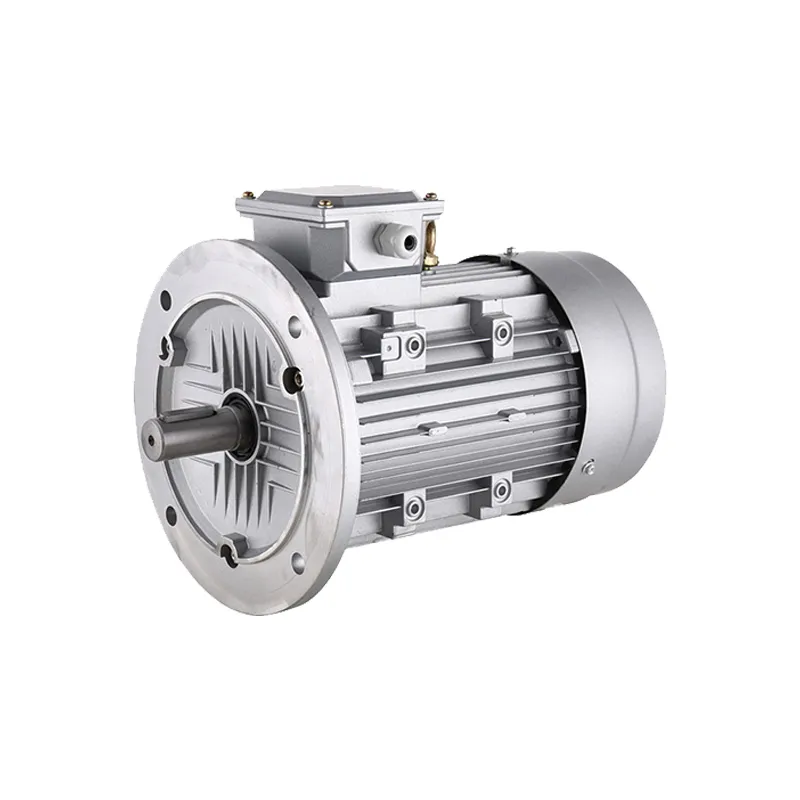

Motor Detail 2

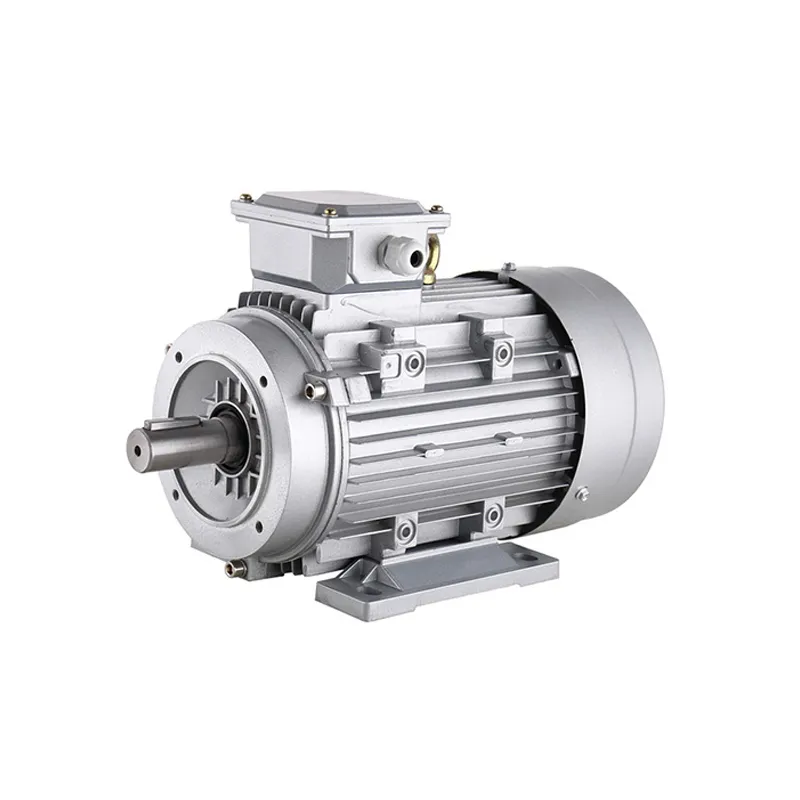

Motor Detail 3

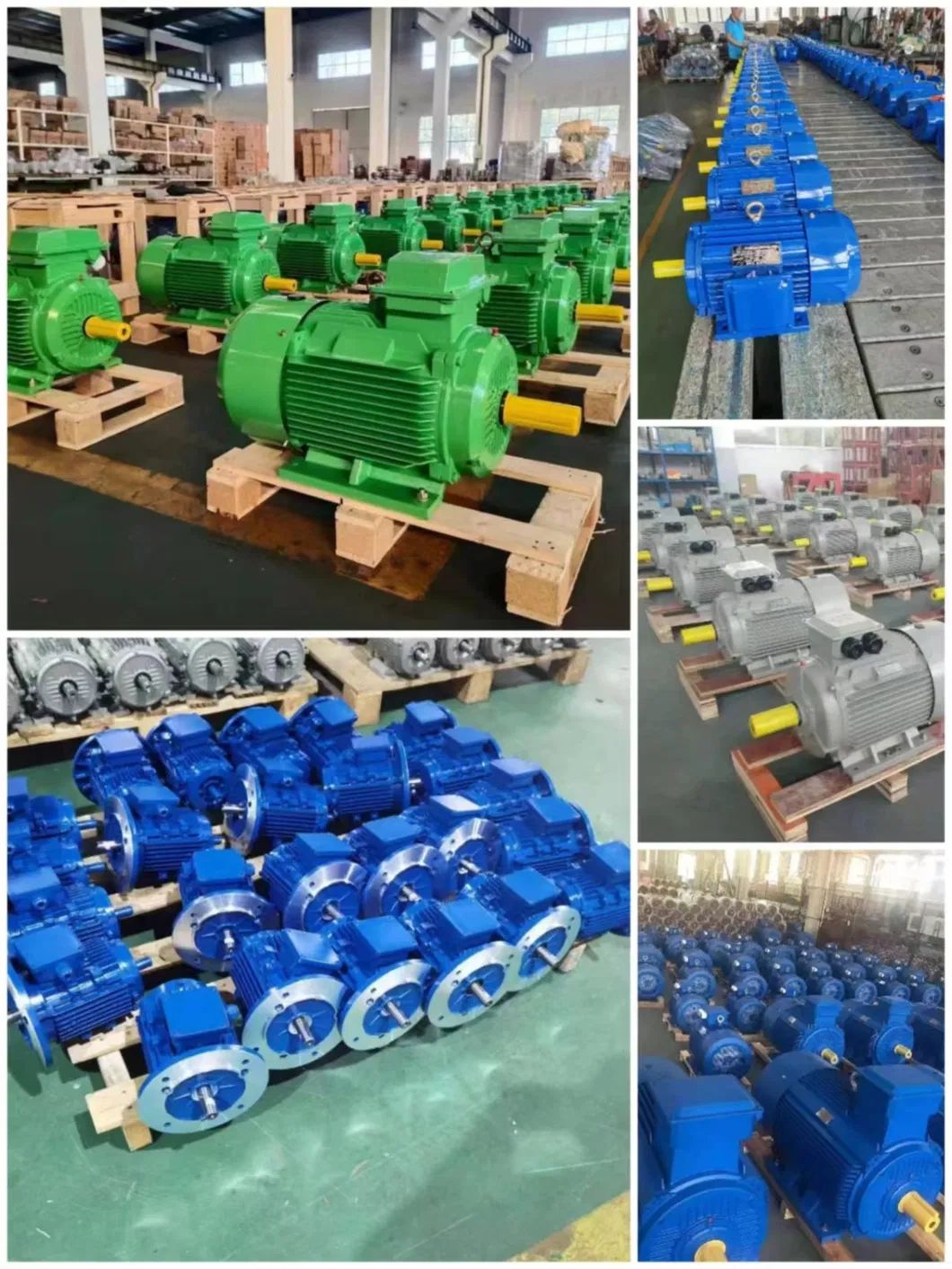

Motor Blueprint 1 Motor Blueprint 2
Quality & Assurance

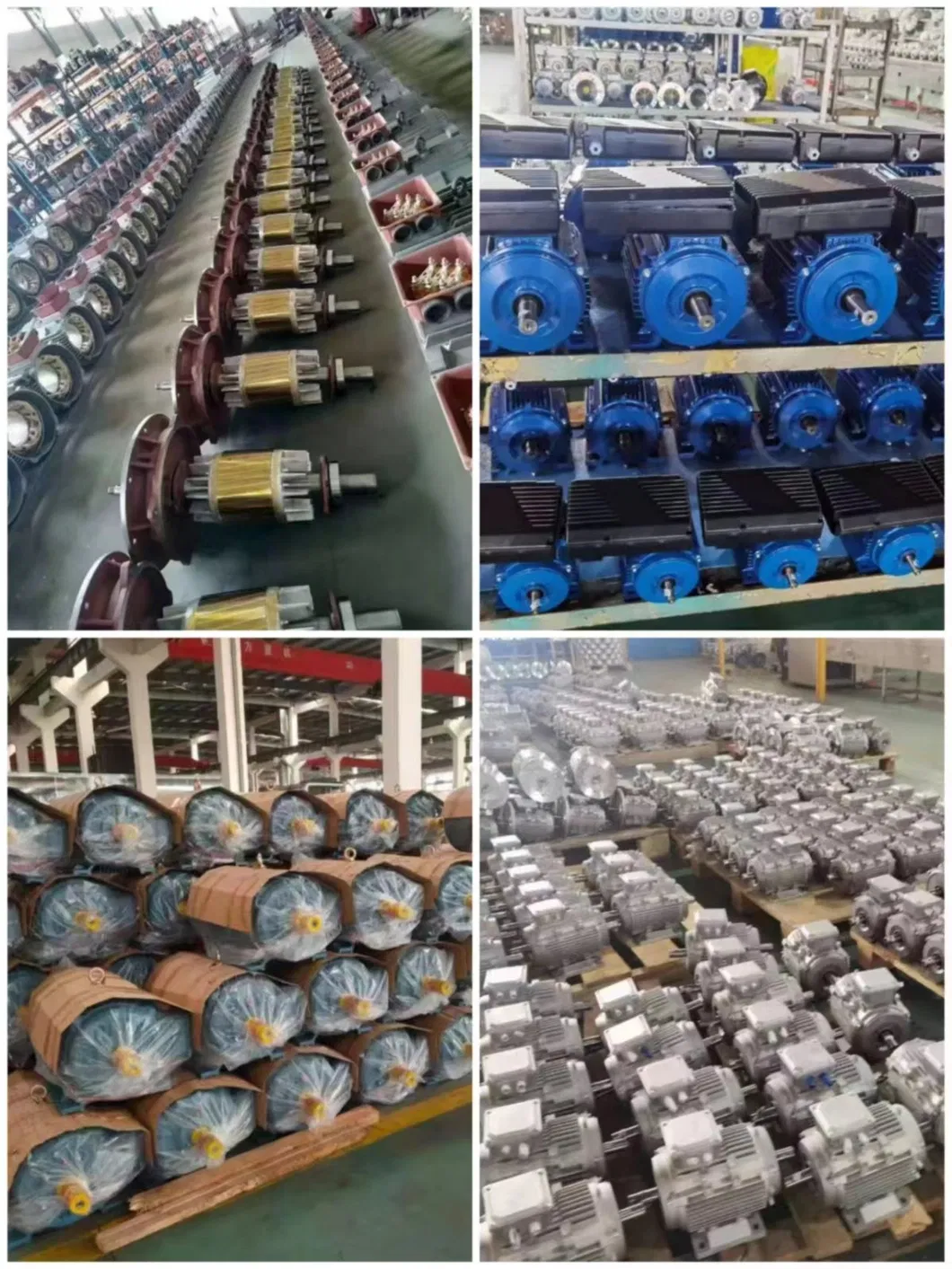

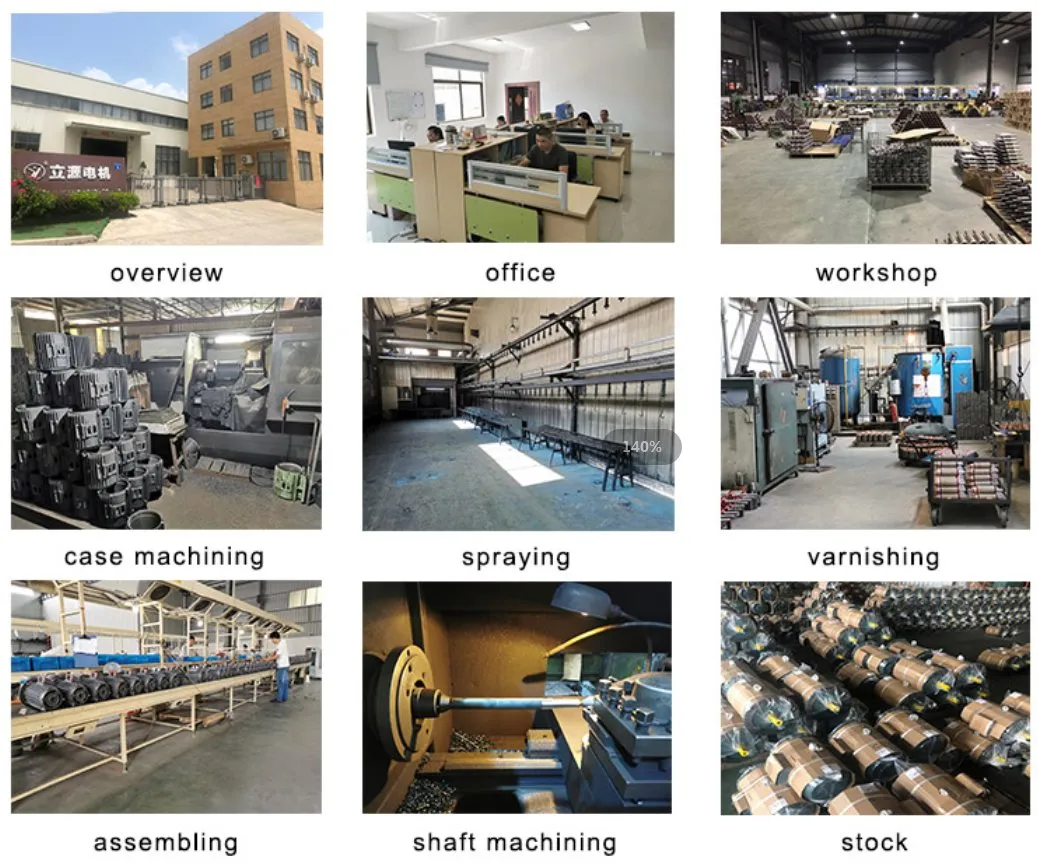

Production Facility Testing Center Workshop

Why choose our solutions?

  • Guarantee: 18-24 months
  • Delivery: 15-30 days
  • Pricing: Competitive and reasonable
  • Packing: Strong export cartons, wooden cases, or pallets
  • Payment: T/T, LC, DP, etc.
  • Samples: Acceptable for quality check

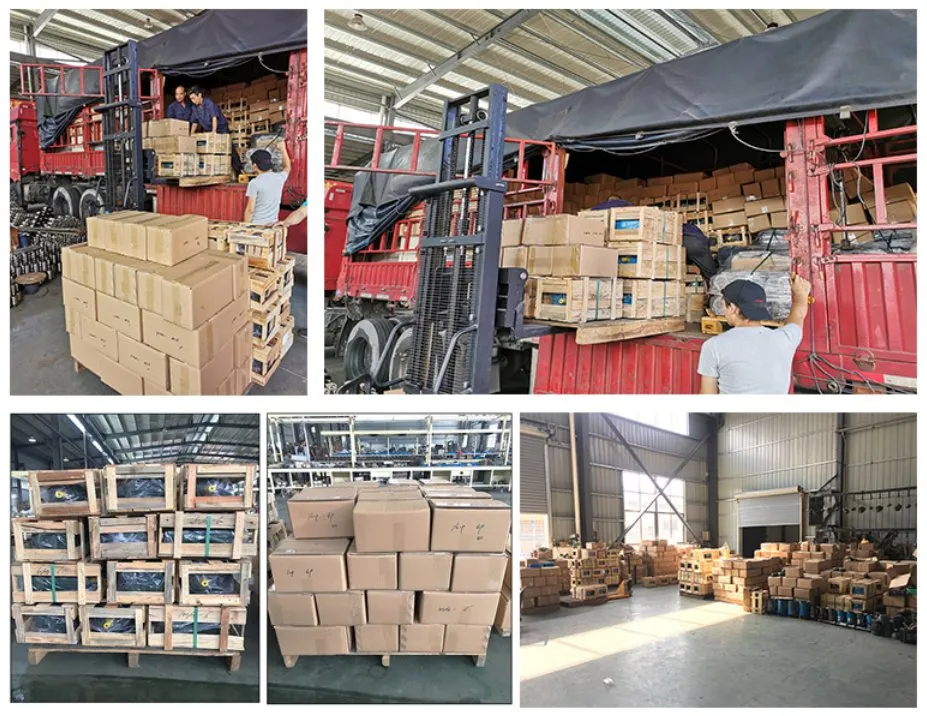

  • Shipment: Sea, Air, Express, and Land options
Certifications
Product Certifications

We provide standard AC motors and customized single-phase/three-phase motors according to special needs. Our main motor products cover high-efficiency and general-purpose motors.

Standards covered: IE3/YE3, IE2/YE2, IE1/Y2, Y, YS, MS, YC, YL, YY, MC, MY, ML, NEMA (American), GOST ANP (Russian), Taiwan type AEEF.

Frequently Asked Questions
What efficiency classes are available for these motors?
We provide motors in IE1, IE2, and IE3 efficiency levels to meet various energy-saving requirements.
What is the standard protection degree and insulation class?
The standard protection degree is IP55, with options for IP56, IP65, and IP66. The standard insulation class is F, but Class H is available as an option.
Can these electric motors be customized?
Yes, we can customize single-phase or three-phase motors, including voltage, frequency, and mounting configurations, based on your specific industrial needs.
What are the typical applications for MS series motors?
These motors are widely used in pumps, fans, compressors, lifting equipment, and various production industry machineries where continuous duty (S1) is required.
What is the warranty period for your products?
We offer a guarantee ranging from 18 to 24 months for our motors, ensuring long-term reliability and performance.
What international standards do your motors follow?
Our motors comply with various standards including American NEMA, Russian GOST, and Taiwan type AEEF, alongside standard IE efficiency protocols.
