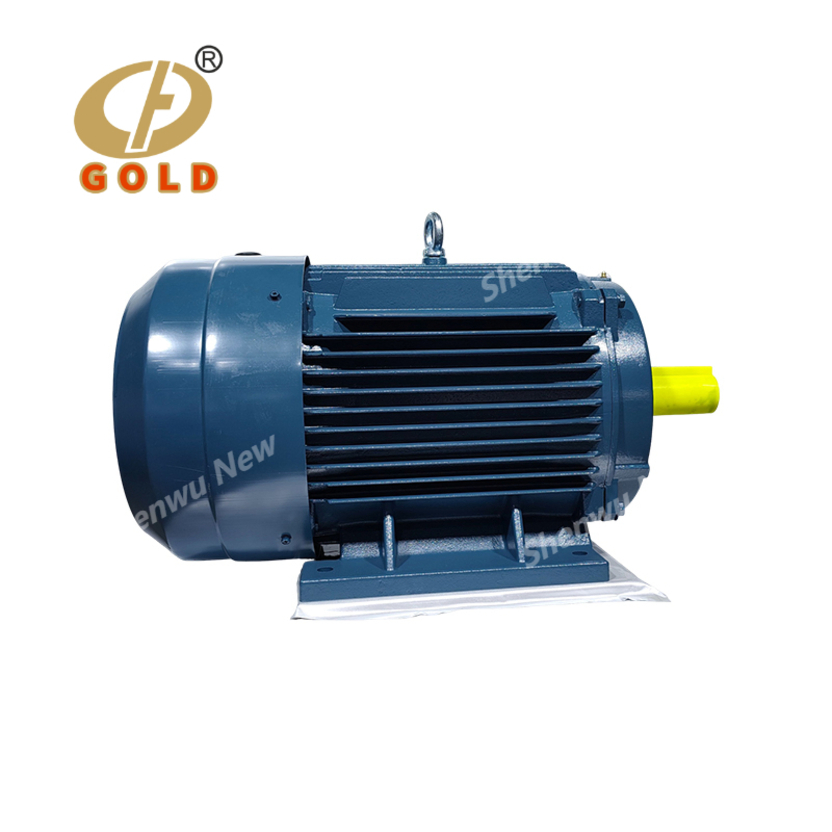

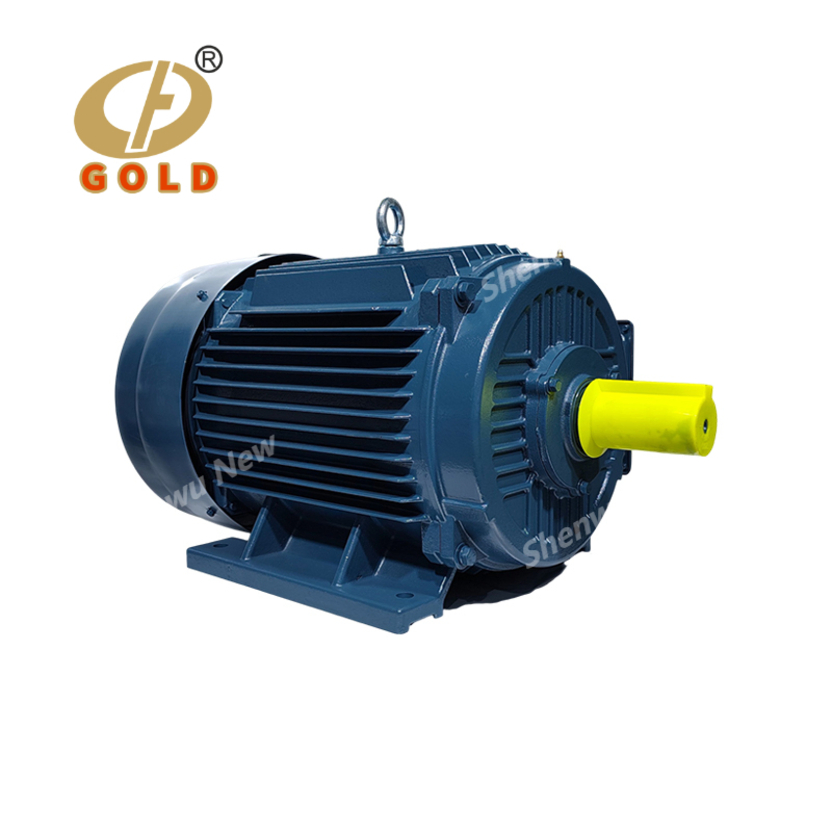

KPR Motor
1 / 5

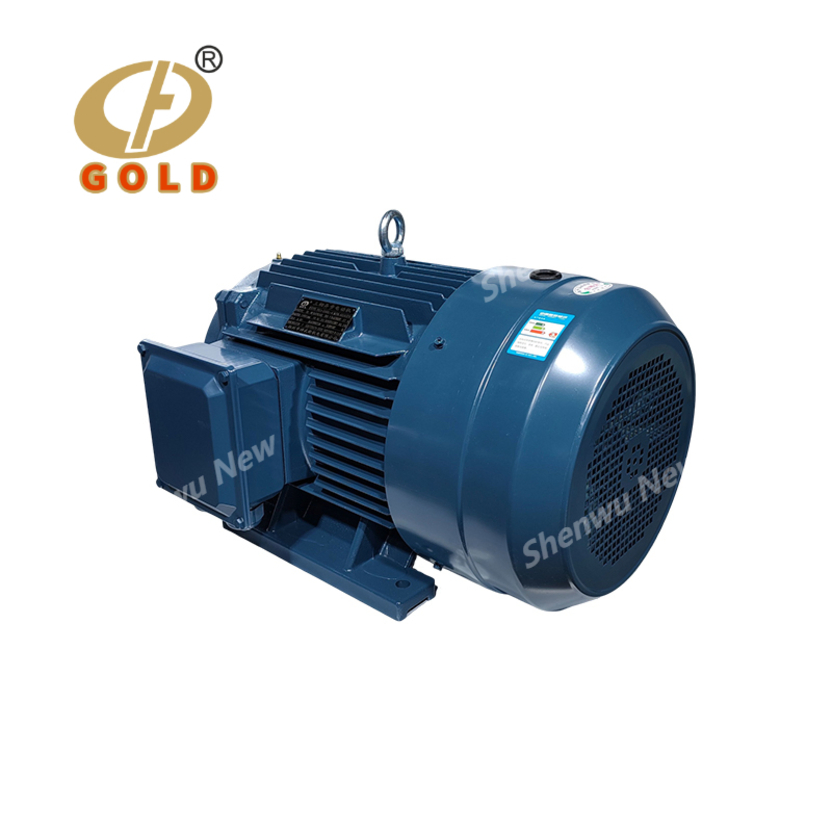

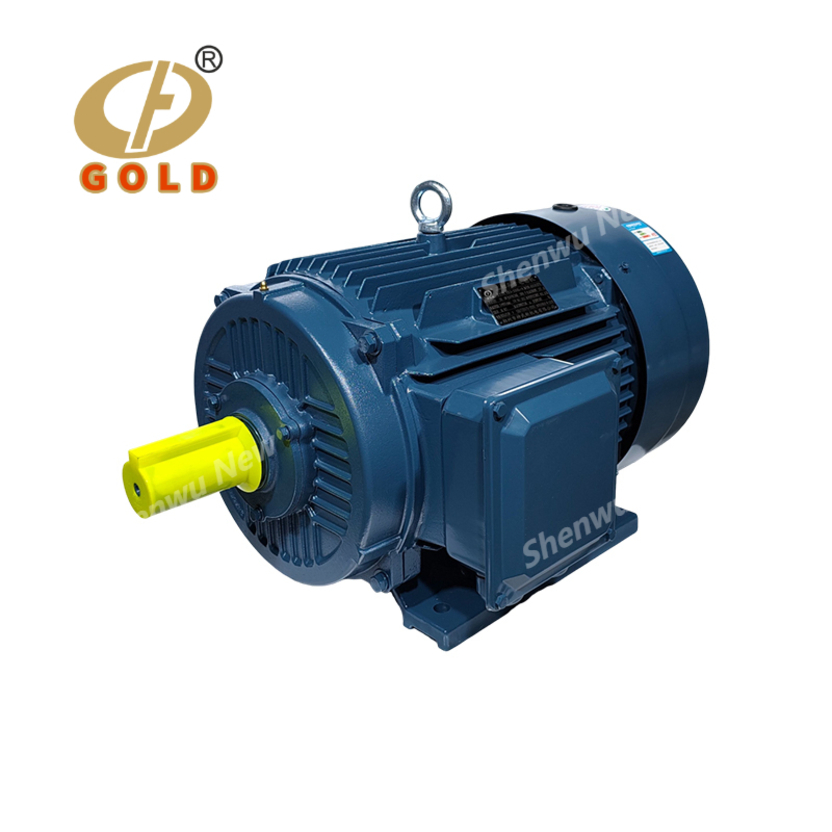

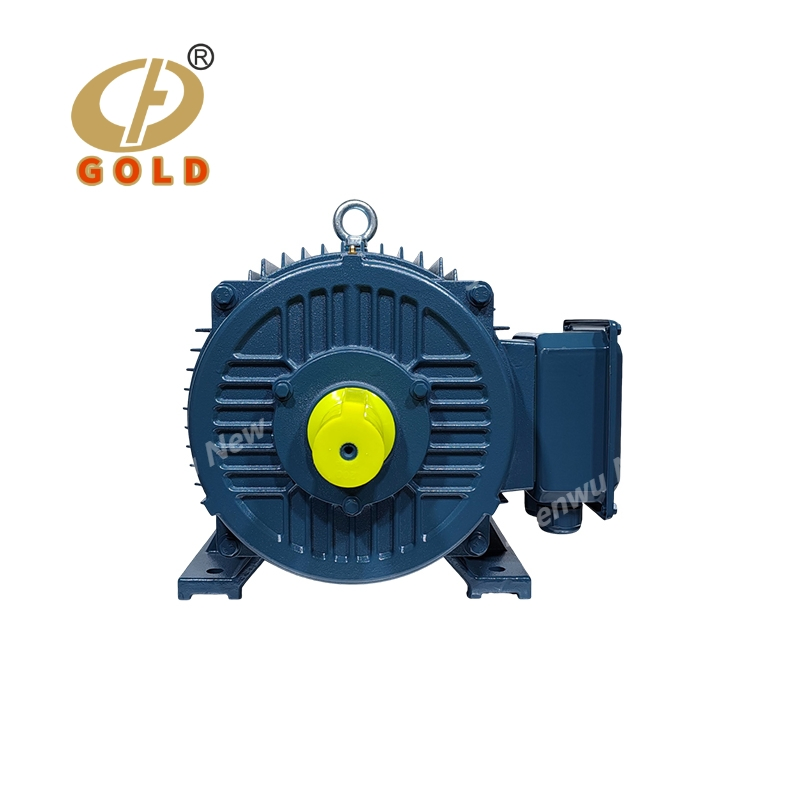

| Model NO. | YE3-200L-4-30kw-210 |
|---|---|
| Number of Stator | Three-Phase |
| Species | Ye3 Series Three-Phase |
| Rotor Structure | Squirrel-Cage |
| Casing Protection | Explosion-Proof Type |
| Certification | ISO9001, CCC |
| Voltage | 380V or Customized |
| Protection Level | IP55 |
| Insulation Class | F |
| Material | Pure Copper Wire |
| Package Size | 36.00cm * 22.00cm * 22.00cm |
| Gross Weight | 250.000kg |
Asynchronous motors (induction motors) are essential power sources for industrial and agricultural machinery. They are ideal for grain mills, pellet machines, feed mixers, and water pumps, offering a service life of several decades with minimal maintenance requirements.

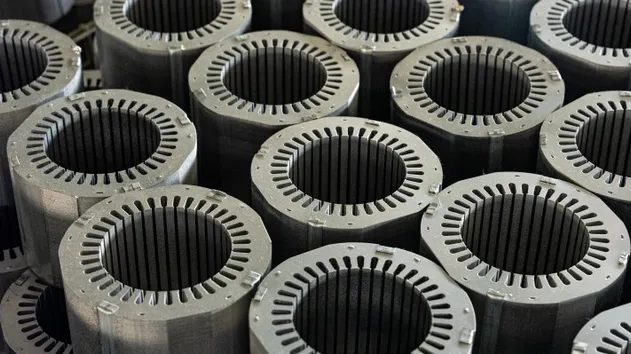

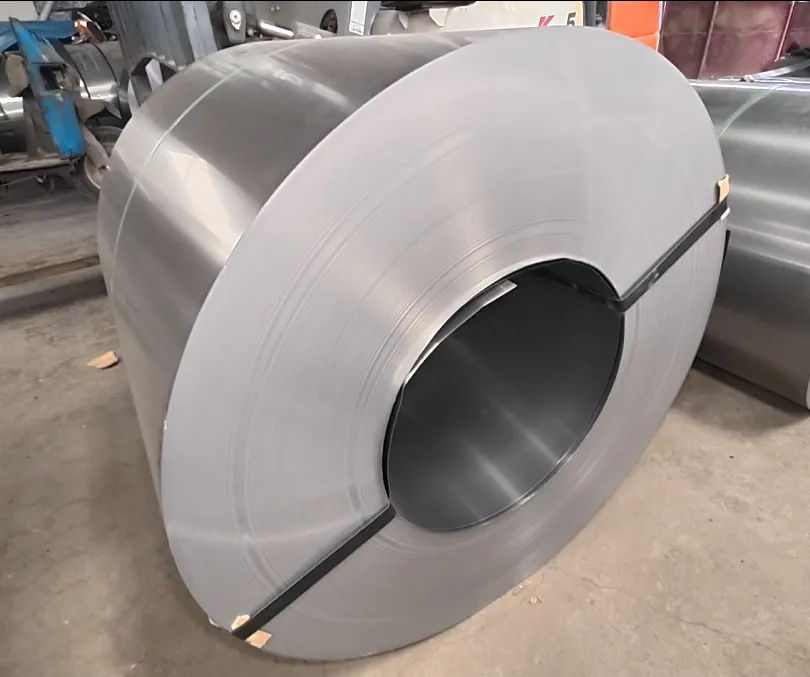

Silicon Steel Stamping: High-performance material with low iron loss and high magnetic induction for maximum efficiency.

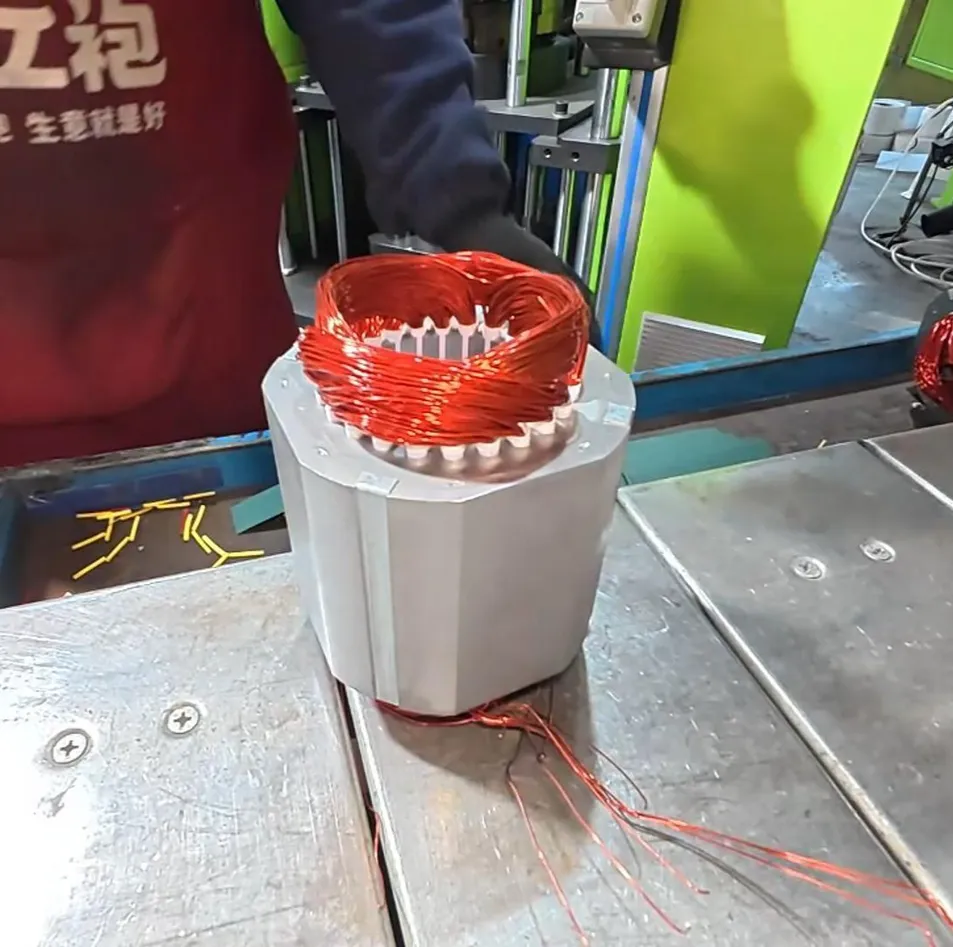

Pure Copper Wire: Excellent conductivity, low heat generation, and long service life with high carrying capacity.
| Type | Power (kW) | Speed (r/min) | Eff.% | P.F | Rated Torque (N.m) |
|---|---|---|---|---|---|
| YE3-80M1-2 | 0.75 | 2870 | 80.7 | 0.82 | 2.50 |
| YE3-90S-2 | 1.5 | 2880 | 84.2 | 0.84 | 4.97 |
| YE3-100L-2 | 3 | 2880 | 87.1 | 0.87 | 9.95 |
| YE3-132S2-2 | 7.5 | 2930 | 90.1 | 0.88 | 24.4 |
| YE3-160M2-2 | 15 | 2945 | 91.9 | 0.89 | 48.6 |
| YE3-200L1-2 | 30 | 2965 | 93.3 | 0.89 | 96.6 |
