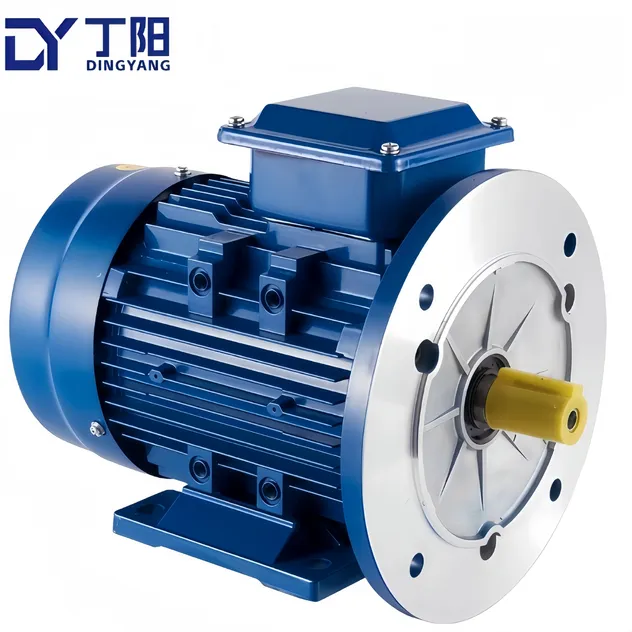

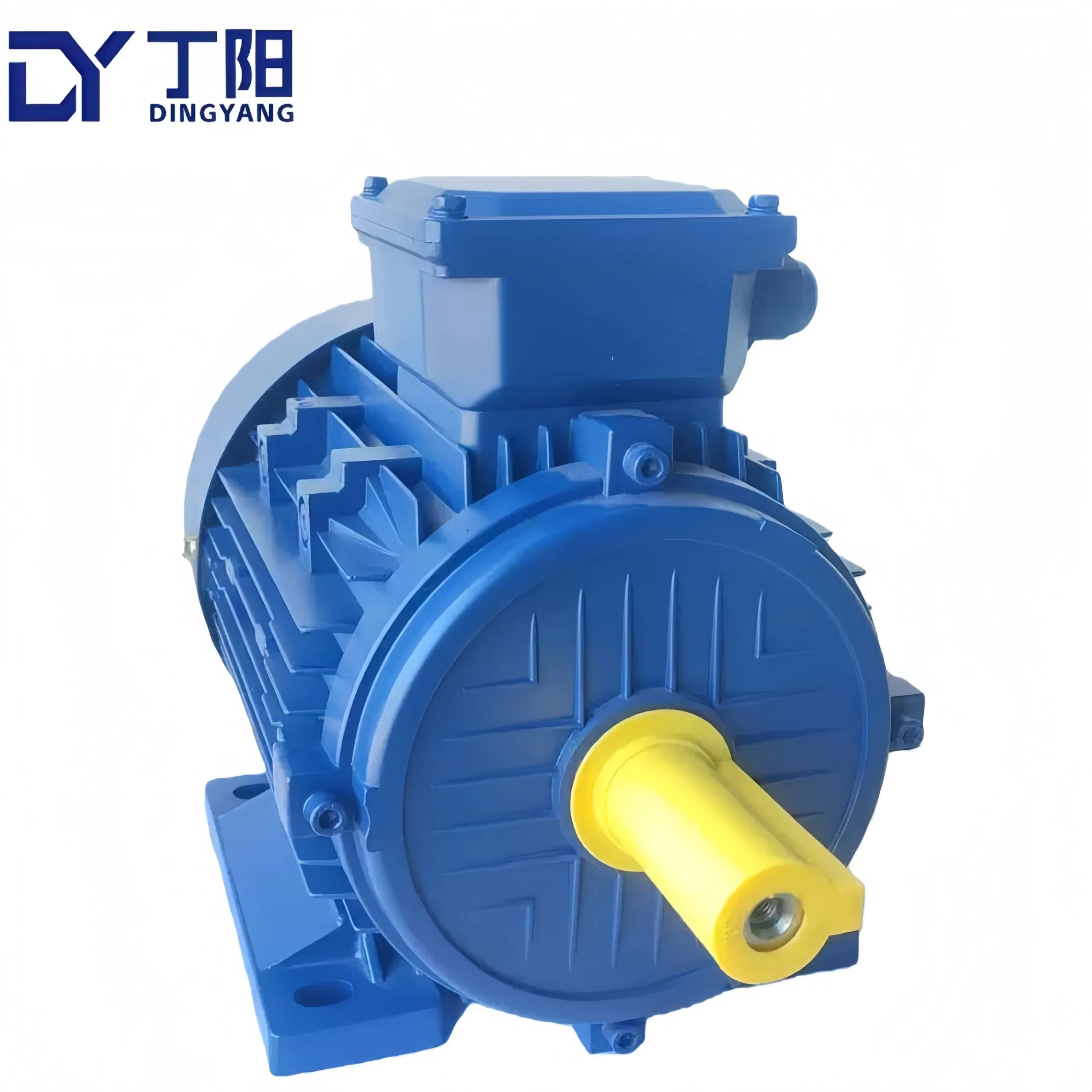

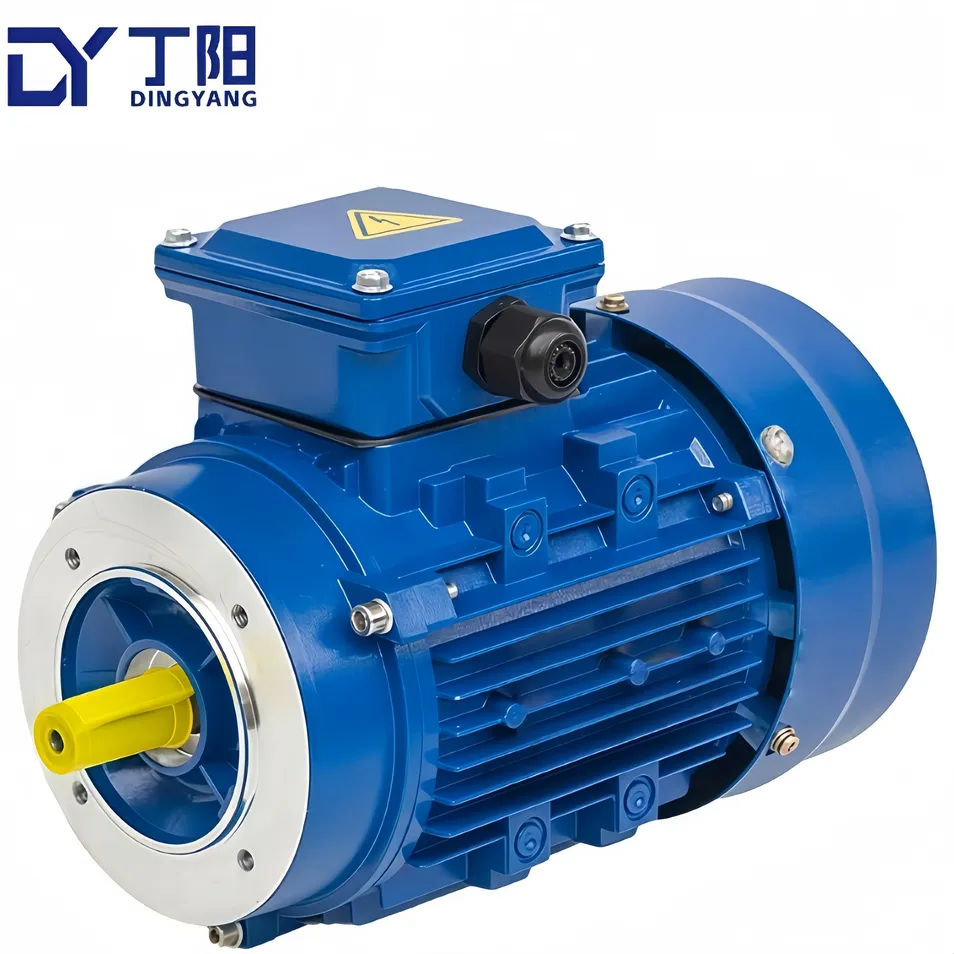

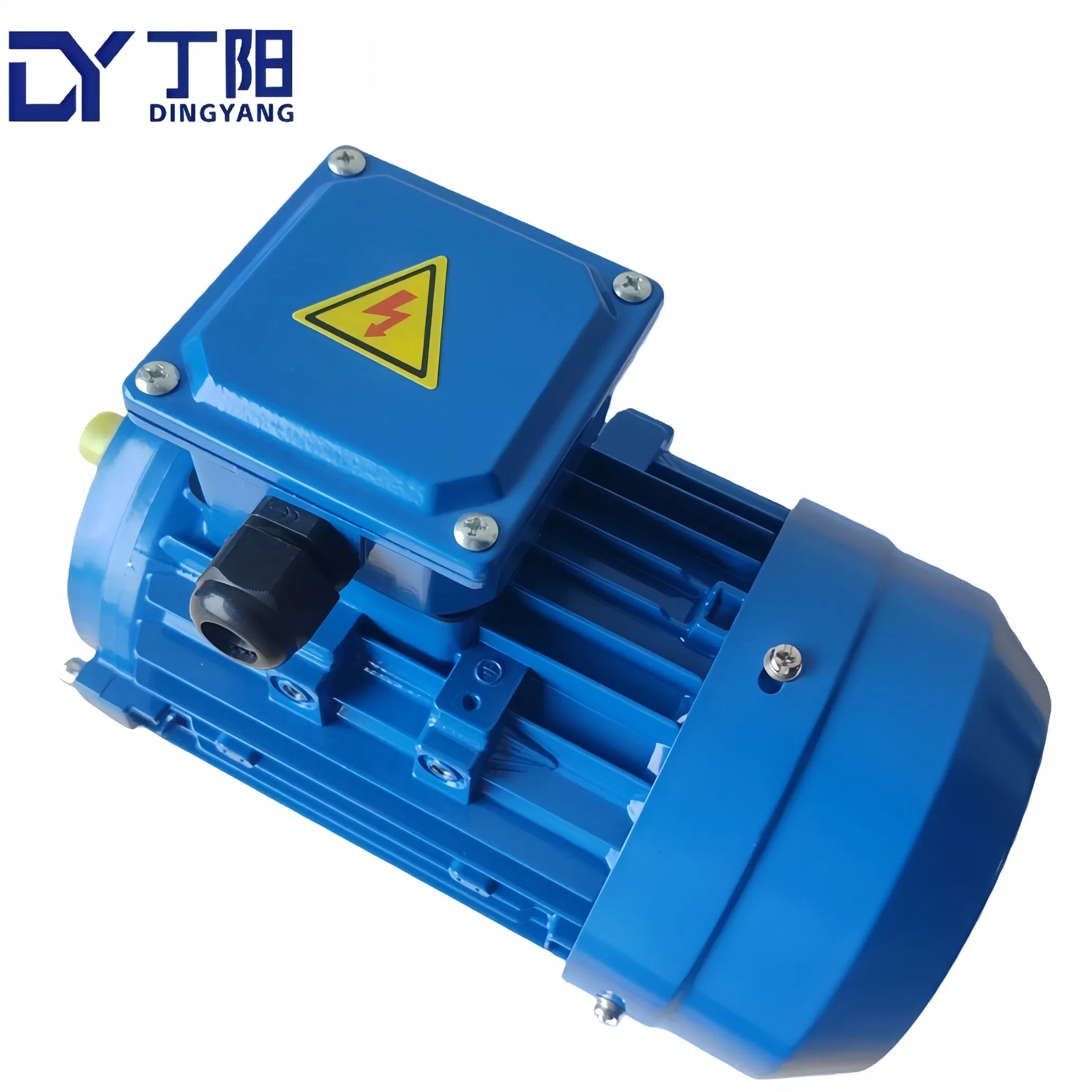

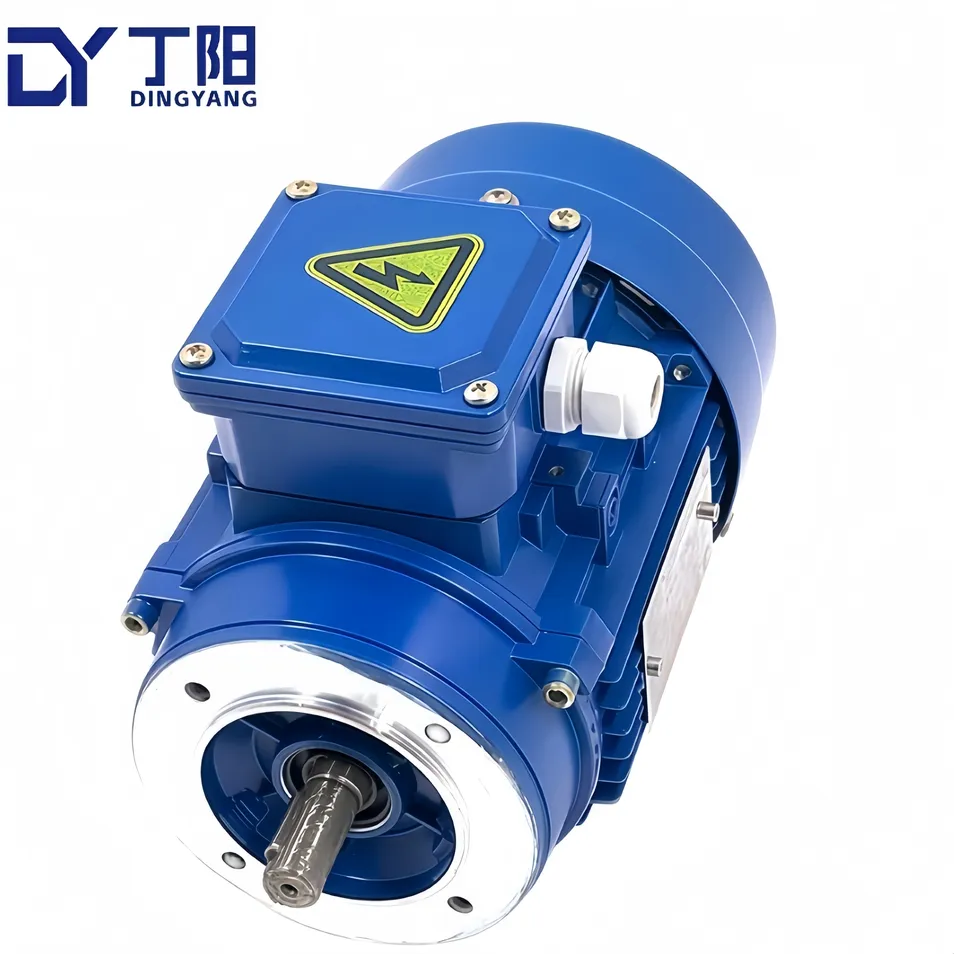

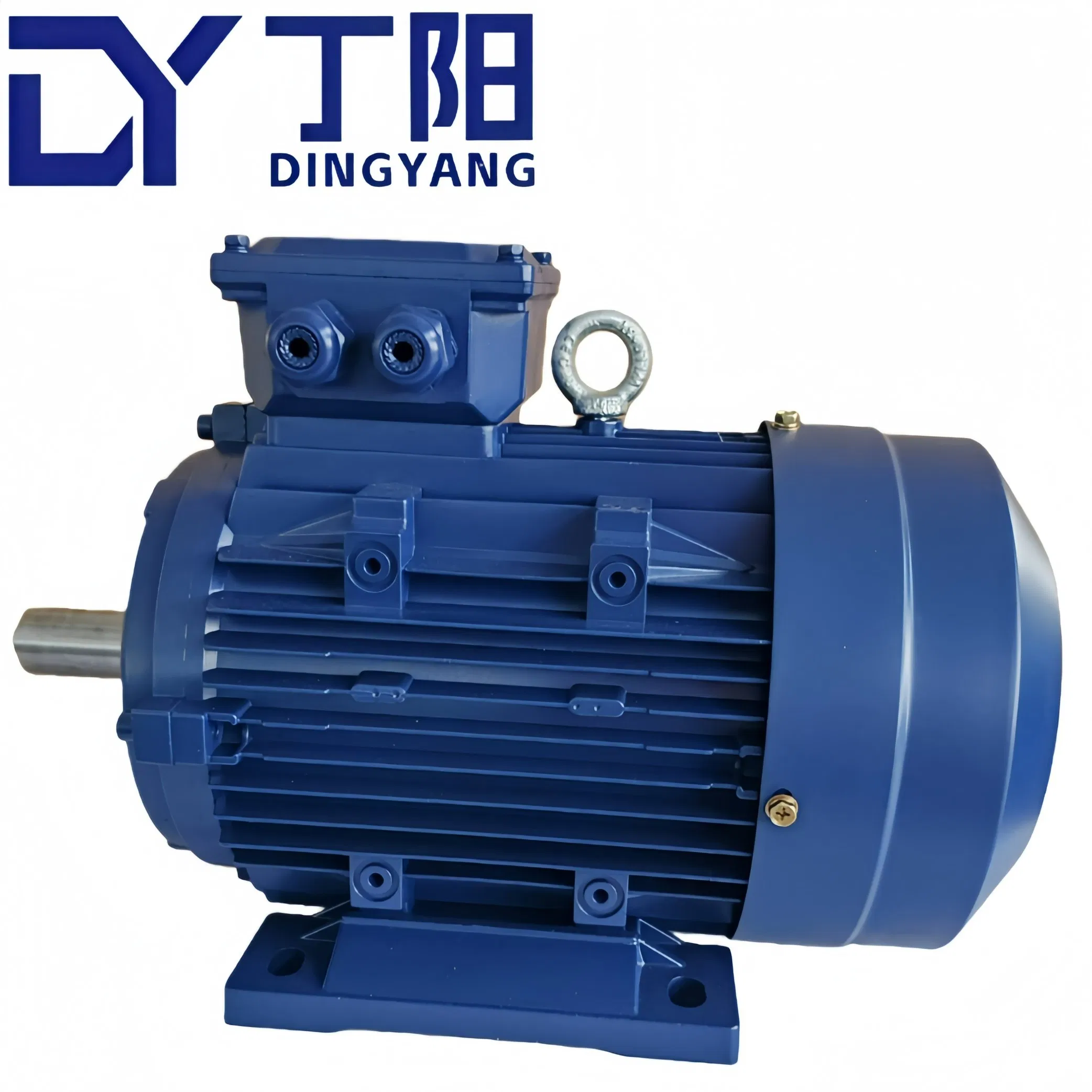

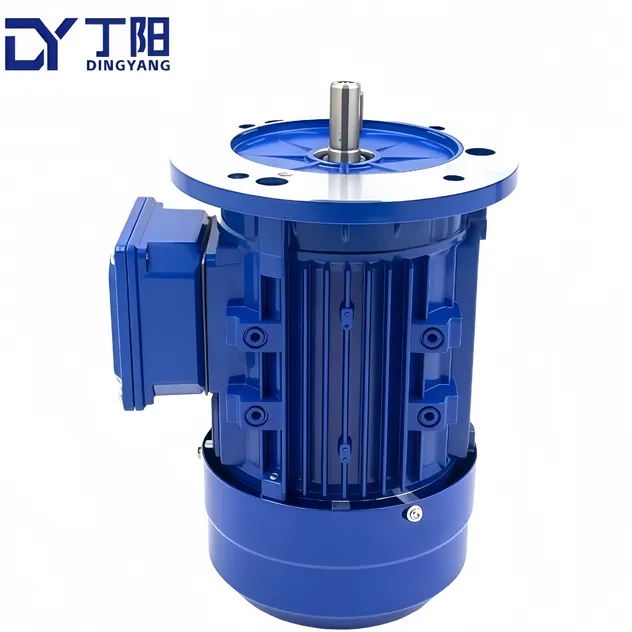

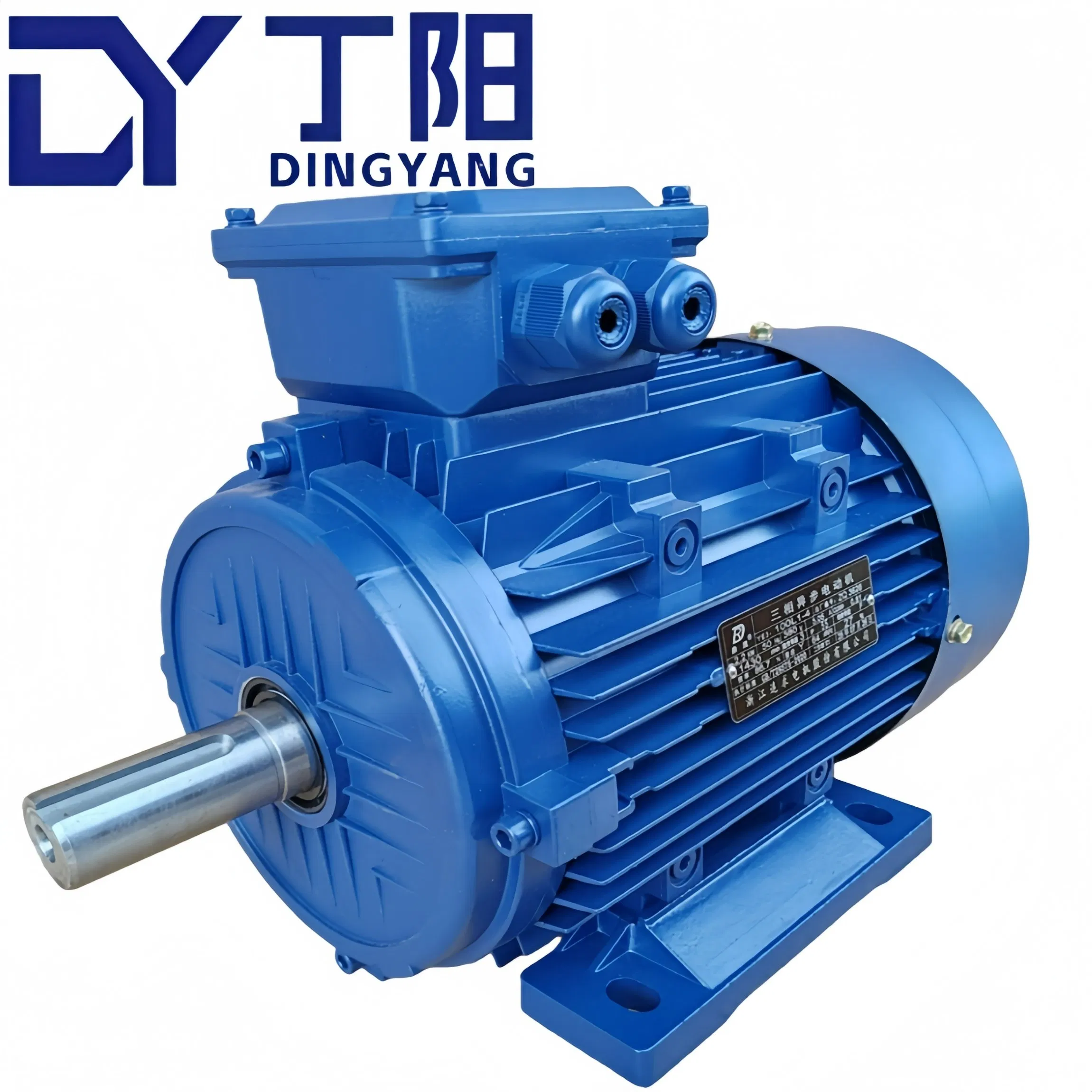

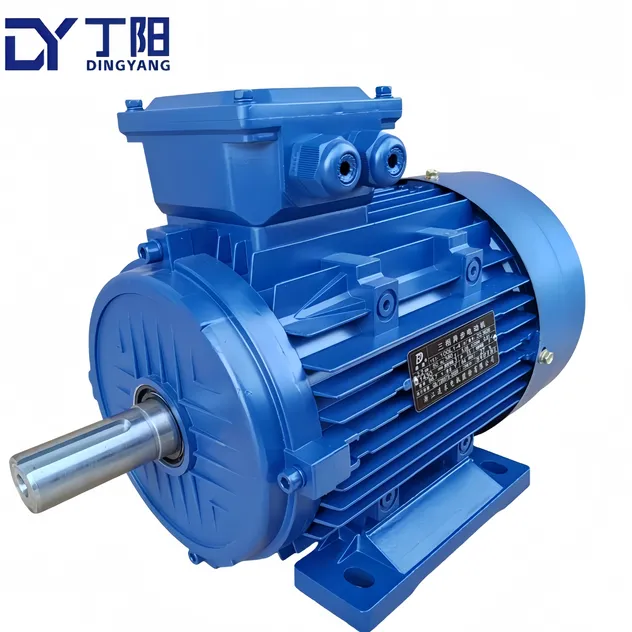

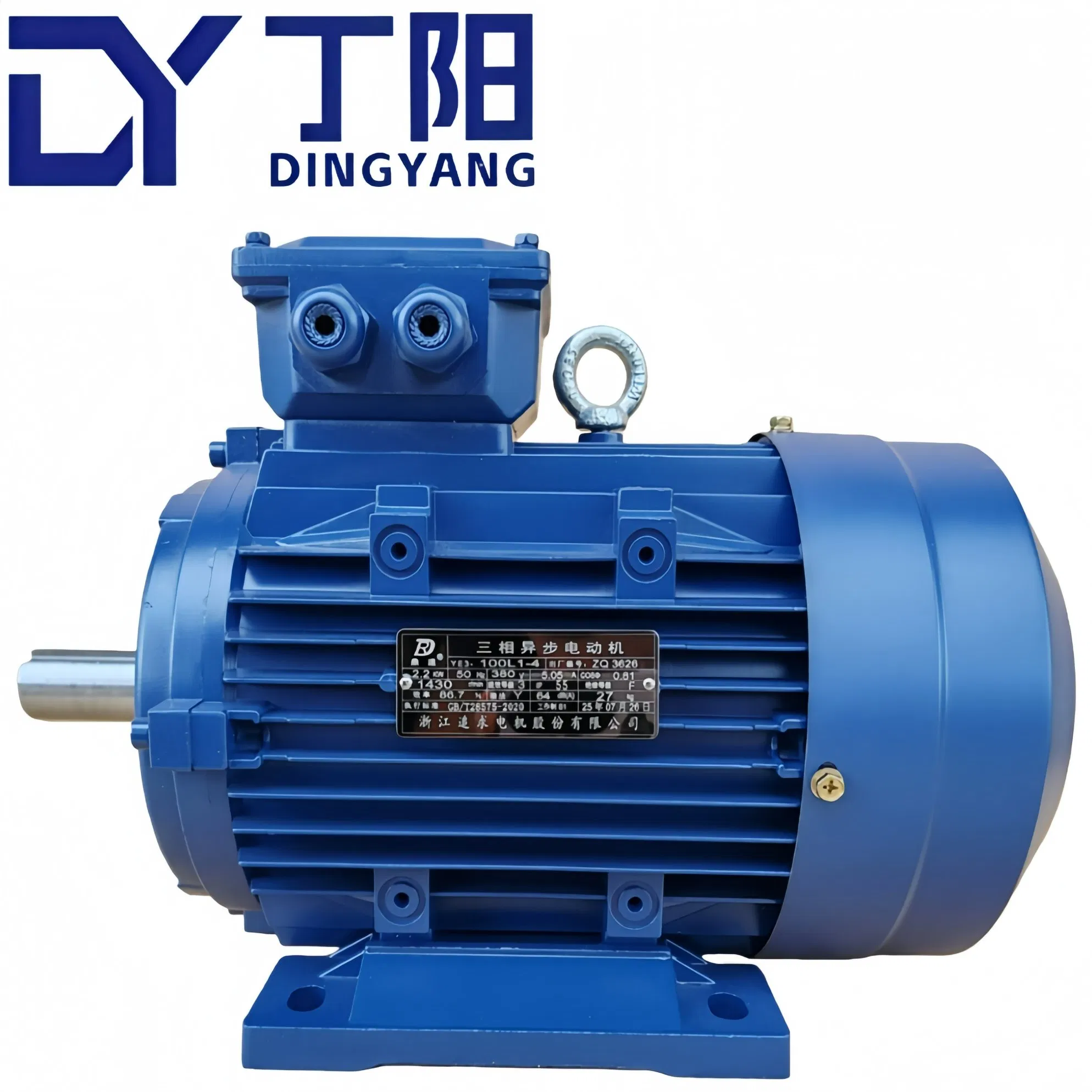

Ms series three-phase asynchronous motors with aluminum housing adopted the newest design and high quality material. It is conformity with the iec34-1 standards. The efficiency of the motors can meet eff2 and eff1 if requested. It has good features: Perfect performance, low noise, slight vibration, reliable running, good appearance, small volume and light weight.
Operating conditions:
• Ambient temperature: -15° C < 40° C
• Altitude: Not exceed 1000m.
• Rated voltage: 380V, 220V~760V is available.
• Rated frequency: 50Hz/60Hz
• Duty/rating: S1(continuous)
• Insulation class: F
• Protection class: IP54
• Cooling method: IC0141
| Synchronous Speed 3000 r/min (380V 50HZ) | ||||||
|---|---|---|---|---|---|---|
| Model Type | Rated Power (KW) | Current (A) | Power Factor (cosΦ) | Efficiency (η%) | Speed (r/min) | Locked Rotor Torque (Tst/TN) |
| MS711-2 | 0.37 | 1.01 | 0.81 | 69 | 2800 | 2.2 |
| MS801-2 | 0.75 | 1.77 | 0.83 | 75 | 2825 | 2.3 |
| MS90S-2 | 1.5 | 3.46 | 0.84 | 78.5 | 2840 | 2.3 |
| MS90L-2 | 2.2 | 4.85 | 0.85 | 81 | 2840 | 2.3 |
| MS100L-2 | 3 | 6.34 | 0.87 | 82.6 | 2880 | 2.3 |
| Synchronous Speed 1500 r/min (380V 50HZ) | ||||||
|---|---|---|---|---|---|---|
| Model Type | Rated Power (KW) | Current (A) | Power Factor (cosΦ) | Efficiency (η%) | Speed (r/min) | Locked Rotor Torque (Tst/TN) |
| MS802-4 | 0.75 | 1.95 | 0.76 | 73 | 1380 | 2.3 |
| MS90S-4 | 1.1 | 2.85 | 0.77 | 76.2 | 1390 | 2.3 |
| MS90L-4 | 1.5 | 3.72 | 0.78 | 78.2 | 1390 | 2.3 |
| MS100L1-4 | 2.2 | 5.09 | 0.81 | 81 | 1410 | 2.3 |

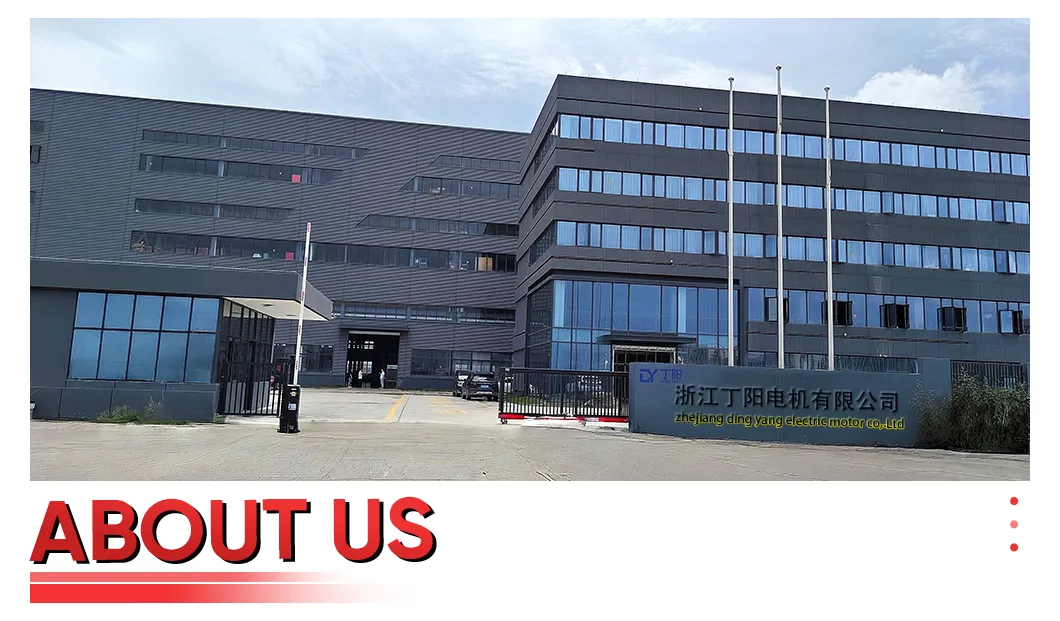

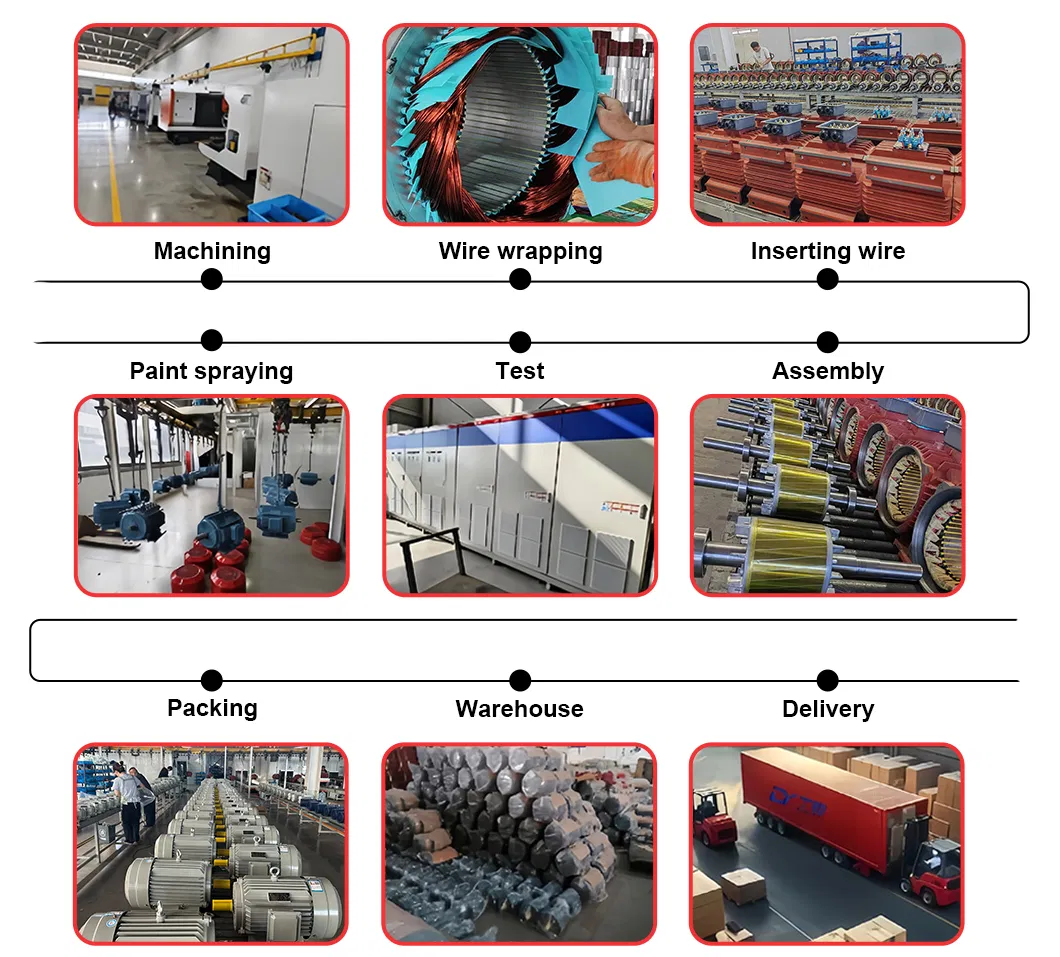

Our company is a professional manufacturer located in China. With a superior geographical location, it sits adjacent to the biggest port, our company covers 20,000 square meter workshop. After decades of development, we have established a complete set of production certificates. We are equipped with advanced production and manufacturing equipment, including large CNC Lathes, CNC dynamic balancing machines, manual and automatic winding machines, as well as advanced testing instruments and testing systems.

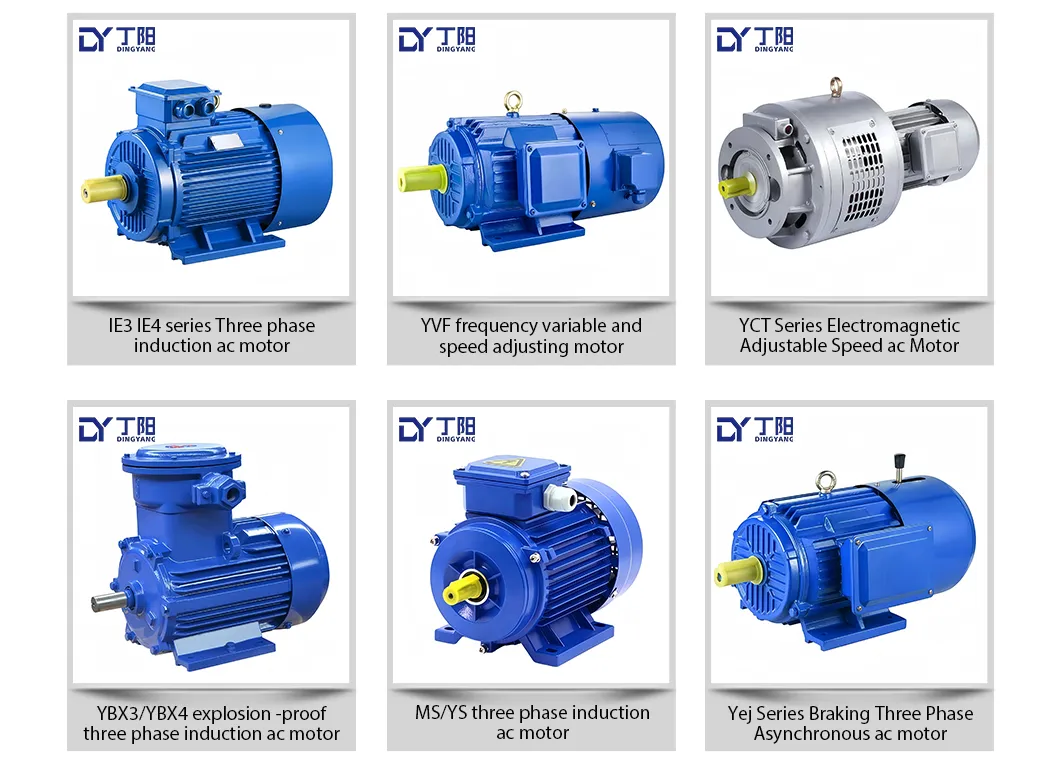

Our technical personnel use 2D and 3D CAD and finite element analysis software to shorten the product development cycle time. Our products include: Ye3(IE3,GB3), YE4, YE5 Three-phase induction AC motors, YBX3 and YBX4 high-efficiency explosion-proof motors, MS/YS Aluminum shell series, and YEJ electromagnetic braking motors.
