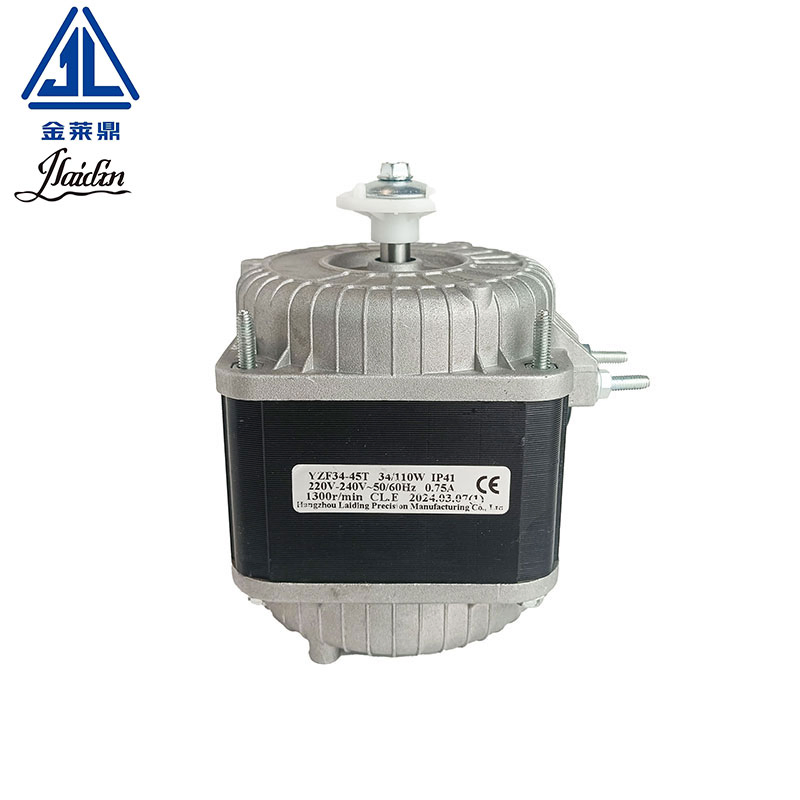

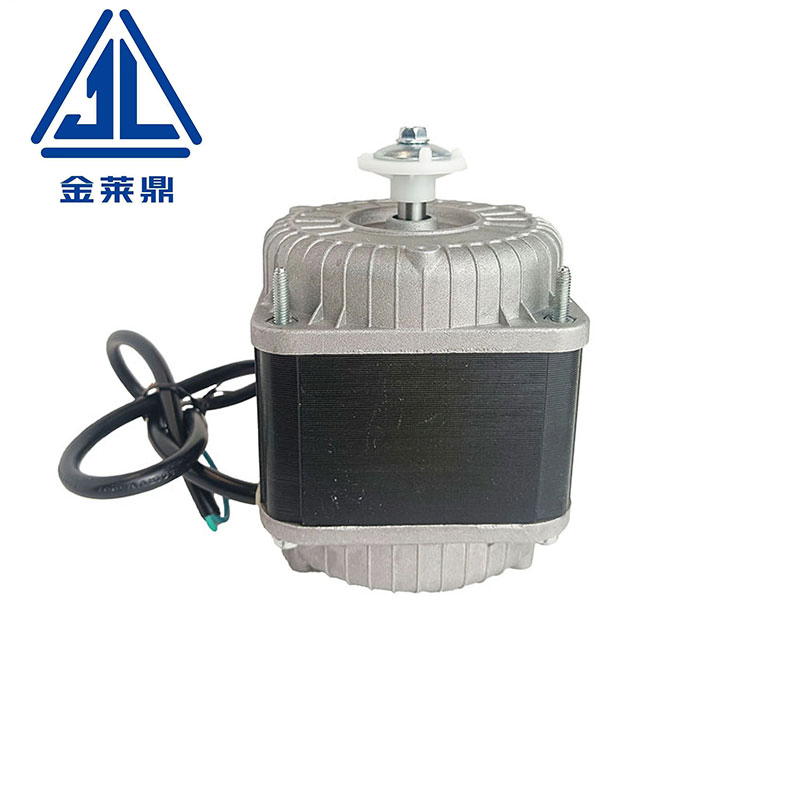

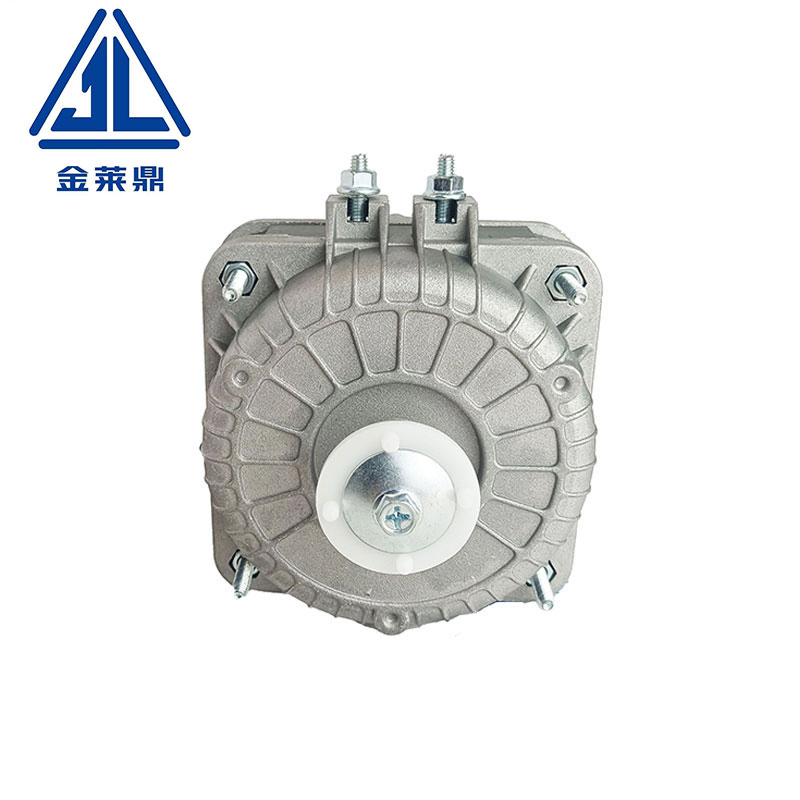

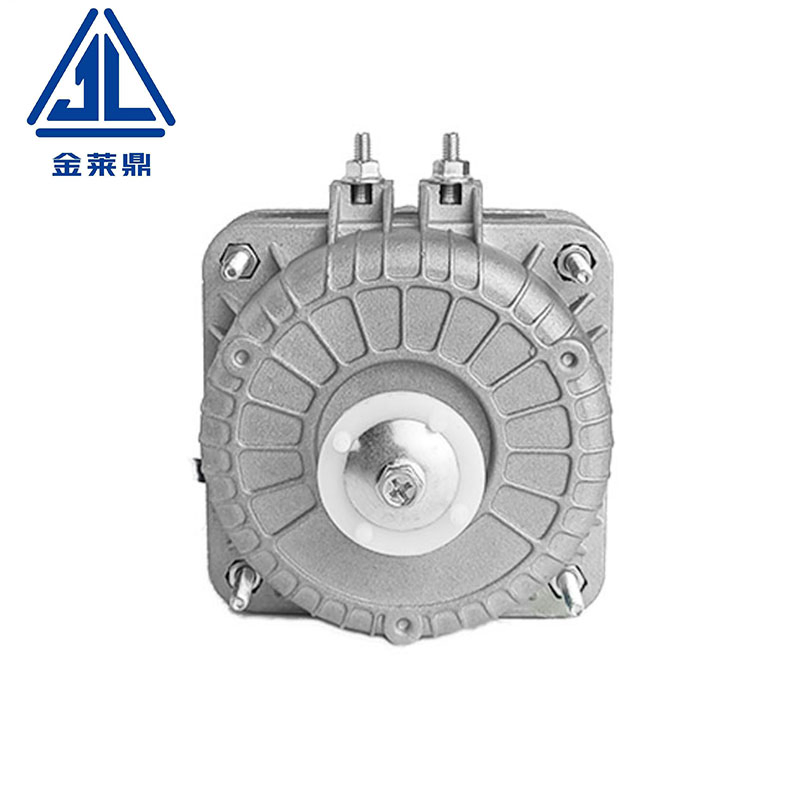

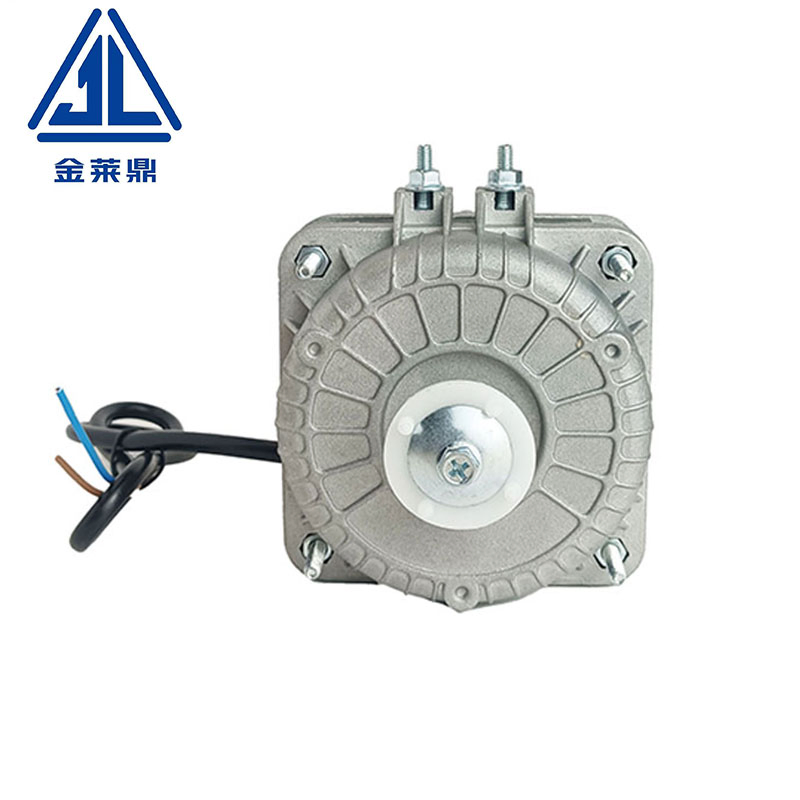

12 Months After-Sales Service 5W AC Micro Electric Fan Motor for Refrigeration

Basic Information

Model NO.

3W-34W

Power Source

AC Motor

Function

Refrigeration

Number of Poles

4

Structure

Electromagnetic

Type

Asynchronous Motor

Certification

ISO9001, CCC, CE

Voltage

110V-240V

Frequency

50/60Hz

Bearing

Oil Bearing, Ball Bearing

Product Description

12 Months After-Sales Service 5W AC Micro Electric Fan Motor for Refrigeration

1. The YZF series motor adopts the end cover with 26mm mounting bracket screw spacing, offering safety, reliability, low noise, and long service life.

2. Suitable for refrigeration equipment including freezers, wine cabinets, fresh-keeping cabinets, condensers, evaporators, and radiators.

3. Lead wire specifications and terminal types can be customized based on requirements.

Instruction for Use

Operating mode

S1

Insulation grade

Class E

Protection Class

IP41

Env. Temperature

-30ºC ~ +50ºC

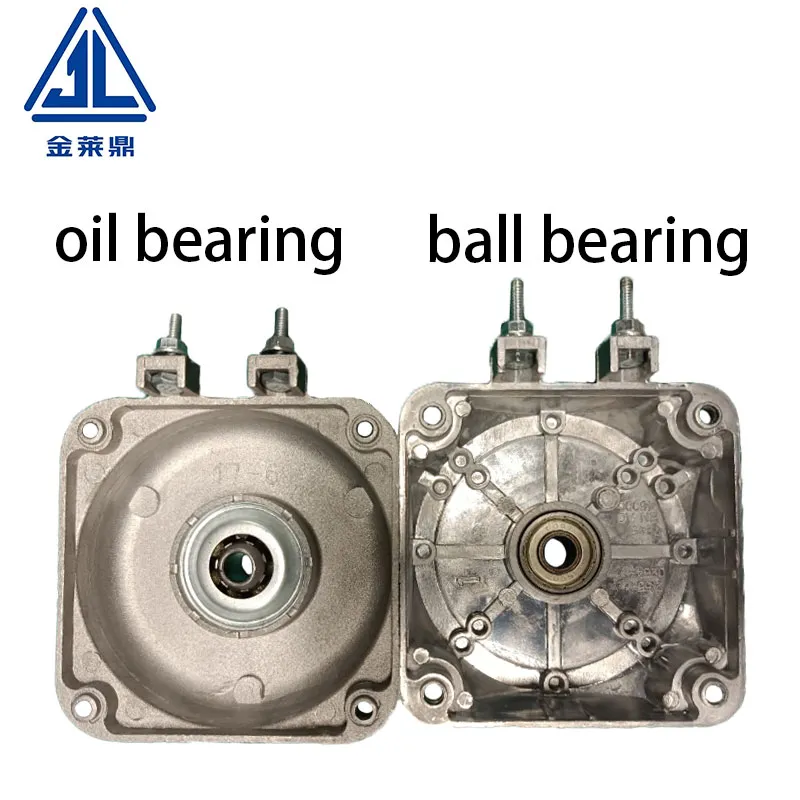

Bearing Options

Oil Bearing (Sleeve Bearing): Life is approximately 20,000 hours. Low friction sound but high vibration sound. Best for horizontal installation.

Ball Bearing: Life ranges from 30,000 to 50,000 hours. High friction sound but low vibration sound. Suitable for any installation orientation.

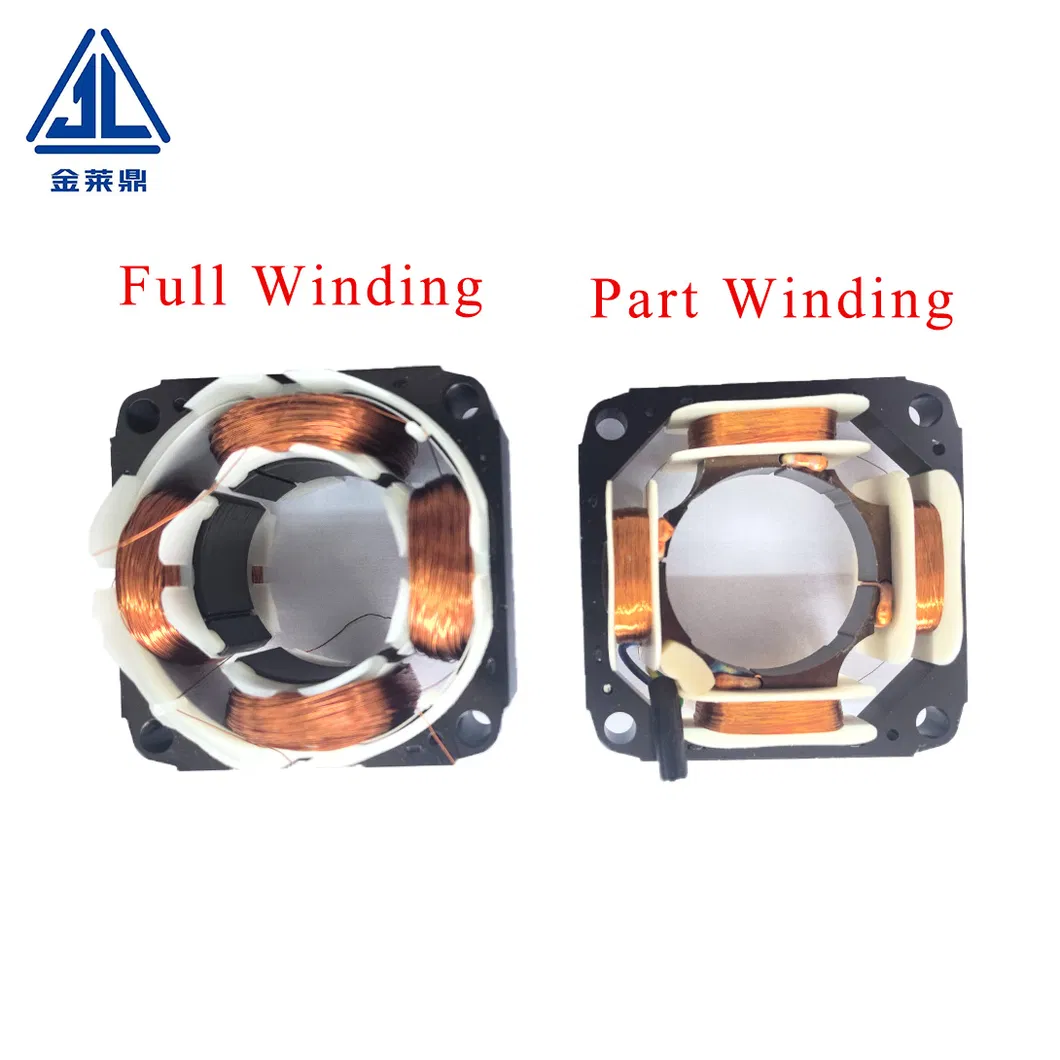

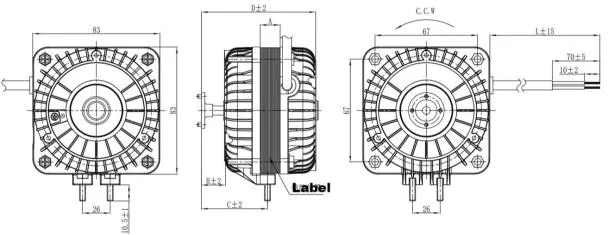

Winding & Drawing

Full Winding: Provides higher stability for frequency exchange.

Part Winding: More cost-effective option compared to full winding.

Technical Parameters

TYPE	YZF3-13T	YZF5-13T	YZF10-20T	YZF16-25T	YZF20-30T	YZF25-40T	YZF34-45T
VOLTAGE (V)	220-240	220-240	220-240	220-240	220-240	220-240	220-240
FREQ (Hz)	50/60	50/60	50/60	50/60	50/60	50/60	50/60
INPUT (W)	25	35	40	60	75	90	110
OUTPUT (W)	3	5	10	16	20	25	34
CURRENT (A)	0.16	0.21	0.25	0.37	0.50	0.65	0.75
SPEED (r/min)	1300	1300	1300	1300	1300	1300	1300
AIR VOL (m³/h)	210	455	645	780	1000	1030	1080

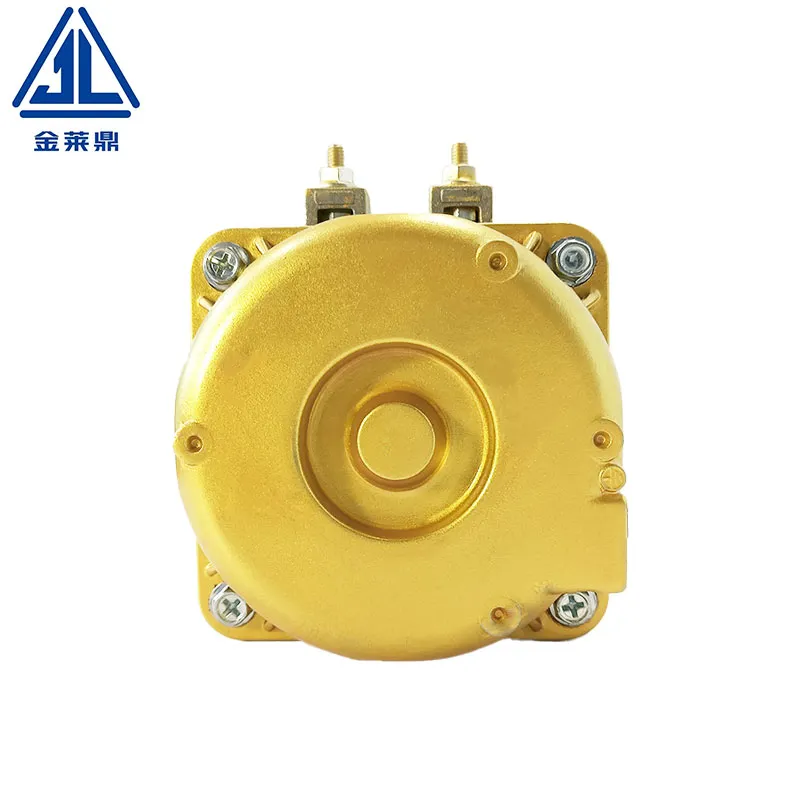

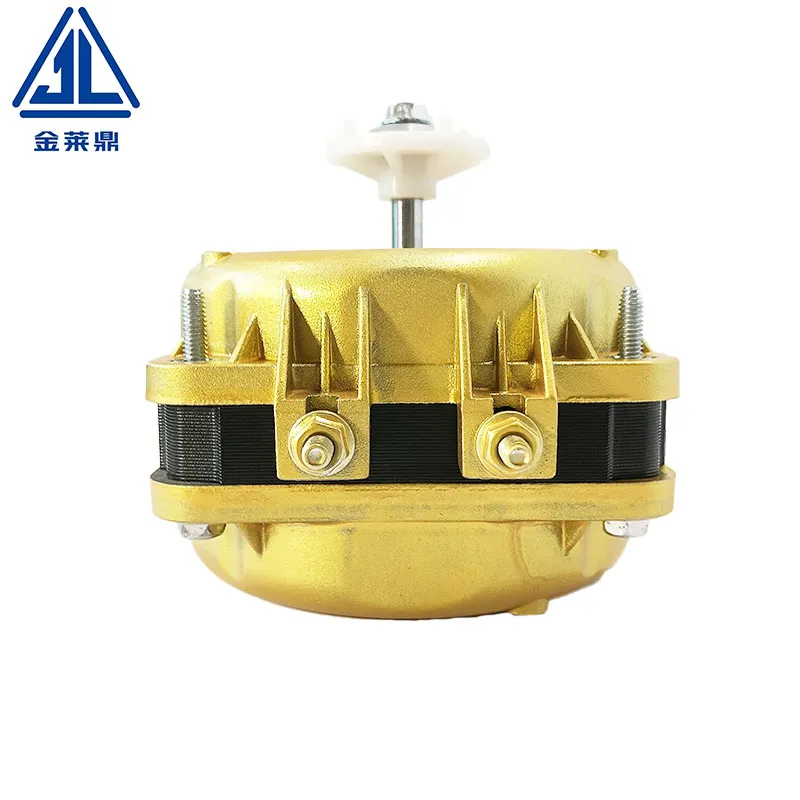

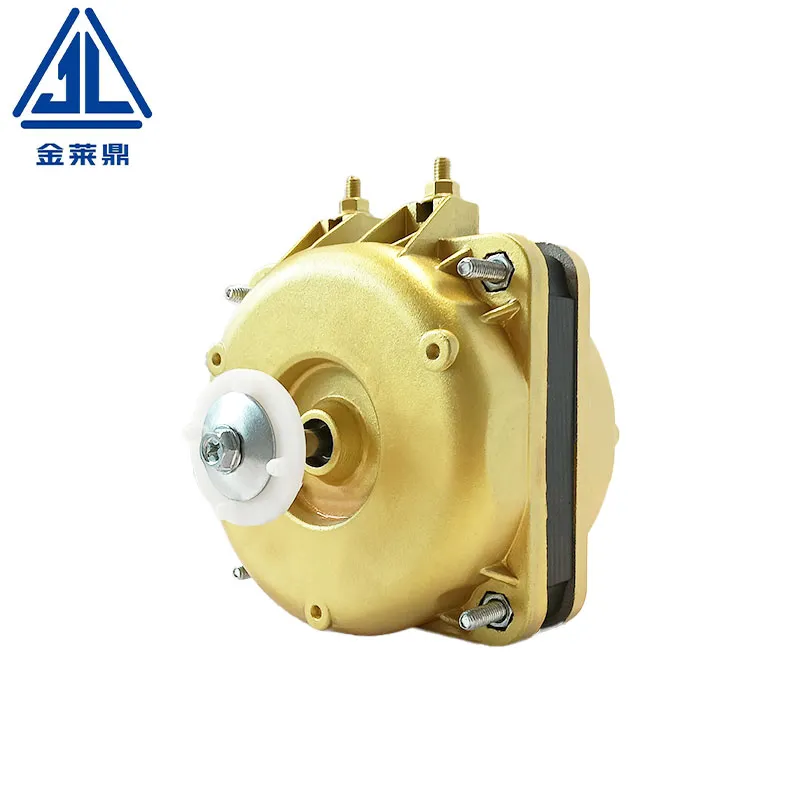

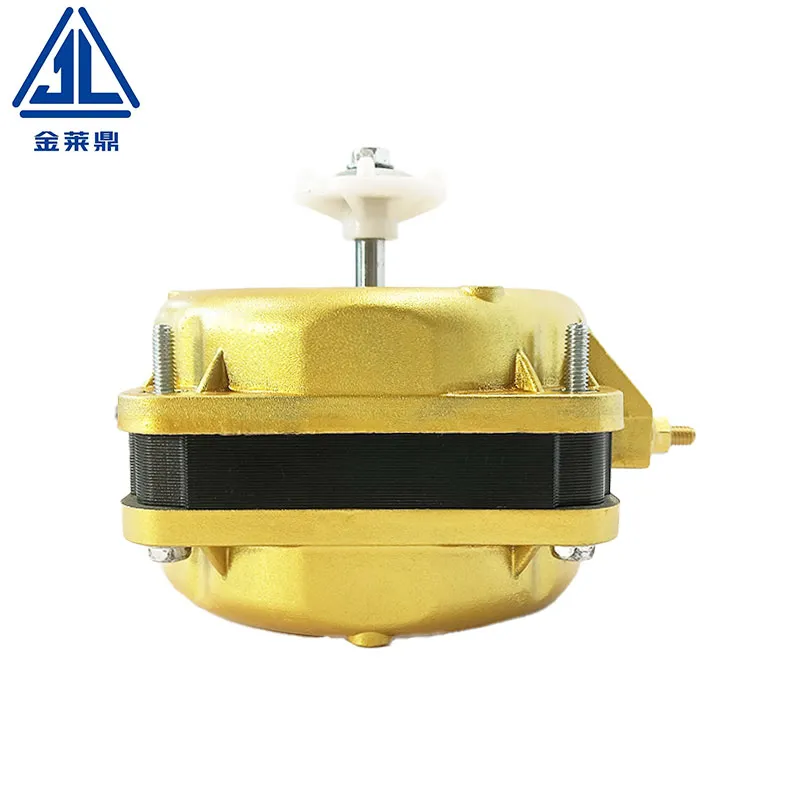

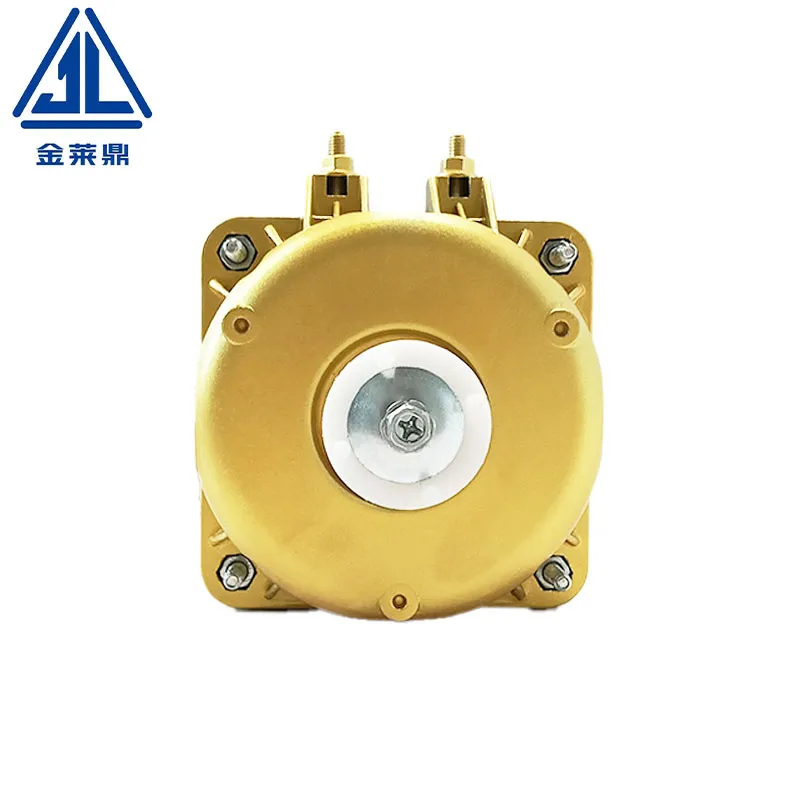

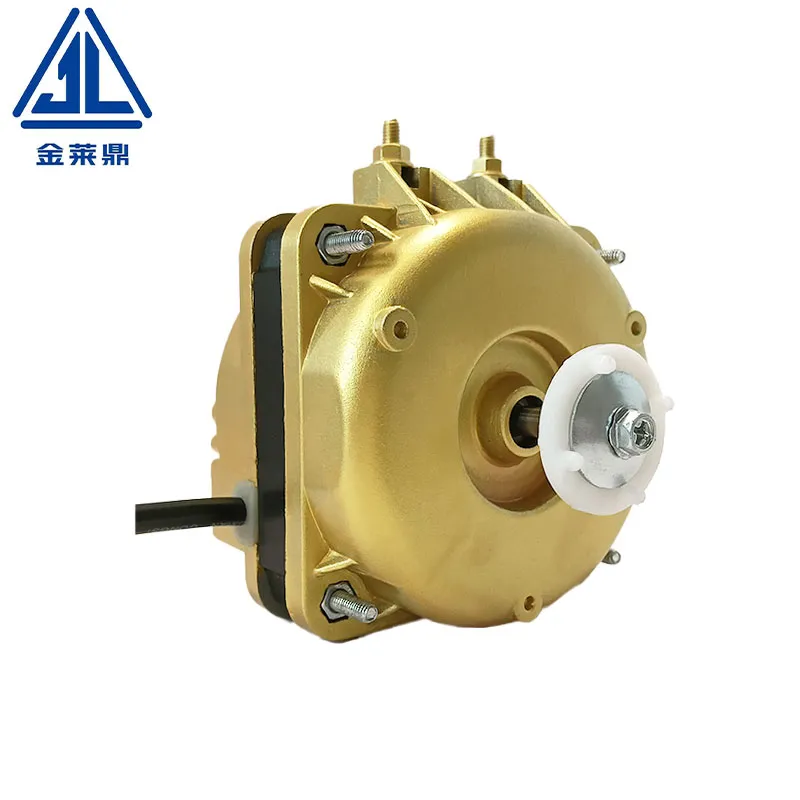

Detailed Photos

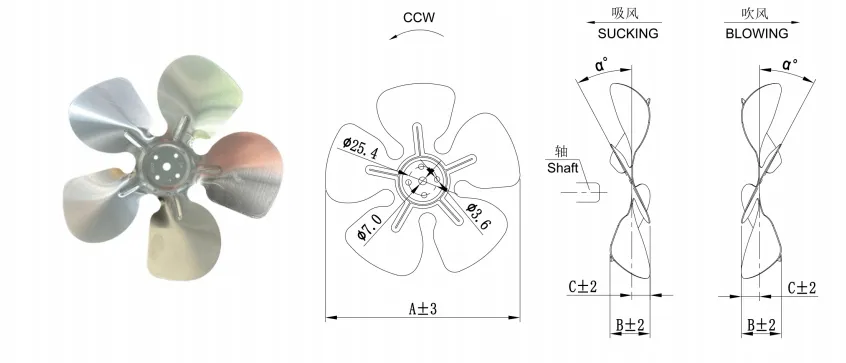

Fan Blade & Applications

Aluminium Blade: Diameters from φ154 to φ300, degree 22° to 34°. Faster performance than plastic.

Plastic Blade: Available in φ170 and φ200, degree 25° and 28°. More economical option.

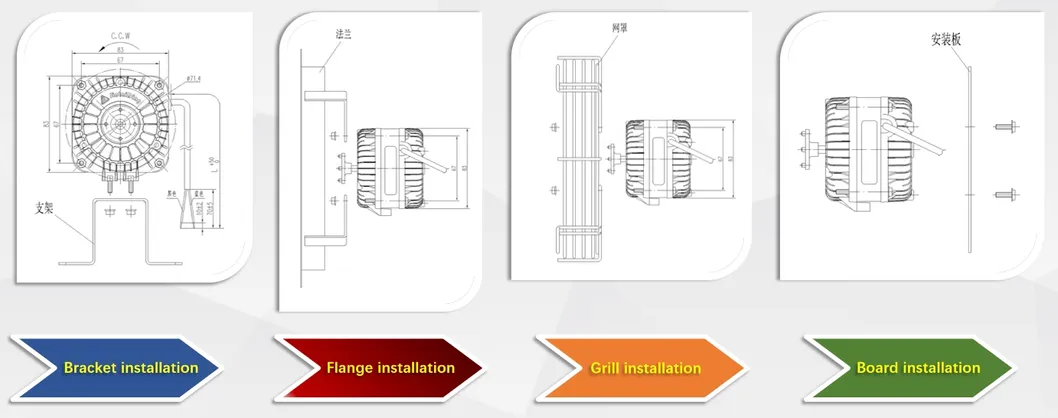

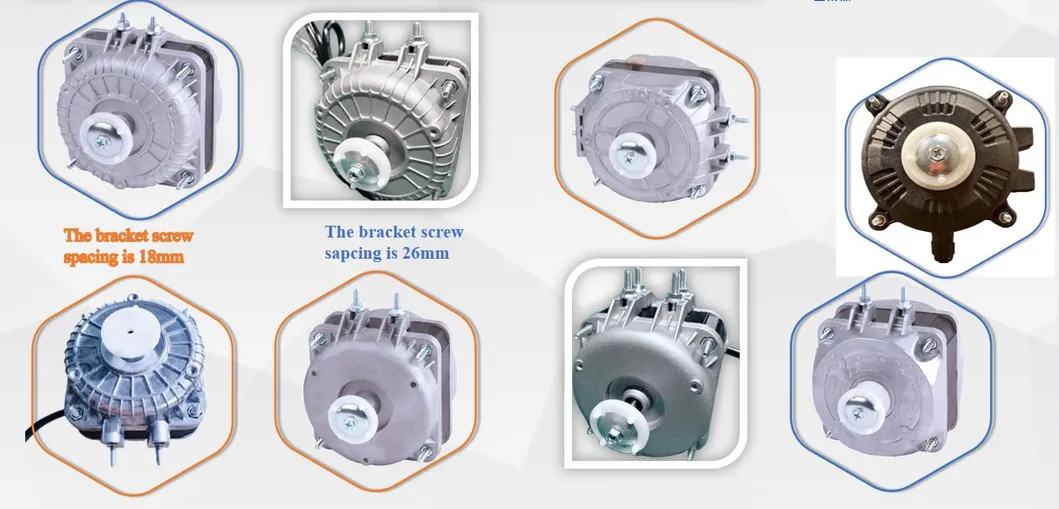

Installation & Cover Types

Frequently Asked Questions

What are the primary applications for these AC motors?

These motors are widely used in refrigeration equipment such as freezers, wine cabinets, fresh-keeping cabinets, condensers, and evaporators.

What is the difference between oil bearings and ball bearings?

Oil bearings (20,000h life) are quieter in terms of friction but have higher vibration, suitable for horizontal use. Ball bearings (30,000-50,000h life) have lower vibration and work in any orientation.

Are different voltage options available?

Yes, our motors support a wide voltage range from 110V to 240V at both 50Hz and 60Hz frequencies.

What fan blade materials do you offer?

We offer both aluminium blades (for higher speed and durability) and plastic blades (for cost-efficiency).

What certifications do these motors hold?

All products are manufactured to international standards and carry CCC and CE certifications.

What is the standard warranty period?

We provide a standard 18-month warranty for our refrigeration fan motors.
